Spacetronik SPE303LX User manual

7 1 8 1
3 1 4 1
1 3 2 3
5 3 6 3
AM6×16mm 12
C
D
M8×35mm
St4.2x20mm
Square spacer
46
12
1
B
4
E
150KG
600-1230mm
3
38mm/s
0-40°C
CE
220-240V
1100-1800mm
800-1300mm
9 1
1
2
5
7
3
8
4
6
9
2
3
C
E
E
5x5
Cx6
C
E
2
4
E
C
4
5
CE
3
5
E
AE
A
1
2
4
4
E
5x5
Cx6
E
4x4
Ax12
10 1
10
6
Item No.：SPE303LX
Installation guide
Technical data
Max Loading capacity
Height range
Length range
Column qty
Frequency continuous operation for 2 mins at most after pause for 18 mins
Max Speed
Temperature
Certification
Input Voltage
Accessory list
Attention: The drawings below are only for reference which might be
slightly different from the actual object, please in kind prevail. Any
tools missing or installation problems, please contact the customer
service firstly.
No. Image Spec Qty
Wrench
4x4mm
Wrench
5x5mm
Component list
No.Part Qty No.Part Qty
No.Part Qty No.Part Qty
No.Part Qty No.Part Qty
No.Part Qty No.Part Qty
No.Part Qty No.Part Qty
Pedestal pad lifting column
Supporting beam Auxiliary beam
Supporting plate Cable management
Power cable Control box
Handswitch
Cable

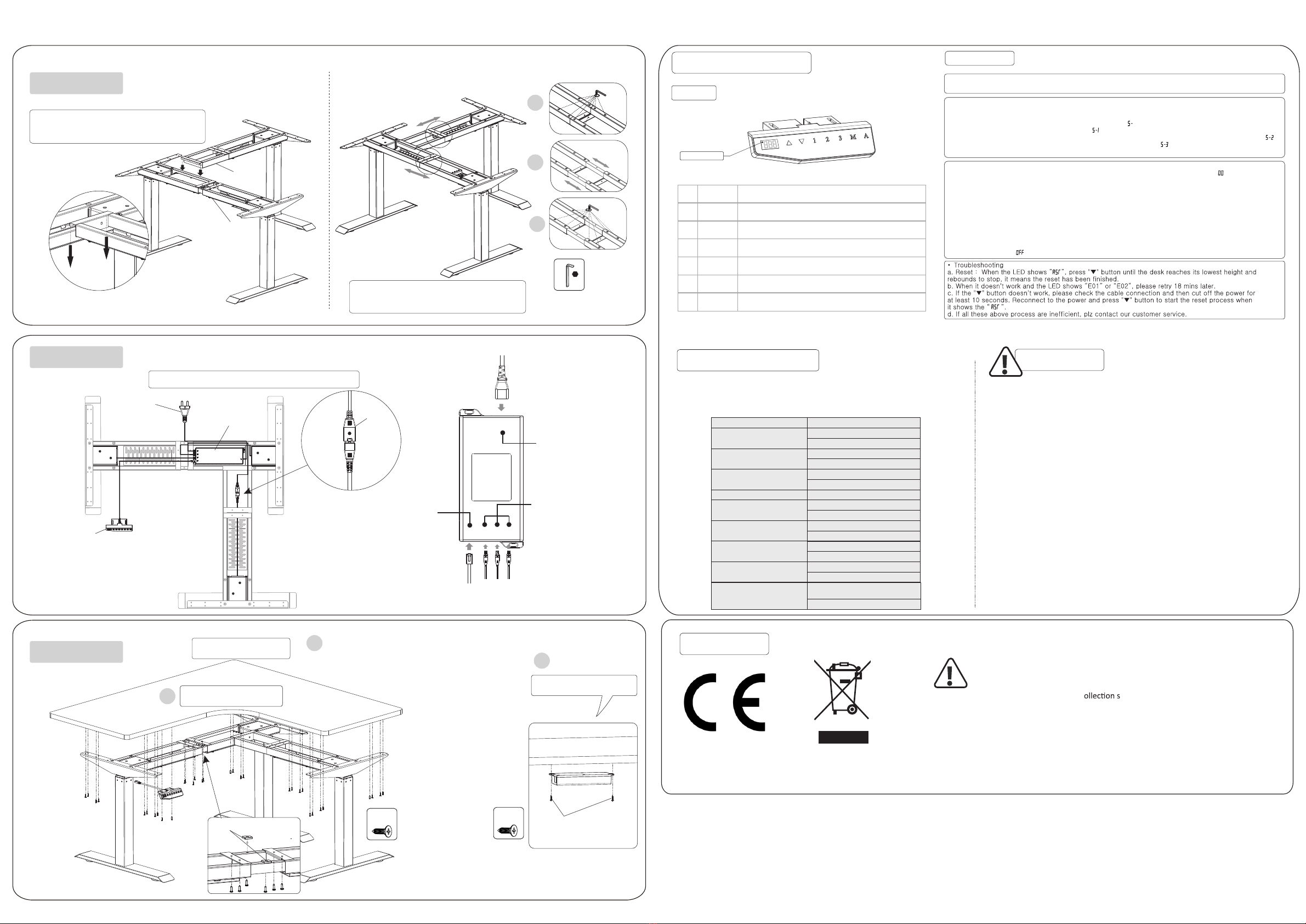

Install lifting column (2)and supporting beam (3)
together, use wrench (E) to tighten the screws (C).
Install supporting beam
Step 1
Install auxiliary beam
Install lifting column (2) and auxiliary beam (4)
together, use wrench (E) to tighten the screws (C).
Step 2
Install supporting plate (5) and
supporting beam (3) together, use
wrench (E) to tighten the screws (C)
Install supporting plate (5) and auxiliary beam (4)
together, use wrench (E) to tighten the screws (C)
Step 3
Install pedestal pad (1) and lifting column (2) together, use
wrench (E) to tighten the screws (A).
Step 4
Slide the cable management
Tighten the screws

A C
HS M1 M2 M3
4
3
7
8
9
Bx38
DB
11
Bx2
11
12
E
4x4
11
12
3
10
Step 5
Install auxiliary beam(4) onto the
supporting beam(3),adjust the location
according to the table size.
Adjust the distance between supporting
beam(3) and auxiliary beam(4) according
to the table shape.
Tighten
Loose
Pull
Step 7
Connect All the Cables onto the Control Box(8)
Handswitch
Power port
Port for cable
connected to the
lifting column
Step 8 Install table top
Way 2 to install control box (8)
Put the square
spacer(D) onto
the square tube Install control box (8)
onto the table top.
Way 1 to install control box (8)
Attention
●“▲” Adjust the desk upwards
●
●
●
●
●
●
“▼”
“1”
Adjust the desk downwards
Position 1, first height position saved by user
Position 2, second height position saved by user
Alarm button for reminding of keeping same
position for long time
Position 3, third height position saved by user
Memory button for height memory function
“2”
“3”
“M”
“A”
LED display
Button
How to use handswitch
Fault phenomenon Method
No response while long pressing
down arrow after connected with
a power supply
1.Check if all the cables be connected we ll
1.Check if all the cables be connected we ll
2.Contact your supplier or dealer
2.Contact your supplier or dealer
No response while pressing up
arrow/ down arrow after
connected with a power supply
Rising in a low speed
1.Check if overloaded, max loading: 150kg;
1.Check if overloaded, max loading: 150kg;
1.Check if overloaded, max loading: 150kg;
2.Contact your supplier or dealer
2.Contact your supplier or dealer
2.Contact your supplier or dealer
The motor not move as instructed 1. Contact your supplier or dealer
1.Reposition
2.Contact your supplier or dealer
Go down but not go up
Downward sliding
Frequently Reposition
Overwork
（Duty cycle:Max 2min on/18min OFF）
1.Restart after suspend for 18mins while
connecting with power;
2.Contact your supplier or dealer;
1. Press "M"and "3" together for 3 seconds or
more, after hearing continuous beeping for twice,
it will restore factory settings
Not enough up&down height
Common fault treatment
The following tips will help you detected and eliminate the common fault and error.
If the fault you met is not listed below, please contact with your supplier. Only the
manufacturer and professionals are capable for investigating and correcting
those fault and error.
2.Contact your supplier or dealer
1. Power supply: AC220V-240V,50/60Hz
2. Service Environment: 0-40℃
3. Unplug the power plug before cleaning, wipe the dust on surface with slight wet dishcloth
when cleaning, be careful not to let the drops into the internal parts, not loose the connector.
4. The electric box contains electronic components, metals, plastics, wires etc., so dispose of
it in accordance with each country's environmental legislation, not the general household
waste.
5. Check carefully to ensure correct and complete assembly before using.
6. Be familiar with all functions and program settings of the product before first use.
7. Children are forbidden to play on the product because of unforeseen action when playing,
so any dangerous consequences caused by this improper action will not be on
8. Slight noise caused by the V-ribbed belt or brake system due to structure will not have any
effect on the use of the equipment.
9. Corrosive or abrasive materials are forbidden to clean the equipment. Must ensure that the
cleaner used will not pollute the environment.
10. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance.
11. Cleaning and user maintenance shall not be made by children without supervision.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
a similarly
qualified person in order to avoid a hazard.
13. Please make sure there is no hazard sources in your operating environment. e.g., do not
litter the tools around. Always be careful to treat the packaging materials in order to avoid any
possible danger, e.g. plastic bag may lead to choking hazard to children.
14. Keep the original package of the equipment if necessary in case of the future use in
transportation.
Instruction
• Press the UP button or DOWN button to lift or lower the height of desk surface. The LED display
shows the real time value. The range of the height value: 60.0cm-123cm.
• Saving A Height Position
a. Press the UP button or DOWN button to lift or lower the height of desk surface. For instance,
adjust the height to 80cm.
b. Press "M" SAVE button and the LED display shows" ", then press "1" to save the 1st height
position to 80cm. The LED display shows " ".
c. Repeat step a and step b to save the 2nd height position to 100cm The LED display shows " ".
Save the 3rd height position to 120cm The LED display shows " ".
d. Press "1", "2","3", to automatically reach the height saved before.
• Long-Time Sitting Reminder
a. Press REMINDER button "A" to activate the function. The LED display shows " "
b. Two seconds later, press the "▲" or "▼" button to adjust the reminder time only when the display
screen flashes. Then press any button to save the time setup, or wait 5 seconds and system will
save the time setup automatically. During the countdown, any operation will lead to a repeat
starting of the timer. When the countdown finishes, the buzzer will be active with a 10-second
"DiDi...DiDi...DiDi..."tone.
c. Within the 10-second reminder buzz, press any button to reactivate the time countdown that is
set up in (b) step. If no operation during the 10-second reminder buzz, there will be another
reminder buzz after 5 minutes. No operation during the second buzz will turn off the Long-Time
Sitting Reminder.
d. Press and hold the "A" button for three seconds to turn off the Long-Time Sitting Reminder. The
LED display shows " ".
