SLV-5450
Installation, Operation & Maintenance Instructions
SENTINELPRO™ COMBINATION SERIES
DESCRIPTION
Speakman SentinelPro™ Combination, SLV-5450 includes: Trim with integral Volume Control / Diverter
Handle (CPT-5401), Hand Shower with Flow Control (VS-100-PC), Supply Ell with Wall Flange (VS-115), In-line
Vacuum Breaker (VS-117), 30in Slide Bar (VS-123), Tub Spout (S-1554), and 69in Metal (SS) Hose. This
combination does not include the Shower Valve.
This combination should be installed with one of the following
Speakman SentinelPro™ Thermostatic/Pressure Balance Diverter Shower Valves
CPV-TP-DV: Thermostatic/Pressure Balance Diverter Shower Valve
Sweat & Thread Connections
CPV-TP-DV-PXC: Thermostatic/Pressure Balance Diverter Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-TP-DV-PXE: Thermostatic/Pressure Balance Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
SPECIFICATIONS
CPT-5401 T/P DIVERTER VALVE TRIM:
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
VS-100-PC HAND SHOWER WITH FLOW CONTROL:
CONNECTIONS: ½” NPSM Male Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
VS-115 SUPPLY ELL WITH WALL FLANGE:
CONNECTIONS: ½” NPT Female Inlet; ½” NPSM Male Outlet
FINISH: Polished Chrome
VS-117 IN-LINE VACUUM BREAKER:
CONNECTIONS: ½” NPSM Female Inlet; ½” NPSM Male Outlet
FINISH: Polished Chrome
COMPLIANCE: ASSE 1014 Standard
VS-123 30in SLIDE BAR:
FINISH: Polished Chrome
S-1554 TUB SPOUT:
CONNECTIONS: ½” NPT Female Inlet
FINISH: Polished Chrome

SPEAKMAN®
400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]
07/31/18 www.speakman.com 92C-SLV-5450-01
INSTRUCTIONS
See individual products for installation of the components and warranty information.
ROUGH-IN

INSTRUCTIONS FOR MODELS
92-CPT-5001-01
For additional assistance or service please contact:
SPEAKMAN®Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerser[email protected]
www.speakman.com
CPT-5001 / CPT-5401
TOOLS AND SUPPLIES
Phillips
Screwdriver
Silicone Caulk Gun
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This valve has an operating range of 20-80 psi.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
1Remove the Handle Button Screw by inserting one of the included Mounting Screws thru the hole in the Handle.
2Insert the T/P Rubber Sleeve with Tabs over
Valve Bonnet.
3Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as per the Valve Installation
Instructions before installing
Valve Trim. Slide Trim Sleeve
over the Rubber Sleeve.
Ensure the tabs are
properly seated within
the grooves of the
Trim Sleeve.
4Clean wall surface. Orient Wall Plate as shown below. Apply clear silicone sealant to the backside outer flat
surface of the Wall Plate, while leaving a small area open at the bottom. This will allow for any moisture to drain.
5A FOR CPT-5001 - Align the Wall Plate (1) as shown below. Secure to Valve with the included Mounting Screws
(2). Take care to not over tighten Mounting Screws. Remove excess sealant after securing Wall Plate to wall.
5B FOR CPT-5401 - Align the Wall Plate (1) as shown below. Verify the Diverter Valve Stem is in the OFF (vertical)
position. Align the Diverter Drive Tube (3) on the Wall Plate to the Stem (4) of the Diverter Valve. Secure to Valve
with the included Mounting Screws (2). Take care to not over tighten Mounting Screws. Remove excess sealant
after securing Wall Plate to wall.
* VIEW FROM BACK OF WALL PLATE
6Remove protective film from Trim Index Plate.
7
OR
CPT-5001: Slide Index Plate over
the Trim Sleeve. Align Index Plate
with the small Alignment Pin on the
Wall Plate, and hold Index Plate in
place for the next step.
CPT-5401: Slip the upper hole of
the Index Plate over the Diverter
Handle and then align the large hole
of the Index Plate over the Trim
Sleeve. Align Trim Index Plate with
the small Alignment Pin on the Wall
Plate, and hold Index Plate in place
for the next step.

8Ensure the Rubber Gasket is correctly installed to the Retaining
Ring. Align the Retaining Ring with the slots on the Wall Plate.
Press and Rotate the ring clock-wise until it Locks / Seals in place.
Make sure the seal is secure with the Wall Plate.
9Temporarily place Handle over splines and adjust the valve to
the OFF position (as per the Valve Instructions). Then, align Handle
vertically as shown below. Secure Handle to Spindle with the
included #8 Screw.
10 Insert Handle Button into the Handle.
* VIEW FROM BACK UNDERSIDE OF HANDLE
If further adjustments need to be made after
the Handle Button is inserted, there is an
access hole at the back side of the handle.
Use a paper clip to push the Button back out.
CPT-5001 / CPT-5401 REPAIR PARTS SPEAKMAN®
ITEM NO. PART NO. DESCRIPTION
RPG04-0443 HANDLE ASSEMBLY
RPG05-1111 RETAINING RING WITH SEAL
RPG05-1110 TRIM SLEEVE AND RUBBER SLEEVE
RPG41-0286 INDEX PLATE
RPG10-0120 WALL PLATE
RPG10-0121 WALL PLATE WITH DIVERTER
RPG10-0119 MOUNTING HARDWARE (ALL SCREWS)
RPG41-0286-DV DIVERTER MODEL INDEX PLATE

CPT-5001 ROUGH-IN DIAGRAM SPEAKMAN®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH CPT-5000
4.31in
110mm
1.53in
39mm
3.75in
95mm
6'-6" [2 METERS]
TO FLOOR
1'-9" [533mm]
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
ONLY)
4" [102mm]
TO TOP OF
TUB LEDGE
1"
25mm
HOLE FOR
SHOWER ARM
1"
25mm
HOLE FOR
TUB SPOUT
A
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
2-1/2" MIN
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
7.50in
191mm
3.50in
89mm
CPT-5401 ROUGH-IN DIAGRAM SPEAKMAN®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH CPT-5400
4.31in
110mm
1.53in
39mm
3.75in
95mm
6'-6" [2 METERS]
TO FLOOR
1'-9" [533mm]
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
ONLY)
4" [102mm]
TO TOP OF
TUB LEDGE
1"
25mm
HOLE FOR
SHOWER ARM
1"
25mm
HOLE FOR
TUB SPOUT
A
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION 1/2" NPT MALE
1/2" SWEAT
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
2-1/2" MIN
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
7.50in
191mm
3.50in
89mm

INSTRUCTIONS FOR MODELS
92-VS-100-PC-04
For additional assistance or service please contact:
SPEAKMAN®Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerser[email protected]
www.speakman.com
VS-100-PC
VS-100-PC-E2
VS-100-PC-E175
TOOLS AND SUPPLIES
IMPORTANT
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Thread Seal
Tape
(included)
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This hand shower
has an optimal operating range of 20-80 psi.
Periodic cleaning using a mild soap and warm water
will help keep your Hand Shower’s appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED HAND SHOWERS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the hand shower soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.

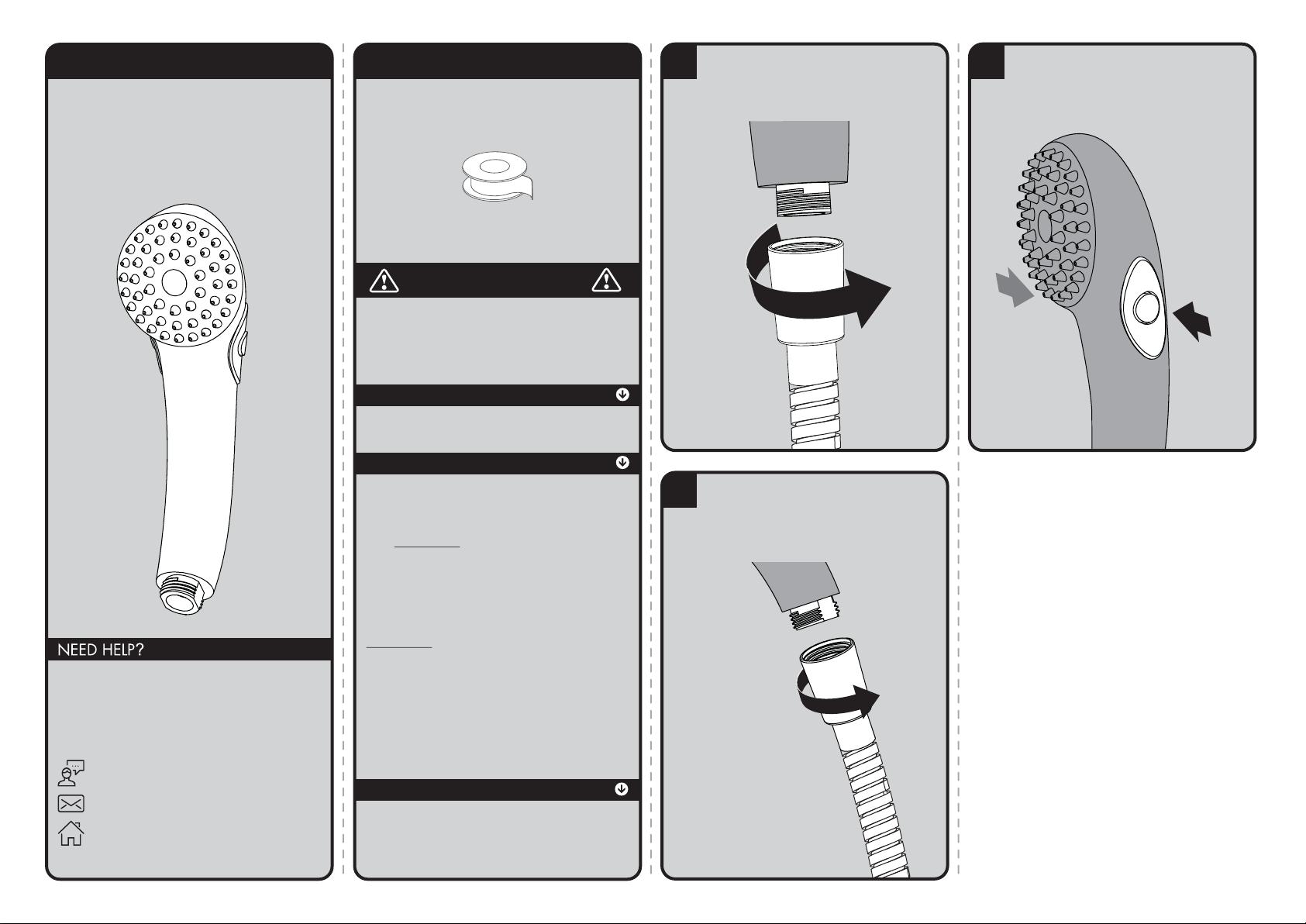

2Connect remaining end of Hose to inlet
of Hand Shower. Hand tighten. If there
are leaks at the hose connections, look
into using thicker washers to ensure a
tight seal.
1Connect the correct side of your hose
(not included) to the water supply.
Hand tighten.
3To pause the flow of water, press the integral
thumb operated pause/trickle button located
on the side of the hand shower. To return the
hand held shower to full flow, press the shuttle
button from the opposite side.

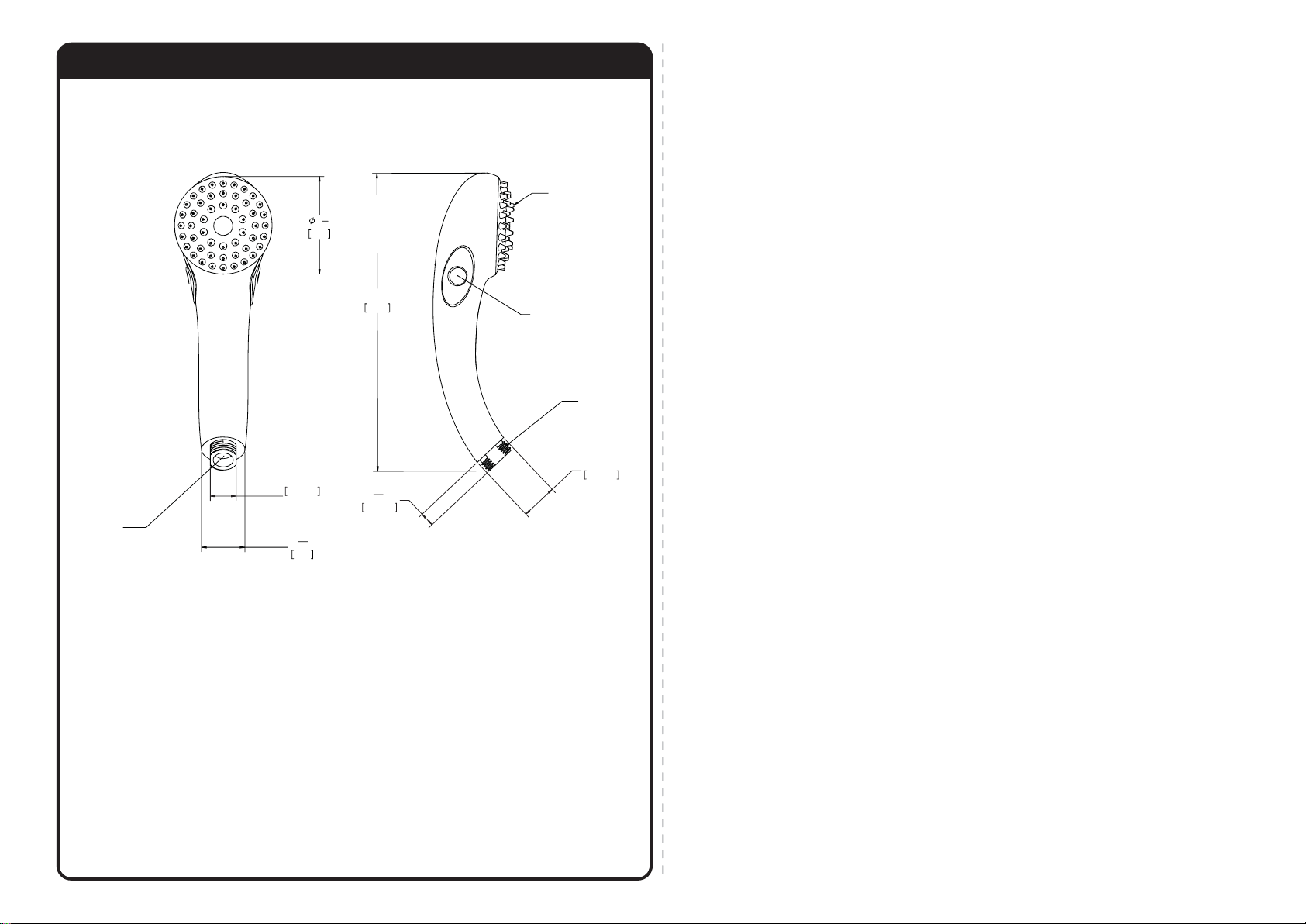

ROUGH IN DIMENSIONS
VS-100-PC-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 5.7 L/MIN (1.5 GPM) OR LESS.
VS-100-PC-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 6.6 L/MIN (1.75 GPM) OR LESS.
VS-100-PC
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 7.6 L/MIN (2.0 GPM) OR LESS.
13
32
"
10.16mm
81
2
"
215.90
1"
25.40mm
1/2-14 NPSM
MALE THREADED
INLET
50 RUBBER
TIPPED SPRAYS
PAUSE
BUTTON
.714in
18.14mm
ACROSS
FLATS
3
1
8
"
79.38
13
16
"
30.18
FLOW CONTROL
INSERTED INTO
HANDLE

09/07
REV 1
92-1775
SPEAKMAN COMPANY
VS-115 Installation, Maintenance & Operation Instructions
VERSATILE ® SUPPLY ELL
DESCRIPTION
VERSATILE® chrome plated brass supply ell with wall flange.
SPECIFICATIONS
SUPPLY INLET: ½” NPT FEMALE
OUTLET: ½” NPSM MALE
SHIPPING WEIGHT: 0.4 LBS.
INSTALLATION
Slip the wall flange on to the inlet pipe. Using teflon tape or pipe dope on threads, screw ell onto pipe and wrench
tighten. Connect accessories to supply ell and firmly hand tighten. Turn water supply on and check for leaks.
MAINTENANCE
Product improvements may cause
specification and dimensional
changes without notice.
The gleaming finish of your SPEAKMAN
VERSATILE® VS-115 supply ell can be cleaned by
using mild soap and warm water. Dry immediately
with a soft, clean cloth for best results.
ROUGH-IN MEASUREMENTS
SPEAKMAN®
PO Box 191 Wilmington, DE 19899 Phone: [phone] Fax: [phone]
Visit us on the web at www.speakmancompany.com

SPEAKMAN COMPANY

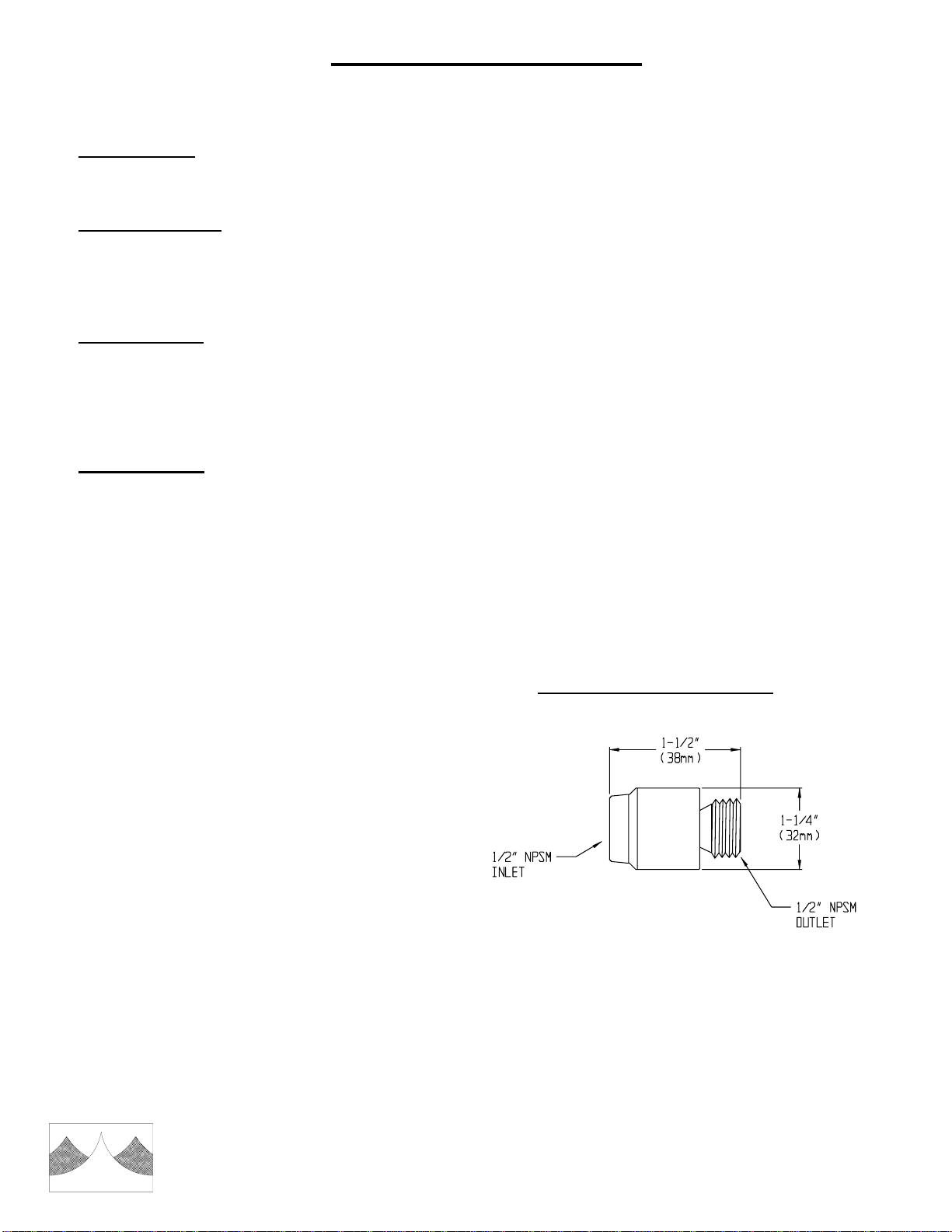

VS-117 Installation, Maintenance & Operation Instructions
VERSATILE ® VACUUM BREAKER
DESCRIPTION
VERSATILE® chrome plated brass in-line vacuum breaker.
SPECIFICATIONS
SUPPLY INLET: ½” NPSM FEMALE
OUTLET : ½” NPSM MALE
SHIPPING WEIGHT: XXX LBS.
INSTALLATION
Connect, using rubber washer, to supply piping. Connect accessories to vacuum breaker. Firmly hand tighten
connection. Turn water supply on and check for leaks.
Note: Do not install VS-117 in concealed locations or where spillage under certain service conditions might cause
water damage. Avoid continuous pressure applications (shut off valve downstream of the vacuum breaker).
MAINTENANCE
The gleaming finish of your SPEAKMAN
VERSATILE® VS-117 vacuum breaker can be
cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.
ROUGH-IN MEASUREMENTS
Product improvements may cause
specification and dimensional
changes without notice.
SPEAKMAN COMPANY
The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: [phone]
04/00
92-1783

INSTRUCTIONS FOR MODELS
92-VS-12X-01
For additional assistance or service please contact:
SPEAKMAN®Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerser[email protected]
www.speakman.com
VS-123
VS-124
TOOLS AND SUPPLIES
Level
Phillips
Drive Bit
Measuring
Tape
Phillips
Screwdriver
Pencil
Drill
Drill Bit
Ø1/4”
Tile Drill Bit
Ø1/4”
Mounting Hardware
(included)
• Cover your drain to prevent loss of parts. Be sure
to wear eye protection.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
Warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
1Remove End Caps from both ends of Slide Bar
assembly.
X2
2Place Slide Bar Assembly on to wall in the
desired mounting position. Take care that the
Slide Bar is oriented in a vertical position. Using
a pencil, mark the 2 hole locations.
3If mounting directly to wood stud, Plastic Anchors
are not required. If mounting to drywall or tile,
select appropriate 1/4" drill bit and drill guide
holes at marked locations.
Ø1/4”
OR OR
X2
4Insert Plastic Anchors into drilled holes and
press/tap into place until the head is flush to the
wall surface. (Note: Plastic Anchors provided
may not be suitable for all types of wall
construction, seek professional help if in doubt).
X2
5Secure Slide Bar Assembly to the wall with the
Mounting Screws provided.
X2
6Re-install End Caps on both ends of Slide Bar
assembly.
X2
7Orient the Hand Held Shower Bracket to your
desired position. Adjustments are made by
rotating the Handle counter-clockwise to release
the position, and clockwise to lock into the
desired position.
8Note: If the Hand Shower Holder no longer
holds position, Tighten the Screw (1) in the
Shower Holder using a Philips Head
Screwdriver.

VS-123 / VS-124 REPAIR PARTS SPEAKMAN®
RPG05-108526 MOUNTING HARDWARE
RPG07-108527 END CAP REPAIR GROUP
RPG56-108517 HAND SHOWER HOLDER
ITEM NO. PART NO. DESCRIPTION
VS-123 ROUGH-IN DIAGRAM SPEAKMAN®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
13
4
"
45mm
49
16
"
116mm
11
16
"
18mm
23
4
"
69mm
30"
762mm
30 7
16
"
773mm
31 3
4
"
807mm
11
2
"
38mm
VS-124 ROUGH-IN DIAGRAM SPEAKMAN®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
13
4
"
45mm
49
16
"
116mm
11
16
"
18mm
41 15
16
"
1066mm
42 9
16
"
1081mm
43 3
4
"
1111mm
11
2
"
38mm

04/00
92-1819
SPEAKMAN COMPANY
S-1554 Installation, Maintenance & Operation Instructions
TUB SPOUT
DESCRIPTION
Speakman polished chrome plated metal tub spout.
SPECIFICATIONS
½” NPT FEMALE INLET
SHIPPING WEIGHT: XXX LBS.
INSTALLATION
Apply teflon tape or pipe dope to male threads and thread spout onto piping. Wrench tighten carefully. Check all
connections for leaks.
MAINTENANCE
SPEAKMAN COMPANY
The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: [phone]
Product improvements may cause
specification and dimensional
changes without notice.
The gleaming finish of your SPEAKMAN tub spout can
be cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.
ROUGH-IN MEASUREMENTS
