SPORTS AFIELD SA-HD1-BIO User manual

072921
QUICK ACCESS BIOMETRIC SECURITY VAULT
INSTRUCTION MANUAL FOR SA-HD1-BIO

www.saproducts.com 1
TABLE OF CONTENTS
IMPORTANT INFORMATION ............................................................................................... 2
1. REGISTRATION ................................................................................................................ 3
2. UNDERSTANDING YOUR VAULT ...................................................................................... 4
3. INITAL ENTRY................................................................................................................... 5
4. BATTERY INSTALLATION .................................................................................................. 5
5. PROGRAMMING YOUR FINGERPRINT......................................................................... 6
6. OPENING VAULT WITH PROGRAMMED FINGERPRINT ................................................. 7
7. PROGRAMMING ADDITIONAL FINGERPRINTS ............................................................. 8
8. TROUBLE SHOOTING........................................................................................................9
9. LOCKOUT MODE AND TAMPER PROTECTION................................................................. 10
10. SILENT ENTRY MODE .................................................................................................. 10
11. CLEARING ALL PROGRAMMED FINGERPRINTS........................................................... 10
12. SECURING YOUR VAULT .............................................................................................. 11
13. LOADING YOUR VAULT................................................................................................12
14. MAINTAINING HINGES AND INTERNAL MECHANISMS .............................................. 12
WARRANTY ....................................................................................................................... 13

2
DISCLAIMER - READ BEFORE VAULT SETUP
WEAPON STORAGE
SAFETY
Thank you for choosing a Sports Afield vault to protect your valuables. We are
commied to securing, organizing and protecng your most important documents,
valuables and keepsakes.
If you experience problems or challenges with your vault, please contact us.
Many issues can be quickly resolved without the product being returned.
Be sure to keep backup keys stored in a safe place away from unauthorized users
Do not put anything in your vault that will put pressure against the door when
it is closed.
If you choose to ulize this vault to store a weapon always follow proper weapon and
local laws.
SA Consumer Products strongly recommends that you do not store loaded firearms.
Always follow the firearm safety rules set out by the firearm’s manufacturer.
Store ammunion separately from valuables.
A Sports Afield vault or any other firearm storage device cannot take the place
of other safety procedures including advising children of the dangers of firearms.
SA Consumer Products and its distributors of the Sports Afield vaults do not
recommend, suggest, advise, promote, or otherwise condone the ownership or use of
firearms. We believe the decision to own or use a firearm is a serious decision that
should only be made by an adult who has carefully considered
the risks and benefits of such a decision.
PLEASE READ THIS INFORMATION CAREFULLY BEFORE OPERATING YOUR
SPORTS AFIELD VAULT.
DO NOT LOCK THIS MANUAL OR THE ACCESS KEYS IN YOUR VAULT.
Contact Customer Service at [email protected] or [phone]

3
Register your vault at www.saproducts.com
PURCHASE DATE:
PURCHASE PRICE (BEFORE TAX):
MODEL NUMBER:
SERIAL NUMBER:
KEY NUMBER (IF APPLICABLE):
1. REGISTRATION
RETAILER NAME:
By registering your Sports Afield vault we will be able to expedite and address
any problems or challenges you may havewhich would otherwiserequirea
notary leer and proof of payment.
Theinformaon you record onto this page will be required in the event you
cannot access thecontents of your Sports Afield vault. Pleasefill out all the
required informaon below and retain for your records and safe keeping.
PLEASE HAVE THIS INFORMATION READY PRIOR TO CALLING FOR TECHNICAL
ASSISTANCE AT:
Contact Customer Service at [email protected] or [phone]
REGISTRATION INFORMATION

2. UNDERSTANDING YOUR VAULT
4
Key Entry
Biometric
Scanner
BATTERY
COMPARTMENT
RESET BUTTON
(INSIDE BATTERY
COMPARTMENT
SECURITY
CABLE

5
4. BATTERY INSTALLATION
1.
WARNING: Thebaeries must be inserted with the correct polarity. Exhausted baeries
must beremoved from theproduct and discarded safely. Do not use rechargeable
(nickel – cadmium) baeries.
Locate the baery cover
on the interior vault lock housing.
Remove the cover with the screw
driver (included). Insert the 4
AAA baeries in the proper
orientaon. The keypad will
beep when the baeries are
successfully installed.
1.
2.
Step 1
3. INITIAL ENTRY
Locate the back up key on the
front surface of the vault.
Insert the back up key and
turn it counter-clockwise to
open your vault.
The spring loaded lid will
open upwards automacally,
but does not open to a fully
accessible posion.
Step 2
AUTOMATIC OPEN
MANUAL OPEN
Battery
Compartment
Screw
(remove for entry)

6
5. PROGRAMMING YOUR FINGERPRINT
1.
Remove the battery compartment cover
and locate the reset button inside.
2. Press and release the reset buon.
The biometric scanner will beep and
the indicator ring will illuminate,
indicang you are now in
programming mode.
NOTE: *Keep vault lid open while
programming new fingerprint*
Recording mode will me out aer 10
seconds of inacvity. If this occurs press
reset buon and begin again.
Battery
Compartment
Remove Screw
For Entry
Step 1
3. Place and hold the pad of your
finger on the scanner unl it flashes
green and beeps one me.
4. Repeat at least 3 more mes unl
there are 2 consecuve beeps and
2 green flashes.
BEEP
BEEP
BEEP
HOLD FOR BEEP
LIFT FINGER
Step 3Step 4
2 BEEPS + 2 GREEN FLASHES = SUCCESS!
Step 2
Reset
Button

6. OPENING VAULT WITH RECORDED FINGERPRINT
7
If your fingerprint is not accepted:
If indicator ring flashes 1 me and
sounds 1 me, the scanner did not
read your fingerprint (try again).
If indicator ring flashes red 5 mes
and sounds 5 mes, the scanner
read your fingerprint but did not
accept it.
Follow secon 5 to reprogram
your fingerprint.
With keys in hand, close the door.
Place and hold the programmed finger
on the scanner, if your fingerprint was
successfully programmed the indicator ring
will illuminate green and vault door will
open automacally.
x
1
x
1
FLASH
x
5
x
5
RED
LIGHT
SCANNER
LIGHT
TRY AGAIN
REPROGRAM

8
7. PROGRAMMING ADDITIONAL FINGERPRINTS (CONTINUED)
Press the reset buon and follow
Secon 4 instrucons again, for
each fingerprint zone you would
like to program.
If you experience any problems
reading your fingerprint, including
inconsistent readings, note the
area of your fingerprint that
doesn’t work properly, and
specifically re-program that area.
This scanner will hold up to 100
different fingerprints.
BEEP
BEEP
BEEP
HOLD FOR BEEP
LIFT FINGER
2 BEEPS + 2 GREEN FLASHES = SUCCESS!

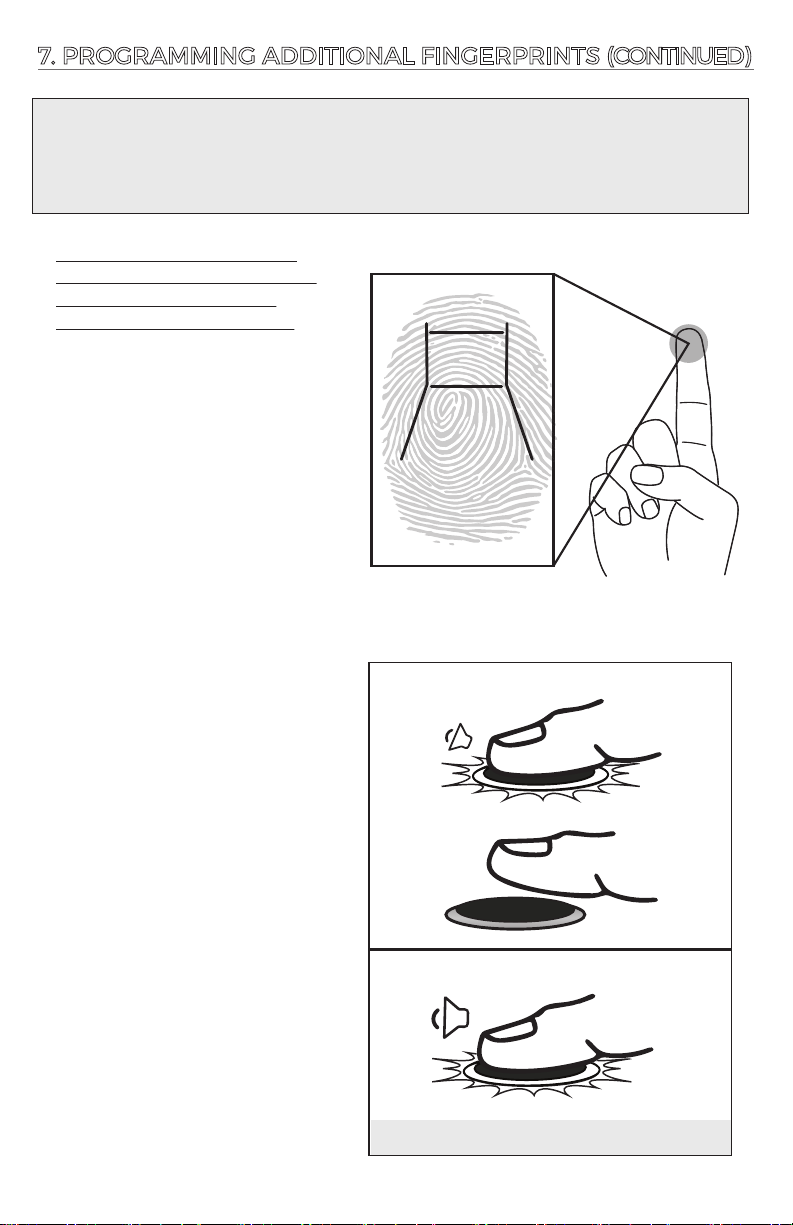

INDIVIDUALLY MAPPING ALL
ZONES OF YOUR FINGERPRINT
WILL ENSURE A RELIABLE
READING BY THE SCANNER.
To ensure each programming
sequence is properly captured, it
needs to read the exact same place
on your finger four mes in a row,
once successful you can move onto
the next zone of your fingerprint.
This counts as one programmed
fingerprint of 100 fingerprints this
unit can keep in memory.
Once programming sequence has
been successfully completed, you
can move onto the next zone of your
fingerprint.
TIP
RIGHT
TOP
MIDDLE
LEFT
When accessing your vault quickly, there is a chance you might press
the scanner with a part of your finger that you have not registered before.
For this reason, we recommend programming addional areas of your
fingerprint to ensure fast and reliable entry to your vault.

9
8. TROUBLE SHOOTING
Low Battery Warning
In the event that you run into issues with programming and accessing your
vault, please read through this secon for answers to your quesons.
Locked Out Of Your Vault
In the event you are locked out your vault, use your backup keys to gain access and
follow the secon 3 Inial Entry instrucons.
If you have lost your backup keys, or are sll having any difficules, contact customer
service at the number below. Proof of purchase is required to obtain keys.
SOLUTIONPROBLEM
Contact Customer Service at [email protected] or [phone]
BATTERIES ARE LOW
IF THE BIO SENSOR
TURNS PURPLE.
If you noce your indicator ring is not
remaining on for a few seconds upon entering,
replace baeries immediately to avoid being
locked out of your vault.
THE SCANNER IS
NOT READING
YOUR FINGERPRINT
YOUR PROGRAMMED
FINGERPRINT IS NOT
READING AT ALL TIMES
Placing a poron of a fingerprint on the scanner that
has not been programmed can result in an error. We
recommend programming mulple areas of each
fingerprint.
SOLUTIONPROBLEM
Make sure to hold down your finger on the scanner
instead of tapping. Scanner needs me to complete
the scanning process.
Fingerprints may lack definion due to excessive skin
dryness. We recommend applying moisturizer or slide
your fingerprint against your forehead before
scanning process.

10. SILENT ENTRY MODE
9. LOCKOUT MODE/ TAMPER PROTECTION
11. CLEARING ALL PROGRAMMED FINGERPRINTS
10
HOLD DOWN
THE RESET BUTTON
x
2 x
2
GREEN
LIGHT
NOTE:
If 100 max fingerprints have already been programmed indicator ring will flash 5 mes
and beep 5 mes. We recommend clearing all programmed fingerprints and starng the
programming process over.
Hold Reset buon. Inially, the
indicator ring will flash green and
beep once. Connue holding reset
buon for 5 seconds, the indicator
ring will flash green two mes
and beep two mes.
To iniate silent entry mode, hold a programmed
finger on the scanner for 5 seconds beyond your
fingerprint being accepted. The green indicator
ring will turn off and back on, but will not beep,
indicang you are now in silent entry mode.
You will not hear any sounds for any funcons
while the vault is in silent entry mode.
To turn the sound back on, hold a programmed
finger on the scanner for 5 seconds beyond your
fingerprint being accepted. The green indicator
ring will turn off and back on and will beep once
indicang you are no longer in silent entry mode.
1. Three consecuve incorrect code entries will
put the vault in “Basic Lockout” mode. Scanner
is deacvated for 30 seconds.
2. Aer “Basic Lockout” mode has ended, another
three consecuve incorrect code entries will
result in “Severe Lockout” mode. Scanner is
deacvated for 5-minutes.

11
12. SECURING YOUR VAULT
Use the recommended hardware or consult your hardware retailer for fastening
hardware for your parcular mounng surface.
Open the vault door to provide access to the factory drilled bolt down holes that
are located under the protecve foam liner.
To secure your vault to the floor, it will first be necessary to mark and drill pilot
holes in the floor surface.
Drill the appropriate diameter and depth of pilot holes based on the type of
hardware being used and the type of floor surface. When mounng on concrete we
recommend using a hammer drill and a concrete drill bit to drill the two
corresponding holes in the mounng surface.
Secure the vault by threading anchor bolts through the factory drilled bolt down
holes in the vault and screw down ght with a ratchet wrench.
TOOLS AND HARDWARE NEEDED TO SECURE
VAULT TO A WOOD OR CONCRETE SURFACE:
WASHERS
PADS
LAG BOLTS
ANCHORS
• DRILL
• 3/8�DRILL BIT
( FOR DRILLING ANCHOR HOLE )
or 3/16� (FOR INSTALL W/ OUT ANCHOR)
• SOCKET WRENCH TO MATCH
BOLT HEAD SIZE
• 2 STEEL LAG BOLTS (NOT INCLUDED) - SIZE 1/4" X 1.50" TO 2.0" LONG
• 2 STEEL WASHERS (NOT INCLUDED) - 1/4"
• 2 PLASTIC ANCHORS (NOT INCLUDED)- SIZE #10-12 X 1.5" TO 1.75" LONG
(FOR CONCRETE INSTALLATION)
• 4 PADS (INCLUDED)
BOLT
WASHER
VAULT
FLOOR
MOUNTING
SURFACE
ANCHOR
FOR CONCRETE
INSTALLATION

12
1.
2.
SECURING YOUR VAULT WITH PROVIDED CABLE
A security cable is included with
your vault. To secure the cable
around a fixed object, first loop
the cable around the object. Next,
thread one looped end through
the second loop as shown in the
figure to the right.
Place the cable’s free loop into the
notch on the side of the vault while
sll opened. Locking the vault with
the cable loop inside will secure
the cable inside the vault. Check
the loop to ensure their is no way
it can be manipulated to be easily
removed from the fixed object,
before leaving unaended.
12. SECURING YOUR VAULT CONTINUED
14. MAINTAINING HINGES AND INTERNAL MECHANISMS
The hinges and internal locking mechanism are permanently lubricated, thus
needing no maintenance. Opening the door panel of your vault may void your
warranty. Always consult our customer service experts prior to doing so.
13. LOADING YOUR VAULT
1.
2.
Store ammunion separately from valuables.
Do not put anything in your vault that will put pressure against the door when
it is closed.
Step 1Step 2

SA Consumer Products will repair or replace, at their sole discreon,
any Sports Afield vault damaged by fire, forced entry, forced aack
or natural flood for the lifeme of the original owner.
SA Consumer Products will repair or replace, at their sole discreon,
any Sports Afield vault with defecve parts, paint or lock for three
years of the original owner purchase date.
If SA Consumer Products deems a replacement vault is to be sent,
they will pay the freight costs to ship the replacement vault to the
original owner.
This three year warranty is limited to the vault and expressly
excludes any loss associated with the contents of the vault.
SA Consumer Products
reserves the right to receive full evidence
of your misfortune, such as a police report and/or homeowner’s
statement of coverage. This warranty is not valid outside of the
United States and Canada.
Proof of registraon and copy of sales receipt must be on file at
the me of claim. Visit our website at www.saproducts.com to
register your vault.
Three year warranty only applies to the original owner of the vault.
SA Consumer Products shall only be responsible and liable when the
vault is used in compliance with the direcons specified in your new
SA Consumer Products owner’s manual.
SA Consumer Products
requires that specific guidelines be
followed for repair. The vault will be repaired in-home if possible
(to include parts and labor); however, if factory replacement
is necessary (at
SA Consumer Products ’ sole discreon), the
replacement will be shipped freight prepaid, curbside delivery.
This warranty is inclusive and is in lieu of any and all other
warranes, express or implied. Specifically excluded are the
warranes of merchantability and fitness for a parcular purpose.
This warranty is limited to the vault itself and/or its value and
does not include consequenal damages of any kind including,
but not limited to, the contents in and of the vault.
13
