SPX FLOW C Series User manual

FPO
INSTRUCTION MANUAL
C-Series
CENTRIFUGAL PUMP - IEC VERSION
FORM NO.: 95-03008-NEMA REVISION: 01/2019 READ AND UNDERSTAND THIS MANUAL PRIOR TO OPERATING OR SERVICING THIS PRODUCT.

Information contained in this manual is subject to change
without notice and does not represent a commitment on
the part of SPX FLOW, Inc. No part of this manual may be
reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying and
recording, for any purpose, without the express written per-
mission of SPX FLOW, Inc.
Copyright © 2019 SPX FLOW, Inc.
All Rights Reserved
Revision Date: 01/2019
Publication: 95-03008-NEMA
SPX FLOW, Inc.
611 Sugar Creek Road
Delavan, WI 53115 USA
Tel: [phone] or [phone]
Fax: [phone] or [phone]
E-mail: [email protected]
Web site: www.spxflow.com

01/2019 95-03008-IEC Page 5
Table of Contents Waukesha Cherry-Burrell® Brand C-Series Pump
Warranty .............................................................................................................................................. 6
Shipping Damage or Loss .......................................................................................................6
Warranty Claim ........................................................................................................................ 6
Safety ................................................................................................................................................... 7
Care of Component Materials ............................................................................................................ 8
Stainless Steel Corrosion ........................................................................................................ 8
Elastomer Seal Replacement Following Passivation ............................................................... 8
Introduction ......................................................................................................................................... 9
Operating Parameters ............................................................................................................. 9
Pump Dimensions ................................................................................................................. 10
Installation ......................................................................................................................................... 12
Pump Location ....................................................................................................................... 12
Pump Leveling ....................................................................................................................... 12
Supply and Discharge Piping/Valves ..................................................................................... 13
Installations that may cause operation problems ................................................................... 14
Electrical Connections ........................................................................................................... 15
Before First Startup ............................................................................................................... 15
Cleaning Safety Procedures .................................................................................................. 15
Operation ........................................................................................................................................... 17
Important Safety Information ................................................................................................. 17
Starting the Pump .................................................................................................................. 17
Priming the Pump .................................................................................................................. 18
Stopping the Pump ................................................................................................................ 18
Maintenance ...................................................................................................................................... 19
Important Safety Information ................................................................................................. 19
Scheduled Maintenance ........................................................................................................ 19
Pump Disassembly - Pin Impeller Design .............................................................................. 20
Pump Assembly - Pin Impeller Design .................................................................................. 25
Pump Disassembly - Sealed Impeller Design ........................................................................ 32
Pump Assembly - Sealed Impeller Design ............................................................................ 37
Type “DG” Seal ...................................................................................................................... 49
Type “E” Water-Cooled Balanced Double Seal ..................................................................... 52
Parts Lists ......................................................................................................................................... 54
C-100 Pump Parts ................................................................................................................. 54
C-114 Pump Parts ................................................................................................................. 56
C-216 Pump Parts ................................................................................................................. 60
C-218 Pump Parts ................................................................................................................. 64
C-328 Pump Parts ................................................................................................................. 68
Type “DG” Seal Assembly Option .......................................................................................... 72
Type “E” Water-Cooled Balanced Double Seal Option .......................................................... 73
C-Series “D” Seal Kits ........................................................................................................... 74
Motor Mounts - D71, D80, D100L, D112M, D132S Motor Frame .......................................... 76
Motor Mounts - D90L, D160L/M, D180M Motor Frame ......................................................... 78
C-Series Pin Impeller to Sealed Impeller Conversion Kits ..................................................... 80
Troubleshooting ............................................................................................................................... 81

Warranty Waukesha Cherry-Burrell® Brand C-Series Pump
Page 6 95-03008-IEC 01/2019
Warranty
LIMITED WARRANTY: Unless otherwise mutually agreed to in writing, (a) SPX FLOW US, LLC (SPX FLOW)
goods, auxiliaries and parts thereof are warranted to the Buyer against defective workmanship and material for
a period of twelve (12) months from date of installation or eighteen (18) months from date of delivery, which-
ever expires first, and (b) SPX FLOW services are warranted to Buyer to have been performed in a workman-
like manner for a period of ninety (90) days from the date of performance. If the goods or services do not
conform to the warranty stated above, then as Buyer’s sole remedy, SPX FLOW shall, at SPX FLOW’s option,
either repair or replace the defective goods or re-perform defective services. If Buyer makes a warranty claim
to SPX FLOW and no actual defect is subsequently found, Buyer shall reimburse SPX FLOW for all reason-
able costs which SPX FLOW incurs in connection with the alleged defect. Third party goods furnished by SPX
FLOW will be repaired or replaced as Buyer’s sole remedy, but only to the extent provided in and honored by
the original manufacturer’s warranty. Unless otherwise agreed to in writing, SPX FLOW shall not be liable for
breach of warranty or otherwise in any manner whatsoever for: (i) normal wear and tear; (ii) corrosion, abrasion
or erosion; (iii) any good or services which, following delivery or performance by SPX FLOW, has been sub-
jected to accident, abuse, misapplication, improper repair, alteration (including modifications or repairs by
Buyer, the end customer or third parties other than SPX FLOW), improper installation or maintenance, neglect,
or excessive operating conditions; (iv) defects resulting from Buyer’s specifications or designs or those of
Buyer’s contractors or subcontractors other than SPX FLOW; or (v) defects resulting from the manufacture,
distribution, promotion or sale of Buyer’s products; (vi) damage resulting from the combination, operation or
use with equipment, products, hardware, software, firmware, systems or data not provided by SPX FLOW, if
such damage or harm would have been avoided in the absence of such combination, operation or use; or (vii)
Buyer’s use of the goods in any manner inconsistent with SPX FLOW’s written materials regarding the use of
such product. In addition, the foregoing warranty shall not include any labor, dismantling, re-installation, trans-
portation or access costs, or other expense associated with the repair or replacement of SPX FLOW goods.
THE WARRANTIES CONTAINED HEREIN ARE THE SOLE AND EXCLUSIVE WARRANTIES AVAILABLE
TO BUYER AND SPX FLOW HEREBY DISCLAIMS ANY OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ANY PERFORMANCE OR PROCESS OUTCOME DESIRED BY THE
BUYER AND NOT SPECIFICALLY AGREED TO BY SPX FLOW. THE FOREGOING REPAIR, REPLACE-
MENT AND REPERFORMANCE OBLIGATIONS STATE SPX FLOW’S ENTIRE AND EXCLUSIVE LIABILITY
AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM IN CONNECTION WITH THE SALE AND FURNISH-
ING OF SERVICES, GOODS OR PARTS, THEIR DESIGN, SUITABILITY FOR USE, INSTALLATION OR
OPERATIONS.
Shipping Damage or Loss
If equipment is damaged or lost in transit, file a claim at once with the delivering carrier. The carrier has a
signed Bill of Lading acknowledging that the shipment has been received from SPX FLOW in good condition.
SPX FLOW is not responsible for the collection of claims or replacement of materials due to transit shortage or
damages.
Warranty Claim
Warranty claims must have a Returned Material Authorization (RMA) from the Seller or returns will not be
accepted. Contact 800-252-5200 or 262-728-1900.
Claims for shortages or other errors must be made in writing to Seller within ten (10) days after delivery. This
does not include transit shortage or damages. Failure to give such notice shall constitute acceptance and
waiver of all such claims by Buyer.

Safety Waukesha Cherry-Burrell® Brand C-Series Pump
01/2019 95-03008-IEC Page 7
Safety
READ AND UNDERSTAND THIS MANUAL PRIOR TO INSTALLING, OPERATING, OR
SERVICING THIS EQUIPMENT
SPX FLOW recommends users of our equipment and designs follow the latest Industrial Safety Standards. At
a minimum, these should include the industrial safety requirements established by:
1. Occupational Safety and Health Administration (OSHA)
2. National Fire Protection Association (NFPA)
3. National Electrical Code (NEC)
4. American National Standards Institute (ANSI)
WARNING
Severe injury or death can result from electrical shock, burn, or unintended actuation of equipment.
Recommended practice is to disconnect and lockout industrial equipment from power sources, and release
stored energy, if present. Refer to the National Fire Protection Association Standard No. NFPA70E, Part II and
(as applicable) OSHA rules for Control of Hazardous Energy Sources (Lockout-Tagout) and OSHA Electrical
Safety Related Work Practices, including procedural requirements for:
• Lockout-tagout
• Personnel qualifications and training requirements
• When it is not feasible to de-energize and lockout-tagout electrical circuits and equipment before working
on or near exposed circuit parts
Before putting SPX FLOW equipment into operation, the operator shall analyze the application for all foresee-
able risks, their likelihood to occur and the potential consequences of the identified risks as per ISO 31000 and
ISO/IEC 31010 in their actual current version.
Locking and Interlocking Devices: These devices should be checked for proper working condition and capa-
bility of performing their intended functions. Make replacements only with the original equipment manufac-
turer’s OEM renewal parts or kits. Adjust or repair in accordance with the manufacturer’s instructions.
Periodic Inspection: Equipment should be inspected periodically. Inspection intervals should be based on
environmental and operating conditions and adjusted as indicated by experience. At a minimum, an initial
inspection within 3 to 4 months after installation is recommended. Inspection of the electrical control systems
should meet the recommendations as specified in the National Electrical Manufacturers Association (NEMA)
Standard No. ICS 1.3, Preventative Maintenance of Industrial Control and Systems Equipment, for the general
guidelines for setting-up a periodic maintenance program.
Replacement Equipment: Use only replacement parts and devices recommended by the manufacturer to
maintain the integrity of the equipment. Make sure the parts are properly matched to the equipment series,
model, serial number, and revision level of the equipment.
Warnings and cautions are provided in this manual to help avoid serious injury and/or possible damage to
equipment:
DANGER
Immediate hazards which WILL result in severe personal injury or death.
WARNING
Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION
Hazards or unsafe practices which COULD result in minor personal injury or product or property damage.

Care of Component Materials Waukesha Cherry-Burrell® Brand C-Series Pump
Page 8 95-03008-IEC 01/2019
Care of Component Materials
NOTE: SPX FLOW recommends the use of an FDA-approved anti-seize compound on all threaded
connections.
WARNING
Failure to comply with the Care of Component Materials could lead to bodily injury.
Stainless Steel Corrosion Corrosion resistance is greatest when a layer of oxide film is
formed on the surface of stainless steel. If film is disturbed or
destroyed, stainless steel becomes much less resistant to corro-
sion and may rust, pit or crack.
Corrosion pitting, rusting and stress cracks may occur due to
chemical attack. Use only cleaning chemicals specified by a repu-
table chemical manufacturer for use with stainless steel. Do not
use excessive concentrations, temperatures or exposure times.
Avoid contact with highly corrosive acids such as hydrofluoric,
hydrochloric or sulfuric. Also avoid prolonged contact with chlo-
ride-containing chemicals, especially in presence of acid. If chlo-
rine-based sanitizers are used, such as sodium hypochlorite
(bleach), do not exceed concentrations of 150 ppm available
chlorine, do not exceed contact time of 20 minutes, and do not
exceed temperatures of 104°F (40°C).
Corrosion discoloration, deposits or pitting may occur under prod-
uct deposits or under gaskets. Keep surfaces clean, including
those under gaskets or in grooves or tight corners. Clean immedi-
ately after use. Do not allow equipment to set idle, exposed to air
with accumulated foreign material on the surface.
Corrosion pitting may occur when stray electrical currents come
in contact with moist stainless steel. Ensure all electrical devices
connected to the equipment are correctly grounded.
Elastomer Seal
Replacement Following
Passivation
Passivation chemicals can damage product contact areas of this
equipment. Elastomers (rubber components) are most likely to be
affected. Always inspect all elastomer seals after passivation is
completed. Replace any seals showing signs of chemical attack.
Indications may include swelling, cracks, loss of elasticity or any
other noticeable changes when compared with new components.

Introduction Waukesha Cherry-Burrell® Brand C-Series Pump
01/2019 95-03008-IEC Page 9
Introduction
This manual contains installation, operation, cleaning, repair
instructions, and parts lists for the C-Series Centrifugal Pumps. It
also provides a troubleshooting chart to help in determining and
correcting possible pump problems.
Operating Parameters Capacity: 10 to 780 gpm
Viscosity: 1 to 1500 cPs
Maximum operating temperature: 212°F (100°C)
Maximum inlet pressure: 25 psi (1,7 bar)
Operating Speeds: 50Hz: up to 2950 RPM
60Hz: up to 3500 RPM
Casing, backplate, and impeller are 316 stainless steel with pol-
ished sanitary finish.
• Port Connection: ISO 2852 fittings are standard.
• Power: Supplied by a standard IEC frame, C-frame design
motor, through 45 kW.
• Seal Type “D”: Seal material is carbon rotating on stationary
stainless steel backplate.
• Seal Type “DG”: Gland ring with replaceable seal seat. See
page 72.
• Seal Type “E”: Water-cooled balanced double seal (carbon).
See page 73.
• Seal Type "F": "D" seal with a water cascade attachment.
See item 137 on the parts list pages starting on page 56.
• Sanitary Polish: 32 Ra finish

Introduction Waukesha Cherry-Burrell® Brand C-Series Pump
Page 10 95-03008-IEC 01/2019
Pump Dimensions
NOTE: Dimensions are for guidance only. Contact your SPX FLOW Representative for more detailed
measurements if needed. Any dimensions that include the motor may vary depending on the motor selected.

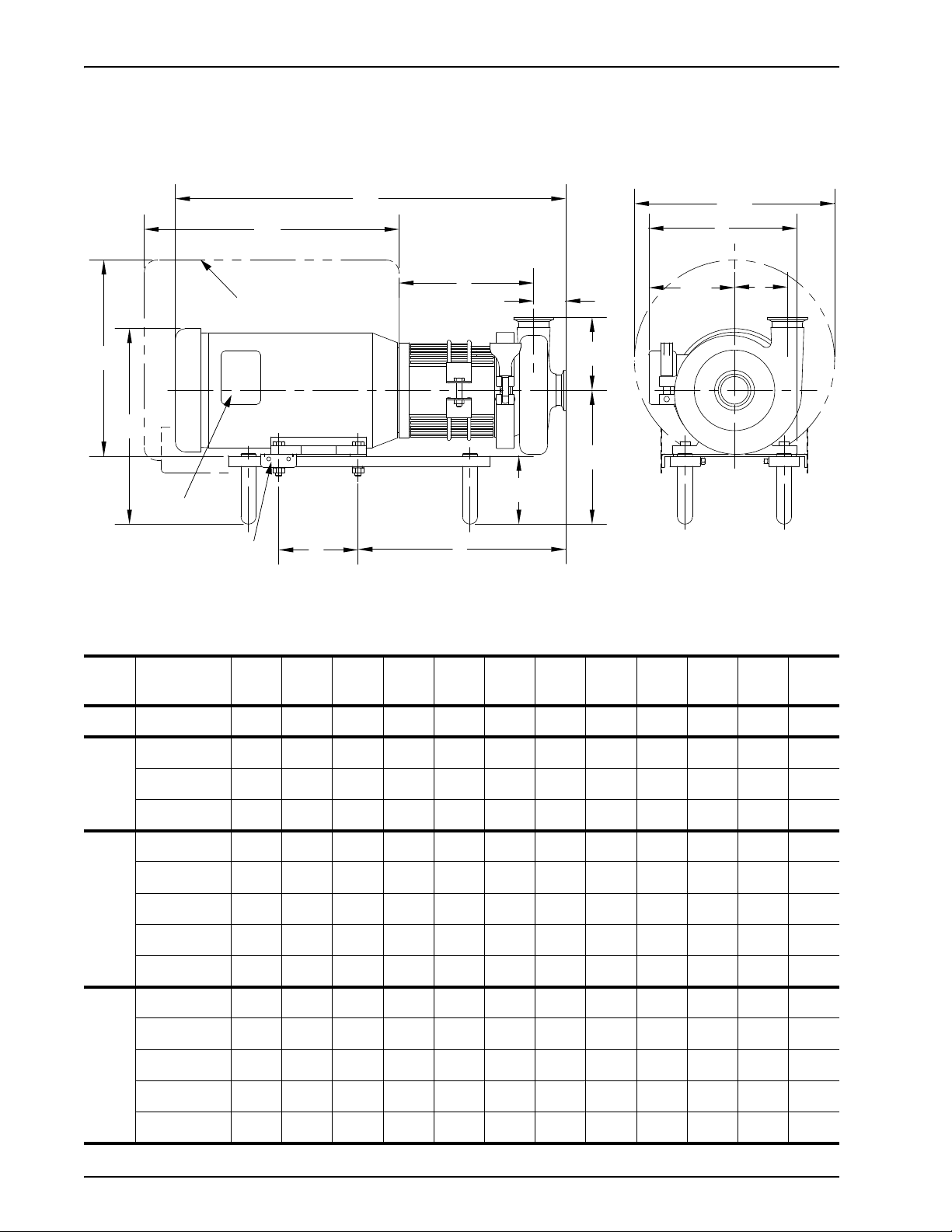

Figure 1 - Pump Dimensions with IEC Motor with optional motor shroud
Table 1: Pump Dimensions with IEC Motor with optional motor shroud (dimensions in mm)
Pump
Model
IEC Motor
Frame A B CP J E L HDAAABACADAE
C-100 D71 161 194 364 153 90 70 135 18 102 253 322 249
C-114
D71 161 194 455 244 90 158 135 18 102 253 322 249
D80 187 216 534 264 100 172 144 22 115 253 362 254
D90L 214 237 554 270 100 172 154 22 130 253 362 254
C-216
D80 187 216 539 269 100 170 144 22 115 253 362 254
D90L 214 237 559 275 100 170 154 22 130 253 362 254
D100L 250 264 591 311 140 199 164 27 149 308 395 310
D112M 250 278 631 319 140 199 176 27 149 363 523 361
D132S 309 319 809 354 140 216 196 27 187 363 523 361
C-218
D90L 214 237 566 282 100 176 154 22 130 253 362 254
D100L 250 264 579 298 140 186 164 27 149 308 395 310
D112M 250 278 619 306 140 186 176 27 149 363 523 361
D132S 309 319 801 346 140 208 196 27 187 363 523 361
D160L/M 406 392 870 403 210 246 224 35 242 483 729 470
A
Z
AB
AC
BB
CP
AE
B
EJ
HD
X
AD
L
Y
AA
CT100-216
AA= Conduit Size, BB height = 63,5 +/- 25,4 mm
Optional motor
shroud (not avail. on
all frame sizes)
Only needed for motor
shroud

Introduction Waukesha Cherry-Burrell® Brand C-Series Pump
01/2019 95-03008-IEC Page 11
All motors are flange mounted and footed.
C-328
D100L 250 264 587 306 140 186 164 27 149 308 395 310
D112M 250 278 627 314 140 186 176 27 149 363 523 361
D132S 309 319 809 354 140 208 196 27 187 363 523 361
D160L/M 406 392 878 411 210 246 224 35 242 483 729 470
D180M 531 435 838 424 241 246 244 51 333 N/A N/A N/A
Table 2: Figure 1 - Pump Dimensions with IEC Motor with optional motor shroud (dimensions in mm)
Model Inlet (Suction) Outlet (Discharge) X Y Z
C-100 38 25 38 38 37
C-114 38 OR 51 38 92 41 66
C-216 51 OR 63 38 144 49 93
C-218 51 OR 76 38 139 49 120
C-328 76 OR 102 51 139 57 120
Table 1: Pump Dimensions with IEC Motor with optional motor shroud (dimensions in mm)
Pump
Model
IEC Motor
Frame A B CP J E L HDAAABACADAE

Installation Waukesha Cherry-Burrell® Brand C-Series Pump
Page 12 95-03008-IEC 01/2019
DANGER
Installation
The pump contains internal moving
parts. DO NOT put hands or fingers into
the pump body ports or drive area at any
time during operation. To avoid serious
injury, DO NOT install, clean, service, or
repair the pump unless all power is off
and locked out and the pump is de-
pressurized.
Unpack all parts of your equipment and inspect for damages that
may have occurred during shipping. Report any damage to the
carrier. See “Shipping Damage or Loss” on page 6.
All ports are covered at the factory to keep out foreign objects
during transit. If the covers are missing or damaged, remove the
pump cover and thoroughly inspect the fluid head. Be sure the
pumping head is clean and free of foreign material before rotating
the shaft.
Pump Location 1. Locate the pump as near as practical to the liquid supply.
2. Keep the supply piping short and straight to keep the pump
supplied with liquid and prevent damaging cavitation.
3. Locate the pump so that it is accessible for service and
inspection during operation.
4. Protect the motor from flooding.
Pump Leveling Level the pump by loosening the setscrews (Figure 2, item A) to
adjust the length of the legs.
Figure 2 - Leveling Leg Setscrew
Location

Installation Waukesha Cherry-Burrell® Brand C-Series Pump
01/2019 95-03008-IEC Page 13
Supply and Discharge
Piping/Valves
CAUTION
Install the pump and piping system in accordance with local
codes and restrictions. Practices described in this manual are
recommended for optimum performance.
• Use a line size equal to or larger than the connection size on
the pump, especially the inlet supply line.
• Keep the supply line as short and as straight as possible by
minimizing the use of elbows and valves. Avoid up and down
rises that trap air.
• Be certain all joints in the suction line are well-sealed to
prevent air leaks.
• Maintain a straight length of pipe (Figure 3, item A) at least 8
pipe diameters long at the pump inlet.
• The pump casing on the C-114 through C-328 may be
rotated with the discharge connection pointing in any
direction; the best pump performance will be with the outlet
up, to the left, or 45 degrees in between. These positions
ensure a flooded casing and prevent problems caused by air
in the system. See Figure 4.
• Seal all joints in the suction line well to prevent air from being
sucked into the system.
• If an expansion joint is used, install a pipe anchor between it
and the pump.
• The slope of the line depends on the application
requirements; the best pump operation is with the supply line
sloped slightly upward toward the pump to prevent trapped
air. If the system must drain into the pump casing, keep the
downward slope to a minimum or priming problems may
occur. See Figure 5.
• Support the supply and discharge piping near the pump so
that no strain is put on the pump casing. See Figure 5, item
A.
• Install shutoff valves to isolate the pump from the supply and
discharge lines to allow the pump to be serviced without
draining the system.
WARNING
The pump and piping may contain sharp edges. Wear gloves to
help avoid injuries from these hazards.

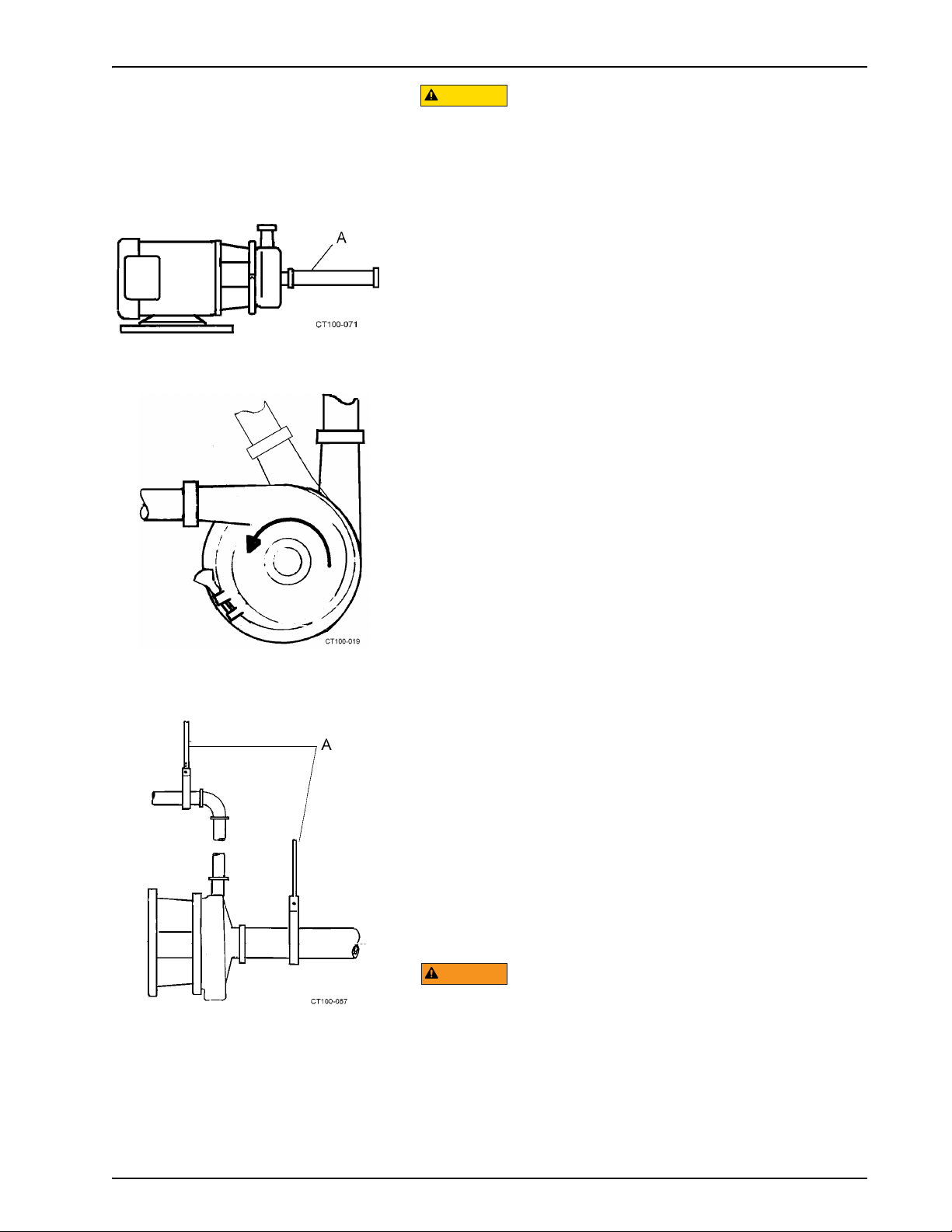

Figure 3 - Straight Pipe Length
Figure 4 - Recommended Discharge
Positions
Figure 5 - Pipe Supports

Installation Waukesha Cherry-Burrell® Brand C-Series Pump
Page 14 95-03008-IEC 01/2019
• If a reducer is connected to the inlet, use an eccentric type to
prevent problems due to trapped air. See Figure 6.
• This pump is not self-priming. If the pump is installed above
the supply liquid level, install a foot valve or other system
check valve (Figure 7, item A) to keep the system flooded for
priming.
• A throttling valve may be required to control the pump flow
rate to prevent motor overload. Always install a throttling
valve (Figure 7, item B) in the discharge piping and at least
10 diameters from the pump outlet. NEVER install a throttling
valve in the supply piping (Figure 7, item C).
Installations that may
cause operation problems
• Any system throttling valves or similar devices to control flow
rate must be installed in the discharge line. DO NOT install
any system throttling valves or similar devices to control the
flow rate in the supply line. (See Figure 7.) Restriction in the
supply line may cause cavitation and pump damage.
• “Water hammer” in the system can damage the pump and
other system components. Water hammer often occurs when
valves in the system are suddenly closed, causing lines to
move violently with a loud noise. One way to eliminate water
hammer is to slow down the actuation speed of the valve.
• Do not expose the pump to freezing temperatures with liquid
in the casing. Frozen liquid in the casing will damage pump.
Drain the casing before exposing it to freezing temperatures.
Figure 6 - Correct Eccentric Installation
Figure 7 - Valve Piping Installation

Installation Waukesha Cherry-Burrell® Brand C-Series Pump
01/2019 95-03008-IEC Page 15
Electrical Connections
DANGER
The pump contains internal moving parts. DO NOT put hands or
fingers into the pump body ports or drive area at any time during
operation. To avoid serious injury, DO NOT install, clean, service,
or repair the pump unless all power is off and locked out and the
pump is de-pressurized.
CAUTION
The motor must be installed by qualified personnel, e.g., a
licensed electrician.
• Read the motor manufacturer's instructions before making an
installation. Follow the manufacturer's lubrication schedules.
Check the motor nameplate to be sure that the motor is
compatible with the electrical supply and all wiring, switches,
and starters. Make sure all overload protections are correctly
sized.
• Check the pump rotation following an electrical installation.
The correct direction of rotation is counterclockwise when
facing the pump inlet connection. See Figure 4 on page 13
and label 33-34 in Figure 8.
Before First Startup Clean Pump and Piping
Disassemble the pump and clean all product contact parts and
seal parts prior to first operation. Follow instructions in the
“Cleaning Safety Procedures” on page 15 and “Pump Disassem-
bly - Pin Impeller Design” on page 20 or “Pump Disassembly -
Sealed Impeller Design” on page 32. Thoroughly clean the pump
of any materials that could have accumulated during installation.
Cleaning Safety
Procedures
Manual Cleaning
• Do not use toxic and/or flammable solvents.
• Lock out electrical power and shut off all air prior to cleaning
the equipment.
• Keep electrical panel covers closed and power off when
washing the equipment.
• Clean up spills as soon as possible.
• Never attempt to clean the equipment while it is operating.
• Wear proper protective clothing.
Cleaning-In-Place (CIP)
1. Make certain that all connections in the cleaning circuit are
properly applied and tightened to avoid contact with hot water
or cleaning solutions.
2. When the cleaning cycle is controlled from a remote or auto-
mated cleaning center, establish safe procedures to avoid
automatic start-up while servicing equipment in the circuit.
Label part numbers:
121694+: Warning-Read Manual
33-34: Direction of Rotation
33-33: Warning-Rotating Shaft
33-63: Warning-Keep Fingers Out
125096+: 3-A Label
Figure 8 - Replaceable Label Location
125096+
33-63
33-33
33-34
121694+
CT100-627
DANGER
To prevent an accidental start-up, lock
out the power source using your lock and
key.

Installation Waukesha Cherry-Burrell® Brand C-Series Pump
Page 16 95-03008-IEC 01/2019
Preliminary Test Run
Test the system using a preliminary run with the materials that will
be pumped. DO NOT run the pump to produce final product at
this time. See “Starting the Pump” on page 17.
Check for Possible Motor Overload Condition
Certain combinations will overload the motor when operated with
open unrestricted discharge, resulting in an unacceptably high
flow rate. Additional discharge restriction may be required to
lower the flow rate and lower the horsepower requirement. DO
NOT add any restriction to the supply line. If the pump was incor-
rectly selected, a smaller impeller or a higher motor horsepower
may be required. If you are uncertain about pump selection and
application, temporarily install an ammeter in the electrical ser-
vice.
Ammeter Test
Operate the pump under process conditions and check the motor
amp draw versus the nameplate full load rating. If the amp draw
exceeds the motor rating, a system change or pump change is
required. If the process conditions and/or liquid changes (higher
viscosity, higher specific gravity), recheck the motor amp draw.
Contact your authorized SPX FLOW distributor for assistance.
CAUTION
The motor must be installed by qualified
personnel, e.g., a licensed electrician.

Operation Waukesha Cherry-Burrell® Brand C-Series Pump
01/2019 95-03008-IEC Page 17
Operation
Important Safety
Information
DANGER
The pump contains internal moving parts. DO NOT put hands or
fingers into the pump body ports or drive area at any time during
operation. To avoid serious injury, DO NOT install, clean, service,
or repair the pump unless all power is off and locked out and the
pump is de-pressurized.
WARNING
The pump components and piping may contain sharp edges.
Handle the impeller carefully because edges may be sharp. Wear
gloves while installing and servicing the pump to help avoid
injuries from these hazards.
CAUTION
These pumps and will be severely damaged if operated with
closed valves in the discharge or inlet lines. The pump warranty
is not valid for damages caused by a hydraulic overload from
operation or start-up with a closed valve in the system.
CAUTION
The motor must be installed by qualified personnel, e.g., a
licensed electrician. Motor maintenance, repair and wiring are not
covered in this manual. For specific information, contact the
motor manufacturer.
Ensure that the pump is correctly installed as described in “Instal-
lation” on page 12.
Starting the Pump 1. If the pump has a flush seal option, start the flow of flush
water (recommended rate is approximately 5 US gallons per
hour (18,9 liters per hour) before operating the pump.
2. Before starting the pump, prime the pump by flooding the
pump casing with liquid to avoid damaging the pump parts.
Depending on the installation, refer to the priming instructions
on page 18.
3. Start the pump motor.
4. Check the pump to ensure that the liquid is flowing and that
all piping connections and seals are leak-free.
5. Make sure that the pump is not operating against a closed
discharge. Continued operation against a closed discharge
will heat the liquid in the casing to boiling and lead to pump
damage.
6. Slowly open the discharge valve until the desired flow is
obtained. Observe the pressure gauges. If pressure is not
attained quickly, stop the pump and prime it again.

Operation Waukesha Cherry-Burrell® Brand C-Series Pump
Page 18 95-03008-IEC 01/2019
Priming the Pump Priming the Pump with the Feed Source Above
Pump Level
1. Fill the supply tank with liquid and open the supply line (suc-
tion) valve (see Figure 9, item A).
2. Open the discharge valve to vent any air trapped in the sup-
ply line or casing (see Figure 9, item C).
3. Resume the “Starting the Pump” procedure on page 17, at
step 3.
Priming the Pump with the Feed Source Below
Pump Level
The pump will not self-prime if the liquid supply is below the pump
level. If the liquid supply is below the pump level, provide an out-
side source for priming.
1. Close the discharge valve (see Figure 10, item C) and open
the air vents.
2. Open the valve in the outside supply line (see Figure 10, item
A) until liquid flows from the vent valves.
3. Close the vent valves.
4. Close the outside supply line.
NOTE: Use a type of check valve system (see Figure 10, item B)
to keep the supply line and pump casing flooded with liquid;
otherwise the pump must be primed before each operation.
5. Resume the “Starting the Pump” procedure on page 17, at
step 3.
Stopping the Pump
T1. To stop the pump, shut off power to the pump motor.
NOTE: Liquid in the system can flow freely through the pump; the
pump does not act as a shutoff valve.
2. Shut off the supply and discharge lines.
Figure 9 - Pump Below Supply
(Feed Source Above Pump Level)
Figure 10 - Pump Above Supply
(Feed Source Below Pump Level)
DANGER
The pump contains internal moving parts. DO NOT put hands or
fingers into the pump body ports or drive area at any time during
operation. To avoid serious injury, DO NOT install, clean, service,
or repair the pump unless all power is off and locked out and the
pump is de-pressurized.
CAUTION
The motor must be installed by qualified
personnel, e.g., a licensed electrician.

Maintenance Waukesha Cherry-Burrell® Brand C-Series Pump
01/2019 95-03008-IEC Page 19
Maintenance
Important Safety
Information
DANGER
The pump contains internal moving parts. DO NOT put hands or
fingers into the pump body ports or drive area at any time during
operation. To avoid serious injury, DO NOT install, clean, service,
or repair the pump unless all power is off and locked out and the
pump is de-pressurized.
WARNING
The pump components and piping may contain sharp edges.
Handle the impeller carefully because edges may be sharp. Wear
gloves while installing and servicing the pump to help avoid
injuries from these hazards.
CAUTION
Make sure to keep the work area clear of machine parts, tools,
product lines, foreign materials, and power cables to avoid
potential hazards.
CAUTION
Make sure appropriate lighting is available: at least 1000 lux,
independent of daylight and weather conditions.
CAUTION
Before carrying out any maintenance and repair work on cold
components, ensure that the machine parts in question are
sufficiently heated. The contact temperature of accessible
machine parts must not be lower than those in the EN ISO
13732-1.
Before detaching port connections to the pump:
• Close the suction and discharge valves.
• Drain the pump and clean or rinse, if necessary.
• Disconnect or shut off the electrical supply and lock out all
power.
Scheduled Maintenance A routine maintenance program can extend the life of your pump.
Keep maintenance records. These will help pinpoint potential
problems and causes.
Routine Maintenance
• Check for unusual noise, vibration and bearing temperatures.
• Inspect the pump and piping for leaks.
• Check the mechanical seal area for leakage (no leakage is
desired).
• Check the backplate gasket for wear/damage.
• Lubricate the bearings (see motor manufacturer for correct
specifications).
• Monitor the seals.
• Perform vibration analysis.
• Check the discharge pressure.
• Monitor the temperature.

Maintenance Waukesha Cherry-Burrell® Brand C-Series Pump
Page 20 95-03008-IEC 01/2019
Pump Disassembly - Pin
Impeller Design
WARNING
The pump components and piping may contain sharp edges.
Handle the impeller carefully because edges may be sharp. Wear
gloves while installing and servicing the pump to help avoid
injuries from these hazards.
1. Shut off the product flow to the pump and relieve any product
pressure.
2. Shut off and lock out power to the pump.
3. Disconnect the suction and discharge pipe fittings.
4. Using a wrench, remove the guard assembly.
5. Loosen the casing clamp wing nut. While holding the pump
casing, remove the clamp.
NOTE: On the C-100, remove the casing wing nuts.
NOTE: SPX FLOW recommends
replacing elastomers every time the
pump is serviced.
NOTE: For the Sealed Impeller design,
see “Pump Disassembly - Sealed
Impeller Design” on page 32.
Items required to work on a C-Series Pin
Impeller Design Pump:
• Mallet
• Allen Wrench (Seal Carrier)
• Allen Wrench (Shaft)
• Wrench (Motor Adapter)
• 0,060 inch shims
• Anti-seize compound
DANGER
The pump contains internal moving parts. DO NOT put hands or
fingers into the pump body ports or drive area at any time during
operation. To avoid serious injury, DO NOT install, clean, ser-
vice, or repair pump unless all power is off and locked out and
the pump is de-pressurized.
To avoid serious injury, shut off and drain product from the
pump prior to disconnecting the piping.
Figure 11 - Guard assembly
Figure 12 - Remove casing clamp
