SSV Works Polaris RZR XP 1000 User manual

POWERSPORTS AUDIO KIT
PHASE 5
POLARIS
®
RZR
®
Disassembly, Wire and
Amplier Plate Installation
Glovebox Subwoofer
Installation
Kick Panel Speakers
Installation
Cage Mount Speakers
Installation
MRB3 and Dash Kit
Installation
pg 2
pg 9
pg 13
pg 25
pg 29

2

3
RZ3-5K
Polaris RZR XP 1000 & 900
Kicker 5 Speaker Audio Kit
!
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All Kicker Speakers are covered by a limited 1
year warranty against defects in material or workmanship. All Kicker Ampliers are covered by
a limited 2 year warranty against defects in material or workmanship. Labor for replacement
of defective components is not covered. Contact SSV Works for further warranty information.
TOOLS NEEDED FOR INSTALLATION
- T30 & T40 Torx Socket
- 10mm and 5.5mm Socket
& Rachet or Wrench
- 4mm & 5mm Allen Wrench
- #2 & #3 Phillips Screwdriver
PARTS LIST IMAGES
2. Front B-H1149 Speaker Wire
6. M6 x 1.0 Screws x 1
10. Battery Terminal Cable
7. M6 Washer x 1 8. Zip Ties x 5
1. Amp Power Wire
5. Direct-t Amp Plate with pre-
tuned Amp(s) and MRB3 Brain
9. Fuse Holder with 40A Fuse
3. Rear B-H1151 Speaker
Expansion
4. MRB3 Power & Ground
Connector
- Drill with 1/8”, 1/4” & 1/2”
Drill bits
- Panel removal tool
- Wire Crimpers
- Wire Strippers
- Scribe or Marker
- Utility Knife

4
A
PANELS AND DASH DISASSEMBLY
C
E
B
DD
F
A. Remove all seats by releasing the handle behind each seat,
push forward slightly while lifting up.
C. Remove hood by turning locking pins and lifting up.
E. Disconnect all harness connectors attached to the center dash panel.
B. Disconect the negative battery cable from the battery.
D. Remove center dash by unscrewing the 2 T-30 Torx screws and push center
dash forward to unclip.
F. Un-pin and pull to remove the passenger side safely handle.

5
PANELS AND DASH DISASSEMBLY
G1
H
G2
H
G3
H
I
G. Remove the factory dash pocket by rst extracting the 10mm bolt on the dash frame (G1). Then pull out the dash pocket with bracket attached (G2) - NOTE
this bracket will no longer be used for any part of this installation. Save this screw as it will be use later during the amp plate installation.
Extract (2) screws securing the sub dash (G3). Unsnap and remove.
H. Remove all of the center console push pins and T-30 Torx screws. For 4-seat models, disconnect the harness attached to the 12v accessory socket.
I. Remove glovebox by removing (2) 10mm screws.

6
BA
B. Pull the MRB3 POWER and GROUND wires through the rubber
grommet and feed through the hole in the rewall to the power strip
located on the opposite side of the rewall.
A. Unwrap the tape and pull the rubber wire grommet out of the rewall.
RUNNING AMP POWER CABLE AND REAR SPEAKER WIRE
C2C1
C. From under the hood, against the top rewall, unscrew the nut on the rst
position terminal (12v accessory) and attach the yellow POWER wire. Refasten
on the nut (C1). Then unscrew the nut on the second position terminal and
attach the black GROUND wire. Re-screw on the nut (C2).
D1 D2 D3
D. Feed the connector end of the Amp power wire through the center console to the other side of the rewall (D1). Then feed the power wire through the grommet
hole (D2) and through the rubber grommet with the rest of the vehicle’s wiring and cables (D3). Do the same for the 2nd Amp power & rear speaker wire.
NOTE
Some RZR models come with the ground “GND” terminal not
connected as shown. If you do not have a factory wiring going to
this terminal, add a ground wire from the “GND” terminal to the
frame before connecting the wires. We recommend removing
the paint to bare metal, using a star washer, and repainting over
the connection.

7
RUNNING AMP POWER CABLE AND REAR SPEAKER WIRE
AMP PLATE INSTALLATION
THIS CONCLUDES THE DISASSEMBLY AND RUNNING OF THE POWER AND SPEAKER WIRE. NOW
REFER TO INSTRUCTION 1 - INSTALLATION OF THE GLOVEBOX SUBWOOFER ENCLOSURE.
E E E
E. Route the front speaker wire through the opening where the rewall and roll
cage bar meet on both the driver and passenger side. Leave these wires loose
until the front speaker pods are to be installed.
Place the pre-installed amp plate with MRB3 Brain on the frame of the dash and line up the hole on the top
of the amp plate to the factory hole where the pocket bracket was previously installed (1). Loosely screw in
the factory 10mm screw in this hole location that was previously removed.
Next loosely screw in the M6 screw with washer from underneath the steering column into the amp plate (2).
Lastly hand tighten both screws.
TOP VIEW
11
2
2
UNDERNEATH VIEW

8

9
RZR XP1000 & 2015+ RZR900
Kicker 10” Glove Box
Subwoofer Enclosure
!
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or
workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects
in material or workmanship. All Kicker Speakers are covered by a limited 1 year warranty against
defects in material or workmanship. All Kicker Ampli ers are covered by a limited 2 year warranty
against defects in material or workmanship. Labor for replacement of defective components is not
covered. Contact SSV Works for further warranty information.
TOOLS NEEDED FOR INSTALLATION
INSTALLATION NOTES
PARTS LIST IMAGES
Removal of the passenger fender is not required (Step 3); however it will make the installation and alignment of the RZ3-GB10K easier.
2. M6 x 16mm Screws x 11
(Long)
7. Glove Box Door
Bracket x 1
8. H1173 Audio Cable
3. M6 x 8mm Screws x 2
(Short)
4. M6 Washers x 13
5. Flat Mounting
Brackets x 2
1. WP-RZ3GBS10 Enclosure
(door not included)
6. “L” Bracket x 1
- Wire Crimpers
- Wire Strippers
- 10mm Socket or Wrench
- Drill with 1/8” and 1/4” Drill bits
- T-30 Torx Driver
- T-40 Torx Driver
- #3 Phillips Screwdriver
- #2 Phillips Screwdriver
- Panel removal tool

10
C. Lift the enclosure into place and align the top channel in the grab handle
bar. While holding the enclosure in place, loosely attached the fl at brackets
to the top of the enclosure using the long screws provided.
A. Remove the ten T40 Torx bolts that secure the 2 piece fender.
Note: there is one screw inside the fender well. Remove the
two additional screws from the striker plate, slide fender up
the cage rail and secure
E. While applying pressure to keep the enclosure secure against
the front wall, tighten the top brackets, as they tighten they
will bend slightly to add pressure and avoid any vibration, now
tighten the lower L bracket to the enclosure
D. To properly align the box, slide the box  rmly toward the front of
the vehicle. It should sit approximately 1/4” from the factory
glove box mount. If not properly installed, the kick pod and dash
panel will not align in place.
B. Remove the two 10mm bolts that secure factory glove box and
remove the factory glove box
F. Loosely install the bottom L bracket, align the mounting hole with
the factory bung and secure with one of the long screws provided
(you will tighten the bracket to the enclosure and factory bung
AFTER step J)
D
A
C D
E
C
B
F

11
G. For 2015-up model year vehicles, install the supplied bracket using
the short screws provided and adjust forward or back so glove box
latch closes tight
G
H. For 2014 model year vehicles remove the factory glove box
door latch. Mount the latch to the supplied bracket and
secure to the enclosure using the short screws provided
H
I. Route the speaker wire away from any moving parts and any
sharp metal, then connect to the ampli er.
I
J. Attach the factory glovebox door
J

12

13
RZR XP1000 & 2015+ RZR900
Kicker 6.5” Speaker
Front Kick Panels
!
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All Kicker Speakers are covered by a limited 1
year warranty against defects in material or workmanship. All Kicker Ampli ers are covered by
a limited 2 year warranty against defects in material or workmanship. Labor for replacement
of defective components is not covered. Contact SSV Works for further warranty information.
TOOLS NEEDED FOR INSTALLATION

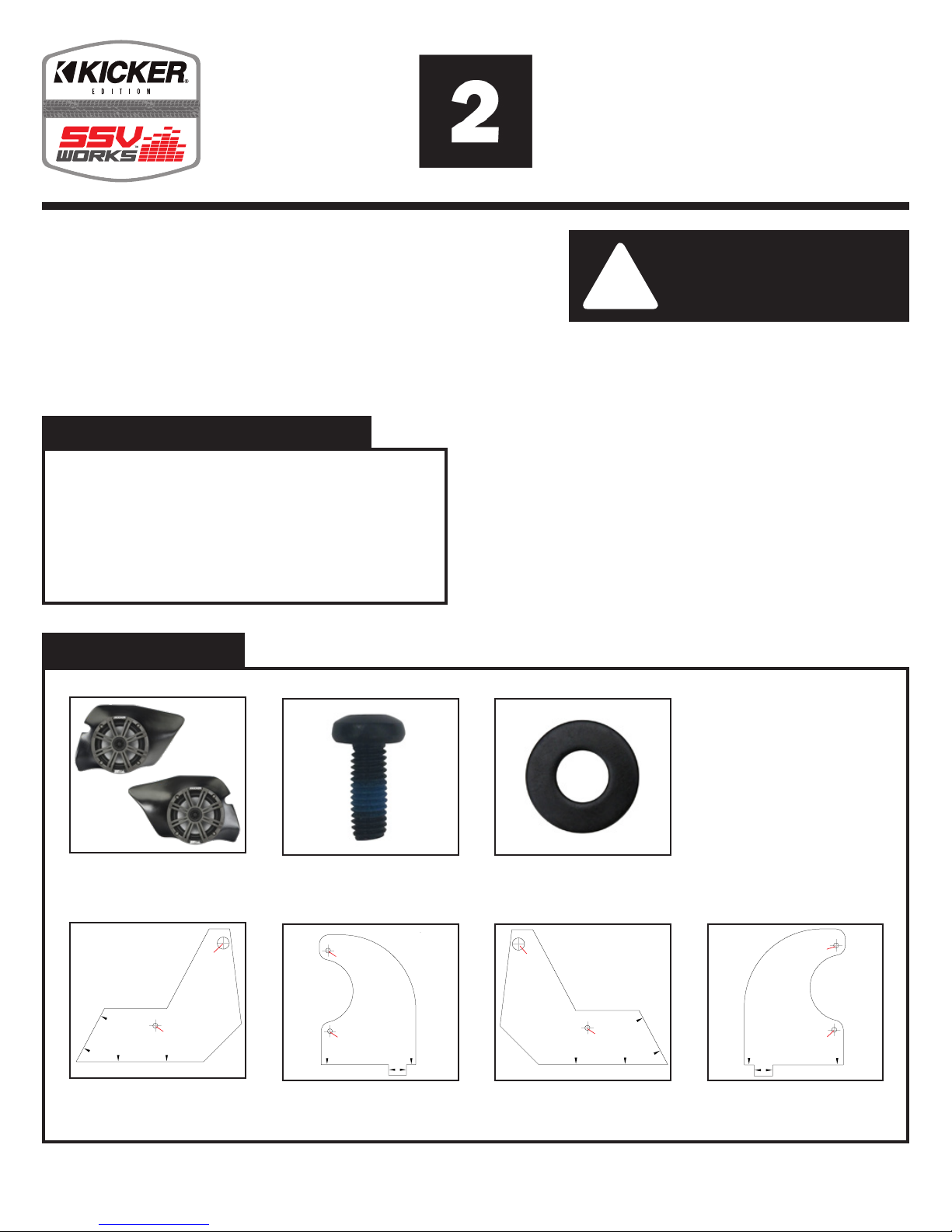

PARTS LIST IMAGES
2. M6 x 16mm Screws x 6
5. Driver Side Outside Template
1. RZ3-F65K Enclosures
(1 pair)
4. Driver Side Inside Template
3. M6 Washers x 6
6. Passenger Side Inside
Template
7. Passenger Side
Outside Template
- Wire Crimpers
- Wire Strippers
- T-30 Torx Driver
- Drill with 1/8”, 1/4” and
1/2” Drill bit
- #2 Phillips Screwdriver
- Scribe or Marker
- Utility Knife
RZ3-F65
2017 Polaris RZR Kick Pod, Cut Template
Driver Inside Template
Cut along parimeter
Drill Point
Drill Point
RZ3-F65
2017 Polaris RZR Kick Pod, Cut Template
Passenger Outside Template
Cut along parimeter
Drill Point
Drill Point
RZ3-F65
2017 Polaris RZR Kick Pod, Cut Template
Cut along parimeter
Passenger Inside Template
Drill Point
Drill Point
RZ3-F65
2017 Polaris RZR Kick Pod, Cut Template
Driver Outside Template
Cut along parimeter
Drill Point
Drill Point

14
B. Cut out the INSIDE template (Driver/Passenger) along the cut line. Position the template on the inside footwell making sure to
square up the template along the factory panel as shown in image B1 and B2. Using a scribing tool, mark the center of the 2 drill
points illustrated on the template as shown in B3 and B4.
A. Using the utility knife or another cutting tool cut off the two
plastic factory nubs in the foot well, cut these as smooth as
you can to the panel.
B1 B2
B4B3
A
NOTE: If pod does not come pre-installed with speaker, do not use provided paper templates. Use the pod mounting holes as your drill template.
Hold the pod in position and mark the drill holes through the empty pod using a scribe tool. All pilot holes will be drilled from the inside footwell.

15
D. Cut out the OUTSIDE template (Driver/Passenger) along the cut line. Position the template on the outside footwell. Make sure the
bottom of the template lines up along the bottom edge and tab of the factory panel as shown in  gure D1-D3. Using a scribing tool,
mark the center of the 2 drill points illustrated on the template as shown in D4 and D5. When marking these holes, make sure the
template is fl ush against the factory panel.
C. Drill a pilot hole at the places just marked with a 1/8” drill bit. Then follow up by using a 1/4” drill bit in the lower pilot hole (for
mounting the pod) and a 1/2” drill bit in the upper pilot hole (for speaker cable).
E1 D3D1 D2
D5
C2
D4
C1

16
E. Drill a pilot hole at the places just marked with a 1/8” drill bit. Then follow up by using a 1/4” drill bit for both pilot holes (for mounting the pod).
E2E1
G. Position the speaker pod in place and line up with drilled
mounting holes
G
H
F. Route the speaker cable attached to the pod through the inside
footwell 1/2” hole made in Step D.
I. Connect the B-H1149 cable to the speaker pods and zip tie all
cables to the frame
J. Connect the speaker harness to the ampli er
H. With the provided M6 screws and washers, loosely mount the pod through the 3 holes previously drilled. Once all screws have been
inserted into the pod, hand tighten all 3 screws.
F
H
I J

17
RZ3-F65
2017 Polaris RZR Kick Pod, Cut Template
Driver Outside Template
Cut along parimeter
Drill Point
Drill Point

18

19
RZ3-F65 2017 Polaris RZR Kick Pod, Cut Template
Cut along parimeter
Passenger Inside Template
Drill Point
Drill Point
