USER MANUAL
FlatPar 4
SLB 4P 36-41
Please read the instructions carefully before use

!
SAFETY INSTRUCTIONS
Please read the instructions carefully as they include important
information about the installation, operation and maintenance.
• Please keep this user’s guide for future consultation. If you sell the unit to
another user, be sure that they also receive this instruction booklet.
• All fixtures leave the manufacturer intact. Please note that any damages
incurred by the user is not covered by the guarantee.
• Unpack and check carefully that there is no transportation damage before
using the unit.
• The unit is for indoor use only. Use only in a dry location.
• Use a safety bond when attaching the fixture to a lighting rig. Handle by
the hanging bracket when fixing.
• The unit must be installed in a location with adequate ventilation at least
50 cm from adjacent surfaces.
• Make sure that no ventilation slot is blocked, otherwise the unit will overheat.
• Before operating, ensure that the voltage and frequency of the power
supply match the power requirements of the unit.
• Make sure all equipment is properly earthed.
• Do not operate the unit if the ambient temperature is higher than 40°C.
• Do not hardwire to any mains dimmer.
• On the first start, there may be some normal operational start-up smell.
• Make sure that there is no flammable material close to the unit while operating,
as it is a fire hazard.
• Look over power wires carefully and replace immediately if there is any damage.
• Never run on for a long time lest shortening lifespan. Avoid any inflammable
liquids, water or metal objects entering the unit. In case it happens, cut off
the mains power immediately.
• Do not operate in a dirty or dusty environment. Clean fixtures regularly.
• Do not allow unsupervised children to operate the fixture.
• Do not touch any wire during operation as there might be electric shock
hazard.
• Avoid placing power wires next to other cables.

• Disconnect the mains power before replacing or servicing the
fuses.
• Only replace the fuses with the
same type.
• In the event of a serious operating problem, stop using the unit
immediately.
• Never turn on and off the unit time after
time.
• The housing, the lenses and the ultraviolet filter must be replaced if they
appear to be damaged.
• Do not open the unit as there is no user serviceable part
inside.
• Never try to repair the unit by yourself. Repairs carried out by unskilled
people can lead to damage or malfunction. Please contact the nearest
authorized technical assistance centre.
• Disconnect the main power if the fixture is not used for a long
time.
• Use the original packaging to transport the unit regarding any
warranty issue.
• Do not look directly at the LED light beam while the fixture is
on.
• Do not connect more than 7 units to the same power
source.
INSTALLATION
Place the FlatPar stand on solid flat ground. Set the fixture with the 35-mm
flange on top of the stand. Adjust the stand height and tighten all fixing
screws. Additionally, fix the screws with safety bolts. Adjust the lights in the
direction you need and fix them with the screws. Before you switch the
power on, check that all the connections have been made properly. Always
ensure that the unit is firmly fixed to avoid vibration and slipping while
operating.

TECHNICAL SPECIFICATIONS
- Type: Light set with 4 Flat PAR spotlights
- LED: 4 x 3 RGBW 4-in-1 LEDs, 6 watts per LED
- Illuminance: 3320 lux at 2 metres (6.6')
- Beam angle: 25°
- Control modes: DMX-512 (6 or 15 channels), master/slave, auto, sound
- Functions: Dimmer, strobe, auto, RGBW colour changing
- Display: 4-digit
- Housing: Aluminium
- Fixing: Ready for standard 35-mm diameter pole
- Inputs and outputs: 2 x 3-pin DMX (male and female) 2 x power plug (in and out)
- Cooling: Natural (no fan)
- Use: Indoor, IP20
- Power consumption: 80 watts

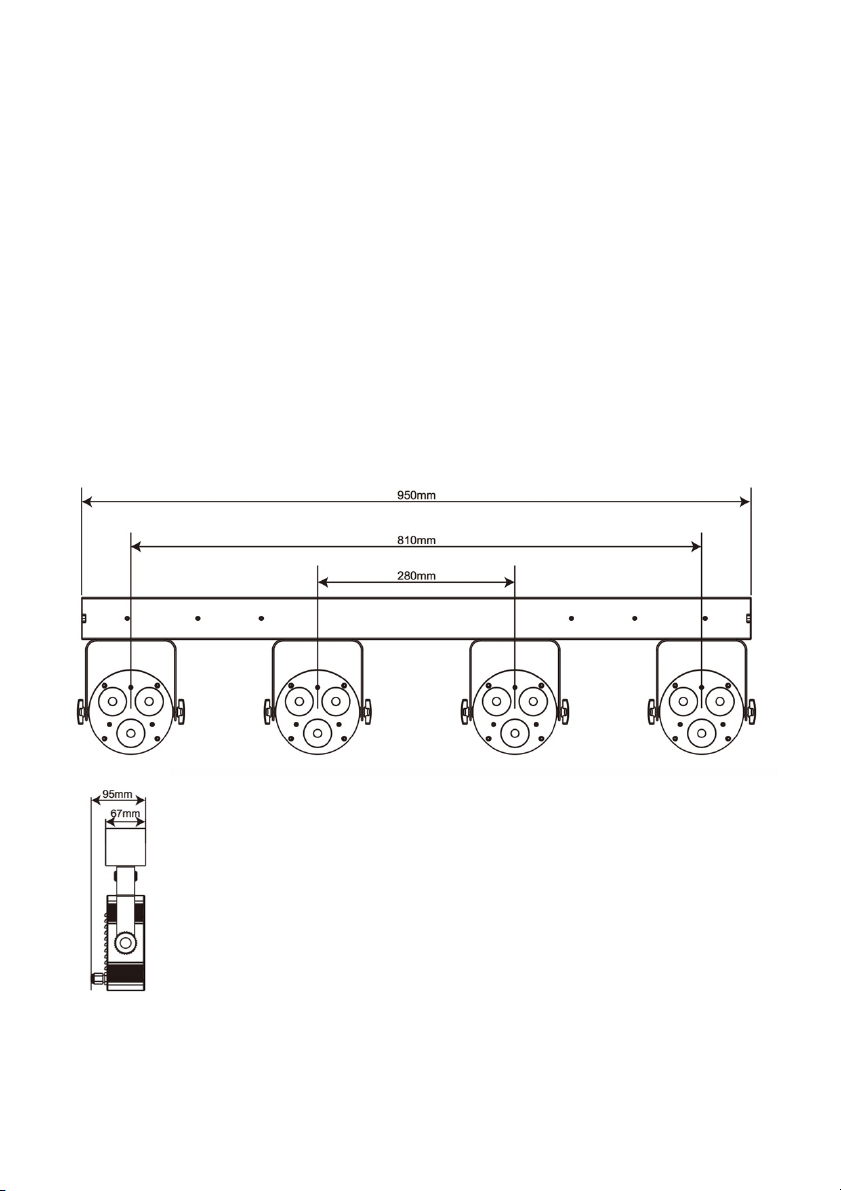

- Dimensions: 114 x 9.5 x 27.3 cm (44.8 x 3.7 x 10.7")
- Set weight: 11 kg (24.2 lb)

MENU STRUCTURE
DMX mode (1 to 512)
Automatic selection
mode
Colour mode (000 to 255)
Channel mode selection
Slave mode
User mode
Sound mode

Addr – DMX address setting via control board.
1. Press the MENU button. Then press the UP or DOWN button until “Addr” is
displayed. Then, press ENTER.
2. The screen displays “A×××”. “×××”represents the showed address. Press the UP
or DOWN button to select the desired address.
Auto – In this menu, you can select the desired Auto mode.
1. Press the MENU button. Then press the UP or DOWN button until “Auto” is
displayed. Then, press ENTER.
2. The screen displays “Aut×”. You can press the UP or DOWN button to select the
desired auto mode. Then press ENTER to adjust the speed of the Auto mode from
speed 1 to speed 9.
Soun – In this menu, you can select the desired sound mode.
1. Press the MENU button. Then press the UP or DOWN button until “Soud” is
displayed. Then, press ENTER.
2. The screen displays “Soux”. You can select the desired sound mode by
pressing the UP or DOWN button. Then press ENTER to adjust the sensitivity of
the sound mode from 0 to 9.
Colo – In this menu, you can select the desired colour mode.
1. Press the UP button or DOWN button until “CoLo” is displayed. Then, press
ENTER.
2. “AtF” or “Col X” will be showed. “X” represent one to nine. If you select “Col X”,
you can see nine types of colour. If you select “AtF”, you can adjust the desired
colour by adjusting the value of the four colours (red, green, blue and white) from 0
to 255.
Chnd – In this menu, you can select the desired channel mode.
1. Press the MENU button. Then press the UP or DOWN button until “Chnd” is
displayed. Then, press ENTER.
2. Press the UP or DOWN button to select the desired channel mode (4, 6, 10, 16
or 18 channels).

SLav – In this menu, you can select the master/slave mode.
1. Press the MENU button. Then press the UP or DOWN button until “SLav” is
displayed. Then, press ENTER.
2. The screen displays “Sla”: the slave mode is confirmed. It can be controlled by
the auto mode, sound mode and chase mode.
uer – This will display the software version.
1. Press the MENU button. Then press the UP or DOWN button until "uer" is
displayed. Then press ENTER.
2. The software version will be showed.
DMX control mode
4 DMX channels mode:
Channel
Value
Function
CH 1
0--255
Red (0%--100%)
CH 2
0--255
Green (0%--100%)
CH 3
0--255
Blue (0%--100%)
CH 4
0--255
White (0%--100%)
6 DMX channels mode:
Channel
Value
Function
CH 1
0--255
LED function
CH 2
0--255
LED function speed and flash speed
CH 3
0--255
Red (0%--100%)
CH 4
0--255
Green (0%--100%)
CH 5
0--255
Blue (0%--100%)
CH 6
0--255
White (0%--100%)
10 DMX channels mode:
Channel
Value
Function

CH 1
0--255
LED function
CH 2
0--255
LED function speed and flash speed
CH 3
0--255
Red (0%--100%)
CH 4
0--255
Green (0%--100%)
CH 5
0--255
Blue (0%--100%)
CH 6
0--255
White (0%--100%)
CH 7
0--255
Red (0%--100%)
CH 8
0--255
Green (0%--100%)
CH 9
0--255
Blue (0%--100%)
CH 10
0--255
White (0%--100%)
16 DMX channels mode:
Channel
Value
Function
CH 1
0--
255
Red (0%--100%)
CH 2
0--
255
Green (0%
--100%)
CH 3
0--
255
Blue (0%--
100%)
CH 4
0--
255
White (0%--
100%)
CH 5
0--
255
Red (0%--100%)
CH 6
0--
255
Green (0%
--100%)
CH 7
0--
255
Blue (0%--
100%)
CH 8
0--
255
White (0%--
100%)
CH 9
0--
255
Red (0%--100%)
CH 10
0--
255
Green (0%
--100%)
CH 11
0--
255
Blue (0%--
100%)
CH 12
0--
255
White (0%--
100%)
CH 13
0--
255
Red (0%--100%)
CH 14
0--
255
Green (0%
--100%)
CH 15
0--
255
Blue (0%--
100%)
CH 16
0--
255
White (0%--
100%)
18 DMX Channels mode:
Channel
Value
Function

CH 1
0--
255
Dimmer
CH 2
0--
255
Strobe
CH 3
0--
255
Red (0%--100%)
CH 4
0--
255
Green
(0%
--100%)
CH 5
0--
255
Blue (0%-
-
100%)
CH 6
0--
255
White
(0%--
100%)
CH 7
0--
255
Red (0%--100%)
CH 8
0--
255
Green
(0%
--100%)
CH 9
0--
255
Blue (0%-
-
100%)
CH 10
0--
255
White
(0%--
100%)
CH 11
0--
255
Red (0%--100%)
CH 12
0--
255
Green
(0%
--100%)
CH 13
0--
255
Blue (0%-
-
100%)
CH 14
0--
255
White
(0%--
100%)
CH 15
0--
255
Red (0%--100%)
CH 16
0--
255
Green
(0%
--100%)
CH 17
0--
255
Blue (0%-
-
100%)
CH 18
0--
255
White
(0%--
100%)
DMX functions (in 6 and 10 channels mode)
CH1
0—11
12—23
...
60—71
72—83
...
228—239
240—251
252—255
Dimmer
sence1
sence5
auto1
auto14
sound1
sound2
CH2
Slow
Fast
0
255

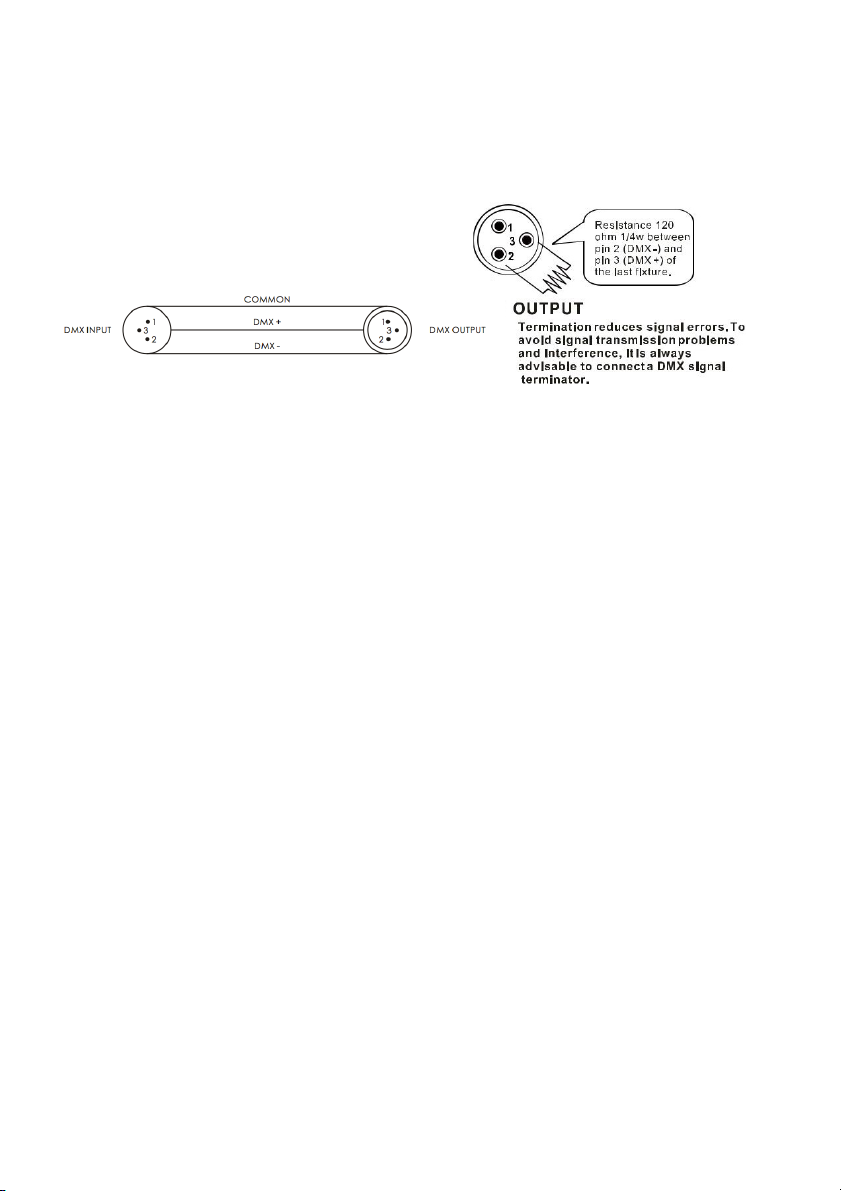

DMX512 CONNECTIONS
The DMX512 is widely used in intelligent lighting control, with a maximum of
512 channels.
Warning
To avoid signal transmission problems and interferences when using fixtures in
chain, use a Stagg N-series professional 3-pin DMX terminator (resistance: 120
ohms; pin2: DMX-; pin3: DMX+).
FIXTURE CLEANING
An internal cleaning must be carried out periodically to optimize the light output.
The cleaning frequency depends on the environment in which the fixture
operates: a damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the fixture’s optics. Clean the fixture with a soft cloth and
normal glass cleaning fluid. Always dry the parts carefully. Clean the internal
optics at least every 30 days. Clean the external optics at least every 20 days.

For more info and last updates:
staggmusic.com
07/2017
