Stelpro ASIL2030 Series User manual
INSASIL20300514
USER’S GUIDE
ASIL2030 SERIES
BATHROOM FAN HEATER
REPLACEMENT COMPONENT LIST INCLUDED
This unit
complies with
the CSA and
UL standards
For further information or to consult this guide online, please visit our website at www.stelpro.com
APPAREIL
/ UNIT:
MIS À JOUR
UPDATED:
DESSIN TECHNIQUE / TECHNICAL DRAWING
DESSINATEUR
/ DRAFTER:
DATE: 05/12/2011 SIL2030
A. DESMARAIS 2013-09-16 PP
2INSASIL20300514
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future
reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this
product.
, according to the effective
in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit’s nameplate.
This unit must be .
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative). Use this heater only as described in this
It corresponds to
required capacity to heat a room. If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and
indicated in the installation section.
This unit must not come into contact with a water source such as, but not limited to, showers, bathtubs, sinks, toilets, etc. and must be protected from
Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be and when using it. To avoid burns,
do not let bare skin touch hot surfaces. The unit must cool down for few minutes since it will stay warm for some time after shut-down. Extreme caution is
necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
The bottom of this unit must be installed at least from
walls. However, make sure objects or pieces of furniture do not come into contact with the unit and keep them at least from the unit since
so make sure those near the unit can withstand heat.
DANGER
Never block air vents (with objects or other items). You risk damaging the heater and the obstruction could lead to electric shock or overheating, which could
products.
Some areas are dustier than others. Thus, it is the user’s responsibility to evaluate if the unit based on the amount of dirt accumulated on
in accordance with these instructions.
The thermal protection activation indicates that the unit has been subjected to abnormal operating conditions. If the thermal protection remains activated or
damaged. (Refer to the limited warranty)
If you set the thermostat to the lowest temperature set point, the Frost free warning mode will be activated since there is no OFF position.
Before unplugging the unit, all controls must be in the “OFF” position and the current from the main breaker panel should be cut. (The general switch may be
used also, if included.)
If the unit is damaged or defective, discontinue use, cut off power supply at circuit breaker and contact a certified electrician or certified repair centre. (Refer
to the limited warranty)
SAVE THESE INSTRUCTIONS
instances, the instruction manual may not entirely match all the functions of the actual product. Therefore, the actual product and packaging, as well as the name
and illustration, may differ from the manual.
WARNING IMPORTANT INSTRUCTIONS
3INSASIL20300514
SPECIFICATIONS
VOLTS 240 V
4” / 101 MM
13 3/8” / 340 MM
17 3/8” / 441 MM
INSTALLATION
This heater has been designed for a permanent wall installation in a bathroom, either surface or recess mounted.
1.
2. Remove the control knobs (thermostat knob (top) and timer knob (bottom)).
3. Remove the two (2) screws located underneath the unit and take off the front cover by pulling it gently downwards.
4. Remove the wiring compartment cover (4 screws).
5. Punch out one of the knock outs which allow for cable entry.
6. Insert the unit into the wall opening and secure it in place by screwing four (4) screws into the four (4) holes on the
outer edging of the unit.
7. Make the appropriate electrical connections (red to red; black to black; ground fault protection wire (bare wire) to
ground fault protection screw).
8. Screw back into place the wiring compartment cover.
9. Put the front cover back on.
1- Locate the cable coming from the wall.
2- Remove the control knobs (thermostat knob (top) and timer knob (bottom)).
3- Remove the two (2) screws located underneath the unit and take off the front cover by pulling it gently downwards.
4- Remove the the wiring compartment cover (4 screws).
5- Punch out one of the knock outs which allow for cable entry.
6- Secure the heater to the wall by inserting screws into the holes at the very back of the heater.
7- Make the appropriate electrical connections (red to red; black to black; ground fault protection wire (bare wire) to
ground fault protection screw).
8- Screw back into place the wiring compartment cover.
9- Put the front cover back on.
TECHNICAL DRAWINGS
9 1/8˝
[232 mm]
8 1/2˝
[216 mm]
1 7/8˝
[47 mm] 12 9/16˝
[319 mm]
10 1/2˝
[266 mm]
16 1/2˝
[419 mm]
11 1/2˝
[292 mm]
2˝
[51 mm]
6 11/16˝
[170 mm]
7/8˝
[22 mm]
KOE Ø
SURFACE
INSTALLATION
RECESSED
INSTALLATION
BACK
BACK
WALL OPENING
FRONT
BOTTOM
SIDE
1"
25mm
1"
25mm
O7/8"
22mm
KO
1 3/16"
31mm 3 15/16"
101mm
1 1/2"
38mm
13 3/8"
340mm
8"
203mm
17 3/8"
441mm
6 11/16"
170mm
O7/8"
22mm
KO
11 1/4"
286mm
O7/8"
22mm
KO
5 5/8"
143mm
15 7/8"
403mm
1 1/16"
26mm
1 1/16"
27mm
SPECIFICATIONS, TECHNICAL DRAWINGS & INSTALLATION
4INSASIL20300514
OPERATION
· Maintains a stable room temperature.
· Highest setting offers continuous operation of heater.
· Thermostat settings correspond to desired room temperatures and ensure the cycling of the heater.
· Thermostat will not engage the heater to operate when the room temperature is higher than the thermostat setting.
· Thermostat will engage heater to operate continuously when the room temperature is lower than the thermostat setting.
Turn the thermostat (A) clockwise to its halfway point. Set the timer (B) for the amount of time you wish to heat the room.
timer.
Should the desired room temperature be too low, turn the thermostat (A)
clockwise to increase the temperature. Should the desired room temperature
be too high, turn the thermostat counter-clockwise to decrease the temperature.
Set the thermostat (A) to the desired temperature.
vacuum brush to remove dust and other foreign objects from the grilles. Note
that cigarette smoke could yellow the discharge grille and that the best way to
prevent it is to clean the unit on a regular basis.
is highly recommended to thoroughly rinse the surface with clean water after cleaning. Alternatively, you may use a stainless steel cleaner or clean water and dish
soap. Always follow polish lines.
· chlorine;
· scrubbing pads or similar scrubbing devices (steel wool);
· abrasive cleaning agents; and
· hydrochloric acid products such as bleach because they may stain and/or damage stainless steel surfaces.
MAINTENANCE
OPERATION & MAINTENANCE
5INSASIL20300514
2
3
7
4
5
1
6
N.B. If you do not solve the problem after checking these points, cut off the power supply at the main electrical panel and contact our customer service (see the
“Limited warranty” section to obtain the phone numbers).
The unit does not work
Open circuit breaker or fuse
The thermal protection has been activated
Faulty connections
The unit runs continuously
Heat losses higher than the unit capacity
The enclosure is extremely hot
Blocked air vents
The unit cycles under control of the thermal protection (overheat
indicator)
Blocked air vents
Overheating
The breaker trips when the heater is turned on Faulty connections
Voltage higher than that written on the nameplate
Elements are on, but the motor does not work
The desired room temperature cannot be reached
One or more elements are defective
Voltage lower than that written on the nameplate
Heat losses higher than the unit capacity
1 BOUT-250
1 BOUT-250-A
2 ELF-250
3 MO-250 MOTOR/FAN (240V)
4
5 M-SIL203003Z1
6 ST-017 THERMOSTAT SP
7 TIM-250 TIMER 30 MIN.
- FLK-SIL2030 FUSE LINK KIT
TROUBLESHOOTING
REPLACEMENT COMPONENT LIST
TROUBLESHOOTING & REPLACEMENT COMPONENT LIST
6INSASIL20300514
STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Québec | J3V 6L7
, Stelpro warrants its products and their components against defects
. This warranty applies only to the original purchaser; it
is non-transferable and cannot be extended.
If at any time during the warranty period the unit becomes defective, you must cut off the power supply at the main electrical panel and contact 1)
your installer or distributor, 2) your service center or 3) Stelpro’s customer service department. In all cases, you must have a
and provide the . Stelpro reserves the right to examine or to ask one of its representatives to
examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price
or repair a defective part. Please note that repairs made within the warranty period must be authorized in advance in writing by Stelpro and carried out
by persons authorized by Stelpro.
(electricians and distributors - French), (electricians and distributors - English), or (consumers).
The authorization number must be clearly written on the parcel or it will be refused.
This warranty is exclusive and in lieu of all other representations and warranties (except of title), expressed or implied, and Stelpro expressly disclaims
Stelpro’s liability with respect to products is limited as provided above. Stelpro shall not be subject to any other obligations or liabilities whatsoever,
whether based on contract, tort or other theories of law, with respect to goods or services furnished by it, or any undertakings, acts or omissions
services, shutdowns, slowdowns, or for other types of economic loss or for claims of a dealer’s customers or any third party for such damages. Stelpro
of maintenance, improper maintenance (other than that prescribed by Stelpro) or a use other than that for which the unit was designed; 3) a natural
disaster or an event out of Stelpro’s control, including, but not limited to, hurricanes, tornadoes, earthquakes, terrorist attacks, wars, overvoltage,
negligence of the user or owner of the product. Moreover, it does not cover the cost of disconnection, transport, and installation.
The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, . Any parts
replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty
period. This warranty will be considered null and void and Stelpro will have the right to refuse any claims if without
corrosion or discoloration caused by excessive heat, chemical cleaning products and abrasive agents. It does not cover any damage that occurred
during the shipping.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some of them do not allow limitations
may have other rights which vary from state to state or from province to province.
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY
Table of contents
Other Stelpro Heater manuals
Stelpro
Stelpro UNIWATT AZUR UAC 01 Series User manual
Stelpro
Stelpro ORLEANS SOR Series User manual
Stelpro
Stelpro SCRSP Series Assembly instructions
Stelpro
Stelpro ASKS series User manual
Stelpro
Stelpro FI Series User manual
Stelpro
Stelpro APCH series User manual
Stelpro
Stelpro FI605 User manual
Stelpro
Stelpro CBB Series Service manual
Stelpro
Stelpro PULSAIR RWF Series User manual
Stelpro
Stelpro PRIMA SPR Series User manual
Stelpro

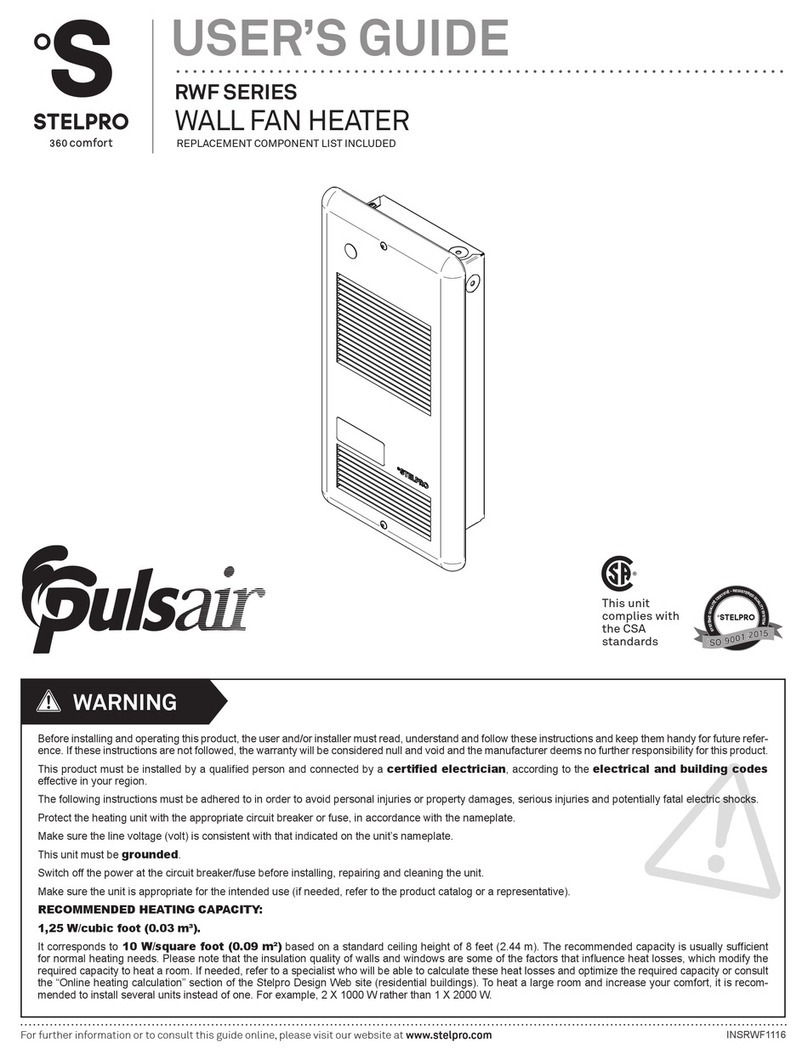

Stelpro pulsair RWF Series User manual
