STI STI-13000 Series Instruction sheet

Universal Stopper Install
STI-13000 & STI-14000 Series
Rely on STI®
Specications
Polycarbonate Enclosure
· Flammability - flush and surface mount models (Fig. 2, 3 & 4): UL 94 V-2, enclosed flush and enclosed back box models (Fig. 5 & 6): UL 94 5VA
· Cover wall thickness 0.125 inches
Dry Contact Relay
· 30 VAC/VDC, 1A
Temperature Range
· Electronics operating range: -40° to 120°F (-40° to 49°C) Below -4°F (-20°C), a remote power source is recommended
· Polycarbonate rated: -40° to 284°F (-40° to 140°C)
Installation Notes
· When used outdoors, the manual station must also be rated for outdoor use.
· UL Listing does not permit external power source or connection of horn relay contacts to fire alarm or life safety devices.
· When properly installed, the operation of this cover will not interfere with the function of your life safety system.
· Horn operation and performance must be tested annually. Battery replacement is recommended annually dependent on usage and
battery expiration date.
· Ensure the service pin is properly inserted in the service pin receptor to silence horn while performing installation or servicing horn.
· If mounting to an uneven surface, a backplate (STI-1314) is recommended to help ensure proper sealing to mounting surface.
· The backplate may be drilled if wire access or screw mounting holes are needed.
Approvals
It has been tested and approved or listed by:
· UL, CUL Listed - S2466
· UL Certified to meet ADA
· NEMA Type 3RX models with enclosed flush mount and enclosed back box options
Polycarbonate Cleaning Instructions
Rinse with water to remove abrasive dust and dirt. Wash with soap or mild detergent, using a soft cloth. Rinse once more then dry with a
soft cloth or chamois. Exercise caution when using water inside enclosure. Make sure unit is completely dry inside before reassembling.
To remove grease or wet paint from exterior of cover, rub gently with a soft cloth thoroughly wetted with Naptha. Then wash and rinse.
Do not use razor blades.
4.08 in.
(104mm)
5.42 in.
(138mm)
4.96 in.
(126mm)
4.31 in.
(110mm)
3.25 in.
(83mm)
2.54 in.
(84mm)
2.66 in.
(68mm)
2.0 in.
(51mm)
1.5 in.
(38mm)
1.0 in.
(25mm)
FLUSH END VIEW
.67 in.
(17mm)
5.95 in.
(151mm)WITHOUT HORN
5.28 in.
(134mm)WITH HORN
.42 in.
(11mm)
5.42 in.
(138mm)WITH HORN
6.36 in.
(162mm)WITHOUT HORN
FLUSH SIDE VIEW
LIFT HERE
TEXT HERE
5.950 in.
(151.13mm)
6.798 in.
(172.68mm)
5.7 in.
(144.78mm)
3.83 in.
(97.28mm)
4.08 in.
(103.63mm)
4.898 in.
(124.42mm)
5.699 in.
(144.75mm)
LIFT HERE
TEXT HERE
5.950 in.
(151.13mm)
6.798 in.
(172.68mm)
5.7 in.
(144.78mm)
3.83 in.
(97.28mm)
4.08 in.
(103.63mm)
4.898 in.
(124.42mm)
5.699 in.
(144.75mm)
LOCKING
TAB
LIFT HERE
TEXT HERE
5.95 in.
(151mm)
6.80 in.
(172mm)
5.7 in.
(144mm)
3.83 in.
(97mm)
4.08 in.
(103mm)
4.90 in.
(124mm)
5.70 in.
(144mm)
LOCKING TAB
Fig. 1 - Dimensions Center pull station to the Universal Stopper with
the help of dimensions shown in Fig. 1.
Open cover, use frame or optional backplate to
mark mounting holes.
NOTE: Be sure the entire cover travel will not
interfere with operation of the pull station or
other safety system equipment when installed.
Horn (battery included)
current draw dBA @ 9VDC
STI-13*20 & STI-13*30 models 9vdc 12vdc 24vdc 1 ft. 3 ft. 10 ft.
Low volume 36 mA 42 mA 22 mA 98 87 75
High volume 155 mA 146 mA 95 mA 108 93 82
Standby current 0.03 mA 0.64 mA 1.9 mA - - -
current draw dBA @ 3VDC
STI-14*20 & STI-14*30 models 3vdc 12vdc 24vdc 1 ft. 3 ft. 10 ft.
Low volume 60 mA 46 mA 25 mA 84 74 62
High volume 140 mA 87 mA 45 mA 95 85 76
Standby current 0.04 mA 0.10 mA 0.014 mA - - -
See website for accessories

Fig. 2 - Flush Mounting Option - Models 130** & 140**
Fig. 4 - Surface Mounting Option - Models 132** & 142**
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
#6 x 1-1/4 in. SCREW
(4) PROVIDED
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN MOUNTING TO UNEVEN SURFACE
#6 x 1-1/4 in. SCREW
(4) PROVIDED
1/2 in. & 3/4 in. CONDUIT
WEATHER GASKET
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN
MOUNTING TO UNEVEN SURFACE
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
STI-1401 GASKET
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED.
INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
IP67 GROMMET FOR REMOTE CABLE OPTION
DRILL 5/8 in. (16mm)
(INCLUDED WITH REMOTE OPTION)
DRILL POINT CENTER LOCATED ON
BACK SIDE OF MOUNTING PLATE
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP
WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
#6 - 32 x 1/2 in. PHIL. PANHEAD SCREW
(2) PROVIDED SEALED MOUNTING PLATE (SHOWN)
LOCATE GROMET AS NEEDED
DRILL 5/8 in (16mm) HOLE
INSERT GROMET AS SHOWN
FEED WIRES THROUGH GROMET
(INCLUDED WITH SEALED MOUNTING PLATE)
3/4 in. NPT PLUG (1) PROVIDED
USE A FLAT HEAD SCREWDRIVER OR COIN TO REMOVE.
APPLY THREAD SEALANT. SCREW NPT BACK INTO BACK BOX
LOCKING TAB DRILL 1/8 in. HOLE WHILE COVER IS
CLOSED. INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATION.
#6 O-RING USE TO SEAL
BACK BOX MOUNTING HOLES
(4) PROVIDED
I
P
6
7
A
5 CONDUCTOR
WIRE HARNESS

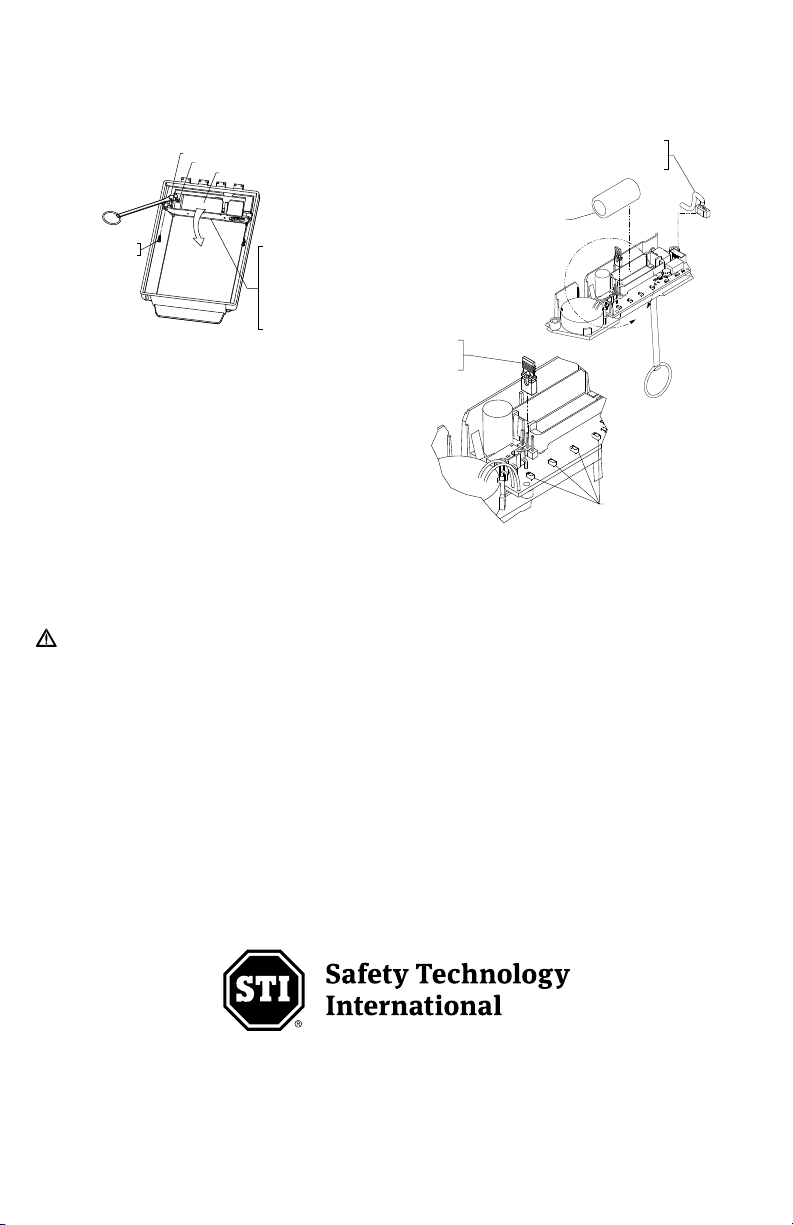

SERVICE PIN (1) PROVIDED
ROTATE BOTTOM END OF
BATTERY UPWARD FOR REMOVAL
HI
LOW
FACTORY DEFAULT
HIGH
VOLUME SWITCH
#6 - 32 x 1/2 in. PHIL. FLATHEAD SCREW
(6) PROVIDED
#4 HI-LO SCREW
(2) PROVIDED
WHEN REPLACING COVER
MAKE SURE COVER IS UNDER
HORN CASE TAB AND ROTATE
COVER CLOSED. INSERT HI-LO
SCREWS AND TIGHTEN.
HORN COVER
REMOVE BOTH HI-LO
SCREWS AND ROTATE
COVER OPEN AS SHOWN.
HORN CASE SERVICE PIN
RECEPTOR
ENCLOSED
FLUSH MOUNT
COVER ASSEMBLY
#6 1-1/4 in. SCREW
(4) PROVIDED
STI-1401 GASKET
EXISTING UL
TYPE 3R RATED
IN-WALL
ELECTRICAL BOX
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1 1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
PLASTIC WALL ANCHOR
(4) PROVIDED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
CONDUIT INSERT
(2) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
INSERT
(2) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
Fit appropriate conduit
weather gasket to conduit.
Then fit gasket to insert
or directly to the housing
knock-out. For additional
seal reliability a bead of
silicone may be applied
to conduit fitting.
Fig. 3 - Flush Mount with add-on Spacer - Models 131** & 141**
BREAK OFF ALL (4) OF THE
CONDUIT WINDOWS AND TABS
THEN TRIM SHARP EDGES
BEFORE INSTALLATION
STI-1331 SPACER
CONDUIT INSERT
(2) PROVIDED
INSERT
(2) PROVIDED
#6 x 2-1/2 in. SCREW
(4) PROVIDED
GASKET CAN BE CUT TO
INSTALL BEHIND CONDUIT
G01307 SPACER/WALL GASKET*
*Models may contain form-in-place gasket on spacer
and 1/8” diameter gaskets for conduit areas.
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN
MOUNTING TO UNEVEN SURFACE
BREAK OFF ALL (4)
OF THE CONDUIT
WINDOWS AND
TABS THEN TRIM
SHARP EDGES
BEFORE INSTALLATION
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
INSERT
(2) PROVIDED
CONDUIT INSERT
(2) PROVIDED
1/2 in. and 3/4 in.
CONDUIT WEATHER GASKET
(2) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
GASKET CAN BE CUT TO
INSTALL BEHIND CONDUIT
#6 x 1-1/4 in. SCREW
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
PLASTIC WALL ANCHOR
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
1/2 in. and
3/4 in. CONDUIT
WEATHER GASKET
(2) PROVIDED
G01331
SPACER/WALL GASKET
BREAK OFF ALL (4) OF THE
CONDUIT WINDOWS AND TABS
THEN TRIM SHARP EDGES
BEFORE INSTALLATION
STI-1331 SPACER
CONDUIT INSERT
(2) PROVIDED
INSERT
(2) PROVIDED
#6 x 2-1/2 in. SCREW
(4) PROVIDED
GASKET CAN BE CUT TO
INSTALL BEHIND CONDUIT
G01307 SPACER/WALL GASKET*
*Models may contain form-in-place gasket on spacer
and 1/8” diameter gaskets for conduit areas.
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN
MOUNTING TO UNEVEN SURFACE
BREAK OFF ALL (4)
OF THE CONDUIT
WINDOWS AND
TABS THEN TRIM
SHARP EDGES
BEFORE INSTALLATION
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
INSERT
(2) PROVIDED
CONDUIT INSERT
(2) PROVIDED
1/2 in. and 3/4 in.
CONDUIT WEATHER GASKET
(2) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
GASKET CAN BE CUT TO
INSTALL BEHIND CONDUIT
#6 x 1-1/4 in. SCREW
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
PLASTIC WALL ANCHOR
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
1/2 in. and
3/4 in. CONDUIT
WEATHER GASKET
(2) PROVIDED
G01331
SPACER/WALL GASKET

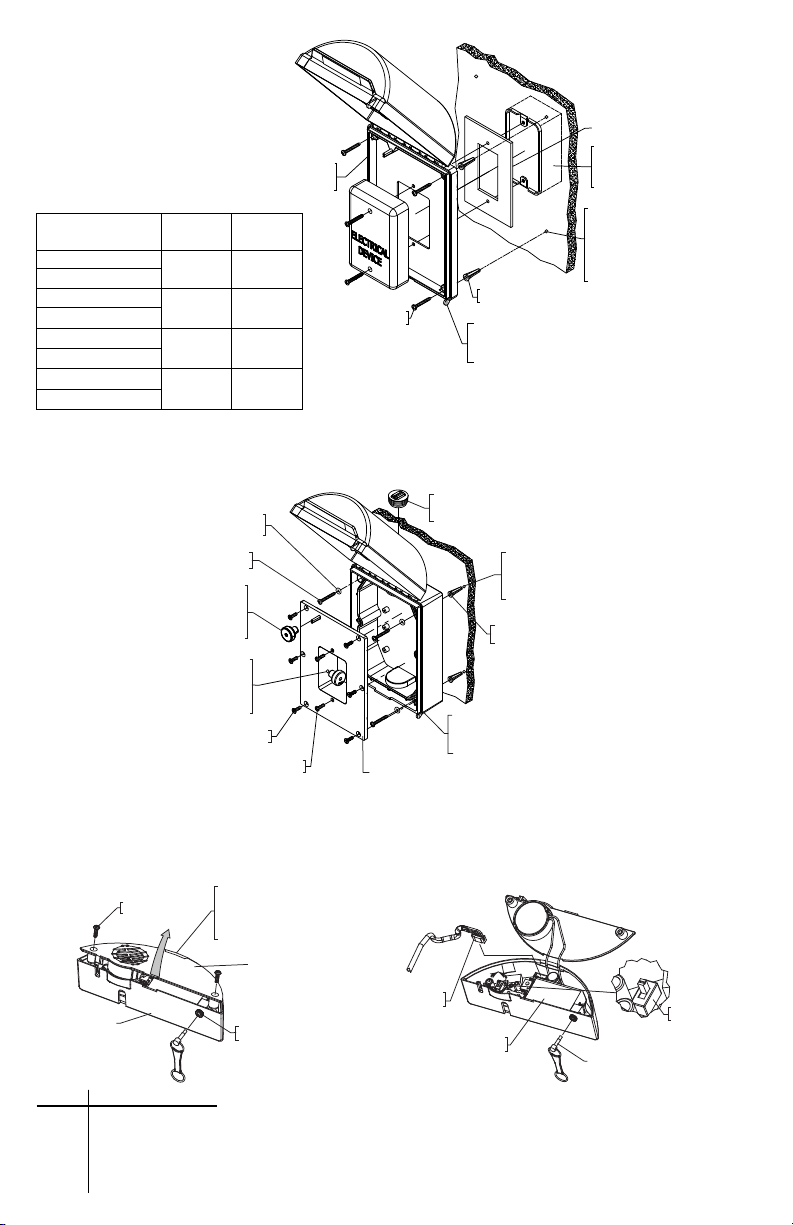

Fig. 6 - Enclosed Back Box Mounting Option - Models 134**, 135**, 138**, 139**,
144**, 145**, 148** & 149** NEMA TYPE 3RX
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
#6 x 1-1/4 in. SCREW
(4) PROVIDED
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN MOUNTING TO UNEVEN SURFACE
#6 x 1-1/4 in. SCREW
(4) PROVIDED
1/2 in. & 3/4 in. CONDUIT
WEATHER GASKET
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN
MOUNTING TO UNEVEN SURFACE
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
STI-1401 GASKET
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED.
INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
IP67 GROMMET FOR REMOTE CABLE OPTION
DRILL 5/8 in. (16mm)
(INCLUDED WITH REMOTE OPTION)
DRILL POINT CENTER LOCATED ON
BACK SIDE OF MOUNTING PLATE
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP
WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
#6 - 32 x 1/2 in. PHIL. PANHEAD SCREW
(2) PROVIDED SEALED MOUNTING PLATE (SHOWN)
LOCATE GROMET AS NEEDED
DRILL 5/8 in (16mm) HOLE
INSERT GROMET AS SHOWN
FEED WIRES THROUGH GROMET
(INCLUDED WITH SEALED MOUNTING PLATE)
3/4 in. NPT PLUG (1) PROVIDED
USE A FLAT HEAD SCREWDRIVER OR COIN TO REMOVE.
APPLY THREAD SEALANT. SCREW NPT BACK INTO BACK BOX
LOCKING TAB DRILL 1/8 in. HOLE WHILE COVER IS
CLOSED. INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATION.
#6 O-RING USE TO SEAL
BACK BOX MOUNTING HOLES
(4) PROVIDED
I
P
6
7
A
5 CONDUCTOR
WIRE HARNESS
SERVICE PIN (1) PROVIDED
ROTATE BOTTOM END OF
BATTERY UPWARD FOR REMOVAL
HI
LOW
FACTORY DEFAULT
HIGH
VOLUME SWITCH
#6 - 32 x 1/2 in. PHIL. FLATHEAD SCREW
(6) PROVIDED
#4 HI-LO SCREW
(2) PROVIDED
WHEN REPLACING COVER
MAKE SURE COVER IS UNDER
HORN CASE TAB AND ROTATE
COVER CLOSED. INSERT HI-LO
SCREWS AND TIGHTEN.
HORN COVER
REMOVE BOTH HI-LO
SCREWS AND ROTATE
COVER OPEN AS SHOWN.
HORN CASE SERVICE PIN
RECEPTOR
ENCLOSED
FLUSH MOUNT
COVER ASSEMBLY
#6 1-1/4 in. SCREW
(4) PROVIDED
STI-1401 GASKET
EXISTING UL
TYPE 3R RATED
IN-WALL
ELECTRICAL BOX
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1 1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
PLASTIC WALL ANCHOR
(4) PROVIDED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
CONDUIT INSERT
(2) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
INSERT
(2) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
#6 x 1-1/4 in. SCREW
(4) PROVIDED
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN MOUNTING TO UNEVEN SURFACE
#6 x 1-1/4 in. SCREW
(4) PROVIDED
1/2 in. & 3/4 in. CONDUIT
WEATHER GASKET
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN
MOUNTING TO UNEVEN SURFACE
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
STI-1401 GASKET
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED.
INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
IP67 GROMMET FOR REMOTE CABLE OPTION
DRILL 5/8 in. (16mm)
(INCLUDED WITH REMOTE OPTION)
DRILL POINT CENTER LOCATED ON
BACK SIDE OF MOUNTING PLATE
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP
WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
#6 - 32 x 1/2 in. PHIL. PANHEAD SCREW
(2) PROVIDED SEALED MOUNTING PLATE (SHOWN)
LOCATE GROMET AS NEEDED
DRILL 5/8 in (16mm) HOLE
INSERT GROMET AS SHOWN
FEED WIRES THROUGH GROMET
(INCLUDED WITH SEALED MOUNTING PLATE)
3/4 in. NPT PLUG (1) PROVIDED
USE A FLAT HEAD SCREWDRIVER OR COIN TO REMOVE.
APPLY THREAD SEALANT. SCREW NPT BACK INTO BACK BOX
LOCKING TAB DRILL 1/8 in. HOLE WHILE COVER IS
CLOSED. INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATION.
#6 O-RING USE TO SEAL
BACK BOX MOUNTING HOLES
(4) PROVIDED
I
P
6
7
A
5 CONDUCTOR
WIRE HARNESS
SERVICE PIN (1) PROVIDED
ROTATE BOTTOM END OF
BATTERY UPWARD FOR REMOVAL
HI
LOW
FACTORY DEFAULT
HIGH
VOLUME SWITCH
#6 - 32 x 1/2 in. PHIL. FLATHEAD SCREW
(6) PROVIDED
#4 HI-LO SCREW
(2) PROVIDED
WHEN REPLACING COVER
MAKE SURE COVER IS UNDER
HORN CASE TAB AND ROTATE
COVER CLOSED. INSERT HI-LO
SCREWS AND TIGHTEN.
HORN COVER
REMOVE BOTH HI-LO
SCREWS AND ROTATE
COVER OPEN AS SHOWN.
HORN CASE SERVICE PIN
RECEPTOR
ENCLOSED
FLUSH MOUNT
COVER ASSEMBLY
#6 1-1/4 in. SCREW
(4) PROVIDED
STI-1401 GASKET
EXISTING UL
TYPE 3R RATED
IN-WALL
ELECTRICAL BOX
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1 1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
PLASTIC WALL ANCHOR
(4) PROVIDED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
CONDUIT INSERT
(2) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
INSERT
(2) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
Fig. 5 - Enclosed Flush
Mounting Option -
Models 133** & 143**
NEMA TYPE 3RX
STI-134** STI-144**
STI-135** STI-145**
STI-136** STI-146**
STI-137** STI-147**
STI-138** STI-148**
STI-139** STI-149**
STI-13A** STI-14A**
STI-13B** STI-14B**
Back Box
Conduit Thread
3/4 NPT
20mm
3/4 NPT
20mm
Electrical Box
Type
North America
European
European
North America
Models
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
#6 x 1-1/4 in. SCREW
(4) PROVIDED
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN MOUNTING TO UNEVEN SURFACE
#6 x 1-1/4 in. SCREW
(4) PROVIDED
1/2 in. & 3/4 in. CONDUIT
WEATHER GASKET
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN
MOUNTING TO UNEVEN SURFACE
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
STI-1401 GASKET
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED.
INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
IP67 GROMMET FOR REMOTE CABLE OPTION
DRILL 5/8 in. (16mm)
(INCLUDED WITH REMOTE OPTION)
DRILL POINT CENTER LOCATED ON
BACK SIDE OF MOUNTING PLATE
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP
WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
#6 - 32 x 1/2 in. PHIL. PANHEAD SCREW
(2) PROVIDED SEALED MOUNTING PLATE (SHOWN)
LOCATE GROMET AS NEEDED
DRILL 5/8 in (16mm) HOLE
INSERT GROMET AS SHOWN
FEED WIRES THROUGH GROMET
(INCLUDED WITH SEALED MOUNTING PLATE)
3/4 in. NPT PLUG (1) PROVIDED
USE A FLAT HEAD SCREWDRIVER OR COIN TO REMOVE.
APPLY THREAD SEALANT. SCREW NPT BACK INTO BACK BOX
LOCKING TAB DRILL 1/8 in. HOLE WHILE COVER IS
CLOSED. INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATION.
#6 O-RING USE TO SEAL
BACK BOX MOUNTING HOLES
(4) PROVIDED
I
P
6
7
A
5 CONDUCTOR
WIRE HARNESS
SERVICE PIN (1) PROVIDED
ROTATE BOTTOM END OF
BATTERY UPWARD FOR REMOVAL
HI
LOW
FACTORY DEFAULT
HIGH
VOLUME SWITCH
#6 - 32 x 1/2 in. PHIL. FLATHEAD SCREW
(6) PROVIDED
#4 HI-LO SCREW
(2) PROVIDED
WHEN REPLACING COVER
MAKE SURE COVER IS UNDER
HORN CASE TAB AND ROTATE
COVER CLOSED. INSERT HI-LO
SCREWS AND TIGHTEN.
HORN COVER
REMOVE BOTH HI-LO
SCREWS AND ROTATE
COVER OPEN AS SHOWN.
HORN CASE SERVICE PIN
RECEPTOR
ENCLOSED
FLUSH MOUNT
COVER ASSEMBLY
#6 1-1/4 in. SCREW
(4) PROVIDED
STI-1401 GASKET
EXISTING UL
TYPE 3R RATED
IN-WALL
ELECTRICAL BOX
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1 1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
PLASTIC WALL ANCHOR
(4) PROVIDED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
CONDUIT INSERT
(2) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
INSERT
(2) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
Fig. 7 - Horn Option Models STI-13x20 & STI-13x30 - Wiring Details - Remote
Power/Relay Options
*9V battery acts as a backup power when using remote power
Remove service pin and horn should sound. Close covers and horn should silence.
When performing annual battery test/replacement or when servicing alarm system,
insert service pin to prevent horn from sounding. Remember to remove to return to
normal operation.
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
#6 x 1-1/4 in. SCREW
(4) PROVIDED
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN MOUNTING TO UNEVEN SURFACE
#6 x 1-1/4 in. SCREW
(4) PROVIDED
1/2 in. & 3/4 in. CONDUIT
WEATHER GASKET
STI-1314 OPTIONAL BACKPLATE -
RECOMMENDED WHEN
MOUNTING TO UNEVEN SURFACE
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKAWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
STI-1401 GASKET
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED.
INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT USED ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
IP67 GROMMET FOR REMOTE CABLE OPTION
DRILL 5/8 in. (16mm)
(INCLUDED WITH REMOTE OPTION)
DRILL POINT CENTER LOCATED ON
BACK SIDE OF MOUNTING PLATE
DRILL 3/16 DIA. HOLES 1-1/4 in. DEEP
WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1-1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#6 x 1-1/4 in. SCREW
(4) PROVIDED
#6 - 32 x 1/2 in. PHIL. PANHEAD SCREW
(2) PROVIDED SEALED MOUNTING PLATE (SHOWN)
LOCATE GROMET AS NEEDED
DRILL 5/8 in (16mm) HOLE
INSERT GROMET AS SHOWN
FEED WIRES THROUGH GROMET
(INCLUDED WITH SEALED MOUNTING PLATE)
3/4 in. NPT PLUG (1) PROVIDED
USE A FLAT HEAD SCREWDRIVER OR COIN TO REMOVE.
APPLY THREAD SEALANT. SCREW NPT BACK INTO BACK BOX
LOCKING TAB DRILL 1/8 in. HOLE WHILE COVER IS
CLOSED. INSERT THE BREAKAWAY SEAL (KIT-65)
COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATION.
#6 O-RING USE TO SEAL
BACK BOX MOUNTING HOLES
(4) PROVIDED
I
P
6
7
A
5 CONDUCTOR
WIRE HARNESS
SERVICE PIN (1) PROVIDED
ROTATE BOTTOM END OF
BATTERY UPWARD FOR REMOVAL
HI
LOW
FACTORY DEFAULT
HIGH
VOLUME SWITCH
#6 - 32 x 1/2 in. PHIL. FLATHEAD SCREW
(6) PROVIDED
#4 HI-LO SCREW
(2) PROVIDED
WHEN REPLACING COVER
MAKE SURE COVER IS UNDER
HORN CASE TAB AND ROTATE
COVER CLOSED. INSERT HI-LO
SCREWS AND TIGHTEN.
HORN COVER
REMOVE BOTH HI-LO
SCREWS AND ROTATE
COVER OPEN AS SHOWN.
HORN CASE SERVICE PIN
RECEPTOR
ENCLOSED
FLUSH MOUNT
COVER ASSEMBLY
#6 1-1/4 in. SCREW
(4) PROVIDED
STI-1401 GASKET
EXISTING UL
TYPE 3R RATED
IN-WALL
ELECTRICAL BOX
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN
USING ANCHORS
DRILL 7/64 DIA. HOLES
1 1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
PLASTIC WALL ANCHOR
(4) PROVIDED
LOCKING TAB
DRILL 1/8 in. HOLE WHILE COVER IS CLOSED. INSERT THE
BREAKWAY SEAL (KIT-65) COMPLETELY INTO THE LOCKING TAB.
*NOT FOR USE ON FIRE OR EMERGENCY SIGNAL APPLICATIONS.
CONDUIT INSERT
(2) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
INSERT
(2) PROVIDED
#8x10 WALL ANCHOR
(4) PROVIDED
PLASTIC WALL ANCHOR
(4) PROVIDED
Wire Description
Red 12VDC - 24VDC
Black 12VDC - 24VDC
Blue Common
Green NC - Norm Closed
Yellow NO - Norm Open
Horn Activation

2306 Airport Rd • Waterford, MI 48327, USA
Phone: [phone] • Fax: [phone]
[email protected] • www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England • Tel: [phone]
Fax: [phone] • [email protected] • www.sti-emea.com
Subject to change
without notice.
Printed in USA
Univ Stopper IS
Feb2019
Important Notice (when used on fire systems)
The Universal Stopper is intended to be used in areas where the incidence of false fire alarms from manual pull stations is high or has
proven to be a serious problem. Any disadvantage of this device is more than balanced when one considers the consequences of false
fire alarms, especially if fire service personnel and equipment are responding to a false fire alarm when they are needed for a real fire
somewhere else. Add to this, the disruption to the facility when false alarms occur. If you have, or may have, a problem with false fire
alarms or physical/weather damage to your fire alarm activation devices, the Universal Stopper could prove invaluable.
Avis important (en cas d’utilisation sur les réseaux d’incendie)
Le Universal Stopper est destiné à être utilisé dans les zones où l’occurrence de fausses alertes d’incendie issues d’avertisseurs
d’incendie manuels est élevée ou présente un problème grave. Un quelconque inconvénient de ce dispositif est vite contrecarré par
les conséquences des fausses alertes d’incendie, surtout lorsque le personnel et l’équipement des services d’incendie réagissent
à une fausse alerte d’incendie alors que leur intervention ailleurs sur un vrai incendie s’avère nécessaire en même temps.À cela
s’ajoute l’agitation éprouvée dans l’établissement au moment du déclenchement d’une fausse alerte. Si vous rencontrez, ou risquez de
rencontrer, un problème avec les fausses alertes d’incendie ou avec l’éventuel endommagement par effet climatique ou physique de vos
dispositifs de déclenchement des alertes d’incendie, le Universal Stopper pourra alors se révéler d’une valeur inestimable.
Warranty
Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components).
Electronic warranty form at www.sti-usa.com/wc14.
WARNING: This product can expose you to chemicals including Dichloromethane, which is known to the State of California to cause
cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
#4 HI-LO SCREW
(2) PROVIDED
SERVICE PIN (1) PROVIDED
SERVICE PIN RECEPTOR
HORN COVER
TO REMOVE SOUNDER ASSEMBLY,
REMOVE 2 HI-LO, ROTATE THE REAR OF
THE SOUNDER ASSEMBLY OFF THE
FRONT TAB OF THE MESSAGE HOOD.
TO INSTALL SOUNDER ASSEMBLY,
REVERSE THE REMOVAL PROCESS.
OPTIONAL REMOTE WIRE HARNESS
A
CR123A
5 CONDUCTOR WIRE HARNESS
(REFER TO WIRING INSTRUCTIONS ON FIG. 7)
VIEW A
VOLUME JUMPER
FACTORY DEFAULT HIGH
FLASHING LED’s
DO NOT TOUCH
WHEN REPLACING
COVER MAKE SURE
COVER IS UNDER
HORN CASE TAB
AND ROTATE COVER
CLOSED. INSERT
HI-LO SCREWS
AND TIGHTEN
VIEW A
VOLUME JUMPER
HI OR LOW
(DEFAULT HI)
A
+
-
VOLUME JUMPER
HI OR LOW
(DEFAULT HI)
CR123A
5 CONDUCTOR WIRE HARNESS
(REFER TO WIRING
INSTRUCTIONS ON FIG. 7)
VIEW A
LED LIGHTS
Fig. 8 - Horn Option Models STI-14x20 & STI-14x30 - Wiring Details - Remove
Power/Relay Options
*CR123A battery acts as a backup power when using remote power
TO REPLACE BATTERY REMOVE BOTH
HI-LO SCREWS AND ROTATE COVER
OPEN AS SHOWN
See FIG. 7 for wire description and activation instructions.
#4 HI-LO SCREW
(2) PROVIDED
SERVICE PIN (1) PROVIDED
SERVICE PIN RECEPTOR
HORN COVER
TO REMOVE SOUNDER ASSEMBLY,
REMOVE 2 HI-LO, ROTATE THE REAR OF
THE SOUNDER ASSEMBLY OFF THE
FRONT TAB OF THE MESSAGE HOOD.
TO INSTALL SOUNDER ASSEMBLY,
REVERSE THE REMOVAL PROCESS.
OPTIONAL REMOTE WIRE HARNESS
A
CR123A
5 CONDUCTOR WIRE HARNESS
(REFER TO WIRING INSTRUCTIONS ON FIG. 7)
VIEW A
VOLUME JUMPER
FACTORY DEFAULT HIGH
FLASHING LED’s
DO NOT TOUCH
WHEN REPLACING
COVER MAKE SURE
COVER IS UNDER
HORN CASE TAB
AND ROTATE COVER
CLOSED. INSERT
HI-LO SCREWS
AND TIGHTEN
VIEW A
VOLUME JUMPER
HI OR LOW
(DEFAULT HI)
A
+
-
VOLUME JUMPER
HI OR LOW
(DEFAULT HI)
CR123A
5 CONDUCTOR WIRE HARNESS
(REFER TO WIRING
INSTRUCTIONS ON FIG. 7)
VIEW A
LED LIGHTS

2306 Airport Road • Waterford, Michigan 48327-1209
Phone: [phone] • Fax: [phone]
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-emea.com
*SS2xx4 and LT1-UL NOTES: For access control installations, power for the LT-1UL Timer must be supplied by
a power source listed to UL294. When used for access control, this device shall be used as part of an access
controlled egress door system. It is up to the local AHJ to allow use of this device in place of an automatic sensor.
For higher security installations, lower time limits should be used. For SS2xx4 and LT1-UL the enclosed timer is to
be used and installed per the enclosed LT-1UL installation sheet. *SS2xx4 and LT1-UL maximum rating 30 VDC 3A.
REMARQUES POUR *SS2xx4 et LT1-UL: Pour les installations de contrôle d’accès, l’alimentation de la
minuterie LT-1UL doit être fournie par une source homologuée UL294. Lorsque cet appareil est utilisé aux
fins de contrôle d’accès, il doit faire partie d’un système de porte de sortie à accès contrôlé. Il incombe
donc à l’AHJ local d’autoriser l’utilisation de cet appareil au lieu d’un capteur automatique. Pour les
installations de sécurité plus renforcée, des délais inférieurs doivent être utilisés. Pour les modèles SS2xx4
et LT1-UL, la minuterie intégrée doit être installée et utilisée suivant la fiche d’installation LT-1UL fournie.
La cote maximale des modèles *SS2xx 4 et LT1-UL est de 30 VCC 3A.
WARNING: This product can expose you to chemicals including Bisphenol A, which is known to the State of
California to cause reproductive harm and Dichloromethane, which is known to the State of California to cause
cancer. For more information go to www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most products.
See website for details. Electronic warranty form at www.sti-usa.com/wc14.
1027IS OCT2018

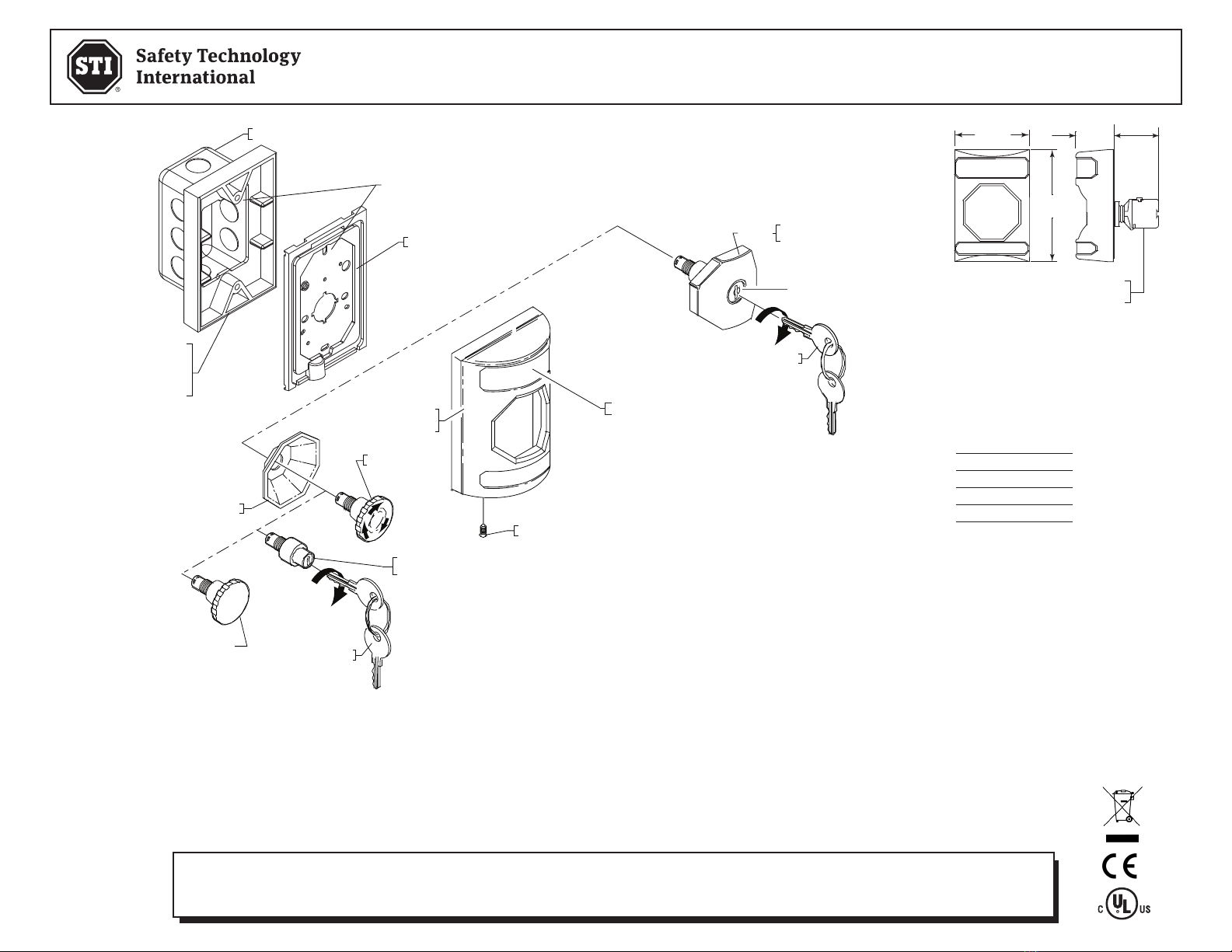

INSTALLATION OF SS2xx0, SS2xx1, SS2xx3, SS2xx4 SERIES STOPPER® STATION
All specifications and information shown were current as of publication, and are subject to change without notice.
“A” - Contact Depth
SS2xy0* 2.16 ”
SS2xy1 2.04”
SS2xy3* 2.13”
SS2xy4 2.04”
* If extra depth needed
in electrical box order
KIT-102722-color.
NC
NO
1
2
3
4
STRIP 1/4 in. OF WIRE INSULATION
INSERT IN TERMINAL (AS SHOWN) THEN
USING A PHILLIPS SCREWDRIVER TURN
CLOCKWISE UNTIL TIGHT.
SEPARATION OF TERMINAL ASSEMBLY.
FROM BUTTON ASSEMBLY IS AS FOLLOWS:
GRASP TERMINAL HOUSING AND USING THUMB
APPLY PRESSURE DOWNWARD, REMOVE TERMINAL.
REMOVAL OF TERMINAL BLOCK
FROM TERMINAL HOUSING: INSERT
SMALL SCREWDRIVER (AS SHOWN)
AND PRY UPWARD, REMOVE TERMINAL.
TERMINAL BLOCK
RELEASE LEVER
MUST FACE UPWARD
AS SHOWN FOR SWITCH
TO FUNCTION CORRECTLY.
ELECTRICAL TERMINAL BLOCK
UP TO 3 TERMINALS MAY BE USED
INSERT NOTCH, AS SHOWN
THEN ROTATE UPWARD
TERMINAL BLOCK KIT-E10196 NO (1) PROVIDED
KIT-E10198 NC (1) PROVIDED
SEE VIEW IN DIRECTION OF ARROW
FOR CONTACT INDENTIFIER LOCATIONS
UP TO (3) TERMINALS MAY BE USED FOR EACH
STATION ASSEMBLY.
OUTGOING
INCOMING
SCREWS #6-32 x 1
OUTLET BOX (2) PROVIDED.
SCREWS #6-32 x 1.50 WHEN
USING KIT-102722-COLOR SPACER
(SEE REVERSE SIDE).
#10-32 x 3/8 in. GROUND SCREW
(1) PROVIDED
BUTTON LOCK NUT
BACKPLATE
A
EXISTING STANDARD
SINGLE GANGBOX
HOUSING INDEXING SLOTS
BACKPLATE ASSEMBLY
(SEE REVERSE SIDE)
5/8” SPACER
KIT-102722-B (BLUE)
KIT-102722-G (GREEN)
KIT-102722-R (RED)
KIT-102722-W (WHITE)
KIT-102722-Y (YELLOW)
M10274-W OCTAGON SHELL
RED, GREEN, YELLOW, WHITE AND BLUE
E10105 MOMENTARY BUTTON (#4)*KIT-H18062 KEYS
(2) PROVIDED
M10271 STATION HOUSING
RED, GREEN, YELLOW,
WHITE AND BLUE
E10100 PUSH/TURN
RESET BUTTON (#1)
KEY BUTTON (#3)
KEY REQUIRED TO ACTIVATE - IN
ACTIVATE MODE KEY CAN BE REMOVED
#8-32 x 3/8 in. BUTTON HEAD
SCREW (1) PROVIDED
KIT-H19030 KEYS
(2) PROVIDED
E10102 KEY RESET SWITCH
OCTAGON KEY RESET BUTTON (#0)
RED, GREEN, YELLOW, WHITE
AND BLUE
M02050
PUSH
PUSH
HERE
MESSAGE
AREA
NOTE: TO PROVIDE ADEQUATE
CLEARANCE FOR INSTALLATION,
MAY REQUIRE: KIT-102722 5/8” SPACER
PRODUCT DIMENSIONS
3.25 in.
(82mm)
4.87 in.
(124mm)
1.62 in.
(41mm) 2.25 in.
(57mm)
“A”
UL294 Performance Levels:
Line Security: I
Attack: I
Endurance: IV
Standby Power: I

2306 Airport Road • Waterford, Michigan 48327-1209
Phone: [phone] • Fax: [phone]
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-emea.com
1027IS OCT2018
INSTALLATION OF SS2xx0, SS2xx1, SS2xx3, SS2xx4 SERIES STOPPER® STATION
All specifications and information shown were current as of publication, and are subject to change without notice.
ALL TERMINALS ACCEPT TWO 12 TO 18 (AWG)
VOLTAGERATED AVERAGE CURRENT
250 VDC 1 AMP
600 VAC 3 AMP
NOTE: SS-2XX4/LT CONTACTS ON FORM C TIMER RATED: 120 VAC, 3A
28 VDC, 3A
NC
NO
1
2
3
4
STRIP 1/4 in. OF WIRE INSULATION
INSERT IN TERMINAL (AS SHOWN) THEN
USING A PHILLIPS SCREWDRIVER TURN
CLOCKWISE UNTIL TIGHT.
SEPARATION OF TERMINAL ASSEMBLY.
FROM BUTTON ASSEMBLY IS AS FOLLOWS:
GRASP TERMINAL HOUSING AND USING THUMB
APPLY PRESSURE DOWNWARD, REMOVE TERMINAL.
REMOVAL OF TERMINAL BLOCK
FROM TERMINAL HOUSING: INSERT
SMALL SCREWDRIVER (AS SHOWN)
AND PRY UPWARD, REMOVE TERMINAL.
TERMINAL BLOCK
RELEASE LEVER
MUST FACE UPWARD
AS SHOWN FOR SWITCH
TO FUNCTION CORRECTLY.
ELECTRICAL TERMINAL BLOCK
UP TO 3 TERMINALS MAY BE USED
INSERT NOTCH, AS SHOWN
THEN ROTATE UPWARD
TERMINAL BLOCK KIT-E10196 NO (1) PROVIDED
KIT-E10198 NC (1) PROVIDED
SEE VIEW IN DIRECTION OF ARROW
FOR CONTACT INDENTIFIER LOCATIONS
UP TO (3) TERMINALS MAY BE USED FOR EACH
STATION ASSEMBLY.
OUTGOING
INCOMING
SCREWS #6-32 x 1
OUTLET BOX (2) PROVIDED.
SCREWS #6-32 x 1.50 WHEN
USING KIT-102722-COLOR SPACER
(SEE REVERSE SIDE).
#10-32 x 3/8 in. GROUND SCREW
(1) PROVIDED
BUTTON LOCK NUT
BACKPLATE
A
EXISTING STANDARD
SINGLE GANGBOX
HOUSING INDEXING SLOTS
BACKPLATE ASSEMBLY
(SEE REVERSE SIDE)
5/8” SPACER
KIT-102722-B (BLUE)
KIT-102722-G (GREEN)
KIT-102722-R (RED)
KIT-102722-W (WHITE)
KIT-102722-Y (YELLOW)
M10274-W OCTAGON SHELL
RED, GREEN, YELLOW, WHITE AND BLUE
E10105 MOMENTARY BUTTON (#4)*KIT-H18062 KEYS
(2) PROVIDED
M10271 STATION HOUSING
RED, GREEN, YELLOW,
WHITE AND BLUE
E10100 PUSH/TURN
RESET BUTTON (#1)
KEY BUTTON (#3)
KEY REQUIRED TO ACTIVATE - IN
ACTIVATE MODE KEY CAN BE REMOVED
#8-32 x 3/8 in. BUTTON HEAD
SCREW (1) PROVIDED
KIT-H19030 KEYS
(2) PROVIDED
E10102 KEY RESET SWITCH
OCTAGON KEY RESET BUTTON (#0)
RED, GREEN, YELLOW, WHITE
AND BLUE
M02050
PUSH
PUSH
HERE
MESSAGE
AREA
NOTE: TO PROVIDE ADEQUATE
CLEARANCE FOR INSTALLATION,
MAY REQUIRE: KIT-102722 5/8” SPACER
PRODUCT DIMENSIONS
3.25 in.
(82mm)
4.87 in.
(124mm)
1.62 in.
(41mm) 2.25 in.
(57mm)
“A”
NC
NO
1
2
3
4
STRIP 1/4 in. OF WIRE INSULATION
INSERT IN TERMINAL (AS SHOWN) THEN
USING A PHILLIPS SCREWDRIVER TURN
CLOCKWISE UNTIL TIGHT.
SEPARATION OF TERMINAL ASSEMBLY.
FROM BUTTON ASSEMBLY IS AS FOLLOWS:
GRASP TERMINAL HOUSING AND USING THUMB
APPLY PRESSURE DOWNWARD, REMOVE TERMINAL.
REMOVAL OF TERMINAL BLOCK
FROM TERMINAL HOUSING: INSERT
SMALL SCREWDRIVER (AS SHOWN)
AND PRY UPWARD, REMOVE TERMINAL.
TERMINAL BLOCK
RELEASE LEVER
MUST FACE UPWARD
AS SHOWN FOR SWITCH
TO FUNCTION CORRECTLY.
ELECTRICAL TERMINAL BLOCK
UP TO 3 TERMINALS MAY BE USED
INSERT NOTCH, AS SHOWN
THEN ROTATE UPWARD
TERMINAL BLOCK KIT-E10196 NO (1) PROVIDED
KIT-E10198 NC (1) PROVIDED
SEE VIEW IN DIRECTION OF ARROW
FOR CONTACT INDENTIFIER LOCATIONS
UP TO (3) TERMINALS MAY BE USED FOR EACH
STATION ASSEMBLY.
OUTGOING
INCOMING
SCREWS #6-32 x 1
OUTLET BOX (2) PROVIDED.
SCREWS #6-32 x 1.50 WHEN
USING KIT-102722-COLOR SPACER
(SEE REVERSE SIDE).
#10-32 x 3/8 in. GROUND SCREW
(1) PROVIDED
BUTTON LOCK NUT
BACKPLATE
A
EXISTING STANDARD
SINGLE GANGBOX
HOUSING INDEXING SLOTS
BACKPLATE ASSEMBLY
(SEE REVERSE SIDE)
5/8” SPACER
KIT-102722-B (BLUE)
KIT-102722-G (GREEN)
KIT-102722-R (RED)
KIT-102722-W (WHITE)
KIT-102722-Y (YELLOW)
M10274-W OCTAGON SHELL
RED, GREEN, YELLOW, WHITE AND BLUE
E10105 MOMENTARY BUTTON (#4)*KIT-H18062 KEYS
(2) PROVIDED
M10271 STATION HOUSING
RED, GREEN, YELLOW,
WHITE AND BLUE
E10100 PUSH/TURN
RESET BUTTON (#1)
KEY BUTTON (#3)
KEY REQUIRED TO ACTIVATE - IN
ACTIVATE MODE KEY CAN BE REMOVED
#8-32 x 3/8 in. BUTTON HEAD
SCREW (1) PROVIDED
KIT-H19030 KEYS
(2) PROVIDED
E10102 KEY RESET SWITCH
OCTAGON KEY RESET BUTTON (#0)
RED, GREEN, YELLOW, WHITE
AND BLUE
M02050
PUSH
PUSH
HERE
MESSAGE
AREA
NOTE: TO PROVIDE ADEQUATE
CLEARANCE FOR INSTALLATION,
MAY REQUIRE: KIT-102722 5/8” SPACER
PRODUCT DIMENSIONS
3.25 in.
(82mm)
4.87 in.
(124mm)
1.62 in.
(41mm) 2.25 in.
(57mm)
“A”
