Stryker 4821 Manual

2013/02 C.14821-009-001 REV C www.stryker.com
Michael Graves with Stryker Bedside Cabinet
Table de chevet Michael Graves de Stryker
4821
Operations/Maintenance Manual
Manuel d’utilisation et d’entretien

www.stryker.com 4821-009-001 REV C 1-1
EnglishEnglish
Table of Contents
Symbols and Definitions ...................................................................1-2
Symbols ...........................................................................1-2
Warning/Caution/Note Definition ..........................................................1-2
Introduction ............................................................................1-3
Intended Use ........................................................................1-3
Product Description ...................................................................1-3
Specifications .......................................................................1-3
Contact Information ...................................................................1-4
Serial Number Location ................................................................1-4
Summary of Safety Precautions .............................................................1-5
Operation Guide.........................................................................1-6
Raising the Drop Leaf .................................................................1-6
Lowering the Drop Leaf ................................................................1-6
Removing the Wastebasket .............................................................1-6
Installing the Wastebasket ..............................................................1-6
Preventative Maintenance..................................................................1-7
Checklist ...........................................................................1-7
Cleaning...............................................................................1-7
Quick Reference Replacement Parts List ......................................................1-8
Service Information.......................................................................1-9
Drop Leaf Replacement ................................................................1-9
Drop Leaf Hinge Replacement ...........................................................1-9
Drawer Front and Strap Pull Replacement ..................................................1-9
Drawer Slide Replacement.............................................................1-10
Base Cover Replacement..............................................................1-10
Caster Replacement .................................................................1-11
Hospitality Handle Replacement .........................................................1-11
Bedside Cabinet Assembly ................................................................1-12

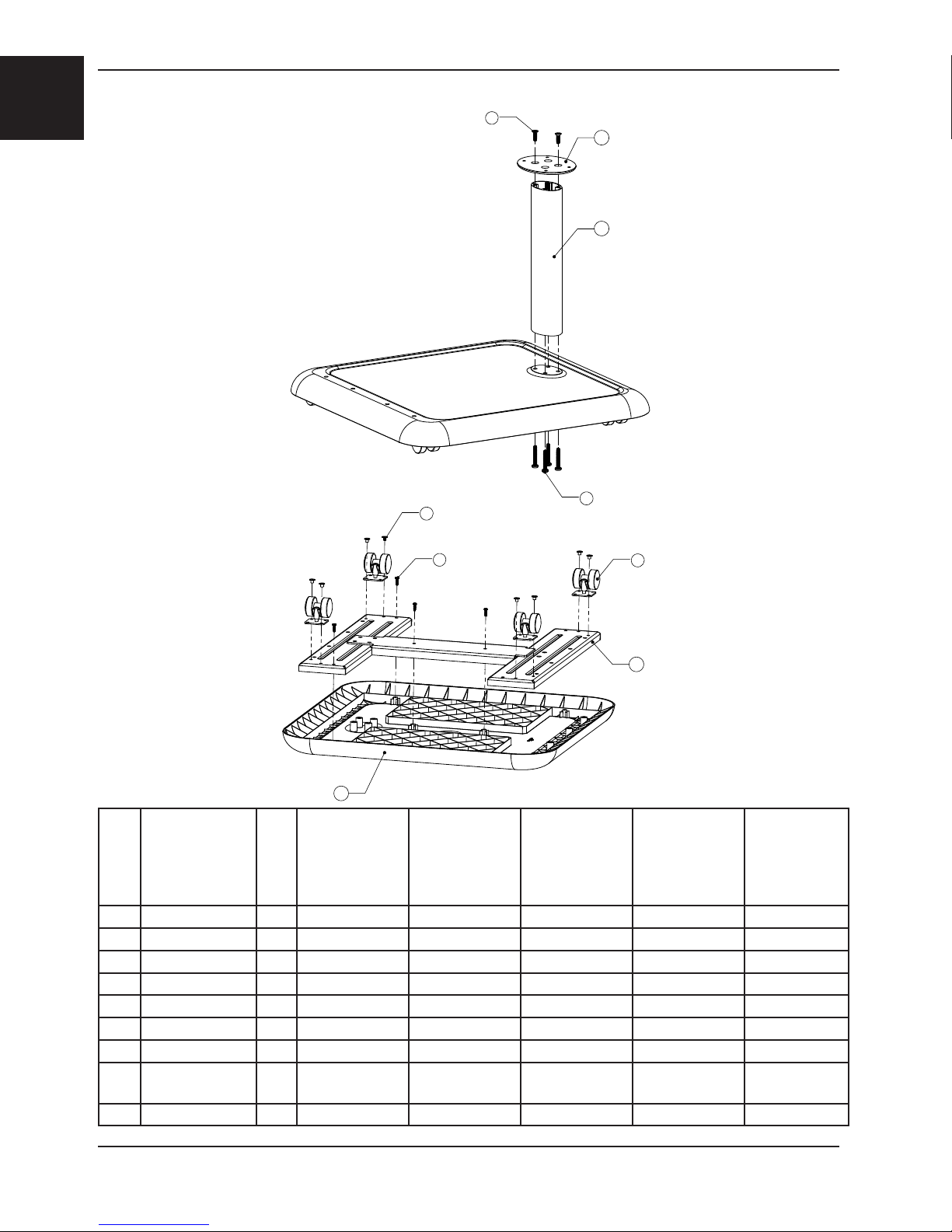

Base Assembly.........................................................................1-14

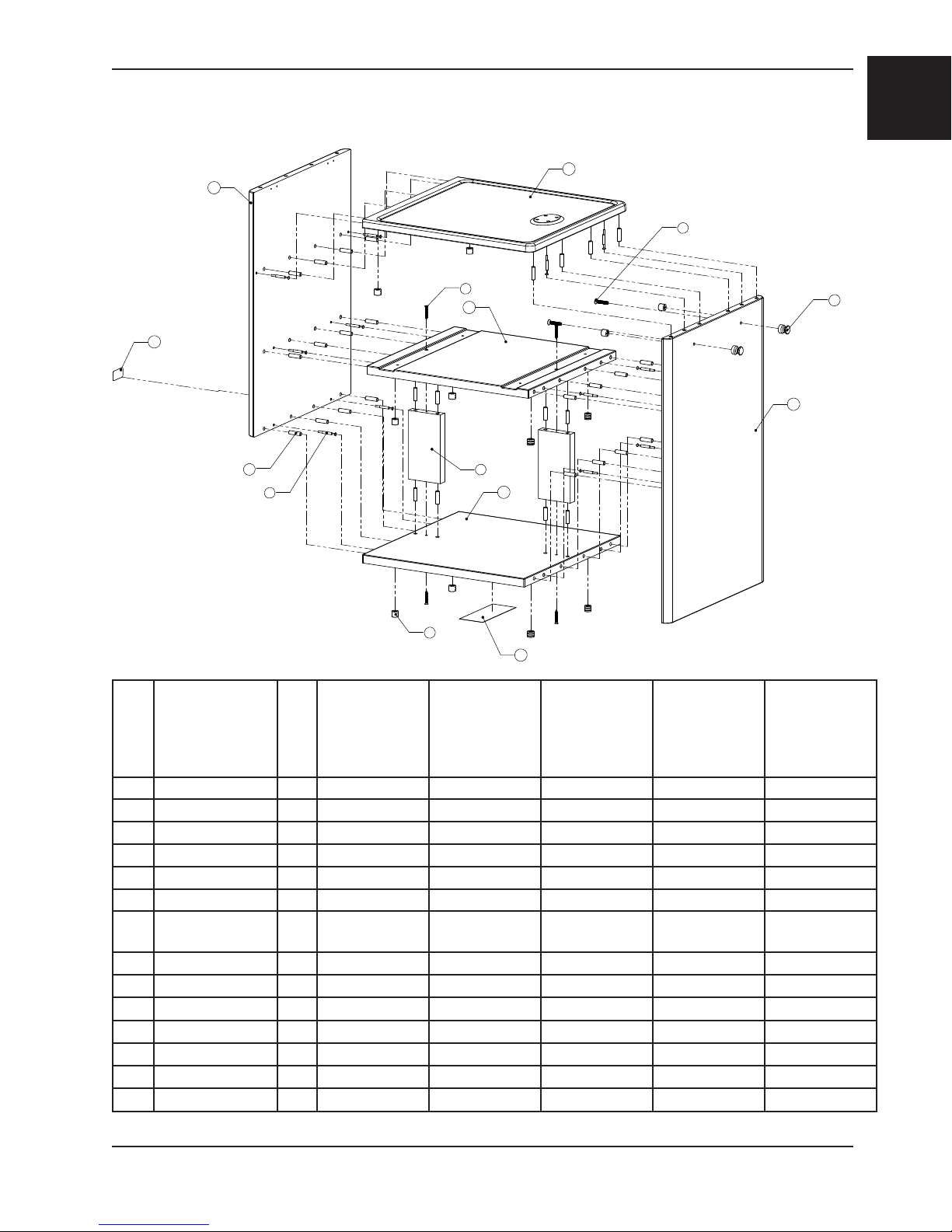

Cabinet Assembly.......................................................................1-15

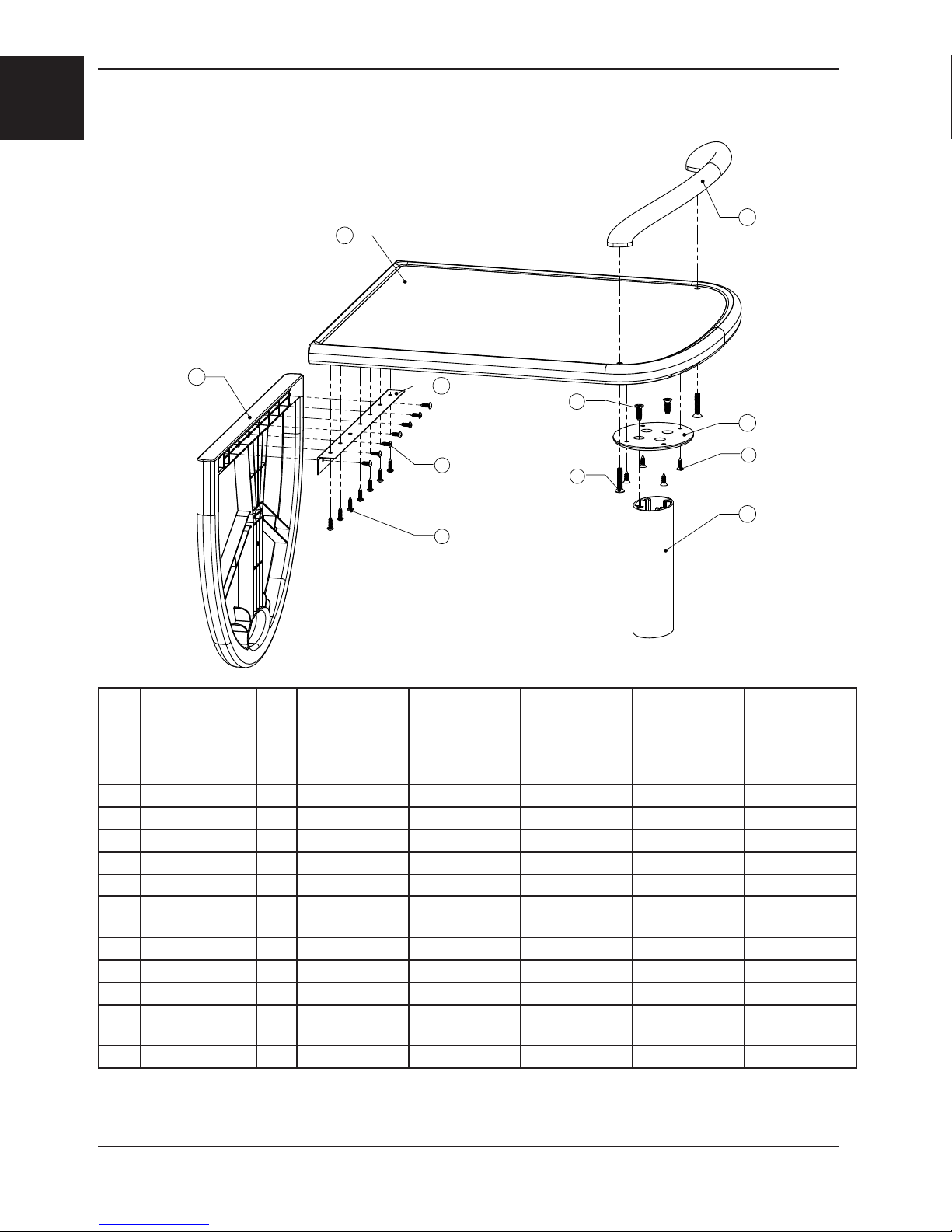

Top Assembly..........................................................................1-16
Drawer Assembly .......................................................................1-17
Warranty .............................................................................1-18
Three Year Warranty .................................................................1-18
To Obtain Parts and Service ...........................................................1-18
Return Authorization..................................................................1-18
Damaged Merchandise ...............................................................1-18
International Warranty Clause...........................................................1-18

1-2 4821-009-001 REV C www.stryker.com
Return To Table of Contents
English
Symbols and Definitions

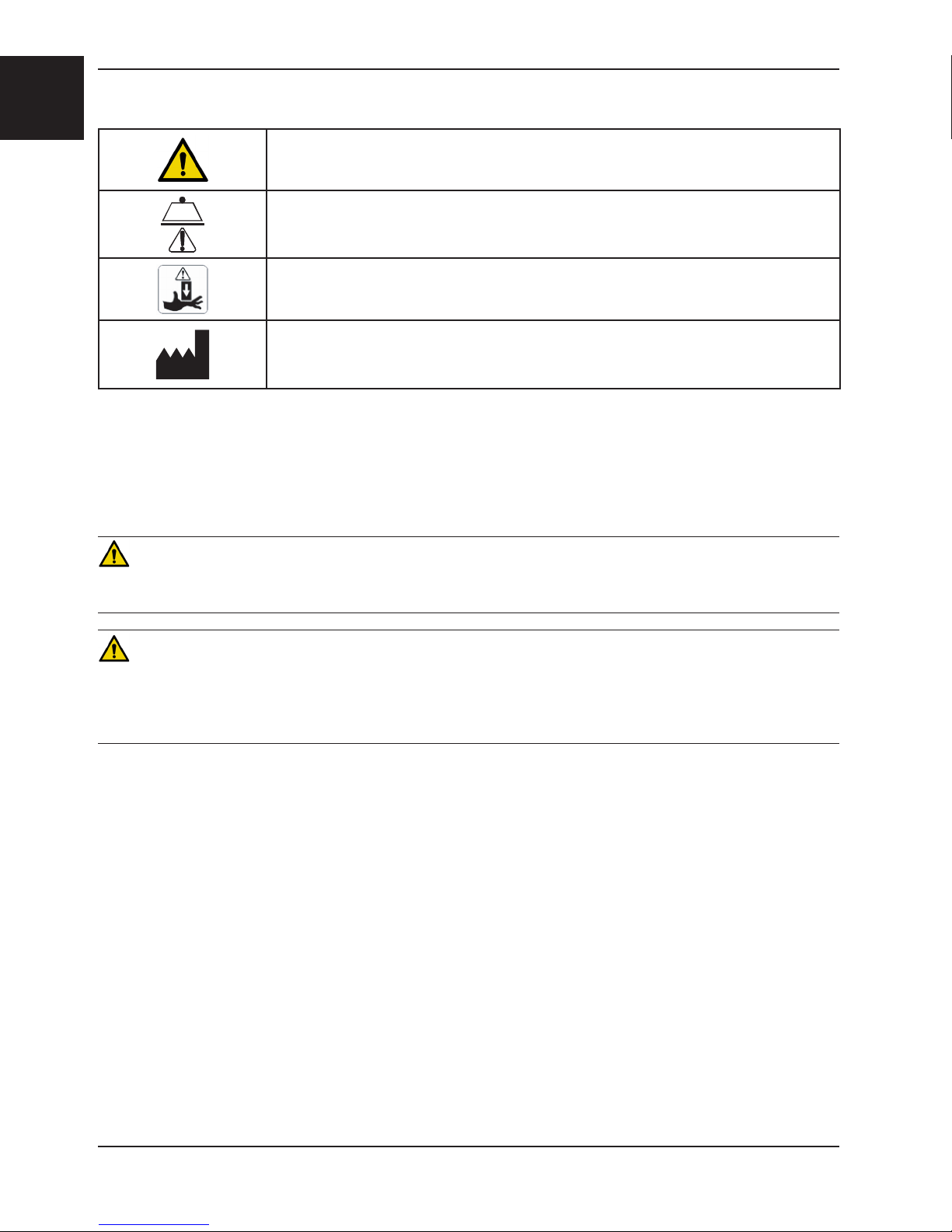

SYMBOLS
Warning/Caution: Consult accompanying documentation
Safe Working Load
Pinch Point
Manufacturer
WARNING/CAUTION/NOTE DEFINITION
The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.
WARNING
Alerts the reader about a situation which, if not avoided, could result in death or serious injury. It may also describe
potential serious adverse reactions and safety hazards.
CAUTION
Alerts the reader of a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the
user or patient or damage to the equipment or other property. This includes special care necessary for the safe and
effective use of the device and the care necessary to avoid damage to a device that may occur as a result of use or
misuse.
NOTE
Provides special information to make maintenance easier or important instructions clearer.

www.stryker.com 4821-009-001 REV C 1-3
Return To Table of Contents
EnglishEnglish
Introduction
This manual is designed to assist you with the operation of Model 4821 Michael Graves with Stryker Bedside Cabinet.
Read this manual thoroughly before using the equipment or beginning maintenance on it. To ensure safe operation of
this equipment, it is recommended that methods and procedures be established for educating and training staff on the
safe operation of this unit.
INTENDED USE
The Model 4821 Michael Graves with Stryker Bedside Cabinet is a wheeled bedside storage unit. This product is to be
used for storage of patient or caregiver items. The bedside cabinet is not to be used for medical procedures.
PRODUCT DESCRIPTION
The Stryker Model 4821 Bedside Cabinet features a disposable storage bin, removable trash bin and a stowable drop-
leaf top for the storage of patient or caregiver items.
SPECIFICATIONS
Safe Working Load, Total Unit 150 lb 68 kg
Safe Working Load, Bottom Tray 68 lb 31 kg
Safe Working Load, Cabinet Shelf 35 lb 16 kg
Safe Working Load, Drawer 19 lb 9 kg
Safe Working Load, Drop Leaf 25 lb 11 kg
Maximum Width (with wastebasket and stowed drop leaf) 27.75 in 70.5 cm
Length 21 in 53 cm
Height (to top of the hospitality handle) 39.75 in 101 cm
Weight 72.5 lb 33 kg
Stryker reserves the right to change specifications without notice.
WARNING
Do not transport the bedside cabinet over obstacles with weight on the drop leaf. Remove all items to avoid the risk of
injury to the individual or damage to the unit.

1-4 4821-009-001 REV C www.stryker.com
Return To Table of Contents
English
Introduction
CONTACT INFORMATION
Contact Stryker Customer Service or Technical Support at: [phone] or [phone].
Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA
Please have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical
Support. Include the serial number in all written communication.

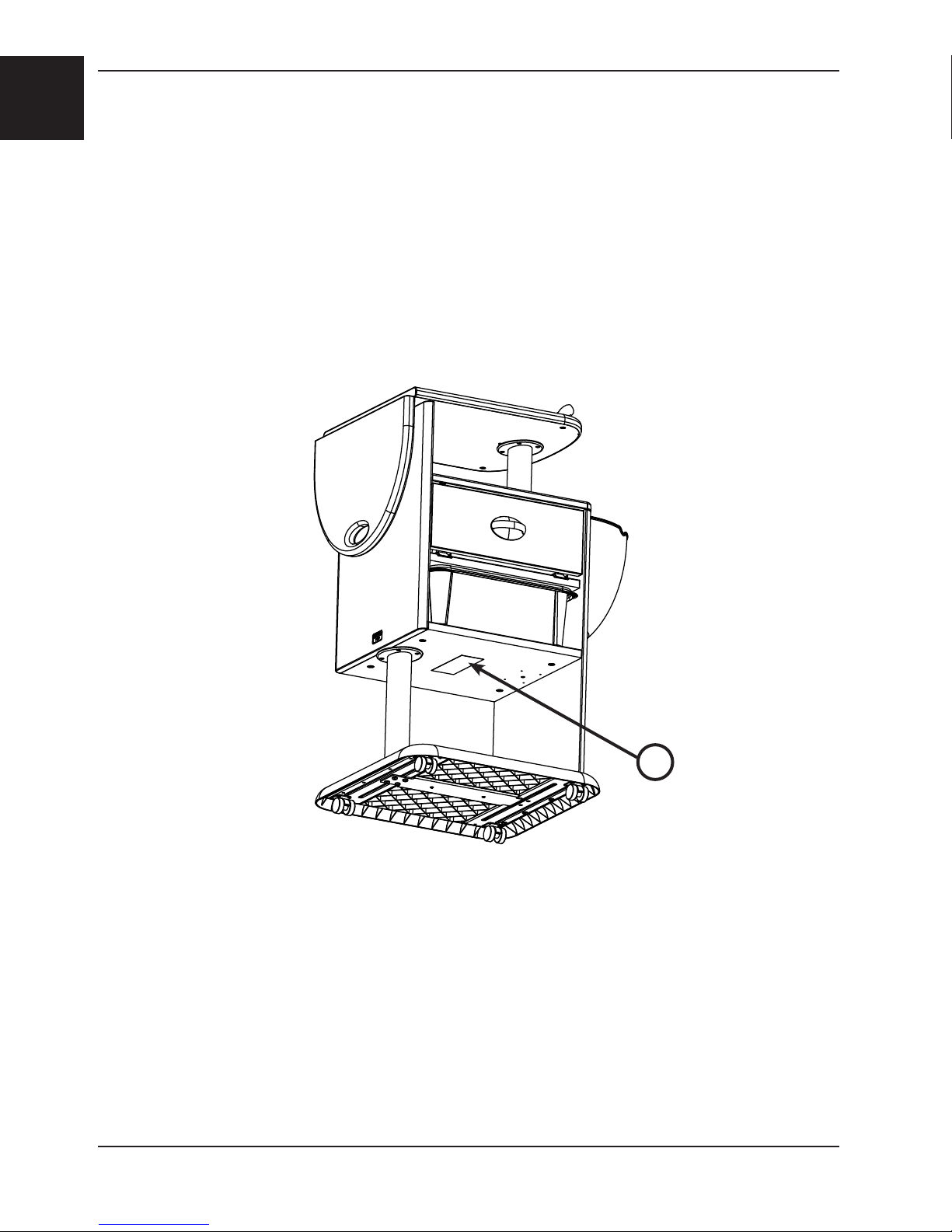

SERIAL NUMBER LOCATION
A

www.stryker.com 4821-009-001 REV C 1-5
Return To Table of Contents
EnglishEnglish
WARNING
• Do not sit on the bedside cabinet. Sitting on the bedside cabinet may cause the stand to tip which may result in
injury to the individual or damage to the unit.
• Use caution when raising and lowering the drop leaf to avoid pinching your fingers between the drop leaf and
support arm, cabinet, and/or unit top.
• Use caution when opening and closing drawers to avoid pinching your fingers between the drawer and cabinet.
• Do not transport the bedside cabinet over obstacles with weight on the drop leaf. Remove all items to avoid the risk
of injury to the individual or damage to the unit.
CAUTION
Failure to properly clean a contaminated surface will increase the risk of exposure to bloodborne pathogens.
Summary of Safety Precautions

1-6 4821-009-001 REV C www.stryker.com
Return To Table of Contents
English
RAISING THE DROP LEAF
To raise the drop leaf, lift the drop leaf by the end handle until the support
arm locks into place as shown in Figure 1.
WARNING
Use caution when raising and lowering the drop leaf to avoid pinching your
fingers between the drop leaf and support arm, cabinet, and/or unit top.
LOWERING THE DROP LEAF
To lower the drop leaf, pull the support arm ring (Figure 2) to release and
lower the drop leaf down to vertical.
WARNING
Use caution when raising and lowering the drop leaf to avoid pinching your
fingers between the drop leaf and support arm, cabinet, and/or unit top.
REMOVING THE WASTEBASKET
To remove the wastebasket, remove all items, then lift up on both corners
on the back edge of the wastebasket until it releases from the two knobs
as shown in Figure 3.
INSTALLING THE WASTEBASKET
To install the wastebasket, place the keyhole slots of the wastebasket over the two knobs and push down on top edge
until it snaps into place as shown in Figure 4.
Note: The wastebasket
is not intended for fluids.
Operation Guide
Figure 3: Remove Wastebasket Figure 4: Install Wastebasket
Figure 1: Raise Drop Leaf
Figure 2: Lower Drop Leaf

www.stryker.com 4821-009-001 REV C 1-7
Return To Table of Contents
EnglishEnglish
Cleaning
A recommended cleaner is a chlorinated bleach solution (5.25% - less than 1 part bleach to 100 parts water). Thoroughly
rinse the solution from the product surface. If other hospital-grade cleaning agents are used, follow the instructions
provided by the cleaning solution’s manufacturer. Do not allow cleaning solutions or other fluids to pool on the unit.
Wipe the surface with a soft, dry cloth to remove any moisture.
CAUTION
Failure to properly clean a contaminated surface will increase the risk of exposure to bloodborne pathogens.
Preventative maintenance should be performed at a minimum of annually. A preventative maintenance program should
be established for all Stryker Medical equipment. Preventative maintenance may need to be performed more frequently
based on the usage level of the product.
CHECKLIST
_____ All fasteners secure
_____ Top and laminate intact - not damaged
_____ Top edge molding intact - not damaged
_____ Drop leaf attachment intact - not damaged
_____ Drawer operates properly
_____ No debris in casters and they roll/swivel freely
Unit Serial Number:
Completed by: ____________________________________________ Date: _____________________
Preventative Maintenance

1-8 4821-009-001 REV C www.stryker.com
Return To Table of Contents
English
Part Name Part Number
Base Cover, Dark Gray 4821-100-012
Base Cover, Stone 4821-100-013
Caster 3150-001-200
Drawer Box 4821-400-010
Drop Leaf Hinge 4821-300-030
Kit, Bracket 4821-700-030
Kit, Caster 4821-700-040
Kit, Drawer Front, Windsor Mahogany 4821-700-150
Kit, Drawer Front, Manitoba Maple 4821-700-160
Kit, Drawer Front, Antique Whitewash 4821-700-170
Kit, Drawer Front, Pearwood 4821-700-180
Kit, Drawer Slide 4821-700-190
Kit, Drop Leaf Support 4821-700-020
Kit, Drop Leaf, Stony Ground 4821-700-110
Kit, Drop Leaf, Charleston Gray 4821-700-120
Kit, Hinge 4821-700-130
Kit, Hospitality Handle 4821-700-140
Kit, Take Home Bin 4821-700-010
Kit, Tall Column 4821-700-050
Kit, Upper Top, Mahogany - Charleston Gray 4821-700-070
Kit, Upper Top, Western Iron - Stony Ground 4821-700-080
Kit, Upper Top, Frosty White - Charleston Gray 4821-700-090
Kit, Upper Top, Frosty White - Stony Ground 4821-700-100
Kit, Wastebasket Knob 4821-700-060
Strap Pull 4820-200-010
Wastebasket 4821-000-010
The parts and accessories listed on this page are all currently available for purchase. Some of the parts identified on
the assembly drawing parts in this manual may not be individually available for purchase. Please call Stryker Customer
Service USA at 1-800-327-0770 for availability and pricing.
Quick Reference Replacement Parts List
