Stryker Unity Coast Glider Manual

UUnniittyy™™ CCooaasstt™™ GGlliiddeerr
OOppeerraattiioonnss//MMaaiinntteennaannccee MMaannuuaall
3500
EN
FR
3507009001-A 2021/06

SSyymmbboollss
Consult instructions for use
Caution
Catalogue number

Serial number
Distributed by
Manufacturer
 
www.stryker.com/patents
Safe working load
3507009001-A EN

TTaabbllee ooff CCoonntteennttss
Warning/Caution/Note Definition ....................................................................................................................2
Summary of safety precautions ...............................................................................................................2
Introduction ..................................................................................................................................................3
Product description ................................................................................................................................3
Intended use..........................................................................................................................................3
Expected service life...............................................................................................................................3
Specifications ........................................................................................................................................3
Contact information ................................................................................................................................4
Serial number location............................................................................................................................4
Accessories and parts...................................................................................................................................5
Preventive maintenance................................................................................................................................6
Cleaning with SideKick® wipes ......................................................................................................................7
Cleaning the product.....................................................................................................................................8
Service ........................................................................................................................................................9
Arm cap replacement .............................................................................................................................9
Seat cushion replacement.......................................................................................................................9
Back cushion replacement....................................................................................................................10
Glider assembly..........................................................................................................................................12
3507009001-A 1 EN

WWaarrnniinngg//CCaauuttiioonn//NNoottee DDeeffiinniittiioonn
The words WWAARRNNIINNGG,CCAAUUTTIIOONN, and NNOOTTEE carry special meanings and should be carefully reviewed.
WWAARRNNIINNGG
Alerts the reader about a situation which, if not avoided, could result in death or serious injury. It may also describe
potential serious adverse reactions and safety hazards.
CCAAUUTTIIOONN
Alerts the reader of a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the
user or patient or damage to the product or other property. This includes special care necessary for the safe and effective
use of the device and the care necessary to avoid damage to a device that may occur as a result of use or misuse.
NNoottee -- Provides special information to make maintenance easier or important instructions clearer.
SSuummmmaarryy ooff ssaaffeettyy pprreeccaauuttiioonnss
CCAAUUTTIIOONN
• Improper usage of the product can cause injury to the patient or operator. Operate the product only as described in this
manual.
• Do not modify the product or any components of the product. Modifying the product can cause unpredictable operation
resulting in injury to patient or operator. Modifying the product also voids its warranty.
• Always use two people when you lift or move the product. Always confirm stable foot placement and back support to
avoid the risk of injury or product damage.
EN 2 3507009001-A

IInnttrroodduuccttiioonn
This manual assists you with the operation or maintenance of your Stryker product. Read this manual before operating or
maintaining this product. Set methods and procedures to educate and train your staff on the safe operation or maintenance
of this product.
CCAAUUTTIIOONN
• Improper usage of the product can cause injury to the patient or operator. Operate the product only as described in this
manual.
• Do not modify the product or any components of the product. Modifying the product can cause unpredictable operation
resulting in injury to patient or operator. Modifying the product also voids its warranty.
NNoottee
• This manual is a permanent part of the product and should remain with the product even if the product is sold.
• Stryker continually seeks advancements in product design and quality. This manual contains the most current product
information available at the time of printing. There may be minor discrepancies between your product and this manual. If
you have any questions, contact Stryker Customer Service or Technical Support at 1-800-327-0770.
PPrroodduucctt ddeessccrriippttiioonn
The CCooaasstt™ Glider is a furniture product that functions as a padded glider seat.
IInntteennddeedd uussee
The CCooaasstt Glider is intended to be used as furniture within the healthcare setting.
EExxppeecctteedd sseerrvviiccee lliiffee
The CCooaasstt Glider has a 10 year expected service life under normal use conditions and with appropriate periodic
maintenance.
SSppeecciiffiiccaattiioonnss
Safe working load 350 lb 159 kg
Overall length 32.5 in. 826 mm
Overall width 30 in. 762 mm
Overall height 43.5 in. 1105 mm
Seat depth (minimum) 19.5 in. 495 mm
Seat width 21.5 in. 546 mm
Seat height (minimum) 17.5 in. 445 mm
Back width 22 in. 559 mm
Back height (minimum) 28 in. 711 mm
Arm height from seat 8.5 in. 216 mm
Weight 100 lb 45.5 kg
3507009001-A 3 EN

Stryker reserves the right to change specifications without notice.
CCoonnttaacctt iinnffoorrmmaattiioonn
Contact Stryker Customer Service or Technical Support at: 1-800-327-0770.
Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA
To view your operations or maintenance manual online, see https://techweb.stryker.com/.
Have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical Support.
Include the serial number in all written communication.
SSeerriiaall nnuummbbeerr llooccaattiioonn
The serial number for your product is located under the seat, toward the back of the glider (A).
A
FFiigguurree 11 –– SSeerriiaall nnuummbbeerr llooccaattiioonn
EN 4 3507009001-A

AAcccceessssoorriieess aanndd ppaarrttss
These accessories may be available for use with your product. Confirm availability for your configuration or region. Call
Stryker Customer Service: 1-800-327-0770.
NNaammee PPaarrtt nnuummbbeerr
Arm cap, black 3500-008-700
Arm cap, kalua 3500-009-700
Arm cap, latte 3500-010-700
Arm cap. mocha 3500-011-700
Arm cap, shadow 3500-012-700
Arm cap, toast 3500-013-700
Bolt, back cushion 3500-039-500
Cushion, back 3500-018-700
Cushion, seat 3500-015-700
Foot, chair 3500-017-700
Screws, arm cap 3500-014-700
Screws, seat cushion 3500-100-077
3507009001-A 5 EN

PPrreevveennttiivvee mmaaiinntteennaannccee
Remove product from service before you perform the preventive maintenance inspection. Check all items listed during
annual preventive maintenance for all Stryker Medical products. You may need to perform preventive maintenance checks
more often based on your level of product usage. Service only by qualified personnel.
Inspect the following items:
All fasteners are secure
Coast mechanism glides freely back and forth
Back, arms, and seat are not damaged
Product serial number:
Completed by:
Date:
EN 6 3507009001-A

CClleeaanniinngg wwiitthh SSiiddeeKKiicckk®® wwiippeess
For the United States only. Call Stryker Customer Service: 1-800-327-0770 to confirm availability for your configuration or
region.
Stryker’s preferred wipes (2060-000-001 6'' x 10'' or 2060-000-002 9'' x 12'') include the following active ingredients:
• n-Alkyl (60% C14, 30% C16, 5% C12, 5% C18) dimethyl benzyl ammonium chloride - 0.154%
• n-Alkyl (68% C12, 32% C14) dimethyl ethylbenzyl ammonium chloride - 0.154%
• Isopropanol - 21.000%
Non-active ingredient: Ethylene Glycol Monobutyl Ether – < 3%
NNoottee -- For safety information, read the product label.
Follow these steps to clean the external product surface using SSiiddeeKKiicckk wipes. SSiiddeeKKiicckk wipes are not approved to
disinfect your product.
1. Rub with a fresh, clean SSiiddeeKKiicckk wipe to remove all visible soils. Repeat as necessary until the product is clean.
NNoottee -- Use as many wipes as necessary.
2. Allow the external product surface to air dry before you return the product to service.
3507009001-A 7 EN

CClleeaanniinngg tthhee pprroodduucctt
Recommended cleaners:
• Quaternary solutions (active ingredient – ammonium chloride) that contain less than 3% glycol ether
• Chlorinated bleach solution (1 part bleach solution to 100 parts water, 520 ppm available chlorine solution)
• Isopropyl alcohol (active ingredient ≤ 21%)
Recommended cleaning method:
1. Follow the cleaning solution manufacturer’s dilution recommendations.
2. Hand wash all surfaces of the product with a cleaning solution.
3. Avoid oversaturation. Do not allow the product to stay wet longer than the chemical manufacturer’s guidelines for
cleaning.
4. Dry the product.
5. Verify proper operation before you return the product to service.
EN 8 3507009001-A

SSeerrvviiccee
AArrmm ccaapp rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• Rubber hammer
• Large flat screwdriver
PPrroocceedduurree::
1. Using a rubber hammer, hit the back of the arm cap (A) toward the front of the glider until it stops moving forward (Figure
2).
NNoottee -- Use caution when you hit the arm cap to avoid the risk of damage to the fabric.
2. Position a large flat screwdriver between the arm cap and arm to pull up on the arm cap and loosen the arm cap from
the glider. Remove and discard the arm cap.
3. Align the new arm cap bolts with the holes at the front of the arm slots.
4. Using a rubber hammer, hit the arm cap down until it is tight to the arm.
5. Using a rubber hammer, hit the arm cap toward the back of the glider until it stops moving back.
NNoottee -- Use caution when you hit the arm cap to avoid the risk of damage to the fabric.
6. Verify proper operation before you return the product to service.
A
FFiigguurree 22 –– AArrmm ccaapp
SSeeaatt ccuusshhiioonn rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• #3 Phillips screwdriver
• Blanket or equivalent
PPrroocceedduurree::
1. Lay a blanket, or equivalent, on the floor behind the glider.
2. Using two hands, lift up on the bottom of the glider to flip the glider onto its back.
CCAAUUTTIIOONN -- Always use two people when you lift or move the product. Always confirm stable foot placement and back
support to avoid the risk of injury or product damage.
3507009001-A 9 EN

3. Using a #3 Phillips screwdriver, remove the four screws (A) that secure the seat cushion to the glider frame (Figure 3).
Remove and discard the seat cushion. Save the screws.
4. Reverse steps to reinstall.
5. Verify proper operation before you return the product to service.
A

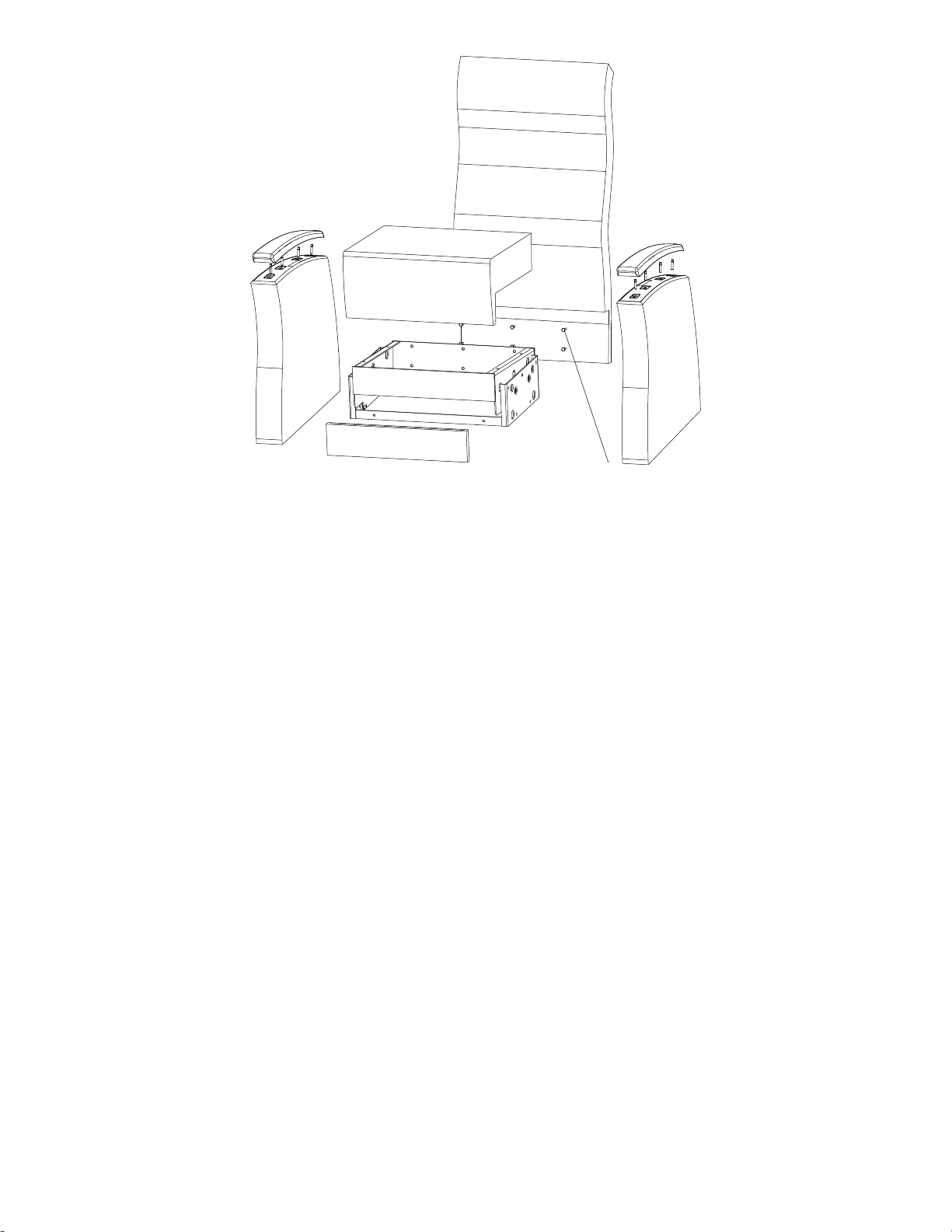

FFiigguurree 33 –– SSeeaatt ccuusshhiioonn rreeppllaacceemmeenntt
BBaacckk ccuusshhiioonn rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• 11mm combination wrench
• Blanket or equivalent
PPrroocceedduurree::
1. Lay a blanket, or equivalent, on the floor next to the glider.
2. Using two hands, lift up on the bottom of the glider to flip the glider onto its side and onto the blanket.
CCAAUUTTIIOONN -- Always use two people when you lift or move the product. Always confirm stable foot placement and back
support to avoid the risk of injury or product damage.
3. Using an 11mm combination wrench, remove the six bolts (A) that secure the back cushion to the glider frame (Figure
4). Remove and discard the back cushion. Save the bolts.
4. Reverse steps to reinstall.
5. Verify proper operation before you return the product to service.
EN 10 3507009001-A

A

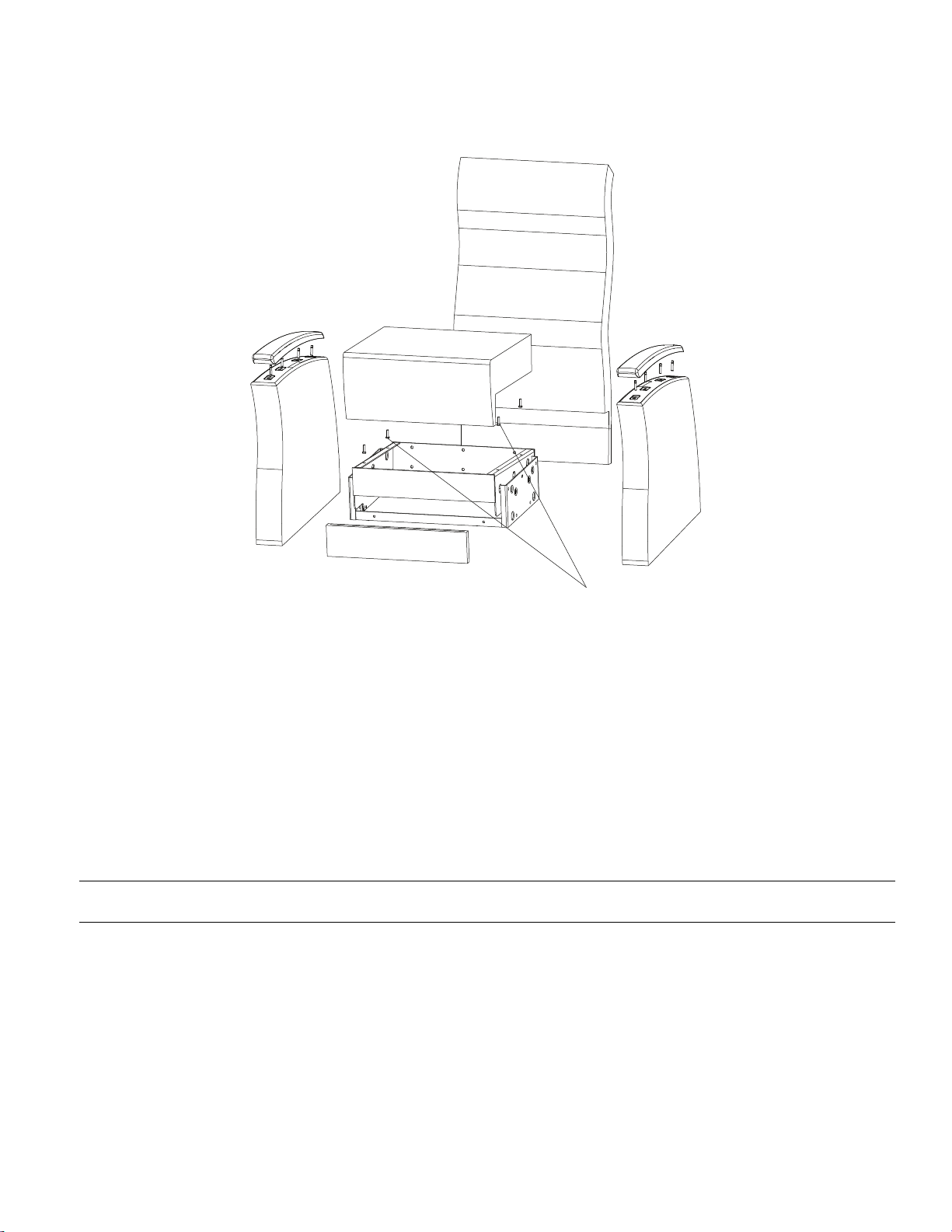

FFiigguurree 44 –– BBaacckk ccuusshhiioonn rreeppllaacceemmeenntt
3507009001-A 11 EN

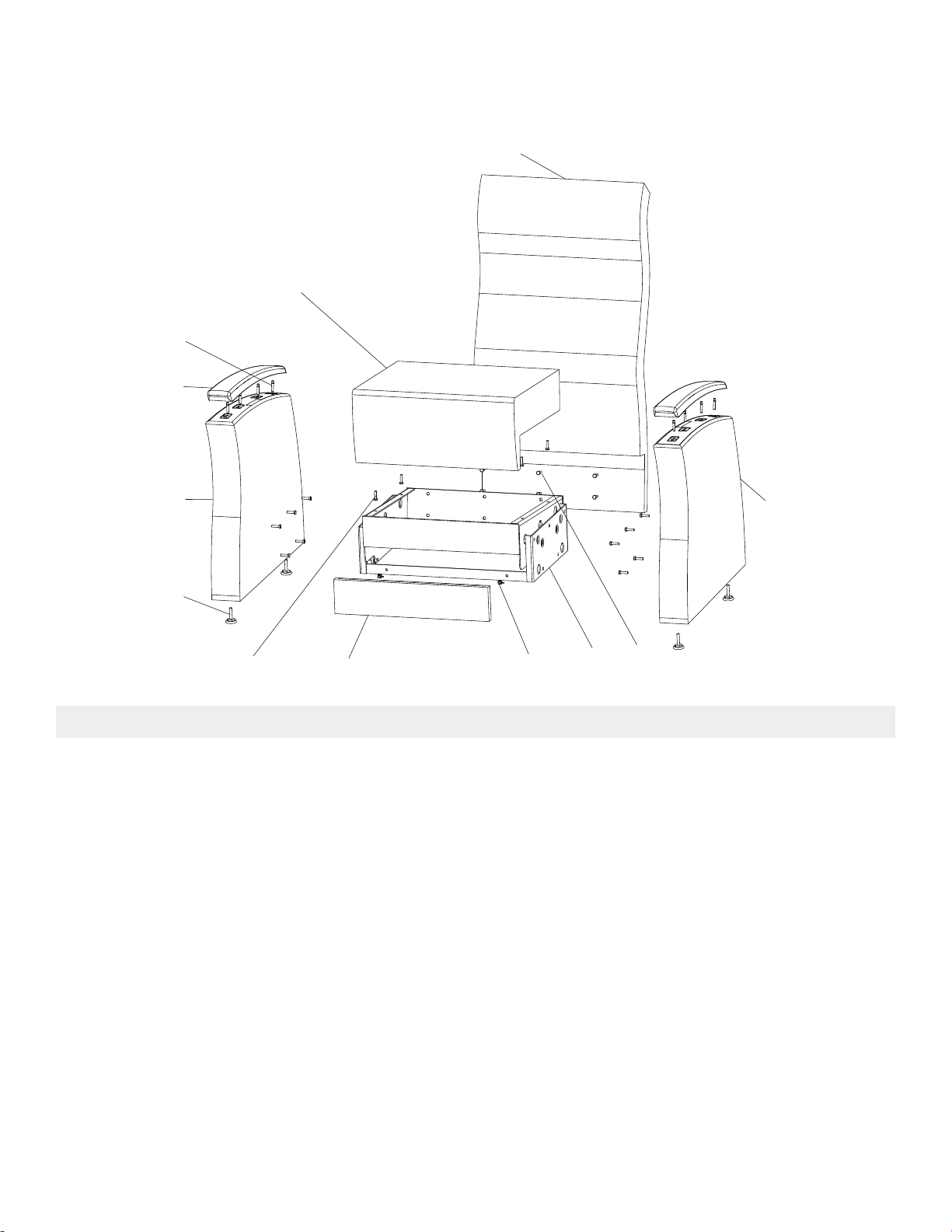

GGlliiddeerr aasssseemmbbllyy
3500-000-701 (Reference only)
C
D
E
F
G
H
I
K
JA
B
L
IItteemm NNaammee QQuuaannttiittyy
A Hex head bolt 16
B Truss Phillips/square serrated screw, black 2
C Adjustable glide 4
D Double threaded stud 8
E Arm cap with wood insert 2
F Glider mechanism 1
G Arm, upholstered, left 1
H Arm, upholstered, right 1
I Back, upholstered 1
J Kick plate, upholstered 1
K Seat, upholstered 1
L Truss Phillips/square serrated screw, black 4
EN 12 3507009001-A
