Contemporary Bedside Stand, 1-Drawer/1-Door - Model 4400-800-000
18.5
30.5
19.2
ASSEMBLY METHOD
The Stryker Med/Surg Bedside Stand is constructed using a locking cam and dowel pin
arrangement.
To dismantle the unit, use a #2 Phillips screwdriver to unlock each cam by rotating the cam in
a counter-clockwise direction.
Note: The product serial number label is located on the back of the unit.
UNLOCK
LOCK
C
L
G
A
B
F
E
K
N
J
H
T
M
D
P
U
See Table
on Page 2
See Table
on Page 2
F
B
A
G
D
E
C
4400-800-001
4400-800-100

24400-800-900 REV E www.stryker.com

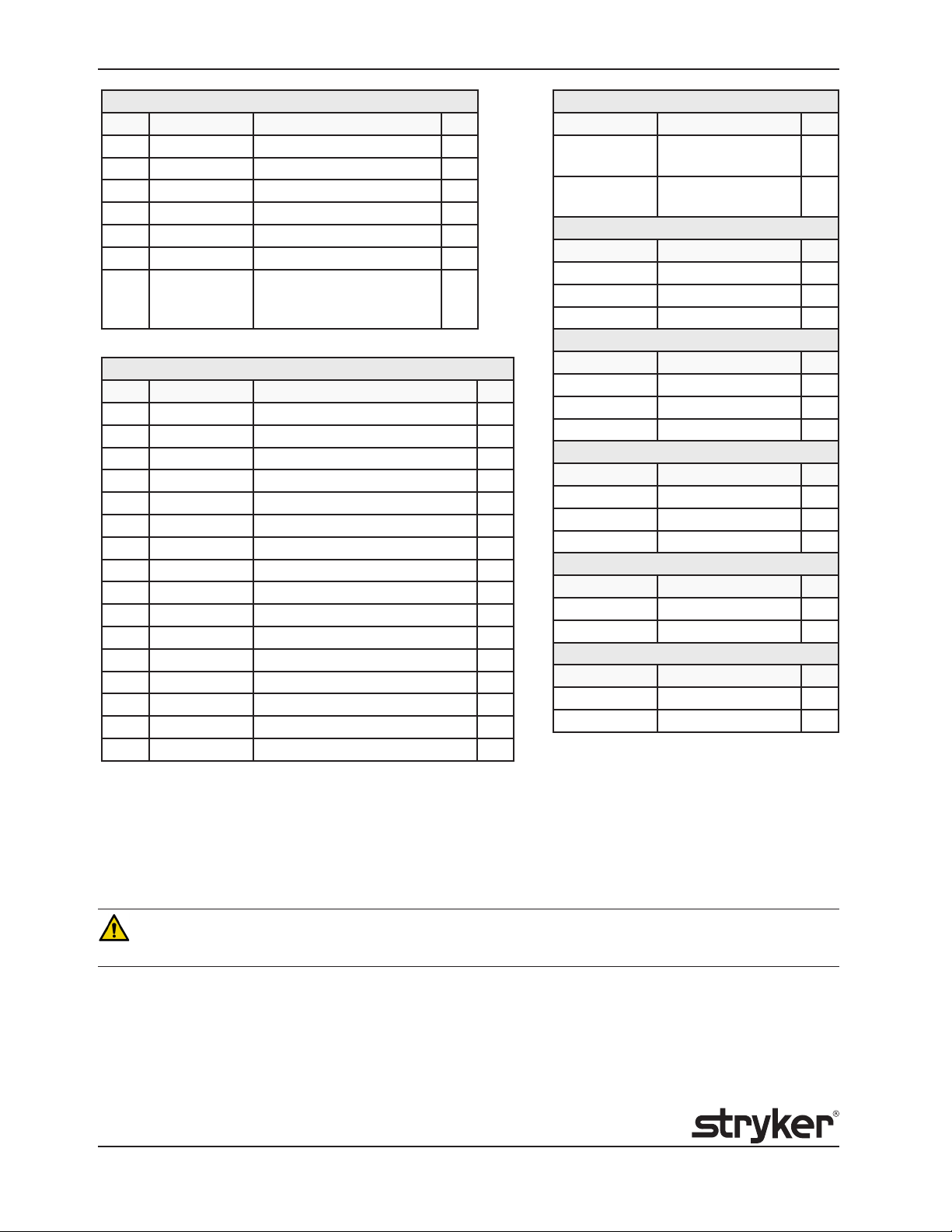

Bedside Stand Common Components (4400-800-001)
Item Part Number Part Name Qty.
A 4400-800-100 Case (see Case Assembly table) 1
B 3150-001-200 Caster 4
C 3100-052-733 Dowel Pin 6
D 3100-052-732 Cam 6
E 0020-021-000 Wood Screw 32
F 4400-500-205 L-Bracket 4
G 3100-052-737 Plastic Vent 1
H 4400-600-203 Drawer Frame 1
J 4400-600-204 Drawer Slides (Set of 2) 1
K 0058-149-000 Hinge 2
L 4400-009-100 Cleaning / Serial Number Label 1
M 4400-111-309 Shelf Pin 4
N 4400-500-207 Adjustable Shelf 1
P 0020-013-000 Wood Screw 4
T 3100-200-208 Drawer Liner 1
U 0020-022-000 Euro Screw 8
Case Assembly (4400-800-100)
Item Part Number Part Name Qty.
A 4400-508-118 Bottom Panel 1
B 4400-800-115 Back Panel 1
C 4400-800-116 Right Side Panel 1
D 4400-800-117 Left Side Panel 1
E 3100-052-733 Dowel Pin 16
F 3100-052-732 Cam 16
G 4400-500-204
4400-500-224
4400-500-223
Brace (No Lock)
Brace (Slam Lock)
Brace (Key Lock)
1
1
1
CLEANING
A recommended cleaner is a chlorinated bleach solution (5.25% - less than 1 part bleach to 100 parts water). Thoroughly
rinse the solution from the product surface. If other hospital-grade cleaning agents are used, follow the instructions
provided by the cleaning solution’s manufacturer. Do not allow cleaning solutions or other fluids to pool on the unit. Wipe
the surface with a soft, dry cloth to remove any moisture.
CAUTION
Failure to properly clean a contaminated surface will increase the risk of exposure to bloodborne pathogens.
WARRANTY
Stryker warrants this product for one (1) year under normal use and proper care. For one year from date of shipment,
Stryker will repair or, at our option, replace defective merchandise free of charge (parts, labor, and shipping included).
Note: LIFETIME warranty on metal drawer frames and glides.
Bedside stands are designed for a 5 year expected service life under normal use conditions.
Contemporary Bedside Stand, 1-Drawer/1-Door - Model 4400-800-000
Standard Configuration
Part Number Part Name Qty.
4400-808-101
4400-808-104
Drawer Front
Cont. Pull Dwr. Front
1
1
4400-808-400
4400-808-404
Door
Continuous Pull Door
1
1
Top Panel Option
Part Number Part Name Qty.
4400-200-210 Solid Spill Cont. Top 1
4400-010-800 Contemporary Top 1
3100-200-210 Premier Top 1
Key Lock Option
Part Number Part Name Qty.
4400-800-201 Stainless Steel Pull 1
4400-500-300 Lock 1
4400-808-102 Locking Drawer Front 1
Slam Lock Option
Part Number Part Name Qty.
4400-800-201 Stainless Steel Pull 1
4400-500-301 Lock 1
4400-808-103 Locking Drawer Front 1
Key Lock Option with Continuous Pull
Part Number Part Name Qty.
4400-500-300 Lock 1
4400-808-105 Locking Drawer Front 1
Slam Lock Option with Continuous Pull
Part Number Part Name Qty.
4400-500-301 Lock 1
4400-808-106 Locking Drawer Front 1
3800 E. Centre Ave., Portage, MI 49002
[phone] | 2014/01 E.0
