Style selections MIR7191 User manual

ITEM #1210978
MODEL #MIR7191
ATTACH YOUR RECEIPT HERE
Purchase Date
1
LIGHTED MIRROR
Français p. 12
Español p. 23
Style Selections® is a registered trademark
of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-888-8225, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
PH18962
800413

2

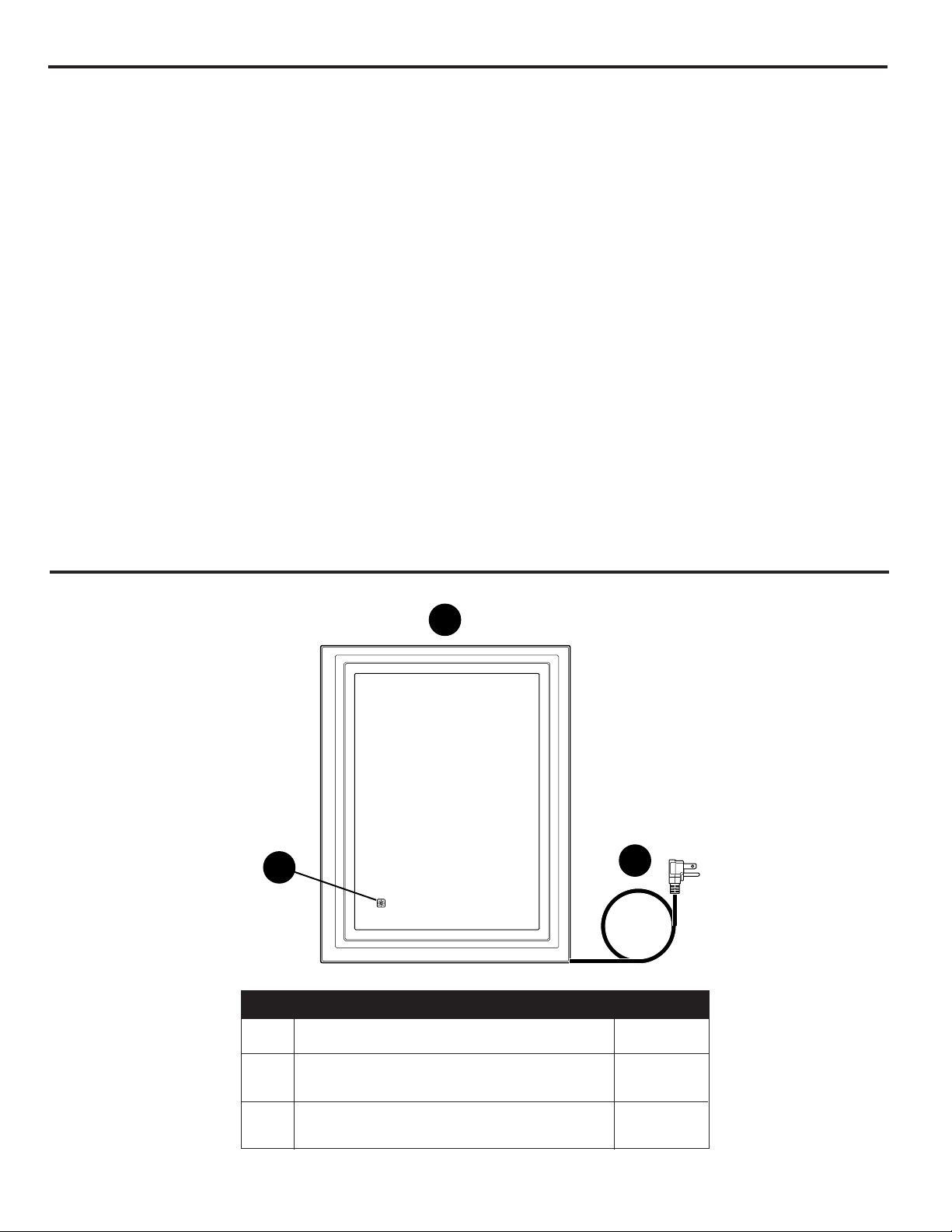

A Fixture 1
B Touch Sensor 1
(Preassembled to Fixture (A))
PART DESCRIPTION QUANTITY
PACKAGE CONTENTS
A
B
C Power Cord 1
(Preassembled to Fixture (A))
Package Contents ...............................................................................................................2
Hardware Contents .........................................................................................................................
Safety Information ...............................................................................................................
Preparation .........................................................................................................................
Initial Installation .................................................................................................................
Plug-In Installation ..............................................................................................................
Hardwire Installation ...........................................................................................................
Operating Instructions .........................................................................................................
Care and Maintenance .......................................................................................................11
Troubleshooting....................................................................................................................
Warranty ..............................................................................................................................
TABLE OF CONTENTS
3
3
5
6
5
C
7
11
11
11

3
HARDWARE CONTENTS (shown actual size)
READ AND SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
AA BB
Fixture
Screw
Qty. 4
Plastic
Anchor
Qty. 4
WARNING
DANGER
•For your protection and safety, carefully read and understand the information provided in this manual
completely before attempting to assemble, install or operate this product. Failure to do so could lead
to fire, electrical shock or other injuries that could be hazardous or even fatal.
•DO NOT connect this fixture to an electrical system that does not provide a means for equipment
grounding. Never use a fixture in a two-wire system that is not grounded. Installing a fixture into an
electrical system not having a proper grounding means could cause metal parts of the fixture to carry
electrical currents if any of the fixture wires, wire connections or splices were to become broken, cut
or loose during the mounting or normal operation of the fixture. Under this condition, anyone coming
in contact with the fixture would be subject to electrical shock, which could cause serious injury or
death.
•DO NOT connect the bare or green insulation fixture ground wire to the black (HOT) current-carrying
wire or the white (NEUTRAL) house wire. Connection of the bare or green fixture ground wire to the
black or white house wires may cause metal parts of the fixture to carry electrical currents. Under this
condition anyone coming in contact with the fixture will receive electrical shock, which could cause
serious injury or death.
•DO NOT damage or cut the wire insulation (covering) during installation of fixture. DO NOT permit
wires to contact any surface having a sharp edge. To do so may damage or cut the wire insulation,
which could cause serious injury or death from electrical shock.
•All electrical connections must be in agreement with local codes and ordinances, the National
Electric Code (NEC) and ANSI/NFPA 70-1999. Contact your municipal building department to learn
about your local codes, permits and/or inspections. Risk of fire - most dwellings built before 1985
have supply wire rated for 140°F. Consult a qualified electrician before installation.
•DO NOT suspend any fixture by the house wires. A fixture must always be mounted directly to an
outlet box or to a mounting plate which is first attached to the outlet box. Wire connectors will not
support the weight of a fixture. Suspending a fixture by the house wires and wire connectors will
result in the fixture falling, with the possibility of personal injury and the danger of electrical shock or
fire.
For installation options not covered in this manual, consult a qualified electrician.
Wire
Connector
Qty. 3
CC DD
Machine
Screw
Qty. 2

4
SAFETY INFORMATION
• To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this light
fixture are designed to accept only one 12-gauge house wire and two lead wires from the light
fixture. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fixture lead wires, consult an electrician for the proper size wire connectors to use.
• To reduce the risk of burns, fire, electric shock or injury to persons, DO NOT use the fixture if power
supply cord is frayed or broken or plug is damaged, if the fixture is not working properly, if it has been
dropped or damaged, or it has been submerged in water.
• To reduce the risk of electric shock, always unplug this fixture from the electrical outlet before
cleaning.
• To reduce the risk of burns, fire, electric shock or injury to persons, unplug from outlet before
attaching or removing parts.
• To reduce the risk of burns, fire, electric shock or injury to persons, use this fixture ONLY for its
intended use as described in these instructions. DO NOT use attachments not recommended by the
manufacturer.
• To reduce the risk of burns, fire, electric shock or injury to persons, DO NOT mount or place near
gas or electric heaters, fireplaces, candles or other similar sources of heat.
• DO NOT use staples or nails to secure fixture; DO NOT place power cord on sharp hooks or nails.
• DO NOT plug in or operate the fixture when it is tightly coiled.
• DO NOT route the power cord through walls, doors, windows, or any similar part of the building
structure.
• DO NOT close doors and/or windows on the fixture or power cord as doing so may damage the
insulation wire(s).
• The installation of this fixture may not be suitable for all locations.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
•

5
PREPARATION
CAUTION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included):Flathead Screwdriver, Phillips Screwdriver, Wire Strippers,
Drill, 5/64 in. or 5/16 in. Drill Bit (wood or drywall), Hammer, Pencil, Pliers, Wire Cutters, Safety
Glasses, Stepladder, Electrical Tape, Template
Helpful Tools (not included):Soft Cloth, Level
ON
OFF
ON
OFF

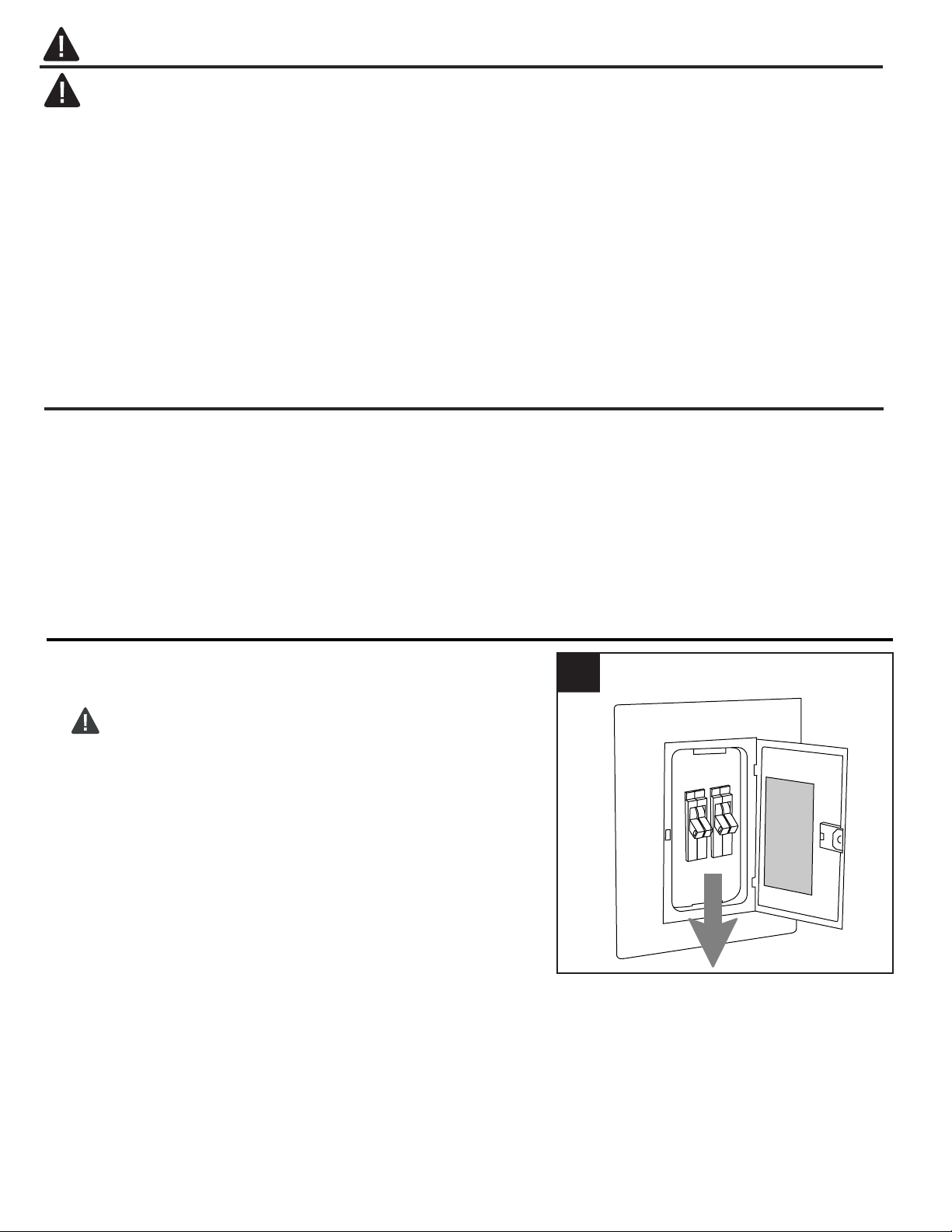

Turn off circuit breakers and wall switch to
the fixture supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in
serious injury or death.
1
1.
•TURN OFF ELECTRICITY at main fuse box (or circuit breaker box) before beginning installation by
removing the fuse (or switching the circuit breaker off).
•If you are not sure the lighting system has a grounding means, DO NOT attempt to install this fixture.
Contact a qualified, licensed electrician for information regarding the proper grounding methods as
required by the local electrical code in your area.
•All fixtures must be mounted to an outlet box that is supported by the building structure.
•Do NOT tamper with or attempt to repair LED component of fixture. The light source is designed for
this specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
• Total wattage for this fixture is 23.3 watts; do not attempt to replace the LEDs.
•Due to the weight of this fixture, it is advisable to seek the help of another person.
SAFETY INFORMATION
INITIAL INSTALLATION

6
3
3. Position plastic anchor (BB) in each pilot hole.
Gently tap plastic anchors (BB) with a hammer
(not included) until flush with wall surface. Screw
fixture screw (AA) into plastic anchor (BB) about
1/8 - 5/16 in. of the screw to remain showing.
Hardware Used
AA x 4
Fixture Screw
Pilot Hole
BB
BB
AA
AA
Plastic Anchor x 4
BB
2. 2
Pilot HoleTemplate
Template
1
Before hanging the fixture (A), place power cord (C)
through one of the two slots on the back of the
fixture (A).
1.
Slot
Slot
A
INITIAL INSTALLATION
PLUG-IN INSTALLATION
Determine the approximate location for the fixture (A).
Place a template (not included) against the wall, and
mark the location of the holes using a pencil or a
marker (not included).
If mounting surface is wood, use a 5/64 in. drill bit (not
included) to drill the fixture screws (AA) in wood at
marked locations.
Proceed to one of the two
installation options (Plug-In or Hardwire).
If mounting surface is drywall, use a 5/16 in. drill bit
(not included) to drill four pilot holes in drywall at
marked locations. Continue to Step 3.
NOTE: The fixture (A) can be hung vertically, or
horizontally.
C

7
2.
3. 3
WARNING: The power cord is equipped with
a three-prong grounded plug that must be
inserted into a matching receptacle. Under no
circumstances must the grounding prong be cut
off the plug. Where a two-prong wall receptacle is
encountered, it must be replaced with a properly
grounded three-prong receptacle installed in
accordance with the National Electrical Code and
all applicable local codes and ordinances.This
work must be done only by a qualified electrician,
using copper wire only.
Insert the power cord (C) preassembled on
fixture (A) into proper wall outlet.
PLUG-IN INSTALLATION
Hang fixture (A) using the keyhole slots on the
back of fixture (A). 2
Keyhole
Slot
A
HARDWIRE INSTALLATION
Open the round wire box by removing the
screws on the wire box cover.
NOTE: Do not remove the round wire
box cover.
1.
A
Wire Box
Cover
1
Screw
C

8
Plastic Piece
HARDWIRE INSTALLTION

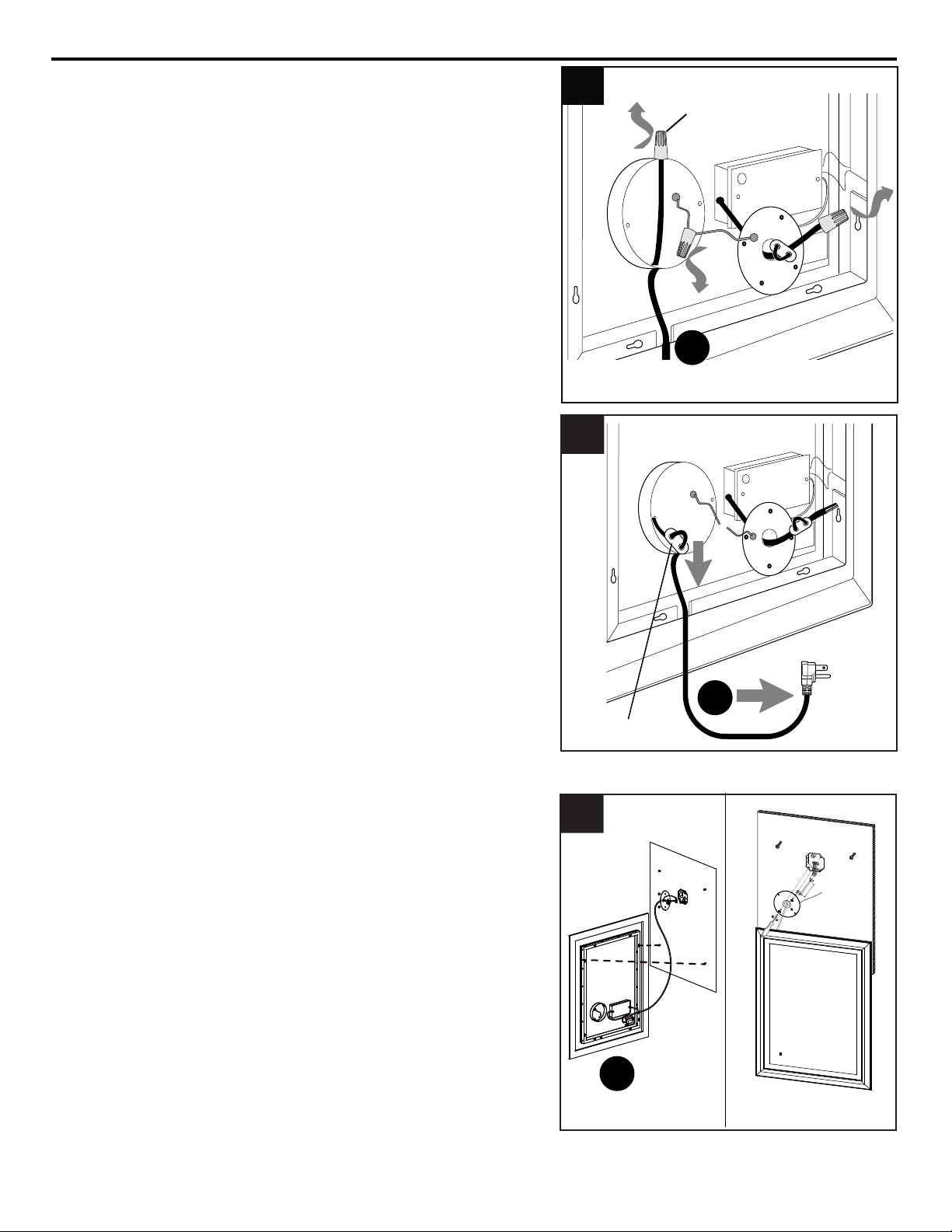

2. Remove the preassembled wire connectors to
discharge the power cord (C).
C
3. 3
Inside the wire box, remove ONLY the plastic
piece from the power cord (C), so the power
cord (C) can be removed from the fixture (A).
Pull power cord (C) from the bottom of the wire
box.
NOTE: Do not remove the other plastic piece
placed on the main wire insulation.
2
C
Wire
Connectors
Wire Box
4. With the help of another person, lift fixture (A) to
the desired hanging position (vertical or
horizontal).
Hang fixture (A) using the top two keyhole slots on
the back of the fixture (A) to expose wiring.
Begin wiring the fixture to the main power supply.
4
150mm[5.91"]
A

Prepare wires by stripping 3/4 in. of insulation from wire
ends using wire strippers (not included).
Connect WHITE wire from fixture (A) to WHITE wire
from outlet box using existing wire connector or wire
connector (CC).
Connect BLACK wire from fixture (A) to BLACK wire
from outlet box using existing wire connector or wire
connector (CC).
Connect BARE/GREEN ground wire from outlet box to
BARE ground wire from fixture (A) with wire connector
(CC).
NOTE: Screw wire connectors (CC) on in a
clockwise direction.
WARNING: Never connect ground wire to WHITE
or BLACK power supply wires.
WARNING: To reduce the risk of fire, electrical
shock or personal injury, wire connectors (CC) are
designed to accept only one 12-gauge house wire and
two lead wires from the light fixture. If your house wire is
larger than 12-gauge or there is more than one house
wire to connect to the corresponding fixture lead wires,
consult an electrician for the proper size wire connectors
to use.
Hardware Used
Wire Connector x 3
CC
HARDWIRE INSTALLTION
5.
Wrap electrical tape (not included) around
each individual wire connector (CC) down
to the wire. Push wire connectors (CC)
gently back into outlet box. Carefully push
excess wiring into outlet box.
WARNING: Make sure no bare wire or
wire strands are visible after making
connections.
WARNING: Make sure plastic piece is
at least 15cm from the wire ends.
6.
9
2
5
2
6
Plastic Piece
A
CC
Wire box
cover
Outlet Box
15cm.
A
CC
Wire box
cover
WHITEWHITE
BLACK BLACK
BARE/GREEN
Plastic Piece

HARDWIRE INSTALLTION
7
7.

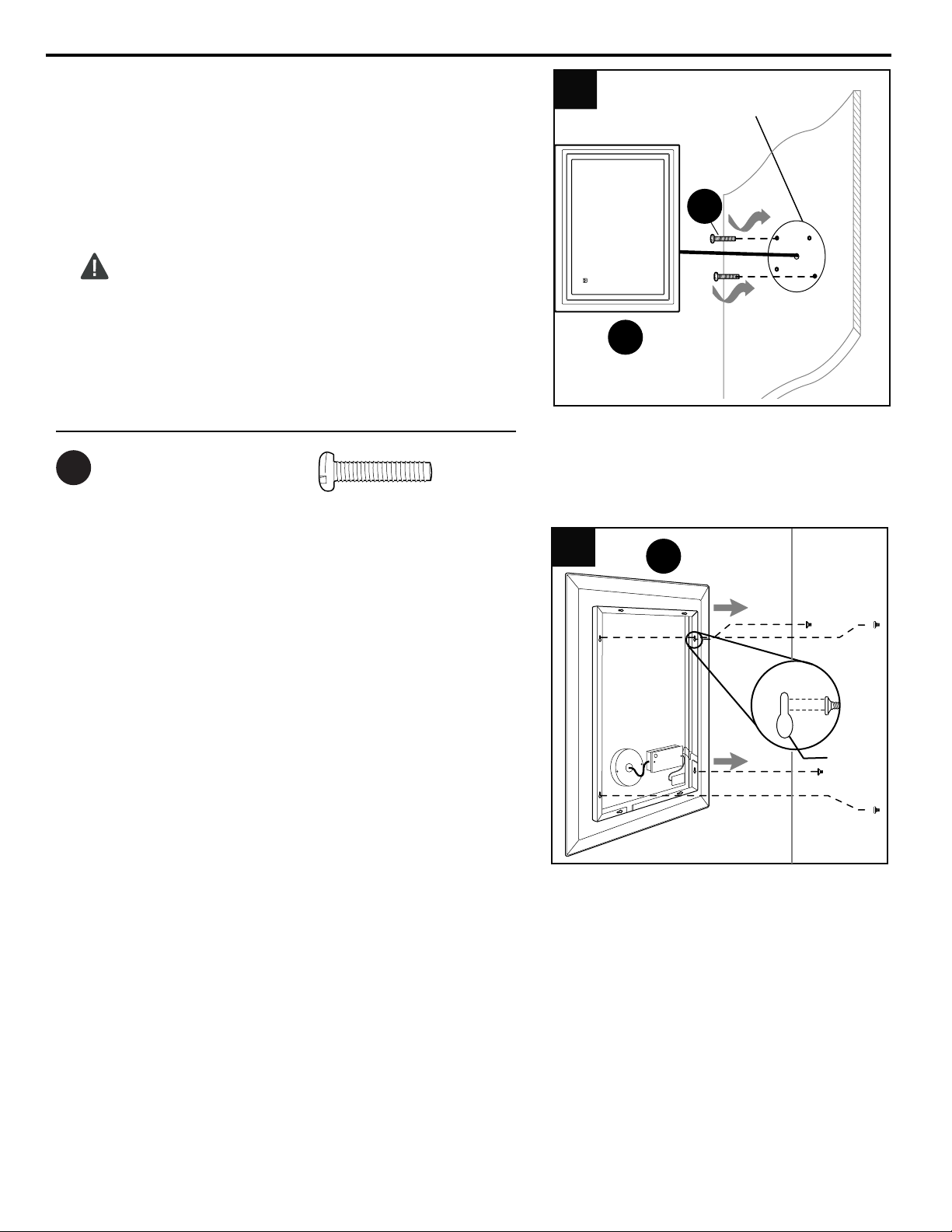

8. Hang fixture (A) using the keyhole slots on the
back of fixture (A). 8
Keyhole
Slot
A
10
Attach the wire box cover to outlet box (not
included) using outlet box screws or the
machine screws (DD). NOTE: If the outlet
box screws required for your outlet box are
of a different size than the machine screws
(DD), consult a licensed electrician before
proceeding. Tighten machine screws (DD) to
secure wire cover box.
CAUTION: Make sure the outlet box
can support 35 lbs. hanging weight. Use
metal outlet box; plastic outlet boxes are not
recommended.
Hardware Used
Machine Screw x 2
DD
DD
A
Wire box
cover

WARRANTY
Printed In China
JMLI1810
The distributor warrants all of its lighting fixtures against defects in materials and workmanship for five (5)
years from the date of purchase. If within this period the product is found to be defective, take a copy of
the bill of sale as a proof of purchase and the product in its original carton to the place of purchase. The
distributor will, at its option, repair, replace or refund the purchase price to the consumer. All costs of
installation and removal of the fixture is the responsibility of the consumer. This warranty does not cover
fixtures becoming defective due to misuse, accidental damage or improper handling and/or installation and
specifically excludes liability for direct, incidental or consequential damages. As some states do not allow
exclusions of limitations on an implied warranty, the above exclusion and limitation may not apply. This
warranty gives you specific rights and you may also have other rights which may vary from state to state.
TROUBLESHOOTING
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
CARE AND MAINTENANCE
•Wipe fixture with soft, damp cloth. Do not use an abrasive cleaner on fixture.
OPERATING INSTRUCTIONS
A

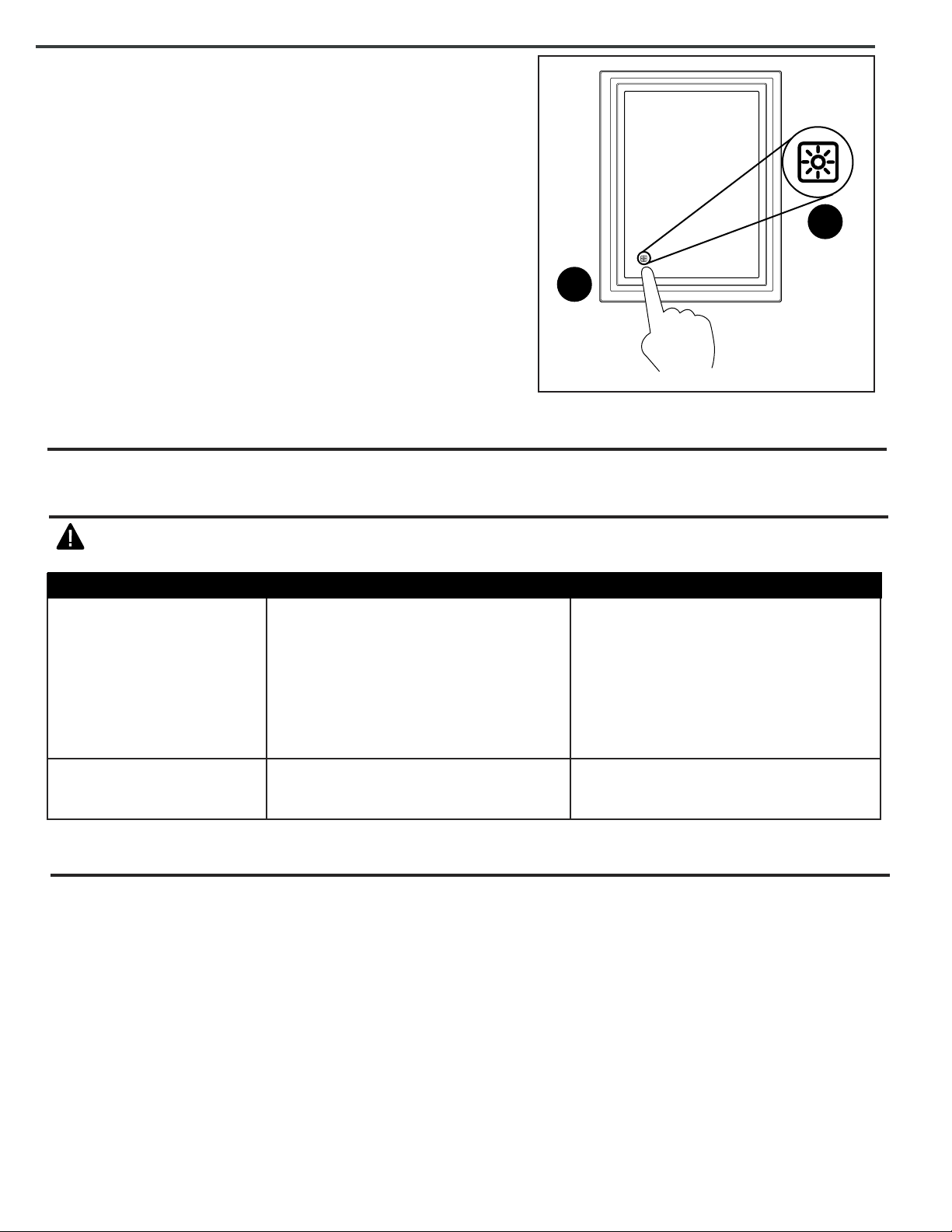

1. Tapping the touch sensor (B) on fixture (A) turns
light ON and OFF.
2. Pressing the touch sensor (B) for 3 seconds dims
the light.
Light does not come on
initially or no longer
comes on.
1. Power is OFF.
2. Faulty connection.
3. LED component is not working
properly.
4. Fixture is not plugged in.
1. Make sure power supply is ON.
2. Repeat Step 4. Check wiring and
all connections.
3. Contact Customer Service.
4. Plug fixture into outlet.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
B
Fuse blows out or
circuit breaker trips.
1. Crossed wires.
2. Power wire is grounding out.
1. Check wiring.
2. Check all connections.
11
