Sunex Tools SX113 User manual

Rev. 04/24/03
SX113 1
SX113
3/8" DR.
AIR RATCHET
WRENCH
SPECIFICATIONS
Max. Free Speed ............150 RPM
Torque..............................45 ft.lbs.
Air Inlet............................1/4 NPT
Hose Size ........................3/8" I.D.
Air Pressure ........................90 PSI
Air Consumption..................4 CFM
Sound Level......................110 dBA
Length ..................................10.5"
Shipping Wt. ..................2.71 Lbs.
Operating Instructions • Warning Information • Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often
you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
SX113_OpMan_042303 11/5/03 11:45 AM Page 1

Rev. 04/24/03
SX113 2

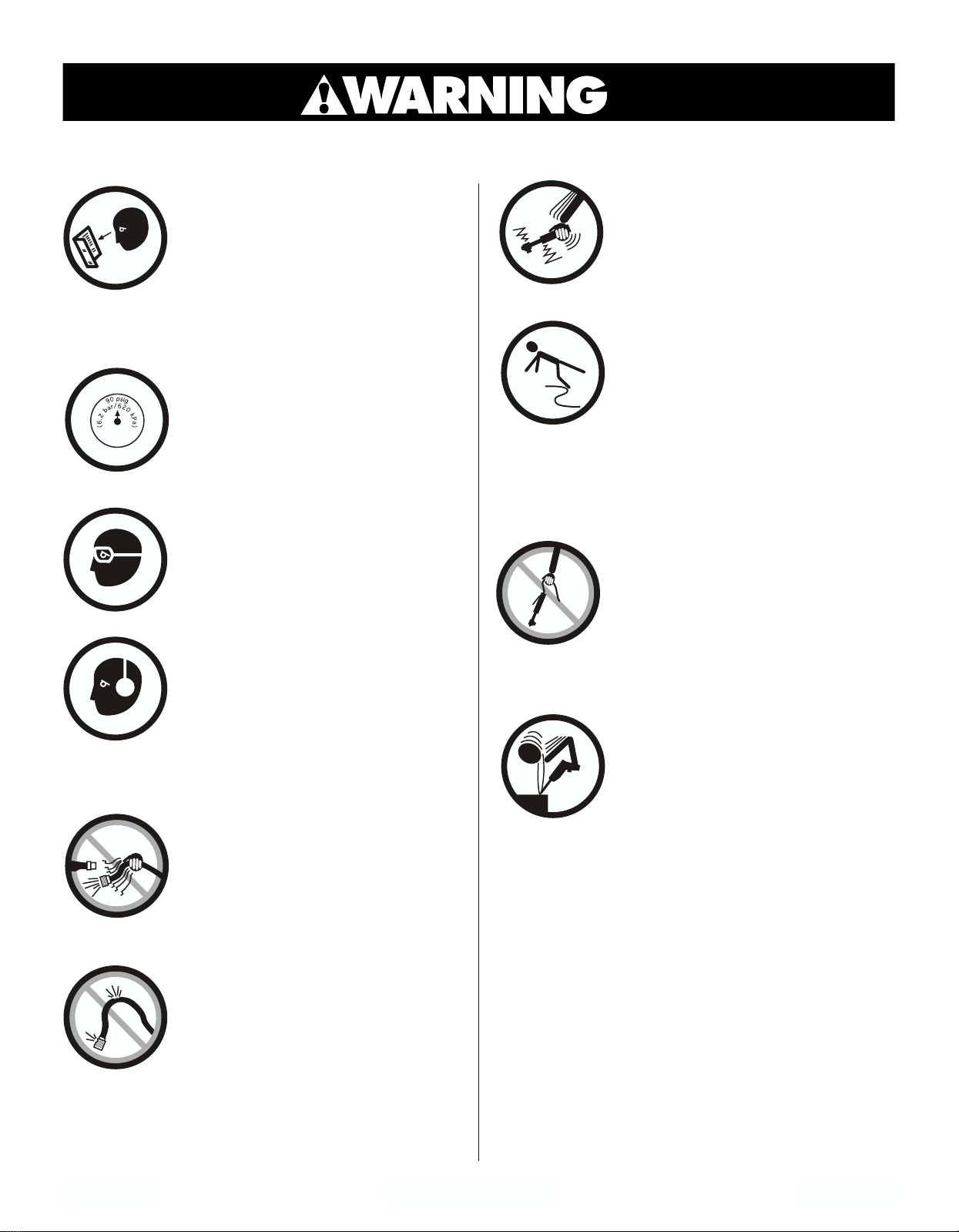

This Instruction Manual Contains Important
Safety Information.
READ THIS INSTRUCTION MANUAL
CAREFULLY AND UNDERSTAND ALL
INFORMATION BEFORE OPERATING THIS
TOOL.
• Always operate, inspect and maintain
this tool in accordance with American
National Standards Institute Safety Code
of Portable Air Tools (ANSI B186.1) and
any other applicable safety codes and
regulations.
• For safety, top performance and maximum
durability of parts, operate this tool at
90 psig/6.2 bar max air pressure with
3/8” diameter air supply hose.
• Always wear impact-resistant eye and
face protection when operating or
performing maintenance on this tool.
Always wear hearing protection when
using this tool.
• High sound levels can cause permanent
hearing loss. Use hearing protection as
recommended by your employer or
OSHA regulation.
• Keep the tool in efficient operating
condition.
• Operators and maintenance personnel
must be physically able to handle the
bulk, weight and power of this tool.
• Air under pressure can cause severe
injury. Never direct air at yourself or
others. Always turn off the air supply,
drain hose of air pressure and detach
tool from air supply before installing,
removing or adjusting any accessory
on this tool, or before performing any
maintenance on this tool. Failure to do
so could result in injury. Whip hoses can
cause serious injury. Always check for
damaged, frayed or loose hoses and
fittings, and replace immediately. Do not
use quick detach couplings at tool. See
instructions for correct set-up.
• Air powered tools can vibrate in
use. Vibration, repetitive motions or
uncomfortable positions over extended
periods of time may be harmful to your
hands and arms. Discontinue use of tool
if discomfort, tingling feeling or pain
occurs. Seek medical advice before
resuming use.
• Place the tool on the work before starting
the tool. Do not point or indulge in any
horseplay with this tool.
• Slipping, tripping and/or falling while
operating air tools can be a major cause
of serious injury or death. Be aware of
excess hose left on the walking or
work surface.
• Keep body working stance balanced and
firm. Do not overreach when operating
the tool.
• Anticipate and be alert for sudden
changes in motion during start up and
operation of any power tool.
• Do not carry tool by the hose. Protect the
hose from sharp objects and heat.
• Tool shaft may continue to rotate briefly
after throttle is released. Avoid direct
contact with accessories during and after
use. Gloves will reduce the risk of cuts
or burns.
• Keep away from rotating end of tool.
Do not wear jewelry or loose clothing.
Secure long hair. Scalping can occur
if hair is not kept away from tool and
accessories. Choking can occur if
neckwear is not kept away from tool
and accessories.
• Do not lubricate tools with flammable or volatile liquids
such as kerosene, diesel or jet fuel.
• Do not force tool beyond its rated capacity.
• Do not remove any labels. Replace any damaged labels.
• Use accessories recommended by Sunex Tools.
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
SX113_OpMan_042303 11/5/03 11:45 AM Page 2

Rev. 04/24/03
SX113 3
SX113
3/8" Dr. Air Ratchet Wrench
Ref. # Item # DESCRIPTION QTY
1 RS11301 Housing 1
2 RS11302 Air Inlet 1
4 RS11304 Throttle Lever 1
5 RS11305 Lever Pin 1
6 RS11306 Valve Stem 1
7 RS11409 O-Ring 1
8 RS11308 Spring Pin 1
9 RS11411 Valve Plug 1
10 RS11310 Washer 1
11 RS11311 O-Ring 1
12 RS11312 Thread Ring Gear 1
13 RS11415 Clamp Nut 1
14 RS11416 Planet Gear 3
15 Gear Pin (included in #16) 3
16 RS11418 Gear Plate 1
17 RS11317 Crank Shaft 1
*18 3/8" Ratchet Anvil 1
19 RS11319 Ratchet Housing 1
20 RS11320 Bushing 1
21 RS11423 Needle Bearing 1
Ref. # Item# DESCRIPTION QTY
22 RS11322 Drive Bushing 1
23 RS11323 Ratchet Yoke 1
24 RS11324 Cylinder 1
25 RS11427 Rotor 1
26 RS11428 Rotor Blade 4
27 RS11429 Front End Plate 1
28 RS30524 Ball Bearing 1
29 RS11329 Rear End Plate 1
30 RS21114 Ball Bearing 1
31 RS11433 Spring Pin 2
*32 Thrust Washer 1
*34 Spring Pin 1
*35 Lock Pin 1
*36 Ratchet Pawl 1
*37 Pin 1
*38 Reverse Button 1
*39 Retainer Ring 1
*40 Spring Pin 2
*41 Steel Ball 2
*42 Washer 1
*Available only in head kit, Part #RSRHK100C
Only items identified by part # are available individually.
SX113_OpMan_042303 11/5/03 11:45 AM Page 3

Rev. 04/24/03
SX113 4
Lubrication...
Lubricate the air motor daily with quality air tool oil. If no
air line oiler is used, run a teaspoon of oil through the
tool. The oil can be squirted into the tool air inlet or into
the hose at the nearest connection to the air supply, then
run the tool.
Operation...
This ratchet wrench is rated at 3/8" USS bolt size. Rating
must be down graded for spring U bolts, tie bolts, long
cap screws, double depth nuts, badly rusted conditions
and spring fasteners as they absorb much of the impact
power. When possible, clamp or wedge the bolt to
prevent springback.
NOTE: Actual torque on a fastener is directly related to
joint hardness, tool speed, condition of socket and the
time the tool is allowed to impact.
Use the simplest possible tool-to-socket hook up. Every
connection absorbs energy and reduces power.
NOTE: Soak rusted nuts in penetrating oil and break rust
seal before removing with ratchet wrench. If nut does not
start to move in three to five seconds, use a larger size
ratchet wrench. Do not use ratchet wrench beyond rated
capacity as this will drastically reduce tool life.
Nipple
Operating Instructions • Warning Information • Parts Breakdown
Air Supply...
Tools of this class operate on a wide range of air pressures.
It is recommended that air pressure of these tools measures
90 PSI at the tool while running free. Higher pressure (over
90 psig; 6.2 bar) raises performance beyond the rated
capacity of the tool which will shorten tool life because of
faster wear and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or
water in the air line will cause damage to the tool. Drain the
air tank daily. Clean the air inlet filter screen on at least a
weekly schedule. The recommended hookup procedure can
be viewed in the above figure.
The air inlet used for connecting air supply, has standard
1/4" NPT. Line pressure should be increased to compensate
for unusually long air hoses (over 25 feet). Minimum hose
diameter should be 3/8" I.D. and fittings should have the
same inside dimensions and be tightly secured.
SX113_OpMan_042303 11/5/03 11:45 AM Page 4
