Sunex Tools SX114 User manual

Rev. 04/24/03
SX114 1
SX114
3/8" DR.
SUPER DUTY
AIR RATCHET
WRENCH
SPECIFICATIONS
Max. Free Speed ............200 RPM
Torque..............................60 ft.lbs.
Air Inlet............................1/4 NPT
Hose Size ........................3/8" I.D.
Air Pressure ........................90 PSI
Air Consumption..................4 CFM
Sound Level........................88 dBA
Length ................................11.02"
Shipping Wt. ....................2.7 Lbs.
Operating Instructions • Warning Information • Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often
you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
SX114 op man_042303 11/5/03 11:42 AM Page 1

Rev. 04/24/03
SX114 2

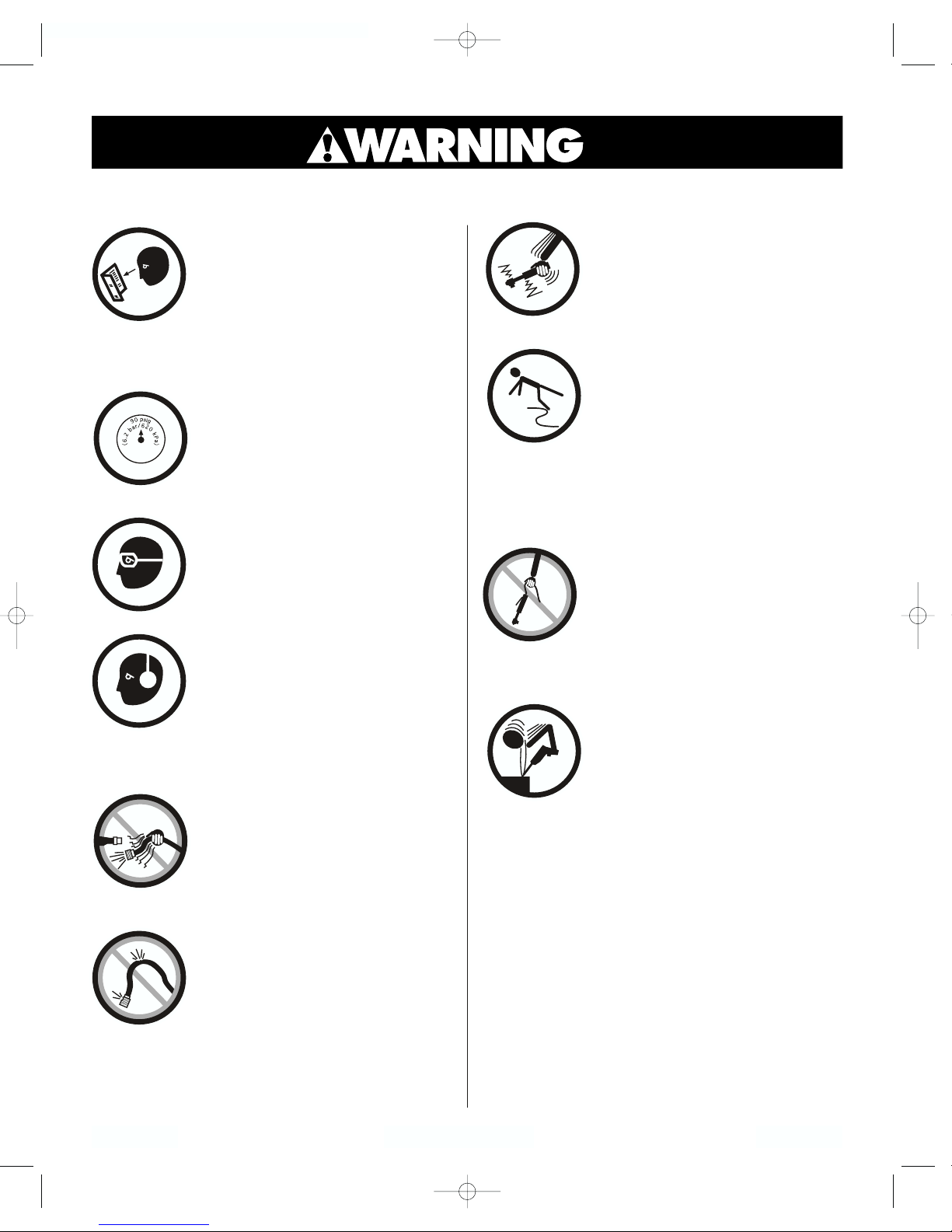

This Instruction Manual Contains Important
Safety Information.
READ THIS INSTRUCTION MANUAL
CAREFULLY AND UNDERSTAND ALL
INFORMATION BEFORE OPERATING THIS
TOOL.
• Always operate, inspect and maintain
this tool in accordance with American
National Standards Institute Safety Code
of Portable Air Tools (ANSI B186.1) and
any other applicable safety codes and
regulations.
• For safety, top performance and maximum
durability of parts, operate this tool at
90 psig/6.2 bar max air pressure with
3/8” diameter air supply hose.
• Always wear impact-resistant eye and
face protection when operating or
performing maintenance on this tool.
Always wear hearing protection when
using this tool.
• High sound levels can cause permanent
hearing loss. Use hearing protection as
recommended by your employer or
OSHA regulation.
• Keep the tool in efficient operating
condition.
• Operators and maintenance personnel
must be physically able to handle the
bulk, weight and power of this tool.
• Air under pressure can cause severe
injury. Never direct air at yourself or
others. Always turn off the air supply,
drain hose of air pressure and detach
tool from air supply before installing,
removing or adjusting any accessory
on this tool, or before performing any
maintenance on this tool. Failure to do
so could result in injury. Whip hoses can
cause serious injury. Always check for
damaged, frayed or loose hoses and
fittings, and replace immediately. Do not
use quick detach couplings at tool. See
instructions for correct set-up.
• Air powered tools can vibrate in
use. Vibration, repetitive motions or
uncomfortable positions over extended
periods of time may be harmful to your
hands and arms. Discontinue use of tool
if discomfort, tingling feeling or pain
occurs. Seek medical advice before
resuming use.
• Place the tool on the work before starting
the tool. Do not point or indulge in any
horseplay with this tool.
• Slipping, tripping and/or falling while
operating air tools can be a major cause
of serious injury or death. Be aware of
excess hose left on the walking or
work surface.
• Keep body working stance balanced and
firm. Do not overreach when operating
the tool.
• Anticipate and be alert for sudden
changes in motion during start up and
operation of any power tool.
• Do not carry tool by the hose. Protect the
hose from sharp objects and heat.
• Tool shaft may continue to rotate briefly
after throttle is released. Avoid direct
contact with accessories during and after
use. Gloves will reduce the risk of cuts
or burns.
• Keep away from rotating end of tool.
Do not wear jewelry or loose clothing.
Secure long hair. Scalping can occur
if hair is not kept away from tool and
accessories. Choking can occur if
neckwear is not kept away from tool
and accessories.
• Do not lubricate tools with flammable or volatile liquids
such as kerosene, diesel or jet fuel.
• Do not force tool beyond its rated capacity.
• Do not remove any labels. Replace any damaged labels.
• Use accessories recommended by Sunex Tools.
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
SX114 op man_042303 11/5/03 11:42 AM Page 2

Rev. 04/24/03
SX114 3
SX114
3/8" Dr. Super Duty Air Ratchet Wrench
Ref. # Item # DESCRIPTION QTY
1 RS11401 Housing 1
2 RS11402 Inlet Collar 1
3 RS11403 O-Ring 1
4 RS11404 O-Ring 1
5 RS11405 Oil Inlet Collar 1
6 RS11406 Trigger 1
7 RS11407 Screw 1
8 RS11408 Valve Bushing 1
9 RS11409 O-Ring 1
10 RS11410 Spring 1
11 RS11411 Valve Plug 1
12 RS11412 O-Ring 1
13 RS11413 Washer 1
14 RS11414 Gear Ring 1
15 RS11415 Clamp Nut 1
16 RS11416 Planet Gear 3
17 Gear Pin (included in #18) 3
18 RS11418 Gear Plate with Pins 1
19 RS11419 Crank Shaft 1
*20 Anvil Cage 1
21 RS11421 Ratchet Housing 1
22 RS11422 Spacer 1
23 RS11423 Needle Bearing 1
24 RS11424 Drive Bushing 1
25 RS11425 Ratchet Yoke 1
26 RS11426 Cylinder 1
27 RS11427 Rotor 1
28 RS11428 Rotor Blade 4
Ref. # Item# DESCRIPTION QTY
29 RS11429 Front End Plate 1
30 RS729478 Ball Bearing 1
31 RS11431 Rear Cover 1
32 RS227B25 Ball Bearing 1
33 RS11433 Spring Pin 2
*34 Sleeve 2
*35 Spring 2
*36 Ratchet Pawl 2
*37 Set Pin 2
*38 Reverse Button 1
*39 Thrust Washer 1
*40 Steel Ball 1
*41 Spring 1
*42 Spring Pin 2
43 RS11443 O-Ring 1
44 RS11444 Screw 1
45 RS11445 O-Ring 1
46 RS11446 Oil Window 1
47 RS11447 O-Ring 1
48 RS11448 Exhaust Ring 1
49 RS11449 Rubber Grip 1
*50 Retainer Ring 1
*51 Steel Ball 2
*52 Washer 1
53 RS11453 Oil Cotton 1
54 RS11454 Brass Spacer 1
55 RS11455 O-Ring 1
*Available only in head kit, Part #RSRHK114
Only items identified by part # are available individually.
SX114 op man_042303 11/5/03 11:42 AM Page 3

Rev. 04/24/03
SX114 4
Operation...
This ratchet wrench is rated at 3/8" USS bolt size. Rating must
be down graded for spring U bolts, tie bolts, long cap screws,
double depth nuts, badly rusted conditions and spring fasteners
as they absorb much of the impact power. When possible, clamp
or wedge the bolt to prevent springback.
NOTE: Actual torque on a fastener is directly related to joint
hardness, tool speed, condition of socket and the time the tool is
allowed to impact.
Use the simplest possible tool-to-socket hook up. Every
connection absorbs energy and reduces power.
NOTE: Soak rusted nuts in penetrating oil and break rust seal
before removing with ratchet wrench. If nut does not start to
move in three to five seconds, use a larger size ratchet wrench.
Do not use ratchet wrench beyond rated capacity as this will
drastically reduce tool life.
This tool is equipped with a variable speed trigger to deliver
precise speed control. the further the trigger is depressed, the
more RPM’s are delivered. You may also adjust the exhaust away
from you by simply turning the fully adjustable exhaust ring (48).
The forward/reverse button (38) is located on the ratchet
housing (21) opposite anvil cage (20). Turn the button clockwise
for reverse and counterclockwise for forward.
Nipple
Operating Instructions • Warning Information • Parts Breakdown
Air Supply...
Tools of this class operate on a wide range of air pressures. It is
recommended that air pressure of these tools measures 90 PSI at the
tool while running free. Higher pressure (over 90 psig; 6.2 bar) raises
performance beyond the rated capacity of the tool which will shorten
tool life because of faster wear and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in the
air line will cause damage to the tool. Drain the air tank daily. Clean
the air inlet filter screen on at least a weekly schedule. The

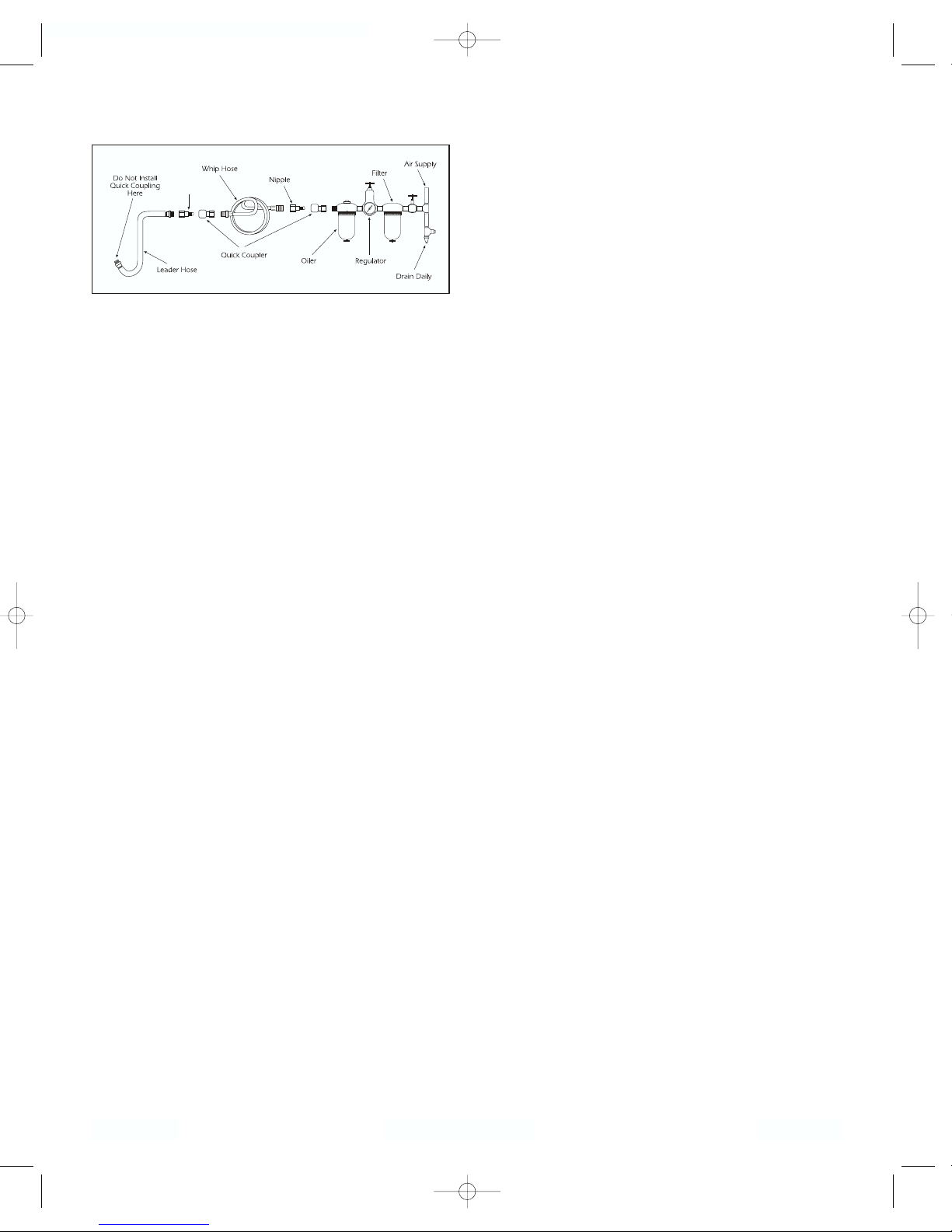

recommended hookup procedure can be viewed in the above figure.
The air inlet used for connecting air supply, has standard 1/4" NPT.
Line pressure should be increased to compensate for unusually long air
hoses (over 25 feet). Minimum hose diameter should be 3/8" I.D. and
fittings should have the same inside dimensions and be tightly secured.
Lubrication...
This tool comes equipped with an automatic oiler. Before initial use,
remove screw with o-ring (44,43) on the side opposite the trigger and
pour clean air tool oil into reservoir until the oil level covers entire oil
level glass (47). Replace screw with o-ring and tighten securely. Do not
over tighten as the o-ring could be damaged. Oil will be circulated
through trigger and air motor each time the trigger is depressed. Check
oil level in oil level glass on at least a weekly schedule for long tool life.
Limited Warranty...
SUNEX INTERNATIONAL, INC. WARRANTS TO ITS CUSTOMERS THAT THE COMPANY’S SUNEX TOOLS®BRANDED
PRODUCTS ARE FREE FROM DEFECTS IN WORKMANSHIP AND MATERIALS.
Sunex International, Inc. will repair or replace its Sunex Tools®branded products which fail to give satisfactory service due to defective
workmanship or materials, based upon the terms and conditions of the following described warranty plans attributed to that specific product.
This product carries a ONE-YEAR warranty. During this warranty period, Sunex Tools will repair or replace at our option any part or unit
which proves to be defective in material or workmanship.
Other important warranty information...
This warranty does not cover damage to equipment or tools arising from alteration, abuse, misuse, damage and does not cover any repairs
or replacement made by anyone other than Sunex Tools or its authorized warranty service centers.The foregoing obligation is Sunex Tools’
sole liability under this or any implied warranty and under no circumstances shall we be liable for any incidental or consequential damages.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. Return equipment or parts to Sunex Tools, or an authorized warranty service center, transportation prepaid. Be
certain to include your name and address, evidence of the purchase date, and description of the suspected defect.
If you have any questions about warranty service, please write to Sunex Tools. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. Repair kits and replacement parts are available for many of Sunex Tools products regardless
of whether or not the product is still covered by a warranty plan.
