Sunjoy A106007421 User manual

ITEM/Article #: A106007421
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
24 hours / 7 days a week
24 heures / 7 jours par semaine
[email protected]
www.sunjoyonline.com
Liste des pièces
Warranty Parts
sous garantie
Country of Origin: China
Pais d’origine: Chine Production Number: xxxxxxxxxx Numéro de fabrication: xxxxxxxxxx

2/ 35
• This product is intended for domestic outdoor use only.
• The product should be placed on flat, horizontal ground.
• Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
• This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
• Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
• During installation, follow all safety warnings provided with your tools, and use safety glasses.
• In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Keep children and pets away while setting up the gazebo.
• Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
• Repairing and replacing parts should be done by a qualified technician.
• This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
• Do not light any fires inside or near the product!
• Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
firemen allow you to do so.
• Do not hang heavy weights on the roof frame.
• Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
• Retain the original packaging to store the gazebo.
Important Safety Instructions
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

•
•
•



•





•

•

•

•
•
•
•
•

•
•

•
•

•
•

•
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx
3 / 35

4 / 35
Country of Origin: China
Pais d’origine: Chine
IMPORTANT:
•Please read and understand this manual before any assembly. Beforebeginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position themon the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Needed for assembly:（The following tools are not included）
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx
•
 
•

•
 
•
 
•

5 / 35
Country of Origin: China
Pais d’origine: Chine

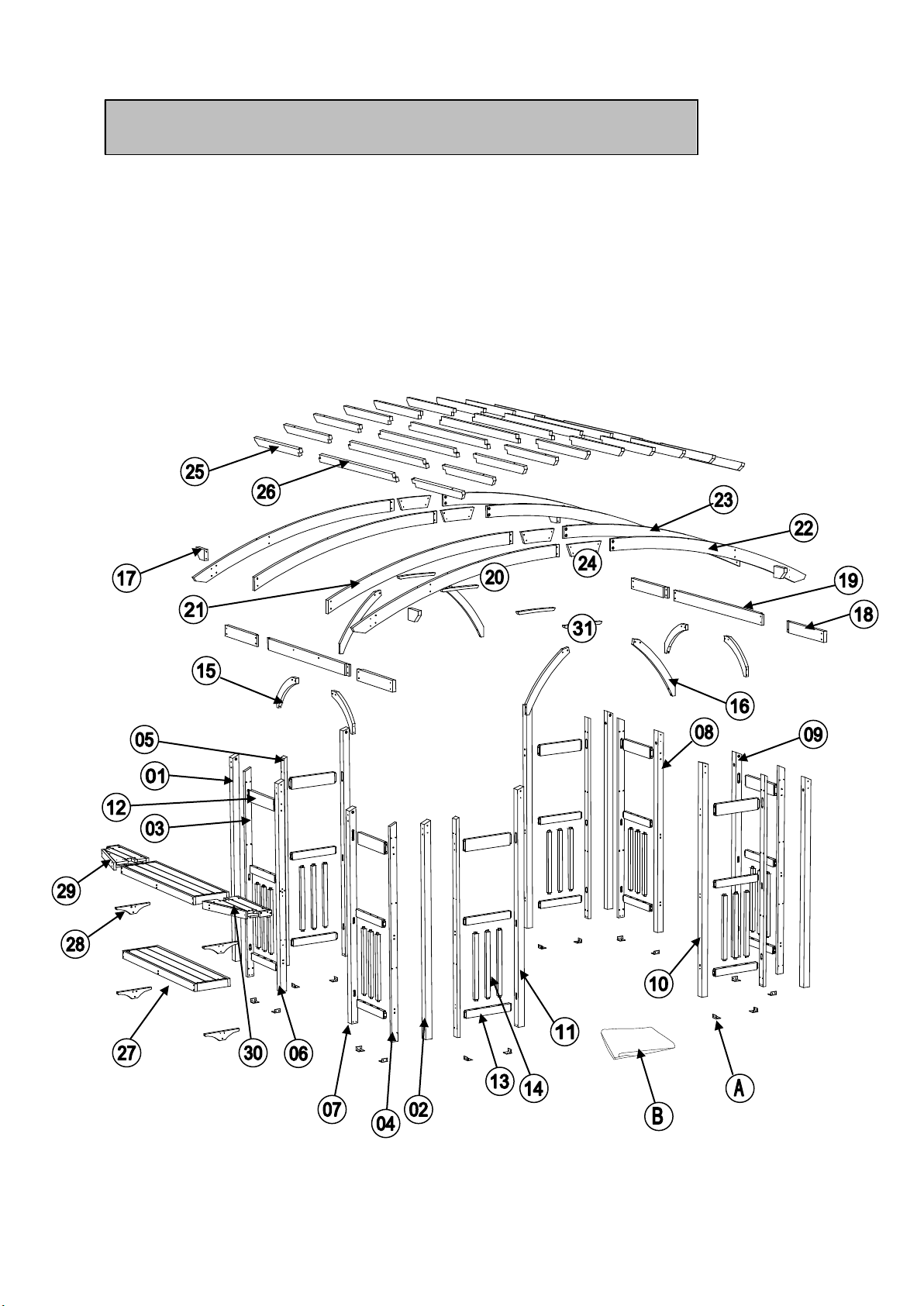

EXPLODED DRAWING / VUE ÉCLATÉE
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

6 / 35

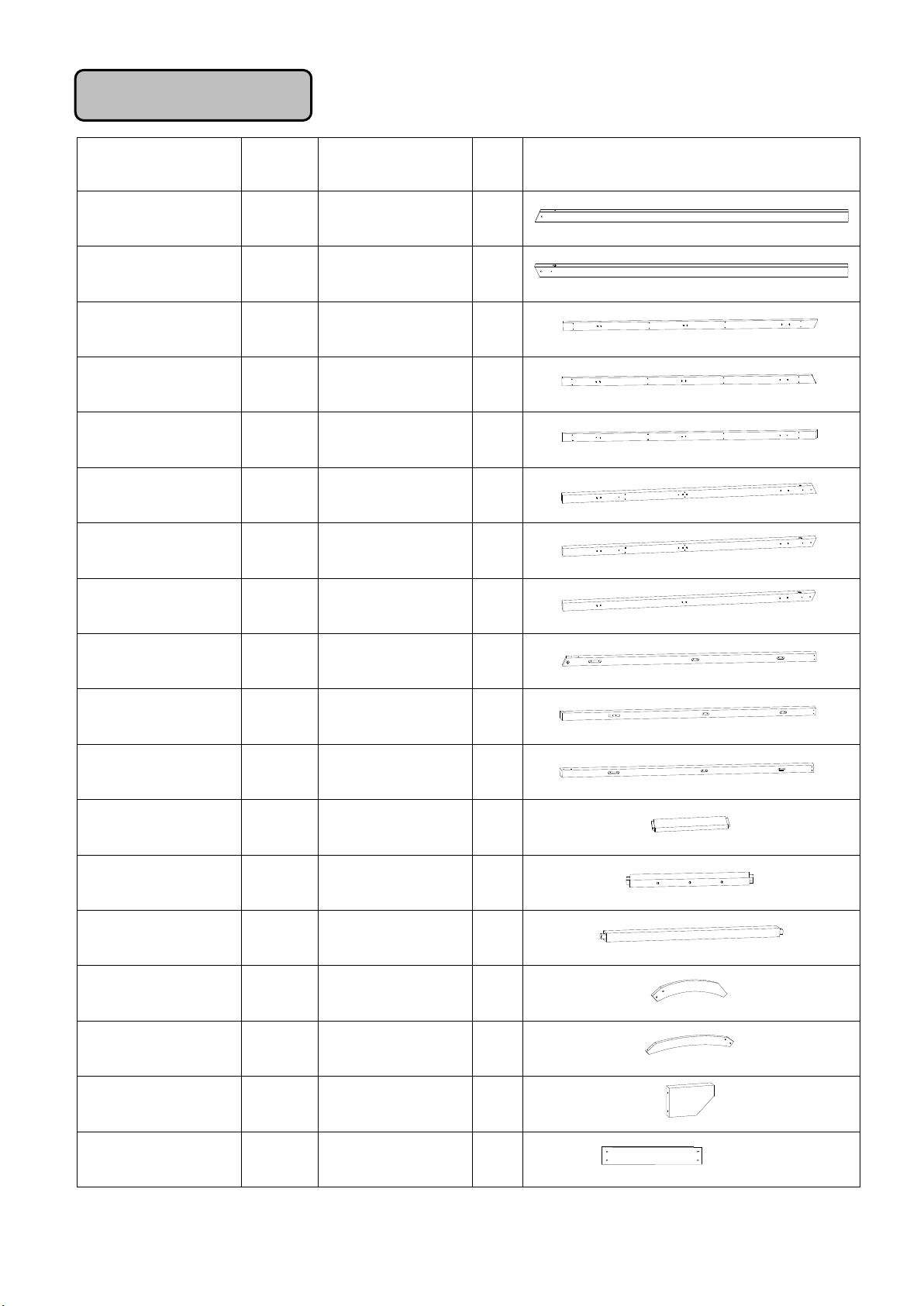

Description Label Part Number Qty Part Image
Big Post 1 01 P00020018302 2
Big Post 2 02 P00020018402 2
Screen1 03 P00630010102 2
Screen2 04 P00630010202 2
Screen3 05 P00630010302 4
Small Post 1 06 P00020041602 1
Small Post 2 07 P00020041702 1
Small Post 3 08 P00020041802 1
Small Post 4 09 P00020041902 1
Small Post 5 10 P00020042602 2
Small Post 6 11 P00020042702 2
Cross Beam 1 12 P00040041602 8
Cross Beam 2 13 P00040041702 16
Support Bar 14 P00500032302 24
Short Brace 15 P00500034402 4
Long Brace 16 P00500034502 4
Beam Tail 17 P00560018902 4
Cross Beam 3 18 P00040070702 4
Part List
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

6/ 31
Cross Beam 4 19 P00040070802 2
Arc beam 1 21P00060056102 2
Arc beam 2 20P00060056202 2
Arc beam 3
23
P00060056302 2
Arc beam 4
22
P00060056402 2
Connector Panel 24 P00050024702 4
Support Beam 1 25 P00060056502 20
Support Beam 2 26 P00060056602 10
Table Top 1 27 P00210043402 2
Brace (Lower1) 28 P00500034602 4
Table Top2 29 P00210043502 1
Table Top3 30 P00210043602 1
Brace (Lower2) 31 P00500034702 4
Post Base A P000100112 16
Canopy B P00640001701 1
Country of Origin: China Production Number: XXXXXXXXXX

7 / 35
Quantité

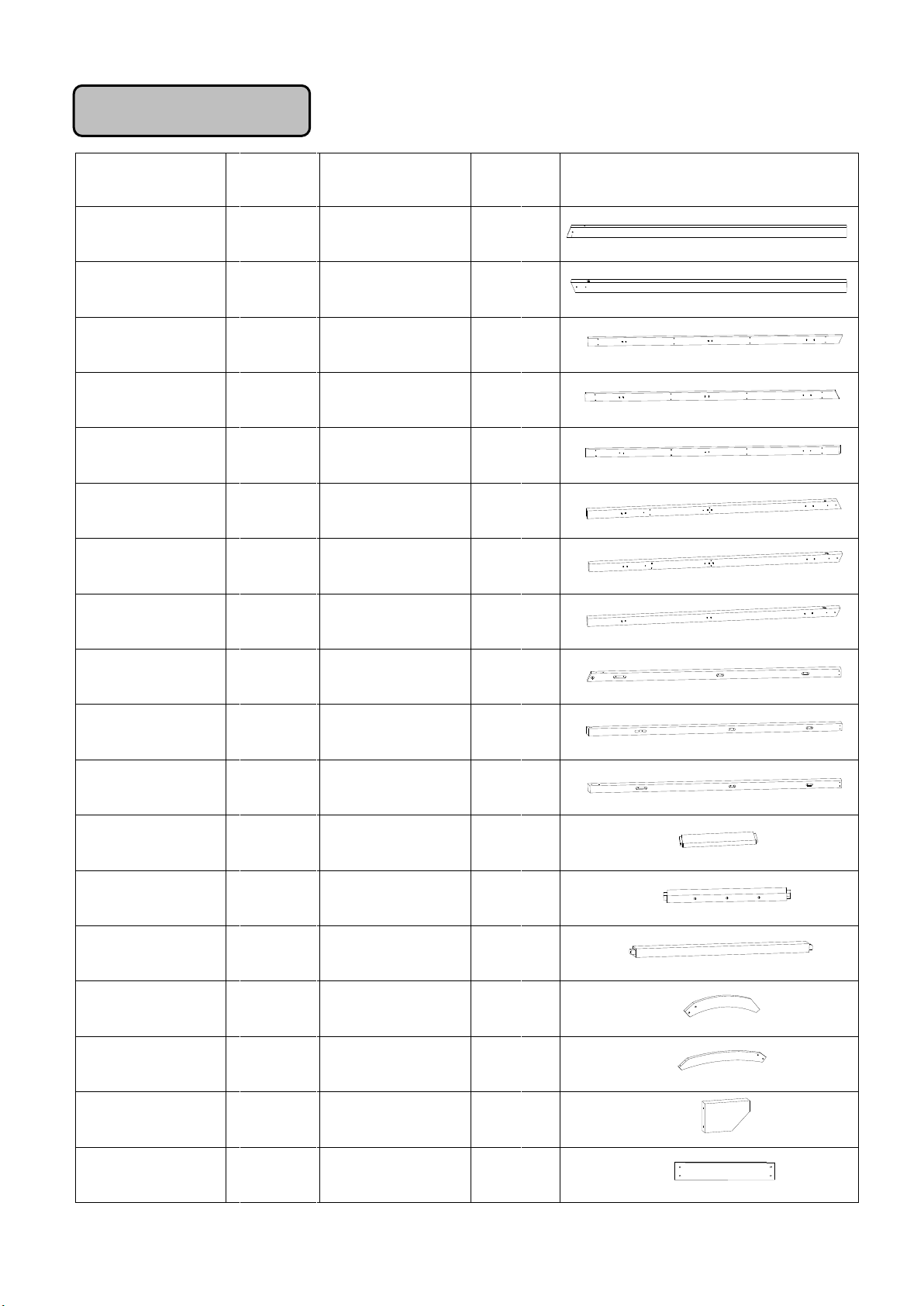

Grand Poteau 1 01 P00020018302 2
Grand Poteau 2 02 P00020018402 2
Facade1 03 P00630010102 2
Facade2 04 P00630010202 2
Facade3 05 P00630010302 4
Petit Poteau 1 06 P00020041602 1
Petit Poteau 2 07 P00020041702 1
Petit Poteau 3 08 P00020041802 1
Petit Poteau 4 09 P00020041902 1
Petit Poteau 5 10 P00020042602 2
Petit Poteau 6 11 P00020042702 2
Traverse 1 12 P00040041602 8
Traverse 2 13 P00040041702 16
Barre de soutien 14 P00500032302 24
Attelle courte 15 P00500034402 4
Attelle long 16 P00500034502 4
Queue de poutre 17 P00560018902 4
Traverse 3 18 P00040070702 4
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx
Liste de Pièces
Étiquette Numéro de la
Pièce
Description Numéro de la Pièce Diagramme

8 / 35
Traverse 4 19 P00040070802 2
Arc Traverse 1 21P00060056102 2
Arc Traverse 2 20P00060056202 2
Arc Traverse 3
23
P00060056302 2
Arc Traverse 4
22
P00060056402 2
Panneau de
Connexion 24 P00050024702 4
Poutre de Support 1 25 P00060056502 20
Poutre de Support 2 26 P00060056602 10
Dessus de Table 1 27 P00210043402 2
Barre de Renfort
(Inférieure 1) 28 P00500034602 4
Dessus de Table 2 29 P00210043502 1
Dessus de Table 3 30 P00210043602 1
Barre de Renfort
(Inférieure 2) 31 P00500034702 4
Base du Poteau A P000100112 16
Auvent B P00640001701 1
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

9 / 35

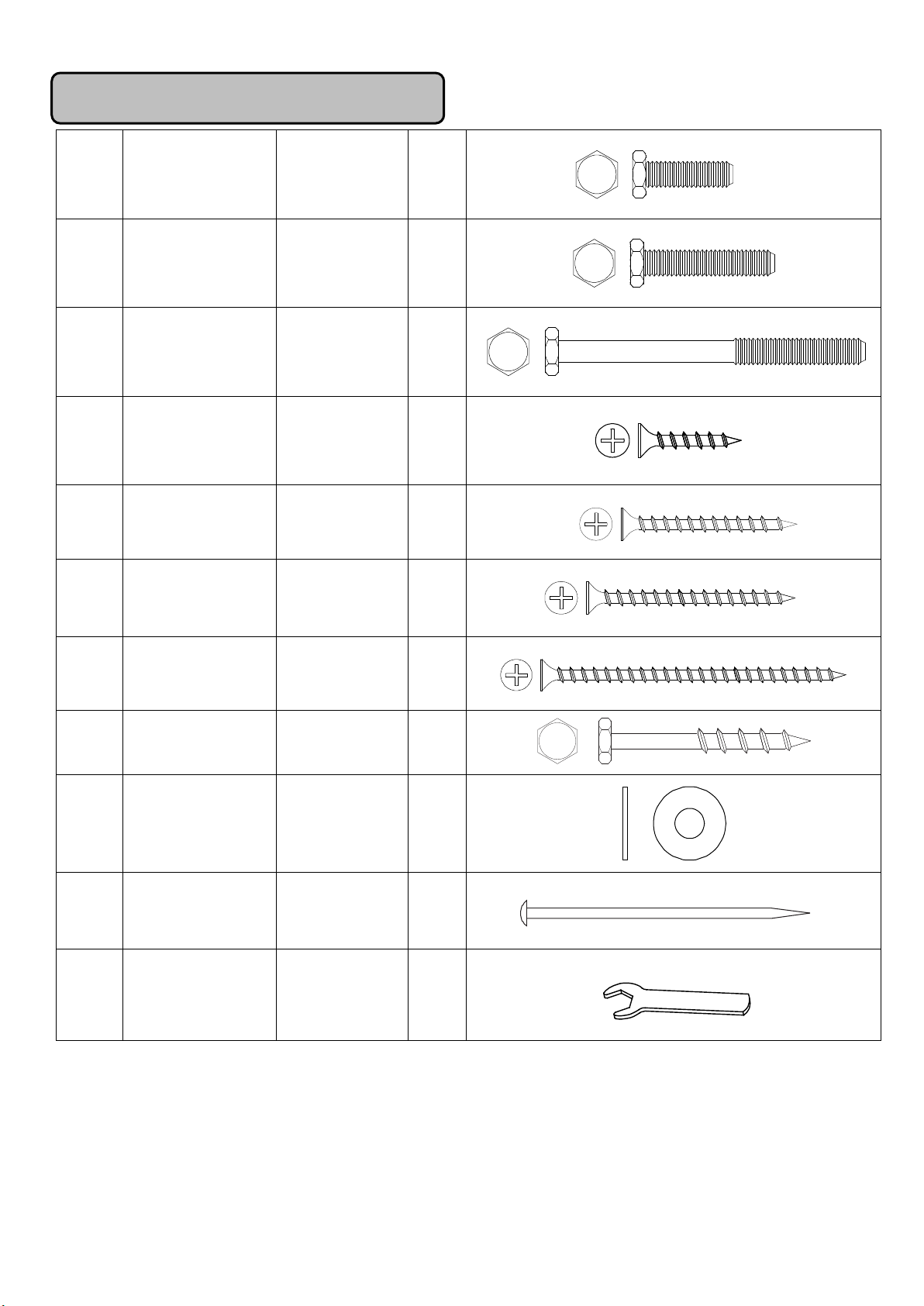

H1 Bolt M8*20 H010010164 4
H2 Bolt M8*30 H010010175 8
H3 Bolt M8*95 H010010352 20
H4 Screw M4*20 H030050008 32
H5 Screw M4*50 H030050060 108
H6 Screw M4*65 H030050061 96
H7 Screw M4*95 H030050064 142
H8 Screw M8*75 H110140002 20
H9 Flat Washer M8 H050030002 52
HS Stake Φ8*180 H070010003 16
HW Wrench M8 H090010012 2
Hardware Pack
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

10 / 35
H1 Boulon M8*20 H010010164 4
H2 Boulon M8*30 H010010175 8
H3 Boulon M8*95 H010010352 20
H4 Vis M4*20 H030050008 32
H5 Vis M4*50 H030050060 108
H6 Vis M4*65 H030050061 96
H7 Vis M4*95 H030050064 142
H8 Vis M8*75 H110140002 20
H9 Rondelle
plate M8 H050030002 52
HS Piquet Φ8*180 H070010003 16
HW Clé M8 H090010012 2
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx
Pack Quincaillerie

11 / 35

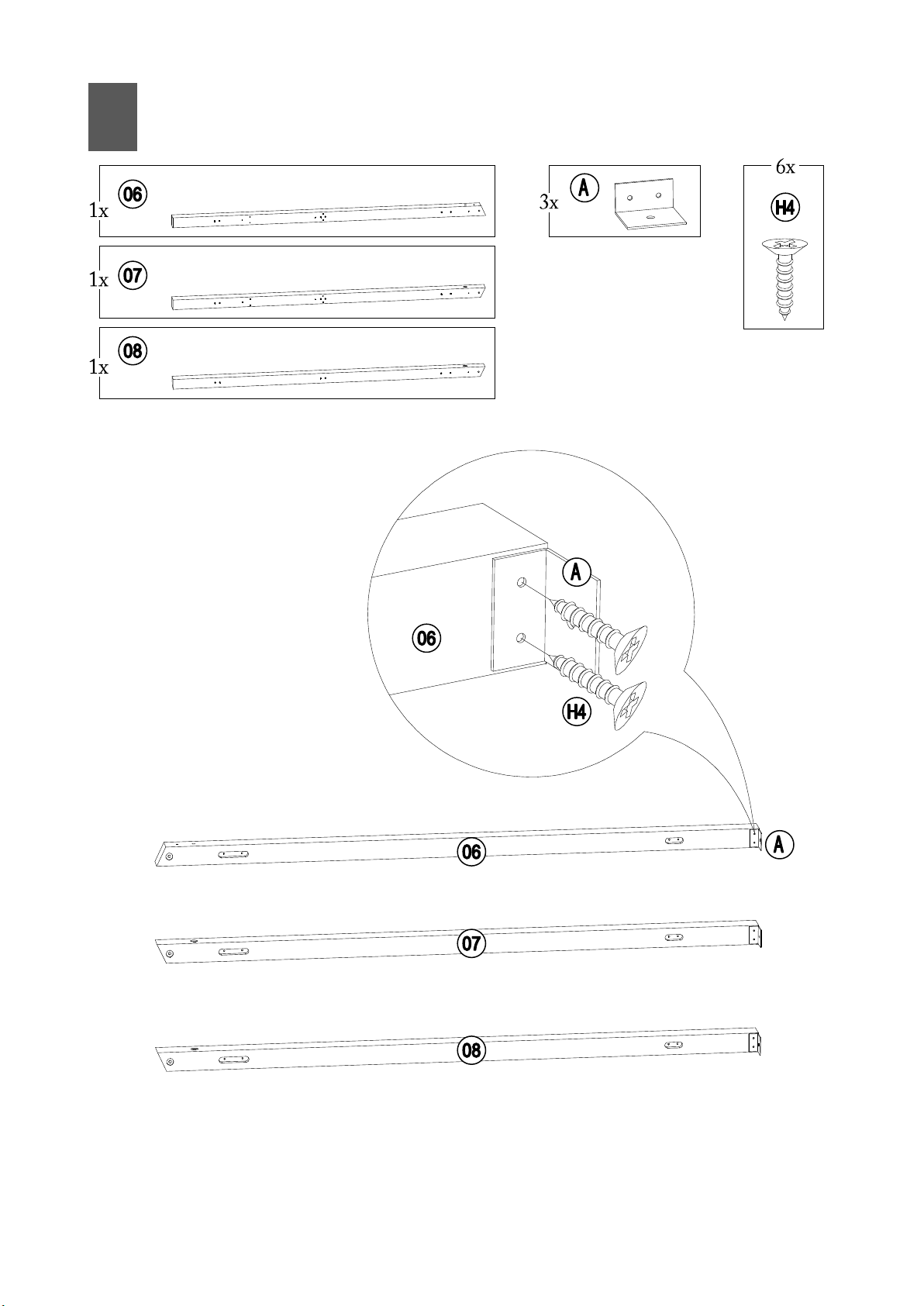

1
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

12 / 35

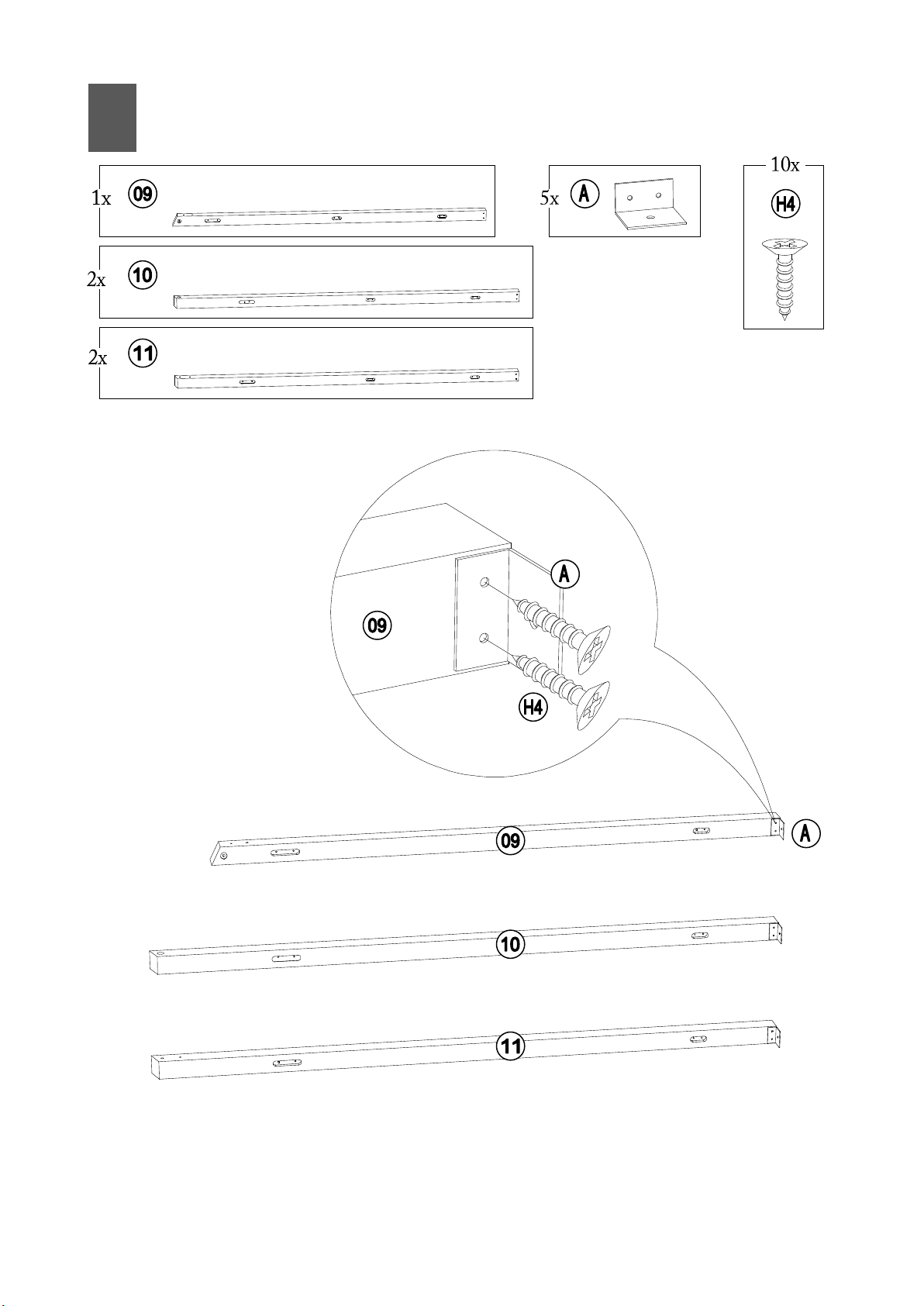

2
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

13 / 35

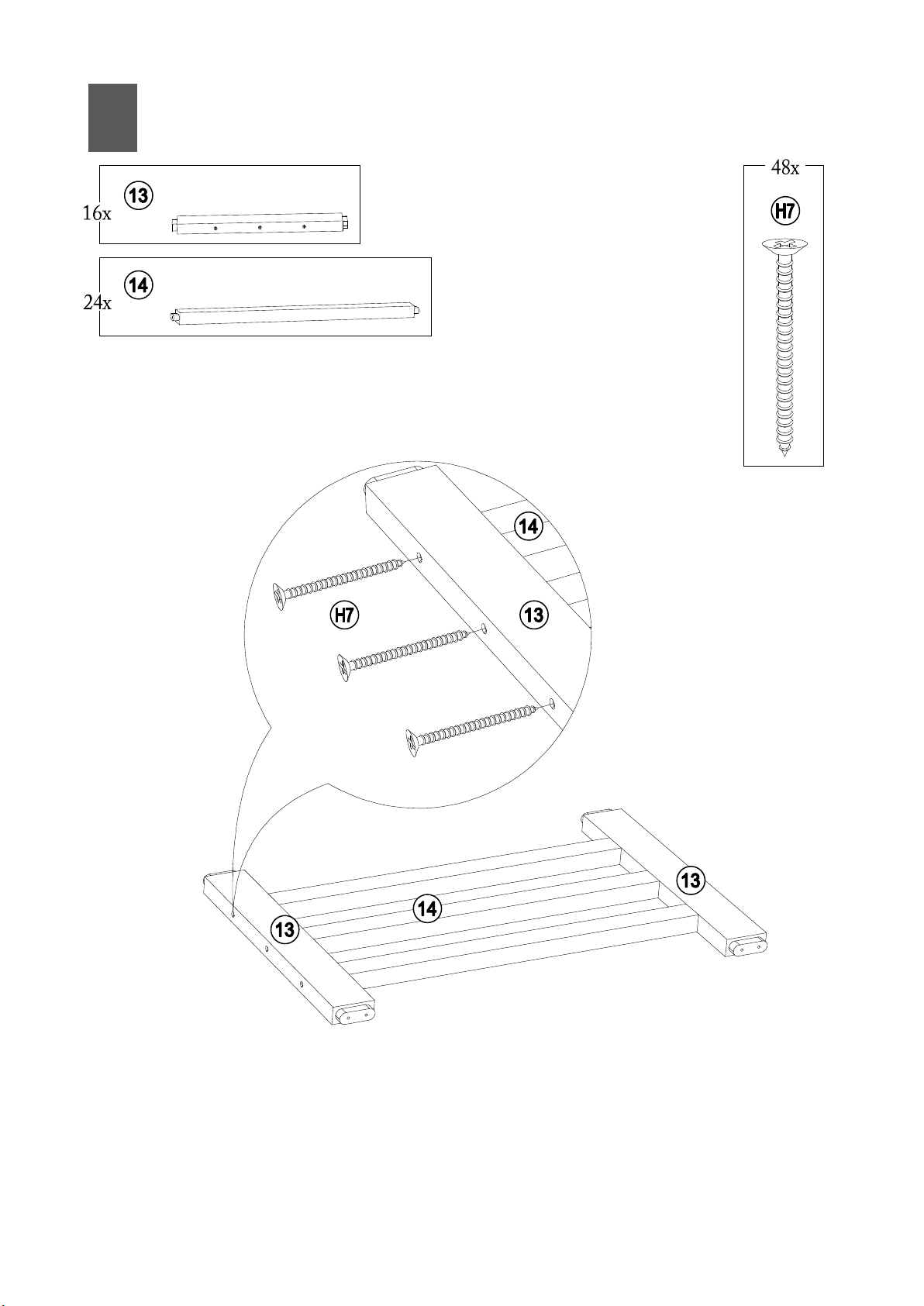

3
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

14 / 35

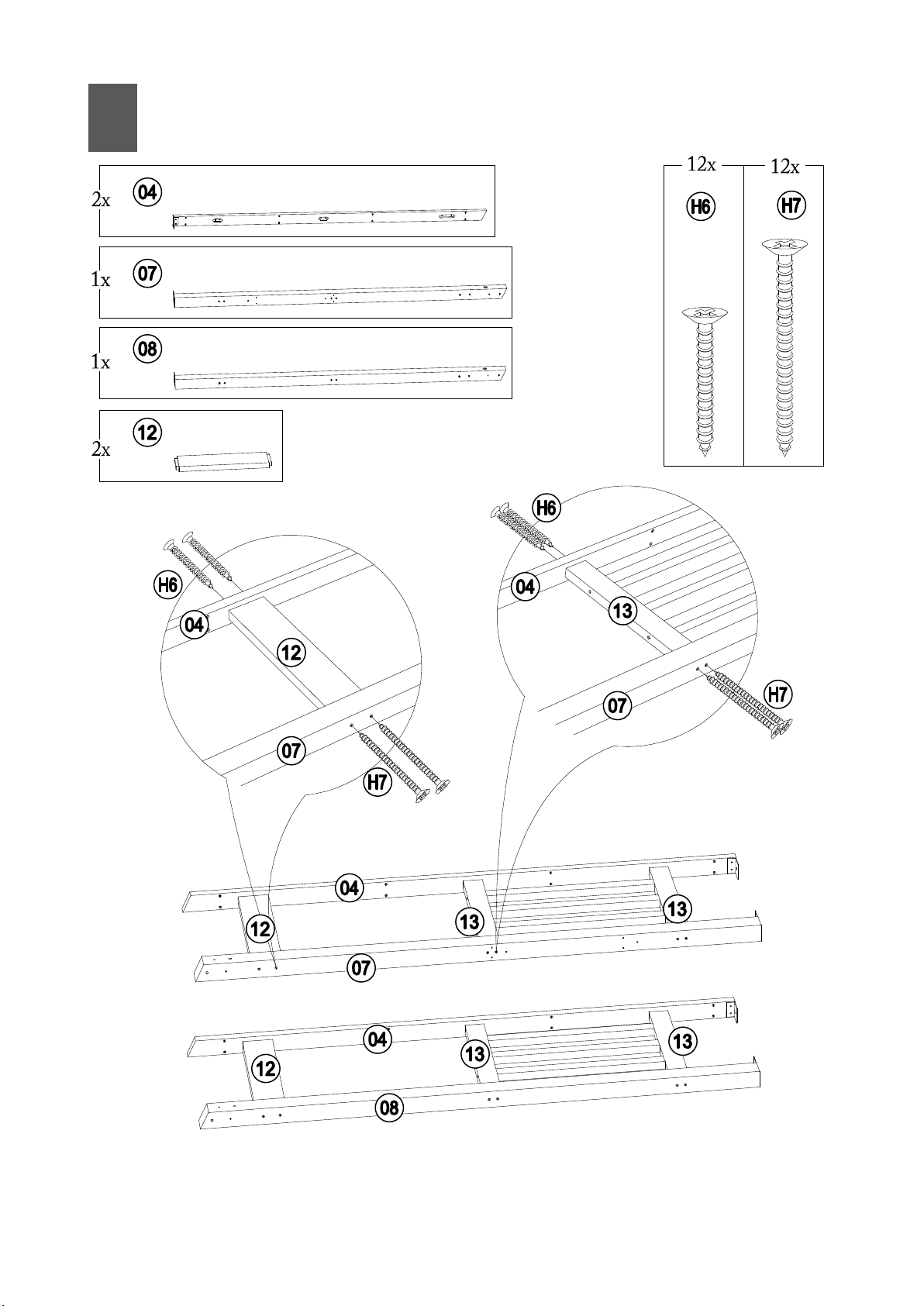

4
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

15 / 35

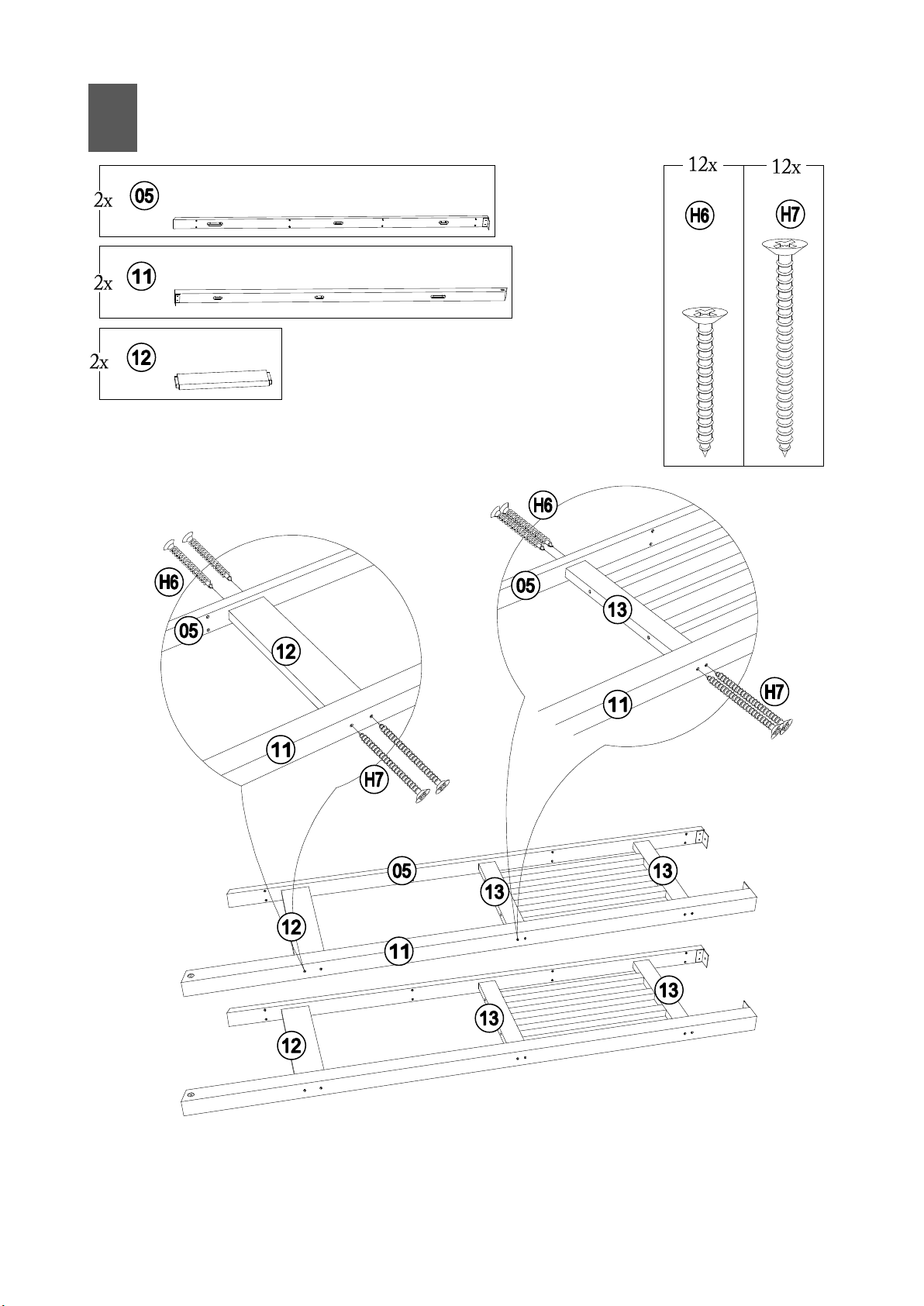

5
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

16 / 35
6
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

17 / 35
7
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

18 / 35
8
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx

19 / 35
9
Country of Origin: China
Pais d’origine: Chine
Production Number: xxxxxxxxxx
Numéro de fabrication: xxxxxxxxxx
