Sunjoy SummerCove A102017900 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
ASSEMBLYINSTRUCTION
INSTRUCTIONS DE MONTAGE
Item/Article #：A102017900
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues?/ Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2/ 42
Country of Origin: China
Pais d’origine: Chine
This product is intended for domestic outdoor use only.
The product should be placed on flat, horizontal ground.
Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
During installation, follow all safety warnings provided with your tools, and use safety glasses.
In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
Any assembly or maintenance of the product must be carried out by adults only.
Arrange necessary manpower when assembling or moving the product.
Some parts may contain sharp edges. Wear protective gloves if necessary.
Keep children and pets away while setting up the gazebo.
Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
Repairing and replacing parts should be done by a qualified technician.
This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
Do not light any fires inside or near the product！
Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
firemen allow you to do so.
Do not hang heavy weights on the roof frame.
Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
Retain the original packaging to store the gazebo
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution!
Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3/ 42
Country of Origin: China
Pais d’origine: Chine
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•

•
•

•
•

•

4/ 42
Country of Origin: China
Pais d’origine: Chine
• Please read and understand this manual before any assembly. Beforebeginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position themon the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill
Hammer
Screwdriver
Ladder
5 people

5/ 42
Country of Origin: China
Pais d’origine: Chine
IMPORTANT:
•

•
•

•

•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   5 personnes

6/ 42
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING/ DESSIN ÉCLATÉ

7/ 42
Country of Origin: China
Pais d’origine: Chine

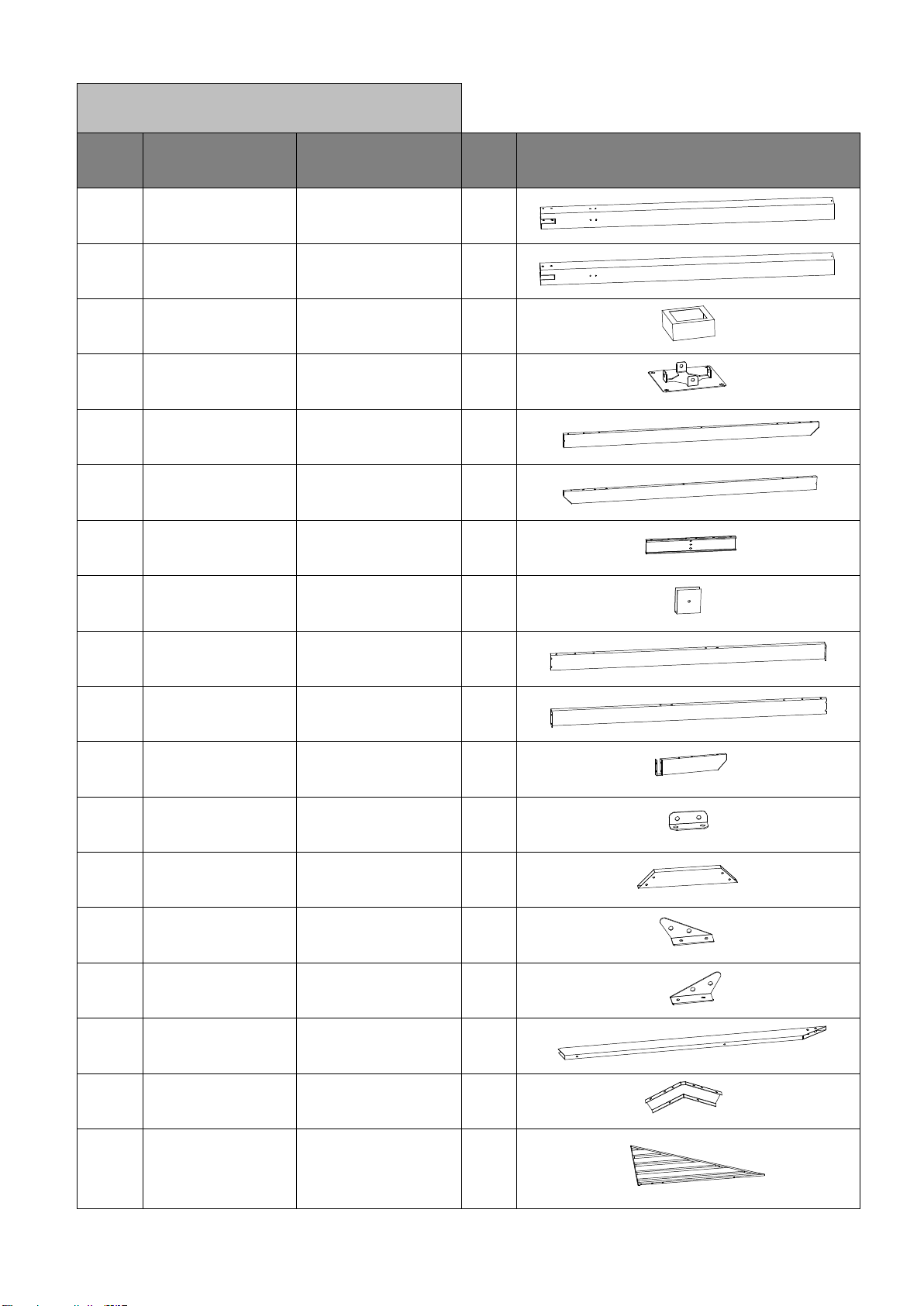

Parts List
Label Part Number Description Qty Part Image
A P00020075201 Post 1 2
B P00020075301 Post 2 2
C P00610024701 Base Cover 4
D P00010049901 Post Base 4
E P00040140201
Left Cross Beam
(Short Side) 2
F P00040140301
Right Cross Beam
(Short Side) 2
G P00050179201
Cross Beam
Connector 4
J P00560049601 Cross Beam Cap 2
K P00040140401
Left Cross Beam
(Long Side) 2
L P00040140501
Right Cross Beam
(Long Side) 2
M P00560049501 Cross Beam Tail 2
N P00050179301 Brace Connector 16
P P00500070601 Brace 8
Q P00050179401
Joist Beam
Connector 1 2
R P00050179501
Joist Beam
Connector 2 2
S P00060236301 Joist Beam 4
T P00050179601
Joist Beam
Connector 3 2
U P00630013901 Left Triangle Screen 2

8/ 42
Country of Origin: China
Pais d’origine: Chine
Liste de Pièces
Étiquette Numéro dela
Pièce Description Quantité Numéro de la Pièce Diagramme
A P00020075201 Poteau 1 2
B P00020075301 Poteau 2 2
C P00610024701 Barde de la base 4
D P00010049901 Base du Poteau 4
E P00040140201 Traverse Gauche
(Côté Court) 2
F P00040140301 Traverse Droite
(Côté Court) 2
G P00050179201 Connexion de
la Traverse 4
J P00560049601 Capuchon De
la Traverse 2
K P00040140401 Traverse Gauche
(Côté Long) 2
L P00040140501 Traverse Droite
(Côté Long) 2
M P00560049501 Queue de la Traverse 2
N P00050179301 Connexion de la
Contrefiche 16
P P00500070601 Barre de Renfort 8
Q P00050179401 Connexion de
la Poutrelle 1 2
R P00050179501 Connexion de
la Poutrelle 2 2
S P00060236301 Poutre de Solive 4
T P00050179601 Connexion de la
Poutre Solive 3 2
U P00630013901 Toile Triangulaire
Gauche 2

9/ 42
Country of Origin: China
Pais d’origine: Chine

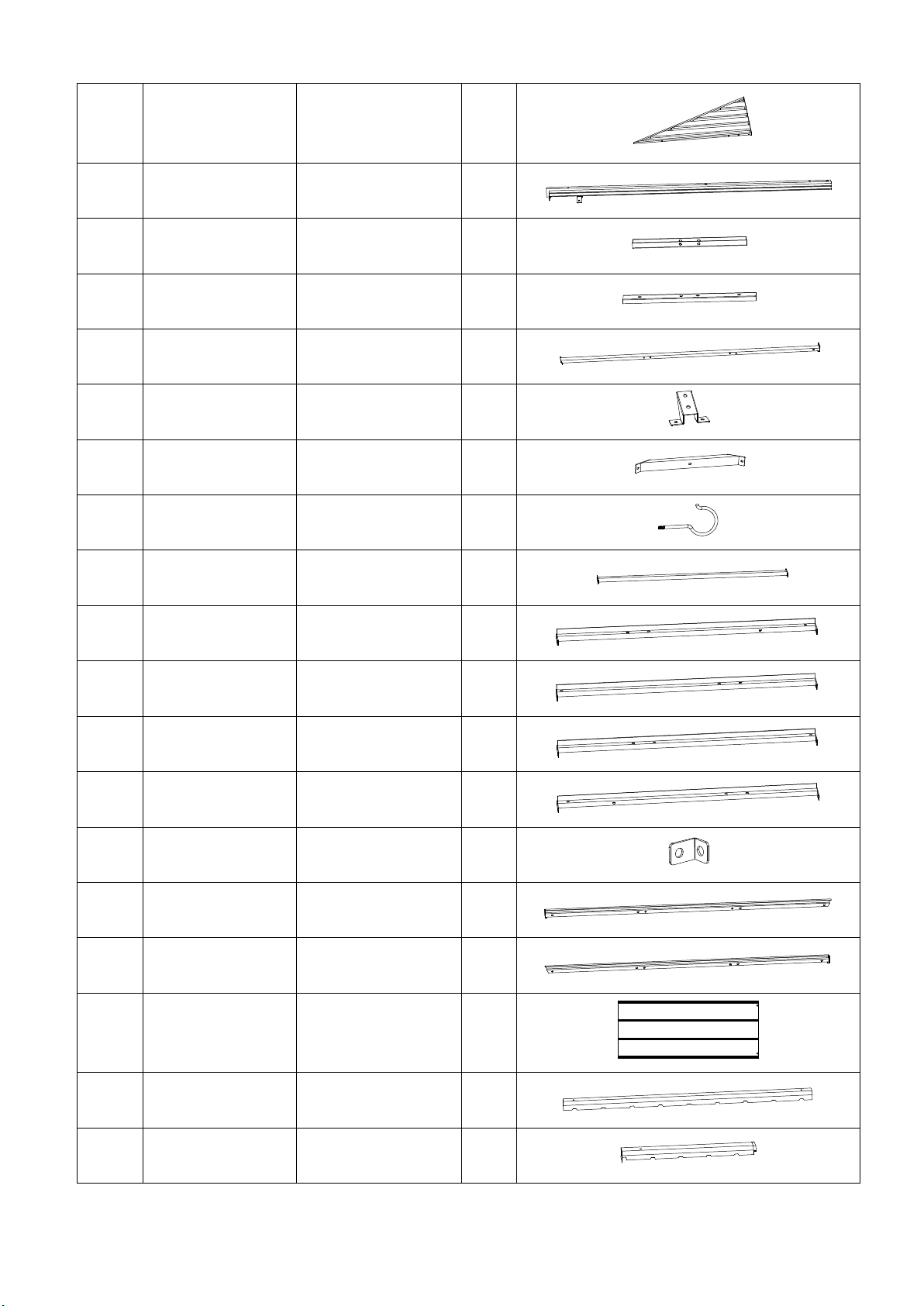

V P00630014001 Right Triangle
Screen 2
W P00060237201 Top Beam 2
X P00050179701
Top Beam
Connector 1 1
Y P00050179801
Top Beam
Connector 2 1
AA P00060237301 Middle Beam 6
AB P00050179901
Middle Beam
Connector 6
AC P00500070701 Top Brace 3
AD P005800001 Hook 1
AE P00060236401 Small Beam 1 16
AF P00060236801 Panel Flashing 1 2
AG P00060236901 Panel Flashing 2 2
AJ P00060237001 Panel Flashing 3 2
AK P00060237101 Panel Flashing 4 2
AL P00220040301
Panel Flashing
Stator 4
AM P00060236601
Side Panel Flashing
1 2
AN P00060236701
Side Panel Flashing
2 2
AP P00070112601 Roof Panel 12
AQ P00080040401 Middle Roof Cap 1
AR P00080040501 Side Roof Cap 2

10 / 42
Country of Origin: China
Pais d’origine: Chine
V P00630014001 Toile Triangulaire
Droite 2
W P00060237201 Poutre Supérieure 2
X P00050179701 Connexion de la
Poutre Supérieure 1 1
Y P00050179801 Connexion de la
Poutre Supérieure 2 1
AA P00060237301 Poutre centrale 6
AB P00050179901 Connexion de la
poutre centrale 6
AC P00500070701 Support supérieur 3
AD P005800001 Crochet 1
AE P00060236401 Petite poutre 1 16
AF P00060236801 Panneau clignotant 1 2
AG P00060236901 Panneau clignotant 2 2
AJ P00060237001 Panneau clignotant 3 2
AK P00060237101 Panneau clignotant 4 2
AL P00220040301 Panneau du Solin
Stationnaire 4
AM P00060236601 Solin du Panneau
Latéral 1 2
AN P00060236701 Solin du Panneau
Latéral 2 2
AP P00070112601 Panneau du Toit 12
AQ P00080040401 Toiture du toit
central 1
AR P00080040501 Toiture du
toit latéral 2

11 / 42
Country of Origin: China
Pais d’origine: Chine
AS P00220040401 Press Piece 1 10
AT P00220040501 Press Piece 2 4
AU P00060236501 Small Beam 2 16

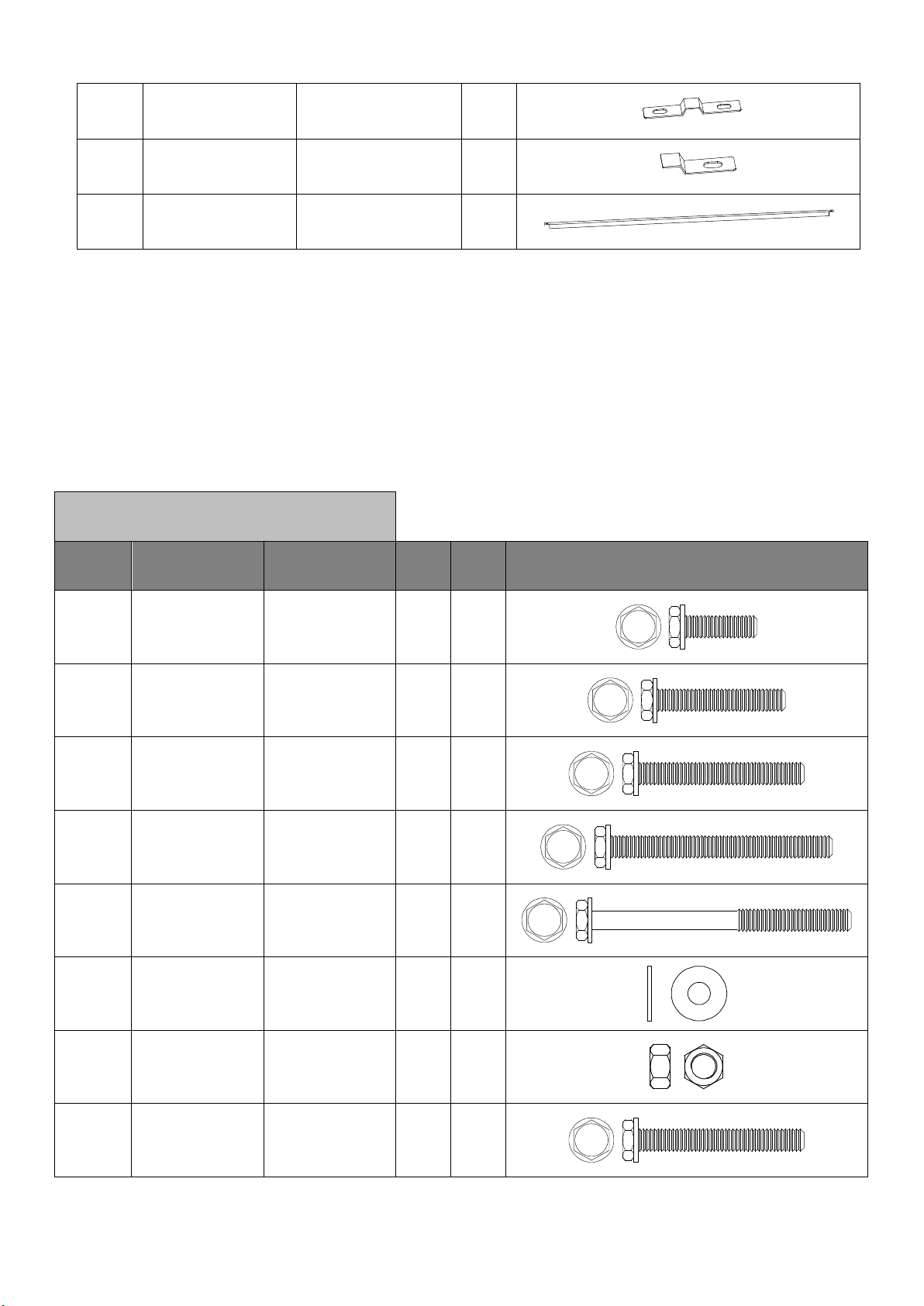

Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010047 Bolt M6*20 304 16
H2 H100010069 Bolt M6*35 16 1
H3 H100010059 Bolt M6*45 8 1
H4 H100010157 Bolt M10*60 8 1
H5 H100010074 Bolt M6*75 4 1
H6 H050030001 Flat Washer
M6 8 1
H7 H040010004 Nut M6 8 1
H8 H100010156 Bolt M10*45 8 1

12/ 42
Country of Origin: China
Pais d’origine: Chine
AS P00220040401 Pièce de
compression 1 10
AT P00220040501 Pièce de
compression 2 4
AU P00060236501 Petite poutre 2 16
Liste de Pièces
Étiquette Numéro de
la Pièce Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010047 Boulon M6*20 304 16
H2 H100010069 Boulon M6*35 16 1
H3 H100010059 Boulon M6*45 8 1
H4 H100010157 Boulon M10*60 8 1
H5 H100010074 Boulon M6*75 4 1
H6 H050030001 Rondelle
plate M6 8 1
H7 H040010004 Écrou
Hexagonal M6 8 1
H8 H100010156 Boulon M10*45 8 1

13 / 42
Country of Origin: China
Pais d’origine: Chine
H9 H050030003 Flat Washer
M10 8 1
H10 H040010022 Nut M10 8 1
HH H050050018 M6 Rubber
Washer 4 1
HS H070010003 Stake Φ8*180 8 0
HW1 H090010017 Wrench M6 2 0
HW2 H090010015 Wrench M10 2 0

14/ 42
Country of Origin: China
Pais d’origine: Chine
H9 H050030003 Rondelle plate
M10 8 1
H10 H040010022 Écrou
Hexagona M10 8 1
HH H050050018
M6 Une
rondelle en
caoutchouc
4 1
HS H070010003 Piquet Φ8*180 8 0
HW1 H090010017 Clé M6 2 0
HW2 H090010015 Clé M10 2 0

15/ 42
Country of Origin: China
Pais d’origine: Chine
1

16/ 42
Country of Origin: China
Pais d’origine: Chine
2

17/ 42
Country of Origin: China
Pais d’origine: Chine
3

18/ 42
Country of Origin: China
Pais d’origine: Chine
4

19/ 42
Country of Origin: China
Pais d’origine: Chine

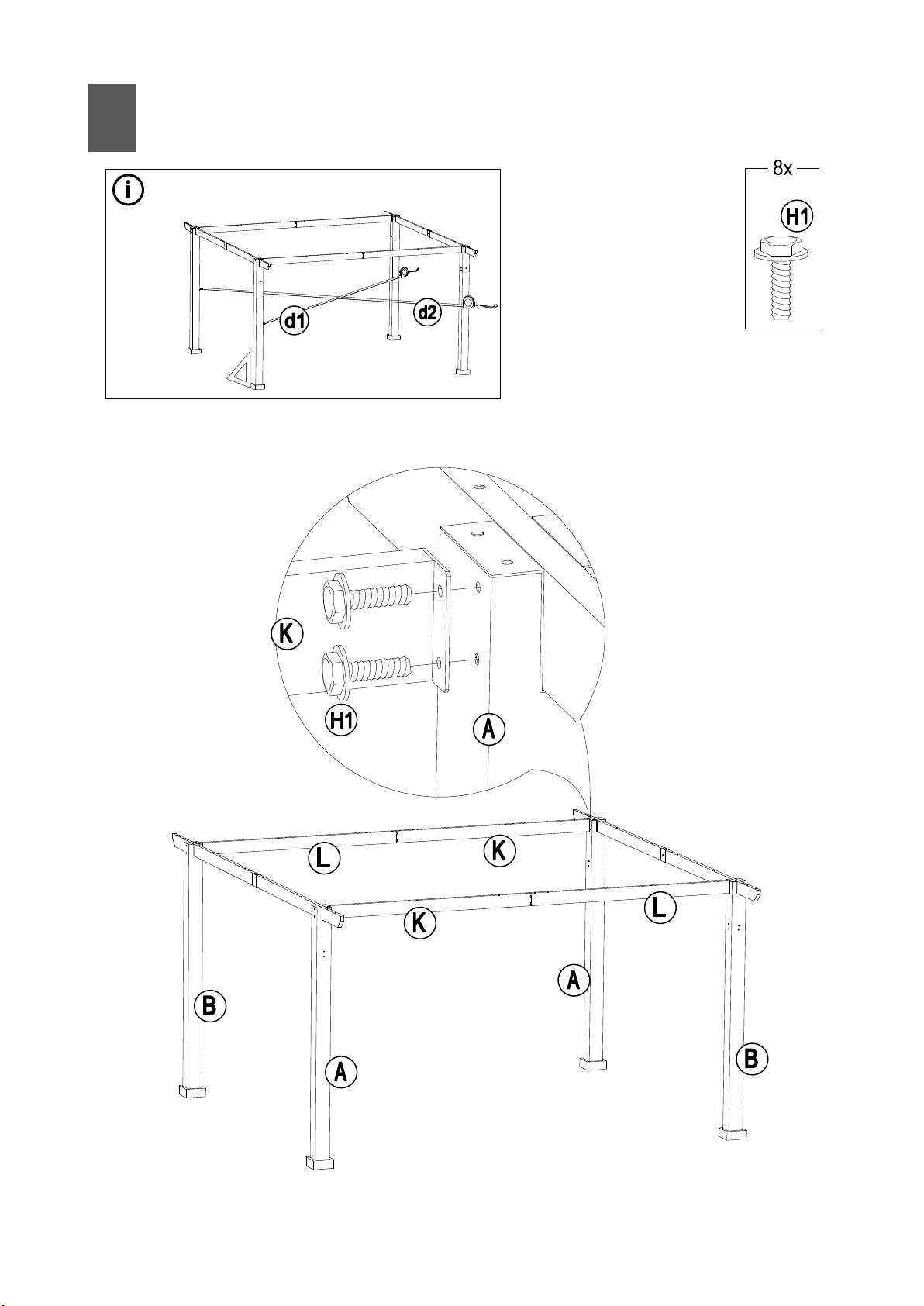

5
d1=d2
Rt
∠
90

20 / 42
Country of Origin: China
Pais d’origine: Chine
4
6
