Sunjoy D-GZ846PCO-I User manual

Assembly Instructions
D-GZ846PCO-I (Black Top) / D-GZ846PCO-I1 (Faux Copper Top)
Congratulations on your purchase of our SUNJOY Round Hardtop Gazebo. Our clear, easy to
follow, step-by-step instructions will guide you through the assembly process from start to
finish.
WARNING:
● This unit is heavy. Do not assemble this item alone. 6-8 people are recommended for safe
assembly.
● Keep all children and pets away from assembly area. Children and pets should be
supervised when they are in the area of the Gazebo construction.
● Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
● Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the
product. Please read all instructions before assembly and use.
● Check all bolts for tightness before use, and periodically check and tighten bolts as
necessary.
● Assemble on level ground.
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts. Please call Sunjoy Group at 1-866-578-6569
anytime or fax the replacement part form which is in the box to 1-740-283-3549 or Email
custom[email protected] for assistance.

Description No. Qty Picture
Post A 8
Base B 8
Arch support C 8
Decorative groove D 8
Parts List

Connector E 8
Oblique beam 1 F 8
Oblique beam 2 G 8
Apron piece H 16
Inner baffle I 8
Small roof frame J 8
Small roof crosspiece
spot K 8
Small roof oblique
beam L 8
Small roof connector M 1
Big roof cover plate N 16
Small roof cover plate O 8
Cover Presser P 16
Small Roof Cover Q 1
Hook R 1
Finial S 1
Netting and Curtain
Rods Connecting 1 T1 8
Netting and Curtain
Rods Connecting 2 T2 8
Netting and Curtain
Rods Connecting 3 T3 8
Netting and Curtain
Rods U 32

Fig.1: Attach Base (B) to
Post (A) by Bolt (AA) and
Flat Washer (BB). Lock
tightly.
Fig.3: Insert another part of Decoration Gutter
Connector (D) into assembled Decoration
Gutter Connector, then use Bolt (AA) and Flat
Washer (BB) to lock Decoration Gutter
Connector (D) and Post (A) tightly.
Fig.2: Attach Decoration Gutter
Connector (D) to Post (A) by
Bolt (AA) and Flat Washer
(BB). Don’t lock tight.
AA Bolt M6X20 64PCS
BB Flat Washer M6 112PCS
DD Bolt M6X15 16PCS
EE Bolt M6X35 16PCS
GG Nut M6 16PCS
W Wrench M6 2 PCS
Hardware Pack 1

Hardware Pack 2
BB Flat Washer M6 232 PCS
AA Bolt M6X20 16 PCS
CC Bolt M6X15 136PCS
DD Bolt M6X15 32PCS
EE Bolt M6X35 16PCS
FF Bolt M6X55 8PCS
GG Nut M6 24PCS
II Plastic Cover 48 PCS
Fig.5: Attach Cover (E) to Decoration
Gutter Connector (D) by use Screw (DD)
and Flat Washer (BB). Lock them tight.
Fig.4: Attach Decoration Gutter
Connector (D) to the outer connect plate
together by use Bolt (EE), Flat Washer
(BB) and Nut (GG). Lock them tightly.

Fig.6: Connect Big Roof Frame (J) by Bolt (EE), Flat
Washer (BB) and Nut (GG). Lock tightly.
Fig.9: Attach Lock Oblique
Beam 1 (F) to Big Roof Frame
(J) and lock them tightly by Bolt
(CC) and Flat Washer (BB).
Fig.11: Attach Oblique beam
2 (G) to Decoration Gutter (D)
and lock them tightly by Bolt
(CC) and Flat Washer (BB).
Fig.10: Attach Lock Oblique
Beam 2 (G) to Big Roof
Frame (J) and lock them
tightly by Bolt (CC) and Flat
Washer (BB).
Fig.8: Attach Oblique Beam 1(F)
to Post (A) and lock them tightly
by Bolt (CC) and Flat Washer
(BB).
Fig.12: Attach Big Roof
Beam(H) to Oblique Beam
1&2 (F&G) and lock them
tightly by Screw (DD) and
Flat Washer (BB).
There need 2 person to lift the
assembled Big Roof Frame (J) and
need 1 more person to assemble
Oblique Beam 1 & 2(F&G).
Fig.7: Connect Oblique Beam 1
(F) and Decoration Gutter (D) by
Bolt (CC) and Flat Washer (BB).

Fig.13:Lock Small Roof Inclined
Beam (L) and Big Roof Frame (J)
tightly by Bolt (CC) and Flat
Washer (BB). Dot lock tight.
Fig.14:Attach Small Roof Connector (M) to Small Roof Inclined Beam
(L) and lock them tightly by Screw (FF), Flat Washer (BB) and Nut
(GG). Screw Hook (R) on Small Roof Connector (M).
After complete this step, then fasten all bolts on Fig 13 & Fig 14.
Fig.15: Fix Small Roof
Baffe(K) as shown above.
Lock them tightly by Bolt
(CC) and Flat Washer
(BB).
Fig.16: Attach Small Roof
Inclined Beam (L) to Small
Roof Baffe(K) and lock
them tightly by Bolt (CC)
and Flat Washer (BB).
Fig.17: Insert Arc Support Bar (C) to
the ecoration ring of Post (A), lock
them tightly by use Bolt (CC), Flat
Washer (BB). Then use Plastic
Cover(II) to cover the Bolt (CC).
Fig.18: Lock Netting and Curtain
Rods Connecting 1 (T1) and Arch
support (C) to Decoration Gutter (D)
by using Bolt (AA), Flat Washer
(BB). Then use Plastic Cover (II) to
cover the Bolt (AA).
Fig.19: Fix Inner baffle (I), Netting and Curtain Rods
Connecting 2&3 (T2&T3) and Decoration Gutter (D) together
by using Bolt (CC) and Flat Washer (BB). Then use Plastic
Cover (II) to cover the Bolt (CC).

Hardware Pack 3
BB Flat Washer M6 40PCS
DD Bolt M6X15 40PCS
HH Stake Φ8x260 16PCS

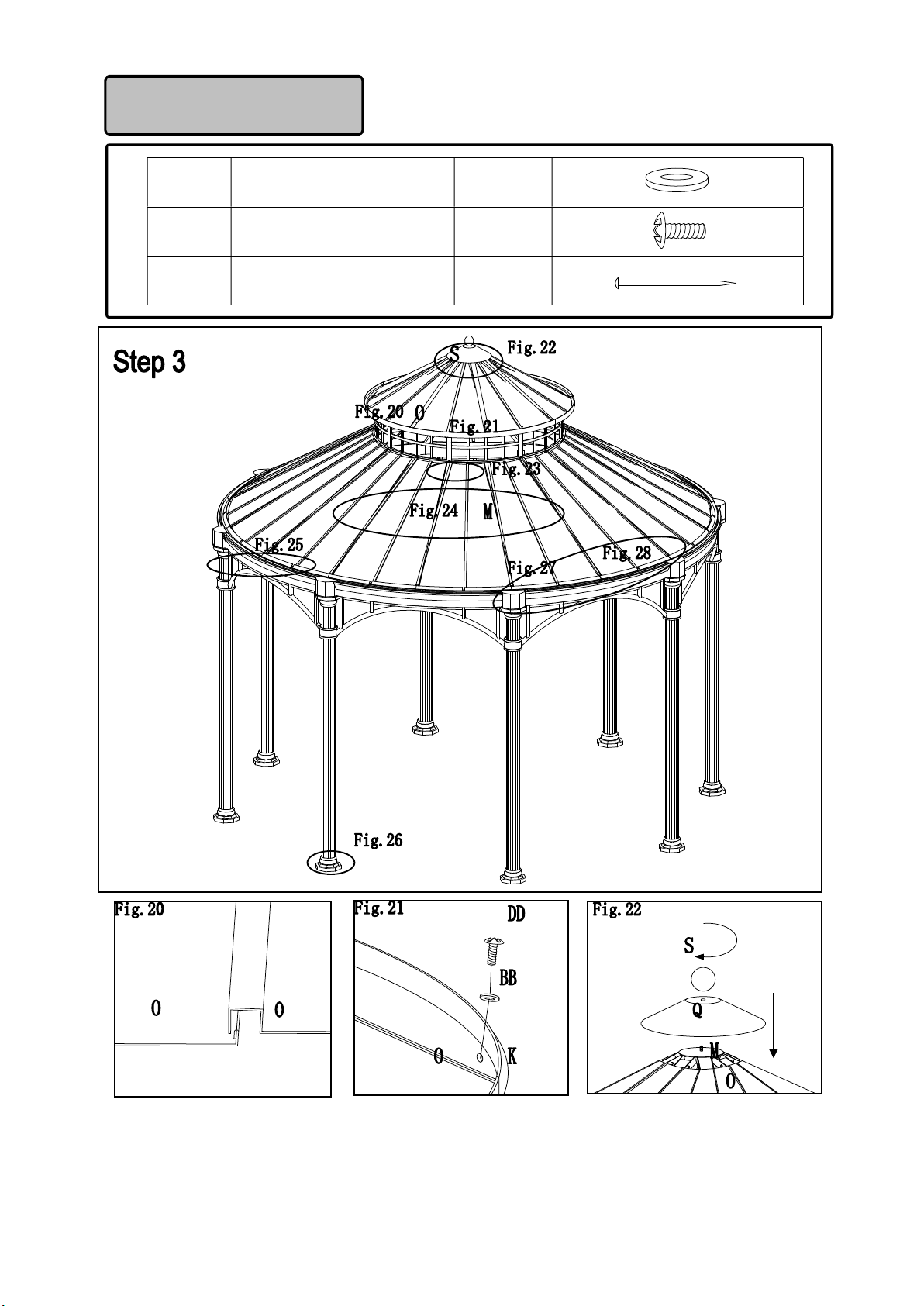

Fig.22: Attach Small Roof
Cover (Q), Finial (S) and Small
Roof Connector (M) together as
shown above.
Fig.20: Connect two Small Roof
Sheet (O) in order as shown
in above and insert the last
Small Roof Sheet into the slot
of first Small Roof Sheet.
Fig.21: Lock Small Roof
Sheet (O) to Small roof
crosspiece spot (K) by using
Bolt (DD) and Flat Washer
(BB).

Fig.26: Fix the gazebo on the groud by Stake (HH).
Fig.27: Insert one end of the Netting and Curtain Rods (U) which has snap hook hole into Netting and
Curtain Rods connecting 2 (T2), make sure it is insert totally. (The same way to insert Netting and
Curtain Rods connecting 3 (T3) with Netting and Curtain Rods (U).)
Fig.28: Counter pull the inserted Netting and Curtain Rods (U) to the snap hook fix area, then make it’s
another side insert into Netting and Curtain Rods connecting 1 (T1) .
Fig.24: Connect two Big Roof
Sheet (N) in order as shown
above. And insert the last Big
Roof Sheet into the slot of first
Big Roof Sheet.
Fig.25: Fix Big Roof Sheet (N) by
Cover Presser (P). Then lock
Cover Presser (P) with Decoration
Gutter (D) tightly by Screw (DD)
and Flat Washer (BB).
Fig.23: Insert one side of Big
Roof Sheet (N) under Big Roof
Frame(J).
AA Bolt M6X20 4PCS
BB Flat Washer M6 12PCS
CC Bolt M6X15 8PCS
DD Bolt M6X15 5PCS
EE Bolt M6X35 2PCS
FF Bolt M6X55 1PCS
GG Nut M6 2PCS
II Plastic Cover 4PCS
Back Up Hardware

IMPORTANT:
1. Keep all children and pets away from assembly area. Children and pets should be
supervised while gazebo is being assembled.
2. The assembled gazebo should be located at least 6 feet (2 m) from any obstruction such as
a fence, garage, house, overhanging branches, laundry lines or electrical wires.
3. This unit is heavy. Do not assemble this item alone. Six to eight people are recommended
for safe assembly.
4. Some parts may contain sharp edges. Wear protective gloves if necessary during assembly.
5. When assembling and using this product, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment. Please read all
instructions before assembly and use.
6. For outdoor use only. Install on level ground. 16 stakes are provided to secure the gazebo in
the ground. If you wish to secure the pavilion to a wood deck or concrete surface, use 16
anchors suited for these surfaces (anchors not included).
7. Check all bolts for tightness before and during usage.
8. Please check your state and local regulations prior to purchasing. Some jurisdictions may
require permits for installation and use. Some special procedures may be valid in your area.
9. While this gazebo is manufactured to withstand strong force winds through only the supplied
ground stakes, securing the gazebo to a deck, concrete patio or a stronger base, in areas
subject to frequent severe weather should be considered.
NOTE: The gazebo’s roof and structure are not guaranteed against extreme weather
conditions (storms, high winds, etc.). If the gazebo is not dismantled for the winter, snow must
be cleaned off regularly. Any damage caused by snow accumulation is not covered by the
warranty.
Limited Warranty:
This limited warranty is extended to the original purchaser and applies to defects in materials
and workmanship of your item provided the item is maintained with care and used only for
personal, residential purposes.
The item is warranted to be free from defects in material or workmanship for a period of one (1)
year. We don't reimburse for transportation or delivery costs, or compensate the individual or
any outside party for assembling or disassembling the product.
Exclusions:
Items used for commercial, contract, or other non-residential purposes, or items damaged due
to acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or
rusting of hardware is not covered. Proof of purchase (dated register receipt) is required for
warranty claims. Warranty is to the original purchaser and is non-transferable. Any
replacement of warranted items will be in the original style and color, or a similar style and
color if the original is unavailable or has been discontinued. As some states do not allow
exclusions or limitations on an implied warranty, the above exclusions and limitations may not
apply. This warranty gives you specific rights, and you may also have other rights, which vary
from state to state.

Maintenance:
Our iron/steel components for garden accessories and patio items are coated with rust
inhibiting paint that protects it from rusting. However, due to the nature of iron, surface
oxidation (rusting) will occur once these protective coatings are scratched. This is a natural
process and is not a defect! To minimize this condition, we recommend care when assembling
& handling the product to prevent scratching the paint. Should any scratching or damage occur,
we recommend immediate touch-up with rust inhibiting paint. Surface rust can also be easily
removed with a very light application of common cooking oil. If surface oxidation (rusting)
occurs and if no measure is taken to prevent this, the oxidation may start dripping on to deck or
patio and cause damaging stains, which may be difficult to remove. This can be prevented if
measure is taken to keep the product from oxidizing.
Important: Please do not return this product to the store. For technical assistance on
assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 anytime or
fax the replacement part form which is in the box to 1-740-283-3549 or Email
custom[email protected] for assistance.
Made in China
2016-04

GAZEBO NETTING AND CURTAIN ASSEMBLY INSTRUCTIONS
(Netting / Curtain is available individually)
Fig.1: Pull the Netting and Curtain Rods (U) out of the Netting and Curtain Rods connecting 1 (T1).
(Press the snap hook down firstly before pull the tube out).
Fig.2: Disassemble Netting and Curtain Rods (U) from Netting and Curtain Rods connecting 2 (T2).
Fig.3: Assemble Netting or Curtain to Netting and Curtain Rods (U). Note: tube inseart into the buckle of
the Netting / Curtain, the flod way as Fig.3 shows.
Netting or Curtain

Fig.4: Assemble remain Netting / Curtain to another Netting and Curtain Rods (U). The same flod way as
Fig. 4 shows.
Fig.5: Lift up the assembled Netitng / Curtain and Netting and Curtain Rods (U). See as the picture shows
to inseart Netting and Curtain Rods (U) into Netting and Curtain Rods connecting 2&3 (T2&t3). Note:
make sure it is insert totally.
Fig.6: Counter pull the inserted Netting and
Curtain Rods (U) to the snap hook fix area, then
make it’s another side insert into Netting and
Curtain Rods
connecting 1 (T1) .
Netting or Curtain
Netting or Curtain
Netting
or Curtain
Netting or Curtain
