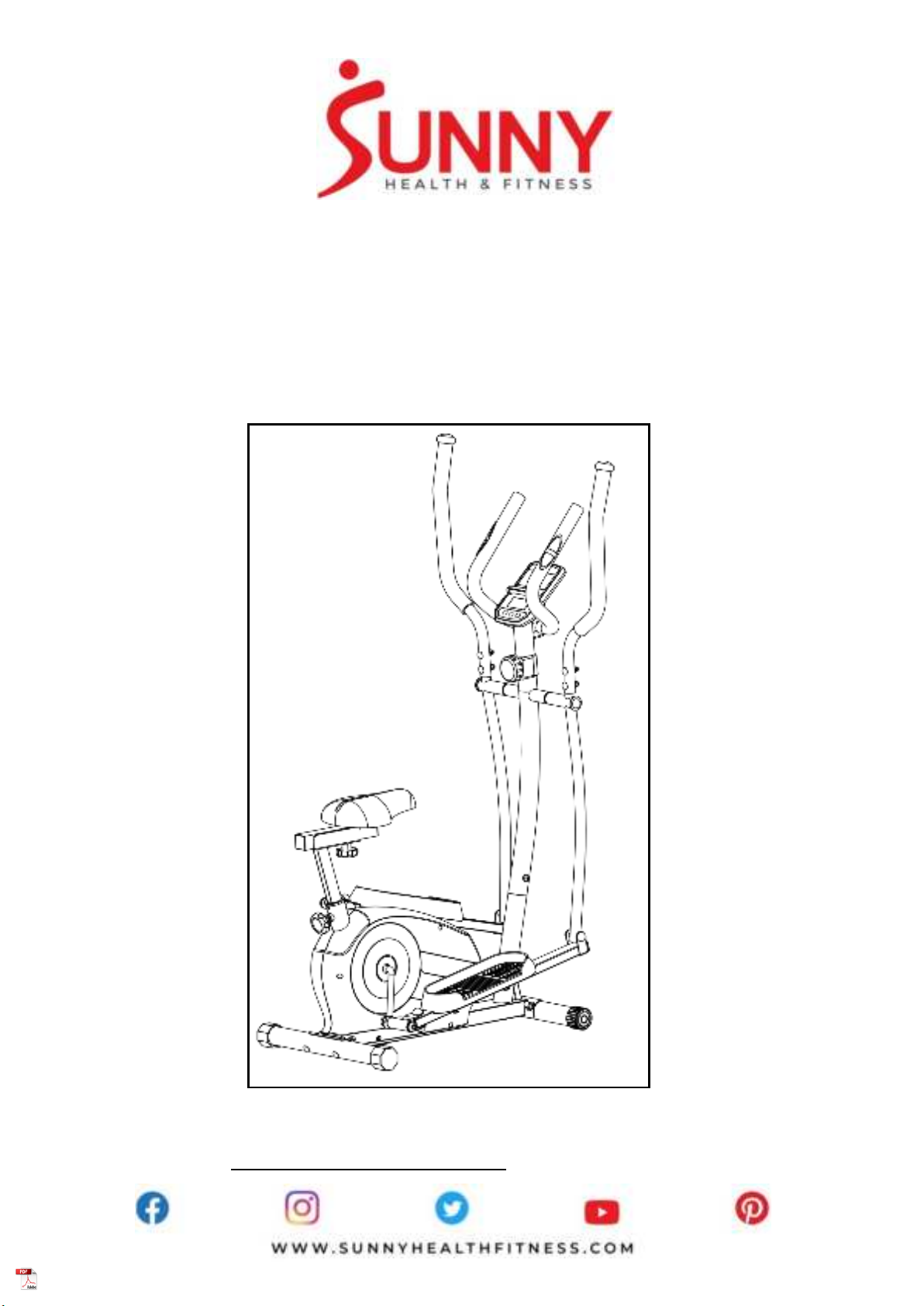

Sunny Health & Fitness ESSENTIAL INTERACTIVE Series User manual

ESSENTIAL INTERACTIVE SERIES
SEATED ELLIPTICAL
SF-E322004
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us,PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk, or
prevent you from using the equipment properly. Your physician’s advice is essential if you are
taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all
around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage and/or
wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving
is required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for commercial
use!

2

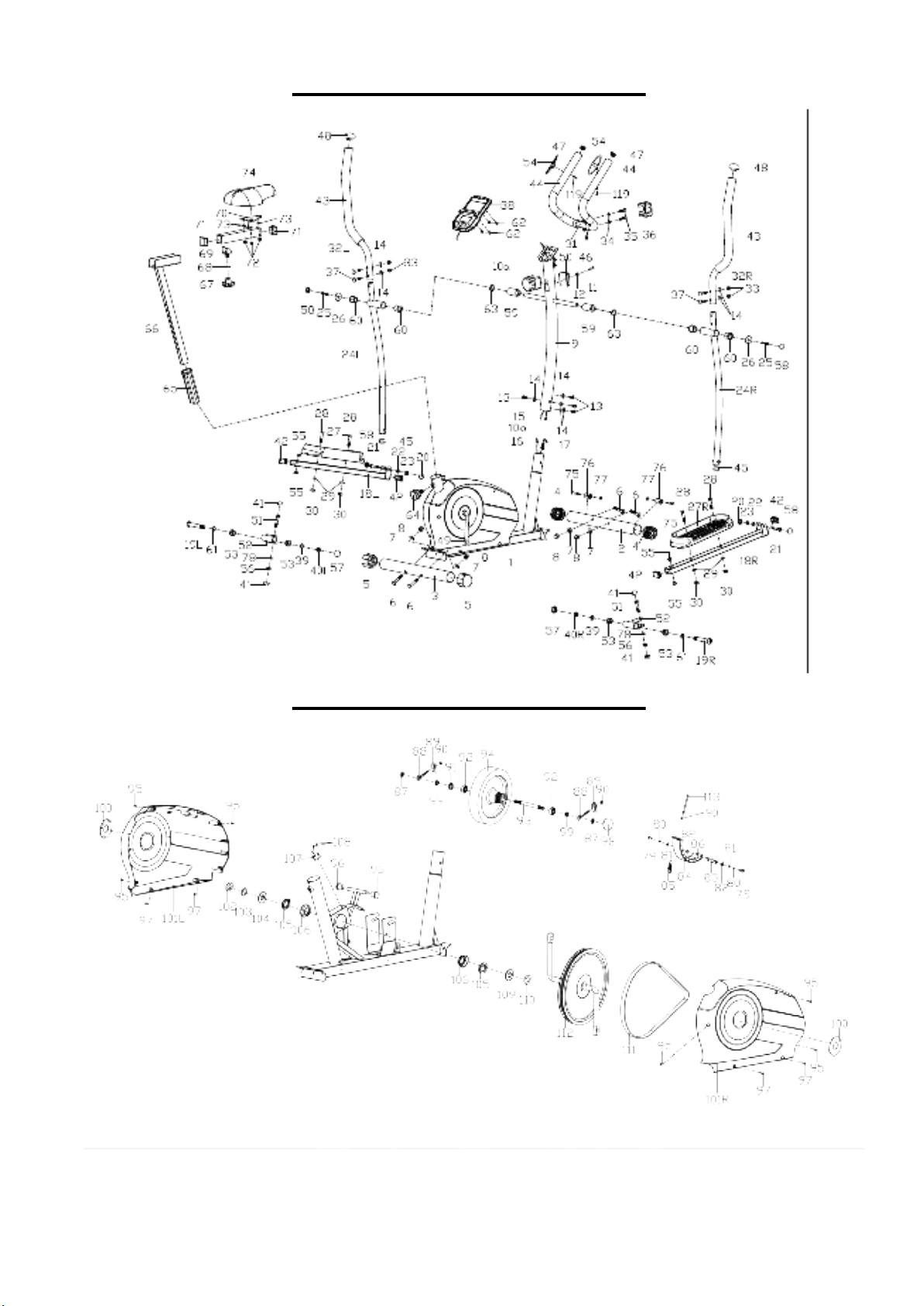

EXPLODED DIAGRAM 1
EXPLODED DIAGRAM 2

3

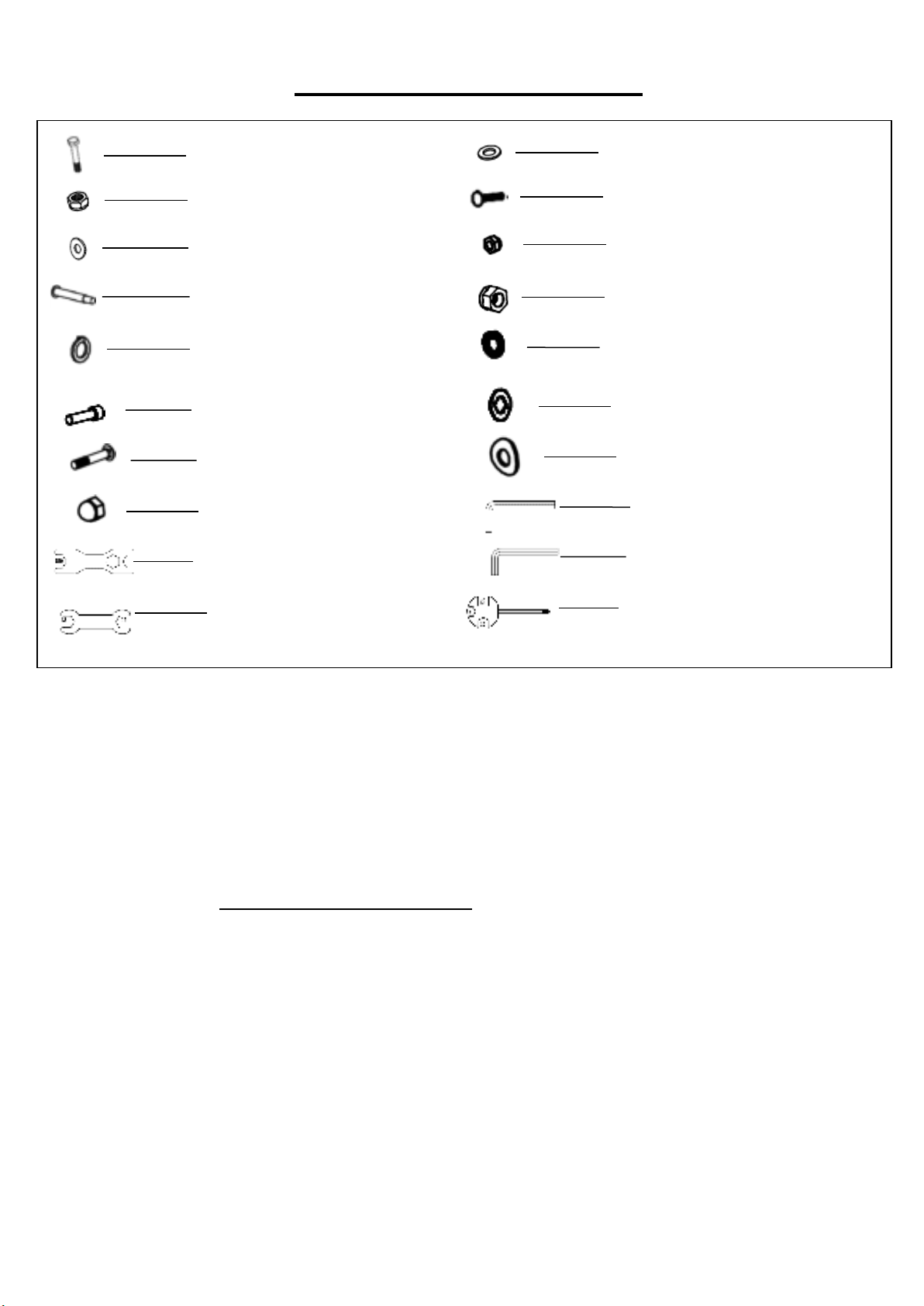

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of the
manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).
#19L/R Φ16x89 1PR
#37 M8x40 4PCS
#28 M10xL45 4PCS
#29 d10x1.5 4PCS
#30 M10 4PCS
#14 Φ20xd8.5xR25 4PCS
#33 M8 4PCS
#39 Φ13xB2 2PCS
#40L/R B0.5x20 1PR
#61Φ17.1xΦ23x0.3 2PCS
#35 M8x30 2PCS
#34 d8x1.5 2PCS
#114 S8 1PC
#118 S6 1PC
#115 S13, S14 1PC
#117 S17, S19 1PC
#116 S13, S14, S15 1PC
#6 M10×L57 4PCS
#7 Φ10×1.5×Φ25×R28 4PCS
#8 M10 4PCS

PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
60
Axle Bushing 2
4
2
Front Stabilizer
1
61
Wave Washer
Φ17.1×Φ23×0.3
2
3
Rear Stabilizer
1
62
Phillips Screw
M5x10
4
4
End Cap
2
63
Wave Washer
Φ20×Φ28×0.6
2
5
Leveler Cap
2
64
Pop-pin Knob
1
6
Carriage Bolt
M10×L57
4
65
Seat Tube Bushing
1
7
Arc Washer
Φ10×1.5×Φ25×R28
4
66
Seat Tube
1
8
Domed Nut
M10
4
67
Plum Nut
1
9
Handlebar Post
1
68
Flat Washer
D10×D25×2.0
1
10a
Tension Controller
1
69
U Shape Bracket
1
10b
Tension Cable
1
70
Seat Horizontal Tube
1
11
Phillips Screw
1
71
Square Cap
2
12
Flat Washer
1
72
Nylon Nut
M8
3
13
Allen Bolt
M8×20
4
73
Flat Washer
D8
3
14
Arc Washer
Φ20×d8.5×R25
8
74
Seat
1
15
Upper Sensor Wire
1
75
Hex Bolt
M6×L45
2
16
Lower Sensor Wire
1
76
Transporting Wheel
2
17
Tension Hook
1
77
Nylon Nut
M6
2
18L/R
Pedal Support Tube
1pr.
78
Flat Washer
D10x1.5
2
19L/R
Hinge Bolt
Φ16×89
1pr.
79
Hex Bolt
M6×15
2
20
Nut Cap
S13
2
80
Spring Washer
Φ6
2
21
Hex Bolt
M8×55
2
81
Flat Washer
D6
2
22
Flat Washer
d8×1.5
2
82
Axle Stop Ring
2
23
Nylon Nut
M8
2
83
Magnetic Board Axle
1
24L/R
Swing Bar
1pr.
84
Magnetic Board
1
25
Hex Bolt
M8×15
2
85
Spring
1
26
Flat Washer
Φ8.2×Φ32×2
2
86
Square Magnet
8
27L/R
Pedal
1pr.
87
Hex Thin Nut
M10×1
2
28
Hex Bolt
M10×L45
4
88
Adjusting Belt Bolt
M6×50
2
29
Flat Washer
d10×1.5
4
89
Adjusting U Washer
2
30
Nylon Nut
M10
4
90
Hex Nut
M6
4
31
Armrest
1
91
Spacer
1
32L/R
Handlebar
1pr.
92
Bearing
6000
2
33
Domed Nut
M8
4
93
Flywheel Axle
1
34
Spring Washer
d8×1.5
2
94
Flywheel
1
35
Hex Bolt
M8×30
2
95
Bolt
ST4.3×20
6
36
Decorative Cover
1
96
Plug
2
37
Carriage Bolt
M8×40
4
97
Bolt
ST5×20
4
38
Meter
1
98
Plastic Nut
S17
1
39
Spring Washer
Φ13×B2
2
99
Nut
M10×1.0
2
40L/R
Nylon Nut
B0.5×20
1pr.
100
Crank Cover
2
41
Nut Cap
S17
4
101L/R
Belt Cover
1pr.
42
Square End Cap
4
102
Nut
1
43
Foam Grip
2
103
Washer
1
44
Foam Grip
2
104
Two-Slot Nut
1
45
Round End Cap
2
105
Ball Bearings
2
46
Pulse Sensor Wire
1
106
Bearing Housing
2
47
Spherical Cap
2
107
Sensor
1
48
Mushroom Cap
2
108
Bolt
ST3x10
2
49
Crank Arm
1
109
Three-Slot Nut
1
50
Tension Controller Cover
1
110
Flat Washer
1
51
Hex Bolt
M10×50
2
111
Flat Belt
1
52
Connecting Joint
2
112
Belt Pulley
1
53
Axle Bushing 1
4
113
Hex Bolt
M6x55
1
54
Pulse Sensor
2
114
Wrench
S8
1
55
Alloy Bushing
4
115
Spanner
S13, S14
1
56
Nylon Nut
M10
2
116
Spanner
S13, S14, S15
1
57
Nut Cap
S19
2
117
Spanner
S17, S19
1
58
Nut Cap
S14
4
118
Wrench
S6
1
59
Spacer
Φ32×59
2

ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).

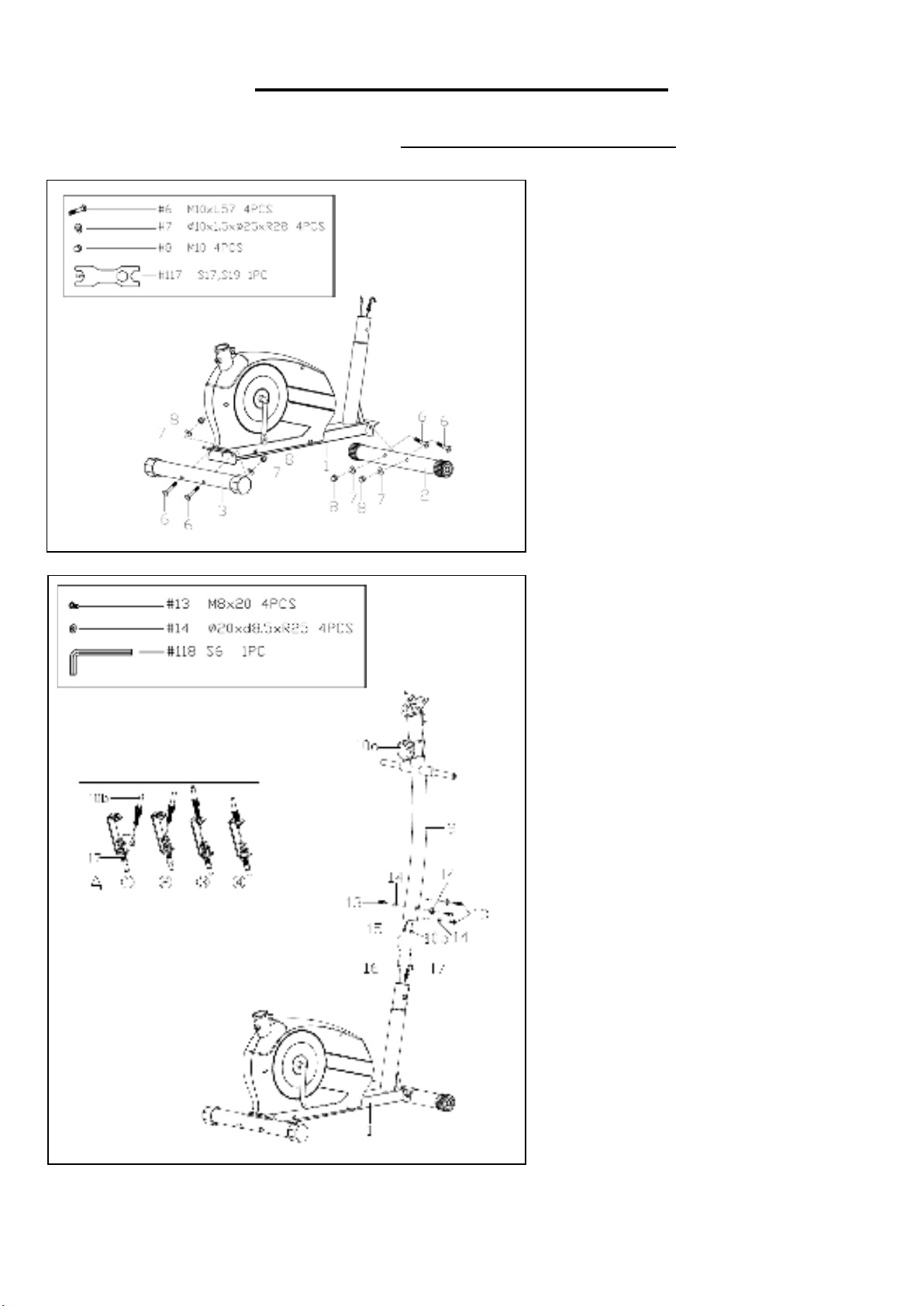

STEP 1:
Attach the Front Stabilizer (No. 2) and
Rear Stabilizer (No. 3) onto the Main
Frame (No. 1), secure with 4 Carriage
Bolts (No. 6), 4 Arc Washers (No. 7)
and 4 Domed Nuts (No. 8) by Spanner
(No. 117).
Note: Ensure that all bolts and washers
are in place and partially threaded in
before completely
tightening any of
them.
STEP 2:
A: Connect the Lower Sensor Wire
(No. 16) to the Upper Sensor Wire (No.
15), and then connect Tension Hook
(No. 17) with Tension Cable (No. 10b)
as shown in Diagram A.
Note: Make sure the Tension
Controller (No. 10a)is at the lowest
level before you connect the Tension
Cable (No. 10b). This ensures the wires
are at their longest point. We
recommend the assistance of a second
person to help hold the Handlebar Post
(No. 9). This will make the connection
easier when you are attaching Tension
Hook (No. 17) to Tension Cable (No.
10b).
B: Remove the preassembled 4 Allen
Bolts (No. 13) and 4 Arc Washers (No.
14) from the Main Frame (No. 1). Insert
the Handlebar Post (No. 9)
into the
post of the Main Frame (No. 1); secure
with 4 Allen Bolts (No. 13) and 4 Arc
Washers (No. 14)
that were just
removed with Wrench (No. 118).
Note: Ensure that all bolts and washers
are in place and partially threaded in
before completely tightening any of
them.

We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-
90SUNNY
(877-907-8669).
STEP 3:
Remove the preassembled 2 Wave Washers
(No. 63), 2 Hex Bolts (No. 25) and 2 Flat
Washers (No. 26) from the long axle of the
Handlebar Post (No. 9). Then attach the Left
& Right Swing Bars (No. 24L & No. 24R) to
the long axle of the Handlebar Post (No. 9)
with 2 Wave Washers (No. 63), 2 Hex Bolts
(No. 25) and 2 Flat Washers (No. 26) that
were just removed with Spanner (No. 116).
Note: Please do not fully tighten at this time.
Attach the Connecting Joint (No. 52) on the
Left Pedal Support Tube (No. 18L) to the
Left Crank Arm (No. 49) with 1 Left Hinge
Bolt (No. 19L), 1 Wave Washer (No. 61).
Turn the Left Hinge Bolt (No. 19L)
counter-clockwise as tightly as you can with
your hand. Secure by tightening 1 Spring
Washer (No. 39) and 1 Silver color Nylon
Nut (No. 40L) clockwise.
Then use Allen
Wrench (No. 114) and Spanner (No. 117) to
tighten securely.
Attach the Connecting Joint (No. 52) on the
Right Pedal Support Tube (No. 18R) to the
Right Crank Arm (No. 49) with 1 Right Hinge
Bolt (No. 19R), 1 Wave Washer (No. 61).
Turn the Right Hinge Bolt (No. 19R)
clockwise
as tightly as you can with your
hand. Secure by tightening 1 Spring Washer
(No. 39) and 1 Black color Nylon Nut (No.
40R) counter-clockwise. Then use Allen
Wrench (No. 114) and Spanner (No. 117) to
tighten securely.
Note: Please do not fully tighten at this time.
Remove the preassembled 2 Hex Bolts (No.
21), 2 Flat Washers (No. 22) and 2 Nylon
Nuts (No. 23) from Left & Right Pedal
Support Tubes (No. 18L & No.18R). Then
tighten the Left & Right Swing Bars (No.
24L & No.24R) and the Left & Right Pedal
Support Tubes (No. 18L & No.18R) tightly
with 2 Hex Bolts (No. 21), 2 Flat Washers
(No. 22) and 2 Nylon Nuts (No. 23) that were
just removed using Spanner (No. 116) and
Spanner (No. 115).
Tighten 2 Hex Bolts (No. 25) and Left &
Right Nylon Nuts (No. 40L & No.40R) tightly
now. Then cover with the 12 Nut Caps (No.
20 & 58 & 57 & 41)
.

We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
STEP 4:
Secure the Left & Right Pedals (No. 27L
& No. 27R) to the Left & Right Pedal
Support Tubes (No. 18L & No. 18R)
respectively by using 4 Hex Bolts (No.
28), 4 Flat Washers (No. 29) and 4 Nylon
Nuts (No. 30) by using
Spanner (No.
117).
CAUTION:
Both pedals are labeled L and R; L for
LEFT and R for RIGHT.
STEP 5:
A: Attach Armrest (No. 31)
to the
Handlebar Post (No. 9) in place. Secure
it with 2 Spring Washers (No. 34) and 2
Hex Bolts (No. 35) by using Wrench (No.
118). Finally attach the Decorative Cover
(No. 36) onto the Armrest (No. 31).
B: Attach the Left & Right Handlebars
(No. 32L & No. 32R)on the Left & Right
Swing Bars (No. 24L & No. 24R) with 4
Carriage Bolts (No. 37), 4 Arc Washers
(No. 14) and 4 Domed Nuts (No. 33) by
using Spanner (No. 115).
Note:If the Left & Right Handlebar (No.
32L & No. 32R) rubs against the Armrest
(No. 31)
during the workout please
recheck if the Left & Right Handlebar
(No. 32L & No.32R) is assembled to Left
& Right Swing Bar (No. 24L & No.24R)
according to the label marked with L or R.

We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).

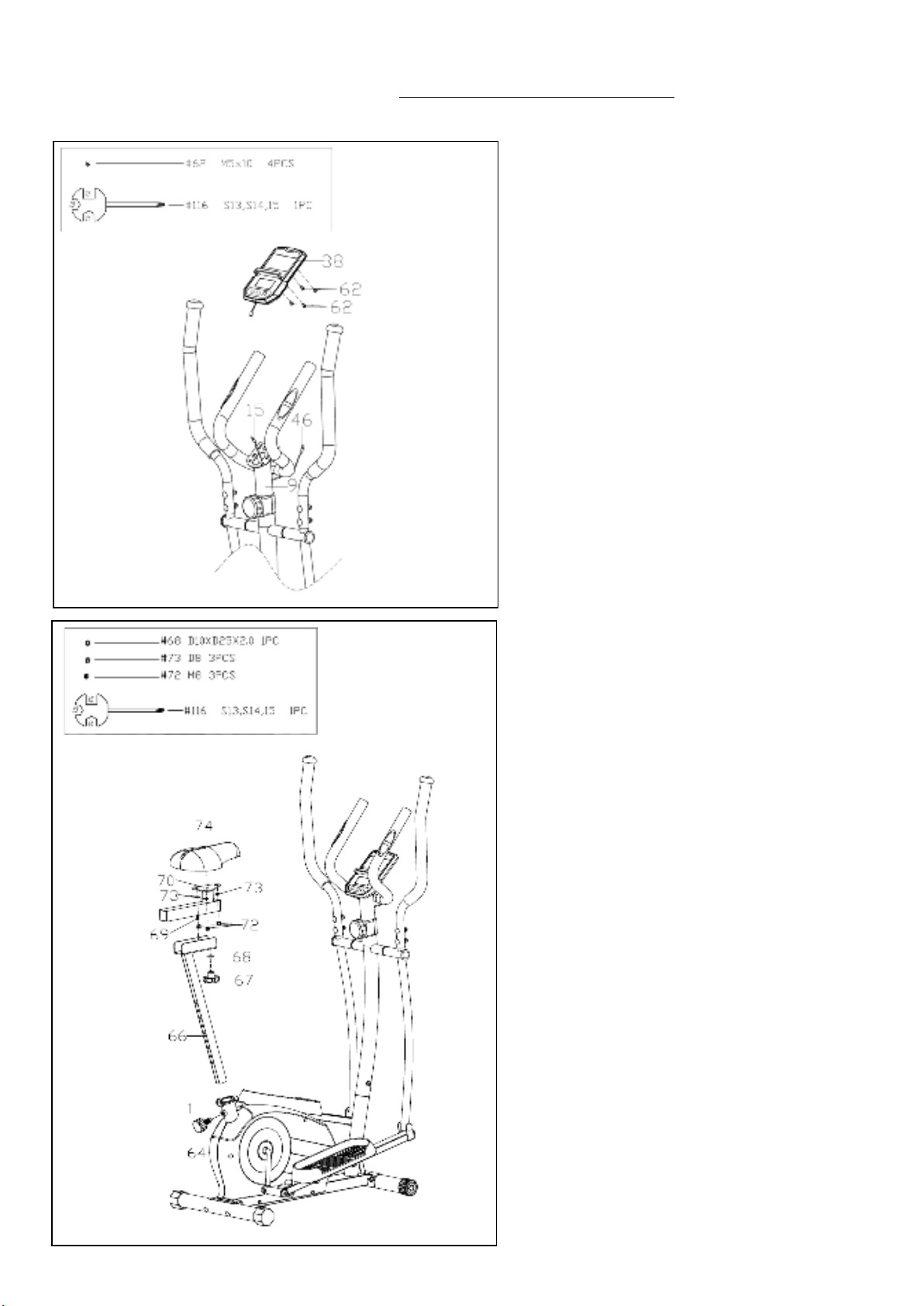

STEP 6:
Remove the preassembled 4 Phillips
Screws (No. 62) from the Meter (No.
38) with Spanner (No. 116).
Plug the Pulse Sensor Wire (No. 46) to
the jack on the back of the Meter (No.
38). Then connect the Upper Sensor
Wire (No. 15) to the wire from the Meter
(No. 38).
Attach the Meter (No. 38)to the bracket
of the Handlebar Post (No. 9) by using
4Phillips Screws (No. 62) that were
just removed with Spanner (No. 116).
Note:
To avoid damaging the wires,
please push them into the Handlebar
Post (No. 9) before secure the Meter
(No. 38)onto the bracket.
STEP 7:
Remove 3 Flat Washers (No. 73) and 3
Nylon Nuts (No. 72) from the Seat (No.
74) by using the Spanner (No. 116).
Lock the Seat (No. 74) to the Seat
Horizontal Tube (No. 70) and lock with
3 Flat Washers (No. 73) and 3 Nylon
Nuts (No. 72)
just removed with the
Spanner (No. 116).
Remove the Flat Washer (No. 68) and
Plum Nut (No. 67) from the U Shape
Bracket (No. 69).
Attach the Seat Horizontal Tube (No.
70) to the Seat Tube (No. 66), secure
them together by tightening the Flat
Washer (No. 68) and Plum Nut (No. 67)
that were just removed from the U
Shape Bracket (No. 69).
Insert the Seat Tube (No. 66) to the post
of Main Frame (No. 1), adjusting to the
proper height, then lock tightly with the
Pop-pin Knob (No. 64).
Note: Before exercise, make sure the
Seat (No. 74) is tightly locked to the post
of Seat Horizontal Tube (No. 70).
THE ASSEMBLY IS COMPLETE!

ADJUSTMENTS & USAGE GUIDE
1. If you find there is no difference between tension level 1 to level 8, please check the
connection of the Tension Cable (No. 10b). Please see Diagram A under Step 2.
2. If the meter does not show numbers correctly, please check the batteries. If the meter
does not count the speed and time, please check the connections of Upper Sensor Wire
(No. 15) to the Meter (No. 38) and Upper Sensor Wire (No. 15) to Lower Sensor Wire
(No. 16).
3. If you have difficulty putting Left & Right Hinge Bolts (No. 19L & No.19R) into the
Crank Arm (No. 49), please try moving the Crank Arm (No. 49) to a different angle. *Keep
in mind the Left Hinge Bolt (No. 19L) has reversed threading and must be installed by
turning counter-clockwise.
4. If you hear any noise when using the machine, please check if Left & Right Hinge Bolts
(No. 19L & No.19R), Hex Bolts (No. 21), Hex Bolts (No. 25) and Connecting Joints (No.
52)are loose. You may remove these parts and add some lubricant oil to eliminate all noise
possibilities.Remember to tighten all the parts securely.

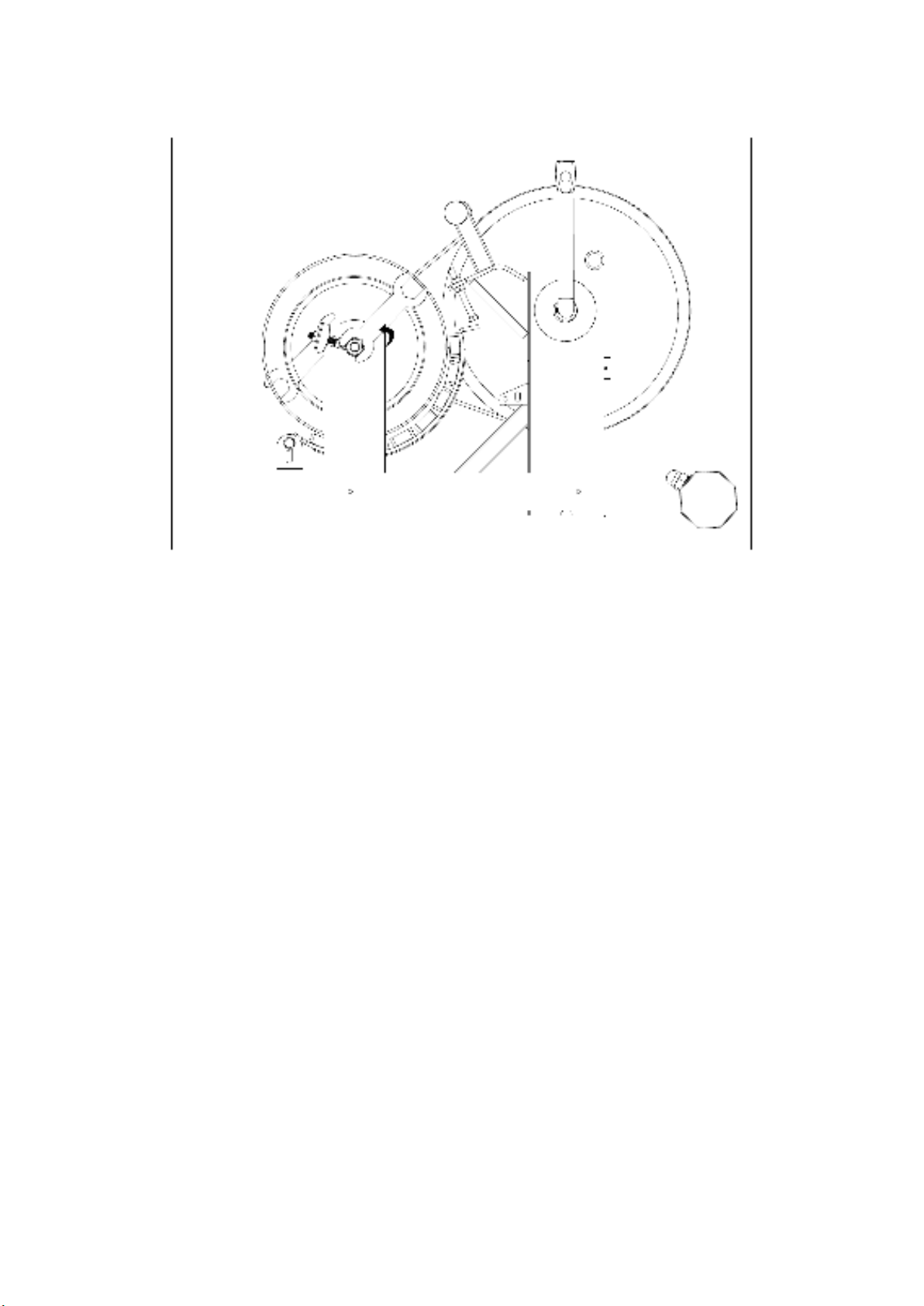

5. If it is very hard to pedal on the higher tension levels, or you hear rubbing noises, please
remove the Left & Right Belt Cover (No. 101L & No. 101R), and adjust the screw seen in
the following diagram. You will need to lower the position of the screw by turning
counter-clockwise. This will keep the Magnet Board (No. 84) from contacting the magnetic
flywheel. Before re-installing the Left & Right Belt Cover (No. 101L & No. 101R), test the
tension level 8 to ensure the magnets do not touch the flywheel.

6. If you still hear noises after you did Step 5 and Step 6, please remove the Left & Right
Belt Cover (No. 101L & No. 101R). Loosen the screws for the Flywheel (No. 94) about a
half of a rotation. See the following diagram below.
7. If you feel the machine is uneven, please adjust the Leveler Cap (No. 5) on Rear
Stabilizer (No. 3) by turning it. If the machine is wobbly when you use it, please consider
adding an exercise mat under it.

ADJUSTMENT GUIDE
ADJUSTING THE SEAT
The Seat (No. 74)of this bike is fully
adjustable as it moves Up, Down, Fore
(forward), Aft (backward).
To adjust the height of the Seat Tube
(No. 66), loosen and pull the Pop-pin
Knob (No. 64)
outward, then raise or
lower the Seat (No. 74)to the desired
height. Once adjusted, re-
insert and
tighten the Pop-pin Knob (No. 64)to
secure the Seat (No. 74)in place.
To adjust the Seat (No. 74)back and
forth, loosen the Plum Nut (No. 67)and
slide the Seat Horizontal Tube (No. 70)
to the desired position. Then tighten the
Plum Nut (No. 67)to secure the Seat
Horizontal Tube (No. 70)in place.
HOW TO MOVE THE ELLIPTICAL
There are Transporting Wheel (No. 76)
located on the Front Stabilizer (No. 2).
Hold the Armrest (No. 31)on the Main
Frame (No. 1) and press down the front of
the elliptical off the floor. Now you can
move the elliptical trainer.
ADJUSTING THE LEVEL
If at any point the bike does not feel
level, you can adjust the Leveler Caps
(No. 5).

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
The meter uses 2 AAA 1.5V batteries. Open the battery cover from the back of meter, then put 2
batteries into the battery compartment. Make sure the (+) and (-) ends of the batteries are in the
correct position. Put the battery cover back.
BATTERY REPLACEMENT
Open the battery cover, remove the old batteries, and replace with new batteries. Make sure the (+)
and (-) ends of the batteries are in the correct position. Put the battery cover back. When changing
batteries, always replace both with new batteries. Do not mix old and new batteries.

EXERCISE METER
FUNCTION BUTTONS:
MODE: Press the button to select TIME, DISTANCE, and
CALORIES to preset.
Press the button for selection function display value on LCD or
enter after setting.
Press the button and hold for 3 seconds to reset all values except
odometer to zero.
(When user replaces the batteries, all the values will reset to
ZERO automatically).
SET: To set up the target value of TIME, DISTANCE, and CAL.
Press the button and hold for 2 seconds to speed up the
increment.
RESET: Press the button to reset function value when setting.
Press the button and hold for 3 seconds to reset all values, except
odometer to zero (When the user replaces batteries, all the
values will be reset to ZERO automatically).
FUNCTIONS & OPERATIONS:
1. BATTERY INSTALLATION:
Please install 2 AAA 1.5V batteries in the battery case on the back of Meter (No. 38).
(Whenever Batteries are removed, all the function values will be reset to zero.)
2. AUTO ON/OFF:
Once the user begins to exercise, the Meter (No. 38) will show out the workout value
automatically. After about 4 minutes of inactivity, the computer will turn off. Odometer value
does not reset to 0 when the computer turns off. When the user starts to exercise again, the
workout value of odometer will accumulate continuously.
3. AUTO SCAN:
After the Meter (No. 38) is power on, press MODE button and the LCD will display all function
values from TIME-SPEED-DISTANCE-CALORIES-ODOMETER-PULSE. Each value will be
held for 6 seconds.
4. SPEED:
Display the current training speed from 0.0 to 99.9 MPH (Miles per hour).
5. DISTANCE:
Accumulates total distance from 0.0 up to 9999 M (miles). The user may preset target
distance by pressing the SET & MODE buttons. Each increment is 0.1 M (Miles).
Automatically counts down from targeting value during exercise.

6. TIME:
Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing
SET & MODE button. Each increment is 1 minute.
Automatically counts down from targeting value during exercise.
7. CALORIES:
Accumulates calories burned during training from 0 to 9999 (Cal). The user may also preset
the target calories before training by pressing the SET & MODE buttons. Each setting
increment is 1 Cal.
Automatically counts down from targeting value during exercise.
Note: This data is a rough guide which can not be used in medical treatment.
8. ODOMETER:
Display the total accumulated distance from 0 to 9999 M (miles). User can also press MODE
button to display the odometer value.
9. PULSE:
The meter will display the user's heart rate in beats per minute (BPM) during training.
Note: This data is a rough guide which cannot be used in medical treatment.
10. RESET:
Press the button and hold for 3 seconds to reset all values except odometer to zero.
NOTE:
1. If the computer display is abnormal, please re-install the new batteries and try again.
Always change both batteries at the same time. Do not mix battery types and do not mix old or
new batteries.
2. Battery Spec: 1.5V UM-4 or AAA (2PCS).
3. Dispose the batteries safely, according to your state and regional guidelines
APP CONNECTION
1. Scan below QR code to enter the App Store and download the SunnyFit App to your
mobile phone.
2. Press the Bluetooth switch to connect. Then you can use the App through your
mobile phone.
Version 1.0
