Sunny Health & Fitness SF-T7861 User manual

ELECTRIC TREADMILL WITH INCLINE
SF-T7861
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk
or prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 8 feet (240 CM) of free
space behind it and 2 feet (60 CM) on each side. Do not place the treadmill on any
surface that blocks air openings. To protect the floor or carpet from damage, place a mat
under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, discontinue use of the equipment immediately and do not
use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.This equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving
are required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot, or damp areas as this may lead to corrosion and other related
problems.
13.This equipment is designed for indoor and home use only; It is not intended for
commercial use.

2
EXPLODED DIAGRAM
ASSEMBLY CONTENTS
When you open the carton, and you will find the below parts in the carton.

3
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1 Main Frame 1
36 Computer Seal Cover 1
2 Base Frame 1
37 Interval Sleeve 8
3 Upright Frame 2 38
Hand Pulse with Speed
+/- key 1
4 Motor Bracket 1 39 Hand Pulse with Incline
+/- key 1
5
Computer Bracket
1
40
Control Circuit Board
1
6
Motor Bottom Cover
1
41
Computer Bottom Wire
1
7
Cushion
4
42
Computer Upper Wire
1
8
Screw
ST4.2*25
4
43
Bolt
M10*55
1
9
Front Roller
1
44
Magnetic Ring
1
10
Rear Roller
1
45
Brown Single Line
1
11
Cylinder
1
46
Bolt
M8*25
1
12
Allen Wrench
S5
1
47
Lock Nut
M6
6
13
DC Motor
1
48
Screw
ST4.2*20
6
14
Running Board
1
49
Screw
ST4.2*45
4
15
Bolt
M6*35
4
50
Bolt
M6*65
3
16
Wheel
2
51
Bolt
M8*16
10
17
Inclined Tube Plug
2
52
Bolt
M8*40
2
18
Motor Upper Cover
1
53
Bolt
M8*40
2
19
Bolt
7
54
Bolt
M10*55
2
20
Side Rail
2
55
Flat Washer C
Φ8
7
21
Right Rear Cover
1
56
Panel
1
22
Left Rear Cover
1
57
Bolt
M5*8
6
23
Lock Washer
Φ10
4
58
Lock Nut
M8
10
24
Motor Belt
1
59
Bolt
M8*25
1
25 Power Wire Buckle 1
60 Screw ST4.2*19 8
26 Running Belt 1 61
Running Board
Strengthen Tube
2
27 Foot Pad 4 62
Strengthen Tube
Cushion 275*20*3 4
28 Ring Wire Protector B 2
63 Lock Washer Φ5 2
29
Transportation Wheel
2
64
Lock Washer
Φ
8
10
30 Transportation Wheel
Cover
2 65 Lock Washer Φ6 3
31 Standard Power Wire 1
66 Nylon Isolation Mat Φ23*Φ10.5*2 4
32 Switch 1
67 Spring Washer Φ8 6
33
Foam Grip
2
68
Bolt
M6*37
2
34
Incline Motor
1
69
Bolt
M8*25
4
35
Computer Cover
1
70
Bolt
M8*42
3

4
No. Description Spec. Qty. No. Description Spec. Qty.
71 Safety Key 1
76 Cushion 2
72 Oil Bottle 1
77 Screw ST4.2*13 8
73
Incline Bracket
1
78
Bolt
M10*42
1
74 Spring Washer Φ10 4
79 Bolt M10*45 4
75
Bolt
M10
6
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found
near the front of the manual)
Please contact us at [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

5
ASSEMBLY INSTRUCTIONS
STEP 1:
Open the carton and remove all contents.
Place the Main Frame (No. 1) on level
ground and ensure that you have a
clean, adequate work space.
Do not cut the Packing Belt (No. B) until
the assembly is complete!
STEP 3:
Pull up the Computer Bracket (No. 5)
and Upright Frames (No. 3)
as the
arrow indicates.
Notice: When you pull up, make sure the
Upright Frames (No. 3) do not press
against the wires in
Upright Frames
(No. 3). Keep both hands on the
Upright Frames (No. 3) and
Computer Bracket (No. 5) so that they
will not fall and cause injury.
STEP 2:
Attach Computer Bracket (No. 5) onto
the Upright Frames (No. 3) using 2
Bolts (No. 51) and 2 Lock Washers
(No. 64). Tighten and secure with Allen
wrench (No. 12).

6

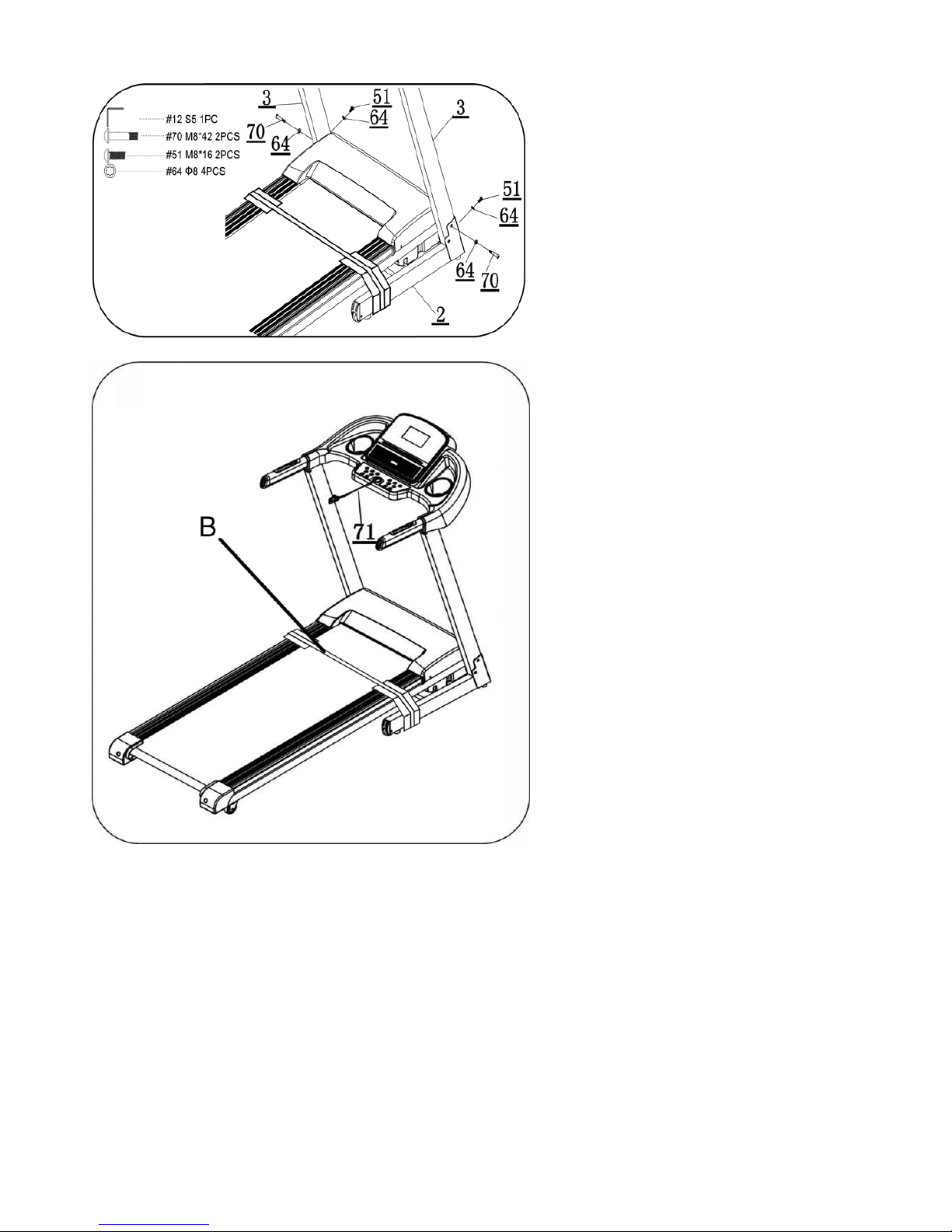

STEP 4:
Attach Upright Frames (No. 3) onto
Base Frame (No. 2) with 2 Bolts (No.
70), 2Bolts (No. 51), and 4 Lock
Washers (No. 64). Tighten and
secure with Allen Wrench (No. 12).
Notice: Support the Upright Frames
(No. 3) with both hands to avoid falling
down and causing injury.
STEP 5:
Insert the Safety Key (No. 71) into the
computer.
The assembly is now complete. Now
you can cut the Packing Belt (No. B).

7
FOLDING INSTRUCTIONS
NOTE: Please make sure the incline is at
ZERO when folding and unfolding.
To fold the treadmill, place your hands at
position A and lift the running board all the
way up until you hear the safety lock ‘Click’
from the safety cylinder.
To unfold the treadmill, simply give the
safety cylinder a light kick at position B and
pull down the running board at position A at
the same time. With its soft drop system, the
machine will unfold slowly.
(Please keep everyone and all pets away
from the machine when
unfolding the
treadmill).

8
HOW TO MOVE THE TREADMILL
Before attempting to move the
treadmill, make sure that it has
been properly folded. Unplug the
power cord.
To tilt, start by placing one hand at
position “P” to support the top end
of the treadmill. Next, place one
foot at position “K
” to hold the
bottom end of the treadmill steady.
With your foot at “K”, slowly tilt the
top of the treadmill downward
towards the ground. Once the Main
Frame “P” reaches a low enough
point, the wheels of the treadmill
will touch the ground.
To transport, hold the treadmill from
position “P” and tilt until the wheels
“K” are able to move on the ground.

9
IMPORTANT ELECTRICAL INFORMATION
IMPORTANT NOTE: This treadmill requires a power source of 110 Volts in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is
correct before powering the equipment. Any power supply source above or below this level could
cause significant damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a plug that has an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
CAUTION:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do
not modify the plug provided with this product. If it will not fit the outlet, have a proper outlet installed
by a qualified electrician. Ensure that the product is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
WARNING:
DO NOT use a ground fault circuit interrupt (GFCI) outlet with this treadmill. Route the power cord
away from all moving parts of the treadmill, including the Air Pressure Cylinder, and transportation
wheels.
DO NOT operate the treadmill using a generator or UPS power supply.
DO NOT remove any cover on this treadmill without first disconnecting the power cord.
DO NOT expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
in any high humidity environment.

10

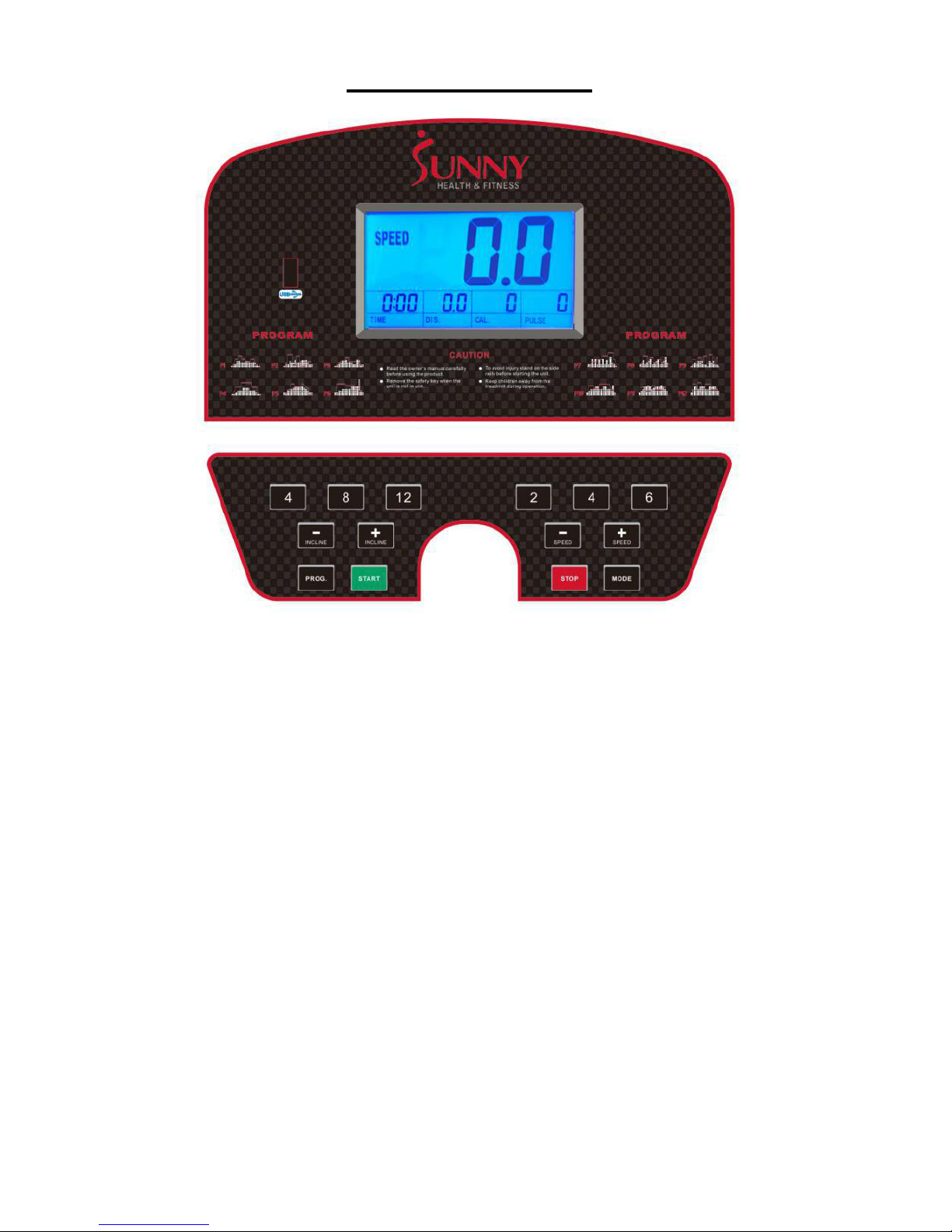

CONSOLE GUIDE
WINDOW DISPLAY
1. SPEED: The speed range is 0.5-7.5 MPH. The initial default speed is 0.5 MPH.
2. CALORIES: Displays total calories burned.
3. TIME: Displays the elapsed running time.
4. DISTANCE: Display the total distance traveled.
5. PULSE/INCLINE: Displays your pulse data when hands are placed on the sensors. When
pulse is not used, the treadmill will display the number of incline segments.
BUTTON FUNCTION
“START” BUTTON: Insert the Safety Key (No. 71) into the console and press START to start the
treadmill. The treadmill will run at the lowest speed or at the speed of default program which is a 3
second time count down; In the case of a pause, press the START button to continue. The
treadmill will start from the data retained before the pause.
“STOP” BUTTON：Press STOP to stop the treadmill; the treadmill will slow down in speed until
reaching a stop. In the running mode, press STOP button to stop the treadmill and keep the
current running data. Press STOP button again to return to the standby mode.
“PROG” (PROGRAM) BUTTON: Press PROG to choose a program from manual mode, P1-P15,
FAT.

11
“MODE” BUTTON: When the treadmill is in the standby state, press MODE to choose from the
following: manual mode, time count down mode, distance count down mode, and calories count
down mode.
SPEED +/- KEYS: During use, press these +/- keys to increase or decrease your speed. The
speed will adjust 0.1 MPH at a time.
INCLINE +/- KEYS:During use, press these +/- keys to increase or decrease the incline.
2MPH, 4MPH, 6MPH (QUICK SPEED KEYS): During use, use these quick speed keys to
instantly bring the running belt to the desired speed of 2MPH, 4MPH, 6MPH.
4%,8%,12% (QUICK INCLINE KEYS): During use, press these quick incline keys to instantly
bring the treadmill to an incline of 4%, 8%, 12%.
START-UP QUICKLY (MANUAL):
Get through power by inserting the Safety Key (No. 71). After a 3 second countdown, the
treadmill will start running from the lowest speed. Add and subtract by using the SPEED +/- keys
to adjust the speed. Please press the stop button or remove the Safety Key (No. 71) directly to
stop.
COUNTDOWN MODE:
Press ‘MODE’ to select time countdown mode, distance countdown mode, and calories
countdown mode. The window will then show the default data. At the same time, press SPEED
+/- keys to set the data. Press ‘START’ and the treadmill will run at the lowest speed. Then you
can press SPEED +/- keys to change the speed. When it counts down to 0, the treadmill will stop
smoothly. You can press ‘STOP’ or remove the Safety Key (No. 71) from the console to stop the
treadmill.
PRESET PROGRAMS:
Press ‘PROG’ to choose the inner install program from P1-P15.When the program is set, the time
window will show default data. Press SPEED +/- keys to set the running time. Each program has
been divided into 20 sections, each exercise time=the setting time/20. Press ‘START’, and the
treadmill will run at the first section speed and incline. When the section is over, it will enter the
next section automatically. The speed, incline, and next section will change. When finishing one
program, the treadmill will stop smoothly. While running, you can change the speed by the
SPEED +/- keys or quick SPEED keys, and incline by the INCLINE +/- keys or quick INCLINE
keys anytime. When the program enters the next section, the running belt will come back to the
default speed and incline of the section. You can press ‘STOP’ or remove the Safety Key (No. 71)
to stop the treadmill anytime.
SAFETY KEY FUNCTION
Remove the Safety Key (No. 71), then the treadmill will stop immediately. All the windows display
“―――”, the buzzer will make 3 sounds “B—B—”, and the treadmill must be stopped. Attach the
magnetic end of the Safety Key (No. 71) to the computer, the treadmill will be at the standby
mode and the incline would be decreased to 0° automatically.

12
HEARTBEAT TEST
When holding the hand pulse with two hands, the pulse window will show your heartbeat after 5
seconds. To get an accurate heartbeat, please test when the treadmill is stopped, and you are
holding the hand pulse for more than 30 seconds. The heartbeat data is just for reference, it
cannot be used as medical data.
HIBERNATION FUNCTION
When stopped without any operation for more than 10 minutes, the system shuts down all
displays and goes dormant. Press any key to wake up.
RUNNING DATA DISPLAY AND SETTING RANGE
INNER PROGRAM DATA LIST
TIME
PROG
To set time / 20 time = running time of each period
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P01
SPEED
1.2
1.8
1.8
2.4
3.1
1.8
2.4
3.1
3.1
1.8
2.4
3.1
2.4
2.4
2.4
1.2
1.8
1.8
3.1
1.8
INCLINE
1
1
2
2
2
3
3
3
2
2
1
2
2
1
1
3
3
2
2
2
P02
SPEED
1.2
2.4
2.4
3.1
3.7
2.4
3.7
3.7
3.7
2.4
3.1
3.7
2.4
2.4
2.4
1.2
1.2
3.1
2.4
1.2
INCLINE
1
2
2
2
2
3
3
2
2
2
2
2
3
3
3
4
4
3
2
2
P03
SPEED
1.2
2.4
2.4
3.7
3.7
2.4
4.3
4.3
4.3
2.4
4.3
4.3
2.4
2.4
2.4
1.2
2.4
3.1
1.8
1.2
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P04
SPEED
1.8
3.1
3.1
3.7
4.3
4.3
3.1
4.3
4.3
4.9
4.9
3.1
5.5
3.1
3.1
3.7
3.7
2.4
2.4
1.8
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P05
SPEED
1.2
2.4
2.4
3.1
3.7
4.3
4.3
3.1
3.7
4.3
4.9
4.9
3.1
2.4
1.8
1.8
3.7
3.1
2.4
1.2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
P06
SPEED
1.2
2.4
2.4
2.4
3.1
3.7
4.9
4.9
3.7
4.3
4.9
4.9
3.7
2.4
2.4
1.2
3.1
2.4
1.8
1.2
INCLINE
3
5
5
5
4
4
4
3
3
3
3
4
4
4
3
3
3
4
3
2
P07
SPEED
1.2
1.8
1.8
1.8
2.4
3.1
1.8
2.4
3.1
1.8
2.4
3.1
1.8
1.8
1.8
3.7
3.7
3.1
1.8
1.8
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
4
4
P08
SPEED
1.2
1.8
1.8
3.7
4.3
4.3
2.4
3.7
4.3
2.4
3.7
4.3
2.4
2.4
2.4
1.2
1.8
2.4
2.4
1.2
INCLINE
4
5
5
5
6
6
6
7
8
9
9
9
10
10
10
12
12
8
6
3
P09
SPEED
1.2
2.4
2.4
4.3
4.3
2.4
4.3
4.9
2.4
4.9
5.5
5.5
2.4
2.4
2.4
3.1
3.7
1.8
1.8
1.2
INCLINE
5
5
5
6
6
6
4
4
6
6
5
5
8
8
9
9
9
7
4
2
P10
SPEED
1.2
2.4
3.1
3.7
4.3
3.1
2.4
3.7
4.9
4.9
3.7
3.7
3.1
2.4
2.4
1.2
2.4
2.4
1.8
1.8
INCLINE
5
6
6
6
7
5
8
8
4
4
4
5
5
8
8
10
10
8
6
3
P11
SPEED
1.2
3.1
4.9
6.2
4.3
4.3
6.2
6.2
4.3
4.3
6.2
6.2
3.1
3.1
5.5
5.5
3.1
3.1
2.4
1.8
INCLINE
4
5
3
2
6
6
2
2
2
2
2
4
5
6
3
2
5
5
2
0
P12
SPEED
1.8
2.4
5.5
5.5
3.1
5.5
3.1
4.9
3.1
5.5
4.3
3.1
3.1
4.3
5.5
5.5
3.1
4.3
3.7
1.8
INCLINE
1
2
3
2
3
5
5
0
0
2
3
5
7
3
3
5
6
5
3
3
P13
SPEED
1.8
3.7
4.3
3.1
5.5
5.5
4.3
3.1
3.1
4.3
5.5
3.1
4.9
3.1
5.5
3.1
5.5
5.5
2.4
1.8
INCLINE
3
3
5
6
5
3
3
7
5
3
2
0
0
5
5
3
2
3
2
1
P14
SPEED
1.2
1.2
2.4
3.1
3.7
3.1
2.4
1.8
1.2
0.6
1.2
1.8
2.4
3.1
3.7
3.1
2.4
1.8
1.2
0.6
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
4
4
P15
SPEED
1.2
2.4
3.7
4.9
3.7
3.7
2.4
2.4
1.2
1.2
1.2
2.4
3.7
4.9
3.7
3.7
2.4
2.4
1.2
1.2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
INITIAL DATE
INITIAL SETTING
DATE
SET RANGE SHOW RANGE
PROGRAM TIME
0:00
30:00
5:00-99:00
0:00
－
99:59
SPEED(M/H)
---
---
---
0.5-7.5
INCLINE %
---
---
---
0-15
DISTANCE (MILE)
0
1.0
0.5-99.9
0.00
－
99.9
PULSE
P
N/A
N/A
50-200
CALORIES(CAL)
0
50.0
10.0-999
0
－
999
MODE TIME
0:00
15:00
5:00-99:00
0:00-99:59

13
USB CHARGING FUNCTION
After the power is turned on, the device can be recharged by connecting to a mobile phone or
iPad that needs to be recharged. Interface output voltage for dc5v.
Note: due to the phone or iPad specifications, charging requirements are inconsistent, so it
cannot support all devices. There may be parts of the phone or iPad that cannot be charged.
BODY FAT TEST
Press ‘PROG’ under ready condition, until ‘FAT’ shows in the speed window. ‘FAT’ is body fat test
mode. Press ‘MODE’ to choose parameter ‘SEX / AGE / HEIGHT / WEIGHT’, and TIME/DIST
window will show “-1-”, “-2-”, “-3-”, “-4-". When setting each parameter, press SPEED +/- keys to
adjust the data. The CAL/PULSE window will show the data, press ‘MODE’ to finish. The window
will show “F5” and “---” enter ready condition. Hold the handle pulse with two hands. This will
show your BMI data after 5 seconds.
1. DATA DISPLAY AND SET RANGE
2. BMI REFERENCE
Parameter Type
Default
Setting Range
Mark
SEX (-1-)
1 (MALE)
1—2
1=MALE 2=FEMALE
AGE (-2-)
25
10—99
HEIGHT (-3-)
68 in
40—78 in
WEIGHT (-4-)
154 LBS
44—330 LBS
BMI
FAT≤19
Under weight
19<FAT ≤25
Normal weight
25<FAT ≤29
Over weight
FAT≥30
Obesity

14
EXERCISE INSTRUCTIONS
GETTING STARTED
Before starting any exercise programs, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the treadmill properly. Be aware of your body’s signals. Incorrect or excessive
exercise can damage your health. Stop exercising immediately if you experience any of the
following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of
breath, lightheadedness, dizziness, or feelings of nausea.
Turn on the power switch located next to the power cord. Get to know your treadmill. Before
attempting to use the treadmill take some time to stand alongside it and familiarize yourself with
the controls. Once you feel comfortable to get on, you can stand with your feet on the foot rails
and balance yourself by putting your hands on the handrails.
Next, attach the clip end of the Safety Key (No. 71) to your clothing and insert the magnetic end
of the key into the console. Press the START button to start the treadmill. The machine will start
at the default speed of 0.5MPH. Once you feel comfortable, you may slowly increase the speed.
When you are finished with your exercise, press the STOP button or remove the magnetic end of
Safety Key (No. 71) to stop the treadmill.
SAFETY LOCK
Remove the Safety Key (No. 71) from the console to stop the treadmill immediately. Once the
treadmill reaches a full stop, the window display on the computer will show “---” and the treadmill
will beep. To start the treadmill again, insert the magnetic end of Safety Key (No. 71) into the
console and press START.
POWER OFF
Power to the treadmill can be turned off at any time without risk during or after an exercise.
CAUTION
1. We recommend that you maintain a slow speed at the beginning of a session and hold the
handrails until you become comfortable and familiar with the treadmill.
2. Insert the magnetic end of the safety key into the console and attach the opposite end with
the safety clip to your clothing before beginning your workout. To end your workout, press the
STOP button or remove the safety key. The treadmill will stop immediately.

15
MAINTENANCE GUIDE
General cleaning will help to prolong the life and improve the performance of your treadmill. Keep
the unit clean and maintained by dusting the components on a regular basis, cleaning the two
exposed sides of the running belt will prevent dust from accumulating underneath the belt. Keep
your running shoes clean so that dirt from the shoes does not wear out the running belt. Clean the
surface of the running belt using a clean damp cloth. Keep liquids away from electrical parts and
running belt.
ADJUSTING THE RUNNING BELT
Place the treadmill on level ground and set it at 3.5-5 MPH to check and see if the Running Belt
(No. 26) drifts from the center. Adjust the Running Belt (No. 26) according to below instructions
with Allen Wrench (No. 12).
2. If the Running Belt (No. 26) drifts to
the left, remove the safety key, turn the
adjusting bolt on the left side 1/4 turn
clockwise, then start running until the belt is
centered. Refer to image B.
1. If the Running Belt (No. 26) drifts to
the right, remove the safety key, turn the
adjusting bolt on the right side 1/4 turn
clockwise, then start running until the belt is
centered. Refer to image A.
3. Over time, the Running Belt (No. 26)
will loosen. To tighten the belt, remove the
safety key, turn both the left & right side
adjusting bolts 1/4 turn clockwise, then
re-start running. Check the tension of the
belt. Continue this process until belt is at
the correct tension. Make sure to adjust
both sides equally to ensure even belt
alignment. Refer to image C.

16
LUBRICATING THE TREADMILL
Lubricating the running belt & running board is essential as the friction affects the life span and
operations on the treadmill. Inspect the running belt regularly. If you find any wear on the running
board, please contact us at [e-mail].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating,
or repairing the unit.
The following time table is recommended:
Light user (less than 3 hours/ week) every 2 months
Medium user (3-5 hours/ week) every 45 days
Heavy user (more than 5 hours/ week) every month
NOTE:
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered
off for 10 minutes every 2 hours and fully powered off when not in use.
A loose running belt will result in the runner sliding off when in use, while too tight of a running belt
will result in decrease to the motors performance and also create more friction between the roller
and the running belts. The most suitable tightness for the belt is pulled out 50-75 mm from the
running board.

17
TROUBLESHOOTING
CODE Description How to troubleshoot
E01
1. Message wire is broken or not
connected well.
2. Computer or control board is
broken.
1. Check if the computer and bottom control
board wire is connected well.
2. Check if IC on bottom control board is loose,
reset the IC.
3. If you experience a problem with the power on
the
bottom control board, change the bottom
control board.
E02
1. The wire for the motor is not
connected well or the carbon
brush inside the motor is loose.
2. The power tube on the control
board is short cut or broken.
3. Burst clash protection.
1. Check if the wire for the motor is connected
well and check if the carbon brush inside motor
is connected well.
2. Check if the power tube on the control board is
broken, if so, change the control board.
E03
1. Detect line on the control board
that lost efficacy.
1. Change control board.
E04
1. The treadmill load exceeds the
rated operating volt
age of the
motor.
2. Motor is broken.
3. Overload voltage will make the
detect line on the
control board
lose efficacy.
1. Not to use under overload state.
2. Change motor.
3. Change control board.
E05
1. Current overload protecting.
1. If the treadmill over loaded or the motor is
stuck, causing excessive current, the machine
will start a self-
protecting system. Adjust the
machine and restart.
2. Check if the motor has noise or if the motor /
bottom control board is burnt out. I If burnt out,
change the good motor and bottom control using
correct voltage.
Show ”----”
1. The safety key is not at the
appointed site.
2. The safety key is not connected
well or broken.
1. Check if the safety key is at the appointed site.
2.
Check if the safety key sensor board is
connected well.
3.
Change the safety key sensor board inside
computer.
Version: 1.1
