Sunny ENDURANCE Series User manual

ENDURANCE SERIES
MAGNETIC ELLIPTICAL
E321003
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us,PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used
properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings
and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you
do experience any of these conditions, you should consult your physician before continuing with
your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 240 pounds (110 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.

2
PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
No. Description Spec. Qty. No. Description Spec. Qty.
1 Computer 1 57 Main Frame 1
7 Mid Handlebar 1 58 Front Stabilizer 1
13 Post Bar 1 107 Rear Stabilizer 1
23L/R Handlebar L/R 2 110 Rear Shipping
Tube
1
27 Swing Bar Rod 1 F1 Hardware Package 1
29L/R Swing Bar L/R 2 F2 Hardware Package 1
38 Pedal Arm 2 G Manual 1
44L/R Pedal 2 H Thank You Card 1
57
29L
38
38
29R
58
107
23R
23L 44L
44R
71
13
27
#32 S13 2PCS
#37 S13 4PCS
#56 S18 2PCS
#46 S16 2PCS
45 M8*45*20*S14 4PCS
#36 M8*H7.5*S13 4PCS
SF-E321003
Hardware Package(1)
STEP 3
STEP 4
#20 D8*φ16 4PCS
SF-E321003
Hardware Package(2)
#A S5 1PC
#C S8 1PC
#D S13-14 1PC
#E S17-17-19 1PC
17 17 19
#B S13-14-15 1PC
TOOL
F1 F2
THANK YO U
H
110
FO R Y OU R ORD ER
ENDURANCE SERIES
M AG NETIC ELLIPTICAL
E321003
USER MANUAL
G

3
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
57
58
62
62
62
62
63
63
26
26
26
26
63
63
107
#63 D8*φ20*R30 4PCS
#62 M8*60 4PCS
#26 M8*S13 4PCS
#B S13-14-15 1PC
110
19
19
19
19 10
10
10
10
10
10
20
20
20
20 20
20
19
19
13
57
2
106
69
14A
2
106
14A
69
#10 D8 6PCS
#20 D8*
φ 16 6PCS
#19 M8*16*S5 6PCS
#A S5 1PC
AB
14
STEP 1:
Remove 4 Bolts (No. 62), 4 Arc Washers
(No. 63), 4 Cap Nuts (No. 26) and Rear
Shipping Tube (No. 110) from the Front
Stabilizer (No. 58) and Main Frame (No. 57)
by Spanner (No. B).
Attach the Front Stabilizer (No. 58) and Rear
Stabilizer (No. 107) to the Main Frame (No.
57) using 4 Bolts (No. 62), 4 Arc Washers
(No. 63) and 4 Cap Nuts (No. 26) that were
removed. Tighten and secured with Spanner
(No. B).
STEP 2:
Remove 6 Bolts (No. 19), 6 Spring Washers
(No. 10) and 6 Washers (No. 20) from Main
Frame (No. 57) by Spanner (No. A).
Check the Tension Control Knob (No. 14) is
at level 1 (lowest resistance) to ensure the
wire is the longest. Connect the Tension
Control Wire (No. 14A) with Lower Tension
Control (No. 69) as shown in picture B, then
Connect Sensor Trunk Wire (No. 2) with
Sensor Wire (No. 106) as shown in picture A.
Fix Post Bar (No. 13) into Main Frame (No.
57), then tighten and secure with 6 Bolts (No.
19), 6 Spring Washers (No. 10)
and 6
Washers (No. 20)
that were removed by
Spanner (No. A).

5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
52
53L
54
55L
56
85
85
52 53R
54
55R
56
29L
29R
32 31 1030
28
27
13
28
30 10 31 32
37
37
37
37 46
46
#32 S13 2PCS
#31 M8*20*S13 2PCS
#10 D8 2PCS
#30 D8* φ 32 2PCS
#28 D19* φ 25 2PCS
#52 D17* φ 25 2PCS
#54 D13*19.5*3.3 2PCS
#55L
1
2
*20*H8*S19 1PC
#56 S18 2PCS
#55R
1
2
*20*H8*S19 1PC
#B S13-14-15 1PC
#C S8 1PC
#D S13-14 1PC
#37 S13 4PCS
#46 S16 2PCS
#53L
φ16*89*23*
1
2
*S8 1PC
#53R
φ16*89*23*
1
2
*S8 1PC
38
38
#E S17-17-19 1PC
17 17 19
STEP 3:
Remove 2 Bolts (No.31), 2 Wave Washers
(No. 28), 2 Washers (No. 30) and 2 Spring
Washers (No.10) from Swing Bar Rod (No.
27) by Spanner (No. B) or Wrench (No. D).
Insert Swing Bar Rod (No. 27) to Post Bar
(No. 13), put 2 Wave Washers (No. 28) that
were removed into Swing Bar Rod (No.27).
Tighten and secure Swing Bar L/R (No.
29L/R) to Swing Bar Rod (No. 27) with 2
Bolts (No. 31), 2 Washers (No. 30) and 2
Spring Washers (No. 10) that were removed
by Spanner (No. B) and Wrench (No. D),
then cover 2 End Cap (No. 32).
Remove 2 Bolts (No. 53L/R), 2 Wave
Washers (No. 52),2 Nylon Nuts (No. 55 L/R)
and 2 Spring Washers (No.54) from both
Pedal Arms (No. 38) by Spanner (No. C) and
Wrench (No. E).
Lock Pedal Arm (No. 38) to the left side of
Crank (No. 85) with 1 Bolt (No. 53L), 1 Wave
Washer (No. 52),1 Nylon Nut (No. 55L) and
1 Spring Washer (No. 54).
Tighten and
secure with Spanner (No. C) and Wrench
(No. E). Then, cover with 2 Ball Caps (No.
37), 1End Cap (No. 46), 1End Cap (No. 56).
Lock Pedal Arm (No. 38) to the right side of
Crank (No. 85) with 1 Bolt (No. 53R), 1 Wave
Washer (No. 52),1 Nylon Nut (No. 55R) and
1 Spring Washer (No. 54).
Tighten and
secure with Spanner (No. C) and Wrench
(No. E). Then, cover with 2 Ball Caps (No.
37), 1End Cap (No. 46), 1End Cap (No. 56).
NOTE: Make sure to turn Bolt (No. 53L)
counter-clockwise, and Nylon Nut (No.
55L) clockwise.Make sure to turn Bolt (No.
53R) clockwise,and Nylon Nut (No. 55R)
counter-clockwise.
Failure to follow
procedures may result in permanent damage
to your elliptical bike.

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
45
20
36
45
20
36
45
45
20
36
20
36
24
25
26
24
25
26
24
24
25
25
26
26
38
38
29L
29R
44L
44R
23L
23R
#B S13-14-15 1PC
45 M8*45*20*S14 4PCS
#20 D8* φ 16 4PCS 36 M8*H7.5*S13 4PCS
#24 M8*43*20*H3 4PCS
25 D8*
φ 20*R16 4PCS
26 M8*S13 4PCS
STEP 4:
Fix Pedal (No. 44L/R) to both Pedal Arm (No.
38) with 4 Bolts (No. 45), 4 Washers (No.
20), 4 Nylon Nuts (No.36) by Spanner (No.
B).
Remove 4 Bolts (No. 24), 4 Arc Washers
(No. 25),4 Cap Nuts (No. 26) from
Handlebar L/R (No. 23L/R) by Spanner (No.
B). Tighten and secure Handlebar L/R (No.
23L/R) to Swing Bar L/R (No. 29L/R) with 4
Bolts (No. 24), 4 Arc Washers (No. 25), 4
Cap Nuts (No. 26) that were removed by
Spanner (No. B).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
1a
2
11
1910
7
13
19 10
3
1a
2
1a
11
#19 M8*16*S5 2PCS
#10 D8 2PCS
#3 M5*10 4PCS #B S13-14-15 1PC
#A S5 1PC
1
20
20
#20 D8*φ16 2PCS
STEP 5:
Connect Sensor Trunk Wire (No. 2) with
Computer Wire (No. 1a) well.
Remove 4 Bolts (No. 3) from Computer (No.
1). Attach Computer (No. 1) on Post Bar
(No. 13) with 4 Bolts (No. 3)
that were
removed by Spanner (No. B).
Remove 2 Bolts (No. 19), 2 Spring Washer
(No. 10) and Washer (No. 20) from Post Bar
(No. 13) by Spanner (No. A). Tighten and
secure Mid Handlebar (No. 7) to Post Bar
(No. 13) with 2 Bolts (No. 19), 2 Spring
Washers (No. 10) and Washer (No. 20) that
were removed by Spanner (No. A).
Insert Handle Pulse Wire (No. 11) to the hole
on the back of Computer (No. 1).
The assembly is complete!

8
ADJUSTMENTS & USAGE GUIDE
60
7
58
MOVING THE ELLIPTICAL
To move the elliptical, push down the Middle
Handlebar (No. 7) until the
Transportation Wheels
(No. 60) on the Front Stabilizer (No. 58)
touch the
ground. With the Transportation Wheels (No. 60) on
the ground, you can transport the elliptical to the desired
location with ease.
64109
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you
must ensure that the elliptical is stabled and secured. If
you notice that the elliptical is unbalanced during use,
you should adjust both Adjustable End Cap (No. 64)
and Foot Pad (No. 109) located beneath the front and
rear stabilizers. To do so, simply rotate both Adjustable
End Cap (No. 64) and Foot Pad (No. 109)
until the
elliptical becomes levelled with the floor surface.
14
ADJUSTING THE RESISTANCE
Rotate Tension Control Knob (No.14) clockwise to
increase the level of resistance, rotate the Tension
Control Knob (No.14) counter-clockwise
to decrease
the level of resistance. Level 1 is the lowest and level 8
is the highest.
CLEANING
The elliptical can be cleaned with a soft, clean, damp cloth. Do not use abrasives or solvents on
plastic parts. Please wipe your perspiration off the elliptical after each use. Be careful not to get
excessive moisture on the computer display panel as this might cause electrical h
azard or
electronics to fail.
Please keep the elliptical, especially the computer, out of direct sunlight to prevent screen
damage.
Please inspect all assembly bolts and pedals on the elliptical for proper tightness every week.
STORAGE
Store the elliptical in a clean and dry environment, away from children.

9
BATTERY INSTALLATION & REPLACEMENT
+
-
+-
BATTERY INSTALLATION
1. Take out 2 AAA batteries from computer box.
2. Press the buckle of battery cover on the Computer (No. 1), then remove battery
cover.
3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 1).
Pay attention to the battery + and - poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the
Computer (No. 1).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Computer (No. 1), then remove
battery cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries
into the battery case on the back of the Computer (No. 1). Pay attention to the
battery + and - poles before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the
Computer (No. 1).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some
batteries maybe recycled. When disposing or recycling, do not mix battery types.
Battery
Battery Cover

10
EXERCISE COMPUTER
FUNCTION BUTTONS:
MODE: Press the button to select TIME, DISTANCE, and CALORIES to
preset.
Press the button for selection function display value on LCD or enter
after setting.
Press the button and hold for 3 seconds to reset all values except
odometer to zero.
(When user replaces the batteries, all the values will reset to ZERO
automatically).
SET: To set up the target value of TIME, DISTANCE, and CALORIES.
Press the button and hold for 2 seconds to speed up the increment.
RESET: Press the button to reset function value when setting.
Press the button and hold for 3 seconds to reset all values except
odometer to zero (When the user replaces batteries, all the values will
reset to ZERO automatically).
FUNCTIONS & OPERATIONS:
1. BATTERY INSTALLATION:
Please install 2 AAA 1.5V batteries in the battery case on the back of computer. (Whenever
batteries are removed, all the function values will be reset to zero.)
2. AUTO ON/OFF:
Once the user begins to exercise, the computer will show the workout value automatically. After
about 4 minutes of inactivity, the computer will turn off. Odometer value does not reset to 0 when
the computer turns off. When the user starts to exercise again, the workout value of odometer will
accumulate continuously.
3. AUTO SCAN:
After the computer is powered on, press MODE button and the LCD will display all function values
from TIME-SPEED-DISTANCE-CALORIES-ODOMETER-PULSE. Each value will be held for 6
seconds.
4. SPEED:
Displays the current training speed from 0.0 to 99.9 MPH (Miles per hour).
5. DISTANCE:
Accumulates total distance from 0.00 up to 9999 M (Miles). The user may preset target distance
by pressing the SET & MODE buttons. Each increment is 0.1 M (Miles).
Automatically counts down from targeting value during exercise.
6. TIME:
Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing SET
& MODE buttons. Each increment is 1 minute.
Automatically counts down from targeting value during exercise.
7. CALORIES:
Accumulates calories burned during training from 0.0 to 9999 (Cal). The user may also preset the
target calories before training by pressing the SET & MODE buttons. Each setting increment is 1
Cal.
Automatically counts down from targeting value during exercise.

11
Note: This data is a rough guide which cannot be used in medical treatment.
8. ODOMETER:
Displays the total accumulated distance from 0.0 to 9999 M (Miles). User can also press MODE
button to display the odometer value.
9. PULSE:
The computer will display the user's heart rate in beats per minute (BPM) during training.
Note: This data is a rough guide which cannot be used in medical treatment.
10. RESET:
Press the button and hold for 3 seconds to reset all values except odometer to zero.
NOTE:
1. If the computer display is abnormal, please re-install the new batteries and try again. Always
change both batteries at the same time. Do not mix battery types and do not mix old and new
batteries.
2. Battery Spec: 1.5V UM-4 or AAA (2PCS).
3. Dispose the batteries safely, according to your state and regional guidelines.
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list, check the
EXERCISE COMPUTER on your equipment to ensure that it is not in sleep mode and your
phone's Bluetooth function is on, then tap "Retry" to search again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipment is now ready to display, track, and record your equipment’s workout stats on
the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contact SunnyFit support at [e-mail], or use the in-app “Contact Us”
form to request support (“Me” tab -> “Contact Us”).

12
EXPLODED DIAGRAM 1
1
3
2
4
4
1a
5
5
6
6
7
8
8
19
10 11
12
13
14
15
16
17
17
18
18
19
19
19
19
19
19
10
10
10
10
10
10
20
20
20
20 20
20
21
21
22
22
23L
23R
24
24
24
24
25
25
25
25
26
26
26
26
27
28
28
17
17
17
17
18
18
18
18
29L
29R
30
30
10
10
31
31
32
32
33
33
33
33
34
35
35
20
20
36
36
37
37
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44L
44R
45
45
45
45
20
20
20
20
36
36
36
36
46
46
47
47
48
48
48
48
49
49
43
43
50
50
51
51
51
51
52
52
53L
53R
54
54
55L
55R
56
56
57
58
59
59
60
60
61
61
20
20
36 36
62
62
62
62
63
63
26
26
26
26
63
63
64
64
34
107
109
109
42
42
#B S13-14-15 1PC
#A S5 1PC
#C S8 1PC #D S13-14 1PC
#E S17-17-19 1PC
17 17 19
20
14A
110

13

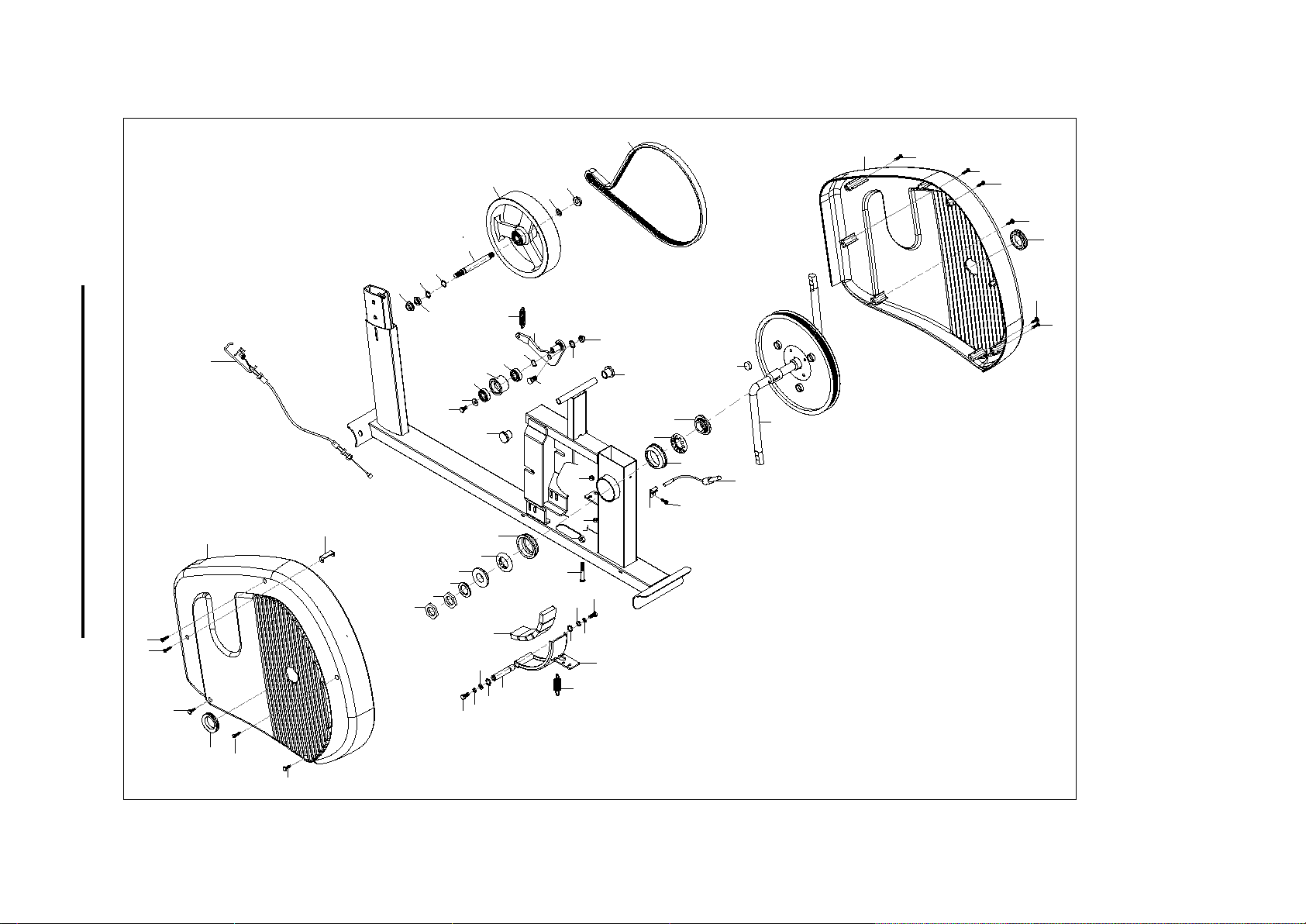

EXPLODED DIAGRAM 2
65L
65R
66
66
66
66
66
67
67
67
67
68
68
69
70
71
72
73
73
74
74
75
75
76
76
77
78 78
79
80
81
81
82
82
83 85
86
87
87
88
89
90
90
91
92
93
94
95
36
96
97
97
73 92
98
99 100
101
102
103
103 104 105
106
66
108
66
84

14
PARTS LIST
No. Description Spec. Qty. No. Description Spec. Qty.
1 Computer 1 35 Bolt M8*65*S13 2
1a Computer Wire 1 36 Nylon Nut M8*H7.5*S13 9
2 Sensor Trunk Wire 1 37 Ball Cap S13 4
3 Bolt M5*10 4 38 Pedal Arm 2
4 Foam Grip 2 39 Square End Cap 4
5 Handle Pulse Plate 2 40 U-type Holder 2
6 Round End Cap Φ25*16 2 41 Bolt M10*42 2
7 Mid Handlebar 1 42 Washer D10*Φ25 4
8 Bolt ST4.0*19 2 43 Nylon Nut M10*H9.5*S17 4
9 N/A - 44L/R Pedal 2
10 Spring Washer D8 10 45 Bolt M8*45*20*S14 4
11 Handle Pulse Wire 1 46 End Cap S16 2
12 C-clip Φ12*11*Φ3 1 47 Bolt M10*50 2
13 Post Bar 1
48 Metals Busing 4
14 Tension Control
Knob 1 49 Washer D10*Φ20 2
14A Tension Control
Wire 1 50 Pedal Arm Join 2
15 Arc Washer D5*Φ20 1 51 Metals Busing 4
16 Bolt M5*35 1 52 Wave Washer D17*Φ25 2
17 Bushing Φ32*3.3*Φ28
*16*Φ14 6 53L/R Bolt Φ16*89*23*1/2*S8 2
18 Bushing Φ21 6 54 Spring Washer D13*19.5*3.3 2
19 Bolt M8*16*S5 8 55L/R Nylon Nut 1/2*20*H8*S19 2
20 Washer D8*Φ16 16 56 End Cap S18 2
21 Foam Grip 2 57 Main Frame 1
22 End Cap 2 58 Front Stabilizer 1
23L/R Handlebar L/R 2 59 Round End Cap 2
24 Bolt M8*43*20*H3 4 60 Transportation
Wheel 2
25 Arc Washer D8*Φ20*R16 4 61 Bolt M8*40 2
26 Cap Nut M8*S13 8 62 Bolt M8*60 4
27 Swing Bar Rod 1 63 Arc Washer D8*Φ20*R30 4
28 Wave Washer D19*Φ25 2 64
Adjustable End
Cap
2
29L/R Swing Bar L/R 2 65L/R Chain Cover 2
30 Washer D8*Φ32 2 66 Bolt ST4.2*19*Φ8 7
31 Bolt M8*20*S13 2 67 Bolt ST4.2*16*Φ8 4
32 End Cap S13 2 68 Crank Cover 2
33 Bushing Φ14*Φ8.3*48 4 69 Lower Tension
Control 1
34 Bushing Φ14*48 2 70 Magnet 6

15
No. Description Spec. Qty. No. Description Spec. Qty.
71 Magnetic Plate 1 94 Idler Wheel
Connect Staff 1
72
Magnetic Plate
Rod
1 95 Washer D12*Φ17 1
73 C-clip d12 3 96 Spring Tension 1
74 Washer D6*Φ12 2 97 Nut M10*1*H8*S15 2
75 Spring Washer D6 2 98 Flywheel Shaft 1
76 Bolt M6*16*S10 2 99 Flywheel 1
77 Spring Tension 1 100 Nut M10*1*H2*S15 1
78 Nut M23*H4*S32 2 101 Belt 6PJ370 1
79 Washer Φ35*Φ22.5*3 1 102 Bolt M6*15 1
80 Two-slot Nut M23*Φ45*12 1 103 Nut M6*H5*S10 2
81 Ball Bearings 2 104 Sensor Holder 1
82 Bearing Housing 2 105 Bolt ST4.2*16*Φ7 1
83 Three-slot Nut M24*Φ45*12 1 106 Sensor Wire 1
84 Big Washer M10*1*H5*S1
7 1 107 Rear Stabilizer 1
85 Crank 1 108 Chain Cover
Connecting Plate 1
86 Round Magnet 1 109 Foot Pad 2
87 End Cap 2 110
Rear Shipping
Tube 1
88 Bolt M6*12*S10 1 A Spanner S5 1
89 Washer D6*16 1 B Spanner S13-14-15 1
90 Bearing 6001-ZZ 2 C Spanner S8 1
91 Idler 1 D Wrench S13-14 1
92 Wave Washer D12*15.5 2 E Wrench S17-17-19 1
93 Bolt M8*12*Φ10*5
*S12 1
Version 1.1
