Sunny SF-E3865 User manual

STRIDE ZONE ELLIPTICAL
SF-E3865
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the
problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 pounds (120 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot, or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use.

2
EXPLODED DIAGRAM

3
HARDWARE PACKAGE
#614PCS
#76 M8*55 4PCS
#80 M8*18 6PCS
#82 M8*45 4PCS
#84 M10*70 2PCS
#85 M6*20 4PCS
#90 ST4.5*15 6PCS
#93 Φ8*Φ21*2.0T 4PCS
#94 Φ6*Φ14*1.0T 8PCS
#95 Φ8*Φ16*1.5T 4PCS
#96 Φ8*Φ25*2.0T 2PCS
#97 Φ10*Φ19*1.5T 2PCS
#98 Φ19.5*Φ38*2.0T 2PCS
#100 Φ19*Φ23*0.2T 2PCS
#118 Φ16.2*Φ25*0.5T 2PCS
#111 M10 2PCS
#109 M6 4PCS
#110 M8 8PCS
#12 Φ8*Φ38*2.0T 2PCS
#77 Φ16*Φ28*1.2T 2PCS
#A S5 2PCS
#B S10 S14 S17 1PC
#C S13 S14 S15 1PC

4
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
31
Bottom Cable
700mml
1
2
Upright Tube
1
32
Motor
TL-005
1
3
Fixed T Handle
Bar
1
33
Sensor
100mml
1
4L
Left Upper
Swing Bar
1
34
DC Cable
700mml
1
4R
Right Upper
Swing Bar
1
35
Adapter
TZ
1
5L
Left Lower
Swing Bar
1
36
Sensor Fixture
1
5R
Right Lower
Swing Bar
1
37
Motor Wire
150mml
1
6L
Left Pedal Tube
1
38L
Left Chain Cover
1
6R
Right Pedal
Tube
1
38R
Right Chain Cover
1
7L
Left Wheel Tube
1
39
Interior Chain
Cover
1
7R
Left Wheel Tube
1
40A
Swing Bar Cover-A
2
8
Crank Tube
2
40B
Swing Bar Cover-B
2
9
Rear Stabilizer
1
41A
Crank Tube Cover-
A
4
10
Front Stabilizer
1
41B
Crank Tube Cover-
B
4
11
Joint Bracket
2
42
Upright Tube Cover
1
12
Washer
Φ8*Φ38*2.0T
2
43A
Lower Swing Bar
Cover-A
2
13
Axle Fixed
Bracket
20*3t*55mm
2
43B
Lower Swing Bar
Cover-B
2
14
Magnet Bracket
30*5t*145mml
1
44
L Side Trim Cover
1
15
Magnet Position
Bracket
30*4
1
45
PU Wheel Cover
2
16
Gliding Track
40.67*655mm
2
46
Swing Axle Cover
2
17
Axle of Flywheel
20*164
1
47
Glider Track Cover
4
18
Belt Wheel Set
Φ260mm
+Φ19.05*232.1
1
48
PU Wheel
Ø100
2
19
Hex Socket Bolt
M8x50
2
49L
Left Pedal
1
20
Pedal Tube Axle
Ø19*161
2
49R
Right Pedal
1
21
Bushing
19.5*24*12.5
1
50
Bushing
9.5*34*32.5
2
22
Bushing
8.1*17*10.2
2
51
Bushing
10*32*2.5T
4
23
Flywheel
Ø460
1
52
Bushing
16.3*38*3T
4
24
HDR Grip
32*5T*940
2
53
Bushing
18.8*38
10
25
HDR Grip
32*3T*150
2
54
End Cap Oval
Dome
40*80
4
26
Belt
PK5 1180
1
55
End Cap Oval
40*80
1
27
Console
TZ-4113PMS
1
56
End Cap
Ø32
2
28A
Heart Rate Wire
500mm
2
57
End Cap
Ø50
2
28B
Heart Rate Wire
2
58
End Cap
Ø60
1
29
HR Sensor Plate
TZ TP-009
2
59
End Cap
Φ38*Φ29
2
30
Upper Cable
900mml
1
60
End Cap
Ø44
1

5
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty
.
61
Axle Side Cover
4
92
Screw
M5*20
2
62
Plastic Washer
Φ8*Φ20*2.0T
4
93
Washer
Φ8*Φ21*2.0T
4
63
Seal Ring
Ø60
1
94
Washer
Φ6*Φ14*1.0T
12
64
Seal Ring
Oval 40*80
1
95
Washer
Φ8*Φ16*1.5T
10
65
Crank Seal Ring
2
96
Washer
Φ8*Φ25*2.0T
4
66
Wire Plug
Ø17
1
97
Washer
Φ10*Φ19*1.5T
4
67
Adjustable
Stand
M10*25
6
98
Washer
Φ19.5*Φ38*2.0
T
2
68
PU Wheel
Ø70
2
99
Washer
Φ19.5*Φ25*0.5
T
1
69
Plastic Bushing
Ø7.9*Ø12.7*23.5
2
100
Wave Washer
Φ19*Φ23*0.2T
3
70
Plastic Bushing
Ø12.8*Ø21.4*6.7
4
101
Washer
Φ20.5*Φ25*1.0
T
1
71
Bottle Holder
1
102
Curved Washer
Φ8*Φ21*2.0T
12
72
Bearing
608ZZ
4
103
Spring Washer
Ø8
10
73
Bearing
R12
2
104
Wave Washer
Φ21*Φ27*0.3T
1
74
Compression
Spring
Ø0.8*13
1
105
C Ring
Ø19
1
75
Stud Bolt
M5*60
1
106
C Ring
Ø20
2
76
Carriage Bolt
M8*55
4
107
Cone Washer
Φ8.1*Φ11*3.5
T
4
77
Washer
Φ16*Φ28*1.2T
2
108
Nylon Nut
M5
2
78
Hex Socket Bolt
M8*15
8
109
Nylon Nut
M6
4
79
Hex Socket Bolt
M8*20
8
110
Nylon Nut
M8
15
80
Hex Socket Bolt
M8*18
8
111
Nylon Nut
M10
2
81
Hex Socket Bolt
M8*54
2
112
Flange Nut
M10*10T
2
82
Hex Socket Bolt
M8*45
4
113
Nut
3/8"*26*9.0T
2
83
Hex Socket Bolt
M8*38
2
114
Nut
M10*6.0T
6
84
Hex Socket Bolt
M10*70
2
115
Screw
M5*12
4
85
Cup Head Bolt
M6*20
4
116
Self-tapping Screw
M4*25
2
86
Cup Head Bolt
M6*12
4
117
Compression Pad
570mm
2
87
Self-tapping
Screw
ST4.2*16
5
118
Wave Washer
Φ16.2*Φ25*0.5
T
2
88
Self-tapping
Screw
ST4.2*25
4
A
Allen Wrench
S5
2
89
Self-tapping
Screw
ST 4.2*10
4
B
Spanner
S10 S14 S17
1
90
Self-tapping
Screw
ST 4.5*15
6
C
Spanner
S13 S14 S15
1
91
Screw
M5*12
14
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at sup[email protected] or 1- 877 - 90SUNNY (877-907-8669).

6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at [email protected] or 1-877-
90SUNNY (877-907-8669).
STEP 1:
Note: We recommend having two people to
do the assembly.
Attach the Front Stabilizer (No. 10)to the
Main Frame (No. 1) using 2 Carriage Bolts
(No. 76), 2 Washers (No. 95), and 2 Nylon
Nuts (No. 110). Tighten and secure with
Spanner (No. C).
-#76 M8*55 2PCS
-#95 Φ 8* Φ 16*1.5T 2PCS
-#C S13 S14 S15 1PC
-#110 M8 2PCS
-#79 M8*20 2PCS
-#76 M8*55 2PCS
-#95 Φ 8* Φ 16*1.5T 2PCS
-#110 M8 2PCS
-#C S13 S14 S15 1PC
-#102 Φ 8* Φ 21*2.0T
2PCS
--#A S5 1PC
STEP 2:
Remove 2 Hex Socket Bolts (No. 79) and 2
Curved Washers (No. 102) from the Rear
Stabilizer (No. 9).
Attach the Rear Stabilizer (No. 9) to the
Main Frame (No. 1) using 2 Carriage Bolts
(No. 76), 2 Washers (No. 95), and 2 Nylon
Nuts (No. 110). Tighten and secure with
Spanner (No. C). Then, screw in 2 Hex
Socket Bolts (No. 79) and 2 Curved
Washers (No. 102) to the Rear Stabilizer
(No. 9) that were removed. Tighten and
secure with Allen Wrench (No. A).
Note: If the floor is not even, please adjust
the Adjustable Stands (No. 67) to stabilize
the elliptical.

7
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at [email protected] or 1-877-
90SUNNY (877-907-8669).
-#78 M8*15 8PCS
-#102 Φ 8* Φ 21*2.0T 8PCS
-#A S5 1PC
STEP 3:
Remove 8 Hex Socket Bolts (No. 78), 8 Spring
Washers (No. 103), and 8Curve Washers (No.
102) from the Main Frame (No. 1).
Place the Upright Tube Cover (No. 42) onto the
Upright Tube (No. 2), and then connect the Upper
Cable (No. 30) with the Bottom Cable (No. 31).
Attach the Upright Tube (No. 2) to Main Frame (No.
1) using 8 Hex Socket Bolts (No. 78), 8 Spring
Washers (No. 103), and 8 Curve Washers (No. 102)
that were removed with Allen Wrench (No. A).
Note: Please do not fully tighten the Hex Socket
Bolts (No. 78).
-#103 Ø8 8PCS
-#79 M8*20 2PCS
-#102 Φ 8* Φ 21*2.0T 2PCS
-#A S5 1PC
STEP 4:
Remove 2 Hex Socket Bolts (No. 79), 2 Spring
Washers (No. 103), and 2 Curve Washers (No.
102) from the Upright Tube (No. 2).
Insert the Heart Rate Wire (No. 28A) into the side
hole of the Upright Tube (No. 2) and go out through
the top hole of the Upright Tube (No. 2).Attach
Fixed T Handle Bar (No. 3) onto Upright Tube (No.
2) with 2 Hex Socket Bolts (No. 79), 2 Spring
Washers (No. 103), and 2 Curve Washers (No.
102) that were removed. Tighten and secure with
Allen Wrench (No. A).
Remove 4 Screws (No. 115) from the back of the
Console (No. 27).
Connect the wire of Console (No. 27) to the Upper
Cable (No. 30) and connect the Heart Rate Wire
(No. 28A) with Heart Rate Wire (No. 28B), then
inside the extra wires into the Upright Tube (No. 2).
Attach the Console (No. 27) to the Upright Tube
(No. 2) with 4 Screws (No. 115) that were removed.
Tighten and secure with Spanner (No. B).
Note: Do not clip the cables when assembling the
Console (No. 27).
-#103 Ø8 2PCS
-#B S10 S14 S17 1PC
-#115 M5*12 4PCS

8
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at [email protected] or 1-877-
90SUNNY (877-907-8669).
-#82 M8*45 4PCS
-#110 M8 4PCS
-#A S5 1PC
STEP 5:
Attach the Left Upper Swing Bar (No. 4L) to
the Left Lower Swing Bar (No. 5L) marked
L. Use 2 Hex Socket Bolts (No. 82) and 2
Nylon Nuts (No. 110) and attach with Allen
Wrench (No. A).
Note: The R/L mark on Left &Right Upper
Swing Bars (No. 4R & No. 4L) and Left &
Right Lower Swing Bars (No. 5R &No. 5L)
should always be assembled to the front
direction.
Please repeat this assembly step to the Right
side.
Note: Please do not tighten the Hex Socket
Bolts (No. 82).
-#80 M8*18 2PCS
-#93 Φ 8* Φ 21*2.0T 2PCS
-#A S5 1PC
STEP 6:
Note: Please lubricate both sides of the axles
on Upright Tube (No. 2) with Grease before
assembly.
Attach the Left &Right Swing Bars (No.
4L/R & No. 5L/R) to both sides of the Upright
Tube (No. 2) using 2 Swing Axle Covers
(No. 46), 2 Washers (No. 98), 2 Axle Side
Covers (No. 61), 2 Hex Socket Bolts (No.
80), and 2 Washers (No. 93). Tighten and
secure with Spanner (No. A).
Note: Please do not fully tighten Hex Socket
Bolts (No. 80).
-#61 2PCS
-#98 Φ 19.5* Φ 38*2.0T 2PCS

9
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at [email protected] or 1-877-
90SUNNY (877-907-8669)
-#85 M6*20 4PCS
-#109 M6 4PCS
-#A S5 1PC

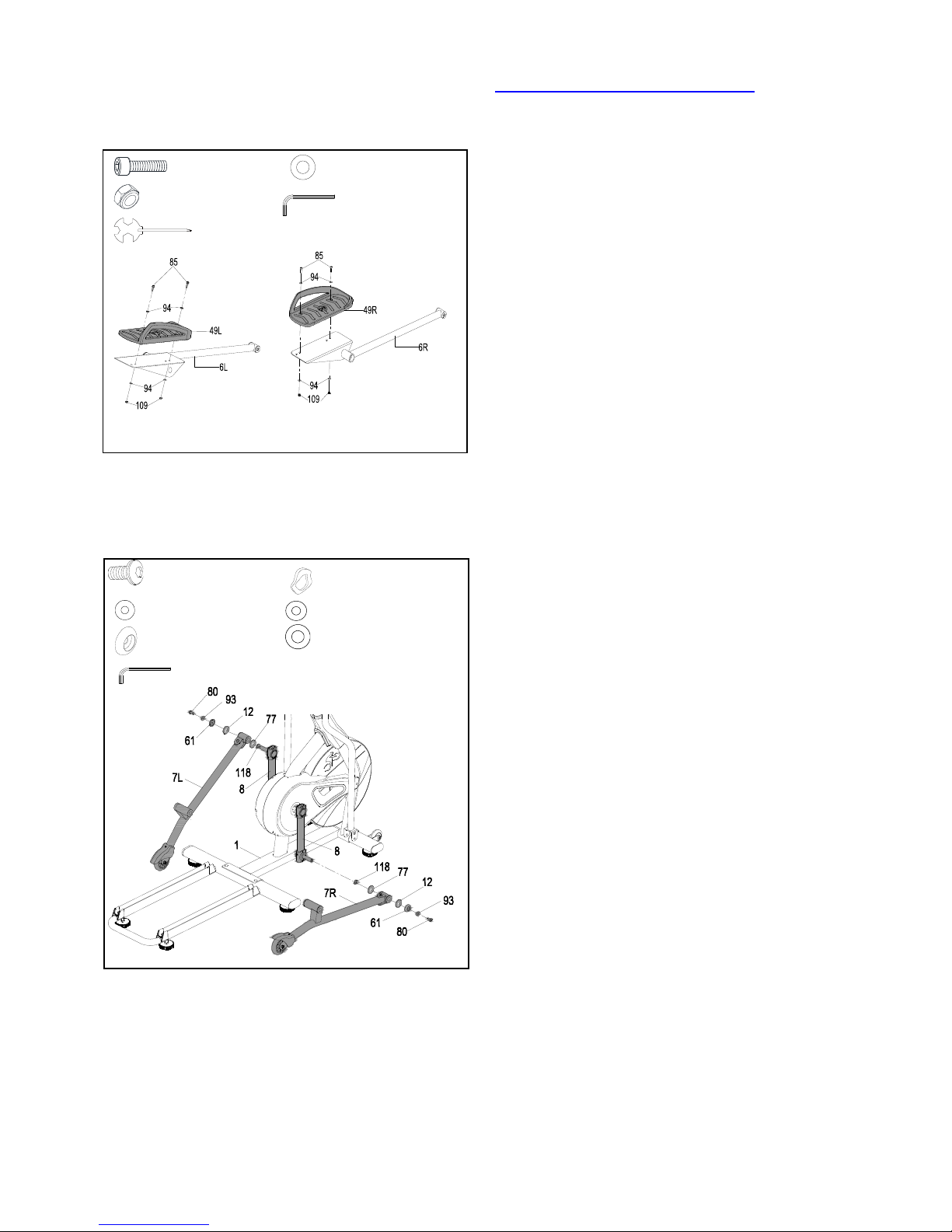

STEP 7:
Note: There are 4 holes on each of the Left &
Right Pedal Tubes (No. 6L & No. 6R). You
can adjust the training position forward or
backward.
Place the Left Pedal (No. 49L) onto Left
Pedal Tube (No. 6L) using 2 Cup Head
Bolts (No. 85), 4 Washers (No. 94), and 2
Nylon Nuts (No. 109). Tighten and secure
with Allen Wrench (No. A) and Spanner (No.
B).
Please repeat this assembly step to the right
side.
Note: Please put both pedals in the same
position during assembly.
Repeat this assembly step to the Right side.
-#94 Φ 6* Φ 14*1.0T 8PCS
-#B S10 S14 S17 1PC
-#80 M8*18 2PCS
-#93 Φ 8* Φ 21*2.0T 2PCS
-#A S5 1PC
STEP 8:
Note: Please lubricate the axles of Crank
Tubes (No. 8) with Grease before assembly.
Attach the Left Wheel Tube (No. 7L) onto the
Crank Tube (No. 8) on the left side of the
Main Frame (No. 1). Use 1 Hex Socket Bolt
(No. 80), 1 Washer (No. 93), 1 Wave Washer
(No. 118), 1 Washer (No. 12), 1 Washer (No.
77), and 1 Axle Side Cover (No. 61) and
attach with Allen Wrench (No. A).
Please repeat this assembly step to the right
side.
Note: Please do not fully tighten the Hex
Socket Bolts (No. 80).
-#61 2PCS
-#118 Φ 16.2* Φ 25*0.5T 2PCS
-#12 Φ 8* Φ 38*2.0T 2PCS
-#77 Φ 16* Φ 28*1.2T 2PCS

10
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at [email protected] or 1-877-
90SUNNY (877-907-8669)
-#80 M8*18 2PCS
-#96 Φ 8* Φ 25*2.0T 2PCS
-#A S5 2PCS
STEP 9:
Note: Please lubricate the Pedal Tube Axles
(No. 20) with Grease before assembly.
Remove 2 End Caps (No. 59) from Left &
Right Pedal Tubes (No. 6L & No. 6R).
Remember to put it back once the assembly is
completed.
Connect the Left Pedal Tube (No. 6L) to the
Left Wheel Tube (No. 7L) with Pedal Tube
Axle (No. 20), 1 Hex Socket Bolt (No. 80), 1
Washer (No. 96),and 1 Wave Washer (No.
100) using 2 Allen Wrenches (No. A).
Please repeat this assembly step to the right
side.
Note: Please do not fully tighten the Hex
Socket Bolts (No. 80).
-#100 Φ 19* Φ 23*0.2T 2PCS
-#84 M10*70 2PCS
-#111 M10 2PCS
-#A S5 1PC
STEP 10:
Connect the Left Pedal Tube (No. 6L) to Left
Lower Swing Bar (No. 5L) with 1 Hex
Socket Bolt (No. 84), 1 Washer (No. 97),
and 1 Nylon Nut (No. 111) using Allen
Wrench (No. A) and Spanner (No. B).
Please repeat this assembly step to the right
side.
Note: Please tighten up all the Screws and
Bolts of the above assembly steps now.
-#97 Φ 10* Φ 19*1.5T 2PCS
-#B S10 S14 S17 1PC

11
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at [email protected] or 1-877-
90SUNNY (877-907-8669)
STEP 11:
Attach the Lower Swing Bar Covers (No.
43A & No. 43B) onto the joints of the Left
Pedal Tube (No. 6L) and Left Lower
Swing Bar (No. 5L) using 1 Self-tapping
Screw (No. 90). Tighten and secure with
Spanner (No. B).
Please repeat this assembly step to the
right side.
-#90 ST4.5*15 2PCS
-#B S10 S14 S17 1PC
STEP 12:
Attach the Swing Bar Covers (No. 40A &
No. 40B) onto the joint of the Right Upper
Swing Bar (No. 4R) and Right Lower
Swing Bar (No. 5R) using 2 Self-tapping
Screws (No. 90). Tighten and secure with
Spanner (No. B).
Please repeat this assembly step to the left
side.
-#90 ST4.5*15 4PCS
-#B S10 S14 S17 1PC

12
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at [email protected] or 1-877-
90SUNNY (877-907-8669)
STEP 13:
Remove 2 Screws (No. 92) from the
Upright Tube (No. 2).
Attach Bottle Holder (No. 71) onto the
Upright Tube (No. 2) with 2 Screws (No.
92). Tighten and secure with Spanner (No.
B).
-#B S10 S14 S17 1PC
STEP 14:
Connect the Adapter (No. 35) with the
Main Frame (No. 1) as show in Figure.
The assembly is complete!
-#92 M5*20 2PCS

13
ADJUSTMENTS GUIDE
HOW TO MOVE THE ELLIPTICAL
The PU Wheels (No. 68) on the Front
Stabilizer (No. 10) are movable. Hold the
Rear Stabilizer (No. 9) and pull forward to lift
the rear of the elliptical off the floor. Now you
can move the elliptical.
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable
ride, you must ensure that the elliptical is
stable. If you notice that the elliptical is
unbalanced during use, you should adjust the
Adjustable Stand (No. 67) located beneath
the Front Stabilizer (No. 10) and Rear
Stabilizer (No. 9).
10

14
DISPLAY CONSOLE
KEY FUNCTIONS:
START/STOP:
1. Start & Pause workouts.
2. Start body fat measurement.
3. Holding the button for 3 seconds will reset all function values to zero.
DOWN:
Decrease value of the selected workout parameter: TIME, DISTANCE, etc. During the workout, it
will decrease the resistance load.
UP:
Increase value of the selected workout parameter: TIME, DISTANCE, etc. During the workout, it
will increase the resistance load.
ENTER:
To input a desired value or workout mode.
RECOVERY:
Press to enter into the Recovery function when the computer displays the heart rate value.
Recovery is Fitness Level 1-6 after 1 minute. F1 is the best, and F6 is the worst.
MODE:
Press to switch display from RPM to SPEED, ODO to DIST, and WATT to CALORIES during the
workout.
WORKOUT SELECTION:
After turning on the power, use the UP or DOWN button to select the desired mode. Then press
the ENTER button to begin.
There are 7 basic workout modes:
Manual, Pre- programs, Watt Program, Body Fat Program, Target Heart Rate Program, Heart
Rate Control Program, and User Program.

15
FUNCTIONS:
SPEED: Displays current training speed. Maximum speed is 99.9 mile/h.
RPM: Displays current rotations per minute.
TIME: Accumulates the workout time from 00:00 to 99:59. Users can preset the target time they
desire.
DIST: Accumulates the workout distance from 0.00 up to 999.9 miles. Users can preset the
target distance they want to reach.
ODO: Displays the total accumulated distance from 0 to 9999 miles.
CAL: Accumulates the calories burned from 0 to 9999. Users can preset the target Calories
they want to burn.
WATT: Displays current watt.
HEART RATE: Displays the current heart rate in beats per minute.
TARGET H.R.: Users can preset their Target Heart Rate.
PROGRAM: There are 24 different programs to choose for training.
LEVEL: The program has 10 columns of loading bars and 8 bars in each column. Each column
represents a 1 minute workout (without the change of time value) and each bar represents 2 levels
loading.
WORKOUT PARAMETERS:
TIME / DISTANCE / CALORIES / AGE / WATT / TARGET HEART RATE
Setting Workout Parameters
After selecting the desired workout mode: Manual, Pre-set Programs, Watt Program, Body Fat,
Target Heart Rate, Heart Rate Control, and User Program. You may pre-set several workout
parameters for desired results.
Note: Some parameters are not adjustable in certain programs.
Time and Distance can not be set up at the same time.
Once a program has been selected, pressing ENTER, will make the “Time” parameter flash.
Using the UP or DOWN buttons you may select the desired time value. Press the ENTER button
to input values. The flashing prompt will move to the next parameter, continue using the UP or
DOWN button. Press START/STOP button to begin the workout.

16
More About Workout Parameters
Field
Setting Range
Default
Value
Increment/Decr
ement
Description
Time
0:00~ 99:00
00:00
± 1:00
1. When display is 0:00, Time will count up.
2. When time is 1:00-99:00, It will count
down to 0.
Distance
0.00~999.0
0.00
±1.0
1. When display is 0.0, Distance will count
up.
2. When Distance is 1.0~999.0, it will count
down to 0.
Calories
0~9995
0
±5
1. When display is 0, Calories will count up.
2. When Calories is 5~9995, it will count
down to 0.
Watt
45~250
100
±5
User can set watt value only in the Watt
control program.
Age
10~99
30
±1
Target H.R. will be based on Age. When
Heart Rate exceeds Target H. R., the Heart
Rate number will flash.
Pulse
60~220
90
±1
Setting Parameters for Target heart rate.
PROGRAM OPERATION:
Manual (P1)
Program profile
Setting Parameters for Manual
Select “Manual” using the UP or DOWN button, then press ENTER. The first parameter “TIME”
will flash so the value can be adjusted using the UP or DOWN button. Press the ENTER button to
save the value and move tothe next parameter to be adjusted.
Note: If the user sets up the target time to workout, then the next parameter of Distance
cannot be adjusted.
Continue through all desired parameters and press the START/STOP button to begin the workout.
Note: Once the workout parameter counts down to zero, it will beep and stop
the workout automatically. Press the START button to continue the workout to reach the
unfinished workout parameter.

17
Pre-programs (P2~P13)
Program profile
There are 12 program profiles ready for use. All program profiles have 16 levels of
resistance.
Setting Parameters for Pre-programs
Select one of the pre-programs using the UP or DOWN button, then press ENTER. The first
parameter “TIME” will flash so the value can be adjusted using the UP or DOWN button. Press the
ENTER button to save the values and move to next parameter to be adjusted. Continue through
all desired parameters, pressing the START/STOP button to begin the workout.

18
Workout in any pre-program
The user can exercise with different levels that load in different intervals. The user may exercise in
any level of resistance by adjusting the UP or DOWN button during the workout.
Note: If the user sets up the target time to workout, then the next parameter of Distance
cannot be adjusted. Once the workout parameter counts down to zero, it will beep
and stop the workout automatically. Press the START to continue the unfinished
parameter.
Watt control program (P14)
Program profile
Setting Parameters for the Watt control program
Select “Watt control program” using the UP or DOWN button, then press ENTER. The first
parameter “TIME” will flash so the value can be adjusted using the UP or DOWN button. Press
ENTER to save the value and move to next parameter to be adjusted.
Note: If user sets up the target time to workout, then the next parameter of Distance cannot
be adjusted.
Continue through all desired parameters, pressing the START/STOP button to begin the workout.
Note: Once the workout parameters count down to zero, it will beep and stop the workout
automatically. Press the START button to continue the workout to reach the unfinished
workout parameter.
Computer will adjust the resistance load automatically depending on the speed to maintain
the constant watt value. The user can use the up or down button to adjust the watt value
during the workout.
BODY FAT PROGRAM (P15)
Program profile
Setting Data for Body Fat
Select “BODY FAT Program” using the UP or DOWN button, then press ENTER. “MALE ” will
flash so Gender can be adjusted using the UP or DOWN button. Press the ENTER button to save
gender and move to the next data.
“5’8 (inches)” of Height will flash so Height can be adjusted using the UP or DOWN button. Press
ENTER to save the value and move to the next data.
“165 (lbs)” of Weight will flash so Weight can be adjusted using the UP or DOWN button. Press
ENTER to save the value and move to next data.
“30” of Age will flash so Age can be adjusted using the UP or DOWN button. Press ENTER to
save the value.
Press START/STOP button to start the measurement. Please also remember to grasp the hand
pulse grips. After 15 seconds the display will show out Body Fat %, BMR, BMI, & BODY TYPE.

19
Body Types
There are 9 body types divided according to the FAT % calculated. Type 1 is from 5% to 9%. Type
2 is from 10% to 14%. Type 3 is from 15% to 19%. Type 4 is from 20% to 24%. Type 5 is from
25% to 29%. Type 6 is from 30% to 34%. Type 7 is from 35% to 39%. Type 8 is from 40% to 44%.
Type 9 is from 45% to 50%.
BMR: Basal Metabolism Ratio
BMI: Body Mass Index
Press START/STOP button to return to the main Display.
TARGET HEART RATE Program (P16)
Program profile
Setting Parameters for TARGET H.R.
Select “TARGET H.R.”using the UP or DOWN button, then press ENTER. The first parameter
“TIME” will flash so the value can be adjusted using the UP or DOWN button. Press the ENTER
button to save the value and move to next parameter to be adjusted.
Note: If the user sets up the target time to workout, then the next parameter of Distance
cannot be adjusted.
Continue through all desired parameters, pressing the START/STOP button to start workout.
Note: If Pulse is above the set TARGET H. R., the Pulse value will flash to remind the user.
HEART RATE CONTROL Program (P17-P20)
Program profile
There are 4 selections for target pulse:
HRC-55% TARGET H.R= 55% of (220-AGE)
HRC - 65% TARGET H.R= 65% of (220-AGE)
HRC - 75% TARGET H.R= 75% of (220-AGE)
HRC - 85% TARGET H.R= 85% of (220-AGE)
