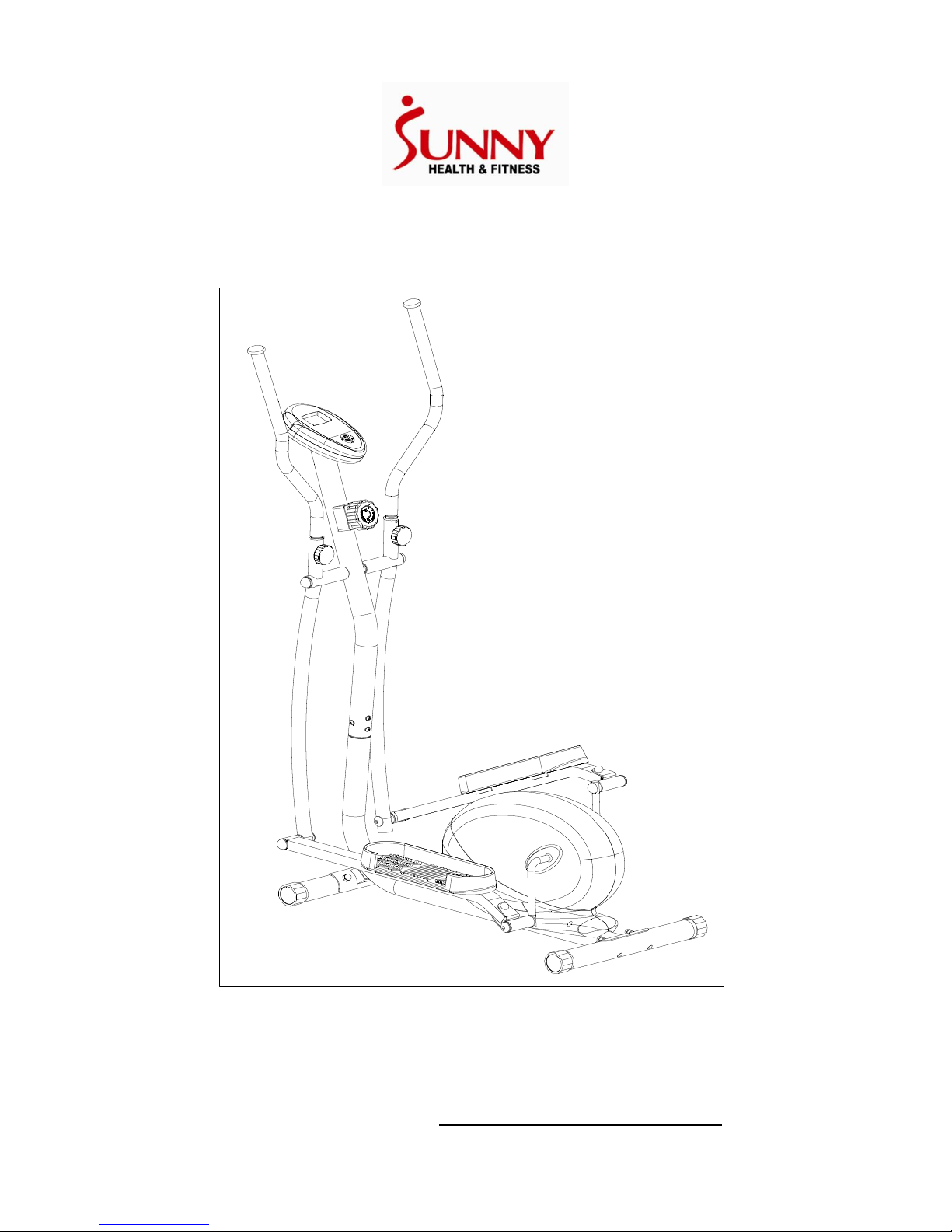

Sunny P8300 User manual

Pink Magnetic Elliptical Bike
Model No. P8300
IMPORTANT!
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE.
For Customer Service, please contact: s[email protected]

IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using
the equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk,
or prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking medication that affects your heart rate, blood pressure or cholesterol
level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain, tightness
in your chest, irregular heartbeat, extreme shortness of breath, lightheadedness,
dizziness or feelings of nausea. If you do experience any of these conditions, you should
consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat, level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet of free space all
around it.
5. Ensure that all the nuts and bolts are securely tightened before using the equipment.
The safety of the equipment can only be maintained if it is regularly examined for
damage and/or ware the tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, stop using the equipment immediately and don’t use the
equipment until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. The maximum weight capacity of this unit is 220 pounds.
9. The equipment is not suitable for therapeutic use.
10.You must take care of yourself when lifting and moving the equipment so as not to injure
your back. Always use proper lifting technique and seek assistance if necessary.
11.This equipment is designed for indoor and home use only, it is not intended for
commercial use.

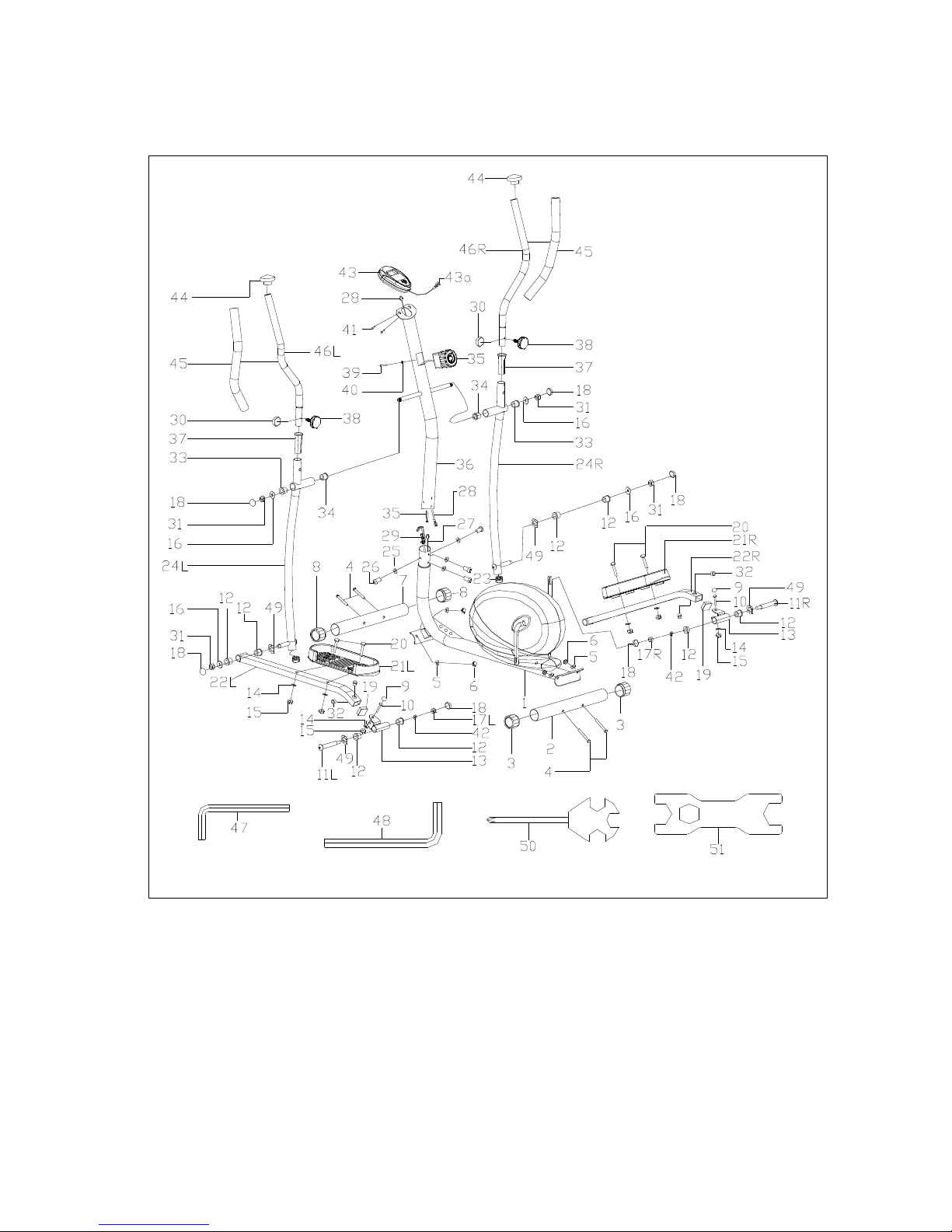

EXPLODED VIEW

PARTS LIST
No.
Description
Qty.
No.
Description
Qty.
1
Main frame
1
27
Sensor wire
1
2
Rear stabilizer Φ50
1
28
Trunk wire
1
3
Adjustable end cap Φ50
2
29
Tension wire
1
4
Carriage bolt M10*60
4
30
Ball cap S13
2
5
Arc washer d10*Φ25*2*R30
4
31
Nylon nut R B0.5
4
6
Nut M10
4
32
Alloy bushing Φ14*Φ10.1*10
4
7
Front stabilizer Φ50
1
33
Bushing Φ28.5*Φ15.5*23
2
8
End cap Φ50
2
34
Bushing with chamfer
Φ28.5*Φ15.5*23
2
9
Ball cap S16
2
35
8-level tension controller
1
10
Bolt M10*50
2
36
Handlebar post
1
11L/R
Hinge bolt L/R
2
37
Bushing Φ32*1.5
2
12
Alloy bushing Φ24*Φ16.1*20
8
38
Knob M8*36
2
13
Link connector combination
2
39
Screw M5*20
1
14
Washer d10*Φ20*2
6
40
Arc washer d5*Φ20*1.5
1
15
Nylon nut M10
6
41
Screw M5*10
2
16
Washer d13*Φ26*2
4
42
Spring washer d13
2
17L/R
Nylon nut L/R B0.5
2
43
Computer
1
18
Ball cap S18
6
43a
Computer wire
1
19
End cap J40*25*1.5
2
44
End cap Φ28*1.5
2
20
Bolt M10*45
4
45
Foam grip
2
21L/R
Pedal L/R
2
46L/R
Handlebar L/R
2
22L/R
Connecting rod L/R
2
47
Allen wrench S6
1
23
End cap Φ32*1.5
2
48
Allen wrench S8
1
24L/R
Swing rod L/R
2
49
Wave washer d17*Φ25* 0.3
4
25
Arc washer d8*Φ20*2*R30
4
50
Spanner S13-14-15
1
26
Screw M8*16
4
51
Spanner S17-19
1
NOTE: Most of the listed assembly hardware has been packaged separately, but some
hardware items have been preinstalled on the machine. In these instances, simply remove and
reinstall the hardware as assembly is required.

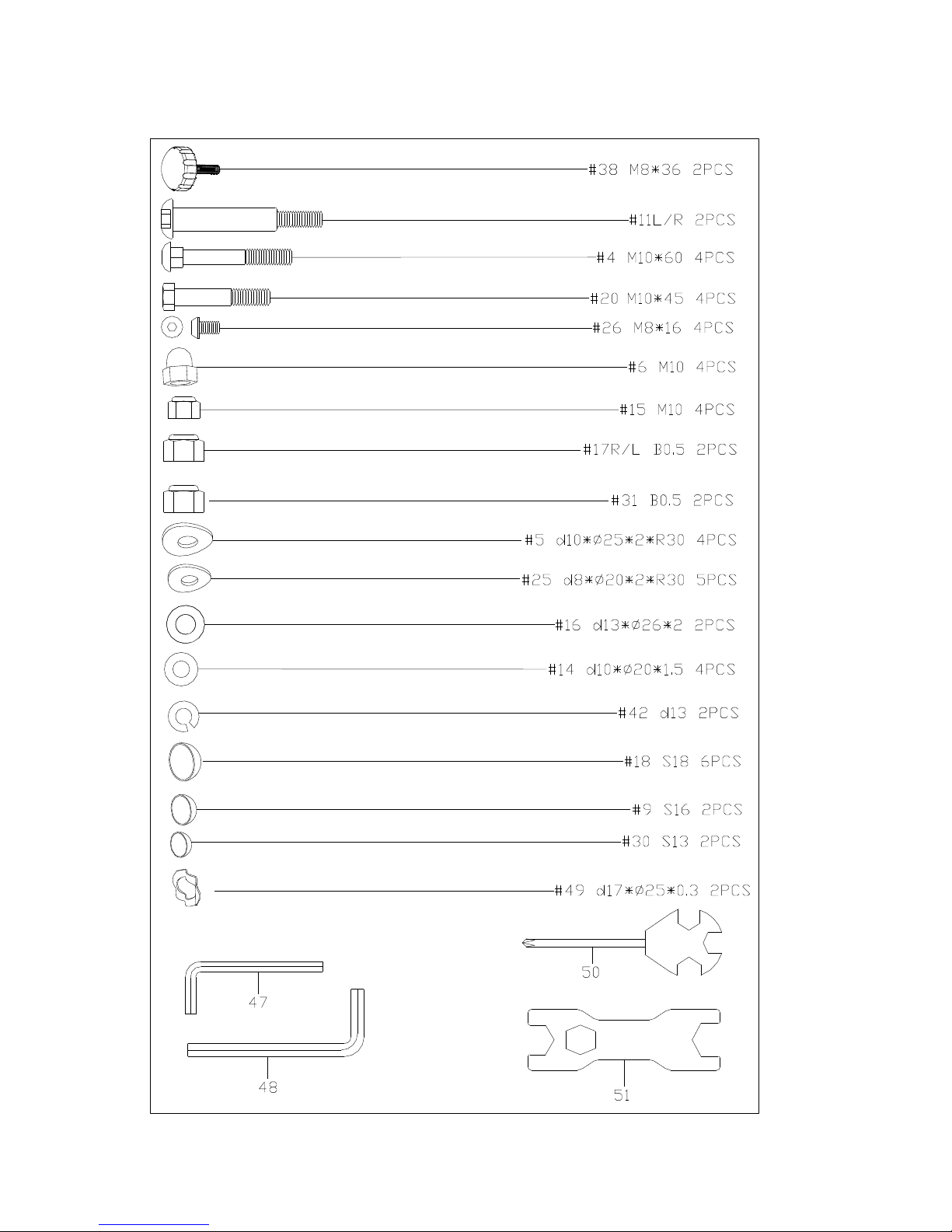

HARDWARE PACKAGE

ASSEMBLY INSTRUCTIONS
Step 1:
Attach Front Stabilizer (7) and Rear Stabilizer (2) to Main Frame (1) and tighten with 4 sets
Carriage Bolts (4), Arc Washers (5) and Nuts (6).

Step 2:
A. Connect Trunk Wire (28) to Sensor Wire (27). Then connect 8-Level Tension Controller
(35) with Tension Wire (29).
CAUTION: Please make sure the 8-Level Tension Controller (35) is at the lowest resistance
level (level 1, all the way to the left) before you connect the Tension Control cable.
B. Insert Handlebar Post (36) to Main Frame (1), and tighten with 4 sets Screws (26) and
Arc washers (25).

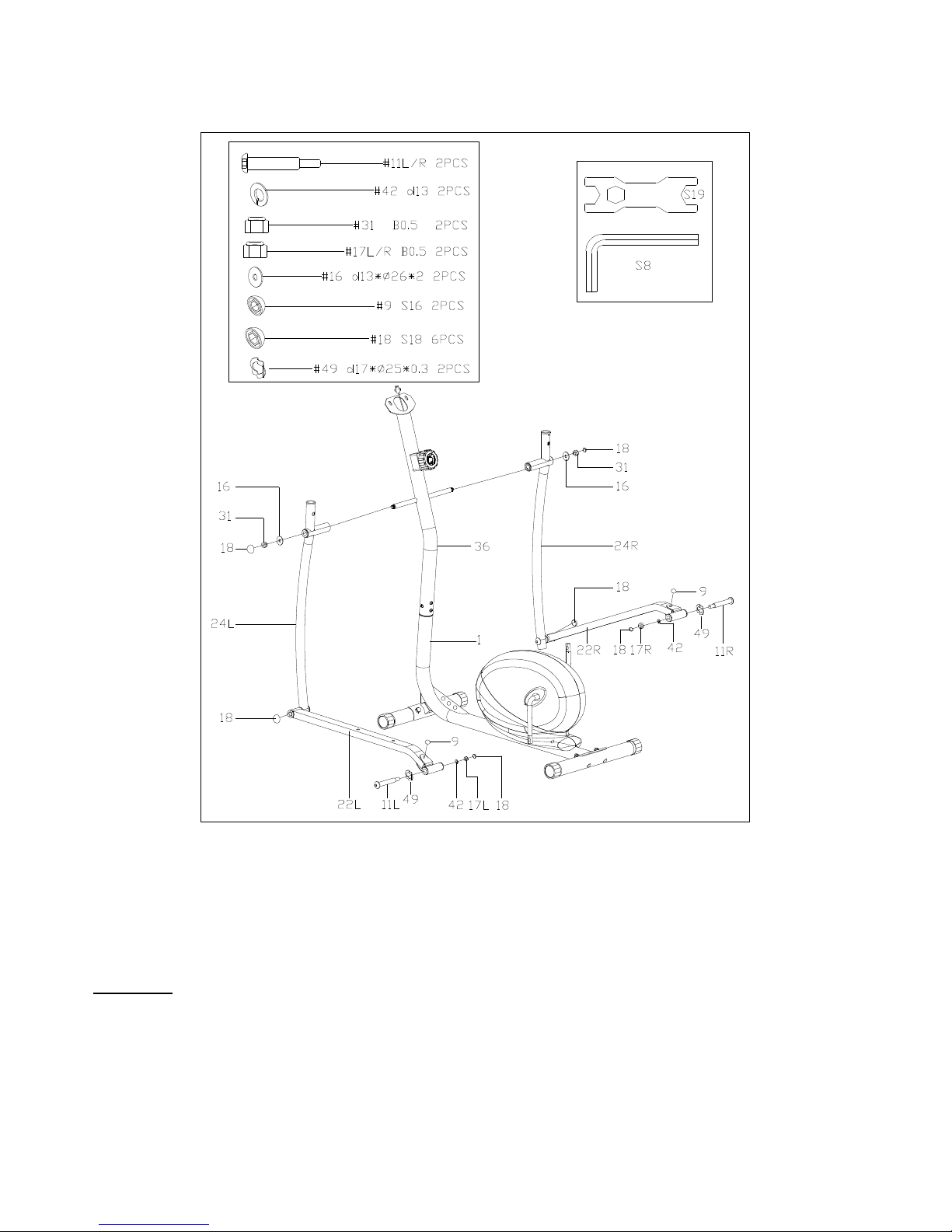

Step 3:
A. Lock Swing Rod (24L/R) to Handlebar Post (36) with Nuts (31), and Washers (16), then
attach Ball Caps (18).
B. Lock Connecting Rod (22L/R) to Main Frame (1) with Hinge Bolts (11L/R), Wave Washers
(49), Spring Washers (42), and Nuts (17L/R), then cover with Ball Caps (18) and Ball Caps (9).
CAUTION: Part 11 is labeled L for LEFT and R for RIGHT. Please make sure you have the correct
bolt before installing. IMPORTANT: Please make sure to turn 11L counter clockwise and 11R
clockwise.
★Failure to follow procedures may result in permanent damage to your machine.
(If you are having trouble with assembly of Hinge Bolt (11L/R), please see the next page for
alternate assembly method.)

ALTERNATE INSTALLATION METHOD:
IMPORTANT:
Disconnect the Link Connector
Combination (13L/R) from the
Connecting Rod (22L/R).
Insert the Hinge Bolt (11L/R) through the
Wave Washer (49), then through the hole
of the Link Connector Combination
(13L/R), then screw the Hinge bolt into
the crank arm. *Remember when
assembling the left side, you must screw
counter-clockwise to tighten*
Connect the Washer (42) and Nylon Nut
(17L/R) and attach the Ball Cap (18). You
can now reattach the Link Connector
Combination (13L/R) to the Connecting
Rod (22L/R).
Step 1
Step 2
The Left and Right Hinge Bolt (11L/R)
must fully penetrate the Link Connector
Combination (13L/R) and crank. This will
ensure the stability and durability of your
Elliptical Trainer.
In order to install hinge bolt properly, keep
it perfectly straight as the bolt goes
through the pedal arms and the
crankshaft. If the hinge bolt is connected
to the crankshaft at an angle, damage to
both the hinge and the crankshaft may
occur.

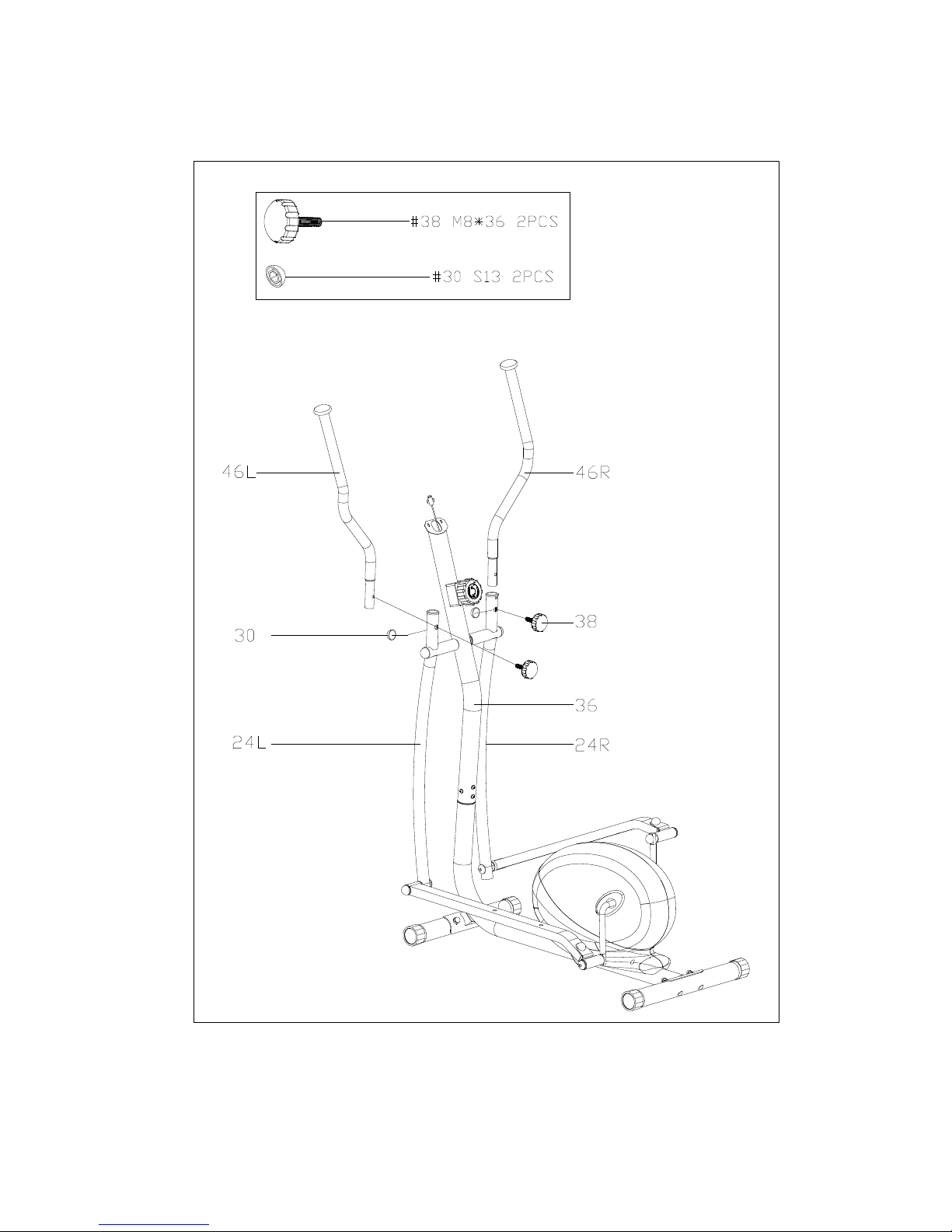

Step 4：
Insert Handlebar (46 L/R) into Swing Rod (24L/R) and tighten with Knobs (38), then cover with
Ball Caps (30).

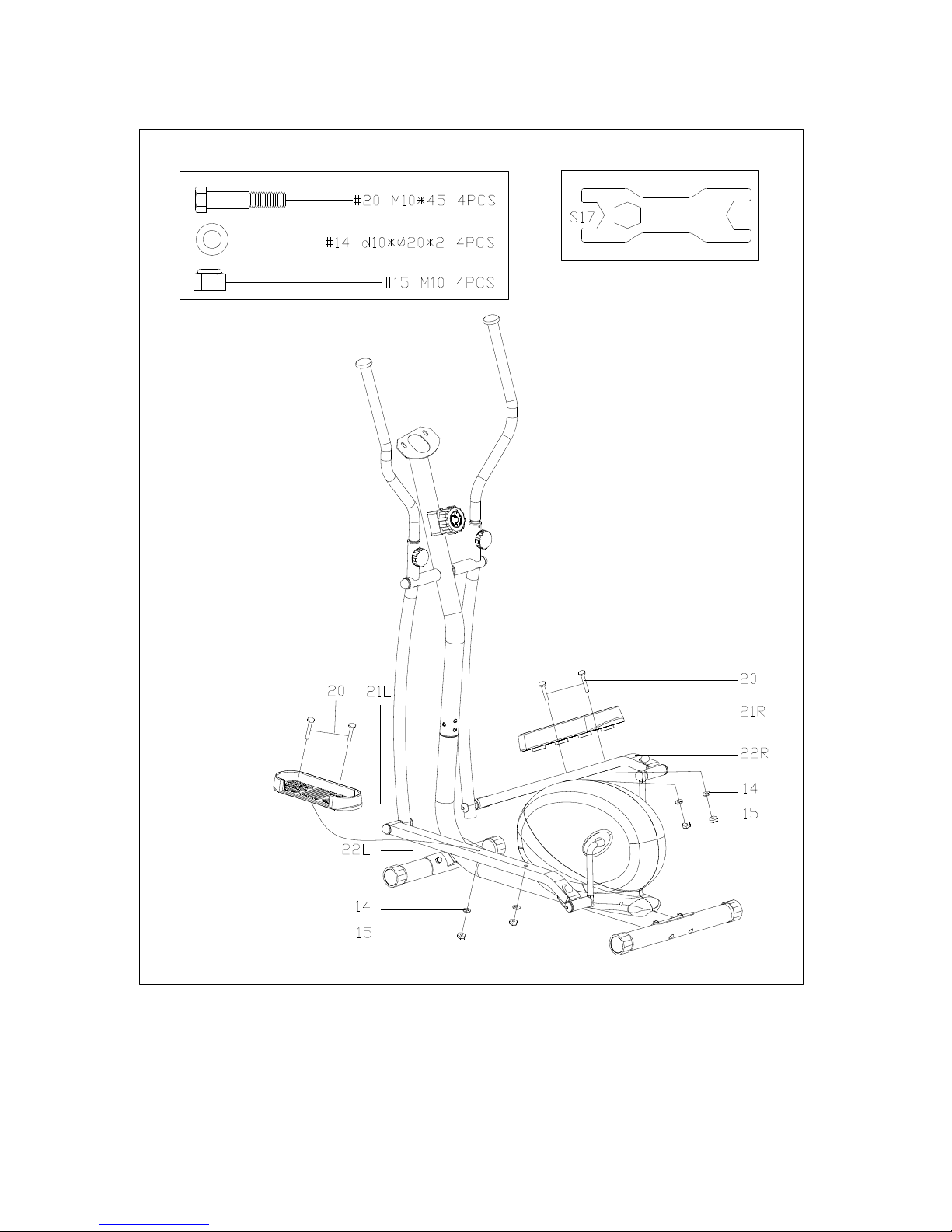

Step 5：
Attach Pedal (21L/R) to Connecting Rod (22L/R) and tighten with Bolts (20) and Washers (14)
and Nuts (15).

Step 6：
Connect Trunk Wire (28) to Computer Wire (43a).
Fix Computer (43) to computer holder on the top of Handlebar Post (36) with
Screws (41). Assembly finished!

EXERCISE COMPUTER INSTRUCTION MANUAL
FUNCTIONAL BUTTONS:
MODE –Press to select functions.
–Press and hold the MODE button for 3 seconds to reset time, distance and calories.
SET（If Available）–Press to set values of time, pulse, distance and calories when not in scan mode.
A. Press the MODE button to cycle through functions: time, distance and calories to select desired function.
B. Use the SET button to set a value for time, distance or calories. The value of a function will be set on a countdown.
C. Press the MODE button once more, to save the function value you’ve created.
RESET (If Available) –Press to reset time, pulse, distance and calories to zero when not in scan mode.
FUNCTIONS:
1. SCAN: Press MODE button until “▼” appears at SCAN position (or until “SCAN” appears), the computer will rotate
through all 5 functions: Time, Speed, Distance, Calories and Total Distance. Each display will be held for 6 seconds.
2. TIME: Counts the total time of the exercise from start to finish.
3. SPEED: Displays the current speed.
4. DISTANCE (DIST): Counts the distance of an exercise from start to finish.
5. CALORIES (CAL): Counts the amount of total calories burned during an exercise from start to finish.
6. TOTAL DISTANCE (ODO): Counts the total distance after installing the batteries.
7. AUTO ON/OFF & AUTO START/STOP: If the wheel is put into motion, or any button is pressed the computer will
become active, and shall remain active while either of these two things continue to be done, however without any signal
for 8 minutes, the power (computer), will turn off automatically.
8. PULSE RATE (If Available)
Press MODE button until “▼” appears at PULSE position, (or until “ ” appears). In order properly measure your pulse
rate, you must place both your palms on the contact pads located on the handlebar next to the seat, once you have done
this the computer will show your current heart beat rate in beats per minute (BPM) on the LCD after 3~4 seconds.
Remark: During the process of “pulse measurement”, as a result of the contact jamming, the measurement value may be
higher than virtual pulse rate during the first 2~3 seconds, after which it will return to normal level. To ensure testing
accuracy, it is suggested that user test pulse during stop/pause exercise to avoid any possible influence. The
measurement value cannot be regarded as the basis of medical treatment.
9. ALARM
The functions of time, distance and calorie can be set to countdown, if any of the above value goes to zero, the computer
will alarm for 15 seconds.
Press MODE to select the function, then press SET to adjust the value.
Note: ●The computer containing only the “MODE” button does not have ALARM function.
●The computer has been programmed with Imperial system.
SPECIFICATIONS
FUNCTION
Auto Scan
Every 6 seconds
Running Time
00:00 ~ 99:59(Minute: Second)
Current Speed
The max pick-up signal is 999.9KM/H or MILE/H (or 9999RPM)
Trip Distance
0.0 ~ 999.9 KM or MILE
Calories
0 ~ 9999 Kcal
Total Distance
0 ~ 9999 KM or MILE
Pulse Rate
40-240BPM
Battery Type
2 pcs of SIZE- AAA
Operating Temperature
0℃~ +40℃(32℉~ 104℉)
Storage Temperature
-10℃~ +60℃(14℉~ 140℉)

BATTERY REPLACEMENT
The batteries are located on the back of the computer. To replace the batteries, open the battery cover. Remove the
batteries. Replace with new batteries. Make sure the (-) end of the battery goes to the spring end in the battery
compartment. Put the cover back.
When changing batteries, always change both of them with new batteries. Do not mix old and new batteries.
BATTERY DISPOSAL
Dispose of batteries according to the laws and regulations of your local region. Some batteries may be recycled.
When disposing or recycling, do not mix battery types.
