Sunny SF-E320048 User manual

ELITE INTERACTIVE SERIES
EXERCISE ELLIPTICAL
SF-E320048
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us,PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [e-mail] or 1-877-90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thankyou forchoosing ourproduct. To ensure yoursafetyand health, please usethis equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used
properly.It isyourresponsibilitytoensurethatallusersof theequipmentare informedof allwarnings
and precautions.
1. Before starting any exercise program, you should consult your physician to determine if youhave
any medical or physical conditions that could put your health and safety at risk or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.If you
do experience any of these conditions, you should consult your physician before continuing with
your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while usingthe equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 275 pounds (125 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial
use.

2
PRE-ASSEMBLY CHECK LIST

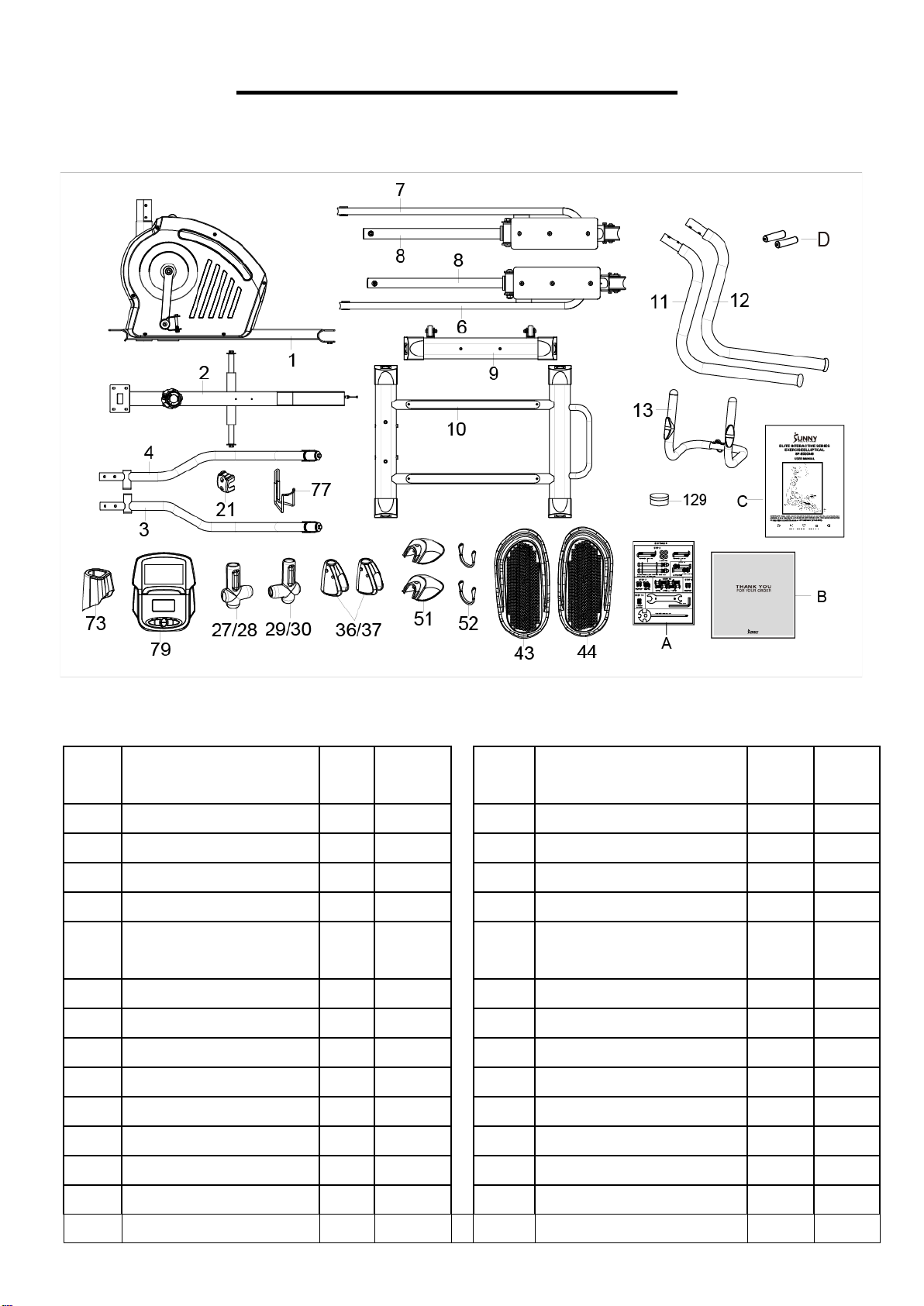

Before you start to assemble, please make sure all parts are included
No. Description Spe
c.
Qty. No. Description Spec. Qty.
1 Main Frame 1 29/30 Right Handlebar Cover-A/B 1SETS
2 Front Post 1 36/37 Left/Right Foot Bar Cover 1SETS
3 Left Swing Tube 1 43 Left Pedal 1
4 Right Swing Tube 1 44 Right Pedal 1
6/8 Left Foot Tube/Foot
Tube Connect Patch 1SETS 7/8 Right Foot Tube/Foot Tube Connect Patch 1SETS
51 Roller Cover 2 52 Stopper 2
9 Front Stabilizer 1 73 Decorative Cover 1
10 Rear Main Frame 1 77 Bottle Holder 1
11 Left Handlebar 1 79 Computer 1
12 Right Handlebar 1 129 PTFE Lubricant 1
13 Middle Handlebar 1 A Hardware Package 1
21 Clamp Cover 1 B Thank You Card 1
27/28 Left Handlebar Cover-A/B 1SETS C Manual 1
D AA battery 2

3

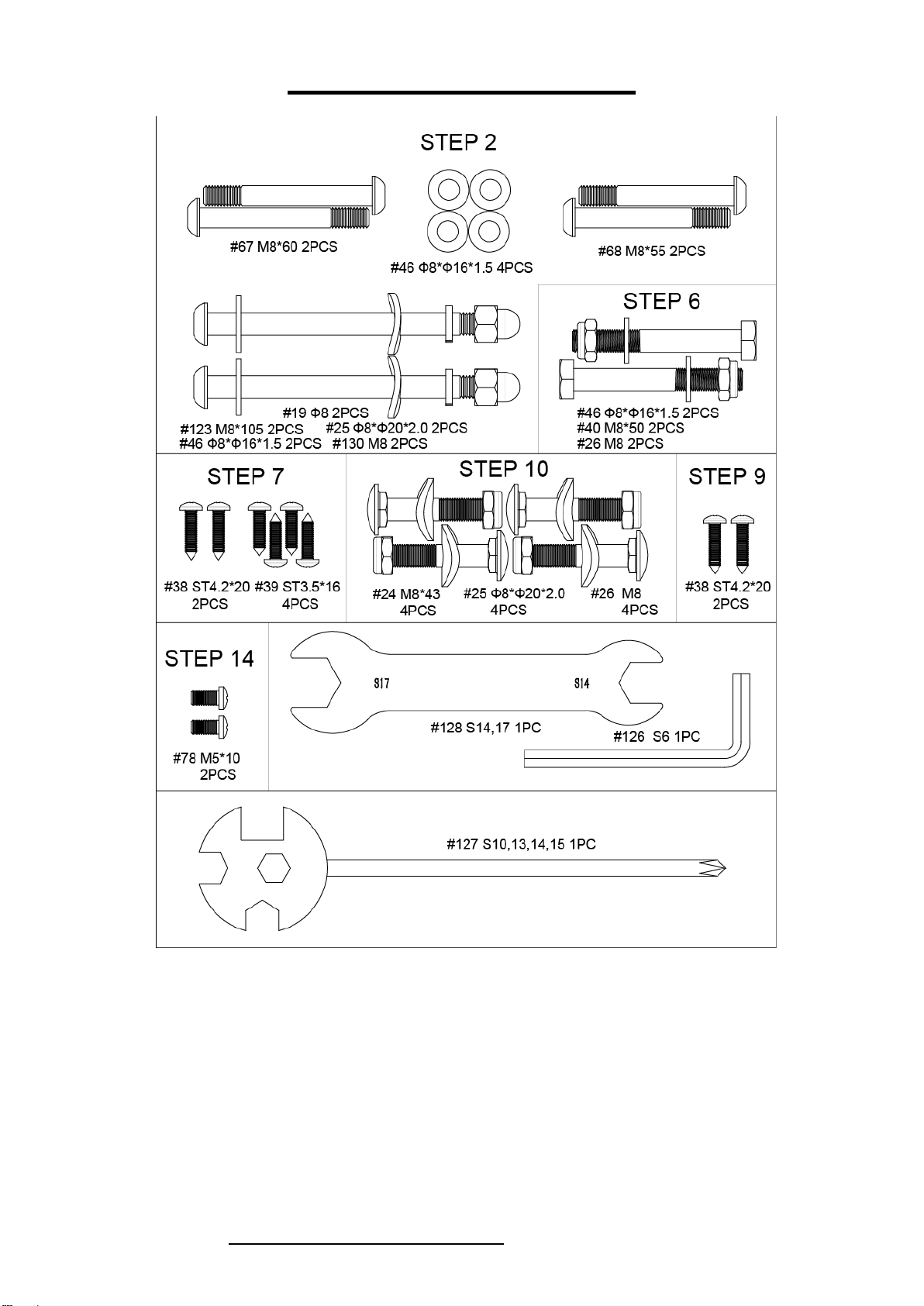

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

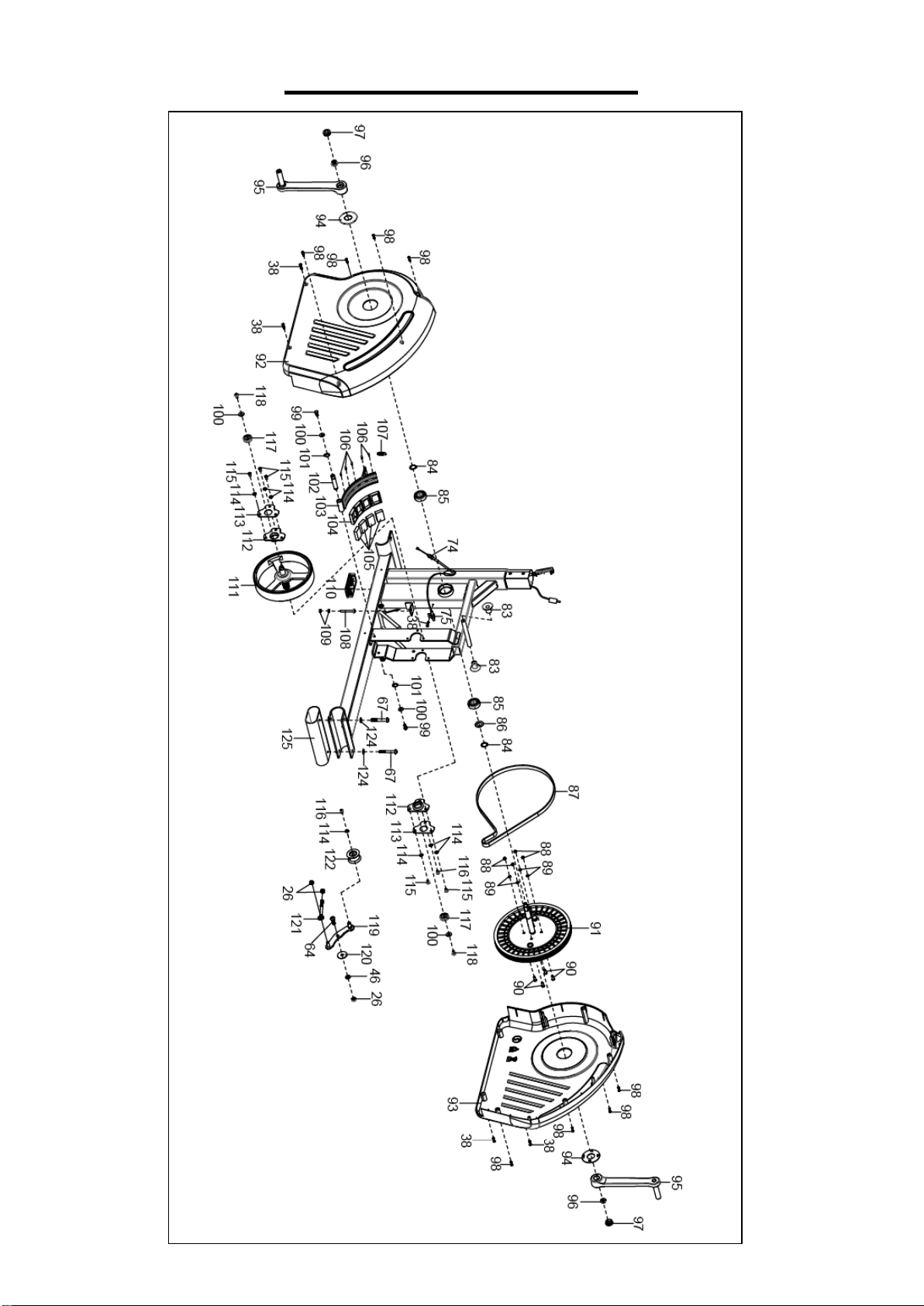

The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [e-mail] or 1-877-90SUNNY (877-907-8669).

4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
STEP 1:
Unscrew 2 Bolts (No. 67)from Main
Frame (No. 1) with Allen Wrench (No.
126). Remove 2 Plastic Washers (No.
124) and 1 Shipping Tube (No. 125)from
Main Frame (No. 1).
You may save theseparts 2 Bolts (No. 67),
Plastic Washers (No. 124),Shipping
Tube (No. 125)in case you would like to
repackage and transport this equipment in
the future.
STEP 2:
Attach the Front Stabilizer (No. 9) to the
Main Frame (No. 1) with 2 Bolts (No. 68)
and 2 Washers (No. 46). Tighten and
secure with Allen Wrench (No. 126).
Attach the Rear Main Frame (No. 10)to
the Main Frame (No. 1) with 2 Bolts (No.
67), 2 Bolts (No. 123), 2 Spring
Washers (No. 19), 2 Big Arc Washers
(No. 25) 2Nuts (No. 130), and 4
Washers (No. 46). Tighten and secure
with Allen Wrench (No. 126) and
Spanner (No. 127).

5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).

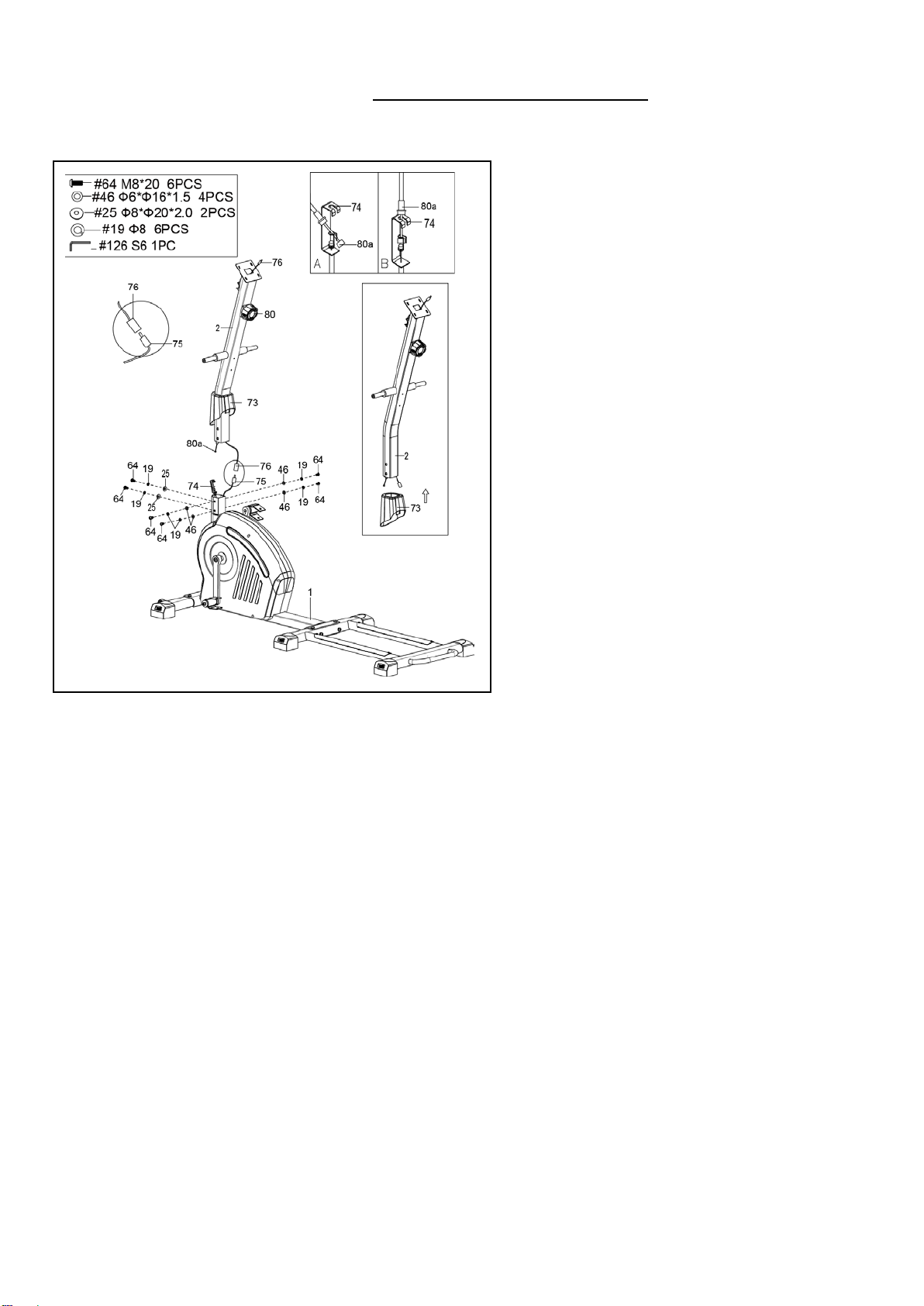

STEP 3:
Remove 6 Bolts (No. 64), 4 Washers (No.
46)，2Big Arc Washers (No. 25) and 6
Spring Washers (No. 19) from the Main
Frame (No. 1) with Allen Wrench (No.
126).
Attach the Decorative Cover (No. 73) into
the Front Post (No. 2)
CAUTION: Please make sure the Tension
Control Knob (No. 80)is at the lowest
resistance level (level 1, all the way to the
left) before you connect any wires together.
Attach the Tension Control Wire (No. 80a)
into themetal bracket of Tension Wire (No.
74) as shown in drawing A.Then, pull
Tension Control Wire (No. 80a) upward
and insert it into the slot of metal bracket of
Tension Wire (No. 74)
as shown in
drawing B.Make sure the metal fitting on
Tension Control Wire (No. 80a) is secured
in the metal bracket.
Connect the Extension Sensor Wire (No.
76)with Sensor Wire (No. 75). Insert the
connecting wires into Front Post (No. 2).
Attach the Front Post (No. 2) to the Main
Frame (No. 1) with 6 Bolts (No. 64), 4
Washers (No. 46)，2Big Arc Washers
(No. 25) and 6 Spring Washers (No. 19)
that were removed. Tighten and secure with
Allen Wrench (No. 126).
Lower the Decorative Cover (No. 73)to fit
in the Main Frame (No. 1).
NOTE: Be careful not to pinch any wires
when attaching Front Post (No. 2) to Main
Frame (No. 1).

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
STEP 4:
Remove 2 Bolts (No. 31), 2 Spring
Washers (No. 19), 2 Big Washers (No.
32), and 2 Wave Washers (No. 34)from the
Front Post (No. 2) with Spanner (No. 128).

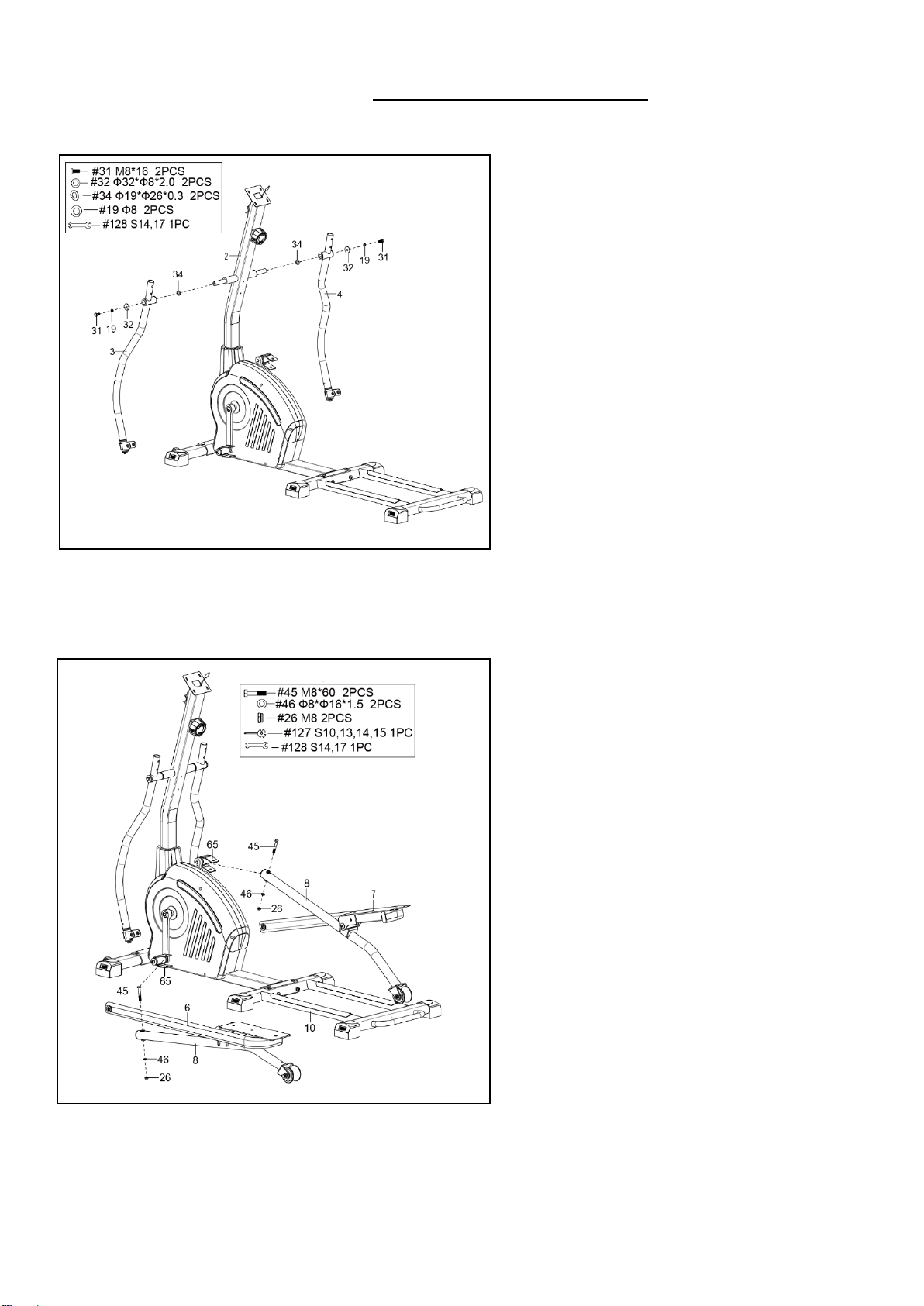

Attach the Left & Right Swing Tube (No. 3
&No. 4) onto the Front Post (No. 2) with 2
Bolts (No. 31), 2 Spring Washers (No. 19),
2 Big Washers (No. 32), and 2 Wave
Washers (No. 34)
that were removed.
Tightenand secure with Spanner (No. 128).
STEP 5:
Remove 2 Bolts (No. 45), 2 Washers (No.
46), and 2 Nuts (No. 26) from the 2 U
Brackets (No. 65).
Attach the 2 Foot Tube Connect Patches
(No. 8) onto the 2 U Brackets (No. 65) with
2 Bolts (No. 45), 2 Washers (No. 46), and
2 Nuts (No. 26) that were removed. Tighten
and secure with Spanners (No. 127 &No.
128).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
STEP 6:
Attach the Left Foot Bar (No. 6) to the Left
Swing Tube (No. 3) with 1 Bolt (No. 40), 1
Washer (No. 46)and 1Nut (No. 26).
Tightenand secure with Spanners (No. 127
&No. 128).
Attach the Right Foot Bar (No. 7) to the
Right Swing Tube (No. 4) with 1 Bolt (No.
40), 1 Washer (No. 46)and 1Nut (No. 26).
Tightenand secure with Spanners (No. 127
&No. 128).
STEP 7:
Attach the Left Foot Bar Covers (No. 36)
and Right Foot Bar Covers (No. 37) to the
Left Swing Tube (No. 3) and Right Swing
Tube (No. 4) with 2 Screws (No. 38)and 4
Screws (No. 39), Tighten and secure with
Spanner (No. 127).

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
STEP 9:
Attach 2 Roller Covers (No. 51)to 2 Foot
Tube Connect Patches (No. 8) using 2
Screws (No. 38). Tighten and secure with
Spanner (No. 127).
Remove 6 Bolts (No. 131) from the Left &
Right Foot Bars (No. 6 & 7) with Allen
Wrench (No. 126).
Attach the Left & Right Pedals (No. 43 &
No. 44) onto the Left & Right Foot Bars
(No. 6 & 7) with 6 Bolts (No. 131) that
were removed.Tighten and secure with
Allen Wrench (No. 126)
STEP 8:
Remove 8 Screws (No. 53)from the ends
of 2 Foot Tube Connect Patches (No. 8)
with Spanner (No. 127).
Hoop 2 Stoppers (No. 52)under and
around the rods of the Rear Main Frame
(No. 10). Then re-attach 2 Stoppers (No.
52) to the 2 Tube Connect Patches (No.
8) with 8 Screws (No. 53)
that were
removed. Tighten and secure with Spanner
(No. 127).
Note: Make sure that Tube Connect Patch
(No. 8) can slide on the Rear Main Frame
(No. 10) smoothly and securely.

9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
STEP 10:
Attach the Left Handlebar (No. 11) onto the
Left Swing Tube (No. 3) with 2 Bolts (No.
24), 2 Big Arc Washers (No. 25), and 2
Nuts (No. 26)
. Tighten and secure with
Spanner (No. 127).
Attach the Right Handlebar (No. 12) onto
the Right Swing Tube (No. 4) with 2 Bolts
(No. 24), 2 Big Arc Washers (No. 25), and
2 Nuts (No. 26). Tighten and secure with
Spanner (No. 127).
STEP 11:
Attach the Left Handlebar Cover-A (No.
27) and Left Handlebar Cover-B (No. 28)
to the Left Swing Tube (No. 3) by hand.
Attach the Right Handlebar Cover-A (No.
29) and Right Handlebar Cover-B (No. 30)
to the Right Swing Tube (No. 4) by hand.
STEP 12:
Remove 2 Bolts (No. 20)and 2 Spring
Washers (No. 19) from the Front Post (No.
2) with Allen Wrench (No. 126).
Attach the Middle Handlebar (No. 13) to
the Front Post (No. 2)with 2 Bolts (No. 20)
and 2 Spring Washers (No. 19). Tighten
and secure with Allen Wrench (No. 126).
Attach Clamp Cover (No. 21)to the Middle
Handlebar (No. 13) by hand.

10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907-8669).
STEP 14:
Attach Bottle Holder (No. 77) to the Front
Post (No. 2) with 2 Screws (No. 78).
Tighten and secure with Spanner (No.
127).
Note: Please lubricate the Aluminum Rod
with the PTFE Lubricant (No. 129) if you
feel friction when exercising.
The assembly is complete!
STEP 13:
Remove 4Screws (No. 78) from the back
of the Computer (No. 79)with the Spanner
(No. 127).
Connect the Extension Sensor Wire (No.
76) with Computer Wire (No. 79a). Then
insert them into the Front Post (No. 2).
Insert the Hand Pulse Sensor Wire (No.
16a) into the Pulse Input jack on the back of
Computer (No. 79).
Attach Computer (No. 79) to the top end of
the Front Post (No. 2) with 4 Screws (No.
78)that were removed. Tighten and secure
with Spanner (No. 127).

11
ADJUSTMENTS GUIDE
MOVING THE ELLIPTICAL BIKE
Hold the Rear Main Frame (No. 10)
and pull
upward to lift the rear of the elliptical off the floor
until the Transportation Wheels (No. 70) on the
Front Stabilizer (No. 9) touch the ground. Now you
can move the elliptical with ease.
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride,
you must ensure that the elliptical
is stabled and
secured. If you notice that the elliptical is
unbalanced during use, you should adjust the 6
Adjustable End Caps (No. 71)
located on the
Front Stabilizer (No. 9) and Rear Main Frame
Rear Main Frame (No. 10)until the elliptical
becomes levelled with the floor surface.
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension Control
Knob (No. 80)clockwise
to increase the level of
resistance. Rotate the Tension Control Knob (No.
80)counter-clockwise
to decrease the level of
resistance.
Tension levels are set at Level 1 being the lowest
and Level 12 being the highest.
CLEANING
The elliptical can be cleaned with a soft, clean, damp cloth. Do not use abrasives or solvents on
plastic parts. Please wipe your perspiration off the elliptical after each use. Be careful not to get
excessive moisture on the computer display panel as this might cause e
lectrical hazard or
electronics to fail. Please keep the elliptical, especially the computer, out of direct sunlight to prevent
screen damage. Please inspect all assembly bolts and pedals on the elliptical for proper tightness
every week.
STORAGE
Store the elliptical in a clean and dry environment, away from children.

12

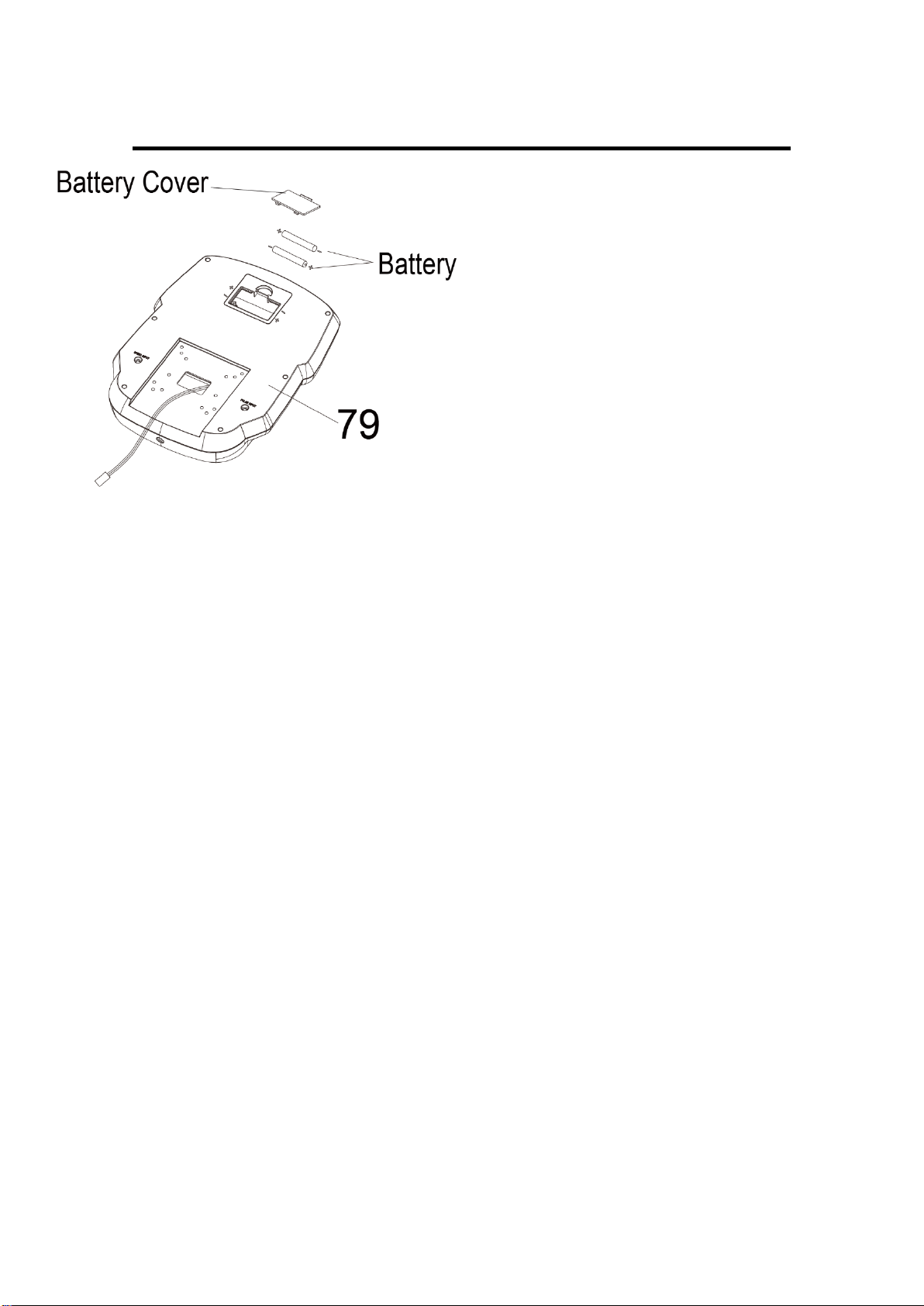

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AA batteries from computer box.
2. Press the buckle of battery cover on the Computer (No. 79), then remove battery cover.
3. Install 2 AA batteries into the battery case on the back of the Computer (No. 79). Pay attention
to the battery + and – poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 79).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Computer (No. 79), then remove battery
cover.
2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the battery
case on the back of the Computer (No. 79). Pay attention to the battery + and – poles before
installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 79).
The replacement is complete!
BATTERY DISPOSAL
NOTE: Always change both batteries at the same time. Do not mix battery types and do not mix
old and new batteries. Dispose batteries according to your state and regional guidelines.

13

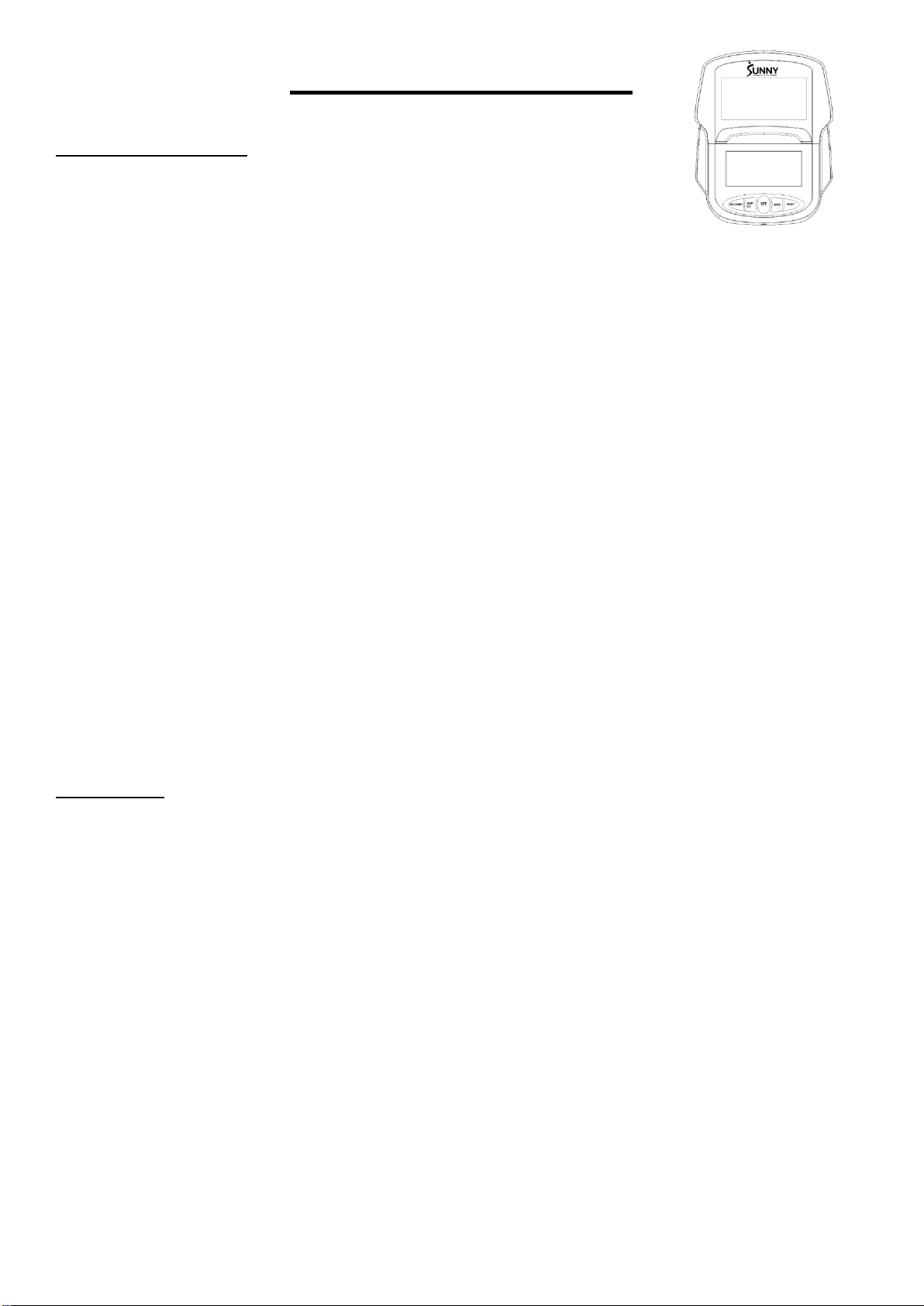

EXERCISE COMPUTER
FUNCTION BUTTONS
MODE
1. Press the button to select hour, minute, year, month and date for setting.
2. Press the button to select TIME, DISTANCE, CALORIES and PULSE to preset.
3. Press the button for selection function display on main LCD, or enter after setting.
4. Press the button to confirm setting value of gender, age, height and weight.
5. Press the button and hold for 2 seconds to reset all value to zero.
(When the user replace batteries, all the values will reset to ZERO automatically.)
SET
1. To set up the hour, minute, year, month and date.
2. To set up the target value of Time, Distance, Calories and Pulse. You can hold the button to
increase the value fast. (The computer has to be in stop condition.)
3. To set up the personal data of gender, age, height and weight for Body fat test.
RESET
Press the button to reset function value when setting.
(When the user replace batteries, all the values will reset to ZERO automatically.)
BODY FAT
Press this button to enter Body Fat measure function, then press MODE key to enter the setting
mode of your personal data of Gender, Age, Height and Weight. After finished setting, press it
again to measure your Body fat ration (FAT%) and BMI.
RECOVERY
To act the heart rate recovery function after pulse signal in. Press any button to return to the main
display.
FUNCTIONS
SCAN
Automatically scan through each mode in sequence every 6 seconds. The display loop is RPM
Speed – Time – Distance – Calorie - Pulse on the main screen.
TIME
Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing SET
&MODE button. Each increase is 1 minute
RPM
Displays the Rotation per Minute (RPM). The RPM and SPEED will switch to another display in
every 6 seconds after exercise starts.
SPEED
Displays current training speed. Maximum speed is 99.9 km/h or mile/h.
DISTANCE
Accumulates total distance from 0.00 up to 99.99 km or mile. The user may preset target
distance data by pressing SET & MODE button. Each increase setting is 0.5 km or mile.
CALORIES

14
Accumulates calories consumption during training from 0 to max. 999 calories. The user may also
preset the target calorie before training by press SET & MODE button. Each setting increase is10
cal.
Note : This data is a rough guide for comparison of different exercise sessions which can
not be used in medical treatment.
PULSE
The monitor will display the user's heart rate in beats per minute during training. You may set the
target heart rate by press the SET & MODE button.
CALENDAR
The monitor will display date, month, and year when the monitor is in sleep mode.
CLOCK
The monitor will display current clock time when the monitor is in sleep mode.
TEMPERATURE
Displays current room temperature from 10℃to 60℃when the monitor is in sleep mode.
OPERATION ORDER:
1. Power on – Installs 2 pieces of 1.5V UM-3 or AA batteries. The monitor start to segment test
with a long beep sound. (Whenever batteries are removed, all the functions values will be reset
to zero or default value.)
2. Set current data – Press the SET and MODE buttons to set up current clock time, year, month,
and date. After the first setting till batteries be replaced next time, those preset data will be
updated automatically.
3. Select and preset target value – Get access to the setting function of Time, Distance, Calories
and Target Pulse. When you are in each setting mode. For instance the Time setting, when
the time value is glitter, you can press the SET button to adjust the value. Press the MODE
button for confirmation and skip to next setting. The setting of Distance & Calories is the same
as Time setting.
4. After entering speed signal, each function of SPEED-RPMTIME-DISTANCE-CALORIES-
PULSE will skip to display in every 6 seconds.
5. You can also press the MODE button to select single function display on the main screen except
RPM & SPEED. The RPM & SPEED function will switch display in 6 seconds.
6. If you have preset any function target before, the function starts to count down from the target
when the training starts. Once the target is achieved, the monitor will beep and the function will
count up from zero automatically if the training is still going.
7. Pulse measurement – After you hold on two handgrip sensors in a few seconds, the monitor
will show up your current heart rate in beats per minute. To ensure the heart rate readout
precisely, please do not hold one hand only. You may preset target pulse before training starts.
Once your current heart rate is achieved to the target, the value of pulse will beep to remind you.

15
8. Recovery – When the PULSE is working, you can press “RECOVERY” button to start the
recovery test function. The monitor will count down from 0:60 second to 0:00 and the heart beat
symbol will beglitter till counting down to “0:00”. During 60 seconds counting period,please keep
heart rate sensor is attached. Then the screen will display “F1 to F6” to show your recovery
status. F1 is the best, and the F6 is the worst. You may keep exercising to improve your heart
rate recovery status, and check it by using Recovery function.
9. Body Fat -
a) Press BODY FAT key to enter body fat measurement.
b) Press MODE and SET buttons to input your personal data. Each personal data
available setting area is described as the following:
c) AGE: 10 ~ 99 years HEIGHT: 100 ~ 250 cm (or 3’03” ~ 8’02“)
WEIGHT: 10 ~ 200 kg (or 22 ~ 440 lb)
d) After all personal data have been input, you can press BODY FAT button and hold
on grip conductors to start the body fat testing.
e) It takes few seconds to test the body fat. If you did not hold on the conductor during
the testing procedure, the LCD will show the error sign Err after 10 seconds period.
f) After the testing is finished, you will see fat advice in percentage and BMI figure
(body mass Index) display on the main LCD in sequence by scan mode.
g) BODY FAT % : Calculate from your personal data to show the value from 5%~50%.
h) BMI : Calculate from your personal data to show the value from 1.0~99.99.
i) Press any key to return to the main display.
Note
1. Stop training for 4 minutes, the screen will show up room temperature, clock, and calendar
display automatically.
2. If the computer displays abnormally, please re-install the battery and try again.
3. Battery Spec: 1.5V UM-3 or AA (2PCS).

16
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, presson the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list,
check the EXERCISE COMPUTER on your equipment to ensure that it is not in
sleep mode and your phone's Bluetooth function is on, then tap "Retry" to search
again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipmentis now readytodisplay,track,andrecordyourequipment’sworkoutstats
on the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contactSunnyFit supportat [e-mail],orusethein-app “Contact Us”form
to request support (“Me” tab -> “Contact Us”).

17

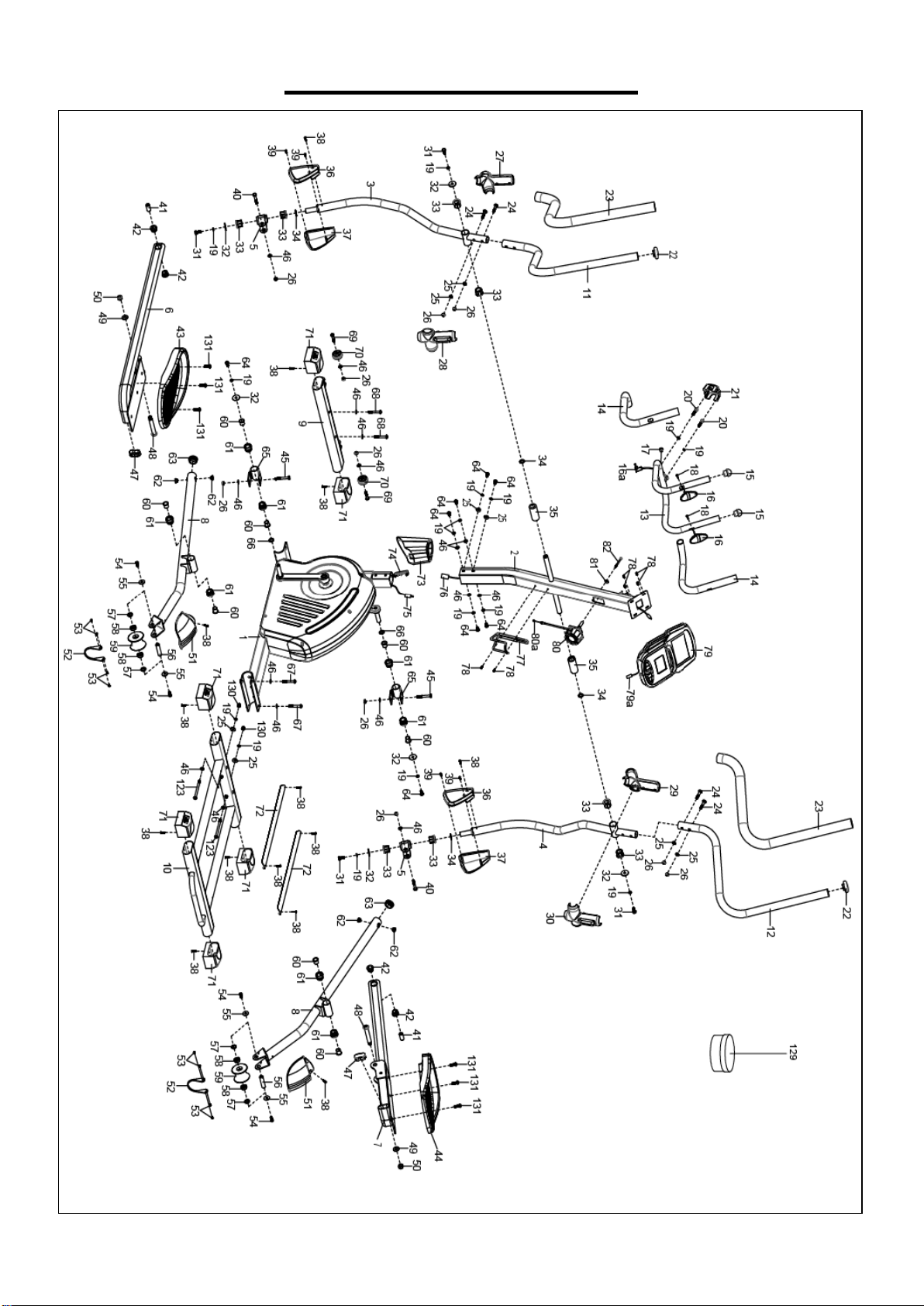

EXPLODED DIAGRAM 1

18
EXPLODED DIAGRAM 2

19
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
1 Main Frame 1 32 Big Washer Ф32*Ф8*2.0 6
2 Front Post 1 33 Shaft Sleeve Φ32*3.5*24*Φ
19 8
3 Left Swing Tube 1 34 Wave Washer Ф19*Ф26*0.3 4
4 Right Swing Tube 1 35 Bushing Φ31.8*Φ19.2*
75 2
5 Rotating Sleeve Tube 2 36 Left Foot Bar Cover 2
6 Left Foot Bar 1 37 Right Foot Bar Cover 2
7 Right Foot Bar 1 38 Screw ST4.2*20 19
8 Foot Tube Connect Patch 2 39 Screw ST3.5*16 4
9 Front Stabilizer 1 40 Bolt M8*50 2
10 Rear Main Frame 1 41 Connecting Shaft Ф16*32 2
11 Left Handlebar 1 42 Shaft Sleeve 4
12 Right Handlebar 1 43 Left Pedal 1
13 Middle Handlebar 1 44 Right Pedal 1
14 Foam Grip Ф24*Ф30*500 2 45 Bolt M8*60 2
15 End Cap for Handlebar 2 46 Washer Ф8*Ф16*1.5 17
16 Hand Pulse Sensor L=850mm 2 47 Cap 2
16a Hand Pulse Sensor Wire 1 48 Bolt Φ16*88 2
17 Plug Ф12.1 1 49 Washer φ24*φ12.5*2 2
18 Screw ST4.2*20 2 50 Nut M12 2
19 Spring Washer Ф8 16 51 Roller Cover 2
20 Bolt M8*30 2 52 Stopper 2
21 Clamp Cover 1 53 Screw M4*8 8
22 Cap Ф32 2 54 Bolt M8*20 4
23 Foam Grip Ф31*Ф41*920 2 55 Washer Ф8*Ф20*2.0 4
24 Bolt M8*43 4 56 Roller Connecting
Shaft Ф15*61.5 2
25 Big Arc Washer Ф8*Ф20*2.0 8 57 Roller Spacing Ф22*2 4
26 Nut M8 13 58 Bearing 6202 4
27 Left Handlebar Cover-A 1 59 Pulley Ф70*Ф29*50 2
28 Left Handlebar Cover-B 1 60 Shaft Sleeve Ф23.5*20 8
29 Right Handlebar Cover-A 1 61 Plastic Bushing Ф32*21 8
30 Right Handlebar Cover-B 1 62 Connecting Rod
Small Bushing Ф18*Ф8*10 4
31 Bolt M8*16 4 63 Cap Ф38 2
