Suunto ELEMENTUM TERRA User manual

SUUNTO ELEMENTUM TERRA
USER GUIDE
en

A
B
C

TIME
SETTINGS
MEMORY
COMPASS
CHRONOGRAPH /
DATE
ALTITUDE
RECORDING
CALIBRATION

en
GETTING STARTED
Thank you for choosing Suunto Elementum Terra, a digital sports
watch for mountaineering and outdoor activities. To get started:
1. Press any button to activate the watch.
2. Keep [A] pressed to enter settings. The active setting blinks on
the display.
3. Rotate [A] to change the value.
4. Press [A] to accept the change and to move to the next setting.
After changing the settings, you will return to time mode.
Be sure to register your watch at www.suunto.com/register to get the
full range of Suunto support. Also visit www.suunto.com/support to
get the complete user guide and additional information.
Functions:
_Time, date, alarm
_Backlight
_Altimeter
_Barometric pressure & trend
_3D compass
_Chronograph
_Cumulative asc./desc.
_Log: last 8 asc./desc., max. altitude

COMPASS
• Press [C] to enter.
• Keep [C] pressed to start the compass calibration.
• While calibrating compass, keep the device level and stabile when
rotating. ‘Level’ blinks on the display if the device is not level or
stabile.
• Press [B] or [C] to exit compass.
TIME/ALTITUDE RECORDING
Press [B] to switch between time and altitude recording mode.
STOPWATCH (CHRONOGRAPH)
1. In time mode, rotate [A] upwards to toggle between stopwatch
and date.
2. Press [A] to start/stop the stopwatch.
3. Keep [C] pressed to reset the existing time.
SETTINGS
1. In time mode, keep [A] pressed to enter/exit settings.
2. Rotate [A] to change the values.
3. Press [A] to accept.
4. Press [B] or [C] or keep [A] pressed to exit.

en
MEASURING CUMULATIVE ASCENT/DESCENT
1. In altitude recording mode, press [A] to start measuring.
2. Rotate [A] to switch between ascent and descent.
3. Press [A] to stop the measurement.
4. Keep [C] pressed to reset the measurement.
BUTTON LOCK
Press [A] and [B] at the same time to activate/open button lock.
MEMORY
1. In time mode, rotate [A] downwards to enter memory.
2. Rotate [A] upwards/downwards to browse the logs.
3. Press [A] to switch between the rst and second view of the log.
4. Press [B] or [C] to exit.
BACKLIGHT
Keep [B] pressed to activate the backlight.
NOTE: To save power, backlight blinks when used in compass view.
COMPASS CALIBRATION

1 Getting started ............................................................... 4
1.1 Changing general settings ........................................ 4
1.2 Using alarm ........................................................ 5
1.3 Using button lock ................................................. 6
1.4 Activating backlight ............................................... 6
2 Using Suunto Elementum Terra ............................................. 8
2.1 Time mode ........................................................ 8
2.1.1 Using stopwatch ....................................... 8
2.2 Altitude recording mode ......................................... 9
2.2.1 Recording altitude .................................... 10
2.2.2 Setting reference altitude ............................ 10
2.2.3 Measuring cumulative ascent/descent .............. 11
2.2.4 Viewing altitude logs ................................. 11
2.3 Compass view .................................................... 13
2.3.1 Calibrating compass .................................. 13
3 Measuring weather ......................................................... 16
3.1 Barometric trend arrow .......................................... 16
3.2 Forecasting weather changes ................................... 17
3.3 Automatically switching between measuring altitude and weather
changes .............................................................. 17
3.4 At constant altitude .............................................. 18
3.5 Moving in altitude ............................................... 19
4 Care and maintenance ...................................................... 21
4.1 Battery replacement ............................................. 21
5 Specifications ............................................................... 23
2

5.1 Technical specifications ......................................... 23
5.2 Trademark ........................................................ 24
5.3 Copyright ........................................................ 24
5.4 Patent notice ..................................................... 24
5.5 Disposal of device ............................................... 25
6 Warranty ..................................................................... 26
Warranty Period ..................................................... 27
Exclusions and Limitations ......................................... 27
Access to Suunto warranty service ................................. 28
Other important notices ............................................ 29
Limitation of Liability ............................................... 29
3
en

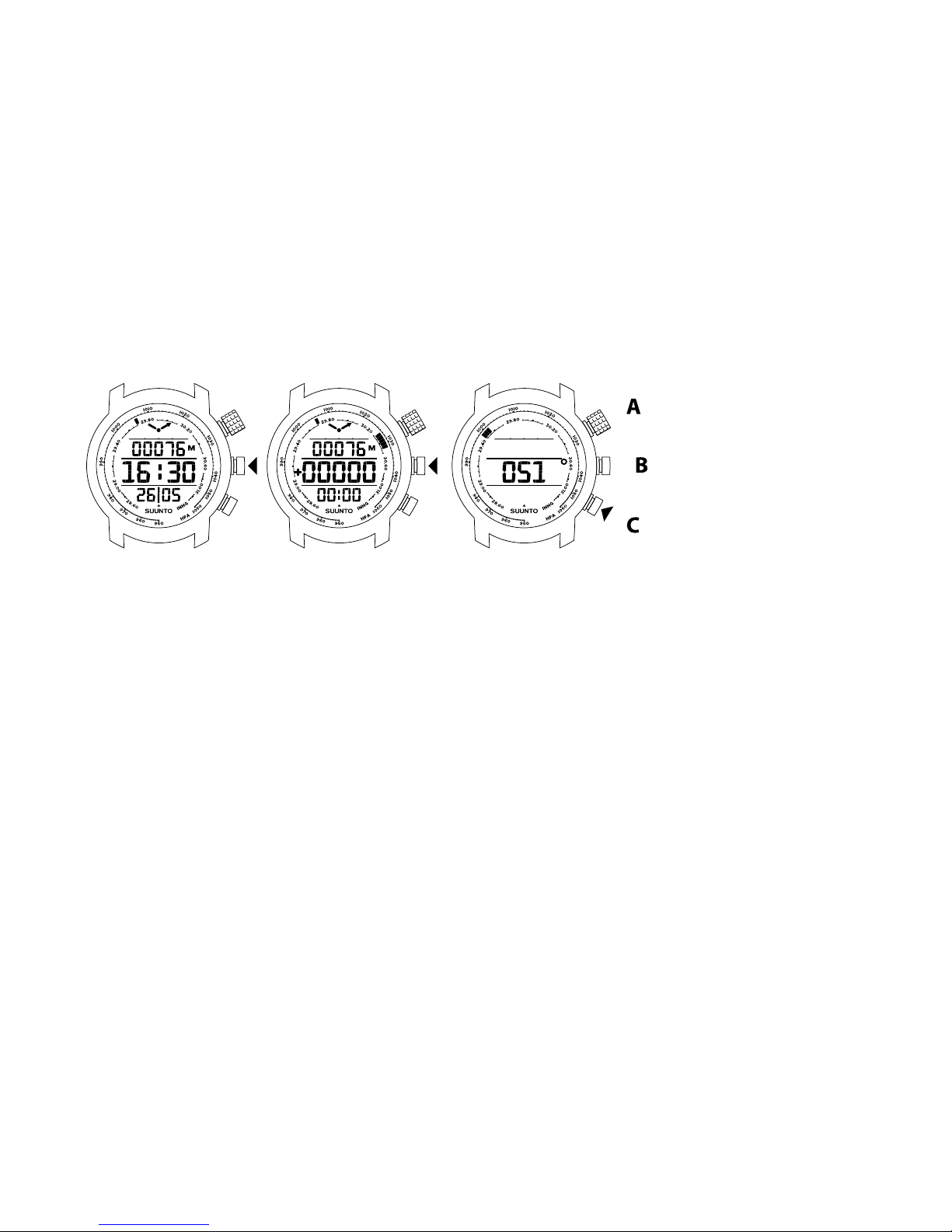

1 GETTING STARTED
In Suunto Elementum Terra there are two modes: TIME and ALTITUDE RECORDING
mode. Switch between them by pressing [B].
Suunto Elementum Terra also features COMPASS view. Press [C] to activate it.
In TIME mode the watch functions as a normal watch. ALTITUDE RECORDING
mode includes altitude measuring and recording functions.
COMPASS view helps you to orient yourself in relation to magnetic North.
Change the settings of your Suunto Elementum Terra in SETTINGS. View altitude
logs in MEMORY.
1.1 Changing general settings
To change the general settings:
1. In TIME mode, keep [A] pressed to enter SETTINGS. The active setting is
blinking on the display.
2. Rotate [A] to change the value.
3. Press [A] to accept the change and to move to the next setting.
4. After changing the settings you will return to TIME mode.
4
