USERS MANUAL
Portable Multimedia
Speaker System
PS-40BL
14
ENG
Portable Multimedia
Speaker System
CONTENTS
RUS ...................................................................................
UKR ....................................................................................
ENG ....................................................................................
2
7
12
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2015. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
APPLICATION
SVEN PS-40BL portable multimedia speaker system is designed for operation with PC,
notebooks and other mobile devices by means of data transfer via Bluetooth protocol. They
can be also used in internet telephony, during video conferences, in multimedia applica-
tions, in interactive games, for speech recognition and foreign language teaching.
PACKAGE CONTENTS
!Speaker system 1 pc!
!Power cable/ signal cable!!1 pc
Users Manual !1 pc
!Warranty card !1 pc
SPECIAL FEATURES
2.1 Bluetooth wireless signal transmission
Track switching control possibility
Call acceptance function
Wired/wireless audio signal transmission
!Built-in player for audio les from micro SD card
Built-in FM tuner
Battery peration time up to 5 hours
Radius of operation up to 10 m
SPEAKER SYSTEM DESCRIPTION
a DC 5V/AUX: mini USB jack for
connecting speakers to the charger, the
USB port of laptop / PC or AUX jack
b Control joystick
c B/ OFF/ MP3: operation mode switching
d!LED indicator!
e MIC: microphone
f TF: !micro SD card slot!
a
d
e
c
f
b

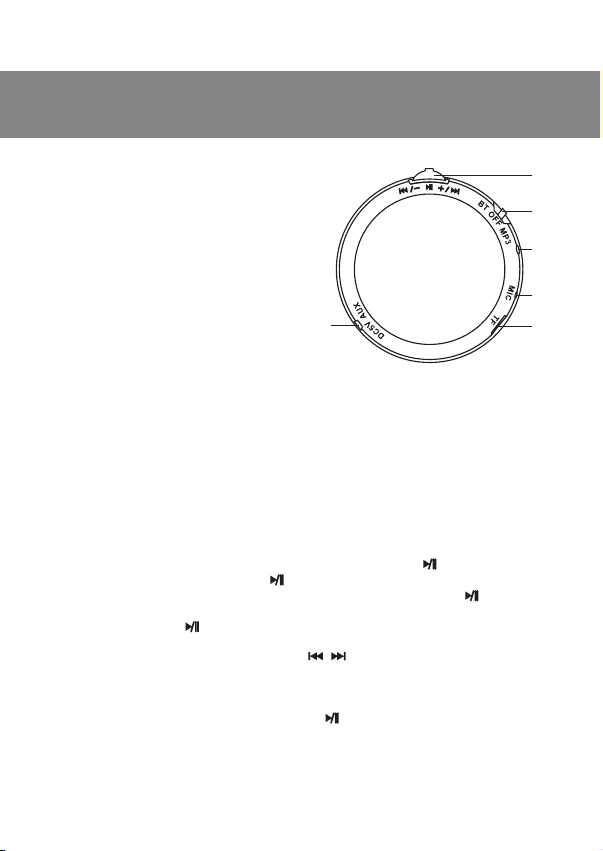

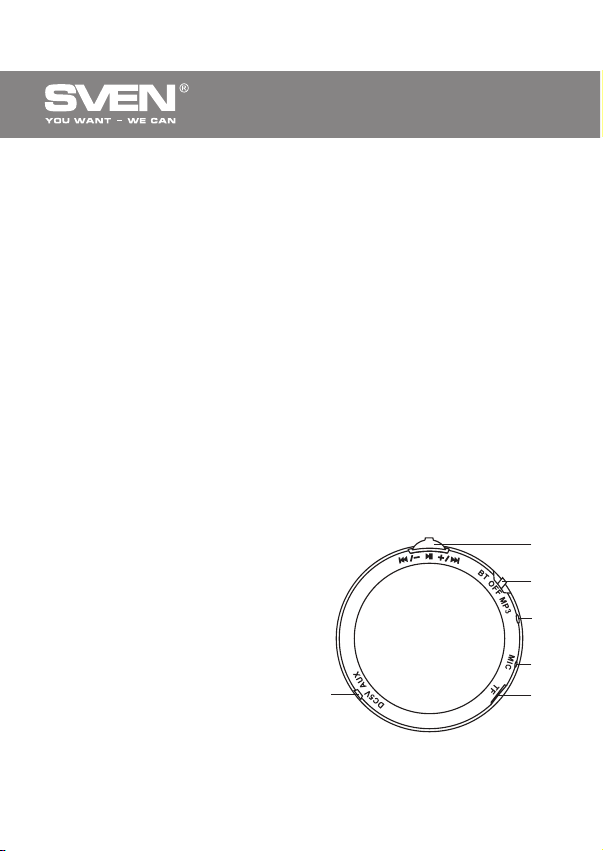

Fig. 1. Speaker system description
15
ENG
Users Manual PS-40BL
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to the application.
Speaker system battery charging
Connect speaker system to a USB port of PC or USB charger using mini USB to USB
cable (included). During battery charging the indicator d is red.
The batter y is used in the speaker system as an integral part of the device, therefore do not
try to extract or replace it, because this can result in the warranty cancellation or the device
damage.
Control buttons
When connected to a telephone:
in order to receive an incoming call press the button b ( ); press the button b ( )
once again to nish the call;
in order to drop an incoming call press and hold button b ( ) (for ~2 sec.)*;
in order to press and hold the button the call function of the last number dialed* is
switched on;
long displacement of the joystick b (+/-) change of the volume level;
short displacement of the joystick b ( , ) switching between musical tracks of the
media player of a connected device**, switching of musical les from micro SD memory
cards, switching of radio stations in FM tuner mode;
short press of the joystick b ( ) Playback/Pause of the media player of a connected
device**.
short press of the joystick b ( ) the tuner will enter the autoscan mode (FM tuner mode).
long press the of the joystick b ( ) switching modes: player / radio / AUX.
* Depending on telephone / smartphone conguration.
** Depending on a program of the media player.
Bluetooth technology
Wireless data transfer via the Bluetooth protocol enables to connect speaker system to
compatible devises. Maximum radius of action of data transfer is 10 m. Such obstacles as
walls or other electronic devices can interfere with the signal transfer.
Connection of speaker system with the signal source (phone, laptop, smart phone,
etc.)
Turn on the speaker system mode Bluetooth switch c into BT. The LED indicator d at
the same time will ash by short ashes with blue light.
It is necessary to select the search mode of devices with Bluetooth on a signal source
(telephone, notebook, smartphone, etc.). SVEN PS-40BL massage will be displayed on the
screen which is to be connected to*.
When connection is successful, there will be a short beep and the indication of the search
mode on speaker system is over. If no device is connected, the search mode will be turned
o automatically in ten minutes. In this case in order to interface devices, the speaker sys-
tem should be turned on to the search mode once again**.
!The indicator d blinks blue shortly during the data exchange with a device connected via
Bluetooth.
* You might have to enter 0000 code to connect some models of devices via Bluetooth.
** If the item has been already registered in the device list of a source, then the second search
mode activation is not obligatory. Choose the item name SVEN PS-40BL and the connect!
command on the source.
Radio mode
!Turn on the speaker system, set the switch c switch to MP3. Then select the radio mode.
To do this, press and hold the joystick b ( ). Short press the joystick buttons activates
auto search mode. After scanning completion, the rst scanned radio station will start to
operate automatically. With joystick buttons ( ) and ( ) select a desired radio station.
3 player mode
Attention! The le system of a micro SD carrier is FAT32. Maximum volume is 32 GB.!
It is not recommended to use the micro SD Ultra Speed.
!Turn on the speaker system, set the switch!c!switch to MP3. Then select the player mode.!
To do this, press and hold the joystick b ( ).

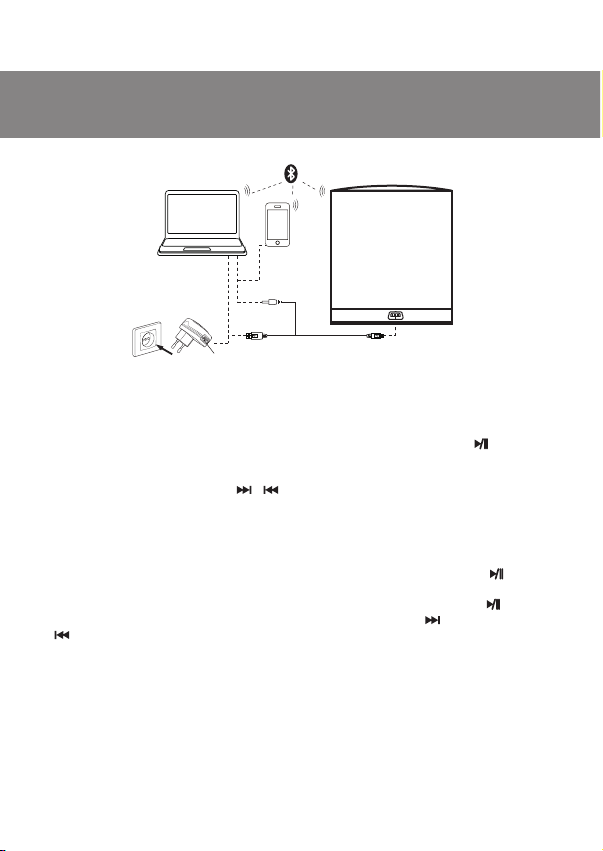

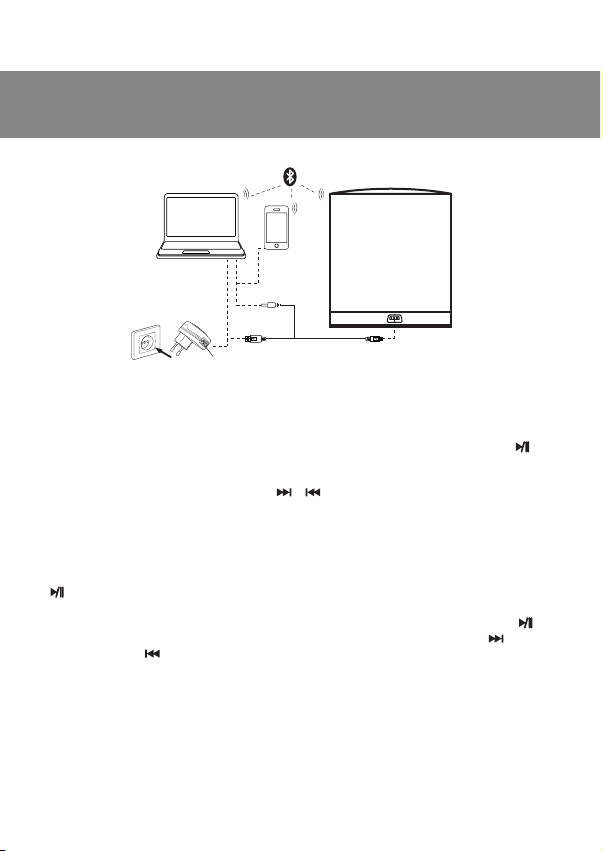

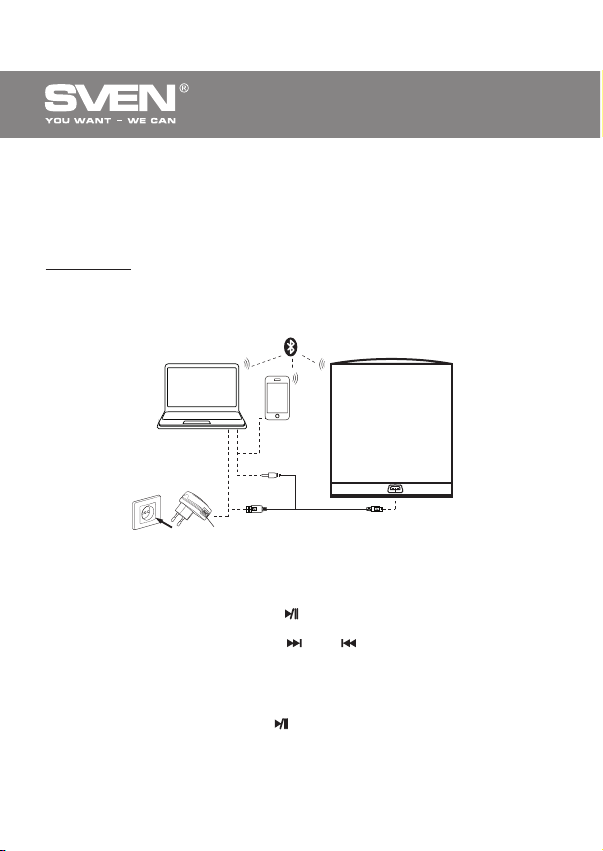

Fig. 2. Connection diagram
USB jack
Socket
iPhone
Power cable/signal cable USB/mini-jack
to mini USB
PC
16
ENG
Portable Multimedia
Speaker System
!Insert the micro SD carrier into appropriate slot. If the speaker system is in turned on
position, the playback will start automatically. Playback/Pause modes are switched over
with the help of the button b ( ) on the joystick.!Tracks can be controlled by joystick
buttons ( ) and ( ). Next track/previous track.
The use in the wired mode (AUX)
Turn on the speaker system, set the switch c in position MP3. Then select AUX mode by
pressing and holding the joystick button b.
Speaker system can be used as an external device for amplifying any audio source with
a 3.5 mm output mini-jack. To do this, connect a cable mini USB, plug 3.5 mini-jack to the
audio output.
Technical support is on www.sven..
Notes. Technical specications given in this table are supplemental information and cannot give
occasion to claims. Technical specications and package contents are subject to change without
notice due to the improvement of SVEN production.
TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Frequency range, Hz
Output power (RMS), W:
Membrane, mm
Connection type
Bluetooth supported proles
Supported memory cards
Formats reproduced from
micro SD cards
Frequency range of FM tuner, MHz
Radius of operation, m
Battery operation time, h
Battery capacity, mA / h
Cable lenght, m
Weight, g
Dimensions, mm
Value
speaker: 100 20 000; microphone: 50 16 000
3
Ø 53
Bluetooth 2.1 + EDR
HSP, HFP, A2DP, AVRCP
micro SD to32 Gb
MP3, WMA, WAV
87.5 108
up to10
up to 5
300
0.4
120
60 × 60 × 48
17
ENG
Users Manual PS-40BL
PS-40BL
:!PS-40BL
: «», 111024, ,
. , . , . 65, . 1.
: «-»,!
105082, . , . , . 75, . 5.!
www.sven..
: 12 .
: 2 .
: « . »,
176 , 02-02, , 427447.
«
», 48310, , ,
, 15.! .
:!PS-40BL
/ :
« »,!08400, ,
. -, . , 31,
. (044) 233-65-89/98.!,
.
www.sven..
: 12 .
: 2 .!!
/ .
. .
: « . », 176 ,
02-02, , 427447. !
« », 48310, , ,
, 15. .!!
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,!
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
Other manuals for PS-40BL
2
Other Sven Portable Speakers manuals
