ENG
12
Portable Speaker System
with Bluetooth and FM-radio
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
BUYER RECOMMENDATIONS
Unpack the device carefully. Make sure there are no accessories left in the box. Check up
the device for damage; if the product was damaged during transportation, address the rm
which carried out the delivery; if the product functions incorrectly, address the dealer at
once.
Shipping and transportation equipment is permitted only in the original container.
Does not require special conditions for realization.
Dispose of in accordance with regulations for the disposal of household and computer
equipment.
APPLICATION
SVEN PS-200BL portable multimedia speaker system with Bluetooth and FM-radio is
designed for operation with PC, notebooks and other mobile devices by means of data
transfer via Bluetooth protocol. They can be also used in internet telephony, during video
conferences, in multimedia applications, in interactive games, for speech recognition and
foreign language teaching. FM-tuner and the player with micro SD-cards are included.
PACKAGE CONTENTS
Speaker system 1 pc
3,5 mm mini-jack to 3,5 mm mini-jack signal cable 1 pc
USB to micro USB power cable 1 pc
Users Manual 1 pc
Warranty card 1 pc
SPECIAL FEATURES
Bluetooth wireless signal transmission
Track switching control possibility
Wired/wireless audio signal transmission
Built-in player for audio les from micro SD card
Built-in FM tuner
Convenient retractable handle for carrying
CONTENTS
RUS ..............................................................................
UKR ..............................................................................
ENG ..............................................................................
2
7
12
ENG
13
Users Manual PS-200BL
Battery peration time up to 20 hours
Radius of operation up to 10 m

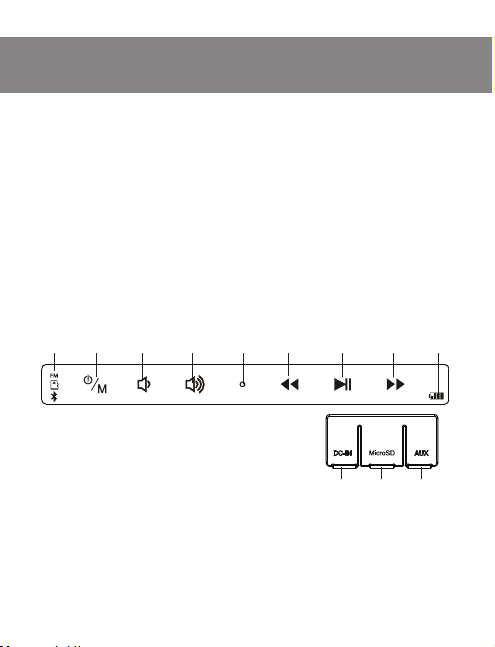

SPEAKER SYSTEM DESCRIPTION (Fig 1)
a LED indicator
b POWER button (long pressing);
switch button of: Bluetooth/FM/Player/ AUX (short pressing)
c Volume decrease
d Volume increase
e Microphone
f Previous track (in player mode); previous station (in radio mode)
g Play/Pause (in player mode);
Automatic scan of radio stations (long pressing in radio mode);
Mute (short pressing in radio mode)
h Next track (in player mode); Next station (in radio mode)
i Battery charge indicator
j DC-IN: micro USB jack for connecting speakers to the charger, the USB port of laptop / PC
k Micro SD: micro SD card slot
l AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
j
a b c d f g h
e i
kl
Fig. 1. Speaker system description
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to the
application.
Speaker system battery charging
Connect speaker system to a USB port of PC or USB charger using micro USB to
USB cable (included). During battery charging the indicator i is red.
The battery is used in the speaker system as an integral part of the device, therefore
do not try to extract or replace it, because this can result in the warranty cancellation
or the device damage.
ENG
14
Portable Speaker System
with Bluetooth and FM-radio
OPERATION MODES
Bluetooth mode
Wireless data transfer via the Bluetooth protocol enables to connect speaker system
to compatible devises. Maximum radius of action of data transfer is 10 m. Such
obstacles as walls or other electronic devices can interfere with the signal transfer.
Turn on the speaker system Bluetooth mode press button b several times until
the indicator a will start blinking blue color frequently.
It is necessary to select the search mode of devices with Bluetooth on a signal
source (telephone, notebook, smartphone, etc.). “SVEN PS-200BL” massage will be
displayed on the screen which is to be connected to*.
When connection is successful, there will be a short beep and the indication of the
search mode on speaker system is over**.
The indicator a blinks blue shortly during the data exchange with a device con-
nected via Bluetooth.
Radio mode
To improve radio reception, connect the cable 3.5 mm mini-jack (included) to the AUX l.
Turn on the speaker system press button b several times until the indicator a
will glow green color. Short long the button g activates auto search mode. After
scanning completion, the rst scanned radio station will start to operate automatically.
With buttons f and h select a desired radio station.
3 player mode
Attention! The le system of a micro SD carrier is FAT32. Maximum volume is 32
GB. It is not recommended to use the micro SD Ultra Speed.
Insert the micro SD carrier into appropriate slot. If the speaker system is in turned
on position, the playback will start automatically. Playback/Pause modes are switched
over with the help of the button g. Tracks can be controlled by buttons f (previous
track) and h (next track).
The use in the wired mode (AUX)
Speaker system can be used as an external device for amplifying any audio source
with a 3.5 mm output mini-jack. To do this, connect a cable mini USB, plug 3.5 mini-
jack to the audio output AUX l.
* You might have to enter 0000 code to connect some models of devices via Bluetooth.
** If the item has been already registered in the device list of a source, then the second search
mode activation is not obligatory. Choose the item name SVEN PS-200BL and the “connect”
command on the source.
USB to micro USB Power cable!
Mini-jack to mini-jack
signal cable
Technical support is on www.sven..
Notes. Technical specications given in this table are supplemental information and cannot give
occasion to claims. Technical specications and package contents are subject to change without
notice due to the improvement of SVEN production.
TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Frequency range, Hz
Output power (RMS), W:
Membrane, mm
Bluetooth supported proles
Radius of operation, m
Battery operation time, h
Battery capacity, mA / h
Power supply, V
Cable lenght, m
Weight, g
Dimensions, mm
Value
speaker: 100 20 000; microphone: 50 16 000
10 (2 × 5)
Ø 50
HSP, HFP, A2DP, AVRCP
up to10
up to 20
2000
USB/DC5
0.5
700
220 × 85 × 85
15
PS-200BL
ENG
Users Manual
Fig. 2. Connection diagram
USB jack
Socket
PC
iPhone
Bluetooth FM-
:!PS-200BL
: «», 109052,
, . , . , . 86, . .
: «-»,!
105082, . , . , . 75, . 5.!
www.sven..
: 12 .
: 2 .
: « . »,
176 , 02-02, , 427447.
«
», 48310, , ,
, 15.! .
:!PS-200BL
/ :
« »,!08400, ,
. -, . , 31,
. (044) 233-65-89/98.!,
.
www.sven..
: 12 .
: 2 .!!
/ .
. .
: « . », 176 ,
02-02, , 427447. !
« », 48310, , ,
, 15. .!!
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,!
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland. PS-200BL
