OPERATION
MANUAL
2.0 Multimedia USB
Speaker System
SVEN 316
1
5
10
12
12
12
12
13
13
13
14
14
CONTENTS
RUS ........................................................................................................
UKR ......................................................................................................
ENG ................................................................................................
1. DESCRIPTION .......................................................................................
2. SAFETY PRECAUTIONS ...........................................................................
3. PACKAGE CONTENTS ............................................................................
4. SPECIAL FEATURES ...............................................................................
5. LOCATING ............................................................................................
6. CONTROL PANEL ..................................................................................
7. INSTALLATION AND OPERATION GUIDE .......................................................
8. TROUBLESHOOTING .....................................................................
.........
9. TECHNICAL SPECIFICATIONS ...................................................................
Technical support is on www.sven.τ
Congratulations on your purchase of the Sven speaker system!
Please read this operation manual before using the unit and retain this operation manual in a safe
place for future reference.
COPYRIGHT
© 2012. SVEN Company Ltd. Version 1.0 (V 1.0).
This manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted e汚orts to make this manual more exact, some discrepancies may occur. The
information in this manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this manual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the 甥rm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
ATTENTION!
Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
ENG
11
Operation Manual
SVEN 316
1. DESCRIPTION
SVEN 316 2.0 Multimedia USB Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS has a built-in ampli甥er, an audio cable and a signal cable enabling to connect
it to virtually any audio source (a PC, laptop, MP3 or CD player, etc.). The MSS is powered via a PC
or laptop USB port or a 5V DC power supply by means of the integrated USB cable. The speaker
with an audio input and a control panel is named “the active speaker”.
2. SAFETY PRECAUTIONS
•Do not allow short circuiting of the wires (including the grounded ones) between the speakers, on
the power ampli甥er or ground, for it causes damage to the power ampli甥er output stage.
•Do not put foreign objects inside the holes of the MSS. Make sure that needles, hair pins, coins,
insects, etc., do not get inside.
•Protect the MSS from high humidity, water and dust. Do not locate it in areas with high level of
humidity and dust.
•Protect the MSS from heating: do not locate it near a heat source or expose to direct sunlight.
•Do not use gasoline, alcohol or other solvents when cleaning, since they may damage the
paint-coated surface of the MSS. Clean it with dry soft cloth only.
•If the MSS does not operate, unplug it and address your dealer.
3. PACKAGE CONTENTS
• Multimedia USB Speaker System — 1 pc
• Operation manual — 1 pc
• Warranty card — 1 pc
4. SPECIAL FEATURES
•Easy connection to various audio devices
•USB-powered (via PC/laptop USB port or 5V DC power supply)
• Compact design
•Volume control
• Glossy black surface
•Power LED
•Plastic speaker cabinets
ENG
12
2.0 Multimedia USB
Speaker System
5. LOCATING
•Place the speakers symmetrically to the listener at least one
meter away.
•Place the MSS far away from TV sets, as insigni甥cant image
distortion in supersensitive monitors and TV sets is possible.
6. CONTROL PANEL
aPower LED
bVolume control knob
7. INSTALLATION AND OPERATION GUIDE
SVEN 316 Multimedia USB Speaker System can be connected
to virtually any audio source: a DVD/CD, PC sound card, etc.
(see connection diagram, Fig. 2).
• Before connecting, make sure that the MSS is unplugged.
Insert the 3.5 mini-jack signal cable built into the speaker into
the sound source audio output (see Fig. 2).
• Set the master volume level to its minimum by turning the volume control knob bcounterclock-
wise until it stops.
• Plug the USB cable to the USB port of your PC or laptop, or your 5V DC power supply. The power
LED awill illuminate.
• Turn on your audio source.
• Adjust the master volume level with the volume control knob b. To increase the volume, turn the
knob clockwise; to reduce the volume, turn it counterclockwise.

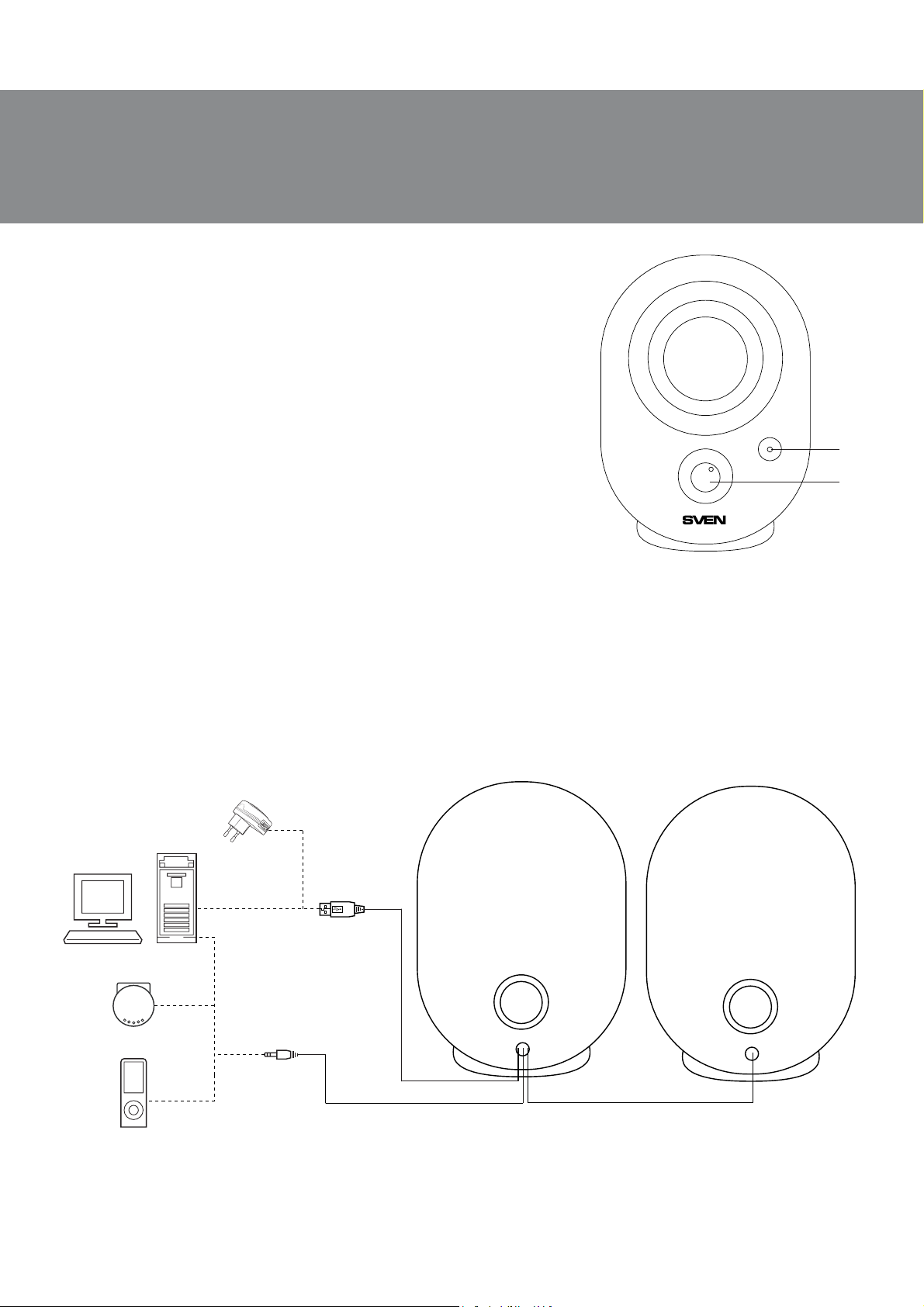

Fig. 1. Control panel
a
b
Fig. 2. Connection diagram
Passive
speaker
Active
speaker
Audio cable
PC
CD
Player
5V DC
power adapter
Signal cable
ENG
13
Operation Manual
SVEN 316
Parameter, measurement unit
Output power (RMS), W
Frequency range, Hz
Speaker diameter, mm
Power supply, V
Dimensions (one satellite) (W × H × D), mm
Weight, kg
Value
4 (2 × 2)
100 – 20 000
Full-range Ø 44
USB/DC 5
87 × 125 × 87
0.4
9. TECHNICAL SPECIFICATIONS
Notes:
• Technical speciτcations given in this table are supplemental information and cannot give
occasion to claims.
• Technical speciτcations are subject to change without notice due to the improvement of
SVEN production.
Notes:
•After using the MSS, mind to unplug it from the mains socket.
•To enhance sound quality, use the Line Out port of your soundcard.
8. TROUBLESHOOTING
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound or there
is too quiet sound
of speakers.
Distortion of
sound.
Cause
The MSS isn’t connected to a mains outlet.
The power switch is o汚.
Volume level is set at its minimum value.
Improperly connected audio source.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Turn down the source volume
and the MSS volume.
ENG
14
2.0 Multimedia USB
Speaker System
: SVEN 316
: «»,
111024, , . , . , . 65, . 1.
: «-»,
105082, . , . , . 75, . 5.
www.sven.葦
: 12 .
: 2 .
«
», 48310, , ,
, 15. .
: SVEN 316
/ : « ».
, . -,
. , 31.
,
. .
www.sven.葦
: 12 .
: 2 .
/ .
.
. «
», 48310, , , , 15.
.
: GREENWAVE INDUSTRIAL
GROUP LTD, Unit 2509, 25/F, 113 Argyle Street,
Mongkok, Kowloon, Hong Kong.
Produced under the control of Oy Sven Scandinavia Ltd.
15, Kotolahdentie, KOTKA, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
USB
2.0
SVEN 316
