SWAGTRON E-BIKE EB-6 User manual

IN ORDER TO CONTINUE SERVING OUR CUSTOMERS AND PROVIDING THE BEST PRODUCTS, OUR PRODUCT INFORMATION INCLUDING OUR USER MANUALS MAY RECEIVE UPDATES FROM TIME TO TIME. PLEASE CHECK OUR WEBSITE FOR THE LATEST USER MANUALS AND PRODUCT MATERIALS. VER. 1.0 01/16/18
USER MANUAL

1ENGLISHSWAGTRON EB-6 20" Electric Bike
PRODUCT SAFETY NOTICE
The SWAGTRON® EB-6 E-Bike has been designed with the utmost safety in mind for its riders. Extra
precautions have been taken to protect the user from product hardware malfunctions through our
meticulous design and engineering.
However, like any mode of transportation, the SWAGTRON® EB-6 E-Bike has inherent hazards associated
with its use (e.g.: losing control, falling off, or riding into a hazardous situation). Please read and be sure
to follow all instructions and safety recommendations in this user manual prior to and when riding your
E-Bike.
Before each ride, especially if you may travel a long distance, inspect your bike. First, check the tires for
proper inflation and cracks on the walls of the tires. Keeping the tires properly inflated and maintained
will help prevent flats and damage. Second, check all cables and cable housings for fraying, breaks, rust,
or corrosion and replace if necessary. Lastly, inspect the brakes to make sure they are working properly.
Additionally, check the brake pads for any damage as they will wear over time and eventually need
replacement.
If a replacement of the brake pads or any other part is needed, please contact customer support for
replacement service. In general, it is recommended to make sure all nuts and bolts are taut and properly
fastened to prevent injury and unnecessary wear and tear on your E-Bike.
Maximum Weight 264 lbs / 120kg
Maximum Speed 18.6 MPH / 30 km/h
Max Incline 25˚
This device requires coordination, agility, and balance. Use your best judgement to determine if an individual can use
the SWAGTRON® EB-6 E-Bike safely.

2
ENGLISH SWAGTRON EB-6 20" Electric Bike
SAFETY GEAR, CLOTHING,AND FOOTWEAR Please wear appropriate clothing and safety gear
including shoes, kneepads, elbow pads and an ASTM
F1492 approved helmet.
Avoid wearing anything that can drape over or get caught
into/under the wheels. Wear closed-toe, flat shoes to
maintain flexibility and stability.
MODIFICATIONS AND REPAIRS The SWAGTRON® EB-6 E-Bike is a highly sophisticated
electronics product that includes complex, technical
circuitry. Attempting to repair or modify your E-Bike can
void all warranties. Only authorized repair centers may
open and service the SWAGTRON® EB-6 E-Bike.
OBEY LOCAL LAWS AND REGULATIONS Always check and adhere to local laws regarding personal
transportation devices, including pedestrian laws.
The E-Bike is considered a motor vehicle, so should not
be ridden after consumption of alcohol, drugs, or while
intoxicated. You can be arrested for drunk driving.
By riding the SWAGTRON®EB-6 E-Bike, the user acknowledges and accepts personal responsibility of all risks associated with
the use of the SWAGTRON®EB-6 E-Bike, which may include, but are not limited to, muscle injuries, broken bones, lacerations, or
serious injury which may be sustained while using the SWAGTRON®EB-6 E-Bike.

3ENGLISHSWAGTRON EB-6 20" Electric Bike
Section 1. General Information
This user manual will guide you through the functions and usage of your SWAGTRON® EB-6 E-Bike. Before
operating this device, read all the instructions for safe assembly, charging, and usage.
Upon unpacking, please inspect the SWAGTRON® EB-6 E-Bike for any signs of physical damage or defects.
Ensure that the SWAGTRON® EB-6 E-Bike is fully charged before using.
If you have questions, contact SWAGTRON® before you attempt to use or return your E-Bike.
1.1 About the SWAGTRON®EB-6 E-Bike
The EB-6 Electric Bike is a compact, zero
emissions personal transportation device that
feels like a bike but rides like a moped! It's
environmentally-friendly and uses only the
highest quality components and industry-
leading safety features.
• Riding speeds up to 18.6 mph
• Rechargeable, portable, and reliable
• Eco-friendly with zero emissions

4
ENGLISH SWAGTRON EB-6 20" Electric Bike

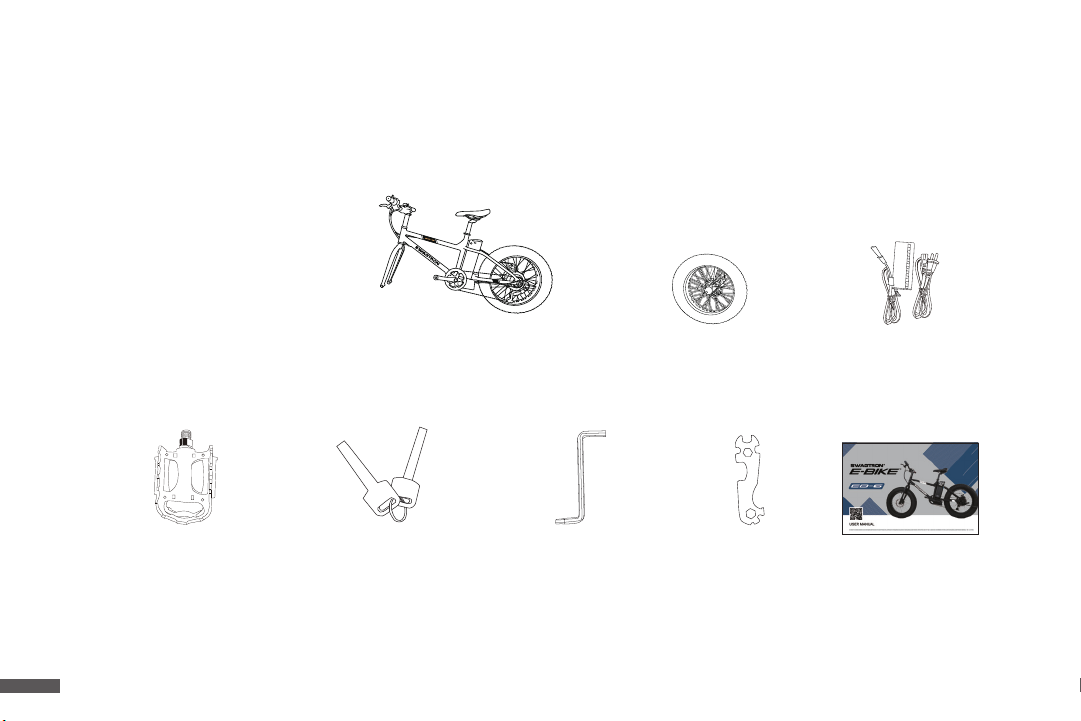

1.2 What’s In the Box?
• 1 x SWAGTRON® EB-6 E-Bike
• 1 x Front Wheel
• 1 x Charging Cable & Adapter
• 2 x Pedals
• 2 x Keys
• 1 x Allen Key
• 1 x Wrench
• 1 x User Manual
Pedals x 2 Wrench x 1 User Manual x 1Allen Key x 1
Front Wheel x 1
Keys x 2
Charging Cable & Adapter x 1
SWAGTRON® EB-6 Electric Bike x 1

5ENGLISHSWAGTRON EB-6 20" Electric Bike

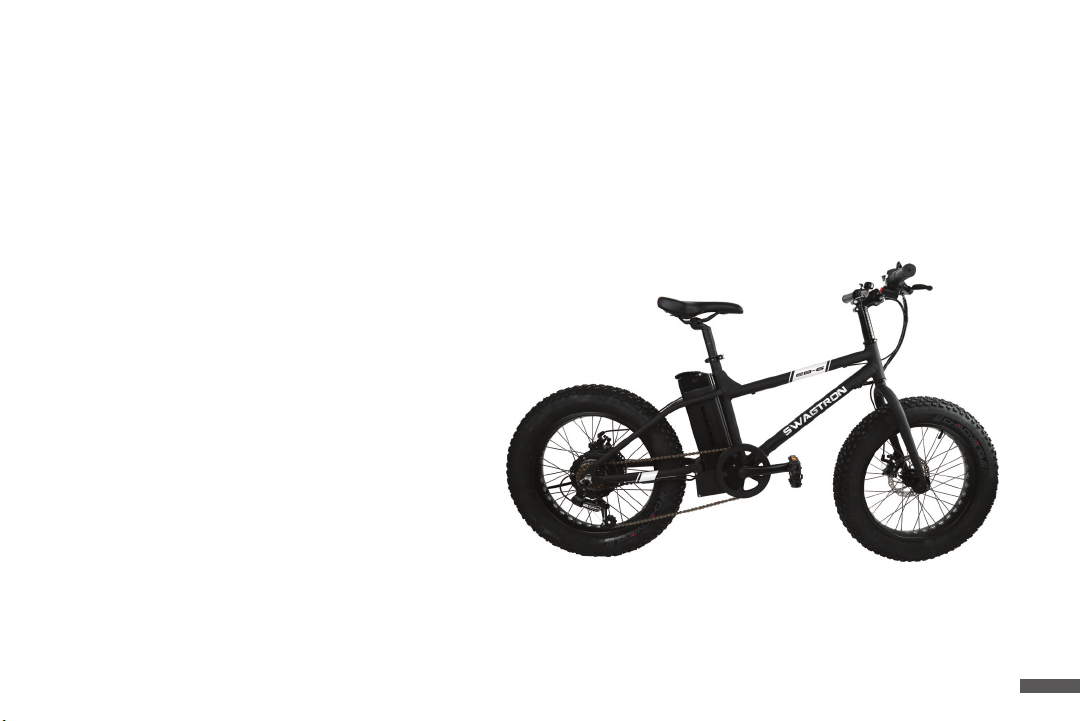

1.3 SWAGTRON®EB-6 E-Bike Diagram
FRONT WHEEL
MOTORIZED HUB
REAR WHEEL
BATTERY
BATTERY LOCK
BATTERY INDICATOR
CHARGING PORT
LATCH
CRANK ARM
PEDAL
KICKSTAND
SEAT
BELL
REAR BRAKE
FORK
FRONT BRAKE
GEAR SWITCH
POWER BUTTON
GEAR BUTTON
THROTTLE
BATTERY INDICATOR

6
ENGLISH SWAGTRON EB-6 20" Electric Bike
Section 2. Assembling, Adjusting & Folding Your SWAGTRON®EB-6 E-Bike
NOTE: Be careful not to position your fingers between the latch and the stem. Doing so may result in injury.
2.1 Installing the Front Wheel
For initial assembly, you will need to ask for someone's help.
Step 1. Have someone hold the front wheel upright on the floor (fig.1).
Step 2. Pick up your e-bike, line up the fork with the axle at the center of the wheel, and fit the two
together. (fig.1).
Step 3. On one side of the wheel, slide 1x black spacer on the axle then add 1x nut and tighten slightly
(fig.2). Repeat on the other side of the axle with the other black spacer and nut. Use the included
wrench to fully tighten each nut.
An extra spacer may have been included with your bike. If the front brake is difficult to adjust and/
or use, add this spacer between the front fork and wheel on the left side (left side when seated on
the bike). If this part was not included with your bike or you otherwise need a replacement, please
contact customer service.
Front fork
Spacer
Nut
fig. 1 fig. 2

7ENGLISHSWAGTRON EB-6 20" Electric Bike

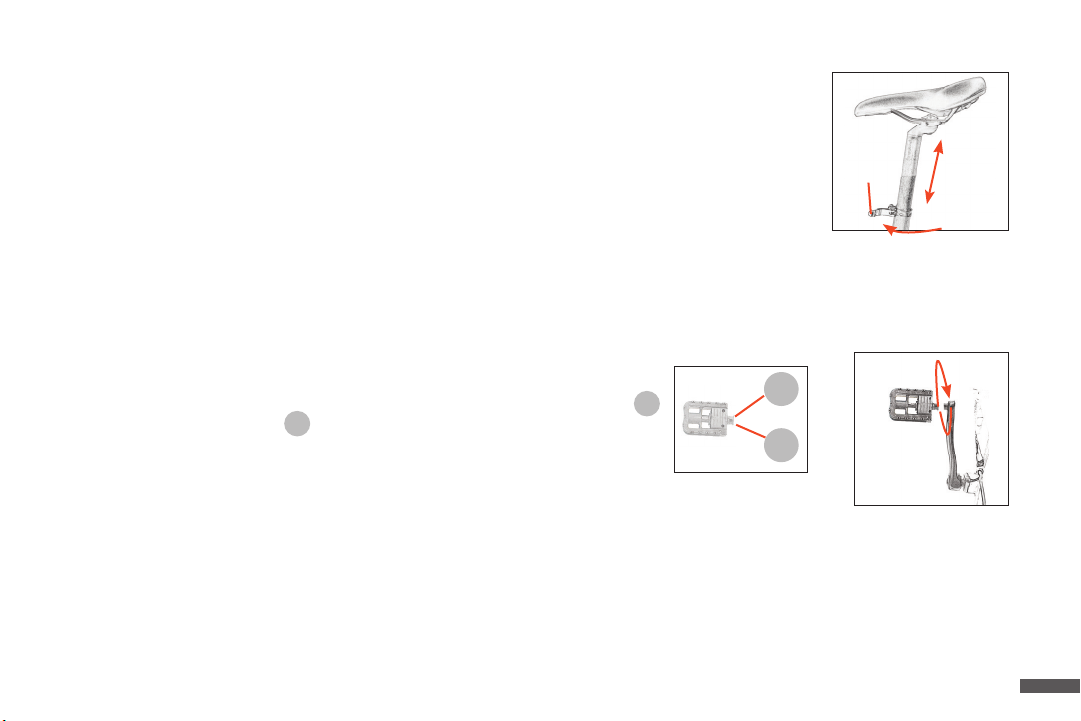

2.2 Adjusting Seat Height
For better pedaling, safety, and overall comfort, positioning the seat at the right height is key. The rider’s
leg length is used to determine the seat’s position. During pedaling, your hips should remain level while
your legs shouldn’t suffer strain from over-extension. To determine the right seat height, sit on the E-Bike
with one pedal at its lowest point and place the ball of your foot on the pedal. If your knee bends slightly
at this position, the seat is at the right height. Additionally, when placing your heel on the pedal, your leg
should be nearly straight.
First, open the clamp under the seat post. Pull the seat up or push it down to adjust
height. Check to make sure the seat post is fully inserted into the frame and the head
of the seat is parallel with the frame. Lastly, close the clamp to secure the seat in place
(fig. 3).
2.3 Attaching the Pedals
Before installing the pedals, please check each for a small letter to
indicate which side of the bike the pedal should be attached to. L
is for the left side while Ris for the right side (fig.4).
With the kickstand holding your E-Bike upright, screw the pedals
onto the crank arms (fig.5) and tighten them with the included
wrench.
Latch
fig. 3
fig.5
L
R
fig.4

8
ENGLISH SWAGTRON EB-6 20" Electric Bike
Section 3. Charging Your SWAGTRON®EB-6 E-Bike
WARNING: Ensure the E-Bike is turned off before charging and remains off
while charging.
Step 1. Connect the charging adapter and cable together then turn the
rubber cap covering the charging port.
Step 2. Insert one end of the charging cable into the charging port and
connect the other end to a wall outlet.
Step 3. Allow at least 5 hours when charging for the first time. After this
initial charge, average charging time is 4-5 hours.
Step 4. While the E-Bike is charging, the adapter's indicator light will turn
red.
Step 5. When the E-Bike is fully recharged, the adapter's indicator light will
turn green. You may then disconnect the E-Bike from the charger.

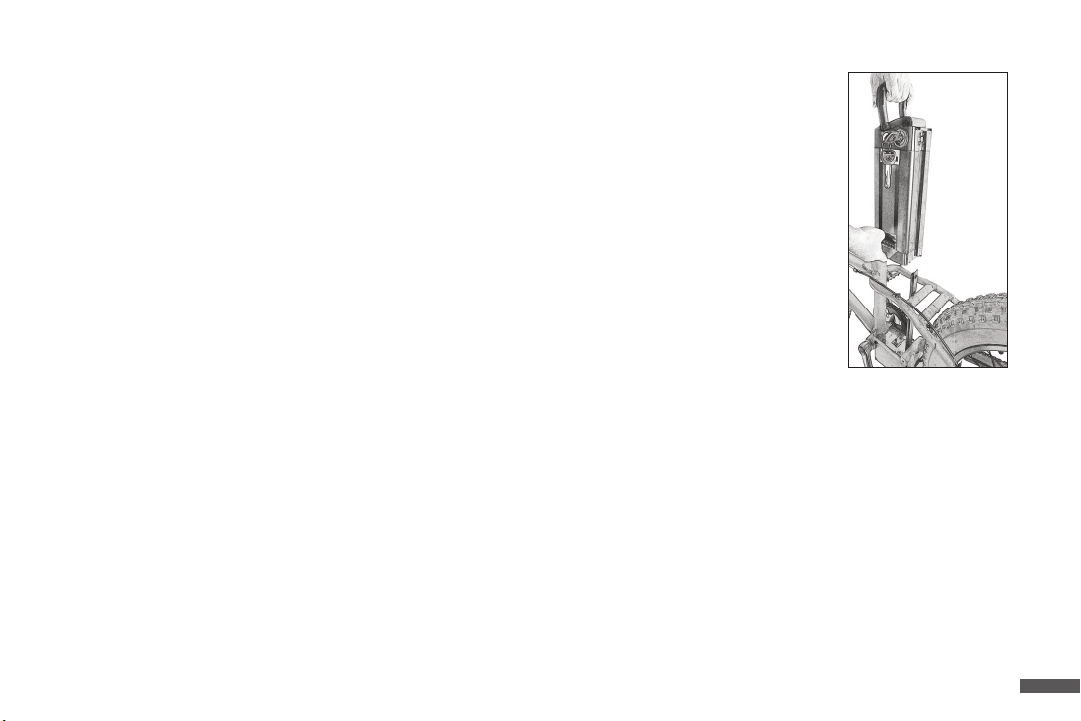

How to Detach the Battery
For your convenience, the EB-6's battery can be removed for easier
charging and/or an extra measure of security.
Step 1. Open the latch under the seat, remove the seat from the seat post
and set it aside.
Step 2. Use the included keys to unlock the battery via the keyhole near the
charging port (fig.7). To unlock the battery, insert the key, push it
in, and turn it counterclockwise to the UNLOCK position.
NOTE: You must push the key in and turn it at the same time.
fig.6
fig.7

9ENGLISHSWAGTRON EB-6 20" Electric Bike
Step 3. Use the handle on top of the battery to pull it up and remove it (fig.8).
Step 4. Reinstall the battery, lock it, and replace the seat as needed. To lock the battery
in place and/or turn it on or off, insert the key into the keyhole, then turn the key
clockwise to the ON or OFF positions.
NOTE: To use the throttle, the battery must be ON. To turn it off when you will not use the
battery, turn the key to the OFF position.
Safety tips for charging your battery:
• Fully charge the battery before your first use, this may take up to 5 hours.
• To maximize the life of the battery, you must charge it after each riding session.
• When not in active use, please charge at least once a month to maintain optimal battery levels.
• Perform periodic visual inspection of the battery ports and charging cables.
NOTE:
• When the battery is fully charged, please STOP CHARGING and unplug the unit.
• Keep your charging environment clean and dry at all times.
• If the charging port is damp or has any liquid on it, do not charge your E-Bike.
• In order for the battery to operate at maximum efficiency, avoid charging your E-Bike in extremely hot or
extremely cold environments.
• Use only the battery and charging cable provided to you by SWAGTRON®, use of third party products may
compromise the battery and damage the E-Bike. If a replacement is needed, please contact SWAGTRON®
directly.
DO NOT charge the battery in the following cases:
• There is excessive odor or heat.
• Leakage or physical damage.
fig.8

10
ENGLISH SWAGTRON EB-6 20" Electric Bike

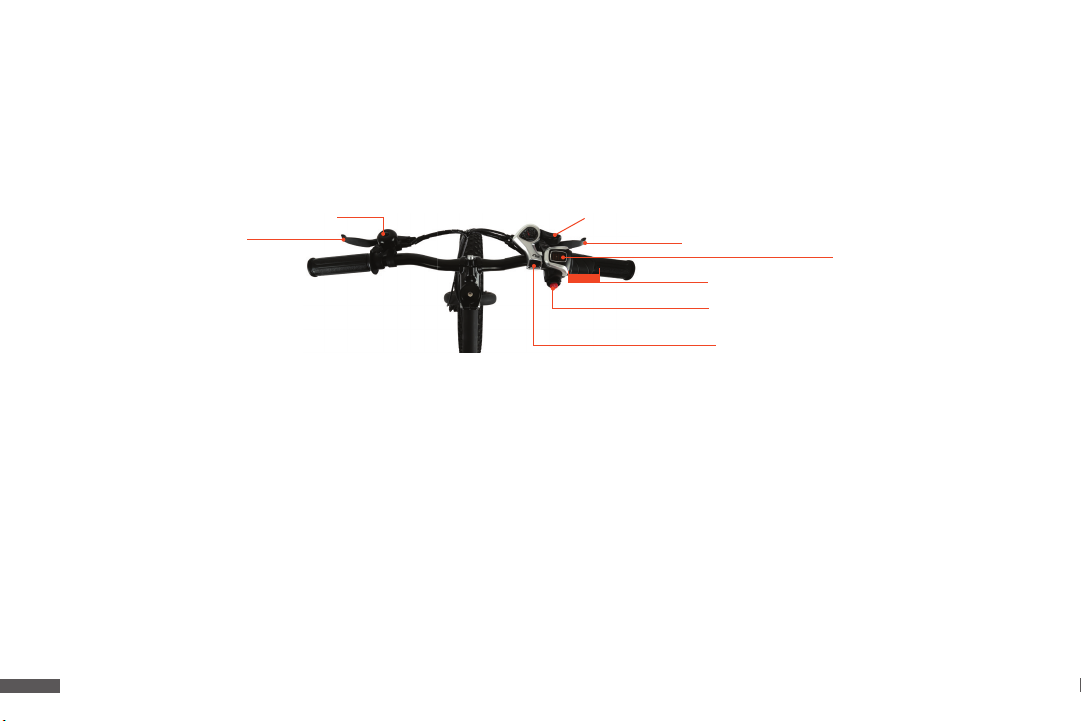

Section 4. How to Ride
The instructions below will ensure you have a comfortable and safe riding experience. Please read
carefully. Remember to use the keys to turn the battery into the ON position if you plan to use the throttle
and/or battery power. For regular pedaling without power and/or after you are done riding, use the keys to turn the battery
OFF.
BELL
REAR BRAKE FRONT BRAKE
GEAR SWITCH
POWER BUTTON
GEAR BUTTON
THROTTLE
BATTERY INDICATOR
• Start your E-Bike by pressing the Power Button, or ride it with your feet directly.
• Moving forward on your E-Bike is as easy as twisting the Throttle.
• Switch between 7 gears by pressing the Gear Button or pushing the Gear Switch.
• To slow down, first let go of the Throttle then gradually squeeze the Rear Brake to slow the rear
motorized wheel down.
• To stop, first let go of the Throttle, then squeeze the front and rear brakes to slow the front and rear
wheels down.
• Use the Bell to alert pedestrians and other riders of your presence.
• The Indicator shows how much charge is left in the battery. Make sure the battery is at full power before
heading out on a long distance ride.

11 ENGLISHSWAGTRON EB-6 20" Electric Bike
Section 5. Safe Riding Techniques & Tips
Following these techniques and tips can ensure you have a safe, fun riding experience on the EB-6 Electric
Bike. Check to make sure your brakes are fully intact, pedals are securely installed, and seat is locked in
place.
• Always wear an ASTM F1492 approved helmet and protective gear to avoid possible injury.
• Make sure your feet are always on the pedals. Taking your feet off the pedals while riding is dangerous.
• Ensure the battery is fully charged especially if you plan to travel long distances.
• Ensure your tires are intact with no punctures.
• Ensure the vehicle speed is safe to yourself and others, and be ready to stop at any time.
• When riding with friends, keep a safe distance between your devices to prevent collisions.
• Be aware of your surroundings at all times to ensure a safe ride. Your eyes are your best tools for safely
avoiding obstacles and slippery surfaces.
• Stay in open spaces and flat areas, avoid steeps slopes or high traffic areas until you’re familiar with
riding.
• Only ride the E-Bike where permitted, you MUST comply with local laws and give way to pedestrians.
WARNING:
• Never ride at high speeds on uneven terrain or slopes.
• Never perform stunts or turn abruptly without checking your surroundings.
• Never carry passengers on the E-Bike with you.
• Never carry heavy items while riding.
• Never ride in the rain.
• Never use the E-Bike to do anything that may cause personal injury or property damage.
• Never get off the E-Bike when it is in motion.

12
ENGLISH SWAGTRON EB-6 20" Electric Bike
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS INCREASES THE RISK OF SERIOUS INJURY, OR IN VERY RARE
CASES, DEATH. USE WITH APPROPRIATE CAUTION AND SERIOUS ATTENTION TO SAFE OPERATION.
For more safe riding tips or information, visit www.swagtron.com.
5.1 Disposal at End-of-Life
This product must not be disposed of by incineration, landfilling, or mixing with household trash.
Improper disposal of the battery contained within this product may result in the battery heating up,
rupturing, or igniting which may cause serious injury. The substances contained inside the battery present
chemical risks to the environment. The recommended disposal for any SWAGTRON® product at its end-
of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local
regulations and laws pertaining to the recycling and disposal of lithium-ion batteries and/or products
containing them will vary according to country, state, and local governments. You must check laws and
regulations corresponding to where you live in order to properly dispose of the battery and/or unit.
It is the user’s responsibility to dispose of their waste equipment properly with accordance with local
regulations and laws.
For additional information about where you should drop off your batteries and electrical or electronic
waste, please contact your local or regional waste-management office, your household waste disposal
service, or your point-of-sale.

13 ENGLISHSWAGTRON EB-6 20" Electric Bike
Section 6. Maintenance
Follow the tips and reminders below to keep your E-Bike running at top performance.
NOTE:
• Do not perform any kind of maintenance while the E-Bike is charging.
• Attempting to repair or modify your E-Bike can void all warranties, only authorized repair centers may
open and service the E-Bike.
If you need assistance, please contact SWAGTRON® support at [email protected].
6.1 Cleaning
Proper cleaning of your E-Bike can guarantee a longer lifespan and a smooth riding experience.
• Wipe the outer body of your E-Bike with a soft, dry microfiber cloth.
• Check around the wheels and ensure there is no blockage, the E-Bike’s design allows for easy wheel
maintenance.
• The E-Bike meets IPX4 water-resistance, meaning it can withstand splashes, however, do not submerge
the E-Bike in water.
• Do not let water and liquids get into the E-Bike’s electric parts or battery.

14
ENGLISH SWAGTRON EB-6 20" Electric Bike
6.2 Storage
Below are some tips to consider when storing your SWAGTRON® EB-6 Electric Bike.
• Before storing, fully charge the E-Bike to prevent battery over-discharge due to non-use.
• If storing the E-Bike for more than one month, discharge and recharge the battery at least once a
month.
• Cover the E-Bike to keep dust out. Do not store in a dusty environment as this may cause damage over
time.
6.3 Transportation
Before moving, lifting, or otherwise transporting the E-Bike, turn it off. Grasp it firmly before lifting and/
or moving it. Note, the E-Bike weighs approximately 48.5 lbs. If you are unsure of your ability to lift this
much weight with one hand or arm, doing so is not recommended. Please lift the E-Bike with both arms or
otherwise gain the assistance of someone who may handle the weight without trouble.
Lithium-ion batteries are considered hazardous materials, therefore transportation is governed by federal,
state, and local laws.
International law prohibits the shipping of bare lithium-ion batteries. If you are shipping your SWAGTRON®
EB-6 Electric Bike, you must ship it with the battery installed.

15 ENGLISHSWAGTRON EB-6 20" Electric Bike
Section 7. Specifications
Item Parameters
Model Name EB-6
Net Weight 48.5 lbs / 22 kg
Dimensions 67.3 x 22.5 x 37.8 in. / 1710 x 570 x 960 mm.
Max Incline 25˚
Maximum Load 264 lbs / 120 kg
Battery 36V 7.8 Ah
Charging Voltage 110V - 220V / 50 - 60Hz /42V 2A
Wheel Size 23.6" Front / Rear
Wheel Inflation 20 PSI | 1.4 BAR
Charging Time 4 ~ 5 Hours
Water Resistance IPX4
Warranty 1 Year Limited
