SWIT s-1222F User manual

Model: S-1222F
21.5" Broadcast Studio LCD Monitor
User Manual
Ver: V1.0.0V00
Please read this ser Manual
throughout before using.

Preface
Congratulations on your purchase of this product. Please read this user manual carefully.
1 ． All internal technologies of this product are protected, including device, software and trademark.
Reproduction in whole or in part without written permission is prohibited.
2 ． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative
trademarks in this user manual are the property of their respective owners.
3 ． Due to constant effort of product development, SWIT reserves the right to make changes and
improvements to the product described in this manual without prior notice.
4 ． The warranty period of this product is 2 years, and does not cover the following:
(1) Physical damage to the surface of the products, including scratches, cracks or other damage to
the LCD screen or other externally exposed parts;
(2) The LCD dot defects are not over three;
(3) Any damage caused by using third-party power adaptors;
(4) Any damage or breakdown caused by use, maintenance or storage not according to the user
manual.
(5) The product is disassembled by anyone other than an authorized service center.
(6) Any damage or breakdown not caused by the product design, workmanship, or manufacturing
quality, etc.
5 ． For any suggestions and requirements on this product, please contact us through phone, fax,
Email, etc.
SWIT Electronics Co., Ltd.
Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,
Nanjing 210038, P.R.China
Phone: [phone]
Fax: [phone]
Email: cont[email protected]
Website: http://www.swit.cc

Maintenance
 The Monitor
1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in
order to avoid short-circuit and damage.
2. Please don't try to disassemble any parts of the monitor by yourself, which would probably
damage the monitor and do harm to human body, and it will cause the invalidation of product
warranty.
3. Please don't touch the screen with your fingers, which would probably deface the screen.
4. Please don't press the screen; the LCD is extremely exquisite and flimsy.
 The power
Please use the power adapter provided or recommended by the manufacturer in order to avoid
damage. For a third party power adapter, please make sure the voltage range, supplied power,
and polarity of power lead are fit.
Please disconnect the power cable under the following situations:
1. If you do not operate this monitor for a period of time;
2. If the power cable or power adaptor is damaged;
3. If the monitor housing is broken.
 Working En ironment
1. Please don't lay this product on the unstable place.
2. Please don't lay this product in hot, cold or wet location.
 Cleaning
1. Please clean the screen with dry and downy cloth or special LCD cleanser.
2. Please do not press hard when cleaning the screen.
3. Please do not use water or other chemical cleanser to clean the screen. The chemical may
damage the LCD.

1. Features
 Full-HD 21.5” LCD Panel
1920×1080 resolution, H 178°/V 178° viewing
angle, 1000:1 contrast
 Multiple inputs
HD/SD-SDI, HDMI and Composite input
 Loop through outputs
Each of the 2 input HD/SD-SDI and HDMI has
loop through output.
 HDMI con erted to SDI output
Supported HDMI formats: 480i / 576i / 720p (50,
59.94, 60) / 1080i (50, 59.94, 60) / 1080P (23.98
24, 25, 29.97, 30), and the output SDI will
embed the audio (48KHz) from HDMI.
◆
◆◆
◆ Wa eform (Y, Cb, Cr, R, G, B) and full scale
There are totally 6 kinds of waveform display,
available under both SDI and HDMI, to check
the Luminance (Y), Blue-difference (Cb),
Red-difference (Cr), Red (R), Green (G), Blue
(B), and the Y, Cb, Cr can be simultaneously
displayed, R, G, B can be simultaneously
displayed, and each of the waveforms can be
set to full scale display.
◆
◆◆
◆ Vector scope
The displayed vector scope pattern is available
under both SDI and HDMI, represents saturation
as distance from the center of the circle, and hue
as the angle, in standard position, around it.
◆
◆◆
◆ Histogram (R, G, B)
The histogram is a bar graph that shows the
distribution of luminance values in the picture.
There’re R, G, B histograms that individually
displayed simultaneously, available under both
SDI and HDMI.
◆
◆◆
◆ 16-ch audio meter
nder HDSDI, it displays 16 channels audio
bars, with mark, and under SDSDI or HDMI, it
displays 8 channels audio bars with mark. The
audio bar is green, and will turn yellow when
audio exceeds -20dB, and turn red when
exceeds -9dB.
◆
◆◆
◆ SDI timecode
nder SDI input, it can display the SMPTE
timecode (VITC1, VITC2 or LTC), which is used
extensively for synchronization, and for logging
and identifying material in recorded media.
◆
◆◆
◆ Peaking focus assist (red/blue switch)
The Peaking focus assist function is to mark the
sharpest edges of the image with red or blue
color, for users to check if the subjects are
focused. 
◆
◆◆
◆ Multi Scale Marker
The monitor has 16:9 native LCD panel, and
supports 4:3, 13:9, 14:9, 15:9, 1.85:1 and 2.35:1
scales marker for different video producing.
◆
◆◆
◆ Zebra stripes
Zebra Stripes are used to check if the image is
over exposed or not by showing black and white
lines on the monitor. It is considered over
exposed when luminance value exceeds 90%.
◆
◆◆
◆ False color
The false color is used to aid in the setting of
camera exposure. nder false color mode,
there’s a color chart on the bottom of screen for
reference. The over exposed subjects (above
101 IRE) on the monitor will display as RED, and
the underexposed subjects will display as BL E.
For correct exposed subjects, it will display as
green and pink.
◆
◆◆
◆ Blue Only
nder Blue Only Mode, only blue pixels are
used to generate the image, because hue and
saturation can be adjusted quicker and more
accurately.
 UMD
Support TSL MD protocol so that TALLY 、
MD can be remotely controlled.
 User definable function keys
There are 4 function keys on the monitor front
panel, which permit users to define shortcuts for
the various functions.
 User editable ideo title
ser can edit a video title for the current camera,
and the title will display on the top of screen.
 3-color TALLY light
There’s a 3-color TALLY light in the front panel of
monitor, and TALLY signal is input via DB-9
connector on the rear panel.
 Main/Backup Power Supply
The monitor provides 2 DC power inputs, for
main and backup power.

2. Panel Instruction
·Front iew
⑴ Desktop Stand Feet
⑵ Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone
is plugged in)
⑶ SDI1: Press “SDI1” to switch to SDI input 1
⑷ SDI2: Press “SDI2” to switch to SDI input 2
⑸ HDMI: Press “HDMI” to switch to HDMI input
⑹ CVBS: Press “CVBS” to switch to CVBS input
⑺ ～ ⑼ F1, F2, F3, ser definable function keys
⑽ WFM: Display waveform
Press “WFM” once, it will display the waveform on the screen.
Within 5 seconds, press “WFM” again, it will display the
waveform menu. Revolve “ENTER” to select a waveform
display mode and turn it on.
After the waveform being turned on for 5 seconds, press
“WFM”, the waveform display will be turned off.
⑾ DISPLAY: Press “Display” to display safe area, scale marker,
title/ MD, function status and the current input signal information.
⑿ MENU: Press to enter Menu
⒀ ENTER: Select and Apply
nder menu system, revolve “ENTER” to adjust settings and press to apply; and out of menu
sy
stem, directly revolve “ENTER” to adjust volume, and directly press to mute.
⒁ BRIGHT: Revolve “BRIGHT” to adjust brightness value from 0 ～ 100. Default value is 50.
⒂ CONTRAST: Revolve “CONTRAST” to adjust contrast value from 0 ～ 100. Default value is 50.
⒃ SATURATION: Revolve “SAT RATION” to adjust saturation value from 0 ～ 100. Default value is 50.
⒄ POWER: Power on/off
Connect with power cable, press the “POWER” to switch on the monitor. Press again to switch off.
Note: Disconnect with power cable if the monitor will not be used for a period of time.
⒅ PHONE ： 3.5mm earphone socket, for SDI/HDMI embedded audio and analog audio monitoring.
⒆ TALLY Light: Red, Green and Yellow 3-color TALLY indicator

·Rear iew
⑴ Battery plate Install: Gold mount / V-lock mount option
S-1222FA: Gold mount; S-1222FS: V-lock mount
⑵ Handle
⑶ HDMI-IN: HDMI input(HDMI-A connector)
⑷ SDI-LOOP2: SDI loop through output (BNC connector)
⑸ SDI-LOOP1: SDI loop through output (BNC connector)
⑹ SDI-OUT: HDMI converted to SDI output(BNC connector)
⑺ CVBS-IN: Composite video input (BNC connector)
⑻ SDI-IN1: SDI input (BNC connector)
⑼ SDI-IN2: SDI input (BNC connector)
⑽ HDMI-LOOP: HDMI loop through output (HDMI-A connector)
⑾ REMOTE: DB9 socket, external controlling signal input.
(See details in “4.REMOTE interface definition”)
⑿ DC IN 11V-17V BACK UP: Connect with 4-pin XLR power adaptor (Pin 1: Negative, Pin 4: Positive)
⒀ DC IN 11V-17V MAIN: Connect with 4-pin XLR power adaptor (Pin 1: Negative, Pin 4: Positive)
·Input Formats
Input Supported formats
CVBS PAL / NTSC
HDMI
480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SDI
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
IT -R BT.656 576i (50)

3. Menu Operation
⑴ Press “MEN ” and it will display menu system
⑵ Revolve “ENTER” to select an item. The selected item will be highlighted display.
⑶ Press “ENTER” to enter the selected item.
⑷ nder menu system, press “MEN ” to back to previous menu.
*The menu will automatically save and quit if it remains idle.
3.1 PICTURE submenu
The PICT RE submenu includes:
⑴ CONTRAST: 0-100 value adjustment
⑵ BRIGHTNESS: 0-100 value adjustment
⑶ HUE: 0-100 value adjustment
(Only available under CVBS NTSC input)
⑷ SATURATION: 0-100 value adjustment
⑸ SHARPNESS: 0-100 value adjustment
⑹ BACKLIGHT: 0-100 value adjustment
3.2 SYSTEM submenu
The SYSTEM submenu includes:
⑴ RATIO: Aspect ratio “16:9” / “4:3” selection
⑵ SCAN: “ NDERSCAN” / “OVERSCAN”
⑶ ZOOM: “OFF”, “ZOOM1” and “ZOOM2” selection
⑷ FLIP: Select “ON” to flip the picture by 180°.
⑸ RESET: Select “YES” to recover all to factory
setting.
3.3 OSD submenu
The OSD submenu includes:
⑴ LANGUAGE: Menu language selection
⑵ H-POSITION: Menu horizontal position (0-100)
adjustment, real-time preview and default value: 50.
⑶ V-POSITION: Menu vertical position (0-100)
adjustment, real-time preview and default value: 50.
⑷ DURATION: Menu timeout setting (5-60s)
Set a time (in seconds) in which the menu will
automatically quit if remains idle. Default: 15.

3.4 TITLE submenu
Revolve "ENTER" button to select the letters, and
press "ENTER" to input. Select SPACE to input
space and DEL to delete the left letter. Max 10 letters
are supported.
After setting, press "MEN ", the system will save
data to current user and quit menu. The menu will
automatically save and quit if it remains idle.
3.5 DISPLAY submenu
The DISPLAY submenu includes:
⑴ INFO: “ON/OFF” When select on, the infos
including Input format, aspect ratio,
underscan/overscan, zoom status will be
display on left top screen.
⑵ TITLE: ser edited title on/off
⑶ MARKER SEL: Select the scale marker from 4:3,
13:9, 14:9, 15:9, 1.85:1, 2.35:1 and OFF
⑷ SAFE AREA: Select the safe area scale from 80%, 85%, 90%, 95% and OFF.
⑸ MARKER CLR: Select the color of markers from WHITE, RED, GREEN, BL E, BLACK and GRAY.
3.6 F KEY submenu
The F KEY Settings Submenu is to define Function Key F1, F2 and F3. The available functions are:
01- RATIO: Aspect ratio 16:9 / 4:3 switch
02- SCAN: nderscan / Overscan switch
03- ZOOM: Picture Zoom-in
04- B/W: Color / Black & white switch
05- BLUE ONLY: Blue only mode switch on/off
06- ZEBRA: Zebra over exposure switch on/off
07- VECTOR: Vector scope switch on/off
08- PATTERN: Internal colorbar switch on/off
09- RGB HIST: R, G, B Histogram switch on/off
10- TIMECODE: SDI timecode display switch on/off
11- F.COLOR: False color mode switch on/off
12- AUDIO BAR: Audio meter display switch on/off
13- FOCUS: Peaking focus assist switch on/off,
14- FLIP: Image flip
15- COLOR TEMP: Adjust color temperature
16-UMD: Adjust MD

3.7 COLOR submenu
The color submenu is to change the color temperature settings. ser can select color temperature as
6500K 、 5600K 、 9300K, or define color temperature by RGB GAIN and RGB BIAS.
⑴ COLOR TEMP: 6500K, 5600K, 9300K, SER1,
SER2, SER3
⑵ R GAIN: 0-255 value adjustment
⑶ G GAIN: 0-255 value adjustment
⑷ B GAIN: 0-255 value adjustment
⑸ R BIAS: 0-255 value adjustment
⑹ G BIAS: 0-255 value adjustment
⑺ B BIAS: 0-255 value adjustment
Remark: RGB GAIN and RGB BIAS settings are only
available when “Color temp” is set as SER1/2/3
3.8 UMD submenu
The MD submenu includes:
⑴ RS485 ADDR: 1 ～ 126 address selection
⑵ MD POS: Select MD display at TOP or
BOTTOM on the screen
⑶ MD DISP: Switch to MD or fixed TITLE, or turn
OFF
⑷ BA D RATE: ”38400”, “19200” or “9600” selection
⑸ PARITY: “EVEN” or “NONE” selection

4. REMOTE Interface Definition
The TALLY light controlling port and MD signal port are controlling through the DB-9 socket at the
rear panel, and terminal description is as follows:
⑴ The RED light is on when connecting the terminal “R” with “GND”, and goes out when
disconnecting.
⑵ The GREEN light is on when connecting the terminal “G” with “GND”, and goes out when
disconnecting.
⑶ The YELLOW light is on when connecting the terminal “Y” with “GND”, and goes out when
disconnecting.
⑷ 485B(Rx-)
⑸ 485A(Rx+)
Note ： 3-color TALLY light can be remotely controlled by REMOTE port.
Terminal 1 2 3 4 5 6 7 8 9
Description
Y G R 485B(Rx-) 485A(Rx+) GND

5.Specification
LCD Performance
Size 21.5 inches
Display area 477
× 268mm
Resolution 1920
× RGB × 1080
Aspect ratio 16:9 (4:3 adjustable)
Brightness 250cd
/ m
2
Contrast 1000:1
Color 16.77 million colors
Viewing angle Horizontal: 178
° Vertical: 178 °
Interface
Input
BNC ×2 HD/SD-SDI input ×2
BNC ×1 CVBS input
HDMI ×1 HDMI input
Output
BNC ×2 HD/SD-SDI loop output ×2
BNC ×1 HDMI converted to SDI output
HDMI ×1 HDMI loop output
3.5mm ×1 SDI/HDMI embedded audio output
Video Format
CVBS NTSC
∕ PAL
SDI
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
IT -R BT.656 576i (50)
HDMI
480I / 576I / 480P / 576P
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
General
Working voltage DC / battery 11V-17V
Power consumption ≤45W
Working temperature 0
℃～ +40 ℃
Working humidity 10%
～ 90%
Storage temperature
﹣ 15 ℃～﹢ 60 ℃
Storage humidity 10%
～ 90%
Dimensions (w/o stand) 525
× 358 × 47mm
Net weight (w/o stand) 6.88kg

6.Paking List
Monitor ×1
V-lock or Gold mount battery plate ×1 (Installed before delivery)
Desktop Stand Feet ×2
ser Manual ×1
Warranty Card ×1
Power Adaptor ×1
Power Cable ×1
Magnetic protective glass (A-PG22) ×1 （ for optional purchase ）
VESA desktop stand (A-VS22) ×1 （ for optional purchase ）
RACK install bracket (A-RK22) ×2 （ for optional purchase ）
6.1 Protecti e Glass
The A-PG22 protective glass has left and right magnetic stripes and can be fixed on front of the LCD
panel, to protect the LCD during transport or stock.
A-PG22
6.2 VESA Desk top stand
10x10cm VESA
A-VS22 Rear View

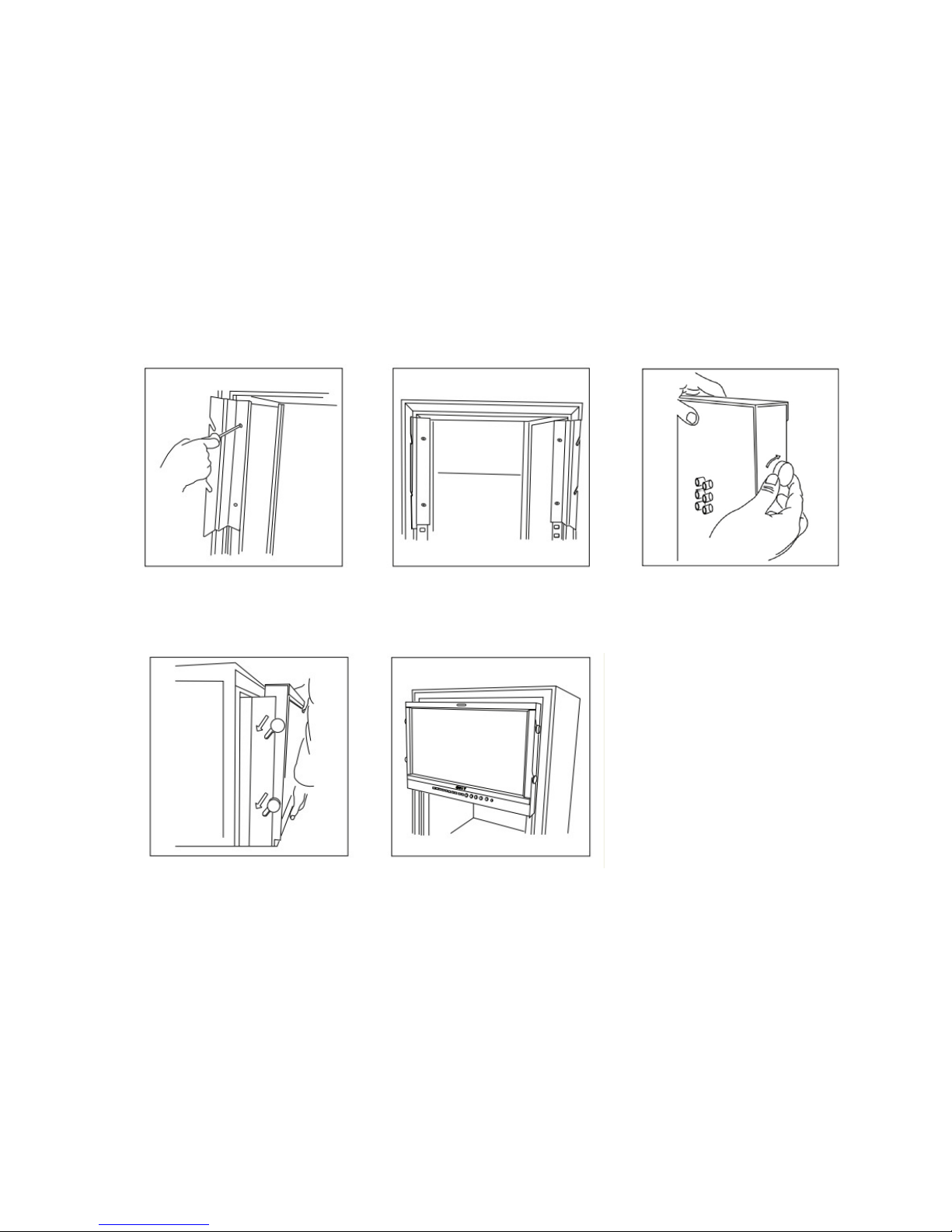

6.3 RACK install bracket
Installation
1. Fix the brackets onto the left and right sides of
S-1222F monitor, see Fig (1) and Fig (2);
2. Install the monitor with brackets onto the 19-inch
rack; see Fig (3) and Fig. (4);
3. The installed monitor is as Fig. (5);
A-RK22
Fig (1) Fig (2) Fig (3)
Fig (4) Fig (5)

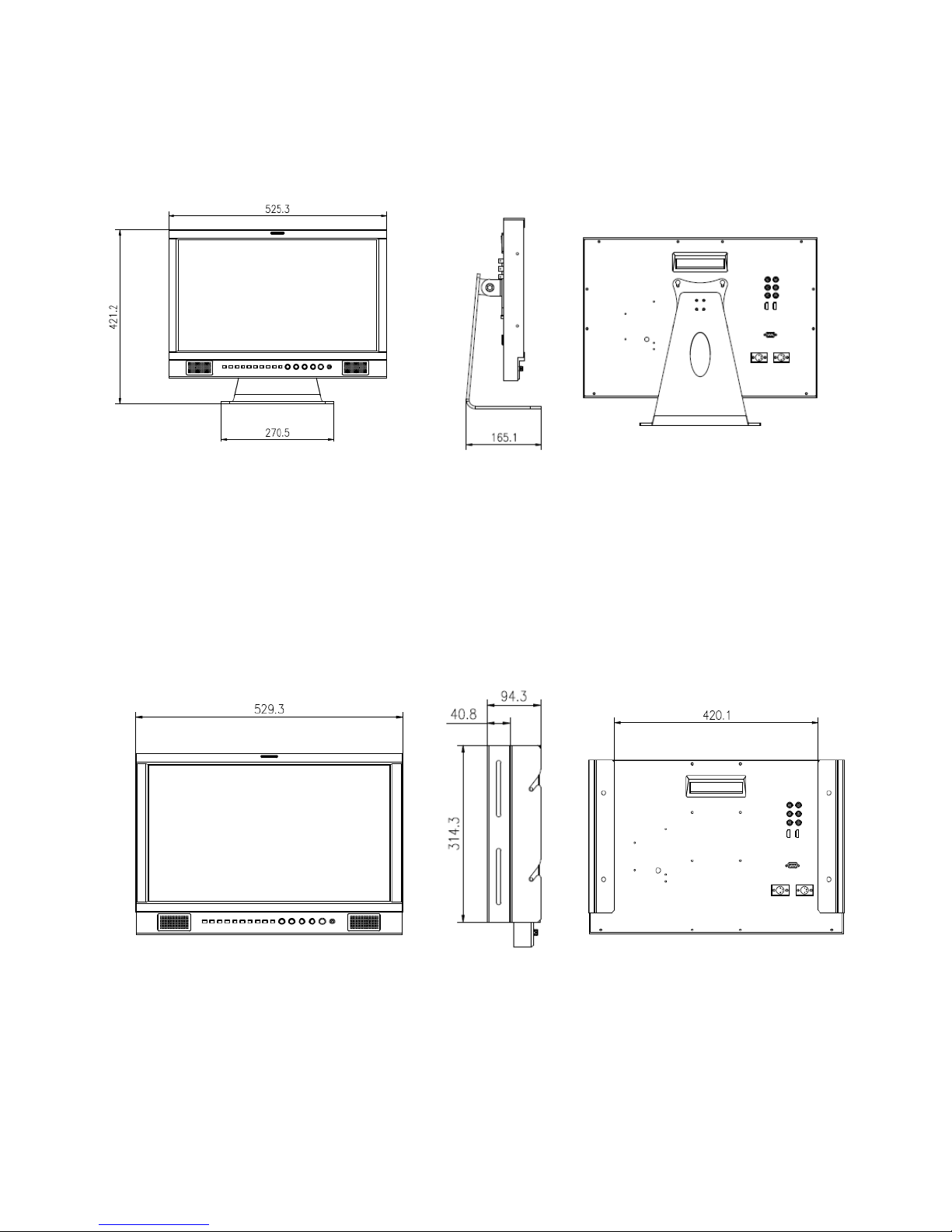

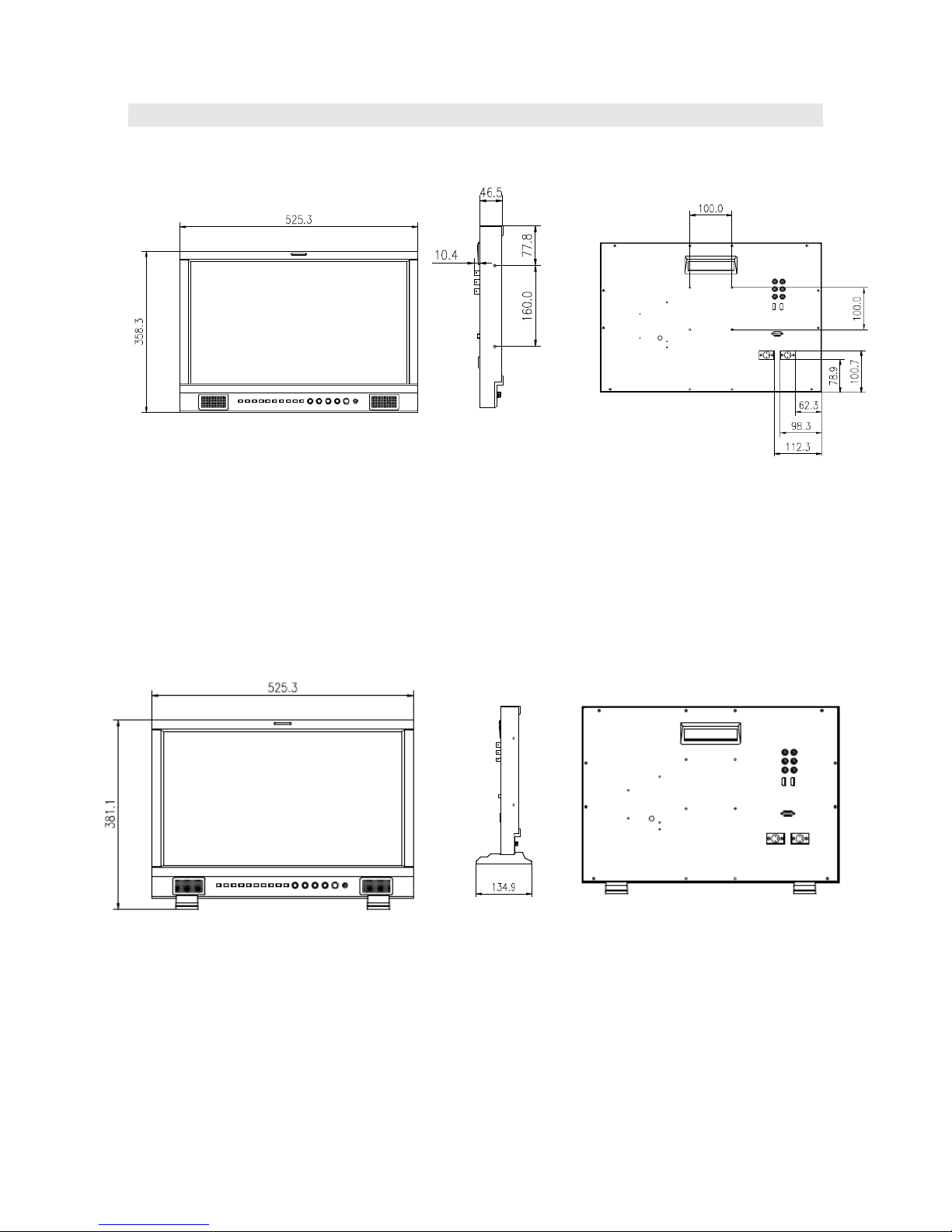

7. Installation Dimension
The main body (in mm)
With desktop stand feet (in mm)

With VESA desktop stand (in mm)
With Rack install bracket (in mm)
