Operating Manual
Please read and observe the following informa
tion and keep the operating manual nearby for fu
ture reference!
Safety information
WARNING!
• Risk of explosion!
ÆOnly use the power adapter plug supplied!
ÆOnly use the battery supplied or ones of the same type!
ÆAlways treat batteries with due care and attention and only use them
as described.
• Risk of fatal injury with heart pacemakers!
ÆAlways keep the phone a minimum safety distance of at least 15 cm
to heart pacemakers.
• Risk of suffocation through small objects, packaging and protective
foil!
ÆKeep children away from the product and its packaging!
• Batteries represent a hazard to health and the environment!
ÆNever open, damage or swallow batteries or allow them to pollute the
environment.
CAUTION!
• Risk of hearing damage!
ÆAvoid listening at full receiver volume.
ATTENTION!
• Risk of property damage.
ÆPrevent exposure to environmental influences, e.g. smoke, dust,
vibration, chemicals, moisture, heat and direct sunlight.
ÆOnly allow repairs to be completed by qualified personnel.
Please note that certain services must be activated by your mobile ser
vice provider before they can be used.

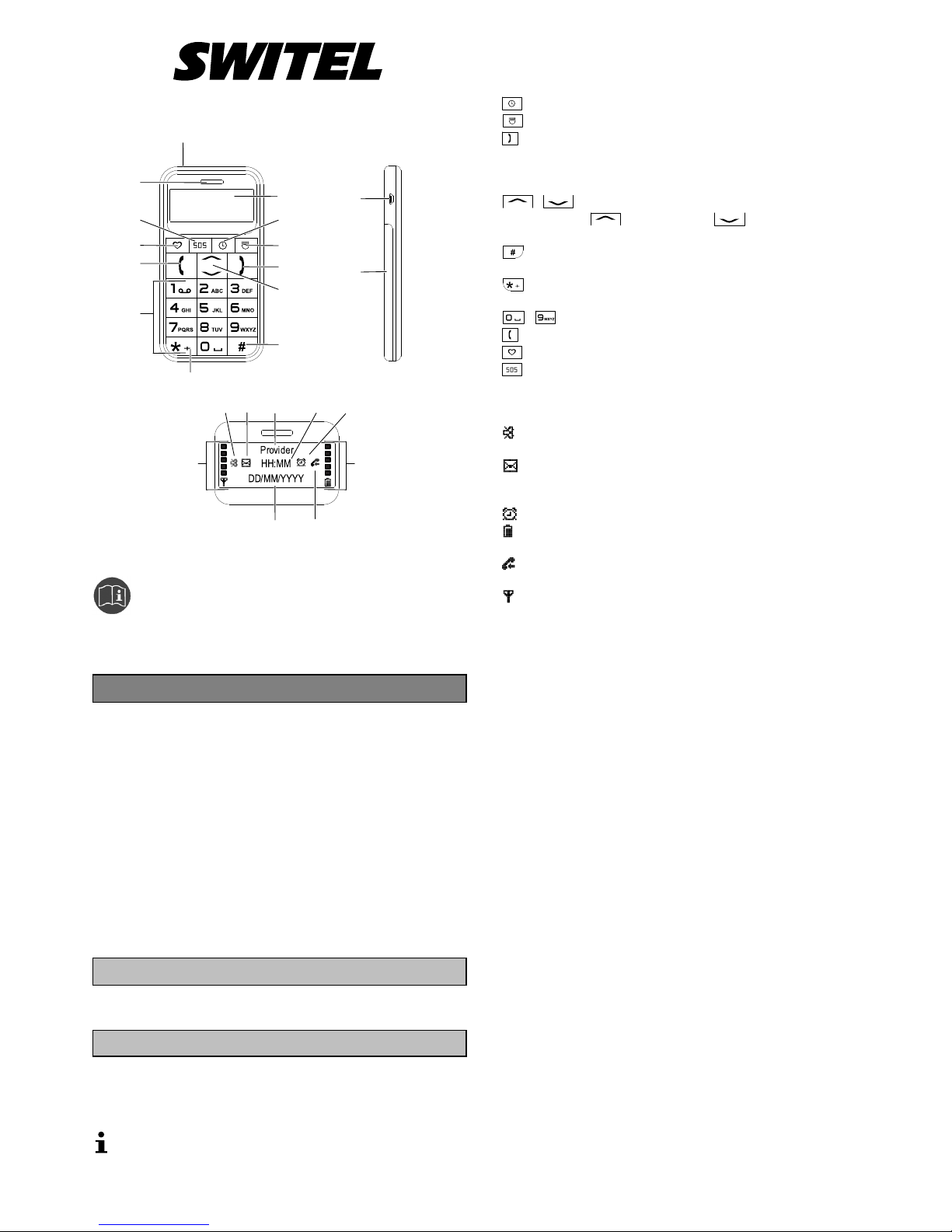

Operating elements and display icons
1 Torch
2 Display
3Alarm clock menu
4Press and hold to switch torch on/off
5End / Reject call
In Standby mode: Press and hold to switch phone on/off
In menu: Cancel action, skip one menu level back
During input: Delete last entry
6/ In menu: Navigate to / select menu option
In Standby mode: Open main menu, Open phone book
During call: Adjust receiver volume
7Standby mode: Press and hold to switch ringing tone off/on
When writing text: Change input mode
8Standby mode: Press and hold to switch key lock on/off
Text entry: Access special characters
9- Enter digits and texts
10 Take call / Confirm selection
11 Family number menu
12 Press and hold to make an SOS call
13 Earpiece
14 Charging socket
15 Battery compartment cover
16 Ringing tone switched off
Incoming calls are only indicated by the torch LED.
17 Unread SMS messages received
18 Mobile service provider to which a connection now exists
19 Time
20 Alarm is activated
21 Battery charge status
Running-through segments, the battery is being charged
22 Missed call(s)
23 Date
24 Signal strength of the phone connection
The more segments the better the connection.
Intended use
This mobile phone is designed for telephoning and sending/receiving SMS mes
sages when connected to a mobile phone network. Any other use is considered
unintended use. Observe all local directives and regulations. Unauthorised
modification or reconstruction is not permitted. Under no circumstances open
the device or complete any repair work yourself.
Package contents
- 1 mobile phone - 1 power adapter plug
- 1 li-ion battery - Operating manual

3
Inserting the SIM card and battery
ATTENTION!
• The SIM card could be damaged.
ÆPay attention that the SIM card remains clean and undamaged.
Insert the SIM card the correct way around.
• The battery or phone could be damaged.
ÆPay attention that the battery is inserted correctly.
Switch the mobile phone off before removing the battery compartment cover.
Only switch it on again when the battery compartment cover has been replaced.
Fig. A: Remove the battery
compartment cover
Fig. C: Insert the battery
Fig. B: Insert the SIM card
Fig. D: Charge the battery
Charging the battery
ATTENTION!
ÆObserve the safety instructions provided at the beginning of this
manual.
When charging the battery for the first time, it should be charged for at
least 12 hours. Aid a long service life of the battery by allowing the bat
tery to fully discharge and then recharge it completely.
ÆConnect the power adapter plug according to Fig. D.
Display and notation of operating sequences
Press the key depicted
2 sec. Press and hold down the key depicted for 2 seconds
Move to the menu option with the Navigation key /
to select it and confirm the selection with the key
ÊResult of correct entry
Enter digits or letters
[Enter PIN] Instructions to follow or selections to make
Phone Book Text in the display (example)
Icon in the display (example)
Standby mode
The system switches to Standby mode by pressing the key, several times if
necessary.
The display switches off after a certain time in Standby mode. It appears again
after pressing any key.
All the descriptions in this manual assume that the mobile phone is in
Standby mode and that the key lock is deactivated.
Writing text
The keys on the keypad are also labelled with letters for the entry of text.
The mobile phone is provided with various methods with which to enter
text. Not every method is always available for each application.
Entering text and digits with the multitap function
ÆPress the key containing the letter required as often as necessary until the
letter appears in the display. If you want the "A" for example, press the key
once; if you need the "B", press the key twice, and so on.
ÆTo enter another letter assigned to the same key, wait approx. 2 seconds
after entering the first letter until the cursor skips to the relevant position in the
display.
ÆThen enter the next letter in the same way as described above.
Switching between text input methods
Æ
Display indicators for text entry
The display indicates which input method is active and whether text will be
entered in upper and/or lower case:
•Upper case only
•Lower case only
•First letter in upper case, subsequent letters in lower case
•Entry of digits
Entering a space
Æ
Entering punctuation marks and special characters
Æ[Select characters]
Deleting characters
Æ
Moving the cursor left or right
Æ/
Telephoning
Dialling a phone number
Æ[Enter phone number] Select
Dialling a phone number from the phone book
Æ[Select entry] Select
Dialling a phone number from a call list
ÆDialledcall / Missedcall/ Receivedcall
Æ[Select entry] Select
Speed dial numbers
You can select numbers stored in the phone book and assign them to the keys
and dial them quickly as speed dial numbers.
Storing a phone number as a speed dial number
ÆPhoneBook Spd.dial
Æ<empty> Edit
Æ[Select entry from phone book]
Dialling using a speed dial key
To dial a speed dial number, press and hold the corresponding digit key -
for approx. 2 seconds.
Family numbers
You can assign up to 5 phone numbers to the key.
Storing a phone number as a family number
Æ<empty> Edit
Æ[Select entry from phone book]
Alternatively, you can also enter a phone number using the digit keys.
Æ[Enter name]
Dialling a family number
Æ[Select entry] Dial

4
Functions available when telephoning
Handsfree mode on/off
ÆLoudspeak / Headset
Muting (microphone) off/on
ÆMute / Unmute
Putting call on hold / retrieving call
ÆHold / Retrievecall
Setting up a conference call
While conversing with a caller, it is possible to set up a conference call with a third
person.
It may be necessary to have this service activated by your mobile service
provider and could involve additional costs.
ÆHold ÊFirst caller is put on hold
ÆPhoneBook [Select entry] Select ÊNumber of third
subscriber is dialled.
If the call is taken:
ÆConferencecallSwapcallsConference call is estab
lished.
Phone book
Creating a new phone book entry
ÆPhoneBook Newcontact
Æ[Enter phone number]
Æ[Enter name]
Deleting individual phone book entries
ÆPhoneBook Deletecontact Delete
Æ[Select entry] [Confirm prompt]
Deleting all phone book entries
ÆPhoneBook Deletecontact Deleteall
ÆDeleteonSIM / Deleteinphone
Æ[Confirm prompt]
Copying individual phone book entries
ÆPhoneBook Copycontact
ÆToSIMdirectly / Tophonedirectly
ÆCopyone [Select entry]
Copying all phone book entries
ÆPhoneBook Copycontact
ÆToSIMdirectly / Tophonedirectly
ÆCopyall
Changing the memory location for phone book entries
ÆPhoneBook Totalreceivedtime Settings
ÆSaveinphone / SaveinSIM
Displaying the phone book memory status
ÆPhoneBook Totalreceivedtime
Storagestate
SMS text messages
Writing and sending an SMS message
ÆSMS Newmessage
Æ[Write message]
ÆSendtoone
ÆNumber [Select contact]
ÆÊThe SMS text is sent
Using SMS templates
Transferring templates to a text
ÆSMS Newmessage
ÆÊ[Templates are opened]
Æ[Select template] ÊThe template is transferred to the SMS text.
Editing templates
ÆSMS Templates
Æ[Select template to be edited]
Æ[Edit template]
Reading an SMS message
The icon indicates that text messages have been received which have not
yet been read.
ÆSMS Inbox / Outbox / Draft
Æ[Select SMS] Read
Answering an SMS message
ÆSMS Outbox
Æ[Select SMS] Reply
Deleting individual SMS messages
ÆSMS Inbox / Outbox / Draft
Æ[Select SMS] Delete
Deleting all SMS messages in a folder or all SMS messages
ÆSMS Delete
ÆAllmsgs / Inbox / Outbox / Draft
ÆÊSMS messages are deleted
Forwarding SMS messages
ÆSMS Inbox / Outbox / Draft
Æ[Select SMS] Forward
Calling the sender
ÆSMS Inbox
Æ[Select SMS] Callsender
Extracting the number from the SMS message
ÆSMS Inbox / Outbox
Æ[Select SMS] ExtractNo.
Voicemail / Mailbox
A Voicemail or Mailbox service is a digital answering machine. If the service is
activated by your mobile service provider, you are informed as soon as a mes
sage has been left on your voicemail or mailbox. You are given the call number
for your voicemail or mailbox inquiries together with the SIM card from your mo
bile service provider.
Saving the Voicemail/Mailbox call number
ÆSMS Voicemail
ÆVoicemailNo.
Æ[Enter the Voicemail/Mailbox number]
Playing messages on the Voicemail/Mailbox
When you have stored the Voicemail number:
Æ2 sec. ÊA connection to the Voicemail is established.
Or:
ÆSMS Voicemail
ÆVoicemailNo. Getvoicemail ÊA connection to the Voice
mail is established.
Additional functions
Call list
Outgoing, received and missed calls are stored in a call list.

5
Detailed view of call list entries
ÆDialledcall / Missedcall/ Receivedcall
Æ[Select option] Detail
Displaying the call duration
ÆCallduration Lastcall / Totalsenttime /
Joinallcalls
Resetting the call duration counter
ÆCallduration Reset
Deleting an entry from the call list
ÆDialledcall / Missedcall/ Receivedcall
Æ[Select option] Delete
Deleting the call lists
ÆDeletecallrecords Dialledcall/ Missedcall /
Receivedcall/ Deleteallrecords
Announcing numbers
Announcing phone numbers of incoming calls
If this function is activated, the phone numbers of incoming calla are announced
before the ringing tone starts. A condition for this is that callers have not sup
pressed your phone number.
ÆTotalreceivedtime CallReading ON/ OFF
Announcing digits when dialling
If this function is activated, the digits entered for a call are announced.
ÆTotalreceivedtime SpeakOut ON/ OFF
Reminder function
You can enter appointment dates of which you want to be reminded in your mo
bile phone.
Entering new dates
ÆTotalreceivedtime Birthdayreminder
ÆAllexceptmessages Newbirthday /
FromPhonebook [Enter name / date]
Changing the date
ÆTotalreceivedtime Birthdayreminder
ÆEntername [Select the date]
ÆBrowsebirthday
Deleting the date
ÆTotalreceivedtime Birthdayreminder
ÆEntername [Select date]
ÆEditbirthday
Calculator
ÆTotalreceivedtime Calculator
Calculation example
ÆTotalreceivedtime Calculator
Æ[Enter number]
Æ/ [Select arithmetic operation]
Æ[Enter number]
Æ/ [Select "="]
ÊThe result is displayed
Alarm function
You can set up to 3 alert times using the alarm clock. The icon indicates that
an alert time is active.
The alarm clock menu can be opened via both the key and the main
menu.
One-off alarm
Æ[Select memory location] Edit
ÆAlarmclock [Enter date]
Æ[Enter time]
Daily alarm
Æ[Select memory location] Edit
ÆDailyalarm [Enter time]
Workday alarm
Æ[Select memory location] Edit
ÆWorkdayalarm [Select weekdays]
Æ[Enter time]
Delete alarm time
Æ[Select memory location] Delete
Basic settings
Setting the language
ÆTotalreceivedtime Phonesettings
ÆLanguage [Select language]
Setting the time and date
ÆTotalreceivedtime Phonesettings
ÆDate&Timesetting Timesetting
Æ[Hour] [Minute]
ÆDatesetting
Æ[Year] [Month] [Day]
Setting the display format for time and date
ÆTotalreceivedtime Phonesettings
ÆDate&Timesetting Dateformat
Æ[Select format]
Setting the ringing tone and other tones
The various tone settings for the mobile phone are compiled in 4 so called "Pro
files". Each profile has a different presetting.
The icon indicates that the profile selected plays no ringing tone.
Adapting profiles
All the profiles, except the Mute profile, can be adapted to personal
requirements.
Adapting signal tones
ÆTotalreceivedtime Profiles
Æ[Select profile] Personalise
ÆDeletebirthday / Incomingcallring / Messagealert /
Birthdayreminder / Alarmring / Poweron/offring [Select
tone]
Adapting the volume of the tones
ÆTotalreceivedtime Profiles
Æ[Select profile] Personalise 
Æ/ Adjust the volume
Activating a profile
ÆTotalreceivedtime Profiles
Æ[Select profile] Activate
Displaying settings
Setting the display contrast
ÆTotalreceivedtime Phonesettings
ÆDispcontrast / [Set contrast]

6
Switching the back-lighting on/off
ÆTotalreceivedtime Phonesettings
ÆLCDBacklightsetting
Switching the key back-lighting on/off
ÆTotalreceivedtime Phonesettings
ÆKeyBacklightsetting / [Set]
Restoring the factory settings
You need the phone code to restore the factory settings. The phone
code is set to 1234 at the factory.
ÆTotalreceivedtime Factorysettings
Æ[Enter phone code] [Confirm prompt]
Call settings
Transferring calls
You can redirect incoming calls to other phone numbers. Before doing this, you
must define whether you want to divert all calls or only certain calls, e.g. those
which receive a busy line signal.
Setting up call transfer
ÆTotalreceivedtime Networksettings
ÆCalltransfer Divertalways / Whenbusy /
Volumeadjust/ Unreachable Activate
Æ[Enter phone number]
Deactivating individual call transfers
ÆTotalreceivedtime Networksettings
ÆCalltransfer Divertalways / Whenbusy /
Volumeadjust/ Unreachable Deactivate
Deactivating all call transfers
ÆTotalreceivedtime Networksettings
ÆCalltransfer Cancelall
Barring calls
This function inhibits outgoing and incoming transmissions according to specific
conditions defined. E.g. you can reject incoming calls when you are abroad.
This service must be supported by your mobile service provider and you
also require the network code of your mobile service provider. Additional
costs could ensue.
ÆTotalreceivedtime Networksettings
ÆCallrestrict Internationalcalls / Allexcepthome /
Incomingcalls/ Incomingifabroad / Outgoingcalls
ÆAllservices / Voicecalls / Data / Fax/ Messages /
Noreply Activate
Æ[Enter network code]
Activating/Deactivating call waiting
This function issues an audible signal to inform you that another call has been
received while the current call is in progress.
ÆTotalreceivedtime Networksettings
ÆCallwaiting Activate / Deactivate
SMS settings
Changing the SMSC number
The SMSC number defines the message centre through which SMS messages
are transmitted. Normally, this setting is assumed from the SIM card.
ÆSMS Messagecenter
Æ[Enter/Change SMSC number]
Request status report
ÆSMS Statusreport
ÆON/ OFF
Displaying the SMS memory status
ÆSMS Usedspace
Security settings
The PIN is supplied together with the SIM card by your mobile service
provider.
Switching the PIN password on/off
ÆTotalreceivedtime PINpassword
ÆON/ OFF
Æ[Enter PIN1]
Changing PIN1
ÆTotalreceivedtime PINpassword
ÆChangePIN1
Æ[Enter old PIN1]
Æ[Enter new PIN1]
Æ[Confirm new PIN1]
Switching the automatic key lock on/off
ÆTotalreceivedtime Phonesettings
ÆAutolockkeypad ON / OFF
SOS (emergency call) settings
You can assign up to 5 phone numbers which are repeatedly called in succes
sion after starting an SOS call until one of the numbers takes the call.
It is also possible to compile an SOS text message which is sent together with
the SOS calls.
Entering SOS numbers
ÆTotalreceivedtime Phonesettings
ÆSetSOS SOSnumber New
Æ[Select memory location] [Enter SOS number]
Changing SOS numbers
ÆTotalreceivedtime Phonesettings
ÆSetSOS SOSnumber Editrecord
Æ[Select SOS number] [Edit SOS number]
Deleting SOS numbers
ÆTotalreceivedtime Phonesettings
ÆSetSOS SOSnumber Deleterecord
Æ[Select SOS number] [Confirm prompt]
Preparing the emergency text message
ÆTotalreceivedtime Phonesettings
ÆSetSOS Emergencymsg
Æ[Write SOS text]
Switching the SOS function on/off
ÆTotalreceivedtime Phonesettings
ÆSetSOS SOSnumber  Status
ÆON/ OFF
Triggering an SOS call
Æ3 sec.
ÊAn acoustic signal is sounded
ÊIf you have prepared an emergency text message, it is sent
ÊThe SOS numbers stored are dialled in succession.
ÊWhen the SOS call is taken, the acoustic signal stops and the call is switched
to handsfree mode.
Ending the SOS call
Æ

7
Network settings
Changes to these settings could result in additional costs. It is recom
mended to retain the factory settings.
Selecting the mobile phone network automatically
ÆTotalreceivedtime Networksettings
ÆNetworkselect Automatic/ Manual
Selecting the mobile phone network manually
ÆTotalreceivedtime Networksettings
Networkselect Manual
ÊA search is made for mobile phone networks available.
Æ[Select network]
SIM toolkit (STK)
The SIMToolkit contains service offers from your mobile service provider,
such as SMS or message services.
Service hotline
In the case of technical problems, contact our Service hotline.
Switzerland: Tel. [phone] (national charges, Swisscom at time of going to
print: CHF 2.60/min).
In the case of claims under the terms of guarantee, please contact your sales
outlet.
Technical properties
Technical data
Feature Value
Standard - GSM 900, 1800 MHz Dualband
Dimensions
(W x H x D)
- 52 x 95 x 13 mm
Weight - 58 g (including battery)
Power supply - Input: 100-230 V, 50-60 Hz, 0.2 A
- Output: Mini USB 5 V, 700 mA
Battery - 3,7 V, 400 mAh
Standby time - Up to 120 hours
Max. talk time - Up to 120 minutes
All Rights Reserved!
Power adapter plug
Your mobile phone is equipped with an energy-efficient power adapter plug
HJ75300 (input 100~240 VAC, output 7,5 VDC, 0,3 A). The zero load is ap
prox. 0,3 W. The average efficiency is approx. 67,91 %. The power consump
tion while charging the mobile phone is approx. 3,17 W.
SAR information
Information on radio frequency emissions and specific absorption rates (SAR =
Specific Absorption Rate).
All the applicable safety standards related to radio frequency emissions were im
plemented during the development of this mobile phone. The limit values are
based on scientific directives and contain a safety margin in order to guarantee
the safety of all persons regardless of age and state of health.
The specified values established according to the directives on radio frequency
emissions are based on a measurement unit referred to as SAR. SAR values are
established using standard methods in which the phone is operated in all pos
sible frequency bands with the highest power output.
Although the SAR values of various phone models can differ, all the models were
developed to maintain the relevant directives on radio frequency emissions.
The following information applies to residents of countries which, as with the
European Union, have adopted the SAR limit value recommended by the IC
NIRP (International Commission on Non-Ionizing Radiation Protection) which
lies at 2 W/kg (averaged from 10 gram tissue:
The highest SAR value measured, averaged over 10 g tissue, was 0,549 W/kg
for this mobile phone measured at the ear.
Maintenance
ÆClean the surface of the housing with a soft, fluff-free cloth.
ÆDo not use any cleaning agents or solvents.
Disposal
In order to dispose of your device, take it to a collection point provided
by your local public waste authorities (e.g. recycling centre). According
to laws on the disposal of electronic and electrical devices, owners are
obliged to dispose of old electronic and electrical devices in a separate waste
container. The adjacent symbol indicates that the device must not be disposed
of in normal domestic waste!
You are legally obliged to dispose of power packs and batteries at the
point-of-sale or in the corresponding containers provided at collection
points by the public waste authorities. Disposal is free of charge. The
symbols indicate that the batteries must not be disposed of in normal do
mestic waste and that they must be brought to collection points provided
by local public waste authorities.
Guarantee
SWITEL equipment is produced and tested according to the latest production
methods. The implementation of carefully chosen materials and highly de
veloped technologies ensure trouble-free functioning and a long service life.The
terms of guarantee do not apply when a device malfunction was caused by the
mobile telecommunications network operator/provider. The terms of guarantee
do not apply to the batteries or power packs used in the products. The period of
guarantee is 24 months from the date of purchase.
All deficiencies related to material or manufacturing errors within the period of
guarantee will be redressed free of charge. Rights to claims under the terms of
guarantee are annulled following tampering by the purchaser or third parties.
Damage caused as the result of improper handling or operation, normal wear
and tear, incorrect positioning or storage, improper connection or installation or
Acts of God and other external influences are excluded from the terms of guaran
tee. In the case of complaints, we reserve the right to repair defective parts, re
place them or replace the entire device. Replaced parts or devices become our
property. Rights to compensation in the case of damage are excluded where
there is no evidence of intent or gross negligence by the manufacturer.
If your device shows signs of defect during the period of guarantee, please return
it to the sales outlet in which you purchased the SWITEL device together with
the purchase receipt. All claims under the terms of guarantee in accordance with
this agreement can only be asserted at the sales outlet. No claims under the
terms of guarantee can be asserted after a period of two years from the date of
purchase and hand-over of the product.
Declaration of Conformity
This device fulfils the requirements stipulated in the EU directive
1999/5/EC concerning radio equipment and telecommunications terminal
equipment and the mutual recognition of their conformity. Conformity with the
above mentioned directive is confirmed by the CE mark on the device. To view
the complete Declaration of Conformity, please refer to the free download avail
able on our web site at www.switel.com.
