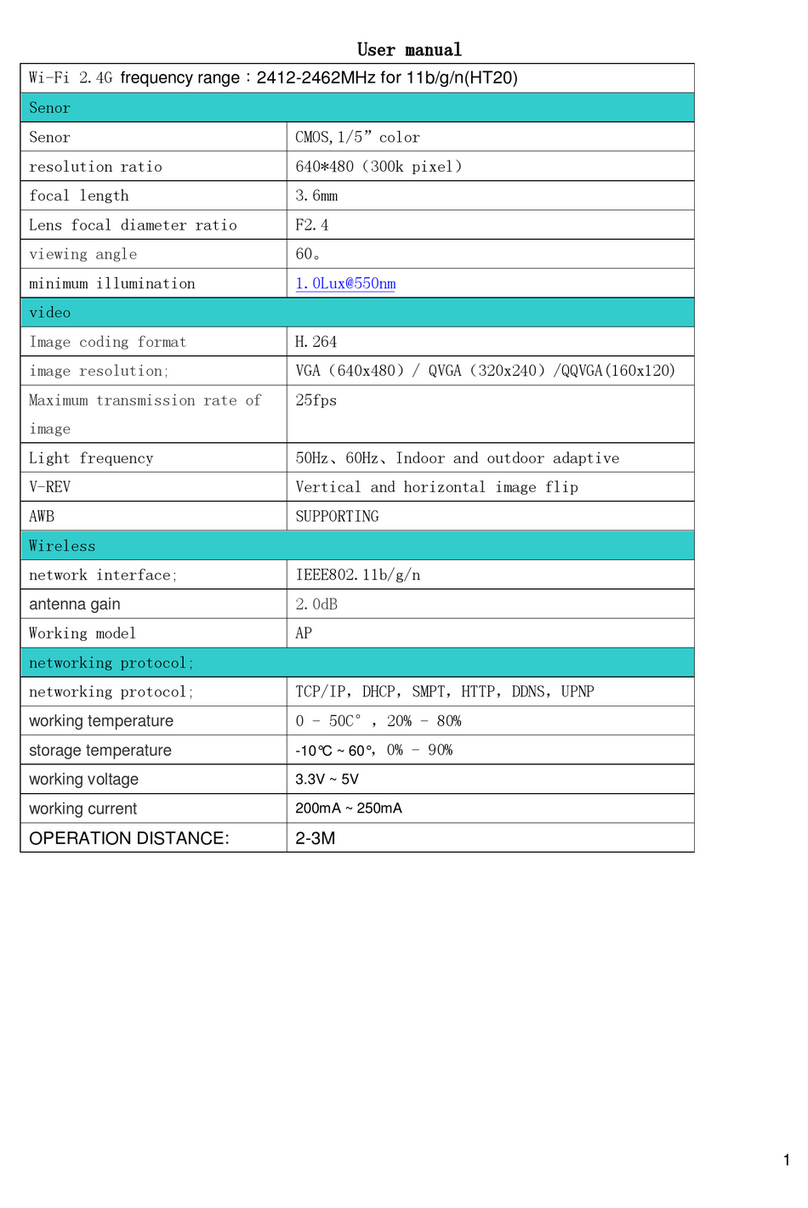

SYMA LOG1612-JR User manual

1
Use manual
Wi-Fi 2.4G frequency range：2412MHz for 11b/g/n(HT20)
Senor
Senor
CMOS,1/5”color
resolution ratio
640*480（300k pixel）
focal length
3.6mm
Lens focal diameter ratio
F2.4
viewing angle
60。
minimum illumination
1.0Lux@550nm
video
Image coding format
H.264
image resolution;
VGA（640x480）/ QVGA（320x240）/QQVGA(160x120)
Maximum transmission rate of
25fps
Light frequency
50Hz、60Hz、Indoor and outdoor adaptive
V-REV
Vertical and horizontal image flip
AWB
SUPPORTING
Wireless
network interface;
IEEE802.11b/g/n
antenna gain
2.0dB
Working model
AP
networking protocol;
networking protocol;
TCP/IP，DHCP，SMPT，HTTP，DDNS，UPNP
working temperature
0 - 50C°，20% - 80%
storage temperature
-10°C ~ 60°，0% - 90%
working voltage
3.3V ~ 5V
working current
200mA ~ 250mA
OPERATION DISTANCE:
2-3M

2
Search and install APP “WIFI GO”, swich No of airplane, the green light will be flashing in 5
seconds, and search to the "FPV_WIFI__XXXX" in mobile phone set, so light keeping
when WIFI is connected,
