SYMA X200W User manual

FOLDING DRONE
X200W
8
[phone](US) [phone](UK) [phone](DE)
[email protected](US) [email protected](EU)
https://www.symatoys.com https://www.symatoys.com.cn
User manual V1.0

DE
Contents
1-21
EN ENGLISHINTRODUCE
23-43
DEUTSCH EINFÜHRUNG

Contents
1.0 Important Notices and Safety Guidelines
2.0 Product Description
2.1 Specifications
2.2 Download SYMA FLY APP
2.3 Drone diagram
2.4 Remote Control diagram
3.0 Product Assembly
3.1 Folding the Drone
3.2 Propeller Installation
3.3 Drone Battery Charging
3.4 Mobile Phone Clip Installation
3.5 Battery Installation
4.0 Flight Guide
4.1 Flight Preparation and Turning the Drone On/Off
4.2 Flight Control
4.3 Flight Mode
4.4 Smart Flight Feature
4.5 Protection Mechanism
6.0 Contact Us
5.0 Troubleshooting
7.0 Product Accessories
2
4
7
10
4
5
5
5
6
6
7
8
8
8
11
13
14
15
16
8.0 Exploded View 17
9.0 Warranty 19
16
6
1
EN

2
EN
1.0 Important Notices
Safety Guidelines
1. Please store the smaller-sized drone accessories in places that are out of reach of children.
2. For all first-time flights, the left joystick must be slowly pushed up in order to prevent the drone
from ascending too fast in case of unnecessary collision and possible damage and injury.
3. When the flight is ended, first turn off the power of the remote control. Then turn off the power
of the drone.
4. Avoid placing the batteries in places with high temperatures and exposure to heat.
5. Take extra precautions to ensure that the drone is at a minimum distance of 15 feet from the
pilot, other people, and animals in order to prevent physical injury during flight operations. A
minimum separation distance of 20 cm must be maintained between the user's body and the
device under normal use conditions.
6. Children under the age of 8 must be instructed with the correct and safe operation of the drone
by an adult.
7. Children must be under adult supervision when using this drone.
8. Non-rechargeable batteries are not to be recharged; Batteries are to be inserted with the
correct polarity; Different types of batteries or new and used batteries must not be mixed.
9. The supply terminals can not be short-circuited.
10. Discharge the battery to 40%-50% (On a full charge, fly for half of the total flight time) if it will
not be used for 10 days or more, this can greatly extend the battery life.
11. Please keep a safe distance from the spinning propellers to avoid injury.
1. Please read this manual carefully so as to protect your legitimate rights and interests and to
make sure the drone is used correctly.
2. When using this product, please strictly observe and perform the requirements which include
but are not limited to the instructions and safety guidelines. The user shall bear the related
responsibilities and losses for any personal injury, accidents, property loss, legal dispute or any
other adverse events causing a conflict of interest resulting from the use of the product or any
irresistible factors that violate the safety instructions. Syma will not take any responsibility.
3. Once you start using the product. you are deemed to have read, understood, and accepted the
terms and contents of the instructions (including disclaimers, safety instructions, warning
instructions, etc) included with this product.
4. In case you are having challenges on any aspect of the product, may it be operation or
maintenance, please contact our customer service directly.

3
EN
12. To ensure the electromagnetic environment requirement of the aviation radio (station), using
remote controls in the zone, which is in a radius of about 5000m zones from the circle center of
the airport runway, is forbidden. All users also should abide by the regulation of the radio set
forth by government and regulatory agencies including the duration and area.
13. Only use the recommended transformer for the model, and the transformer is not a toy.
Check the cord, plug, enclosure, and other parts of the transformer regularly. If any damages
have been discovered, please immediately stop using it until it was completely repaired.
14. Never look steadily at the laser beam since the laser radiation.
15. NOTE: Assemble the drone under adult supervision.
16. The pilot is responsible for the safe operation, safe distance from uninvolved persons and
property on the ground, and from other airspace users and shall never fly the drone above
crowds (> 12 persons).
17. The packing has to be kept since it contains important information.
18. It is strongly recommended to fly in areas without airflow. Do not fly in areas with an air
conditioner/electric fan or table lamp, or other electrical equipment which may be easily
damaged.
19. Use only the supplied charging cable.
20. Chargers used with the drone should be examined regularly, such as the cord, plug,
enclosures, and other parts. If any damages are found, please stop using it unless it is repaired or
replaced.
21. Do not touch the rotating rotor, avoiding loose clothing or hair being caught in the rotor, and
do not fly near the face.
1. Use a dry and soft cloth to clean the product.
2. Do not expose the product to extreme heat or direct sunlight.
3. Do not immerse the product in water as this may damage the electrical components.
4. Please check the blades, motors, and batteries regularly. If any damage is found, please
stop using it unless it is repaired or replaced.
Repair and Maintenance

2.0 Product Description
2.1 Specifications
Drone
Drone weight about 38g
Drone Size 156x142x38 mm
Brand Name SYMA
Model/ITEM NO. X200W
Range about 30 m
Altitude about 10 m
Remote control
Operating Frequency 2.4 GHz
Battery 4X1.5V"AA"(Not included)
Package contents
Drone 1
Remote control 1
USB charging cable 1
Clockwise/anticlockwise propellers 2 (A/B)
Screwdriver 1
Phone holder 1
User manual 1
2.2 Download SYMA Fly APP
1. Scan the QR code with your mobile device or download the app from your app store.
AndroidiOS
*For better results, this application requires iOS 8.0/Android 5.0 or later.
Note:
Flight time about 15 mins
Motor ø6
Battery capacity(built-in) 3.7V 400mAh
Charging time about 90 minutes
4
EN

2.4 Remote Control Diagram

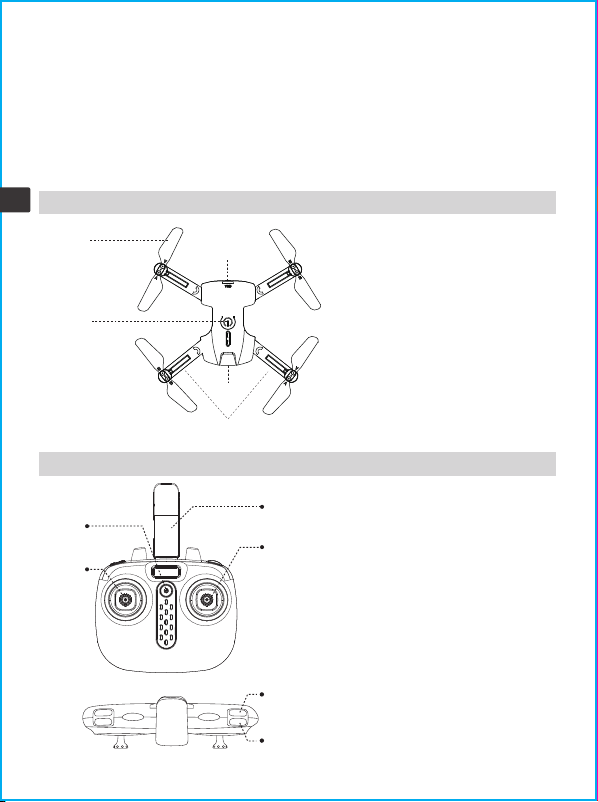

2.3 Drone Diagram
①
②
③
④
⑤
⑥
① Power switch
② Left joystick
(Press and hold the button, push the
right joystick to complete the
corresponding trimming)
③ Phone holder
④ Right joystick
(short press to toggle between
high and low speed mode)
⑤ 360°flip (Press and hold the button,
push the right joystick to complete
the corresponding flip)
⑥ One key take off/land
5
EN
①Propeller
② Power switch
③Charging port
④ Arms
①
②
③
④
⑤
⑤ Camera
2. WIFIConnection Operation
① Download SMYA FLY APP on your phone.
② First pair the drone with the remote control, then turn on the WiFi settings of the mobile
device and select "FPV_WIFI_****" from the WIFI list.
③ Wait until your smartphone connects to the drone's WIFI network.
④ Open SYMA FLY APP, select the model, and then click START the camera image will display
on the screen, indicating that the connection is successful.

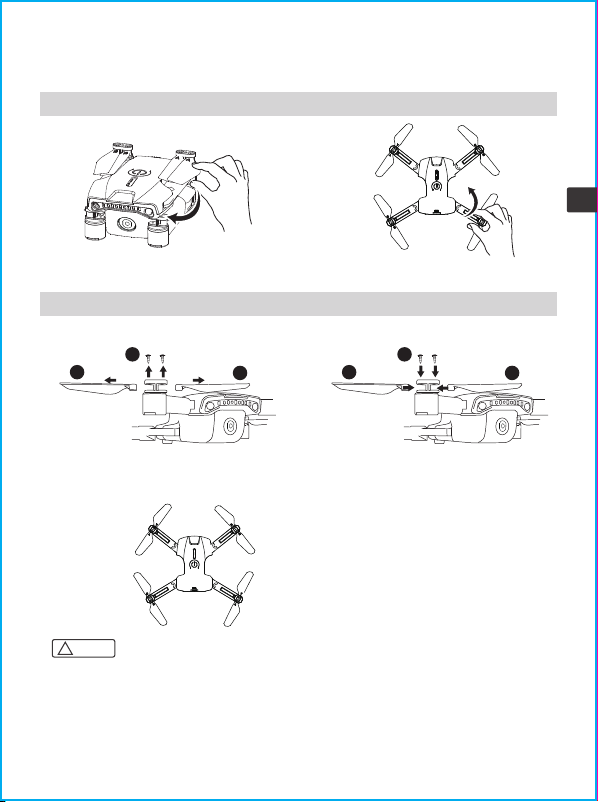

3.1 Folding the drone
3.2 Propeller Installation
3.0 Product Assembly
Note:
!
1. Please make sure that the propellers are installed in the correct position. If the installation is incorrect,
the drone will not be able to fly normally.
2. Since the propellers are thin, please be careful when installing them in case of accidental scratches.
3. Please use the propellers provided by our manufacturer.
4. The propellers are consumables, if necessary, please purchase additional accessories.
1. Unfold the arms in the direction of the arrow
Remove the screws and the holder in the
direction of the arrow, and then detach
the propellers.
Place the propellers on the arm of the drone
in the direction of the arrow, place the holder
then tighten the screws.
2. Fold the arms in the direction of the arrow
Detaching the propellers Re-installing the propellers
6
EN
3
2
1
1
3
2
Referring to the figure below, install the
label "A" propeller and label "B" propeller
in the corresponding positions, and use a
screwdriver to tighten the screws.
A
A
B
B

Attaching the phone holder

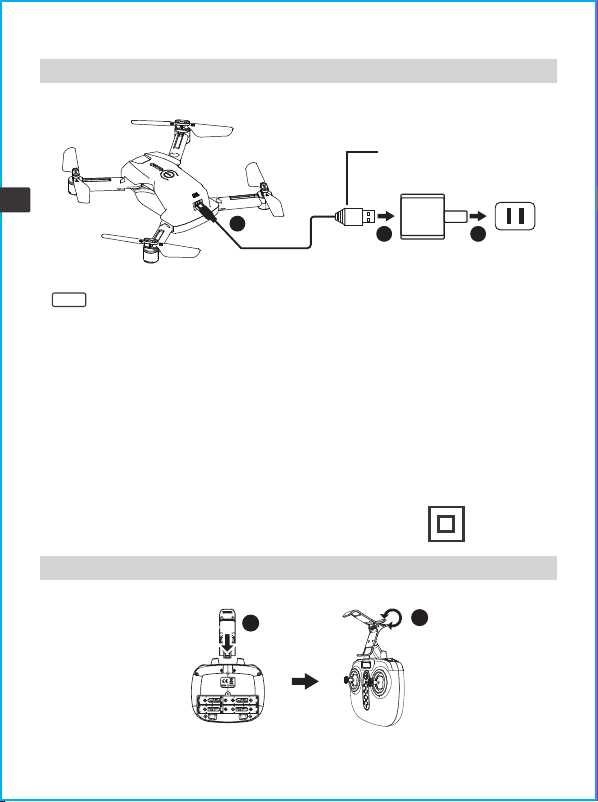

3.3 Drone Battery Charging
3.4 Mobile Phone Holder Installation
Note:
* Charge the drone with the USB charging cable that came with the product.
* The battery will take longer to charge when you use an adapter with a smaller rated current.
1. Rechargeable batteries should only be charged under adult supervision.
2. Caution: Improper battery use may result in an explosion. Please dispose of the batteries according
to the instructions.
3. Don't use or place batteries near heat sources such as fires or heaters.
4. After flying, it is necessary to wait until the battery completely cools down before charging it as
the battery's getting too hot may cause a fire.
5. Don't hit or drop the battery when charging to avoid an internal short circuit.
6. Only use the supplied charging cable for charging. If the battery is aging, please replace it with a new
battery in time.
7. After fully charged, please remove it from the adapter in time, otherwise the battery will be
discharged and recharged, which will shorten the battery life.
8. The toy is only to be connected to Class II equipment bearing the symbol:
Insert the mobile phone
holder into the hole on
the top of the remote
control
Press the spring to
adjust the size of
the phone holder.
Important: Battery Charging Information
12
7
EN
USB
12 3
5V/1A adapter(Not included)
USB charging cable
The indicator light is red when
charging and will turn off when
the battery is fully charged.

Remote control battery installation
Note:
!
1. When installing the battery, please make sure that the polarity of the battery matches the polarity of
the battery box.
2. Do not use new and old batteries together.
3. Do not use different types of batteries together.
4. Do not use rechargeable batteries.
Note:
!
After you switch on the remote control, the indicator will flash quickly, which means that the remote
control is waiting to be paired with the drone.
Pairing the remote control with the drone
4.0 Flight Guide
4.1 Flight Preparation and Turning the Drone On/Off
⑤ Both indicator lights turn solid
when the pairing is successful.
② Switch on the drone, drone indicator
light flashes from rapidly to slowly
2
① Switch on the remote control, remote control
indicator light flashes slowly.
③ Push the left
throttle up.
④ Pull the throttle
down and reset
it to the center.
3
4
1

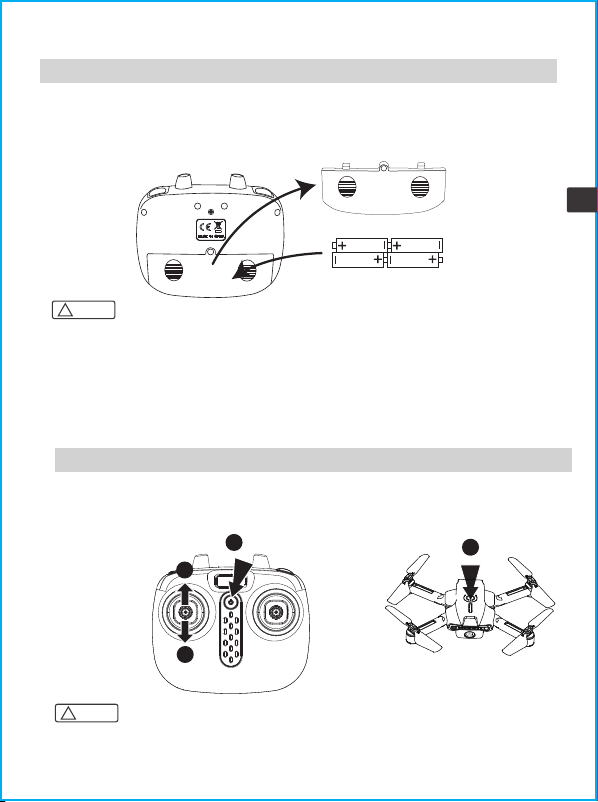

Remote control battery installation: Open the battery cover on the back of the remote control, and
install 4*AA batteries correctly according to the electrode instructions of the battery box(battery needs
to be purchased separately)
3.5 Battery Installation
Battery cover
4x AA batteries
8
EN

9
EN

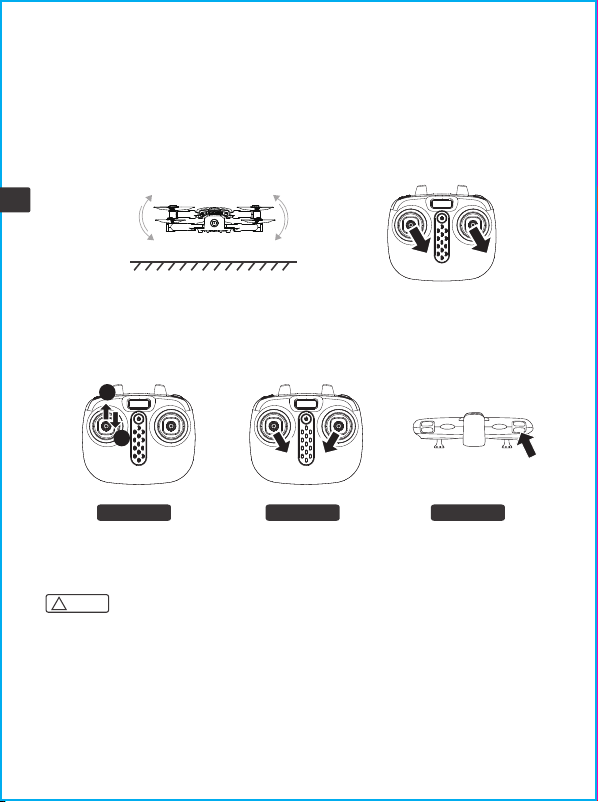

Turning the drone on
Push the left joystick fully up and
return to the center.
Push the left and right joysticks
downward in a V shape for 2 seconds.
Press the one key take off/landing
button
Note:
!
1. If the drone is flying out of range from the remote control, the drone indicator light will start flashing
and the drone will land slowly.
2. If the remote control suddenly turns off or runs out of power during flight, the drone will
automatically land and come to a stop.To re-control the drone, the remote control needs to be
turned on again and the pairing also needs to be done.
Method one Method two Method three
2
1
Level calibration
Place the drone on a flat surface and move the left and right joysticks to the lower right corner for
approximately 3 seconds. The indicator will flash rapidly and then turn solid, which means that the
calibration process is complete.
The drone cannot be calibrated if the angle of inclination is greater than 10 degrees.

10
EN
Note:
!
The drone will switch off automatically if its angle of inclination exceeds 90 degrees.
Method one Method two Method three
Push the left joystick downward
for 2-3 seconds.
Push the left and right joysticks
downward in a V shape for 2 seconds.
Press the one key take off/landing
button
Turning the drone off
Ascend
Descend
Forward
Backward

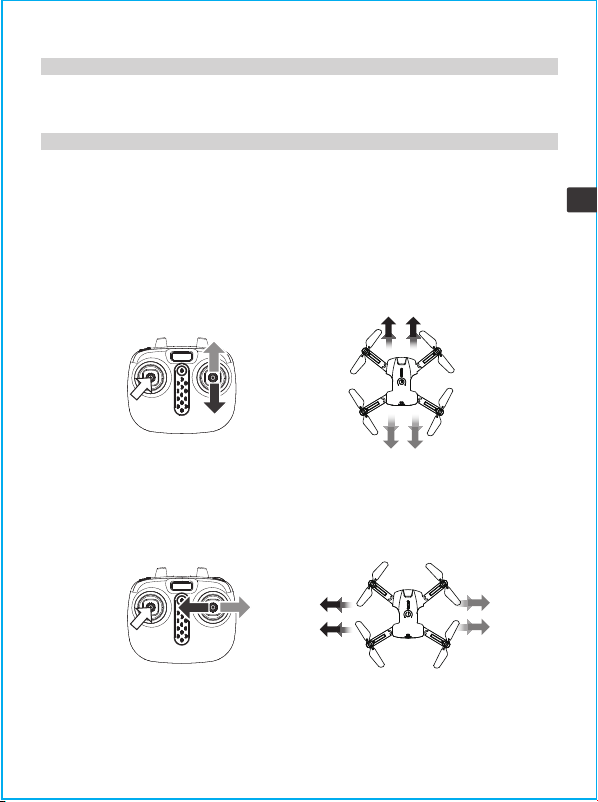

4.2 Flight Control

11
EN

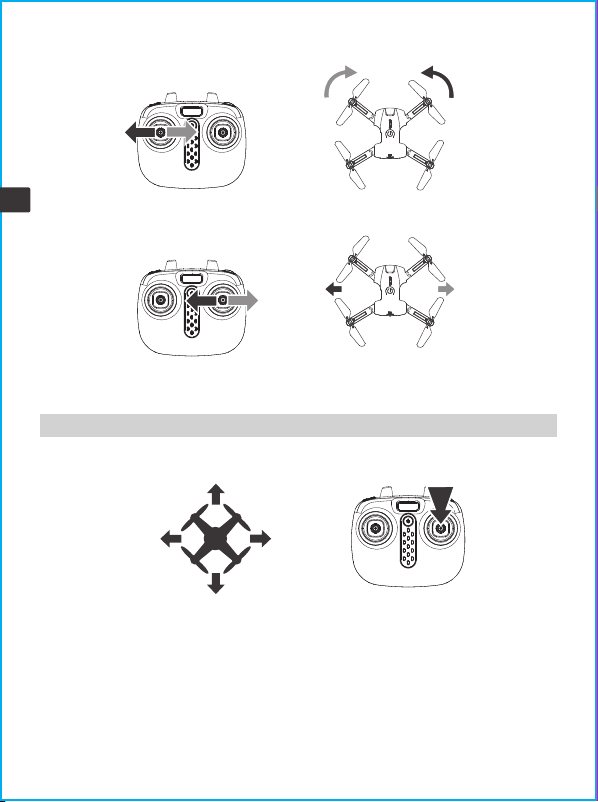

Rotate right Front Rotate left
Rear
Go left Go right
Front
Rear

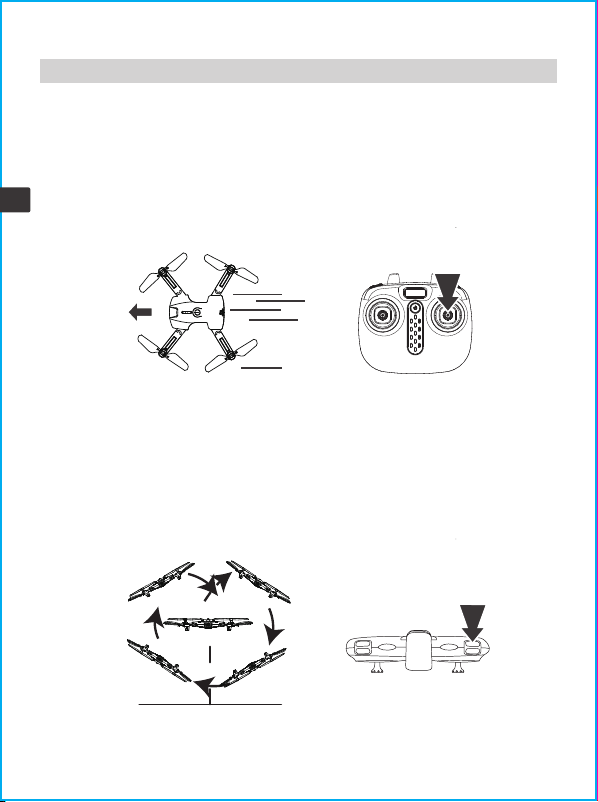

4.3 Flight Mode
Push the right joystick of the remote control to fly forward, the drone will always fly in the
direction indicated by the nose when it takes off, even if the direction of the nose is
changed during the flight.
Headless mode

12
EN
Trimming
When the drone is hovering in the air and drifting forward or backward automatically, you can press
and hold the trim button and push the right joystick in the backward or forward direction to adjust
until the drone is stable and then release it.
When the drone is hovering in the air and automatically drifting to the left or right, you can press and
hold the trim button and push the right joystick to the right or left direction to adjust until the drone
is stable and then you can release the trim button.
Trimming forward and backward
Trimming left and right
1. Define the Front
When you turn on the power for the first time and start the drone, the direction of the nose of
the drone is straight ahead.
2. Enter and Exit of Headless Mode
① After the pairing is completed, press the "Headless Mode" button, and the remote
control will emit a "beep beep.." sound, the indicator light on the drone will flash slowly,
indicating that it has entered the headless mode. Press the "Headless Mode" button
again. When you hear a long beep sound, the drone exit the headless mode.
② In the headless mode, the operator does not need to identify the position of the nose of
the drone but only needs to control the drone according to the direction of the joystick of
the remote control.

13
EN
4.4 Smart Flight Feature
Press the speed switch button to switch between high speed and low speed.
1. The default speed is low speed when the power is on.
2. The remote control emits two beeps for high speed and one beep for low speed.
High/low speed mode
360°Flip
When you are familiar with the basic functions of the drone, you can try out the exciting flip
stunts. After flying the drone to a height of more than 2 meters, press and hold the 360°flip
button on the remote control, and push the right joystick forward / backward or left / right at
the same time, the drone will flip in the corresponding direction.
2m

14
EN
4.5 Protection Mechanism
Undervoltage protection
Overcurrent protection
When the two indicators on the nose of the drone begin to flash, it means that
the power of the drone is low. At this time, please control the drone to return.
If the drone's blades collide with another object or become stuck, the drone will
engage the overcurrent protection mechanism.
One key take off/land
Altitude hold
1. When the drone is in standby mode, press the one key take off/land button, the drone will
automatically take off and hover at a height of 1.5 meters.
2. When the drone is in flight, press the one key take off/land button and the drone will
automatically land on the ground.
When you release the left joystick (throttle) after ascending/descending, the drone will
continue to hover at the current height.

5.0 Drone status and maintenance
Problem Reason Solution
1. The aircraft and the remote
control are not paired
2. The aircraft enters low voltage
protection
Aircraft fails to take off
and the indicator light
keeps flashing rapidly
1. Correctly pair the remote control with
the drone. The indicator light will stay
on when the pairing is successful.
2. The battery voltage of the is too low,
please fully charge the battery
1. The drone is not level calibrated
2. Unstable air pressure in bad
weather conditions
3. Cluttered gyroscope data due
to a violent collision
Unstable hovering 1. Re-do the level calibration, place the
drone on a horizontal surface, and push
both the left and right joysticks to the
lower right corner for about 3 seconds.
The indicator light on the aircraft flashes
quickly and then turns solid indicating
that the calibration is successful.
2. Try to avoid flying in a bad weather and
fly it in a windless environment.
3. Re-do the level calibration and operate
according to point 1.
The drone is not level calibratedFly sideways when
hovering
Re-do the level calibration, place the
aircraft on a horizontal surface, and push
both left and right joysticks to the lower
right corner for about 3 seconds. The
indicator light on the aircraft flashes
quickly and then turns solid, indicating
that the calibration is successful.
1. Low phone configuration
2. Abnormal network during the
installation process
Unable to connect APP
1. Make sure the device is running the
latest operating system to support the
app or use another smartphone to
connect the drone
2. Uninstall and reinstall the app
Check the motor for foreign
objects (eg: hair, sand)
Motor does not work Regular inspection and cleaning
1. Out of transmission range
2. Low phone configuration or the
small cache
3. Environmental disturbances
APP and mobile image
transmission are
unstable
1. Within the controllable transmission
range
2. Update your phone or clear the cache
3. Change to an open environment
1. Beyond the remote control
distance
2. Low battery of the remote
control
Remote control does
not work
1. Within the controllable flight range
2. Replace the remote control battery and
install it with correct polarity.
Check the battery of the drone
and remote control
Unable to pair the
drone with the remote
control
Charge the drone battery, or replace the
battery of the remote control with the
correct installation
Check whether the blade is
installed correctly or the blade is
damaged
The aircraft vibrates
violently
If the blade is deformed, replace the blade
and install the clockwise and
counterclockwise blades correctly.
15
EN

7.0 Product Accessories
Please do not hesitate to contact us if you need further support.
[email protected]
[phone](US) [phone](UK) [phone](DE)
6.0 Contact Us
For online support, please scan this code with Facebook Messenger
16
EN
Arm A Arm B Propeller blades
Remote control Phone holder
USB charging cable
Battery
(With forward motor) (With reverse motor)

8.0 Exploded View
17
EN
