SYMA X8C User manual

Er--
'--
41"
-
01
0
---
•
INSTRUCTION MANUAL
=YAM
^
AGES 14+
A:fir
EXPLORERS
4CH 2.4G REMOTE CONTROL QUADCOPTER
IMPLEMENT STANDARD: GB/T26701-2011
Main characteristics
•
Four-axis structure is applied,which makes the quadcopter more flexible and rapid
when flying.lt has the characteristics of wind-resistant and can be flied indoor or
outdoor.
•
Built-in 6 axis gyroscope for precise hovering in the sky.
•
Modular design structure is applied, more simple for assembly and convenient for
maintenance.
•
With 360°3D eversion function and throwing flight function .
•
Newly-increased headless function can recall the aircraft easily.
The materials and specification mentioned in this instruction manual or the parts inside this package is
for reference only.Our company won't be responsible for any adaption of the outer package.Nor shall
we keep our customers informed in advance.Any information updates or changes,please be subject to
our website .

Product included following contents:
•
Quadcopter
• Battery
•
2.4G Remote controller • Four riggers
•
USB charging wire
• Four foot stands
•
Instruction manual
• Camera
•
Screwdriver
• Reader
•
Blade(4 pieces)
Safety regulations
1.
Please put smaller parts of the aircraft in the place where children can't reach,
avoiding from accidents.
2.
Power of this aircraft is adequate. Therefore, when flying for the first time, it
should push remote control's right/left variable-speed joystick slowly, avoiding
from collisions caused by rising aircraft rapidly.
3.
After flying, it should turn off remote control's power supply and come close to
the aircraft to turn off its power supply.
4.
Please don't put battery in high-temperature and heated places(such as fire or
nearby electric heating devices).
5.
When the aircraft flies, it should maintain 2-3 meters from the user or others,
avoiding from crashing into others' head, face or body when it lands.
6.
When children operate the aircraft, they should be accompanied with the adult
and guided by the adult. Ensure that the aircraft is controlled within the range
of operator's (or instructor's) visibility. It is convenient for controlling.
7.
Non-rechargeable battery can't charge. As installing or changing battery,
pleasepay attention to the polarity. Don't use a mixture of old and new battery
or battery with different types.
8.
When it isn't used, it should turn off remote power supply of remote control and
aircraft, respectively, and take out the battery in remote control.
9.
Power supply terminal can't be short circuit.
Maintenance
1.
Use clean soft cloth to clean this product frequently.
2.
Avoid from exposure or heating in the sun.
3.
Don't put the toy in the water. Otherwise, it'll damage electronic parts.
4.
Please check the plug and other accessories at regular intervals. If there
is any damage, please stop using it immediately until it is repaired completely.

Get to know your transmitter
Introduction of transmitter:
Battery Cover
ieL
Right
control
lever
Forward
and
backward
trimmer
Mode switch
Sideward Fine-tuning (Mode 1)
Left Fine -tuning(Mode 2)
4 X AA LR06)
1.5V Batteries
Speed gear's
headless
function switch
Left
control
lever
and video
Left Fine -tuning
(Mode 1)
Sideward Fine-
tuning (Mode 2)
Power ON/OFF
Antenna
Indicator
D
Eversion
Installation methods of battery: Open back battery cover of remote control, and
put 4 No.5 alkaline batteries in the middle place correctly, according to battery
box's pole indication (battery should be available separately).
1.Install batteries with correct polarity.
2.Do not mix old and new batteries.
3.Do not mix different types of batteries.
Remote control keypad and lcd manual
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
01.Sideward Fine-tuning :Power-on start in the centering.(Be turn Left/Right Fine
-tuning in Mode2)
02.Forward/Backward fine-tuning:Power-on start in the middle.
03.Turn Left/Right fine-tuning:Power-on start in centering.(Be Sidewoard Fly Fine
-tuning in Mode2)
04.Forward shows:Power-on start in the lowest level.(At the center spuare)
05.Backward shows:Power-on start in the lowest level.(At the center spuare)
06.Right sideward fly shows:Power-on start in the lowest level.(At the center
spuare)
07.Left sideward fly shows:Power-on start in the lowest level.(At the center
spuare)
-2-

Figure (1)
LA I
Figure (2)
Figure (3)
Figure (4)
08.Turn left: Pull left function lever to left, it will be higher, than quad copter turn
left faster.
09.Turn right: Pull left function lever to right, it will be higher, than quad copter turn
right faster.
10.High/Low speed: Press button "A" for seconds to switch between high speed
mode or low speed mode. "H" means high speed and "L" means low speed.
11.Power shows:According to the battery's energy for the controller.
12.Default mode when power-on.When change to MODE 2, please keep pressing
button "B" to right than return on the power of transmitter, the MODE on LCD
displayer will be changed. Same steps to change to MODE 1 again.
13.Signal shows:Normally to full frame.
Installation steps of aircraft's safety guard
1.
Pull out ornamental parts as shown in
Figure (1).
2.
Back out screwsin anti-clockwise direction
as shown in Figure (2).
3.
Press down ornamental parts as shown in Figure
(3) and insert guard circle into fuselage interface.
4.
Rotate and twist screws in clockwise direction as
shown in Figure (4).
Note: Without rigger, rolling effect in flight will be better.
-3-

Installation steps of aircraft's foot stands
Figure (1)
1. Insert foot stands into interface
of lower main body as shown in
Figure (1).
Figure (2)
2. Rotate and twist screws in
clockwise direction as shown
in Figure (2).
nsta camera
Installation steps of
X8C camera:
Figure (1)
Figure (2)
1.
Push the camera in place
as shown in Figure (1).
2.
Connect connecting line of
camera with power supply
socket of fuselage's camera
as shown in Figure (2).
Disassembly steps of
X8C Camera:
i
I
Figure (1)
Figure (2)
Figure (3)
1.
Pull out power supply cable of the
camera as shown in Figure (1).
2.
Press down safe lock of lower main
body as shown in Figure (2).
3.
Push forward the camera and take it
out as shown in Figure (3).
Note: After turning on aircraft's power supply, it forbids to insert
or •ull
OU
camera's •lug connecting to the aircraft.
photography/video instructions
1.
Methods: 0 Make sure the 3-pin plug of camera is inserted to the quadcopter.
C) Turn the quadcopter power on, the camera works normally when
the RED indicator change form flashing to green and keep light
on. If the RED indicator just light on and light off seconds later,
it means the SD card is not in the camera. Please insert the SD
card, than the indicator light on GREEN.
2.Get to know take photo and video:
OD Turn on the transmitter and pull left lever up and down
to connect signal between quodcopter and transmitter.
‘
.
..1)
'fake photo
t
El
Take video
-4-

Controller modes & instructions
The transmitter built-in two modes, Mode 1 &
Mode 2, in line with different customer's usage
pattern. Keep pushing button B to right, than turn
on the transmitter power to change Mode 1 or
Mode 2.
Forward and backward
MODE
Operating direction
Hover up and down
Pull the throttle left or right, the
quadcopter turns to left or right.
Pull the direction lever left or right, the
quadcopter flies to left side or right side.
Push the throttle up or down, the
Push the direction lever up or down, the
quadcopter flies upward or downward.
quadcopter flies forward or backward.
Turn Left and Right
Sideward fly
10 Take Photo : Make sure camera normally work, when push the button "C" up,
camera will take a photo after a beep from transmitter and the GREEN
indicator on camera will be RED and flash on time.
Take Video : Make sure camera normally work , when pull the button "C" down
camera starts to take video after a beep from transmitter and the GREEN
indicator on camera will change to RED than keep flashing. Press the button
"C" slightly again , another beep from transmitter means video stopped and
the RED flashing light on camera will be GREEN and keep light on.
-5-

-6-
Fine-tuning operation
Forward/Backward fine-tuning
Sideward fly fine-tuning
Turn left/right fine-tuning
When the quadcopter
keeps flying forward /
backward, youcan correct
it by pressing fine-tuning
button down / up.
When the quadcopter
keeps flying to left / right
side, youcan correct it by
pressing the Fine-tuning
button right / left.
When the quadcopter
keeps rotating to left /
right, you can Correct it
by pressing the fine-
tuning button right / left.
Forward and backward
MODE 2
Operating direction
Hover up and down
Push the throttle up or down, the
Push the direction lever up or down, the
quadcopter flies upward or downward.
quadcopter flies forward or backward.
Turn Left and Right
Sideward fly
Pull the direction lever left or right, the
Pull the throttle left or right, the
quadcopter turns to left or right.
quadcopter flies to left side or right side.

-7-
Function introduction
1.Low-voltage protection:
When four indicator lights on the bottom
of aircraft start to flicker, it means electric
quantity of the aircraft is insufficient. Please
control the aircraft to make a return voyage.
Sideward fly fine-tuning
Fine-tuning operation
Forward/Backward fine-tuning
Turn left/right fine-tuning
When the quadcopter
keeps flying forward /
backward, youcan correct
it by pressing fine-tuning
button down / up.
When the quadcopter
keeps flying to left / right
side, youcan correct it by
pressing the Fine-tuning
button right / left.
When the quadcopter
keeps rotating to left /
right, you can Correct it
by pressing the fine-
tuning button right / left.
Ready to fly your quadcopter
.Press the ON/OFF
power switch up.
2. Open battery cover,
and connect battery
connector with dash
receiver.
3. Enclose battery into
the fuselage, after
closing battery cover,
turn on the switch on
the bottom of aircraft.
4.Push the throttle lever to the highest position,
and then pull it back to the lowest position.
There will be one clear sound from the transmitter,
this shows that the quadcopter has entered into
the pre-fly state.

2.Low-voltage protection:
When four indicator lights on the bottom of
aircraft start to flicker, it means electric
quantity of the aircraft is insufficient.
Please control the aircraft to make a
return voyage.
IP4
3.Horizontal correcting function:
Place the quadcopter on a horizontal postion,
then push transmitter both left and right lever
to lowest right conner for about 2-3 second ,
indicator on the quadcopter changed from
normal lights up to quickly flashing ;After 2-3
second ,the indicator changed to normal lights,
it means the quadcopter restarted /reset successfully.
4.3D eversion:
When you are familiar with the basic operation,
you can do some awesome& exciting tricks and
stunts! First of all,fly the aircraft to a height of
more than 3 meters, press the 3D Eversion
switch on the rear right side of the transmitter,
then push the right rudder(in any direction)
to make 360 degree flip.
Tips:3D eversion goes better when battery
power is enough.
5.Headless function:
1. Forward definition
1.
Turn on power switch of remote control.
2.
After aircraft connects with power supply, place the
switch in "ON" position, adjust the direction pointed
by aircraft's handpiece and regard it as the dead
ahead in headless situation.
3.
Push the accelerator's push rod of remote control to
the highest point and pull back to the lowest point.
When remote control pops, it indicates that frequency
modulation and forward definition have already finished.
-8-

2.
Switch to headless function and general function
1 After frequency modulation, the aircraft defaults to
general pattern. The indicator light on aircraft is long
bright state. After pressing down headless function
switch on the top left of master remote controller for
2 seconds, remote control will give out "DDD...", it
means that it enters into headless state. After pressing
for 2 seconds and hearing long "D", it means that it exits
headless state.(In headless mode, four indicators on the
aircraft flicker slowly for once within four seconds)
2. In headless state, the operator has no need to
recognize the position of aircraft's headpiece, and he
just needs to control the aircraft in accordance with the
direction of remote control's operating rod.
3.
Correcting forward direction
1.
After aircraft crashes in headless state, if there is
deviation in head direction, it just needs to adjust the
aircraft's direction again, pull remote control's
accelerator and operating rod to bottom left
simultaneously. When indicator light on the aircraft
flickers for slow three seconds, it means that correction
is done.
Battery replacement and charging method
Steps of battery replacement:
l
i
2
\
'
‘
,40
3A
•
1. Turn off aircraft's
2.
Open aircraft's
3.
Connect battery
4.
After battery
power supply,
battery cover
interface with
replacement,
and push the
switch to "OFF".
backward.
dash receiver.
fasten the
battery cover
again.
-9-

Steps of battery charge:
1. Connect battery
2. Connect charger
switch with charger.
to power supply
Balanced charger:
socket.
1.
Insert adapter's DC outlet into import socket of balanced charger. Red light
of balanced charger will light on.
2.
Insert three-position balanced plug of power battery to output end of charger.
Green light of balanced charger will light on. When green light extinguishes,
it means the end of battery charging.
(Charging time is less than 200 minutes)
Note: if power battery inserts into the charger, the light has no change. It
indicates that this battery is full energy. There is no need to recharge.
Charging time: about 200 minutes Flying time: about 7 minutes!
Cautions when charging:
1.When charging, please put this product on a dried or ventilated area and keep
it far away from heat source or explosive product.
2.When charging, please remove the batteries from the quadcopter. Then
charging process should be supervised by an adult so as not to cause an
accident.
3.After flying, please do not charge the battery if the surface temperature is still
not cool. Otherwise it may cause a swollen battery or even a fire hazard.
4.Please make sure that you use the original USB charging cable provided.
When the battery has been used for a long time, or appears to be swollen,
please replace them.
5.A battery when not in use for a long time will lose its charge automatically.
Charging or discharging too often may reduce the life of the battery.
Steps of fan blade's installation/disassembly of aircraft
Steps of fan blade's disassembly:
.__?(-
----
■
,..
16..
-
11.71
1
1*
.0.0
i
...,
Figure (1)
Figure (2) Figure (3) Figure (4)
1. Rotate and back out
2. Rotate and back out
3.
Pull out collar bush
4.
Pull out fan blade
fan blade cover in
screws in anti-
upward as shown
upward as shown
anti-clockwise
direction as shown
in Figure (1) .
clockwise direction
as shown in
Figure (2).
in Figure (3).
in Figure (4).
-10-

Installation steps of fan blade:
1
1
'
ill
`--
-
1
./
,
7
•
v.
ke
,
...i
A
ii
C.—
—
N
o
....
#
Figure (1)
Figure (2)
Figure (3)
Figure (4)
1. Insert fan blade into
2. Insert collar bush into
principal axis pipe as
principal axis pipe as
shown in Figure (1)
shown in Figure (2).
Screw holes on the
principal axis pipe
should be aligned
with the screw holes
on the principal axis.
3. Aim at the connector 4. Rotate and twist fan
of principal axis pipe,
blade cover in
rotate and twist in
clockwise direction
clockwise direction
as shown in Figure (4).
as shown in Figure (3).
Maintenance procedure
Problems
Causes
Solutions
Aircraft has
no response
1.
Aircraft enters into low-voltage
protection.
2.
Electric quantity of remote control is
insufficient, power indicator light will
flicker.
3.
Channel selection of remote control
is inconsistent with aircraft's match
codes.
1.
Charge the aircraft.
2.
Change remote control's battery.
3.
Adjust channels of remote control
and aircraft, and make them become
consistent.
Aircraft's flying
response is
insensitive
1.
Insufficient remote control's electric
quantity.
2.
Remote control with the same
frequency is transmitting interference.
1.
Battery replacement.
2.
Change the place where has no
transmitting interference of the
same frequency.
When hovering,
side flight is
formed
1. Have no horizontal correction.
1. Conduct horizontal correction, as
shown in p.8(3)(correcting function)
In headless
state,
it deviates
to dead ahead
1. Head deflection is caused by
multiple collisions.
1. Define forward again, as shown in
p.8(5)(headless function)

-12-
X8C-22
Readerc
X8C-21
Transmitter
X8C-23
Camera
(White / Black)
Spare parts
Here are alternative accessories. In order to provide convenience
for customer purchasing, every component are marked. Accessories
can be purchased from local deader. Please specify the color when
purchasing.
X8C-01
X8C-02
X8C-03
X8C-04
Upper body
Lower body
Landing skids
Protecting frames
(White / Black)
(White / Black)
(White / Black)
(White / Black)
X8C-05
Rotating blades
(White / Black)
X8C-09
Cear
X8C-06
Reversing blades
(White / Black)
‘.d
5
.
)
X8C-10
Motor A
X8C-07
Ornament part
X8C
-
1 1
Motor B
X8C-08
Motor holder
(White / Black)
X8C-12
Main stand
X8C-13
Blade cover
X8C-17
Receiver board
X8C-14
Spindle sleeve
*
CAM
X8C-18
Battery
X8C-15
Base of Dash
Receiver
X8C-19
A/B adaptor&
charge box
X8C-16
Battery cover
(White / Black)
X8C-20
Lampshades
a .

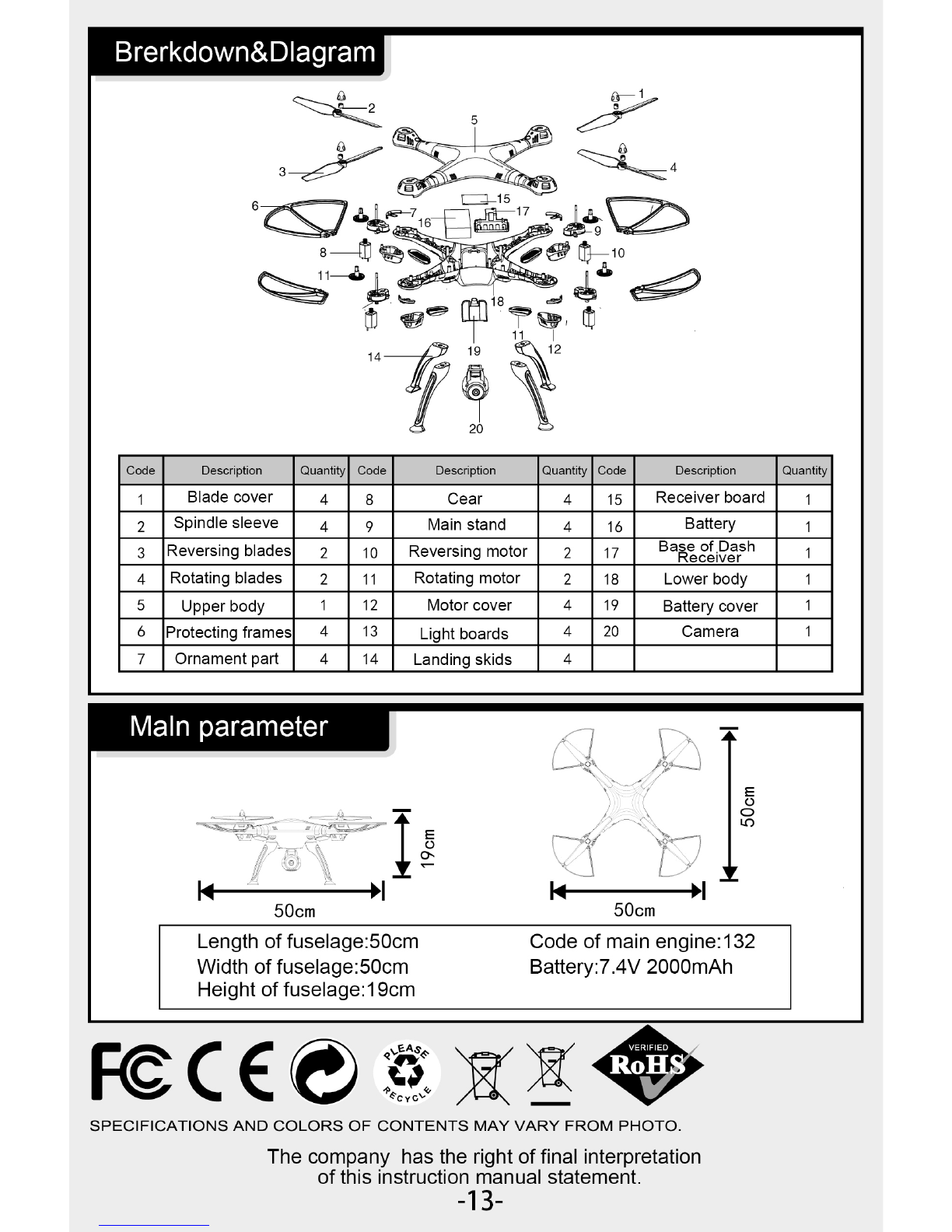

Brerkdown&Dlagram
a
6
,-1
,,
2
,,
5
13,:%'
a
f
_1_15
45)
716—O'l
. ,
'a
N,..
,
... —
-
NM%
8
C
:
-..Airmair
A0
1
—
,
4%
'
=
e
-
1
111,
"
4
''
4
''-
.4
'
-
'‘...
in
18
19
',
17
.., Z.'
–
nnn
10.
0
e
••
10
4
7'
'.
I I
12
14
i
l
fraN
20
Code
Description
Quantity
Code
Description
Quantity
Code
Description
Quantity
1
Blade cover
4
8
Cear
4
15
Receiver board
1
2
Spindle sleeve
4
9
Main stand
4
16
Battery
1
3
Reversing blades
2
10
Reversing motor
2
17
Base igiDrh
1
4
Rotating blades
2
11
Rotating motor
2
18
Lower body
1
5
Upper body
1
12
Motor cover
4
19
Battery cover
1
6
Protecting frames
4
13
Light boards
4
20
Camera
1
7
Ornament part
4
14
Landing skids
4
Maln parameter
—
.P..
0 %
\
0
,
111
o
0,
H
0
Lo
■
IIIMMErir
,=....-
ten
50cm
50cm
Length of fuselage:50cm
Code of main engine:132
Width of fuselage:50cm
Battery:7.4V 2000mAh
Height of fuselage:19cm
SPECIFICATIONS AND COLORS OF CONTENTS MAY VARY FROM PHOTO.
The company has the right of final interpretation
of this instruction manual statement.
-13-
Table of contents
Other SYMA Drone manuals
