SYMA X200 User manual

FOLDABLE DRONE
X200
8
[phone](US) [phone](UK) [phone](DE)
[email protected](US) [email protected](EU)
https://www.symatoys.com https://www.symatoys.com.cn
User manual V1.0

DE
Contents
1-21
EN ENGLISHINTRODUCE
23-43
DEUTSCH EINFÜHRUNG

Contents
1.0 Important Notices and Safety Guidelines
2.0 Product Description
2.1 Specifications
2.2 Take Out the Drone
2.3 Drone Diagram
2.4 Remote Control Diagram
3.0 Product Assembly

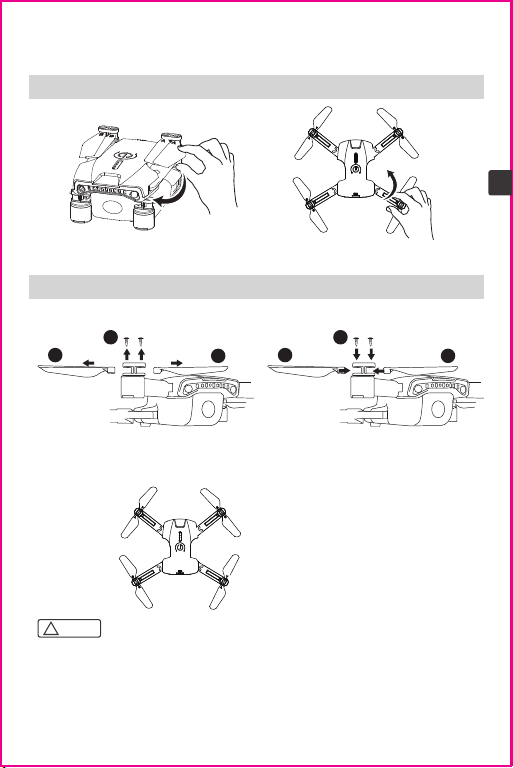

3.1 Folding the Drone
3.2 Propeller Installation
3.3 Drone Battery Charging
3.4 Battery Installation
4.0 Flight Guide
4.1 Flight Preparation and Turning the Drone On/Off
4.2 Flight Control
4.3 Flight Mode
4.4 Smart Flight Feature
4.5 Protection Mechanism
6.0 Contact Us
5.0 Troubleshooting
7.0 Product Accessories
2
4
7
10
4
5
5
5
6
6
8
8
8
11
13
14
15
16
8.0 Exploded View 17
9.0 Warranty 19
16
6
1
EN

2
EN
1.0 Important Notices
Safety Guidelines
1. Please store the smaller-sized drone accessories in places that are out of reach of
children.
2. For all first-time flights, the left joystick must be slowly pushed up in order to prevent
the drone from ascending too fast in case of unnecessary collision and possible damage
and injury.
3. When the flight is ended, first turn off the power of the remote control. Then turn off the
power of the drone.
4. Avoid placing the batteries in places with high temperatures and exposure to heat.
5. Take extra precautions to ensure that the drone is at a minimum distance of 15 feet
from the pilot, other people, and animals in order to prevent physical injury during flight
operations. A minimum separation distance of 20 cm must be maintained between the
user's body and the device under normal use conditions.
6. Children under the age of 8 must be instructed with the correct and safe operation of
the drone by an adult.
7. Children must be under adult supervision when using this drone.
8. Non-rechargeable batteries are not to be recharged; Batteries are to be inserted with
the correct polarity; Different types of batteries or new and used batteries must not be
mixed.
9. The supply terminals can not be short-circuited.
10. Discharge the battery to 40%-50% (On a full charge, fly for half of the total flight time)
if it will not be used for 10 days or more, this can greatly extend the battery life.
11. Please keep a safe distance from the spinning propellers to avoid injury.
1. Please read this manual carefully so as to protect your legitimate rights and interests
and to make sure the drone is used correctly.
2. When using this product, please strictly observe and perform the requirements which
include but are not limited to the instructions and safety guidelines. The user shall bear
the related responsibilities and losses for any personal injury, accidents, property loss,
legal dispute or any other adverse events causing a conflict of interest resulting from the
use of the product or any irresistible factors that violate the safety instructions. Syma will
not take any responsibility.
3. Once you start using the product. you are deemed to have read, understood, and
accepted the terms and contents of the instructions (including disclaimers, safety
instructions, warning instructions, etc) included with this product.
4. In case you are having challenges on any aspect of the product, may it be operation or
maintenance, please contact our customer service directly.

3
EN
Repair and Maintenance
12. To ensure the electromagnetic environment requirement of the aviation radio
(station), using remote controls in the zone, which is in a radius of about 5000m zones
from the circle center of the airport runway, is forbidden. All users also should abide by
the regulation of the radio set forth by government and regulatory agencies including the
duration and area.
13. Only use the recommended transformer for the model, and the transformer is not a
toy. Check the cord, plug, enclosure, and other parts of the transformer regularly. If any
damages have been discovered, please immediately stop using it until it was completely
repaired.
14. Never look steadily at the laser beam since the laser radiation.
15. NOTE: Assemble the drone under adult supervision.
16. The pilot is responsible for the safe operation, safe distance from uninvolved persons
and property on the ground, and from other airspace users and shall never fly the drone
above crowds (> 12 persons).
17. The packing has to be kept since it contains important information.
18. It is strongly recommended to fly in areas without airflow. Do not fly in areas with an
air conditioner/electric fan or table lamp, or other electrical equipment which may be
easily damaged.
19. Use only the supplied charging cable.
20. Chargers used with the drone should be examined regularly, such as the cord, plug,
enclosures, and other parts. If any damages are found, please stop using it unless it is
repaired or replaced.
21. Do not touch the rotating rotor, avoiding loose clothing or hair being caught in the
rotor, and do not fly near the face.
1. Use a dry and soft cloth to clean the product.
2. Do not expose the product to extreme heat or direct sunlight.
3. Do not immerse the product in water as this may damage the electrical components.
4. Please check the blades, motors, and batteries regularly. If any damage is found, please
stop using it unless it is repaired or replaced.

2.0 Product Description
2.1 Specifications
Drone
Drone weight about 35g
Drone Size 156x142x30 mm
Brand name SYMA
Model/ITEM NO. X200
Range about 35m
Altitude about 10m
Remote control
Operating frequency 2.4 GHz
Remote control battery 2X1.5V"AAA"(Not included)
Package contents
Drone 1
Remote control 1
USB charging cable 1
Clockwise/counterclockwise propellers 2 (A/B)
Screwdriver 1
Instructions 1
Flight time about 15 minutes
Motor ø6
Battery capacity(built-in) 3.7V 400mAh
Charging time about 90 minutes
4
EN

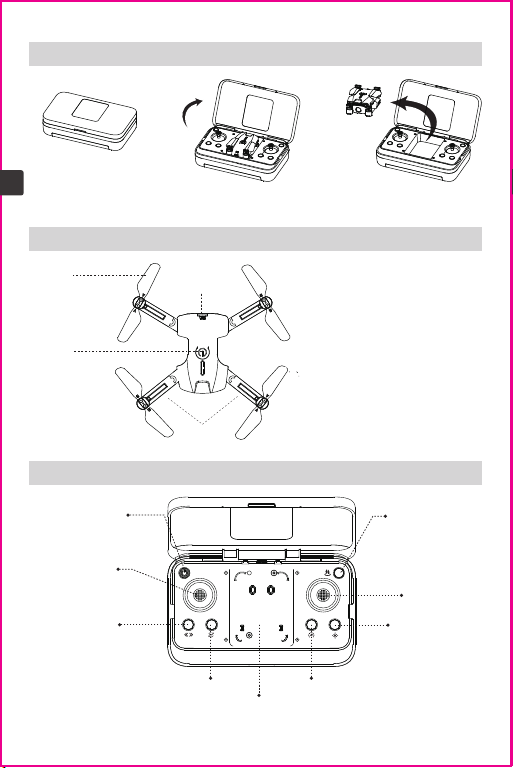

2.2 Take Out the Drone
2.4 Remote Control Diagram
2.3 Drone Diagram
Remote control
container
Open the Box Take out the drone
①Propeller
Power switch
Charging port
Arms
②
③
④
①
②
③
④
Power switch
Left joystick
Trim button
(Press and hold the
button, push the right
joystick to complete
the corresponding
trimming) 360°flip
(Press and hold the button,
push the right joystick to
complete the corresponding flip)
Right joystick
One key take off/
land
Drone compartment
Speed switch
Headless mode
5
EN

3.1 Folding the Drone
3.2 Propeller Installation
3.0 Product Assembly
Note:
!
1. Please make sure that the propellers are installed in the correct position. If the
installation is incorrect, the drone will not be able to fly normally.
2. Since the propellers are thin, please be careful when installing them in case of
accidental scratches.
3. Please use the propellers provided by our manufacturer.
4. The propellers are consumables, if necessary, please purchase additional accessories.
1. Unfold the arms in the direction
of the arrow
Remove the screws and the holder in the
direction of the arrow, and then detach
the propellers.
Place the propellers on the arm of the
drone in the direction of the arrow,
place the holder then tighten the screws.
2. Fold the arms in the direction of the arrow
Detaching the propellers Installing the propellers
6
EN
3
2
1
1
3
2
Referring to the figure below, install
the label "A" propeller and label "B"
propeller in the corresponding
positions, and use a screwdriver to
tighten the screws.
A
A
B
B

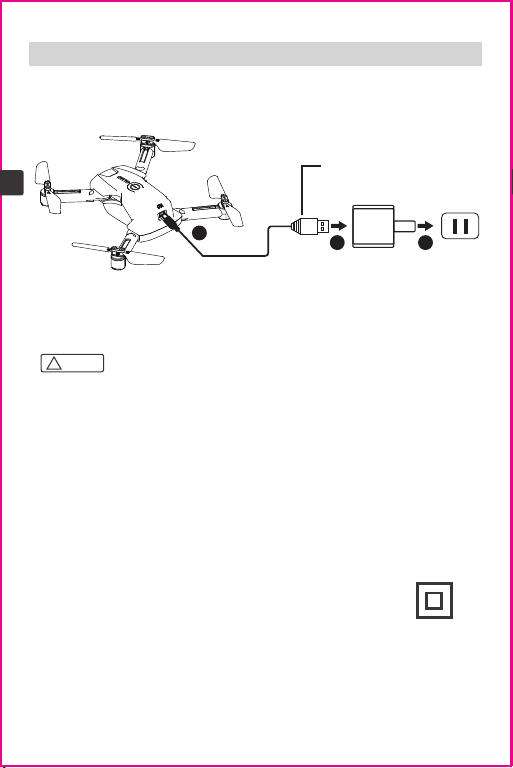

3.3 Drone Battery Charging
* Charge the drone with the USB charging cable that came with the product.
* The battery will take longer to charge when you use an adapter with a smaller rated
current.
Important: Battery Charging Information
1. Rechargeable batteries should only be charged under adult supervision.
2. Caution: Improper battery use may result in an explosion. Please dispose of the
batteries according to the instructions.
3. Don't use or place batteries near heat sources such as fires or heaters.
4. After flying, it is necessary to wait until the battery completely cools down before
charging it as the battery's getting too hot may cause a fire.
5. Don't hit or drop the battery when charging to avoid an internal short circuit.
6. Only use the supplied charging cable for charging. If the battery is aging, please replace
it with a new battery in time.
7. After fully charged, please remove it from the adapter in time, otherwise the battery
will be discharged and recharged, which will shorten the battery life.
8. The toy is only to be connected to Class II equipment bearing the symbol:
7
EN
USB
12 3
5V/1A adapter(Not included)
USB charging cable
The indicator light is red
when charging and will
turn off when the battery is
fully charged.
Note:
!

3.4 Battery Installation
Note:
!
1. When installing the battery, please make sure that the polarity of the battery matches the
polarity of the battery box.
2. Do not use new and old batteries together.
3. Do not use different types of batteries together.
4. Do not use rechargeable batteries.
Note:
!
After you switch on the remote control, the indicator will flash quickly, which means that the
remote control is waiting to be paired with the drone.
Pair the remote control with the drone
4.0 Flight Guide
4.1 Flight Preparation and Turning the Drone On/Off
⑤ Both indicator lights turn solid
when the pairing is successful.
② Switch on the drone, drone indicator light
flashes from rapidly to slowly
2
① Switch on the remote control, remote
control indicator light flashes slowly.
③ Push the left
throttle up.
④ Pull the throttle
down and reset
it to the center.

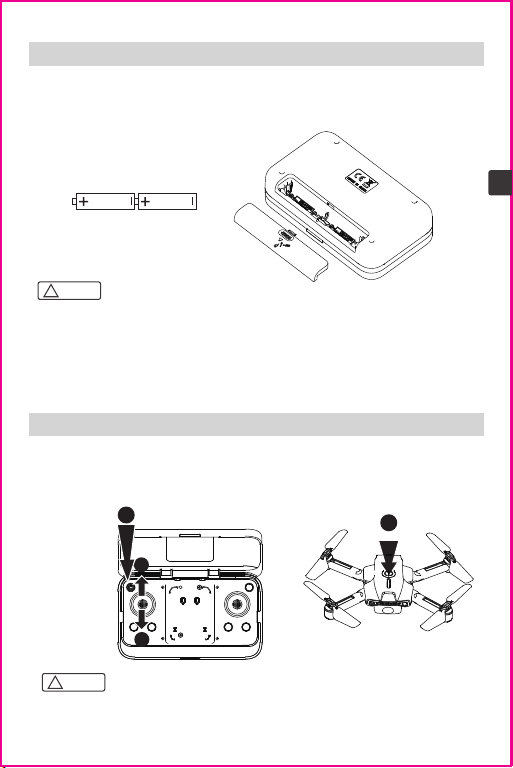

Remote control battery installation: Open the battery cover on the back of the remote
control, and install 2*AAA batteries correctly according to the electrode instructions of the
battery box(battery needs to be purchased separately)
8
EN
2x1.5V“AAA”batteries
3
4
1

9
EN
Turning the drone on
Note:
!
1. If the drone is flying out of range from the remote control, the drone indicator light will
start flashing and the drone will land slowly.
2. If the remote control suddenly turns off or runs out of power during the flight, the drone
will automatically descend and come to a stop. To re-control the drone, the remote control
needs to be turned on again and the pairing also needs to be done.
Push the left joystick fully up
and return to the center.
Push the left and right joysticks
downward in a V shape for 2 seconds.
Press the one key
take off/landing button
Method one Method two Method three
2
1

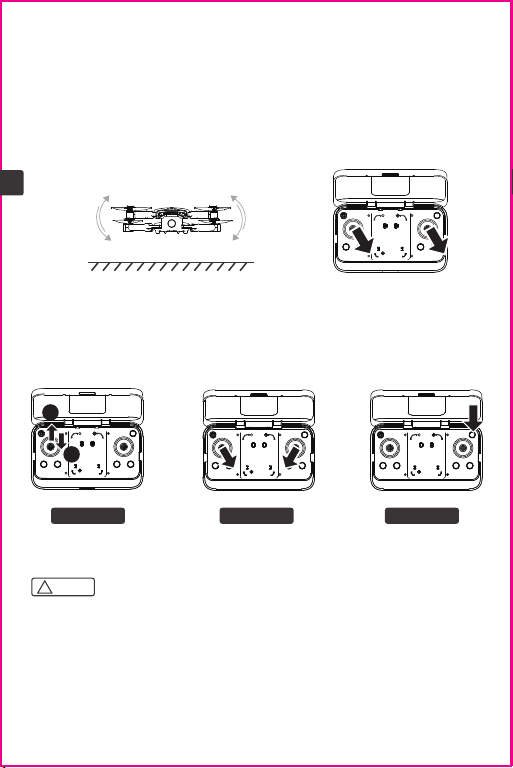

Level calibration
Place the drone on a flat surface and move the left and right joysticks to the lower right
corner for approximately 3 seconds. The indicator will flash rapidly and then turn solid,
which means that the calibration process is complete.
The drone cannot be calibrated if the angle of inclination is greater than 10 degrees.

10
EN

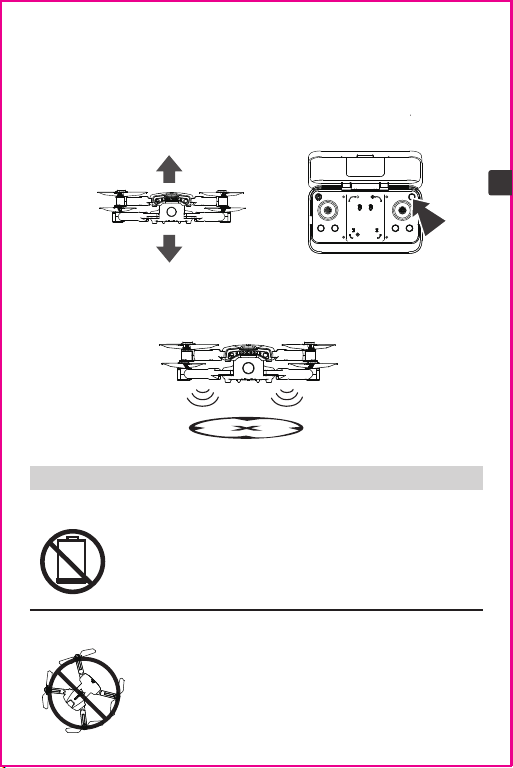

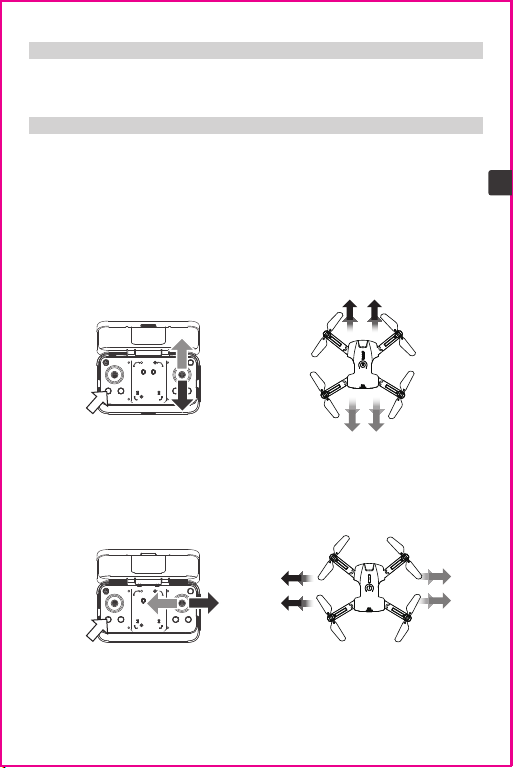

Ascend
Descend
Forward
Backward

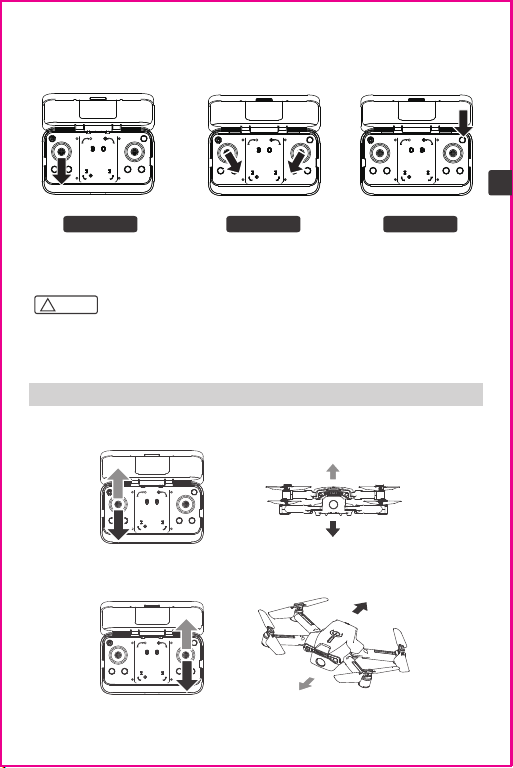

4.2 Flight Control
Note:
!
The drone will switch off automatically if its angle of inclination exceeds 90 degrees.
Method one Method two Method three
Push the left joystick downward
for 2-3 seconds.
Push the left and right joysticks
downward in a V shape for 2 seconds.
Press the one key t
akeoff/landing button
Turning the drone off

11
EN
Rotate right Front Rotate left
Rear
Go left Go right
Front
Rear
4.3 Flight Mode
Push the right joystick on the remote control to fly forward, and the drone will
always fly in the direction indicated by the nose when it takes off, even if the
direction of the nose is changed during the flight.
Headless mode

12
EN
1. Define the Front
When you turn on the power for the first time and start the drone, the direction of
the nose of the drone is straight ahead.
2. Enter and Exit Headless Mode
① After the pairing is completed, press the "Headless Mode" button, and the
remote control will emit a "beep beep.." sound, the indicator light on the drone
will flash slowly, indicating that it has entered the headless mode. Press the
"Headless Mode" button again. When you hear a long beep sound, the drone exit
the headless mode.
② In the headless mode, the operator does not need to identify the position of the
nose of the drone but only needs to control the drone according to the direction of
the joystick of the remote control.
Trimming
When the drone is hovering in the air and drifting forward or backward automatically, you
can press and hold the trim button and push the right joystick in the backward or forward
direction to adjust until the drone is stable and then release it.
When the drone is hovering in the air and drifting automatically to the left or right, you can
press and hold the trim button and push the right joystick to the right or left direction to
adjust until the drone is stable and then you can release the trim button.
Trimming forward and backward
Trimming left and right

13
EN
4.4 Smart Flight Feature
Press the speed switch button to switch between high speed and low speed.
1. The default speed is low speed when the power is on.
2. The remote control emits two beeps for high speed and one beep for low speed.
High/low speed mode
360°Flip
When you are familiar with the basic functions of the drone, you can try out the
exciting flip stunts. After flying the drone to a height of more than 2 meters, press
and hold the 360°flip button on the remote control, and push the right joystick
forward / backward or left / right at the same time, the drone will flip in the
corresponding direction.
2m

14
EN
4.5 Protection Mechanism
Undervoltage protection
Overcurrent protection
When the two indicators on the nose of the drone begin to flash, it
means that the power of the drone is low. At this time, please
control the drone to return.
If the drone's blades collide with another object or become stuck,
the drone will engage the overcurrent protection mechanism.
One key take off/land
Altitude hold
1. When the drone is in standby mode, press the one key take off/land button, the
drone will automatically take off and hover at a height of 1.5 meters.
2. When the drone is in flight, press the one key take off/land button and the drone
will automatically land on the ground.
When releasing the left joystick (throttle) after controlling the aircraft to
ascend/descend, the drone will continue to hover at the current height.

5.0 Troubleshooting
Problem
Aircraft fails to take
off and the indicator
light keeps flashing
rapidly
Cause Solution
1. The aircraft and the remote
control are not paired
2. The aircraft enters low
voltage protection
1. The drone is not level
calibrated
2. Unstable air pressure in bad
weather conditions
3. Cluttered gyroscope data due
to a violent collision
Check the motor for foreign
objects (eg: hair, sand)
The drone is not level
calibrated
1. Correctly pair the remote
control with the drone. The
indicator light will stay on
when the pairing is successful.
ccessful frequency bind.
2. The battery voltage of the is
too low, please fully charge the
battery
Re-do the level calibration, place
the aircraft on a horizontal
surface, and push both left and
right joysticks to the lower right
corner for about 3 seconds. The
indicator light on the aircraft
flashes quickly and then turns
solid, indicating that the
calibration is successful.
1. Re-do the level calibration,
place the drone on a
horizontal surface, and push
both the left and right
joysticks to the lower right
corner for about 3 seconds.
The indicator light on the
aircraft flashesquickly and
then turns solid indicating
that the calibration is
successful.
2. Try to avoid flying in a bad
weather and fly it in a
windless environment
3. Re-do the level calibration
and operate according to
point 1
Regular inspection and cleaning
Fly sideways when
hovering
Unstable hovering
Motor does not work
1. Beyond the remote control
distance
2. Low battery of the remote
control
1. Within the controllable flight
range
2. Replace the remote control
battery and install it with
correct polarity.
Remote control does
not work
Check whether the blade is
installed correctly or the
blade is damaged
If the blade is deformed, replace
the blade
and install the clockwise and
counterclockwise blades
correctly.
The aircraft vibrates
violently
Check the battery of the
drone and remote control Charge the drone battery, or replace the
battery of the remote control
with the correct installation
Unable to pair the
drone with the remote
control
15
EN

7.0 Product Accessories
Please do not hesitate to contact us if you need further support.
[email protected]
[phone](US) [phone](UK) [phone](DE)
6.0 Contact Us
For online support, please scan this code with Facebook Messenger
16
EN
Arm A Arm B
Propellers
Remote control
USB charging cable
Battery
(With forward motor) (With reverse motor)

8.0 Exploded View
17
EN
