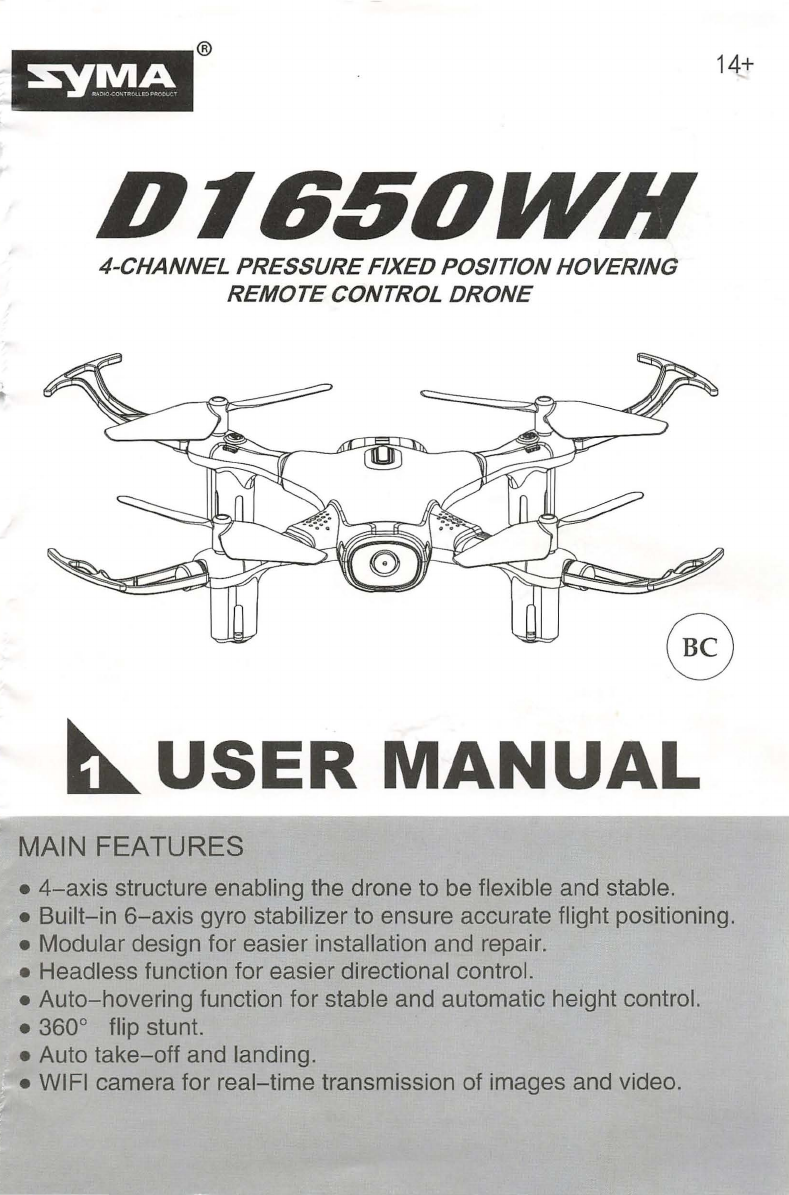

SYMA D1650WH User manual

®
Dl650WH
4-CHANNEL PRESSUREFIXED POSITIONHOVERING
REMOTECONTROL
DRONE
h._ USER MANUAL
MAIN FEATURES
• 4-axis structure enabling the drone to be flexible and stable.
14+
• Built-in 6-axis gyro stabilizer to ensure accurate flight positioning.
• Modular design for easier installation and repair.
• Headless function for easier directional control.
• Auto-hovering function for stable and automatic height control.
• 360° flip stunt.
• Auto take-off and landing.
• WIFI camera for real-time transmission of images and video.

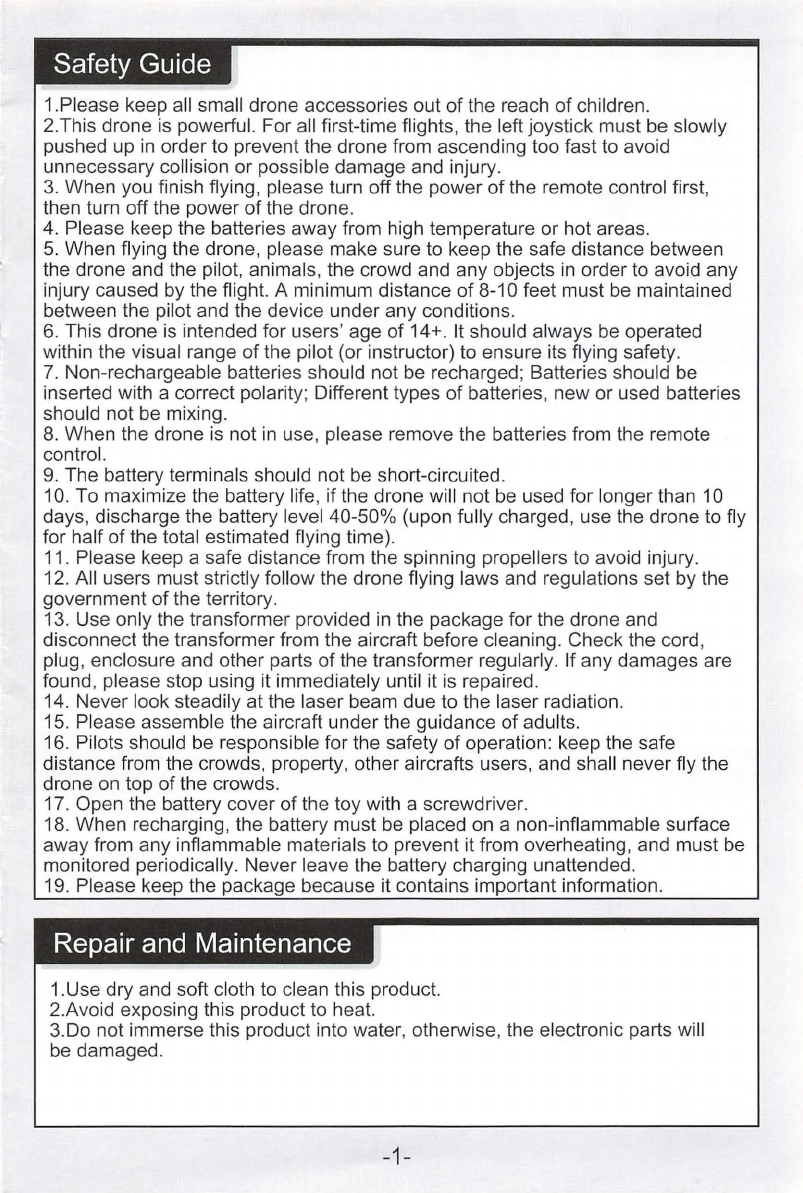

Safety Guide
1.Please keep all small drone accessories out of the reach of children.
2.This drone is powerful. For all first-time flights, the left joystick must be slowly
pushed up in order to prevent the drone from ascending too fast to avoid
unnecessary collision or possible damage and injury.
3. When you finish flying, please turn off the power of the remote control first,
then turn off the power of the drone.
4. Please keep the batteries away from high temperature or hot areas.
5. When flying the drone, please make sure to keep the safe distance between
the drone and the pilot, animals, the crowd and any objects
in order to avoid any
injury caused
by the flight. A minimum distance of 8-10 feet must be maintained
between the pilot and the device under any conditions.
6. This drone
is intended for users' age of 14+. It should always be operated
within the visual range
of the pilot (or instructor) to ensure its flying safety.
7. Non-rechargeable batteries should not be recharged; Batteries should be
inserted with a correct polarit
y; Different types of batteri es , new or used batteries
should not be mi xing.
8. When the drone
is not in use, please remove the batteries from the remote
control.
9. The battery terminals should not be short-circuited.
10. To ma ximize the battery life, if the drone will not be used for longer than 10
days, discharge the battery level 40-50% (upon fully charged, use the drone to fly
for half of the total estimated flying time).
11. Please keep a safe distance from the spinning propellers to avoid injury.
12. All users must strictly follow the drone flying laws and regulations set by the
government
of the territory.
13. Use only the transformer provided in the package for the drone and
disconnect the transformer from the aircraft before cleaning. Check the cord ,
plug, enclosure an d other parts of the transformer regularly. If any damages are
found, please stop using it immediately until it
is repaired.
14. Never look steadily at the laser beam due to the laser radiation.
15. Please assemble the aircraft under the guidance of adults.
16. Pilots should be responsible for the safety of operation: keep the safe
distance from the crowds, property, other aircrafts users, and shall never fly the
drone
on top of the crowds.
17. Open the battery cover of
th e toy with a screwdriver.
18. When recharging, the battery must
be placed on a non-inflammable surface
away from any inflammable materials to prevent it from overheating, and must
be
monitored periodically. Never leave the battery charging unattended.
19. Please keep the package because it contains important information.
Repair and Maintenance
1.Use dry and soft cloth to clean this product.
2.Avoid exposing this product to heat.
3.
Do not immerse this product into water, otherwise, the electronic parts will
be damaged.
-1-

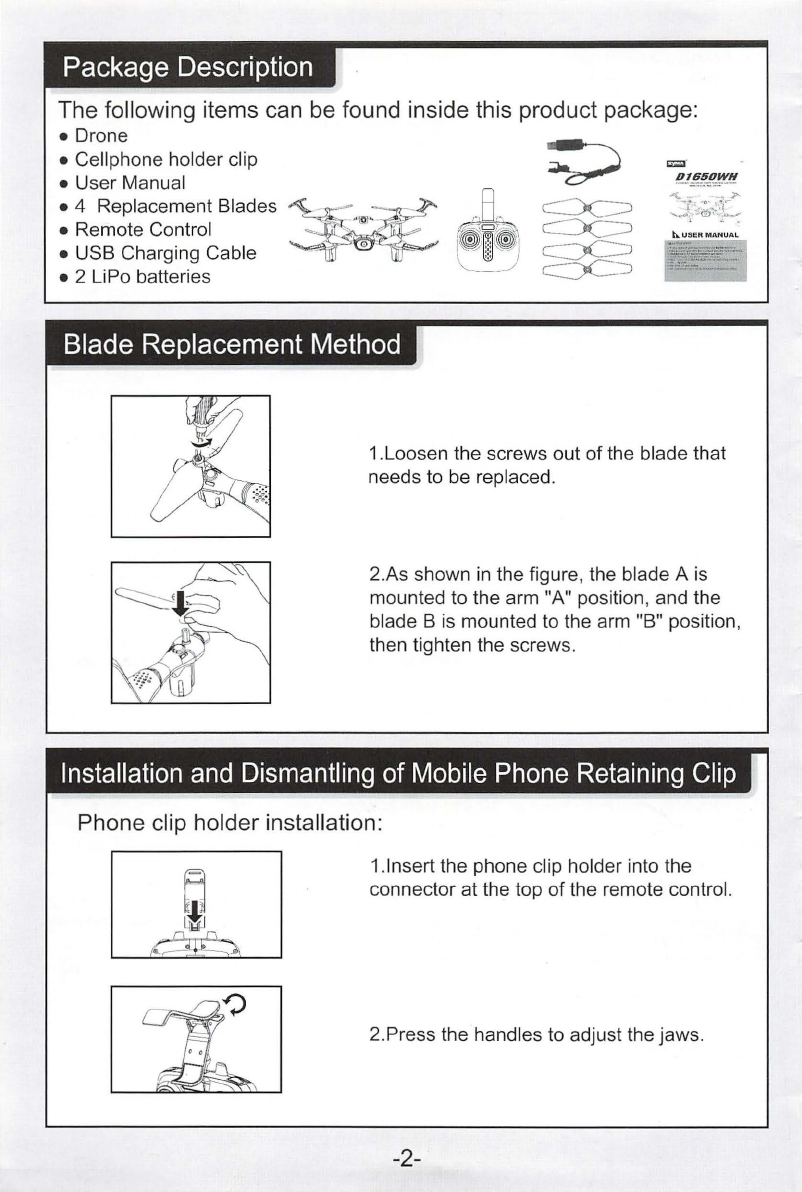

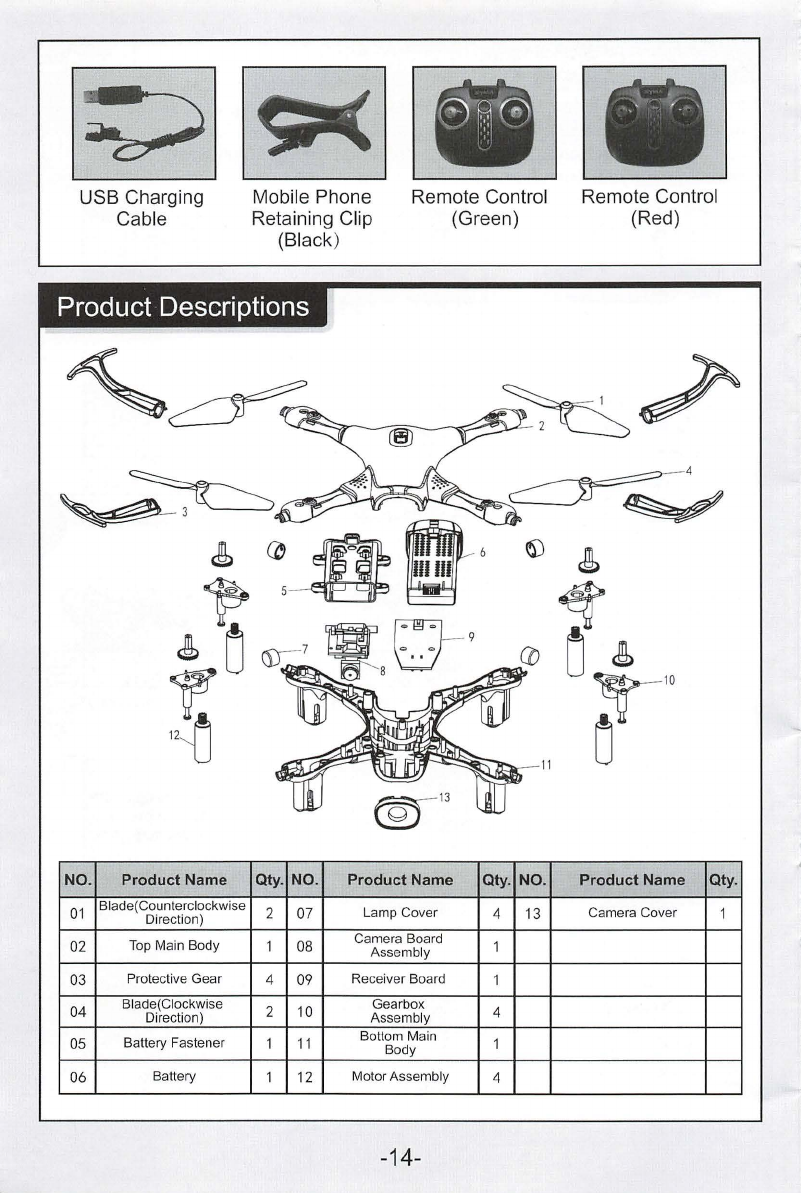

Package Description
The following items can be found inside this product package:
•Drone
• Cellphone holder clip = ·
• User Manual
'!.!ff.ft.!?.,_~'!
• 4 Replacement Blades ~ - ~'@' -
• Remote Control . .1 . . -
• USB Charging Cable " · 0 '
~o ,
1.• 1•
"-----_/
• 2 LiPo batteries
Blade Replacement Method
1.Loosen the screws out of the blade that
needs to be replaced.
2.As shown in the figure, the blade A is
mounted to the arm "A" position, and the
blade B is mounted to the arm "B" position,
then tighten the screws.
Installation and Dismantling of Mobile Phone Retain i ng Clip
Phone clip holder installation:
1.lnsert the phone clip holder into the
connector at the top of the remote contro
l.
2.Press the handles to adjust the jaws.
-2-

Phone clip holder dismantling:
~
Push the phone clip holder upwards from
)! ft
behind the remote contro l.
L ~-...
Battery Changing and Charging Methods for Drone
1.Press the power button on the top of the
drone for 1 to 2 seconds to make sure the
drone
is "OFF ".
2.Press down the battery cover and pull
backward.
3.Connect the charger c
li p of the original
USB cable to the battery properly.
4. lnsert the USB plug to the computer. (The
indicator light of the drone wi
ll turn on wh ile
charging, and turn off when charging completed.
It takes about 90 min for a full charge)
The charging time is about 90 minutes, hover flight time is
approximately 7 minutes.
Precautions while charging of battery:
-Avoid placing the active batteries in places with direct exposure, sunlight and high
temperatures. For exampl
e, naked light or electrical equipment insta ll ations; otherwise it
may cause damages or explosions.
-Avoid immersing the batteries in the water. The batteries shall be stored in a cool and
dry place.
-Do not charge or use the battery if it has been damaged.
-When recharg
in g, the battery must be placed on a non-inflammab le surface away from
any inflammable materials to prevent it from overheating
-Do not charge the battery unattended.
-Rechargeable batteries should be removed from the toy before being charged.
-Rechargeable batteries should only be charged under the supervision of adults.
-Exhausted batteries should be removed from the aircraft.
-Caution: Risk of explosion if battery
is replaced with incorrect ones. Please dispose the
batteries according to the instructions.
-3-

Understanding Your Remote Control
Remote control's button function description:
Power ON /OFF
..
. ··
.. ···
...... ... .. ....• Mobile Phone Holding Clip
pushing in until trimming
control finished. To clear
all the trimming
setting,keep pushing
and press the power
button at the same time.
Right joystick Press and
hold to enter/exit
headless mode. Press
to change high/low
speed.
.-···• 360° Stunt flip button
~ A"to tak•-offaod laodlog
Battery installation for remote control:
=
4 x AA Alkaline Batteries
Battery Installation Method: Open up the battery cover at the back of the
remote control. Correctly place 4 x AA alkaline batteries
in the battery box in
strict adherence to the polarity instructions (batteries are not included).
A 1.During the battery installation, please be assured that the
polarities of the batteries are matched with that
of the battery
box. No battery shall be installed with the opposite polarity.
2.Please do not use new and old batteries together.
3.Please do not use different types of batteries together.
4.Do not use rechargeable batteries.
-4-

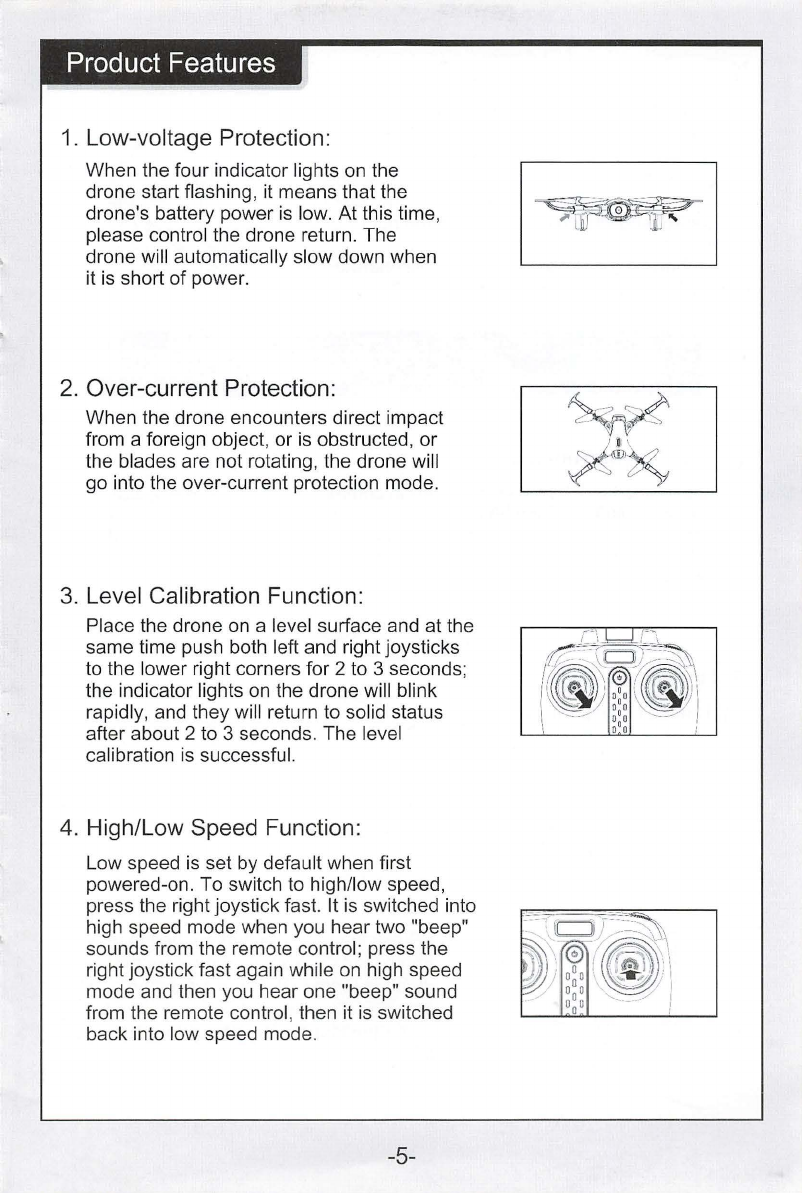

Product Features
1. Low-voltage Protection:
When the four indicator lights on the
drone start flashing, it means that the
drone's battery power
is low. At this time,
please control the drone return. The
drone will automatically slow down when
it
is short of power.
2. Over-current Protection:
When the drone encounters direct impact
from a foreign object, or
is obstructed, or
the blades are not rotating, the drone will
go into the over-current protection mode.
3. Level Calibration Function:
Place the drone on a level surface and at the
same time push both left and right joysticks
to the lower right corners for 2 to 3 seconds;
the indicator lights on the drone will blink
rapidly, and they will return to solid status
after about 2 to 3 seconds. The level
calibration
is successful.
4. High/Low Speed Function:
Low speed is set by default when first
powered-on. To switch to high/low speed,
press the right joystick fast. It
is switched into
high speed mode when you hear two "beep"
sounds from the remote control; press the
right joystick fast again while on high speed
mode and then you hear one "beep" sound
from the remote control, then it
is switched
back into low speed mode.
-5-

5. 360° Stunt Flip Function:
When you are familiar with the basic
actions.you can proceed to e
xp lore even more
exciting stunt actions. Fly the drone to a height
of 3M above the ground, press the upper right
corner button (Stunt Flip Button)
on the remote
control and simultaneously push the right
joystick
to the farthest position of
Front/Back/Left/Right, the drone will operate
the Front/Back/Left/Right stunt flip action.
Note: Drone will have the best stunt flip action when the batteries
are fully charged.
6. Auto Hover Function:
After using the left joystick (throttle) to control ~
the ascending I descending flight ofthe drone, -t Olif ~ U[J -t
release the left joystick (throttle) and the drone~.._ •
will hover at that height when the joystick
is ~ -t ~
released. ~
7. Headless Function:
CD Defining forward direction:
•Press on the power button of the
remote control.
•Press the power button
on the top of the
drone for 1-2 seconds make sure the
drone
is turned"ON", and adjust the
specified direction of the drone's head
under the headless mode as the new
forward direction.
-6-

•Push the left joystick (throttle) on the
remote control up to the farthest position
and then pull down to the farthest position.
When the remote control issues a long
beep sound, it means the frequency and
defining forward direction functions are
completed.
2. Calibration for the definition of the front:
When the drone encounters a direct impact
with
an object in the headless mode, if only
the set direction has been changed, it is only
required to push both the left and right
joysticks to the bottom left corners
simultaneously after placing the flying
direction of the drone
in the correct position.
When the indicator of the drone turns to solid
after slowly flashing for 3 seconds, it indicates
the ca li bration is complete.
3.Toggling between headless function and normal function:
After the drone
is matched with the
corresponding frequency, the drone would
be in
normal pattern by default. At this time the
indicator light
on the drone would be on . After
pressing
in on the right joystick of the remote
control for 2 seconds, the remote control would
make a sound of "beep, beep, beep" to show
that it has entered into the headless mode.
Pressing
in on right joystick for 2 seconds then
a long sound
of "beep" would be heard to show
an exit of such mode. (When under the
headless mode, four indicator lights on the
drone flash slowly once every four seconds)
Under the headless mode, the operator does
not need to differentiate the head position of
the drone, and only needs to control the
drone's direction front/back/ left/right by using
the right joystick direction
on the remote
control.
-7-

Flight Preparation and Turning the Drone ON and OFF
1. Flight preparation
Turning on the drone
Step 1: Press the power button of the
remote control.
Step
2: Press and hold the power button on
the top of the drone for 1 to 2
seconds to make sure the drone
is
turned " ON ".
Step 3: Push the left joystick (throttle) up to
the highest point and then pull down
to the lowest point. When the
indicator lights on the drone change
from quick flashing to steady, it
means that the drone
is now on the
flight standby mode.
Method 1: Push the left joystick (throttle) to the
highest point and then back to the
center, the blades of the drone start
rotating slowly.
Method 2: Push the left and right joysticks to
the bottom inner corners for 1
second, the blades
of the drone
start rotating slowly.
-8-

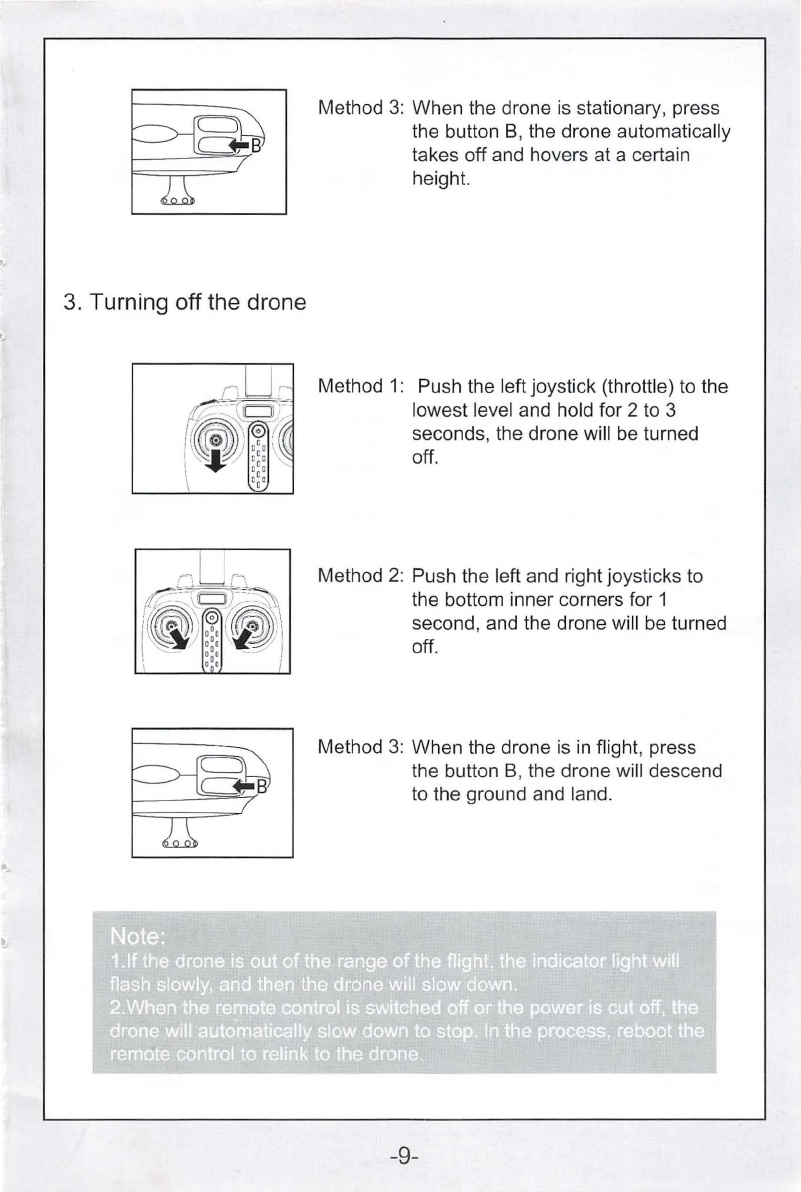

3. Turning off the drone
.,
Method 3: When the drone is stationary, press
the button B, the drone automatically
takes off and hovers at a certain
height.
Method 1: Push the left joystick (throttle) to the
lowest level and hold for 2 to 3
seconds, the drone will be turned
off.
Method 2: Push the left and right joysticks to
the bottom inner corners for 1
second, and the drone will
be turned
off .
Method
3: When the drone is in flight, press
the button B, the drone will descend
to the ground and land.
-9-

Drone Controlling Diagram
Operating direction
Ascending and descending control
When the left joystick (throttle) is
pushed upwards or downwards, the
drone will ascend or descend
correspondingly.
Left turning and right turning control
When the left joystick (throttle) is
pushed towards the left or right, the
drone will turn left or right
correspondingly.
Trimming operation
Forward and backward trim control
Forward and backward control
When the right joystick (rudder) is
pushed upwards or downwards, the
drone will fly forward or backward
correspondingly.
Left side flying and right side flying control
When the right joysti ck (rudder) is
pushed towards the left or right, the
drone will fly sideways to the left or
right correspondingly
If the drone automatically flies forward/
backward while hovering, press
in the left
joystick and at the same time push the right
joystick backward/forward slightly to fine
tune the direction. Don't release the left
joystick until the drone is flying in a stable
state.
-10-

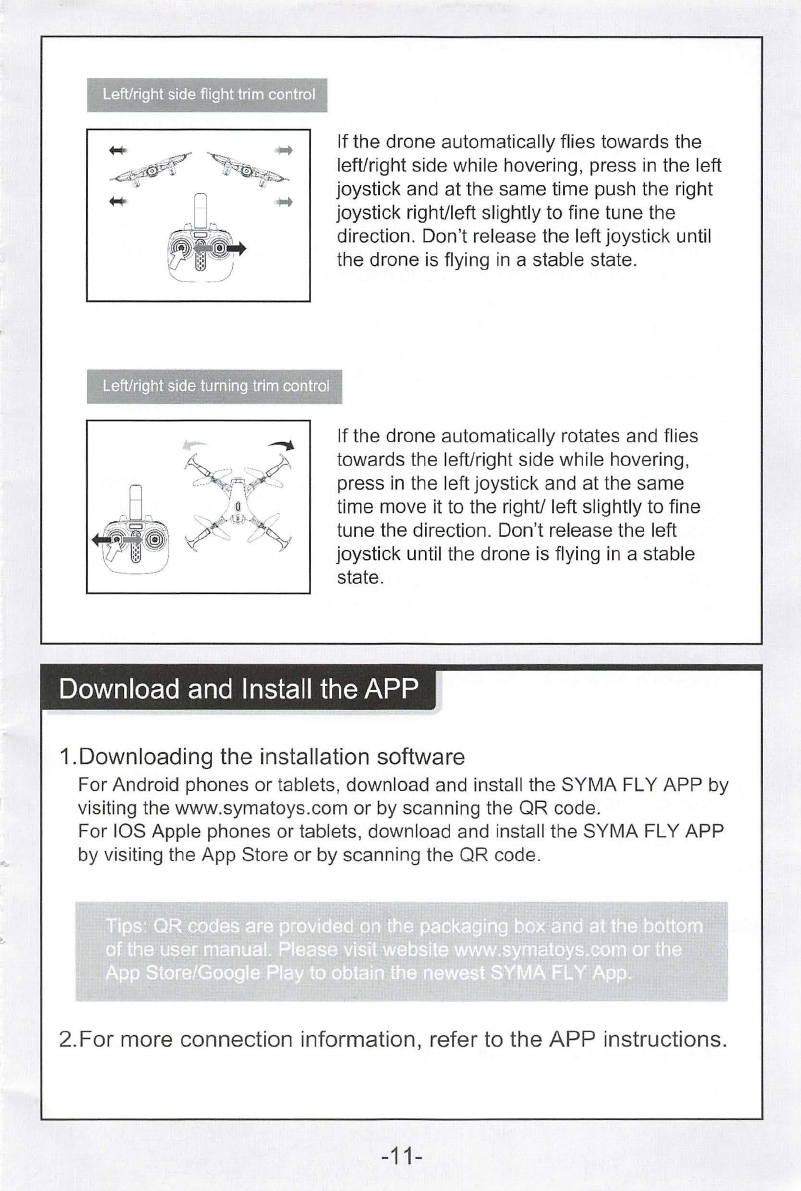

Left/right side flight trim control
Left/right side turning trim control
Ifthe drone automatically flies towards the
left/right side while hovering, press in the left
joystick and at the same time push the right
joystick righl/left slightly to fine tune the
direction. Don't release the left joystick until
the drone is flying in a stable state.
Ifthe drone automatically rotates and flies
towards the lefUright side while hovering,
press in the left joystick and at the same
time move it to the righl/ left slightly to fine
tune the direction. Don't release the left
joystick until the drone is flying in a stable
state.
Download and Install the APP
1.Downloading the installation software
For Android phones or tablets, download and install the SYMA FLY APP by
visiting the www.symatoys.com or by scanning the QR code.
For IOS Apple phones or tablets, download and install the SYMA FLY APP
by visiting the App Store
or by scanning the QR code.
2.For more connection information, refer to the APP in st ru ctions.
-11-

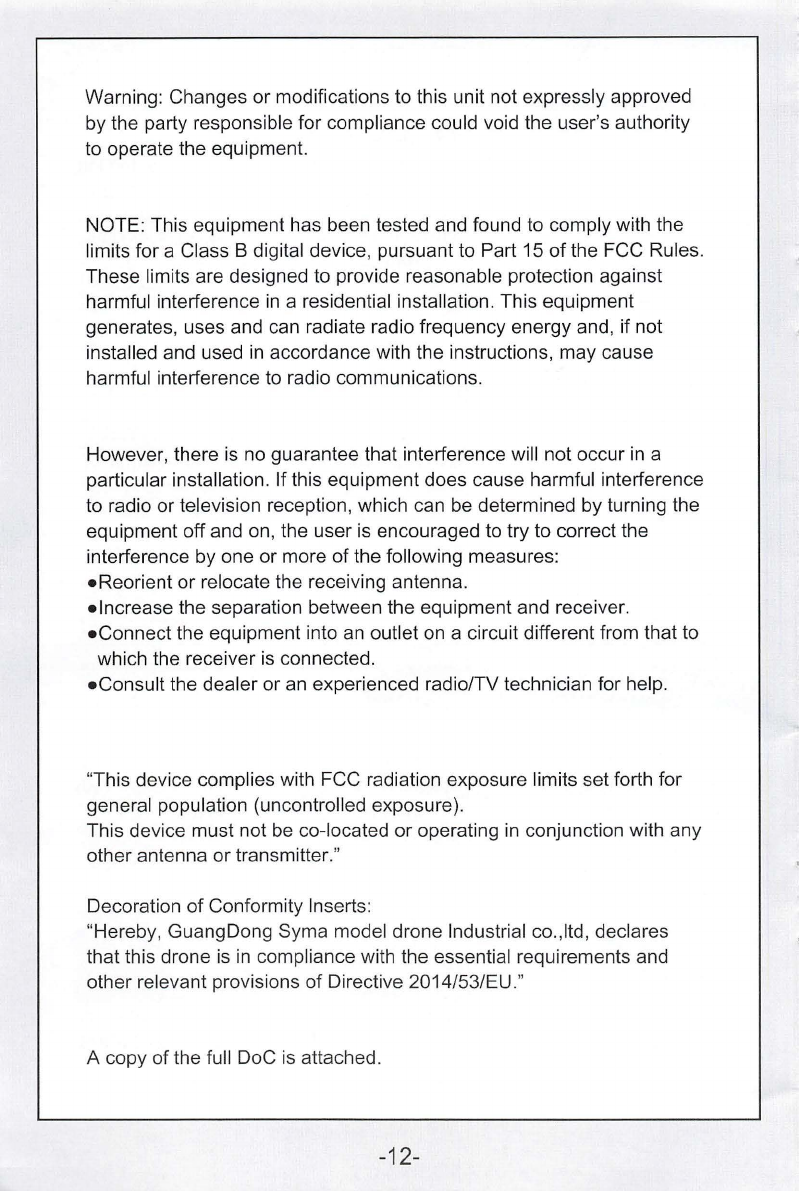

Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
"This device complies with FCC radiation exposure limits set forth for
general population (uncontrolled exposure).
This device must not
be co-located or operating in conjunction with any
other antenna or transmitter
."
Decoration of Conformity Inserts:
"Hereby, GuangDong Syma model drone Industrial co
., ltd , declares
that this drone
is in compliance with the essential requirements and
other relevant provisions
of Directive 2014/53/EU."
A copy of the full DoC is attached.
-12-

Accessories /Parts List (Optional)
In order to make it easier for the customers to choose and purchase the
needed parts, we have the following accessories availab
le. The accessories
can be purchased through the local distributors. Please kindly specify the
colors during your purchase.
Body (Green)
Blade (Red)
Light Board
Motor(
Clockwise
Direction)
Camera Board Assembly
Body (Red)
II
11
Protective Gear
Battery Fastener
Motor(
Counterclockwise
Direction)
Receiver Board
-13-
Blade (Green)
Lamp Cover
Gearbox Assembly
0
Camera Cover
...... ....
. .. .....
Battery

USB Charging
Cable Mobi
le Phone
Retaining Cl ip
(Black)
Remote Control
(Green)
Product Descriptions
NO. Product Name
Qty. NO. Product
Name Qty. NO .
01 Blade(Counterclockwise 2 07
Lamp Cover 4 13
Di rection)
02 Top Main Body 1 08
Camera Board 1
Assembly
03 Protec
ti ve Gear 4
09
Receiver Board 1
04
Blade(Clockwi se
2 10
Gea rb ox 4
Di rec ti on) Assembly
05 Battery Fastener 1
11
Bottom Ma in
1
Body
06 Battery 1 12
MotorAssembly 4
-14-
Remote Control
(Red)
Product Name Qty.
Camera Cover 1

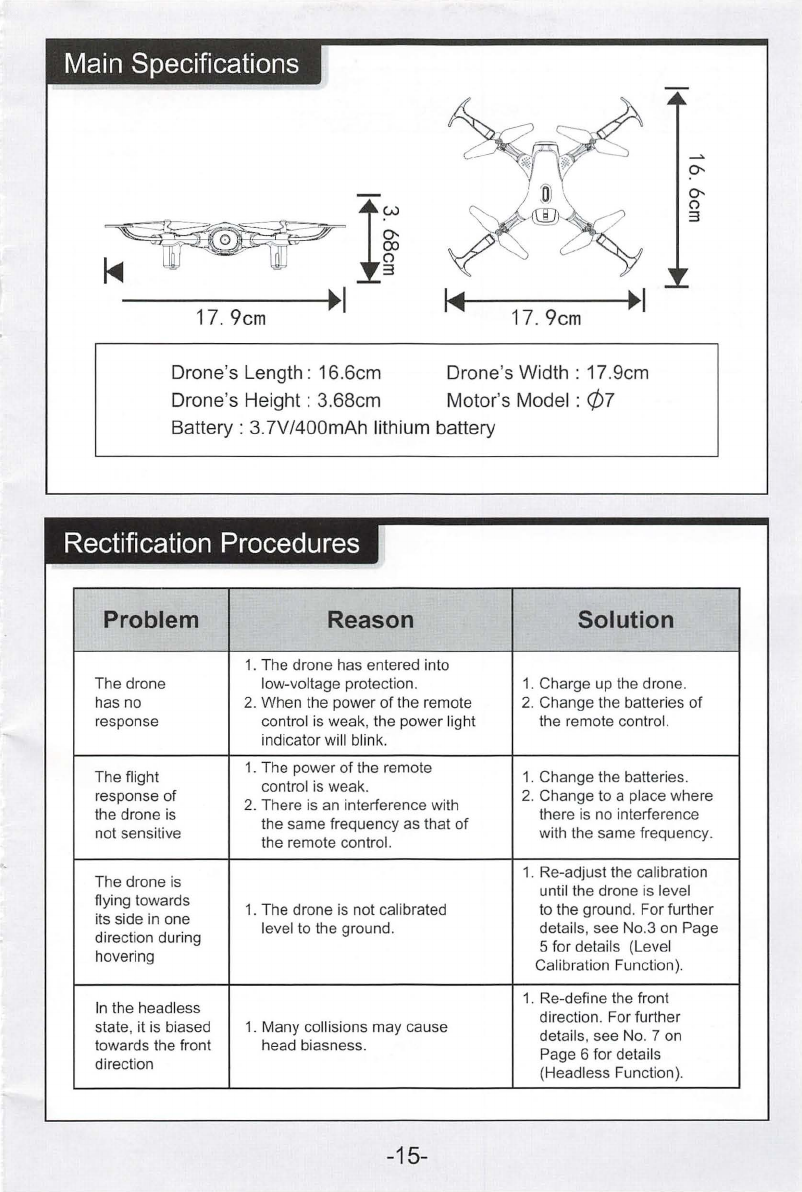

Main Specifications
lf ~
17.9cm
111111
17.9cm
~I
Drone's Length : 16.6cm Drone's Width : 17.9cm
Drone's Height : 3.68cm Motor's Model :
c/>7
Battery: 3.7V/400mAh li th ium battery
Rectification Procedures
Problem Reason Solution
1. T he drone has entered into
The drone low-voltage protection.
1. Charge up the drone.
has
no 2. When the power of the remote 2. Change the batte ri es of
response control is weak, the power li ght the remote control.
indicator wi ll blin k.
The flight
1. T he power of the remote
1.
Change the batteries.
control is weak.
response of
2. There is an interference with
2.
Change to a place where
the drone
is
the same frequency as that of there
is no interference
not sensitive the remote control. with the same frequency.
The drone
is
1. Re-adjust the calibration
flying towards until the drone
is level
its side in one
1. T he drone is not calibrated to the ground. For further
direction during level
to the ground. details, see No.3 on Page
5 for details (Level
hovering
Ca li bration Function).
In the headless
1.
Re-define the front
direction. For further
state, it is biased
1. Ma ny co llisio ns may cause details, see N
o. 7 on
towards the front head biasness. Page 6 for deta
il s
direction (Headless Function).
-15-

Problem Reason Solution
1. Re-adjust th e calibration
until the drone is level to the
1. The drone is not ca librated ground. For further details,
level to the ground. see No.3 on Page 5 for details
Fixed high (Level Calibration Function).
2. Unstable air pressure under the
2. Avo id to fl y under the
instability I up and severe weather condition. severe weather conditi
on .
3. Make level adjustment
down mo
ve ment
3. Violent co lli sion resulting in data again, see No.3 on Page 5 for
disorder of gyroscope. deta
il s (Level Calibration
Function).
-16-

QR code for Android
system
QR code for Apple iOS
system
Manufacturer
Guangdong Syma Model drone Industr ial Co ., Ltd.
The
Crossing of No.2 West Xingye Road and North Xingye Road,Laimei. Industrial Park Chenghai
District Shantou City Guangdong China .
Contact person: SYMA Telephone : [phone]
FOR CUSTOMER SERVICE, DO NOT RETURN TO THE STORES.
PLEASE CONTACT: SYMATOYS
BY EMAIL: [email protected]
BY PHONE :[phone]
11 :30am -7:00 pm CST
The company has the right of final interpretation of this
instruction manual statement.
