Symmons Dia Trim Series Installation instructions

Dia®
Model Numbers
Dia Trim Series
Dia Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
TRIM ONLY
S-3500-CYL-B-TRM
Shower Valve Trim
S-3501-CYL-B-TRM
Shower Trim
S-3502-CYL-B-TRM
Tub/Shower Trim
S-3504-H321-V-CYL-B-TRM
Tub/Hand Shower Trim
S3508BTRM
Shower/Hand Shower Trim
TRIM, TA-10, T-12A
S3500CYLBTRMTC
Shower Valve Trim
S3501CYLBTRMTC
Shower Trim
S3502CYLBTRMTC
Tub/Shower Trim
S3504H321CYLBTRMTC
Tub/Hand Shower Trim
S3508BTRMTC
Shower/Hand Shower Trim
S-3500-CYL-B-TRM
S3500CYLBTRMTC
S-3501-CYL-B-TRM
S3501CYLBTRMTC
S-3502-CYL-B-TRM
S3502CYLBTRMTC
S3508BTRM
S3508BTRMTC
S-3504-H321-V-CYL-B-TRM
S3504H321CYLBTRMTC
TA-10T-12A
Compliance
• ASME A112.18.1/CSA B125.1
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Warranty

2
1. Recommended Tools
JJ
NN
OO
PP
DD
CC
FF
GG
AA
BB
EE
HH
KK
LL
MM
FLOORFLOOR
II
FIGURE 2 Measurements
A Ø 2-1/2", 64 mm
B 6-3/4", 171 mm
C 6", 152 mm
D
Male 1/2-14 NPT thread
must be recessed 1/4" (6 mm)
from finished wall
E Ref. 77", 1956 mm
F 3-1/2", 89 mm
G Ø 7-1/2", 191 mm
H
Trim with tub spout:
Ref. 32", 813 mm
Trim without tub spout:
Ref. 42", 1067 mm
I Ø 2-1/2", 64 mm
J Ref. 12", 305 mm
K 3", 76 mm
L 2-7/8", 73 mm
MRough-in
2-3/8" ± 1/2", 60 mm ± 13 mm
N 5-1/4", 133 mm
O
Male 1/2-14 NPT thread must
protrude 4-7/16" (113 mm)
from finished wall
P 7", 178 mm
Notes:
1) Valve body and piping not included and shown as reference only.
2) Plaster shield (p/n T-176) for dry wall, plaster or other type walls 1/2" or greater.
3) All dimensions measured from nominal rough-in (see M as reference).
4) Dimensions subject to change without notice.
Phillips Screwdriver
Adjustable Wrench Safety Glasses Thread Seal TapeDrill Allen Wrench (3mm)
FIGURE 1
2. Dimensions

3
3. Parts Breakdown (Model Numbers Ending in TRMTC)
5. Installation - Adjust Packing Nut (Model Numbers Ending in TRMTC)
1) Turn hot and cold supplies on. Valve will not operate unless both hot and cold water supply pressures are on.
2) Place handle over flow control spindle.
3) Tighten packing nut for positive frictional resistance as handle is rotated from shut-o position across adjustment range.
6. Installation - Setting Limit Stop Screw (Model Numbers Ending in TRMTC)
1) Turn hot and cold supplies on. Valve will not operate unless both hot and cold water supply pressures are on.
2) Place handle on flow control spindle and open valve to maximum desired temperature.
3) Turn limit stop screw clockwise until it seats.
WARNING: Failure to adjust limit stop screw properly may result in serious scalding.
The temperature limit stop screw limits valve handle from being turned to maximum position resulting in excessive hot
water discharge temperatures.
4. Installation - Remove Test Cap (Model Numbers Ending in TRMTC)
1) Check for leaks around the valve assembly and all pipe
fittings.

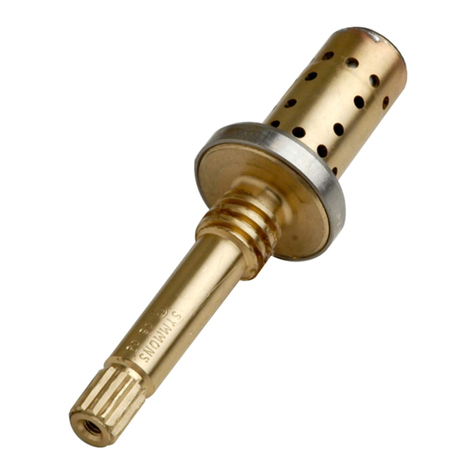

Flow control spindle (TA-10) and cap assembly (T-12A) will
come factory assembled for all model numbers ending in
TRMTC. When ready to remove Test Cap and install trim,
follow the instructions below:
2) Remove test cap from valve (FIGURE 4.1).
3) If system is dirty, flush valve.
4) Thread flow control spindle and cap assembly into valve
body. Turn clockwise to secure to valve (FIGURE 4.2).
FIGURE 4.1 FIGURE 4.2
LIMIT STOP
SCREW
2
1
PACKING
NUT
FIGURE 3
Replacement Parts
Item Description Part Number
1 Cap Assy. T-12A
2 Flow Control Spindle TA-10
IMPORTANT: Model numbers ending in TRMTC
coordinate with Temptrol pressure balancing valves
ordered with Test Cap. The Test Cap is used to
allow pressurization of system. Do not remove
test cap from valve during wall construction,
installation of valve or pressurization of system.
WARNINGS:
1. Test cap rated for pressure testing up to 200
psi maximum. DO NOT exceed 200 psi while
pressure testing valve body.
2. Do not expose valve with test cap to heat
for longer than 2 minutes when soldering
copper tubing. Doing so may damage the
internal components of the valve and will
void the product warranty.
3. Ensure test cap is re-torqued to 30 lb-ft after
soldering valve body.

4
Replacement Parts
Item Description Part Number
A Showerhead 352SH
B
C
Shower Arm
Flange 300S
D Standard Handle T-242A
E Dome Cover T-19/20
F
G
H
Shower Escutcheon
Screws
Mounting Plate
Brass:
RTS-009
Plastic:
RTS-010
IDiverter/Volume
Control Handle
Standard:
RTS-014
Brass:
RTS-013
J Tub Spout 067
K
L
M
Slide Bar
Assembly RA-009
N Hand Shower EF-100
O Wall Elbow EF-105
P 60" Hose RTS-045
Notes:
1) Append appropriate sux for premium finish.
2) Append appropriate flow rate to showerhead
or hand shower for low flow.
3) Apply a bead of silicone around the perimeter
of all shower trim installed flush to the
finished wall. Leave opening on bottom of
escutcheons for weep hole.
4) Apply plumber tape to all threaded
connections.
J
A
B
C
FG
G
H
D
E
P
N
O
FIGURE 7
M
KL
I
EF-109*
*Order in-line vacuum breaker (EF-109) for
hand shower systems without dual checks.
7. Parts Breakdown

5
FIGURE 8.4
8. Installation - Shower Valve Trim
2) Place diverter/volume control handle into slot in shower
escutcheon (FIGURE 8.2).
3) Secure large shower escutcheon to mounting plate.
Guide handle into control port on valve body. Tabs
should snap in place (FIGURE 8.3).
4) Install dome cover by turning clockwise (FIGURE 8.4).
5) Install handle to shower valve. Secure with set screw
(FIGURE 8.5).
FIGURE 8.1 FIGURE 8.2
FIGURE 8.3
1) Attach arm and flange to shower pipe. Turn clockwise
to tighten (FIGURE 9.1).
2) Install showerhead to shower arm. Turn clockwise to
tighten (FIGURE 9.2).
FIGURE 9.1 FIGURE 9.2
9. Installation - Showerhead & Tub Spout
FIGURE 8.5
1) Secure large mounting plate to Temptrol
pressure balancing valve using mounting screws
(FIGURE 8.1).
FIGURE 9.3
3) Install tub spout to stub out pipe. Turn clockwise to
tighten (FIGURE 9.3).

6
1a) Dry Wall Option: Remove upper and lower caps
from slide bar brackets. Place slide bar into desired
position. Using brackets as a guide, carefully drill 3/16"
holes into wall. Remove slide bar and install anchors.
Note: Slide bar holes and bracket holes must be
aligned before drilling. Before drilling bottom hole,
make sure slide bar is plumb (FIGURE 10.1A).
1b) Stud Option: Remove upper and lower caps
from slide bar brackets. Place slide bar into
desired position. Using brackets as a guide,
carefully drill 1/8" pilot holes into stud.
Note: Slide bar holes and bracket holes must be
aligned before drilling. Before drilling bottom hole,
make sure slide bar is plumb (FIGURE 10.1B).
2) With slide bar in position, secure to wall using screws.
Replace upper and lower caps onto slide bar brackets
(FIGURE 10.2).
3) Install wall elbow to stub out pipe. Tighten set screw to
secure (FIGURE 10.3).
4) Attach small end of hand shower hose to wall elbow.
Turn clockwise to tighten (FIGURE 10.4).
1
2
3
FIGURE 10.1A
FIGURE 10.3
FIGURE 10.4
FIGURE 10.1B
1
2
1 3
2
FIGURE 10.2
10. Installation - Slide Bar Assembly
5) Attach large end of hand shower hose to hand shower
wand. Turn clockwise to tighten (FIGURE 10.5).
FIGURE 10.5

7
11. Operation (Temperature Control)
1) Turn shower handle counter-clockwise
approximately 1/4 turn to put valve in
cold position (FIGURE 11.1).
2) Turn shower handle counter- clockwise
approximately 1/2 turn to put valve in
warm position (FIGURE 11.2).
3) Turn shower handle counter- clockwise
approximately 3/4 turn to put valve in
hot position (FIGURE 11.3).
FIGURE 11.1 FIGURE 11.2 FIGURE 11.3
12. Operation (VersaFlex™ Diverter Control)
Turn volume control handle
clockwise to increase volume.
Turn volume control handle
counterclockwise to decrease volume.
FIGURE 12.1
TUB/ACCESSORY SHOWER/ACCESSORY
13. Operation (Volume Control)
Turn diverter control handle
clockwise to divert to tub spout or
other Symmons accessory.
Turn diverter control handle
counterclockwise to divert to shower
or other Symmons accessory.
FIGURE 13.1
INCREASE DECREASE

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2020 Symmons Industries, Inc. ■symmons.com ■[email protected] ■ZV-3410 REV 0 ■ 030220
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth
defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
14. Troubleshooting Chart
Problem Cause Solution
Finish is spotting. Elements in water supply may cause
water staining on nish.
Clean nished trim area with a soft
cloth using mild soap and water or a
non-abrasive cleaner and then quickly
rinse with water.
