Takara Belmont Legacy 91 User manual

AB-0091 AB-0092
TAKARA BELMONT Barber Chair
1 - 2
Notes for Use 2 - 3
Notes for Use with Upholstery 4
Name of Components 4 - 5
How to Use
Safety Precautions
(Be sure to observe the instructions)
Care and Maintenance 11
Daily Inspection 12
Daily Inspection Procedure 12
Specifications 13 - 14
Standard Period of Use 15
When Disposing of This Product 15
Legacy 91 Barber Chair
Legacy 92 Barber Chair
Model No.
Operating Manual
Please contact us in case your operation manual is
unreadable such as being soiled or ripped, or is lost.
Thank you for purchasing TAKARA BELMONT product.
Please read through this manual
carefully before installing or using
the product to ensure correct use.
Failure to read the operating manual may lead to
accidents.
This product is designed for commercial use at barbers
or beauty salons and should be used in combination
with an upper seat unit. Do not use this product for the
purposes other than the practices and services in these
places.
Keep this operation manual in a safe place for your
future reference.
Table of Contents
Adjusting the Headrest............................6
For back shampoo and haircut ..............7
Using the Heelrest (AB-0091)
............... 7
Reclining/Raising the Backrest
............. 8
Using the Cape Holder ............................9
Using the Dryer Holder..........................10
Using the Manicure Holder....................10

1
Do not perform disassembly and repair
Disassembly and repair should only be performed by our service persons. Failure to do so may cause an accident,
fault, electric shock, or fire.
Safety Precautions (Be sure to observe the instructions)
The customer or user’s hands, fingers, or body parts must be kept away from the movable
parts of the equipment or the area surrounding its movable parts
If not, this may result in the body part being pinched, causing bodily injury.
Warning
Explains “instructions that you are expected to follow for your safety.”
Classification
of precautions Size and degree of imminent harm or damage
This mark warns the user that “ignorance of this display and improper use may cause
death or serious personal injury.”
This mark warns the user that “ignorance of this display and improper use may cause
slight to moderate personal injury or property damage.”
Before operation, confirm that every part is working normally and safely
Check that there is no loosening, backlash, inclination, vibration, sound, and bad smell when making an inspection.
If you find any abnormality, stop using the equipment immediately and contact your local dealer or TAKARA BELMONT.
Do NOT let persons weighing 1350N (135 kgf/298 lbf) or more sit in the chair
Doing so may result in a falling accident or cause malfunction.
If water or chemical solutions have been splashed on the chair, wipe it off immediately
If a chemical solution makes a stain or is splashed on the operating components, it may result in malfunction or electrical
leakage. If dirt has adhered to the chair, wipe it off immediately with a dry, soft towel.
When wiping, strong disinfectants that corrode metal, povidone-iodine (isodine solution)
or sodium hypochlorite, etc., must never be used
Doing so may lead to malfunction.
Caution
Be sure to perform maintenance and inspection
Before use, be sure to perform maintenance and inspection to check that this equipment works normally and safely.
Use of this equipment without maintenance and inspection may result in bodily injury or property damage.
zBefore use
Please read the safety precautions and notes carefully to ensure the proper use of this product.
zAbout the precautions listed here
These precautions are provided for the safe use of this product and to prevent personal injury and harm to
users and third parties. Please follow all of the precautions shown here, as they contain important information
related to safety. TAKARA BELMONT bears no responsibility for harm and damage caused to the user or third
parties in the event that the “Safety Precautions”, “Notes for Use” or the “Notes for Use with Synthetic Leather”
have not been observed and an accident has occurred. In this event, the user who did not follow these precau-
tions bears responsibility for said harm and damage. Detailed information on cautionary marks is as explained
below. Be sure to read and understand their descriptions carefully before reading the main text.
Warning
Caution
Notice

Care must be taken when rotating the chair
When rotating the chair, make sure to confirm that nobody is around the chair. If the chair hits someone (especially
around the steps), it may result in injury.
Safety Precautions (Be sure to observe the instructions)
Be careful during headrest operation
Do NOT pound, scrape or swing the equipment
Doing so may lead to the destruction or malfunction of the cover or other such parts.
Caution
Notes for Use
Be careful when reclining or raising the backrest
When reclining or raising the backrest, take sufficient care to ensure that customers’ fingers or other objects are not
between the backrest and the seat. Not doing so may result in bodily injury from pinching or other such accidents.
When operating the chair, mind the surrounding area
Sit only on or around the center of the seat
Never sit on the headrest, backrest, step, armrest, or on the front edge of the seat when the backrest has been reclined.
Also, do not apply more weight to the chair than necessary. Doing so may cause the chair to fall over or break.
Do NOT apply excessive weight to any part of the chair
Be careful during installation
When moving the chair, make sure to hold the following locations
To transport the chair, hold the base plate and the up/down foot pedals. Do not lift up the chair by holding the upper
seat unit only. Otherwise, the base unit may fall off and cause serious injury.
Warning
2
· Please be careful, as the headrest will come off when pulled up too high. Also, when operating the headrest, take care
to not have your fingers pinched around the headrest area or between the backrest.
· When you pull out the headrest, be sure to ensure that the headrest do not hit the customer’s head.
Before or during operation of the chair, sufficient care must be taken to ensure that bodies, hands and feet, or obstructions are not around the
operating range (raise/lower direction of the chair, recline/raise direction of the backrest, in/out direction of the legrest, and the rotation
direction of the chair). If care is not taken to do so, it may result in being pinched by the chair, and may cause bodily harm or property damage.
Do not sit on the legrest or backrest. Also, do not apply more than the necessary weight to the chair. Doing so may
cause the chair to fall over or break. The legrest and backrest can withstand a load of 600N (60 kgf/132 lbf). Do not apply
more than the necessary weight to the headrest or armrest. The headrest can withstand a load of 100N (10 kgf/22 lbf).
· Have installation or mounting of the equipment performed by a professional (from TAKARA BELMONT or a TAKARA
BELMONT specified representative).
· The chair must be installed on flat and solid flooring. If the chair is used on an area where the flooring surface is
inclined at 5° or more, it may cause the chair to fall over.
Care must be taken with customers and children
Be sure to ensure that customers, especially children, do not touch the operating parts. Failure to do so may cause an accident.

Notes for Use
Do NOT put things other than people on the seat
Putting things other than people may cause deformation, tearing, or corrosion of the upholstery.
Do NOT clean using chemicals or apply heat
If any chemicals are splashed on the upholstery parts, wipe off the chemical immediately. Splashed chemicals
may cause discoloration or deterioration.
Caution on the handling of the reclining lever
When the reclining lever is tilted back, be sure to support and operate the backrest so that the backrest does not move suddenly.
Caution on the movement of the heelrest
Be sure to grasp the handle of the heelrest when moving the heelrest. Take care not to pinch foot of the customer or
your finger in between the heelrest and step.

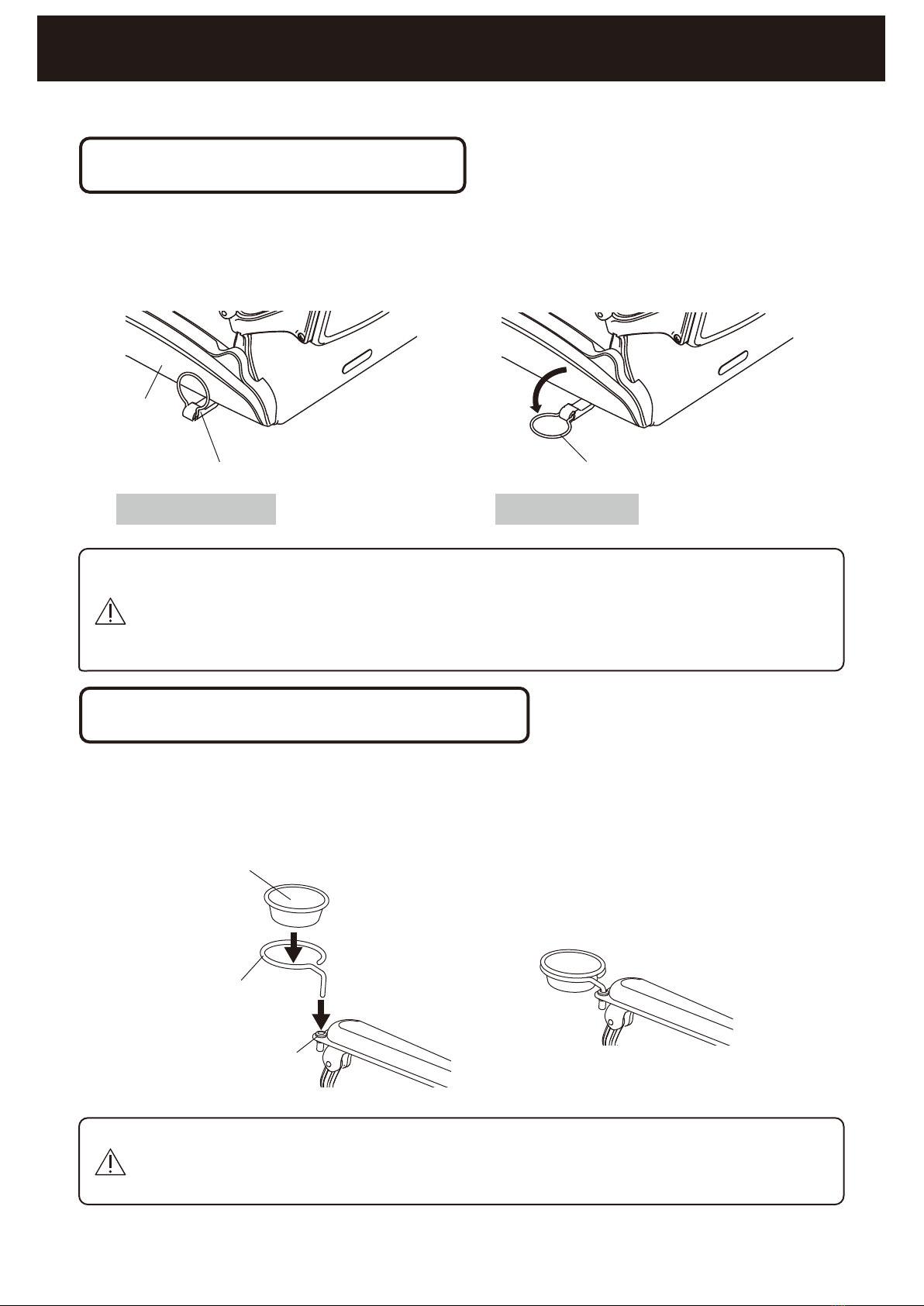

Caution on the use of the manicure ring
Caution on the adjustment of the headrest
Caution on the use of the cape holder
Caution on the use of the dryer holder
Caution
3
· Be sure to adjust the headrest to any of the 11-level adjustment positions. Do not adjust the headrest to other
positions. If the headrest moves during shaving, the customer may be severely injured.
· For back shampoo, if you recline the backrest with the headrest inserted, the chair or shampoo equipment may be
damaged, injuring the customer.
· The withstand load of the cape holder is 10N (1 kgf/2.2 lbf). Do not apply unnecessary force to the cape holder.
· When not using the cape holder, be sure to return it to the storage position.
· When returning the cape holder to the storage position, keep your hands on it until it is stored completely to prevent a
finger of the customer or user from being pinched between the cape holder and the armrest.
· The withstand load of the dryer holder is 50N (5 kgf/11 lbf). Do not apply unnecessary force to the dryer holder.
· When not using the dryer holder, be sure to return it to the storage position.
· When returning the dryer holder to the storage position, be sure to ensure that a finger of the customer or user is not
pinched between the dryer holder and the body.
· Do not apply unnecessary force to the manicure ring.
· Take care not to pinch a finger of the customer or user when inserting the manicure ring into the manicure holder.

Manicure holder
Backrest
· Headrest
· Headrest cover
Reclining lever
Headrest holder
Seat
Towel hanger
Legrest
Handle
Heelrest (AB-0091)
Step
Armrest
Manicure bowl
Notes for Use with Upholstery

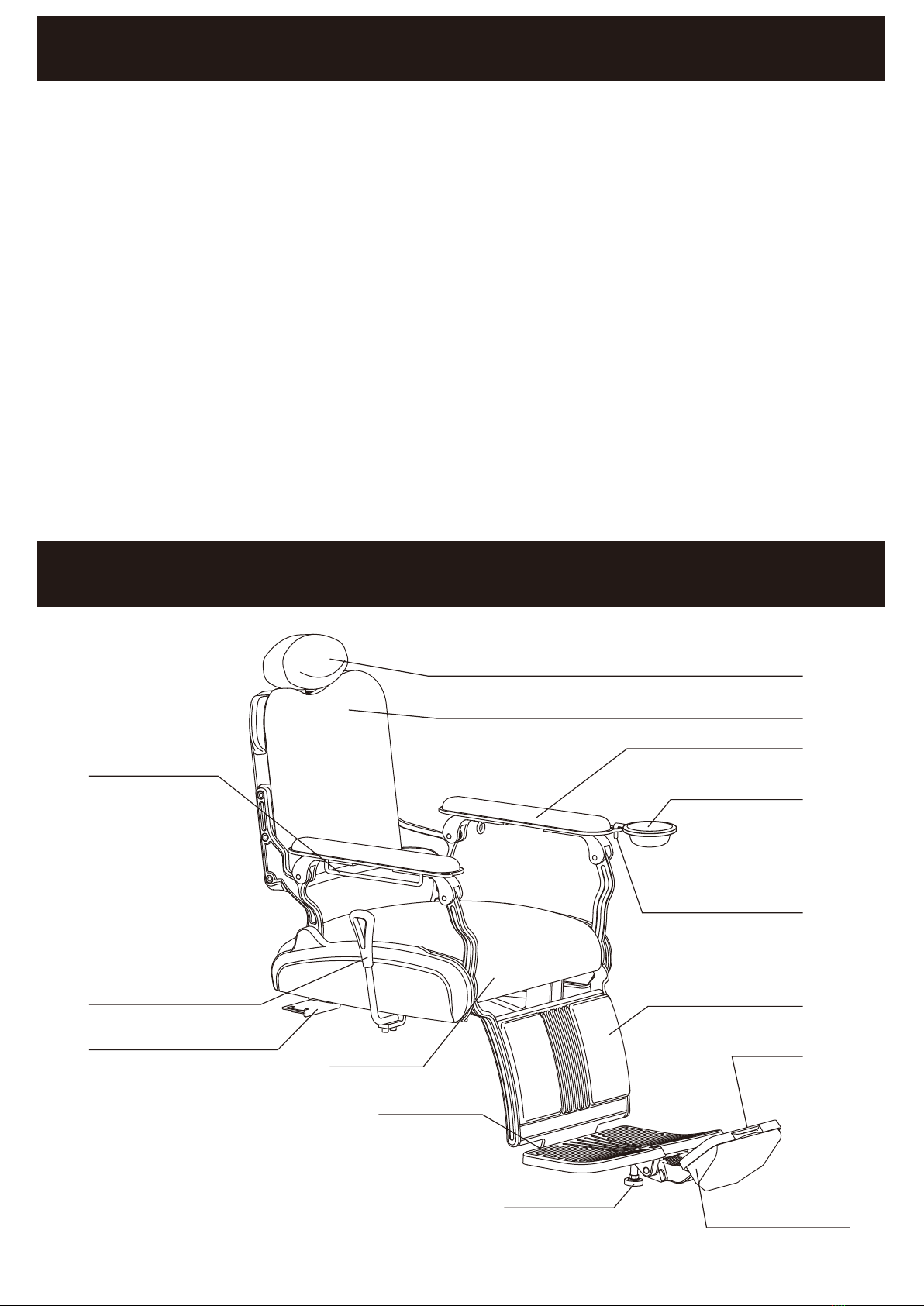

Name of Components (Including Options)
4
Adjuster
zAdherence of fabric dyes
The upholstery may be stained by coming into contact with fabric, belts or other such attire. In
order to avoid infiltration by plasticizer when color has been adhered, apply a solution of neutral
detergent diluted by about 10% to a soft towel and wipe off the color as soon as possible. After
wiping off the color, wipe the area dry.
zCaution for deterioration and color staining caused by contact
· Contact with things such as other plastic parts, paints, solvents, and adhesive tape may cause
changes to the surface shine, cracking, deformation, or peeling.
· Contact with newspaper or printed materials may cause color staining.
· Contact with T-shirt prints, jeans and other such items may cause color staining from dyes in the
upholstery.
· Contact with things like benzene, polish remover, or alcohol may cause the surface to discolor,
dissolve, harden, soften, peel, extract plasticizer, or experience changes to its shine.
· Using bleach or sheets that use bleach may cause discoloration or changes to shine.
· When placed next to a source of excessive heat such as an iron or heater, deformation or
discoloration may occur. Shield the upholstery with a curtain or other such item so that it does not
come into contact with direct sunlight. Otherwise, surface changes, shrinkage, discoloration, or
fading may occur.
· Heavy objects placed on the upholstery for long periods of time may leave an impression and
wrinkles may become unable to be removed.

5
Component Materials
Ì The casting components of this chair are a handmade one-off product.
Headrest button
Dryer holder
Hook
Cape Holder
Name of Components (Including Options)
Different from mass-produced products, the casting components used for appearance
of this product are made by hand piece by piece. Some convexoconcave and a hole
may remain in the casting surface. Please understand that we have finished this
product without putty because we think that the natural aspect of material is important.

6
Adjusting the Headrest
Inserting the Headrest
1. Insert the headrest while
pressing the headrest button.
You cannot insert the headrest unless
you depress the headrest button.
You can adjust the headrest to 11 height
levels. You can pull up the headrest even
if you do not press the headrest button.
If you pull up the headrest too much,
press the headrest button to temporarily
lower the headrest and then adjust it again.
2. Adjust the headrest to the
height of the customer’s head.
You can fix the headrest at 11-level adjustment positions.
The position where you can hear tick when pulling up the
headrest is the position where the headrest can be fixed.
Note: After adjustment, check that the headrest does not
move in the inserting direction.
3. Fix the headrest at the height
tailored to the customer.
Note: The headrest is unnecessary for back shampoo and haircut.
Headrest button
Headrest button
CAUTION
How to Use
zBe sure to adjust the headrest to any of the 11-level adjustment positions. Do
not adjust the headrest to other positions. If the headrest moves during shaving,
the customer may be severely injured.
zFor back shampoo, if you recline the backrest with the headrest inserted, the
chair or shampoo equipment may be damaged, injuring the customer

7

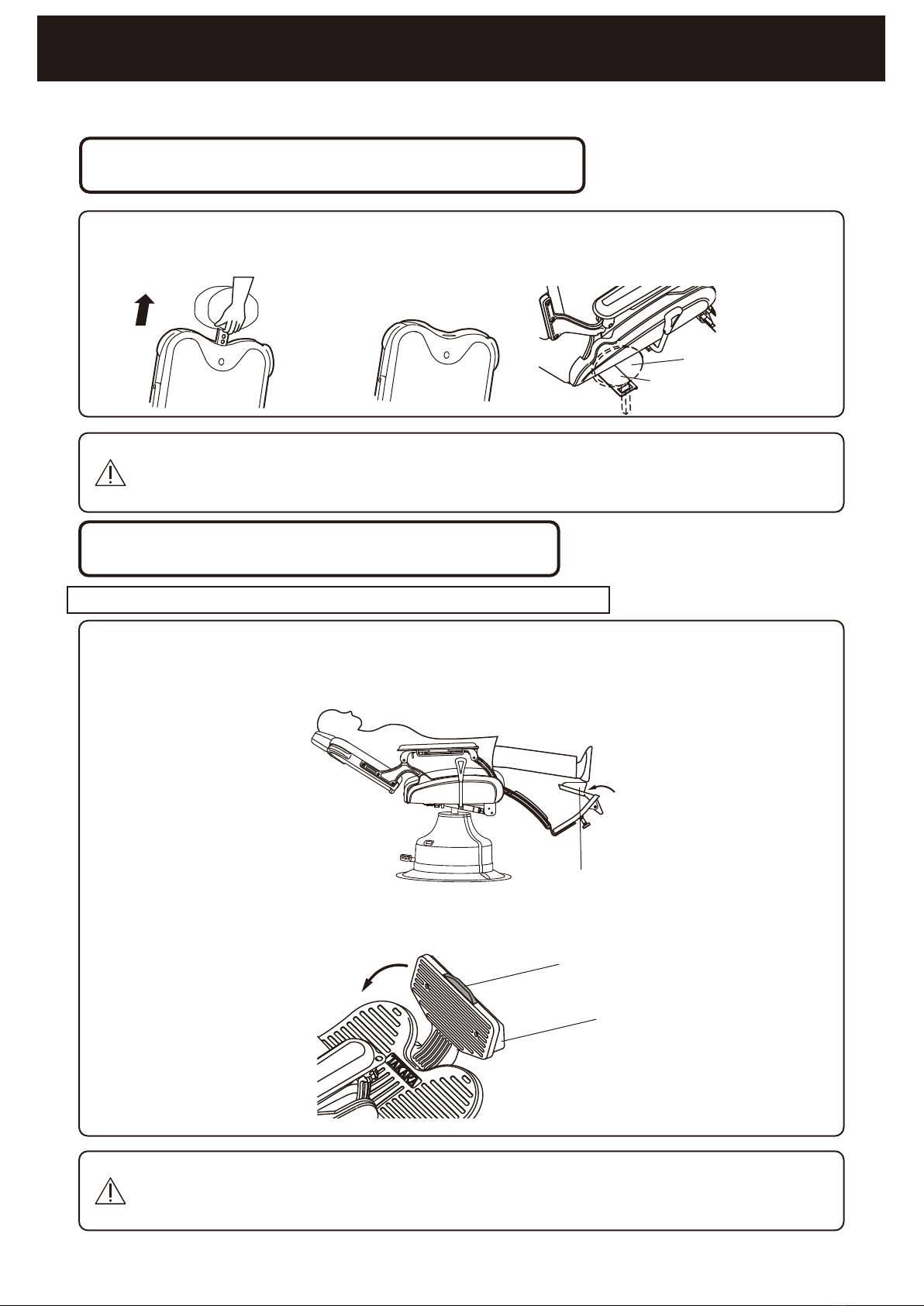

Use the heelrest so that it fits the customer’s height and body shape.
When the backrest is reclined, rotate the heelrest to support the heel, providing a
more comfortable position.
Grasp the handle of the heelrest when moving the heelrest.
For back shampoo, pull out the headrest completely.
Insert the pulled-out headrest into the headrest holder on the side of the body.
Headrest
Headrest holder
Using the Heelrest (AB-0091)
Handle
Heelrest
Heelrest
Be sure to grasp the handle of the heelrest when moving the heelrest. Take care
not to pinch foot of the customer or your finger in between the heelrest and step.
For back shampoo and haircut
How to Use
When pulling out the headrest, be sure to ensure that metal fittings of the
headrest do not hit the customer’s head.
CAUTION
CAUTION

The backrest can be unlocked by the reclining lever. The backrest moves only when the
reclining lever is tilted back.
· When reclining the backrest
Tilt the reclining lever back.
The reclining lever is retained by
the gas pressure of the gas
cylinder so let the customer lean
back while supporting the
backrest.
· When raising the backrest
Tilt the reclining lever back.
The raising force is supported by
the gas pressure of the gas cylinder
so support the backrest and then
raise it.
Reclining/Raising the Backrest
Reclining lever
Backrest
How to Use
8
When the reclining lever is tilted back, be sure to support and operate the
backrest so that the backrest does not move suddenly.
CAUTION

Using the Cape Holder
1 Rotate the cape holder at the tip of the armrest forward.
2 Pull the tip of the cape holder to pinch the cutting cape.
Pull the tip of the cape holder from
over the cutting cape.
Pinch the cutting cape and release it.
Using the cape holder provides the following:
· Good ventilation (making space between the customer and cutting cape)
· Easy handling of cut hair
When storing When using
9
Cape holder
How to Use
· The withstand load of the cape holder is 10N (1 kgf/2.2 lbf). Do not apply unnec-
essary force to the cape holder.
· When not using the cape holder, be sure to return it to the storage position.
· When returning the cape holder to the storage position, keep your hands on it
until it is stored completely to prevent a finger of the customer or user from
being pinched between the cape holder and the armrest.
CAUTION

Using the Manicure Holder
Using the Dryer Holder
When storing When using
The dryer holder is equipped in the rear of the left body.
The manicure holder is equipped at the tip of the armrest.
Dryer holder
Manicure bowl
Manicure ring
Manicure holder
Body
Ring
Use the dryer holder as the temporary holder of a hand dryer during operation.
Lay the ring of the dryer holder when you use the holder.
When using the manicure bowl, insert the manicure ring into the manicure holder and place the
manicure bowl on the ring.
How to Use
10
· The withstand load of the dryer holder is 50N (5 kgf/11 lbf). Do not apply unnec-
essary force to the dryer holder.
· When not using the dryer holder, be sure to return it to the storage position.
·
When returning the dryer holder to the storage position, be sure to ensure that a
finger of the customer or user is not pinched between the dryer holder and the body.
CAUTION
· Do not apply unnecessary force to the manicure ring.
· Take care not to pinch a finger of the customer or user when inserting the
manicure ring into the manicure holder.
CAUTION

Take care of the product after use and keep it always clean. If dirt is allowed to remain, mold may
be generated.
Maintenance of each section
To use the equipment that has not been used for a long time, clean before using and be sure to
check that the equipment operates safely without any error.
Metal
CAUTIONS
Care and Maintenance
If the dirt is heavy
Wipe the upholstery with soft and dry cloth.
Upholstery Resin
11
By using a soft cloth dampened with neutral
detergent diluted to about 10% with water,
wipe out dirt. After that, wipe with a dry cloth.
If the dirt is heavy
Wipe the resin with soft and dry cloth.
By using a soft cloth dampened with neutral
detergent diluted to about 10% with water,
wipe out dirt. After that, wipe with a dry cloth.
Wipe the metal with soft and dry cloth.
Do not wipe the metal with wet cloth because the metal hates humidity and water. If the
metal is watered, wipe out moisture immediately. Moisture may cause rusting or malfunction.
Do not use anything other than neutral detergent for cleaning.
· Particularly, never use the following:
Volatile chemicals such as thinner, alcohol, nail polish remover, gasoline, or
kerosene; acidic, alkaline and chlorinated detergent; strong disinfectant that
corrodes metal; povidone-iodine (isodine solution); sodium hypochlorite;
abrasive wax; abrasive sponges, etc. Do not use a brush or scrubbing brush
for cleaning. It may scratch the surface, making it impossible to remove dirt.
· The metal and mechanical parts of the equipment have sharp portions. Be
careful not to hurt your hands or fingers at the time of cleaning.
· Do not clean the upholstery with detergent including organic solvent or abra-
sives or bleach. Doing so may cause deterioration of the surface and change
of texture and gloss.
·
In order to avoid infiltration by plasticizer when the color of clothing or a belt
remains in the upholstery, wipe it out by using a soft cloth dampened with neutral
detergent diluted to about 10% with water. After that, wipe with a dry cloth.
Spray-type (especially hard type) hair-setting agent
When spray-type (especially hard-type) hair-setting agent is used, check the entire surface
(including the upholstery) of the equipment for adhesion of hair setting agent. If adhesion is
found, wipe it off promptly. If it is left unremoved, the adhered hair setting agent gets hard,
making the surface rough. In particular, the rough texture becomes more conspicuous and
noticeable on a flat portion such as a resin cover.
Note: Action to be taken when the hair setting agent has become hard
If hair setting agent is stuck and become hard, remove it with ethanol. However, if a substance
that is stuck to the resin cover or upholstery is removed with ethanol many times, the surface is
degraded, resulting in loss of gross or generation of cracks. The best method to prevent it is to
wipe it out promptly when adhesion of hair setting agent is found.

Follow the inspection procedure below to ensure safe and long use of the product.
Items to be checked every day
Item to be inspected How to inspect In case of ³as a result of inspection
To ensure safe use, inspect the equipment according to “Daily Inspection Procedure” described
below.
Be sure to inspect the product every day by following the description of
“Daily Inspection Procedure.” Using the product without conducting daily
inspection may cause breakdown or accident.
Daily Inspection
Daily Inspection Procedure
12
WARNING
Proper operation of the
equipment
Inspect that you can raise and
recline the backrest with the
reclining lever.
Inspect that the equipment does
not wobble and abnormal sound
does not occur during operation.
Inspect that the backrest stops at
any position and does not move.
 The customer may be unable to get on and off
the chair safely. If the operation is abnormal,
contact your local dealer or TAKARA BELMONT.
If the equipment wobbles or abnormal sound
occurs during operation, contact your local
dealer or TAKARA BELMONT.
If the backrest does not stop, contact your local
dealer or TAKARA BELMONT.

Model No. AB-0091
68.5 kg
Provided
Maximum
load
Mass
Heelrest
Dimensions (the figures represent standard values. Unit: mm/inch)
224/8.7
426/16.6
480/18.7
683/26.6
713/27.8
360/14
371/14.5
<AB-0091 with AN-008H>
<AB-0091 with AN-0090>
1350N (135 kgf/298 lbf)
Backrest withstand load, legrest withstand load: 600N (60 kgf/132 lbf)
Headrest withstand load: 100N (10 kgf/22 lbf)
Usage environment Temperature 0 〜40ºC
Humidity 10 〜95%
Air pressure 700 〜1060 hPa
Transportation / Storage
environment
Temperature -20 〜70ºC
Humidity 10 〜95%
Air pressure 700 〜1060 hPa
Specifications
13
1070/41.7
732/28.5
397/15.5 ST:175/6.8
1534/59.8
1228/47.9
577/22.5
714/27.8
Ø125/4.9
490/19.1
470/18.3
812/31.7
50/2.0
87/3.4
360/14
224/8.7
426/16.6
480/18.7
683/26.6
371/14.5
713/27.8
812/31.7
490/19.1
1228/47.9
Ø165/6.4
Ø34.7/1.4
Ø608/23.7
470/18.3
1534/59.8
404/15.8 ST:170/6.6
50/2.0
1077/42
739/28.8
584/22.8
721/28.1
93/3.6
Ram diameter:
Ø25.7 /1.0
Ram diameter:
Headrest ST
:220/8.6
Headrest ST
:220/8.6
50°
50°
Ø608/23.7

Model No.
Maximum
load
Mass
Usage environment Temperature 0 〜40ºC
Humidity 10 〜95%
Air pressure 700 〜1060 hPa
Transportation / Storage
environment
Temperature -20 〜70ºC
Humidity 10 〜95%
Air pressure 700 〜1060 hPa
AB-0092
66.5 kg
Not provided
1350N (135 kgf/298 lbf)
Backrest withstand load, legrest withstand load: 600N (60 kgf/132 lbf)
Headrest withstand load: 100N (10 kgf/22 lbf)
Healrest
224/8.7
426/16.6
480/18.7
683/26.6
713/27.8
360/14
371/14.5
Dimensions (the figures represent standard values. Unit: mm/inch)
<AB-0092 with AN-008H>
<AB-0092 with AN-0090>
Specifications
1070/41.7
732/28.5
397/15.8 ST:175/6.6
1507/58.8
1075/41.9
577/22.5
714/27.8
Ø25.7/1.0
Ø125/4.9
Ram diameter:
490/19.1
470/18.3
659/25.7
50/2.0
87/3.4
360/14
224/8.7
426/16.6
480/18.7
683/26.6
371/14.5
713/27.8
659/25.7
490/19.1
1075/41.9
Ø165/6.4
Ø34.7/1.4
470/18.3
1507/58.8
404/15.8 ST:17
0
/6.6
50/2.0
1077/42
739/128.8
584/22.8
721/28.1
93/3.6
Ram diameter:
14
Ø608/23.7
Ø608/23.7
50°
50°
Headrest ST
:220/8.6
Headrest ST
:220/8.6

Standard Period of Use
When Disposing of This Product
15
· The standard period of use for this product is 10 years.
· The standard period of use acts as “a guide to the standard period of time that each product can
be used safely and without trouble when under standard usage conditions, appropriate mainte-
nance and inspection (including parts replacement) has been performed and the product has
been used.” This is not a warranty period. The “standard period of use” will differ depending on
the environment that the customer uses the product in and its frequency of use. For maintenance
after the standard period of use has passed, consult your local dealer or TAKARA BELMONT.
Properly dispose of this product or its replacement parts in accordance with the rules and regula-
tions at the time of disposal.

MEMO

MEMO

TAKARA BELMONT CORPORATION
2-1-1, Higashishinsaibashi, Chuo-ku, Osaka, 542-0083, Japan
TEL:[phone]
FAX:[phone]
BOOK.No : 1E04TUCE
Printed in Japan 1710
Original instruction
NOTE
