Takstar E220 User manual

● 集麦克风、播放器、功放、音箱于一体的便携式数字播放扩音器
选用稀土材质扬声器,重量轻、音质好、声音大
采用F类功放芯片,低功耗高效率,能输出高达8W的峰值功率
具有音乐播放功能,支持TF存储卡上的多媒体音频文件播放
具有蓝牙功能,可连接手机、电脑、PAD等蓝牙设备播放音乐
内置大容量耐久型锂离子电池,充电约4小时,使用时间可达10小时
灵活可变的肩挎及腰挂等佩挂方式,满足不同用户的个性需求
产品符合人体工学原理设计,造型新颖,外观时尚,使用舒适
●
●
●
●
●
●
●
● 适用于教学、导游、培训、促销、宣传、晨练、娱乐等场合扩音
为避免电击、过高温度、着火、辐射、爆炸、机械危险以及使用不
当等可能造成的人身伤害或财产损失,使用本产品,请仔细阅读并遵守
以下事项:
1. 使用产品时请确认所连接设备与本产品功率是否匹配以及合理调整音
量大小,不要在超过产品功率及大音量下长时间使用,以免造成产品
异常和耳朵听力损伤;
2. 使用中若发现有异常(如冒烟、异味等),请立即关闭电源开关并拔
掉电源插头,然后将产品送经销商检修;
3. 本产品及附件都应放置在室内干燥通风处,勿长期存放在潮湿、灰尘
多的环境,使用中避免靠近裸露火源、碰到液体物质、雨淋、产品进
水、过度碰撞、抛掷、振动本机及覆盖通风孔,以免损坏其功能;
4. 若产品需要固定于墙壁或天花板上时,请确保固定到位,防止因固定
强度不足导致产品发生跌落危险;
5. 使用该产品时需遵守相关安全规定,法律法规明确禁止使用场合请勿
使用本机,以免导致意外事故;
6. 请不要自行拆机改装或维修,以防止出现人身伤害,如有问题或服务
需求请联系当地经销商跟进处理;
7. 本产品适用的海拔及气候条件由选用的供电设备决定。
●
●
●
●
●
●
●
●
●
●
●
●
频率响应:80Hz-12KHz
峰值功率:8W
扬声器阻抗:4Ω
工作电压:DC 3.5-4.2V
电池规格: 18650单节3.7V/1500mAh
充电电压:DC 5V/600mA
充电时间:≈4小时
使用时间:≥10小时
媒体播放:TF卡,支持64G及以下
媒体格式:MP3、WAV
单机重量:195g
产品规格:91x41x119mm
E220 扩音器(数码播放器)
尊敬的用户:
感谢您选购TAKSTAR E220便携式数字扩音器,为了您能够更好的
了解使用本产品,建议您在使用前仔细阅读本说明书。
若存在有疑问或者您有宝贵的建议,可通过拨打得胜
官方服务热线 400 6828 333 或使用微信扫描二维码关注
得胜官方公众号与我们联系。
邮编:516121
广东省电声工程技术研究开发中心
广东省得胜电子有限公司制造
地址:广东省惠州市博罗县龙溪镇富康一路2号 全国服务热线:400 6828 333
传真:0752-6383950
邮箱:xs@takstar.com
扫一扫,了解更多产品
版本:V1
产品特性
控制面板功能示意图
注意事项
使用说明
适用场合
标准配置
技术参数
①
②
③
2. 将Ø3.5mm的麦克风插头插入麦克风输入孔内;
3. 打开电源,LED数码显示屏亮,调整旋钮到合适的音量大小;
4. 使用过程中,若LED数码显示屏上的“ ”闪烁时,表示电池低电
量,请及时充电。
头戴麦克风
肩带
扩音器 USB充电线
说明书
① 电源开关:向上方向转动旋钮,听到“滴”一声,此时LED数码显示
屏 显示“BLUE”,表示扩音器已通电并进入扩音状态,开机默认为
蓝牙模式,继续向上转动旋钮声音增大,反之,声音减小直至关机
② AUX IN 输入插孔:用 Ø3.5mm连接线,将DVD 、MP3等音乐信号
导入本扩音器中,做为有源音箱使用
③ MIC IN 输入插孔: 将头戴式麦克风插头插入此孔,进入扩音状态
④ TF 卡插口:根据示意的插卡方向插入TF 内存卡,插入时,听到“嗒”
一声,表示已安装到位并将其锁住;取卡时只要将卡往下按,听到
“嗒”一声,TF内存卡会自动弹出来
⑤ 充电输入插孔:将USB充电线插入此孔,另一端连接通用的USB输出
充电器(如手机充电器、电脑USB接口等),即可对电池进行充电
⑥ 上一曲按键 :在蓝牙 播放状态时,短按此键为上一曲,长
按此键可减小音量;在FM播放状态时,短按此键可选上一个频道
⑦ 播放/暂停按键 :短按此键可控制蓝牙、MP3、FM、录音的播放与
暂停;
在MP3播放时,长按此键可以设置循环播放;在FM播
放时,长按此键进入全自动搜台
⑧ 下一曲按键 :在 ,短按此键为下一曲,长
按此键可增加音量;在FM播放状态时,短按此键可选下一个频道
⑨ 功能切换按键:短按此键可切换蓝牙模式、TF卡模式及FM模式;
长按此键进入录音模式,录制完成后长按此键即可退出并保存录音;
录音操作:在FM模式下长按此键可录制当前播放的FM内容;在蓝牙、
MP3模式下长按此键可录制MIC语音。(注意录音时一定要插有TF卡、
头戴麦克风才能录音,录音操作可以在蓝牙、MP3或 模式下进行)
⑩ LED数码显示屏:可显示当前的工作状态及电池电量显示;当电池电
量标识“ ”闪烁时,表示电池低电压,此时应及时充电,以确保
本机正常运作,30秒无任何操作时,显示屏进入黑屏省电状态,按任
意键即可唤醒
⑪ FM天线
⑫ 肩挂扣
⑬ 背扣
、MP3
在蓝牙播放时,长按此键可以断开蓝牙连接,再次长按此键即
可连接蓝牙;
蓝牙、MP3播放状态时
FM
:用于增加FM接收信号强度,使用FM收音机时建议拉出以得
到较好的收音效果
防风棉
④
⑤
⑥⑦⑧⑨ ⑩ ⑪ ⑫
⑬
1. 将头戴麦克风正确的佩戴在头部,并调整好麦克风的拾音角度(建议
拾音距离1-2cm);

E220 Amplifier (Digital Player)
Operation
Specification
1. Put on the headphone microphone and adjust the pickup angle (it is
recommended to keep it away from mouth 1-2cm).
2. Insert the Ø3.5mm microphone plug into the microphone input connector.
3. Turn on the power switch. LED display lights up. Adjust the knob to proper
volume level.
4. During operation, if LED display shows flashing. This means the battery
power is low. Please recharge in time.
headphone microphone
shoulder strap
USB charging cable
user manual
windscreen
①
②
③④
⑤
⑥⑦⑧⑨ ⑩ ⑪ ⑫
⑬
Version: V1
Guangdong Takstar Electronic Co., Ltd.
Address: No. 2 Fu Kang Yi Rd., Longxi Boluo Huizhou, Guangdong 516121 China
Tel: +86 752 6383644 Fax: +86 752 6383952 Website: E-mail: sales@takstar.comwww.takstar.com
Dear Customer,
Thank you for purchasing TAKSTAR E220 portable digital amplifier. Please read
the user manual carefully before operation and keep it for reference in future.
If you have any question or suggestion, please contact our local dealer.
Preface
●
●
●
●
●
●
●
●
The portable digital amplifier combining microphone, player, power amplifier
and speaker cabinet together
Rear earth material speaker, light weight, wonderful sound, high volume
Class F power amplifier chip, low power consumption, high efficiency, output
peak power up to 8W
Music playing function plays the multimedia audio files in TF card
Bluetooth function to connect with Bluetooth equipment to play music, e.g.
cell phone, PC, PAD, etc
High capacity Li-ion battery; 4 hours of recharging lasts for 10 hours of operation
Multiple wearing choices, shoulder hanging and waist wearing for convenient
application
Ergonomic design, unique and fashionable contour, comfortable operation
Control panel function
① Power switch: turn it upward. When you hear the sound “Dee”, LED display
shows BLUE. This means the amplifier is turned on and in the working status.
It defaults Bluetooth mode when turned on. Turn the power switch upward
to increase the volume, the downward to decrease the volume till turning
off the amplifier.
② Input connector: use Ø3.5mm connection cable to connect the music
signal of DVD or MP3 to the amplifier, and the amplifier can be used as active
speaker cabinet.
③ MIC IN input connector: connect the headphone microphone with this
connect for sound reinforcement.
④ TF card port: insert the TF card according to the direction of the illustration.
When you hear the sound “Da” after you insert it, it means the card is fixed.
When you want to take out the card, just press it and the card will come out
automatically with a sound “Da”.
⑤ Recharging port: connect one end of USB cable with this port, and the other
end with USB output charger (e.g. cell phone charger, PC USB interface) to
recharge the battery.
⑥ Previous song button: shortly press it for previous song when playing
bluetooth/TF card music. Keep pressing it for decreasing volume. In FM
playing status, shortly press it for the previous channel.
⑦ Play/pause button: shortly press it to play/pause the playing of Bluetooth
or MP3 or FM or recording. During Bluetooth playing, keep pressing it to
disconnect the Bluetooth connection. Press again to reconnect the Bluetooth.
During MP3 playing, keep pressing it to repeat the playing. During FM playing,
keep pressing it to search the station automatically.
⑧ Next song button: shortly press it for next song when playing bluetooth/TF
card music. Keep pressing it for increasing volume. In FM playing status,
shortly press it for the next channel.
⑨ Function switching button: shortly press this button to switch Bluetooth
mode, TF card mode or FM mode. Keep pressing it to enter into recording
mode. After recording keep pressing it to exit and save the recording.
Recording operation: in FM mode, keep pressing this button to record the
current FM program. In Bluetooth or MP3 mode, keep pressing it to record
microphone sound (Note: the recording can be carried out only if there is
no TF card inserted or headphone connected, the recording can not be
carried out. The recording can be operated in Bluetooth mode/MP3 mode/
FM mode).
⑩ LED digital display: it shows the current operation status and the battery
power. When the battery icon Flashes, this means the battery voltage is
low. Please recharge in time. After being turned on, if there is no operation
in 30 seconds, the LED display lights off to save the power. Press any button
to light up the LED display.
To avoid electric shock, over temperature, catching fire, explosion,
mechanical risk and hurt or property loss caused by improper use, please
read the following items carefully before operation:
1. Make sure if the power of connected equipment matches with amplifier
power. Adjust the volume to proper level during operation. Do not operate
at high volume level to avoid hearing loss.
2. If abnormal phenomenon (smoke, abnormal smell) happens, please turn
off the power switch and disconnect the power plug with power socket,
and send the product to local dealer for maintenance.
3. The product and accessories should be put in dry and ventilated place rather
than humid or dusty environment. Prevent the product from fire, liquid, rain,
water, over-colliding, throwing, vibrating, vent hole covered to avoid function
destroyed.
4. When the product needs to be installed on wall or ceiling, please fix it tightly
to avoid dropping risk.
5. Please abide by safety rules during operation. Do not use the product in the
place prohibited by regulation or law to avoid accident.
6. Do not disassemble or repair the product by yourself to avoid hurt. If you
have question or need service, please contact the local dealer.
7. The applicable altitude and climate condition of this product is subject to
the power supply equipment.
Caution
●
●
●
●
●
●
Frequency Response: 80Hz-12KHz
● Peak Power: 8W
Speaker Impedance: 4Ω
Operation Voltage: DC 3.5-4.2V
● Battery Specification: 18650 one battery 3.7V/1500mAh
● Charging Voltage: DC 5V/600mA
● Charging Time: ≈4h
Operation Time: ≥10h
Media Playing: TF card, max 64G
Media Format: MP3, WAV
● Net Weight: 195g
● Dimension: 91x41x119mm
Product Content
Amplifier
Application
● Teaching, tour guide, training, promotion, propaganda, morning exercise,
entertainment
⑪ FM antenna: it is used to increase the signal receiving. It is recommended
to pull it out for better receiving during FM mode.
⑫ Shoulder strap buckle
⑬ Belt clip
Other Takstar Amplifier manuals

Takstar
Takstar E5M User manual

Takstar
Takstar EA Series User manual

Takstar
Takstar E7M User manual

Takstar
Takstar E300 User manual

Takstar

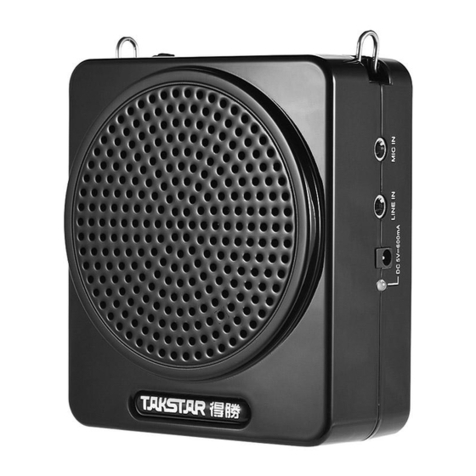

Takstar E188 User manual

Takstar
Takstar E126 User manual

Takstar
Takstar E126A User manual

Takstar
Takstar E190M User manual

Takstar

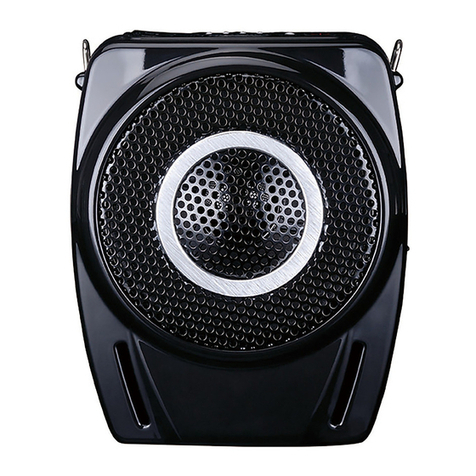

Takstar E8M User manual

Takstar
Takstar E8R User manual

Takstar
Takstar EKAX-1L User manual

Takstar
Takstar E20 User manual

Takstar
Takstar DA-251 User manual

Takstar
Takstar E180M User manual

Takstar
Takstar E129 User manual

Takstar
Takstar E128 User manual

Takstar
Takstar E170M User manual

Takstar
Takstar DA-523 User manual

Takstar

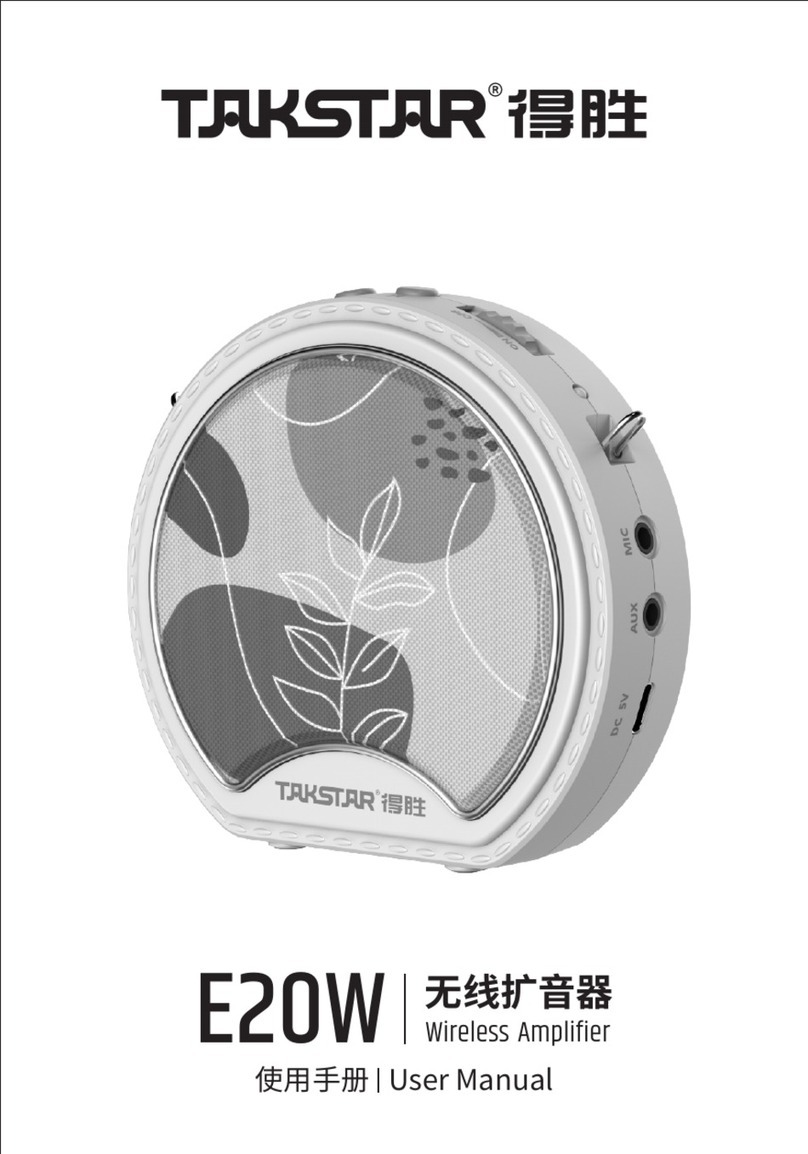

Takstar E20W User manual
