Tarter CBFG User manual

STEP TWO
STEP ONE

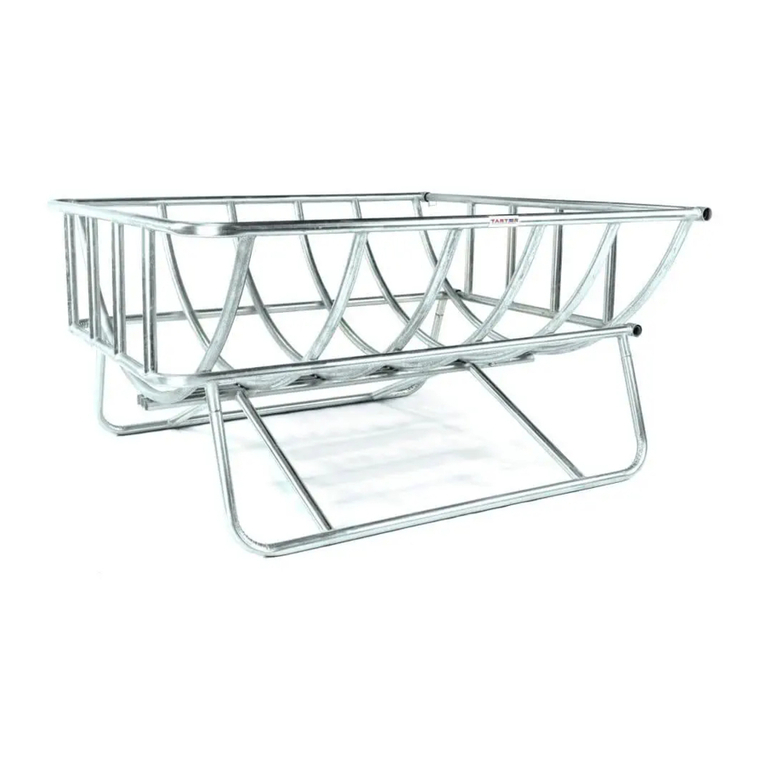

CRADLE BALE FEEDER GALVANIZED
CBFG
STEP FOUR
STEP THREE
Cut all packing straps
with tin snips or knife.
Using a 9/16” wrench,
remove the two 6” bolts,
washers and lock nuts from
the leg assembly in
the center of the hay rack
and set aside for later.
Place leg racks and front
panel outside hay rack.
Place front panel
near the open area
of hay rack and
remove the clevis
pins from both
sides of panel.
Align the opposite
side of front panel
with the upper and
lower sleeves and
slide into place.
Replace clevis pins
into upper and lower
holes on both sides
of the front panel and
lock into position.
Align the upper
and lower arm of
the front panel
with the upper
and lower sleeves
of the hay cradle
and slide the
panel into sleeve
as far as possible.
Be aware of
possible pinch
points.
assembly instructions

STEP FIVE
Turn hay cradle frame upside down
and place flat on the ground.
ASSEMBLY IS COMPLETE
WWW.TARTERUSA.COM
STEP SEVEN
Repeat
step 6 for
assembly
of second
leg.
STEP EIGHT
Place 6” bolt through
holes in both legs and
center support beam.
STEP NINE
Repeat step
eight to
other bolt
in support
beam near
the back
of the hay
cradle.
Turn hay
cradle
upright onto
legs.
STEP SIX
Take leg frame and
slide left and right
arms into sleeves
on the bottom of
frame.
Be aware of
possible pinch
points.
Apply pressure to
leg frame to seat
arms firmly into
sleeves.
Place washer and
locking nut on end of
bolt and tighten with
9/16” wrench.
