TCL TAC-07CSA User manual

WALL MOUNTED SPLIT-TYPE AIR CONDITIONERS
CONTENTS
1. IMPORTANT NOTICE ···································2
2. TECHNICAL SPECIFICATION ·····················3
3. OPERATION DETAILS·······································6

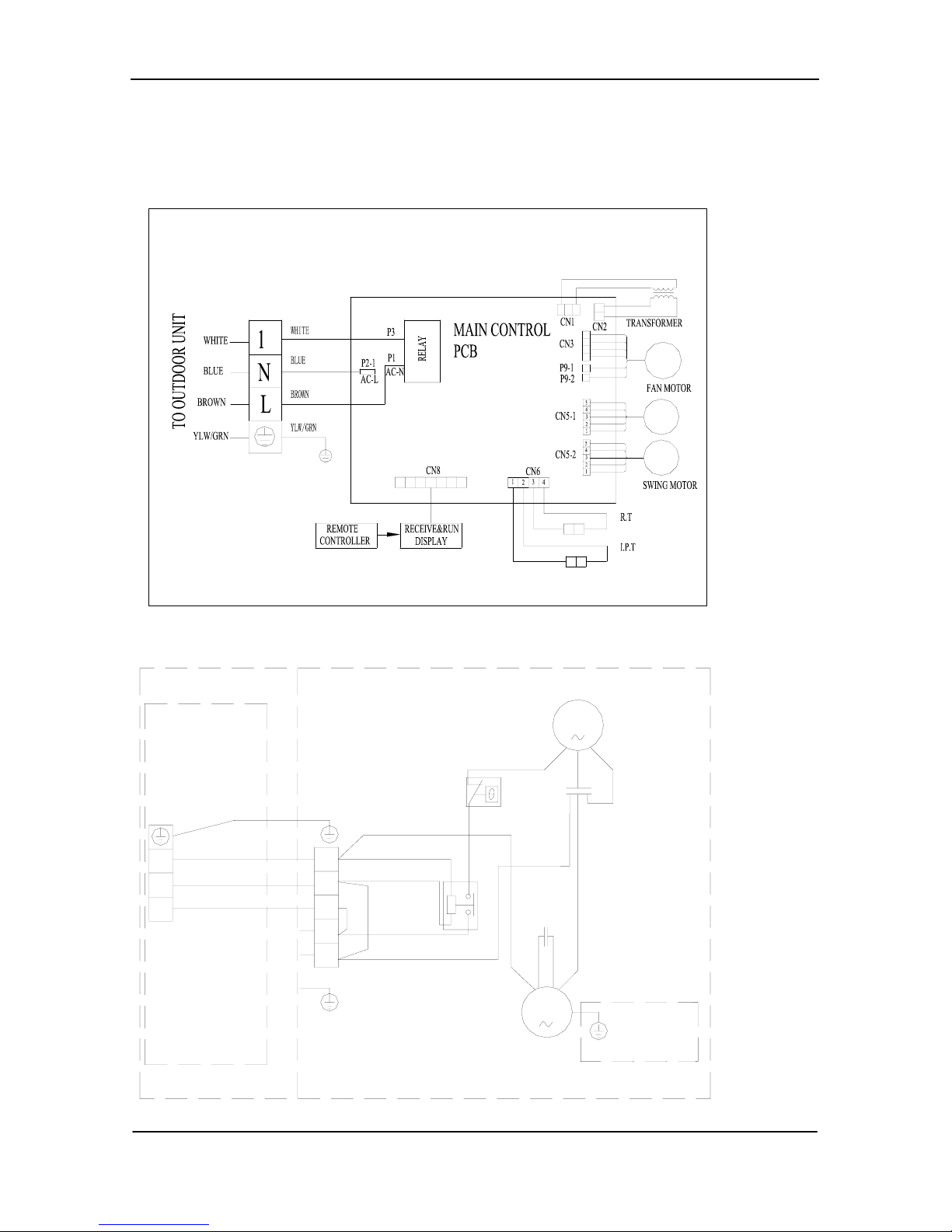

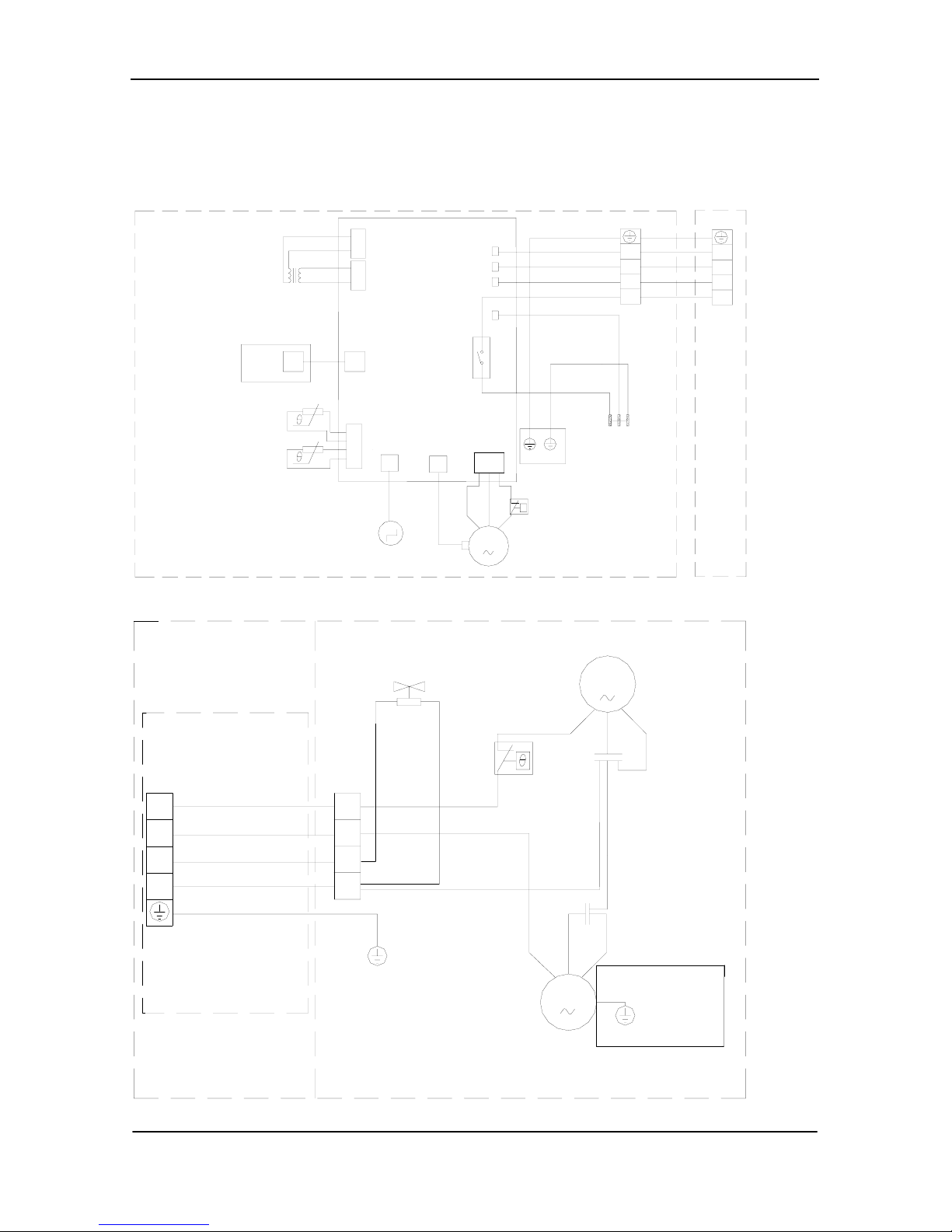

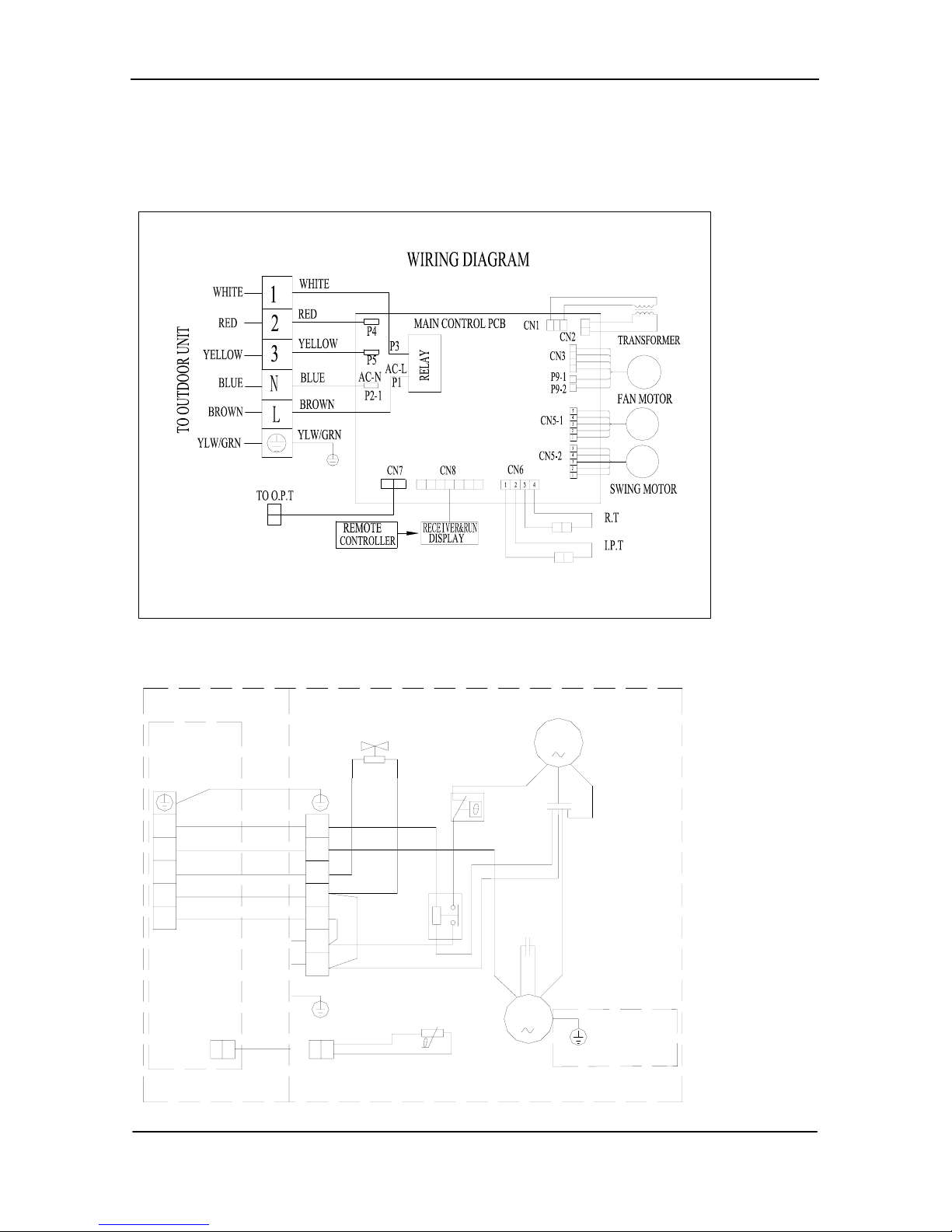

4. WIRING DIAGRAM ············· 14
5. EXPLOSION VIEW ····························20
6. PARTS LIST ·············27
Models
TAC-07CSA/M TAC-09CSA/M
TAC-12CSA/M TAC-18CSA/M
TAC-24CSA/MTAC-07CHSA/M
TAC-09CHSA/MTAC-12CHSA/M
TAC-18CHSA/MTAC-24CHSA/M
OB207t-1qxp 25/9/97 8:51 PM Page 1
TCL
SERVICE MANUAL
No.TE041130

IMPORTANT NOTICE
This service manual is intended for use by individuals possessing adequate
backgrounds of electrical, electronic and mechanical experience. Any
attempt to repair the appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
The information, specifications and parameter are subject to change due to
technical modification or improvement without any prior notice. The
accurate specifications are presented on the nameplate label.
How to order spare parts
To have your order filled promptly and correctly, please furnish the
following information:
1. Model No. with Indoor or Outdoor
2. No. in the Explosion View
3. Part Name
4. The quantity you ordered
TCL Air Conditioner Service ManualTCL Air Conditioner Service ManualTCL Air Conditioner Service Manual
TCL Air Conditioner Service Manual
2

TCLAir Conditioner Service Manual
3
Technical Specifications
Model No. TAC-07CSA/M TAC-07CHSA/M TAC-09CSA/M TAC-09CHSA/M
Type Cooling Only Heating Pump Cooling Only Heating Pump
Control type Remote Remote Remote Remote
Rated cooling capacity Btu/h 7,000 7,000 9,000 9,000
Rated heating capacity Btu/h N/A 7,500 N/A 9,500
EER for cooling Btu/h.w 10.6 10.6 10.7 10.7
COP for heating W/W N/A 3.8 N/A 3.5
Moisture removal Liters/h 0.6 0.6 0.9 0.9
High dB(A) 36 36 36 36
Med. dB(A) 34 34 34 34
Indoor noise level at
cooling Low dB(A) 32 32 32 32
Outdoor noise level dB(A) 54 54 55 55
Electrical Data
Power supply 220V~/50Hz
Voltage Range V
Cooling A 3.0 3.0 3.7 3.7
Rated current Heating A N/A 2.8 N/A 3.7
Cooling W 660 660 840 840
Rated input Heating W N/A 610 N/A 800
Refrigerating System
Refrigerant/Charge Gram R410A/800g R410A/800g R410A/780g R410A/780g
Type Rotary Rotary Rotary Rotary
Model ------------------ ----------------- ------------------ ------------------
LRA A ------ ------- ------ ------
Compressor
MFG ----------------- ----------------- ---------------- -----------------
Evaporator Louver fin and Grooved tube type (φ7)
Condenser Corrugated fin and Grooved tube type (φ9.53)
Expansion device Capillary tube
Defrosting system Microcomputer controlled reverse system
Fan System
Indoor air circulation m3/h 480 480 480 480
Indoor fan type Cross flow Cross flow Cross flow Cross flow
Cooling rpm 1100/1000/900 1100/1000/900 1100/1000/900 1100/1000/900
Heating rpm N/A 900/800/800 N/A 900/800/800
Dry rpm 900 900 900 900
Indoor fan speed
H/M/L Sleep rpm 900 900/800 900/800 900/800
Indoor fan motor output W 12 12 12 12
Outdoor air circulation m3/h --- --- --- ---
Outdoor fan type Propeller fan Propeller fan Propeller fan Propeller fan
Outdoor fan speed rpm 895 895 860 860
Outdoor fan motor output W 31 31 31 31
Connections
Refrigerant coupling Flare type
Gas Inches 3/83/83/83/8
Connecting Pipe Liquid Inches 1/4 1/4 1/41/4
Connecting Wiring Size ×Core
number
Drainage Pipe O.D 16mm
Others
Suitable area m26~10 6~10 12~19 12~19
Indoor mm 785×260×195 785×260×195 785×260×195 785×260×195Net dimensions
(W x H x D) Outdoor mm 700×255×540 700×255×540 760×552×256 760×552×256
Indoor kg 9.0 9.0 9.0 9.0
Net weight Outdoor kg 31 32 31 32
Indoor mm 860×330×270 860×330×270 860×330×270 860×330×270Packing dimensions
(Wx H x D) Outdoor mm 788×365×575 788×365×575 848×361×600 848×361×600
Indoor kg 10 10 10 10
Gross weight Outdoor kg 35 36 35 36
Loading Capacity 40’/40’HC 125/255/298 125/255/298 110/235/265 110/235/265

TCLAir Conditioner Service Manual
4
Technical Specifications
Model No. TAC-12CSA/M TAC-12CHSA/M TAC-18CSA/M TAC-18CHSA/M
Type Cooling Only Heating Pump Cooling Only Heating Pump
Control type Remote Remote Remote Remote
Rated cooling capacity Btu/h 12,000 12,000 18,000 18,000
Rated heating capacity Btu/h N/A 1,3500 N/A 19,000
EER for cooling Btu/h.w 10.6 10.6 9.4 9.4
COP for heating W/W N/A 3.5 N/A 3.1
Moisture removal Liters/h 1.27 1.27 2.0 2.0
High dB(A) 38 38 42 42
Med. dB(A) 34 34 38 38
Indoor noise level at
cooling Low dB(A) 32 32 36 36
Outdoor noise level dB(A) 55 55 58 58
Electrical Data
Power supply 220V~/50Hz
Voltage Range V
Cooling A 5.2 5.2 8.7 8.7
Rated current Heating A N/A 5.2 N/A 8.2
Cooling W 1130 1130 1900 1900
Rated input Heating W N/A 1120 N/A 1800
Refrigerating System
Refrigerant/Charge Gram R410A/1240g R410A/1240g R410A/1450g R410A/1450g
Type Rotary Rotary Rotary Rotary
Model ------------------ ----------------- ------------------ ------------------
LRA A ------ ------- ------ ------
Compressor
MFG ----------------- ----------------- ---------------- -----------------
Evaporator Louver fin and Grooved tube type (φ7)
Condenser Corrugated fin and Grooved tube type (φ9.53)
Expansion device Capillary tube
Defrosting system Microcomputer controlled reverse system
Fan System
Indoor air circulation m3/h 530 530 800 800
Indoor fan type Cross flow Cross flow Cross flow Cross flow
Cooling rpm 1250/1150/1050 1250/1150/1050 1060/970/880 1060/970/880
Heating rpm N/A 1200/1100/1000 N/A 1060/970/880
Dry rpm 1050 1050 880 880
Indoor fan speed
H/M/L Sleep rpm 1050 1050/1000 880 880
Indoor fan motor output W 12 12 12 12
Outdoor air circulation m3/h --- --- --- ---
Outdoor fan type Propeller fan Propeller fan Propeller fan Propeller fan
Outdoor fan speed rpm 860 860 850 850
Outdoor fan motor output W 31 31 31 31
Connections
Refrigerant coupling Flare type
Gas Inches 1/21/21/21/2
Connecting Pipe Liquid Inches 1/4 1/4 1/41/4
Connecting Wiring Size ×Core
number
Drainage Pipe O.D 16mm
Others
Suitable area m216~28 16~28 30~40 30~40
Indoor mm 785×260×195 785×260×195 1036×313×204 1036×313×204Net dimensions
(W x H x D) Outdoor mm 760×552×256 760×552×256 760×540×255 760×540×255
Indoor kg 9.0 9.0 14.0 14.0
Net weight Outdoor kg 33 34 48 48
Indoor mm 860×330×270 860×330×270 1103×395×280 1103×395×280Packing dimensions
(W x H x D) Outdoor mm 848×361×600 848×361×600 863×376×605 863×376×605
Indoor kg 10 10 17 17
Gross weight Outdoor kg 37 38 51 52
Loading Capacity 40’/40’HC 110/235/265 110/235/265 90/188/218 90/188/218

TCLAir Conditioner Service Manual
5
Technical Specifications
Model No. TAC-24CSA/M TAC-24CHSA/M
Type Cooling Only Heating Pump
Control type Remote Remote
Rated cooling capacity Btu/h 24,000 24,000
Rated heating capacity Btu/h N/A 26,000
EER for cooling Btu/h.w 9.8 9.8
COP for heating W/W N/A 3.2
Moisture removal Liters/h 2.63 2.63
High dB(A) 49 49
Med. dB(A) 46 46
Indoor noise level at
cooling Low dB(A) 42 42
Outdoor noise level dB(A) 58 58
Electrical Data
Power supply 220V~/50Hz
Voltage Range V
Cooling A 11.5 11.5
Rated current Heating A N/A 11.2
Cooling W 2430 1130
Rated input Heating W N/A 1120
Refrigerating System
Refrigerant/Charge Gram R410A/1900g R410A/1900g
Type Rotary Rotary
Model ------------------ -----------------
LRA A ------ -------
Compressor
MFG ----------------- -----------------
Evaporator Louver fin and Grooved tube type (φ7)
Condenser Corrugated fin and Grooved tube type (φ9.53)
Expansion device Capillary tube
Defrosting system Microcomputer controlled reverse system
Fan System
Indoor air circulation m3/h 1100 1100
Indoor fan type Cross flow Cross flow
Cooling rpm 1300/1200/1100 1300/1200/1100
Heating rpm N/A 1300/1200/1100
Dry rpm 1100 1100
Indoor fan speed
H/M/L Sleep rpm 1100 1100
Indoor fan motor output W 12 12
Outdoor air circulation m3/h --- ---
Outdoor fan type Propeller fan Propeller fan
Outdoor fan speed rpm 850 850
Outdoor fan motor output W76 76
Connections
Refrigerant coupling Flare type
Gas Inches 5/85/8
Connecting Pipe Liquid Inches 3/83/8
Connecting Wiring Size ×Core
number
Drainage Pipe O.D 16mm
Others
Suitable area m235~48 35~48
Indoor mm 1036×313×204 1036×313×204Net dimensions
(W x H x D) Outdoor mm 890×307×660 890×307×660
Indoor kg 14 18
Net weight Outdoor kg 56 57
Indoor mm 1103×395×280 1103×395×280Packing dimensions
(W x H x D) Outdoor mm 975×400×700 975×400×700
Indoor kg 18 18
Gross weight Outdoor kg 62 63
Loading Capacity 40’/40’HC 64/142/162 64/142/162

6
Note: Each mode and relevant function will be further specified in following pages.
SLEEP FAN
TIMER SWING
ON/OFF
MODE
MID
SWING
AUTO
DRY
FAN
HEAT
COOL
FEEL
SLEEP
TIMER ON
HIGH
LOW
TMIER OFF
The remote controller transmits signals to the system.
Remote controller
1
2
4
3
5
6
7
8
8
4
MODE button
FAN SPEED control button
UP button (TOO COOL button)
DOWN button (TOO WARM button)
ON/OFF button
SLEEP button
VANE control button
TIMER button
Used to select the type of operation mode: Feel,
Cooling, Dry, Fan and Heating(Only for Heat Pump).
Used to select the indoor fan motor speed:
Auto, High, Mid and Low.
Used to increase the set room temperature
and time.
Used to decrease the set room temperature
and time.
Used to set or cancel sleep mode operation.
Used to start and stop operation
when pressed.
Used to adjust airflow direction.
Used to select TIMER operation.
Remote controller
6
2
5
3
7
1
11
TCL Air Conditioner Service Manual
Operation Details
Remote Control
The remote controller is not presetted as Cooling Only Air Conditioner or Heat Pump by manufacturer.
Each time after the remote controller replace batteries or is energized, the arrowhead will flashes on the front of
Heat or Cool on LCD of the remote controller.
User can preset the remote controller type depending on the air conditioner type you have purchased as
follows:
Press any button when the arrowhead flashes on the front of Cool , Cooling Only is set.
Press any button when the arrowhead flashes on the front of Heat , Heat Pump is set.
If you don t press any button within 10 seconds, the remote controller is preset as Heat Pump automatically.
Note :
If the air conditioner you purchased is a Cooling Only one, but you preset the remote controller as Heat Pump, it
doesn t bring any matter. But if the air conditioner you purchased is a Heat Pump one, and you preset the
remote controller as Cooling Only, then you CAN NOT preset the Heating operation with the remote controller.

TCLAir Conditioner Service Manual
7
REMOTE CONTROLLER
The four types of remote controller is as follow:
GYKQ-05 GYKQ-10e (optional) GYKQ-11e (optional) GYKQ-12e (optional)
Note: The function of remote controller above is the same.

TCLAir Conditioner Service Manual
8
Electronic Controller
1. Safety Control
(1) Time Delay Safety Control
 3 minutes delay for compressor---The compressor is ceased for 3minutes to balance the pressure in the
refrigeration cycle in order to protect the compressor.
 2 minutes delay for 4-way valve---The 4-way valve is ceased for 2 minutes to prevent the
refrigerant-gas abnormal noisewhen the HEATING operation is OFF or switch to the other operation
mode.
(2) Indoor Pipe Temperature Sensor Frost Prevention Control
When the indoor pipe temperature sensor reads 0℃or below for 5 minutes, the indoor pipe temperature
sensor frost prevention control starts. The compressor and outdoor fan stop and indoor fan operates at high
speed for 3 minutes. After that, if the indoor pipe temperature sensor reads less than 5℃this control
prolonged until the indoor pipe temperature sensor reads 5℃or more.
(3) High Temperature Protection Control
During HEATING operation, the outdoor fan motor and compressor are controlled by the indoor pipe
temperature to prevent the high temperature of compressor.
Outdoor fan OFF: when the indoor pipe temperature is ≥50℃
Outdoor fan ON: when the indoor pipe temperature is ≤48℃
Compressor OFF: when the indoor pipe temperature is ≥62℃
Compressor ON: when the indoor pipe temperature is ≤48℃
2. “I Feel” Mode Operation
(1) When the “I Feel” mode is selected, the operation mode and initial set temperature are determined by the
initial room temperature at start-up of the operation except to turn off the air conditioner and operates it
again.
(2) If the mode is change to “I Feel” mode from other mode, the “I Feel” mode doesn’t operate until compressor
stop for more than 3 minutes.
 In the “I Feel” mode , when the controller receives the up or down single of temperature, the set
temperature can adjust by 1℃upper or lower. The biggest you can adjust by 2℃upper or lower.
3. “COOLING” Mode Operation
(1) When the COOLING mode is selected without setting temperature, the system will set the set temperature at
26℃automatically with the AUTO FAN speed.
(2) When selecting the COOLING mode operation, the system will operate according to the setting by the
remote controller and the operation is as following:
Mode Initial room temperature
COOLING
DRY
HEATING for Heat Pump Type
FAN for Cooling Only Type
26℃or more
20℃to 25 ℃
Less than 20℃
Initial set temperature
24℃
18℃
23℃

TCLAir Conditioner Service Manual
9
Room Temp.
Set TEMP. ＋1℃
Set TEMP. －1℃
Time More than 2 min More than 2 min More than 2 min More than 2 min More than 2 min
Indoor Fan Set Speed Set Speed Set Speed Set Speed Set Speed
Compressor ON OFF ON OFF ON
Outdoor Fan ON OFF ON OFF ON
4. “DRY” Mode Operation
(1) The system for DRY operation used the same refrigerant circle as the cooling circle.
(2) When the system operates in DRY mode ,at first it operates in cooling mode at 16℃or 18℃for 3 minutes.
And then, the system operates in cooling mode with low speed that regards the temperature of the room
temperature sensor reads decrease 2℃as the set temperature. During the course of this, the fan speed
set operation is failing but the vane motor can be controlled.
5. “HEATING” Mode Operation (Only available for Heat Pump)
(1) When the HEATING mode is selected without setting temperature, the system will set the temperature at 23
℃automatically with the AUTO FAN speed.
(2) When selecting the HEATING mode operation, the system will operate according to the setting by the
remote controller and the operation is as following:
Set Temp. ＋1℃
Set Temp. －1℃
Room Temp.
Time More than 2 min More than 2 min More than 2 min More than 2 min More than 2 min
Compressor ON OFF ON OFF ON
Outdoor fan ON OFF ON OFF ON
(3) In HEATING mode, the indoor fan motor speed is controlled by Cold Air Prevention Control.
(4) Cold Air Prevention Control
 The function is intend to prevent cold air from being discharged when the heating operation starts or
when defrosting.
 The indoor fan speed will be controlled as following.
 The vane angle is at the angle C(100°).

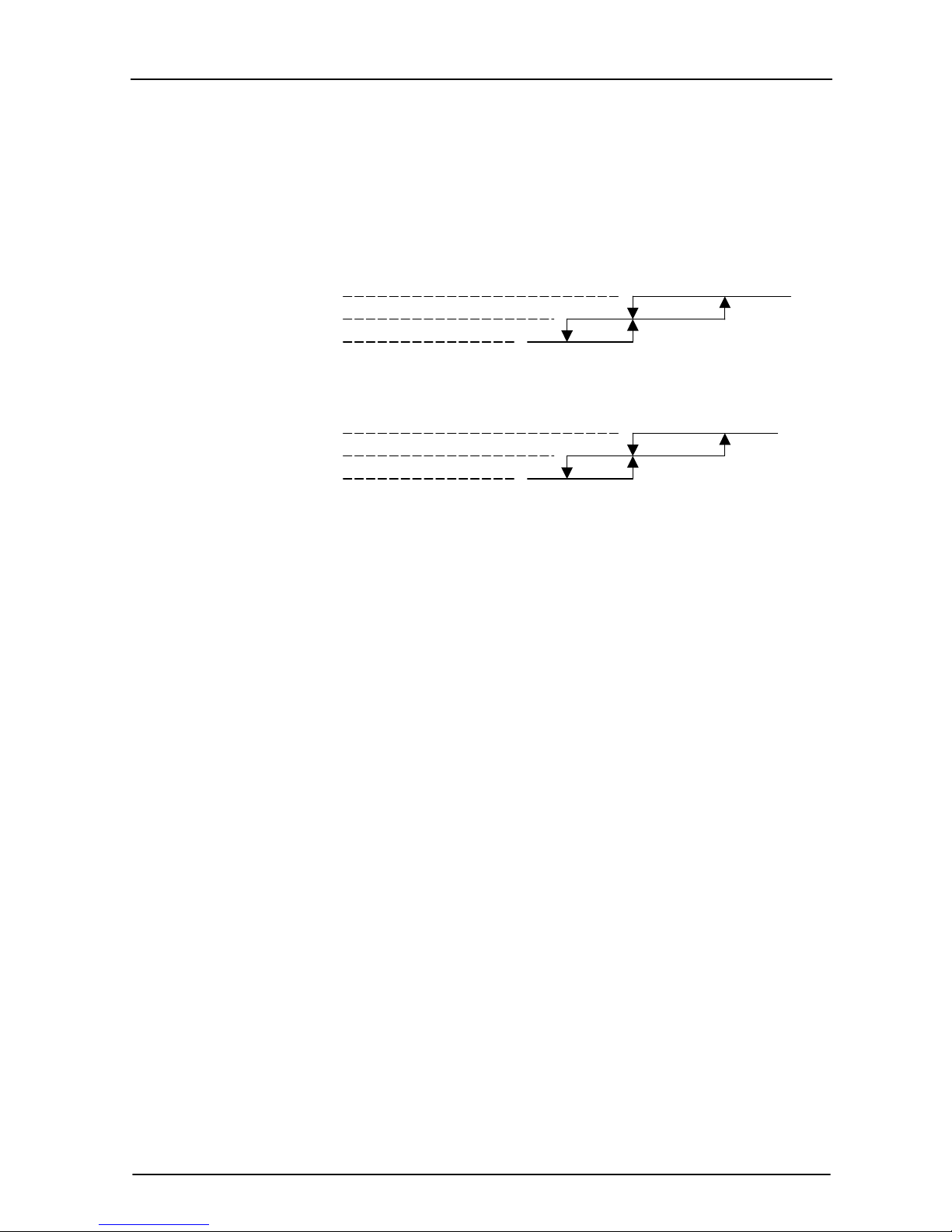

SetSpeed SetSpeed
34
℃
LowSpeed
27
℃
LowSpeed
25℃
Stopthefan
23℃
Stopthefan
 During the heating operation, if the compressor stops that it will adjust the indoor fan speed, after 30
seconds to stop the fan.
Temperature raise
Temperature drop

TCLAir Conditioner Service Manual
10
(5) Defrost
Defrosting of the outdoor heat exchange is controlled by the microprocessor with detection by the indoor
pipe temperature sensor.
Defrost control type is according to the JC on the PCB whether is connected.
 When the JC is connect on the PCB
When one of the conditions of A, Band C is satisfy, the defrosting operation stars.
A. IPT--- indoor pipe temperature
In the condition A, it must satisfy the conditions a), b)and c) then into defrosting operation.
a) IPT1 satisfy IPT1=IPTMAX－△IPT（8℃）
b) t5≥50minutes(the compressor cumulative operation time≥50 minutes, t5 is permitted move
and lower than t1 too).
c) IPT＜40℃，and keep 2 minutes.
According to the condition A enter the defrosting operation, the first defrosting operation time is
8minutes; After defrosting operation one cycle, and then judge and regulate the defrosting operation
time.
B.After the compressor cumulative operation time exceeds 120 minutes and the temperature of the IPT
is less then 35℃for 2 minutes. When the defrosting operation time on this condition exceeds
8minutes, it will terminate.
C.After the compressor operation continuously for 20 minutes and the IPT is less than 23℃or from
the last time of defrosting operation is 50 minutes or more interval. When the defrosting operation
time on this condition exceeds 10 minutes, it will terminal.
 When the JC isn’t connected on the PCB
When the conditions of a) or b) is satisfy, the defrosting operation starts.
a) Under the heating operation, the compressor cumulative operation time exceeds 50 minutes and the
temperature of the outdoor pipe temperature sensor reads lower than －8℃
b) Under the heating operation, the compressor cumulative operation time exceeds 50 minutes, if the
indoor pipe temperature sensor reads lower than 40℃continuously for 2minutes.
Note: If haven’t the outdoor pipe temperature sensor that use the condition b) to defrost, against
use the condition a).
 Defrost terminating conditions
When the condition c) or d) is satisfy, the defrosting operation will terminal.
c) The outdoor defrost sensor reads 20℃or more.
d) The defrosting time exceeds 10 minutes.
