TCL TAC-09CHSA/XA31 INVERTER User manual

Air Conditioner Service Manual




Inverter air conditioner
Service Manual
Models
TAC-09CHSA/XA31 INVERTER
TAC-12CHSA/XA31 INVERTER
TAC-18CHSA/XA31 INVERTER
TAC-24CHSA/XA31 INVERTER
CONTENTS
1. Important Notice
2. Product Dimensions
3. Refrigeration cycle diagram
4. Operation details

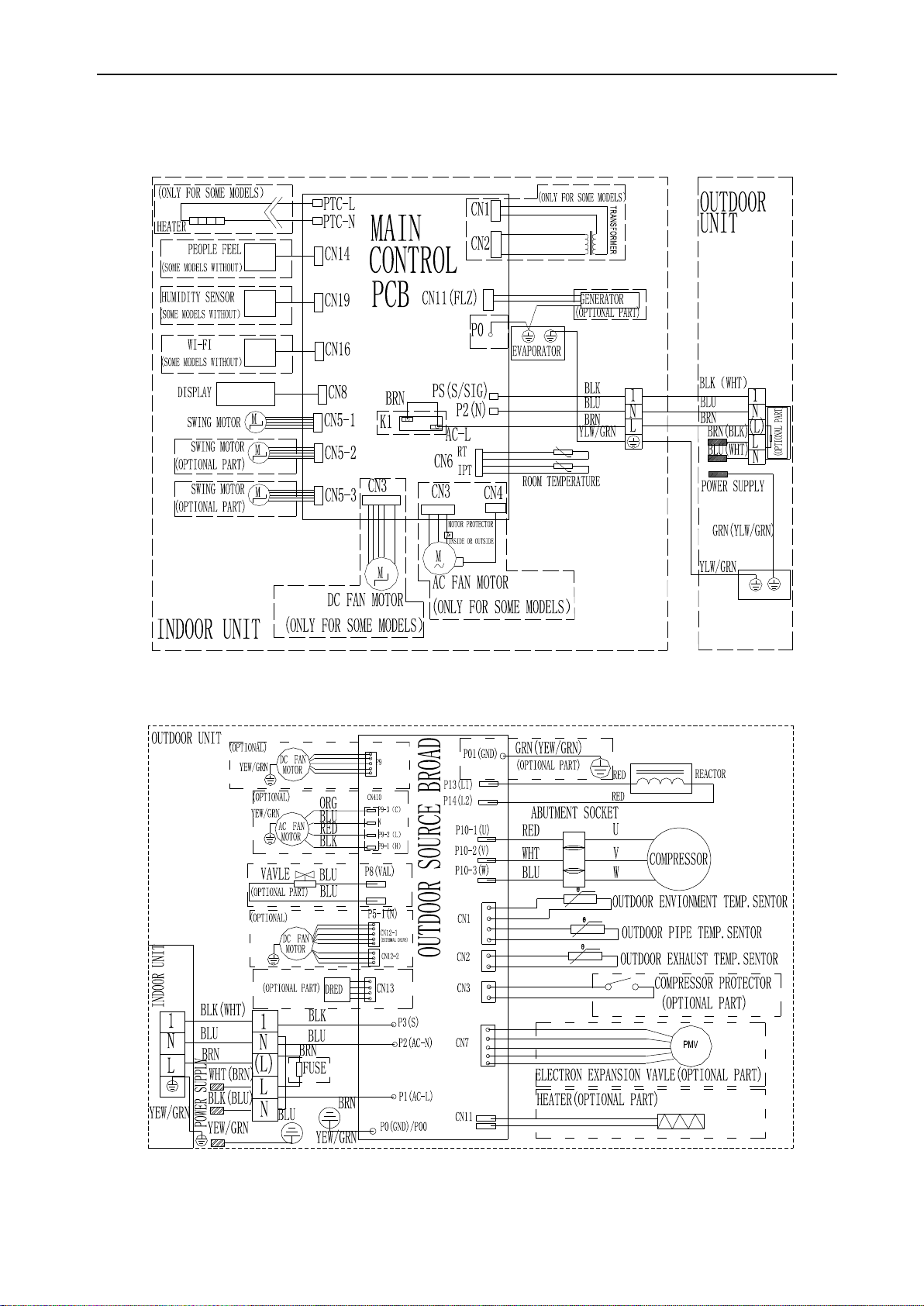

5. Wiring diagram
6. Explosion view and parts
7. Precaution
8. Names of parts
9. Installation
10.Troubleshooting

Air Conditioner Service Manual


1

1. Important Notice
This service manual is intended for use by individuals possessing adequate
backgrounds of electrical, electronic and mechanical experience. Any attempt
to repair the appliance may result in personal injury and property
damage.
The manufacturer or seller cannot be responsible for the
interpretation of
this information, nor can it assume any liability in
connection with its use.
The information, specifications and parameter are subject to change due to
technical modification or improvement without any prior notice. The accurate
specifications are presented on the nameplate label.




How to order spare parts
To have your order filled promptly and correctly, please furnish the
following
information:
1. Model No. with Indoor or Outdoor
2. No. in the Explosion View
3. Part Name
4. The quantity you ordered

Air Conditioner Service Manual
2
2. TECHNICAL SPECIFICATION
Model
TAC-09CHSA/XA31
INVERTER
TAC-12CHSA/XA31
INVERTER
TAC-18CHSA/XA31
INVERTER
TAC-24CHSA/XA31
INVERTER
Type
heating pump
heating pump
heating pump
heating pump
Control type
remote
remote
remote
remote
Rated cooling capacity
Btu/h
9000(3412-11500)
12000(5200-13500)
18000(5500~20000)
24000(6500~26000)
W
2640(1000~3370)
3520(1520~3950)
5280(1610~5860)
7050(1800~7500)
Rated heating capacity
Btu/h
9500(3412-12600)
12500(5500-14500)
18500(6500~24000)
24500(8500~28000)
W
2780(1000~3690)
3660(1520~4240)
5420(1320~7030)
7200(2110~8500)
EER for cooling
W/W
3.22
3.23
3.25
3.24
COP for heating
W/W
3.62
3.61
3.63
3.62
Moisture removal
Liters/h
1
1.2
1.8
2.2
Pressure
High(DP)
MPa
4.5
4.5
4.5
4.5
Low(SP)
MPa
1.9
1.9
1.9
1.9
Indoor noise level at
cooling
SUPER
dB(A)
39
39
44
48
High
dB(A)
35
36
43
46
Med
dB(A)
32
31
36
42
Low
dB(A)
28
28
33
39
MUTE
dB(A)
26
25
30
35
Outdoor noise level
dB(A)
50
50
53
53
Electrical Data
Power supply
220-240V/50Hz
220-240V/50Hz
220-240V/50Hz
220-240V/50Hz
Voltage Range
V
170-265
170-265
170-265
170-265
Rated current
Cooling
A
3.8(1.8~7.2)
5.0(1.8~8.0)
7.5(2.4~10.2)
10.0(2.8~10.6)
Heating
A
3.6(1.8~7.5)
4.7(1.8~8.8)
6.9(2.1~11.1)
9.2(3.0~12.1)
Rated input
Cooling
W
820(320~1250)
1090(320~1550)
1620(520~2300)
2170(620~2380)
Heating
W
770(320~1350)
1010(320~1650)
1490(470~2450)
1990(660~2650)
Max Current
Cooling
A
7.2
8.0
10.2
10.6
Heating
A
7.5
8.8
11.1
12.1
Max Power input
Cooling
W
1250
1550
2300
2380
Heating
W
1350
1650
2450
2650
Refrigerating System
Refrigerant/Charge
Gram
R410A/520g
R410A/650g
R410A/830g
R410A/1650g
Compressor
Model
39A23MYJ&FJKD
39A23MYJ&FJKD
ASD113RKPA6JT1
ATN150D42UFZ
MFG
RECHI
RECHI
HIGHLY
GMCC
Type
Rotary
Rotary
Rotary
Rotary
Fan System
Indoor air
circulation(Cooling/Heating)
m3/h
430/430
550/550
750/750
1000/1000
Indoor fan type
Cross flow
Cross flow
Cross flow
Cross flow
Indoor fan speed H/M/L
Cooling
rpm
1100/1000/900/
800/700
1250/1150/950/850/6
00
1300/1250/1000/900/75
0
1200/1100/1000/900/70
0
Heating
rpm
1100/1050/950
/850/800
1250/1150/1000
/900/800
1300/1250/1000
/900/750
1200/1100/1000
/900/700
Dry
rpm
700
700
900
900
Sleep
rpm
700
700
900
900
Indoor fan motor output
W
20
20
25
45
Outdoor fan type
Propeller
Propeller
Propeller
Propeller
Outdoor fan speed
rpm
860
860
860
860/700
Outdoor fan motor output
W
25
25
25
45
Connections
Connecting Pipe
Gas
Inches
Φ9.52（3/8''）
Φ9.52（3/8''）
Φ9.52（3/8''）
Φ12(1/2'')
Liquid
Inches
Φ6(1/4'')
Φ6(1/4'')
Φ6(1/4'')
Φ6(1/4'')
Connecting Wiring
Size x Core
number
4×1.5
4×1.5
4×0.75
4×0.75
Drainage Pipe
O.D 16mm
O.D 16mm
O.D 16mm
O.D 16mm
Net dimensions
(W x H x D)
Indoor
mm
698×255×190
777×250×201
910×294×206
1010×315×220
Outdoor
mm
754×300×552
754×300×552
817×328×553
886×357×605
Packing dimensions
(W x H x D)
Indoor
mm
764×325×257
840×315×260
979×372×277
1096×390×297
Outdoor
mm
798×321×575
798×321×575
858×321×585
930×380×635

Air Conditioner Service Manual
3
3. Product Dimensions
Indoor Unit:
Outdoor Unit:
Model
Indoor unit
Outdoor unit
A
B
C
D
E
F
G
H
I
J
K
TAC-09CHSA/XA31 INVERTER
698
255
190
700
550
256
439
302
277.8
48
55
TAC-12CHSA/XA31 INVERTER
777
250
205
700
550
256
439.2
302
277.8
48
55
TAC-18CHSA/XA31 INVERTER
910
292
205
760
550
256
439
302
277.8
48
55
TAC-24CHSA/XA31 INVERTER
1010
315
220
820
605
300
518
357
329
55
63

Air Conditioner Service Manual


4

4. Refrigeration cycle diagram
Cooling only
Heat pump
Capillary
Compressor
Accumulator
Heat exchange
(condenser)
Heat exchange
(Evaporator)
2-way valve
Liquid side
3-way valve
Gas side
Cooling
Heating
Gas side
3-way valve
Liquid side
2-way valve
Heat exchange
(Evaporator)
Heat exchange
(condenser)
Accumulator
Compressor
4-way valve
Capillary Assembly
Check valve

5
Note: Each mode and relevant function will be further specified in following pages.
Remote controller
Air Conditioner Service Manual
5. Operation Details
Remote Control
The remote controller is not presetting as Cooling Only Air Conditioner or Heat Pump by
manufacturer.
Each time after the remote controller replace batteries or is energized, the arrowhead will flashes on
the front of Heat or Cool on LCD of the remote controller.
User can preset the remote controller type depending on the air conditioner type you have purchased
as follows:
Press any button when the arrowhead flashes on the front of Cool , Cooling Only is set.
Press any button when the arrowhead flashes on the front of Heat , Heat Pump is set.
If you don t press any button within 10 seconds, the remote controller is preset as Heat Pump
automatically.
Note :
If the air conditioner you purchased is a Cooling Only one, but you preset the remote controller as
Heat Pump, it doesn t bring any matter. But if the air conditioner you purchased is a Heat Pump one,
and you preset the remote controller as Cooling Only, then you CAN NOT preset the Heating
operation with the remote controller.
9
9
1
2
4
3
5
6
10
7
MODE button
ECO button
FAN SPEED button
TEMP UP button
TIMER button
SLEEP button
TEMP DOWN button
To select the mode of operation.
In cooling mode,press this button ,the temperature
will increase 2 on the base of setting temperature:
In heating mode, press this button, the temperature
will decrease 2 on the base of setting temperature.
To switch the conditioner on and off.
To select the fan speed of auto/low/mid/high.
To set automatic switching-on/off.
Increase the temperature or time by 1 unit.
To activate the function SLEEP .
Decrease the temperature or time by 1 unit.
8
DISPLAY button
In cooling mode, press this button, the unit will give
the maximum cooling temperature with 16
In heating mode, press this button, the unit will give
the maximum heating temperature with 31 .
9
SWING button
11
To activate or deactivate of the movement of the
DEFLECTORS .
13
HEALTH button
To switch - on /off HEALTHY funtion. It is a button
which controls the ionizer or plasma generator only
for inverter type.
ON/OFF button
12
To LED display (if present)switch on/off the
3
4
2
1
9
5
67
8
10
11
12
13
TURBO button
9
SWING button
To activate or deactivate of the movement of the
DEFLECTORS .
9
10

Air Conditioner Service Manual


6

Electronic Controller
1. Safety Protection
(1) Time Delay for Safety protection
z3 minutes delay for compressor ---The compressor is ceased for 3minutes before restarting to
balance the pressure in the refrigeration cycle in order to protect the compressor.
z2 minutes delay for 4-way valve---The 4-way valve will be ceased for 2 minutes late after
compressor to prevent the refrigerant-gas abnormal noise when the HEATING operation is
OFF or switch to the other operation mode.
(2) Discharge temperature protection
There is a temperature sensor on top of compressor, when temperature on top of
compressor
exceeded the limit, system control will shut down the compressor and the display board will
show the error code.
(3) Lower voltage protection
When AC voltage ≤158V and keep it for 10 seconds, unit will be shut down for protection.
(4) Over voltage protection
When AC voltage ≥260V, unit will be shut down and recover while AC≤255V.
(5) Over current protection
When the current of outdoor unit is overload, controller shut down the unit immediately and show
error code.
(6) Compressor abnormity protection
When compressor start on or in the process of running, if there is no feedback to controller or
load of compressor is abnormity, the air conditioner will shut down, and show error code.
(7) IPM module protection
IPM module has high temperature & over current protection itself, if there is signal feedback to
IPM, the outdoor unit will shut down, LED on outdoor PCB will show the error code.
2. “Feel” Mode Operation
(1) When the “Feel” mode is selected, the operation mode and initial temperature set are
determined by the initial room temperature at start-up of the operation except to turn off the air
conditioner and operates it again.
(2) If the mode is change to “Feel” from other mode, the “Feel” mode doesn’t operate until
compressor stop for more than 3 minutes.

Mode Initial Room Temperature Initial Set Temperature
COOLING RT=26℃23℃
DRY 26℃>RT≥20℃RT-2℃
HEATING for Heat Pump/
FAN for Cooling Only RT<20℃-

zIn the “Feel” mode, when the controller receives the up or down signal of temperature, the set
temperature can adjust by 1℃upper or lower. The biggest you can adjust by 2℃upper or lower.

3. “COOLING” Mode Operation
(1) Compressor frequency control
According to difference room temperature and set temperature (δt = RT-ST), running frequency of
compressor is controlled by electronic controller. When room temperature is much higher than set
temperature, the compressor will start at a high frequency, and as room temperature goes down, the
compressor running frequency will go down. When room temperature is lower than set temperature,

Air Conditioner Service Manual


7

thecompressor will run at very low frequency. In general, unit will change its running frequency
according toδt to make room temperature closing to set temperature.
(2) Outdoor temperature affects running frequency of the compressor
Outdoor temperature affect compressor’s running frequency. Difference inlet temperature of
outdoor unit is adapted by difference compressor running frequency. While outdoor temperature is
about 30℃, the compressor will run in high frequency.
If unit run in “cooling” mode and outdoor temperature is less than -2℃,the controller will shut down
compressor and show error code, while the ambient temperature is over 1℃, the compressor will run
automatically.
(3) Auto fan control in cooling mode
In cooling mode (include cooling in “feel” mode), fan speed is determined by
δ t, as the following
diagram:














4.“DRY” Mode Operation
(1) The system for DRY operation used the same refrigerant circle as the cooling one.
(2) When the system operates in DRY mode, at first it operates in cooling mode, the set
temperature (ST) is “RT-2℃”. After that, t he system will operate in cooling mode with lowest
fan speed for 30 minutes and then change to middle speed for 30seconds as a cycle. During
the course of this operation, you can’t use remote controller to adjust the fan speed but you can
control the vane direction.
(3) In the dry mode, when RT≤12℃, the compressor will stop and operates again at RT≥14℃.
5. “HEATING” Mode Operation (available for Heat Pump only)
(1) Frequency control
Same as the frequency control in cooing mode, the running frequency of compressor is
controlled by controller. Unit change its running frequency according to
δ t to make the room
temperature closing to the set temperature.
(2) Indoor fan motor control
1) Cold Air Prevention Control
zThe function is intended to prevent cold air from being discharged when heating mode
selected or while in defrosting.
zThe indoor fan speed will be controlled as following.









zIn heating operation, if air conditioner turn off, the indoor fan motor will run most for 30
RT‐ST
℃
3.5
3.0
1.5
1.0
δt come down
δt come up
High fan
Min fan
Low fan
Breeze
Temperature up
Temperature down
Setting
Low fan
Stop
37℃
33℃
25℃
34℃
28℃
22℃

Air Conditioner Service Manual


8

seconds since the stop of compressor.
2) Auto fan control (heating)
In heating mode (include in “I feel” mode) , fan speed is determined by δtas the following:












(3) 4-way valve control
In heating mode, 4-way valve will power on ahead of compressor for 5 seconds, and cut off
for 2 minutes later than compressor. 4-way valve will not power off unless the machine to be
switched off, mode changed or on the process of defrosting.
(4) Defrosting
Defrosting is controlled by the microprocessor.
When one of the following conditions is satisfied, unit comes into defrosting:
a. Outdoor heat exchanger Temperature (OPT) is continuously less than 3℃while the unit runs
for more than 40 minutes, and OPT is keeping under -6℃for more than 3 minutes.
b. Outdoor heat exchanger Temperature (OPT) is continuously less than 3℃meanwhile the
unit runs for more than 80 minutes, and OPT is keeping under -4℃for more than 3
minutes.
c. Outdoor heat exchanger Temperature (OPT) is continuously less than 3℃while the unit runs
for more than 120 minutes, and OPT is keeping below -2℃for more than 3 minutes.
Before the air con comes into defrosting, compressor running frequency drop down to a
lower frequency firstly, then the compressor shuts down.
In defrosting, the max. frequency of compressor is F9 (a little less than the highest
frequency ). In this period all protection function are available.









In defrosting, LED showing by winking.
No matter what AC come into or out of defrosting, indoor fan motor speed is the same as Cold
Air Prevention Control.
While one of the following conditions is satisfied, unit comes out of defrosting and shifts to
heating mode:
a. Outdoor coil Temperature (OPT) ≥15℃.
b. The time of defrosting keeps for more than 10 minutes.
(5) Indoor exchanger overheat protection
When Indoor exchanger Temperature (IPT) is higher than 55℃, unit comes into indoor exchanger
RT‐ST
δt come down
δt come up
℃
3.5
3.0
1.5
1.0
High fan
Min fan
Low fan
3.5
1.5
Compressor ON
OFF
ON
OFF
ON
OFF
NORMAL 800
4-way valve
Expansion valve
Outdoor fan motor
50S Defrosting time ≤10Mins 15S 15S
10S

Air Conditioner Service Manual

9

overheat protection. The compressor drops its frequency toward to F1 level until IPT≤52℃
If IPT≤52℃and keep for 5 minutes, control system doesn’t limit running frequency.
If IPT>62℃, control system shut down compressor, and recover while IPT drop less than 50℃.
6. “SLEEP” mode
When the SLEEP button is pressed, the AC operates as following:
zThe indoor fan speed is set at low speed, the power lamp and the sleep lamp is on, the
display of temperature will close after 5 minutes.
zWhen selecting COOLING/DRY operation with SLEEP mode, the set temperature will be
raised by 1℃1 hour later and by 2℃2 hour later.
zWhen selecting HEATING operation with SLEEP mode, the set temperature will be dropped by
1℃1 hour later and 2℃2 hours later.
zAfter the System operates in SLEEP mode for 8 hours, it will stop automatically.
7. EMERGENCY Operation
When the EMERGENCY Operation switch is pressed one time, COOLING mode is selected
and if the EMERGENCY Operation switch press again within 3s, HEATING mode selected, while
press once again, the unit will switch off.
When the remote controller missing, failed or the batteries run down, press the EMERGENCY
Operation switch on front of the indoor unit for function test.
NOTE: Do not press the EMERGEMCY Operation switch during normal operation.
8. AUTO-RESTART Function (Option)
While air conditioner is operating in one mode, all of its operation data, such as working mode,
preset temperature etc. would be memorized into IC by main PCB. If power supply cut off due to
reasons and recover again, the AUTO-RESTART function will set
synchronously and the air
conditioner would work at the same mode as before.
Auto-restart Pre-setting (optional):
If Auto-restart function is needed, follow the steps below to activate this function:
1) Pulling the air-con's plug out of socket.
2) Pressing and holding the Emergency button (ON/OFF) on the indoor, then insert the plug
into the socket again.
3) Keep pressing the Emergency button for more than 10 seconds until three short beeps
heard, the Auto-restart function been activated.
9. Protection and Failure Display
zWhen protection display is available, controller will show error code, digital LED shows
error code and setting temperature by turns.
zIf there is more than one failure, it will show error codes according to the error list sequence.
zTo insure the signal communication of indoor and outdoor unit, any failure code relates to
outdoor unit will remain display for 2 minutes maximum after it’s recovered.
zAmong all the failure codes, sensor failure can be recovery automatically once it comes normal.

Air Conditioner Service Manual

10

zError list

Failure Type LED Code DigitalLEDCode
Indoor and outdoor communication failure RUN、TIMER –both winking E0
Outdoor communication failure RUN、TIMER –both winking EC
Indoor room temperature sensor (IRT) RUN-1 time/8s E1
Indoor coil temperature sensor (IPT) RUN-2 times /8s E2
Outdoor coil temperature sensor (OPT) RUN-3 times /8s E3
System abnormity RUN-4 times /8s E4
Model configuration wrong RUN-5 times /8s E5
Indoor fan motor fault RUN-6 times /8s E6
Outdoor temperature sensor RUN-7 times /8s E7
Exhaust temp. sensor RUN-8 times /8s E8
IPM drive and module fault RUN-9 times /8s E9
Outdoor fan motor fault (DC motor) RUN-10 times /8s EF
Current sensor fault RUN－11 times /8s EA
Indoor unit EEPROM fault RUN-12 times /8s EE
Temp. switch fault ( on top of the
compressor)
RUN-13 times /8s EP
Voltage sensor fault RUN-14 times /8s EU
zProtection display code list:
zOutdoor failure display
There is a LED on outdoor power board, it blinks 1s ON and 1s OFF while compressor standby and it
always light (ON) while compressor running; If there is failure happened on ODU,The indicator (LED)
alerts the fault in a cycle as such that it is bright for 0.5 seconds, dark for 0.5 seconds, blinks “n” times
and then dark for 3 seconds. For details as table below:
Protection Type Function Indicator (flash) DigitalLEDCode
Overvoltage /lower voltage protection RUN: Blink; TIMER: 1 blink /8 sec P1
Overcurrent protection RUN: Blink; TIMER: 2 blink /8 sec P2
Exhaust over temperature protection RUN: Blink; TIMER: 4 blink /8 sec P4
Too cool protection in cooling mode RUN: Bright; TIMER: 5 blink /8 sec P5
Overheat protection in cooling mode RUN: Bright; TIMER: 6 blink /8 sec P6
Overheat protection in heating mode RUN: Bright; TIMER: 7 blink /8 sec P7
Outdoor over temperature
/ lower temperature protection RUN: Bright; TIMER: 8 blink /8 sec P8
Drive protection (software control ) RUN: Blink; TIMER: 9 blink /8 sec P9
Module protection (hardware control) RUN: Blink; TIMER: 10 blink /8 sec P0

Air Conditioner Service Manual

11


blink time (n)

Failure
1 IPM protection
2 Over voltage /lower voltage
3 Overcurrent
4 Exhaust over temperature protection
5 Outdoor coil over temperature protection
6 Drive fault and protection (V1，VP1)
7 Communication fault with indoor unit
8 Compressor overheat fault (compressor top switch)
9 Short-circuit / open-circuit fault of outdoor temperature sensor
10 Short circuit / open-circuit fault of outdoor heat exchanger temperature
sensor
11 Short-circuit / open-circuit fault of exhaust temperature sensor
12 Voltage sensor fault
13 Current sensor fault
14 IPM fault
15 Communication fault between power source board and IPM
16 No feedback from DC fan motor(outdoor unit)
17 Defrost state

Display on outdoor power source board:


Air Conditioner Service Manual
12
6.Wiring diagram
MODEL: TAC-09CHSA/XA31 INVERTER, TAC-12CHSA/XA31 INVERTER,
TAC-18CHSA/XA31 INVERTER
INDOOR UNIT:
OUTDOOR UNIT

Air Conditioner Service Manual
13
MODEL: TAC-24CHSA/XA31 INVERTER
INDOOR UNIT
OUTDOOR UNIT

Air Conditioner Service Manual
14
7. Explosion view and parts
Indoor Unit-TAC-09CHSA/XA31 INVERTER
No.
Part No.
Part Name
Q’ty
Remark
1
1080030003
Installation Plate
1
2
210738613C
Base
1
3
210738389
Vertical Vane Assembly
2
4
210738432
Vertical Vane Connector
1
5
210738127
Vane
1
6
210738131
Cross Fan
1
7
1070100010
Bearing Mount
1
8
211238000
Evaporator
1
9
210738120
Face Frame
1
10
210701846
Screw Cover
1
11
210738433A
Air Filter
2
12
210738739
Display PCB Box
1
13
210901127R
Display PCB
1
14
210739720F
Front Panel
1
15
1170120044
Power Supply Cord
1
16
210738393
Electrical Box Cover
1
17
210736832
Cable Clamp
1
18
210900478A
Terminal
1
19
210901224
Transformer
1
20
210901714U
Main PCB
1
21
210900333
Indoor Sensor Assembly
1
22
210736831
Electrical Box
1
23
1170030067G
Indoor Motor
1
24
210737653
Indoor Motor Cover
1
25
210701902
Step Motor connector
1
26
210900129
Step Motor
1
27
210701906
Step Motor Supporter
1
28
210737091
Drainage Hose
1
29
1170020011
Vane Motor
1
30
210736813
In And Out Pipe Fixer
1
31
210901521B
Remote Controller
1
Not shown in Explosion view
32
211368832DD
Indoor Carton
1
33
211383465
Left Foaming
1
34
211383466
Right Foaming
1
20
21
19
18
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
22
23
24
15
16
28 29
30
25 26
27

Air Conditioner Service Manual
15
Outdoor Unit- TAC-09CHSA/XA31 INVERTER
10 11 12
8
9
765
17
13 14 16
15
19
18
20
21
23
22
24
4321
No.
Part No.
Part Name
Q’ty
Remark
1
1071990039
Back Grille
1
2
210800539
Top Cover
1
3
211202396AC
Condenser
1
4
1080050004
Outdoor Motor Supporter
1
5
1170040058H
Outdoor Motor
1
6
1070030060
Propeller Fan
1
7
1080050001
Left Grille Supporter
1
8
210800537
Front Plate
1
9
210754635
Fan Guard
1
10
211206855
Compressor
1
11
1120110016H
4-way Valve
1
12
211232688A
4-way Valve Assembly
1
13
210800545
Base
1
14
210800541
Right Plate
1
15
1120120021
Two-way Valve
1
16
1080050003
Valve Supporter
1
17
211206766
Three-way Valve
1
18
1070350971
Electrical Box Cover
1
19
1070040003
Cable Clamp
1
20
1170200061
Terminal
1
21
210901774G
Outdoor PCB Assembly
1
22
210901769
Inductor
1
23
211242312
Capillary assembly
1
24
1080050119
Partition plate
1
25
1170230007E
Pipe Temp. sensor and
outdoor Temp. sensor
1
Not shown in Explosion view
26
1170230006A
Discharge Temp. sensor
1
27
211369052
Base Carton
1
28
211311098ATZ
Cabinet Carton
1
29
211311099
Base Foaming
1
30
211311100
Cover Forming
1

Air Conditioner Service Manual
16
Indoor Unit-TAC-12CHSA/XA31 INVERTER
No.
Part No.
Part Name
Q’ty
Remark
1
210838031
Installation Plate
1
2
210755108B
Base
1
3
210701883
Vertical Vane Assembly
2
4
210701903
Vertical Vane Connector
1
5
210737652
Vane
1
6
210737655
Cross Fan
1
7
1070100010
Bearing Mount
1
8
211237323B
Evaporator
1
9
210755110
Face Frame
1
10
210701846
Screw Cover
1
11
210701863C
Air Filter
2
12
210738739
Display PCB Box
1
13
210901127R
Display PCB
1
14
210739715Z
Front Panel
1
15
1170120045AC
Power Supply Cord
1
16
210737654
Electrical Box Cover
1
17
210736832
Cable Clamp
1
18
210900478A
Terminal
1
19
210901224
Transformer
1
20
210901714AQ
Main PCB
1
21
210900333
Indoor Sensor Assembly
1
22
210736831
Electrical Box
1
23
1170030067G
Indoor Motor
1
24
210737653
Indoor Motor Cover
1
25
210701903
Right Vertical Vane Supporter
1
26
210701902
Step Motor connector
1
27
210900129
Step Motor
1
28
210701906
Step Motor Supporter
1
29
210737091
Drainage Hose
1
30
1170020011
Vane Motor
1
31
210736813
In And Out Pipe Fixer
1
32
210901521B
Remote Controller
1
Not shown in Explosion view
33
211367422AAZ
Indoor Carton
1
34
211368167
Left Foaming
1
35
211368168
Right Foaming
1
19
20
18
17
16
14
13
12
11
10
9
8
7
6
5
4
3
2
1
24
25 26
27
28
29 3031
21
22
23
15

Air Conditioner Service Manual
17
Outdoor Unit- TAC-12CHSA/XA31 INVERTER
10 11 12
8
9
765
17
13 14 16
15
19
18
20
21
23
22
24
4321
No.
Part No.
Part Name
Q’ty
Remark
1
1071990039
Back Grille
1
2
1080320105
Top Cover
1
3
211202396AC
Condenser
1
4
1080050004
Outdoor Motor Supporter
1
5
1170040058H
Outdoor Motor
1
6
1070030050AA
Propeller Fan
1
7
1080050001
Left Grille Supporter
1
8
210800274
Front Plate
1
9
1070251931
Fan Guard
1
10
211206855
Compressor
1
11
1120110016H
4-way Valve
1
12
211232688A
4-way Valve Assembly
1
13
210800466
Base
1
14
1080050002
Right Plate
1
15
1120120021
Two-way Valve
1
16
1080050003
Valve Supporter
1
17
211206766
Three-way Valve
1
18
1070350971
Electrical Box Cover
1
19
1070040008
Cable Clamp
1
20
1170200061
Terminal
1
21
210901774
Outdoor PCB Assembly
1
22
210901769
Inductor
1
23
211242312
Capillary assembly
1
24
1080050119
Partition plate
1
25
1170230007E
Pipe Temp. sensor and
outdoor Temp. sensor
1
Not shown in Explosion view
26
1170230006A
Discharge Temp. sensor
1
27
211369052
Base Carton
1
28
211311098AUA
Cabinet Carton
1
29
211311099
Base Foaming
1
30
211311100
Cover Forming
1

Air Conditioner Service Manual
18
Indoor Unit-TAC-18CHSA/XA31 INVERTER
No.
Part No.
Part Name
Q’ty
Remark
1
210838037
Installation Plate
1
2
210755270A
Base
1
3
210738575
Vertical Vane Assembly
2
4
210738582
Vertical Vane Connector
1
5
210738574
Vane
1
6
1070020024AA
Cross Fan
1
7
1070100010
Bearing Mount
1
8
211238370
Evaporator
1
9
210738663
Face Frame
1
10
210701846
Screw Cover
2
11
210738606A
Air Filter
2
12
210738739
Display PCB Box
1
13
210901127R
Display PCB
1
14
210746784AB
Front Panel
1
15
1170210143B
Power Supply Cord
1
16
210738393
Electrical Box Cover
1
17
210736832
Cable Clamp
1
18
210900478A
Terminal
1
19
210901224
Transformer
1
20
210901714AC
Main PCB
1
21
210900333
Indoor Sensor Assembly
1
22
210736831
Electrical Box
1
23
1170030101B
Indoor Motor
1
24
210738581
Indoor Motor Cover
1
25
210701902
Step Motor connector
1
26
210900129
Step Motor
1
27
210701906
Step Motor Supporter
1
28
210737091
Drainage Hose
1
29
1170020031AC
Vane Motor
1
30
210736813
In And Out Pipe Fixer
1
31
210901521B
Remote Controller
1
Not shown in Explosion view
32
211369420MC
Indoor Carton
1
33
211369459
Left Foaming
1
34
211369460
Right Foaming
1
19
20
18
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
21
22
23
27
28
30
15
16
24
25
26
29

Air Conditioner Service Manual
19
Outdoor Unit- TAC-18CHSA/XA31 INVERTER
10 11 12
8
9
765
17
13 14 16
15
19
18
20
21
23
22
24
4321
No.
Part No.
Part Name
Q’ty
Remark
1
1071990040
Back Grille
1
2
1080050011
Top Cover
1
3
211238066A
Condenser
1
4
1080050004
Outdoor Motor Supporter
1
5
1170040058H
Outdoor Motor
1
6
1070030050AA
Propeller Fan
1
7
1080050001
Left Grille Supporter
1
8
210800275
Front Plate
1
9
1070251931
Fan Guard
1
10
211202953
Compressor
1
11
1120500226
4-way Valve
1
12
211230555
4-way Valve Assembly
1
13
210800433A
Base
1
14
1080050002
Right Plate
1
15
1120120021
Two-way Valve
1
16
1080050003
Valve Supporter
1
17
211206766
Three-way Valve
1
18
1070350971
Electrical Box Cover
1
19
1070040008
Cable Clamp
1
20
1170200055
Terminal
1
21
210901380AE
Outdoor PCB Assembly
1
22
1171990046
Inductor
1
23
211243110
Capillary assembly
1
24
1080050120
Partition plate
1
25
1170230007E
Pipe Temp. sensor and
outdoor Temp. sensor
1
Not shown in Explosion view
26
1170230006A
Discharge Temp. sensor
1
27
211369053
Base Carton
1
28
211311128AGX
Cabinet Carton
1
29
211311130
Base Foaming
1
30
211311129
Cover Forming
1
