TCL TAC-09CHSD/XA31I User manual

TCL Air Conditioner Service Manual

TCL Inverter air conditioner
Service Manual
Models
TAC-09CHSD/XA31I TAC-12CHSD/XA31I
TAC-18CHSD/XA31I TAC-24CHSD/XA31I
CONTENTS
1. Important Notice
2. Product Dimensions
3. Refrigeration cycle diagram
4. Operation details

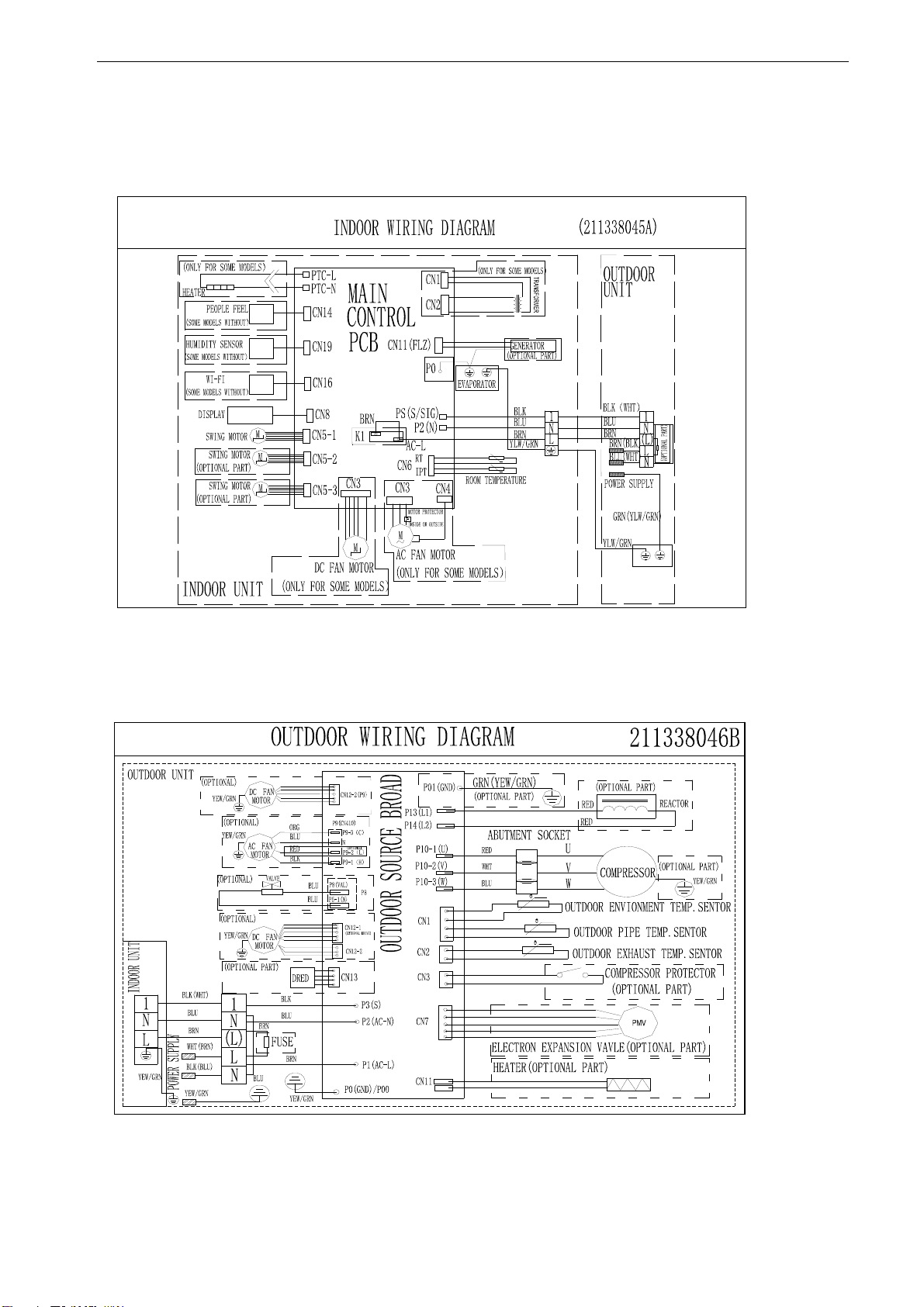

5. Wiring diagram

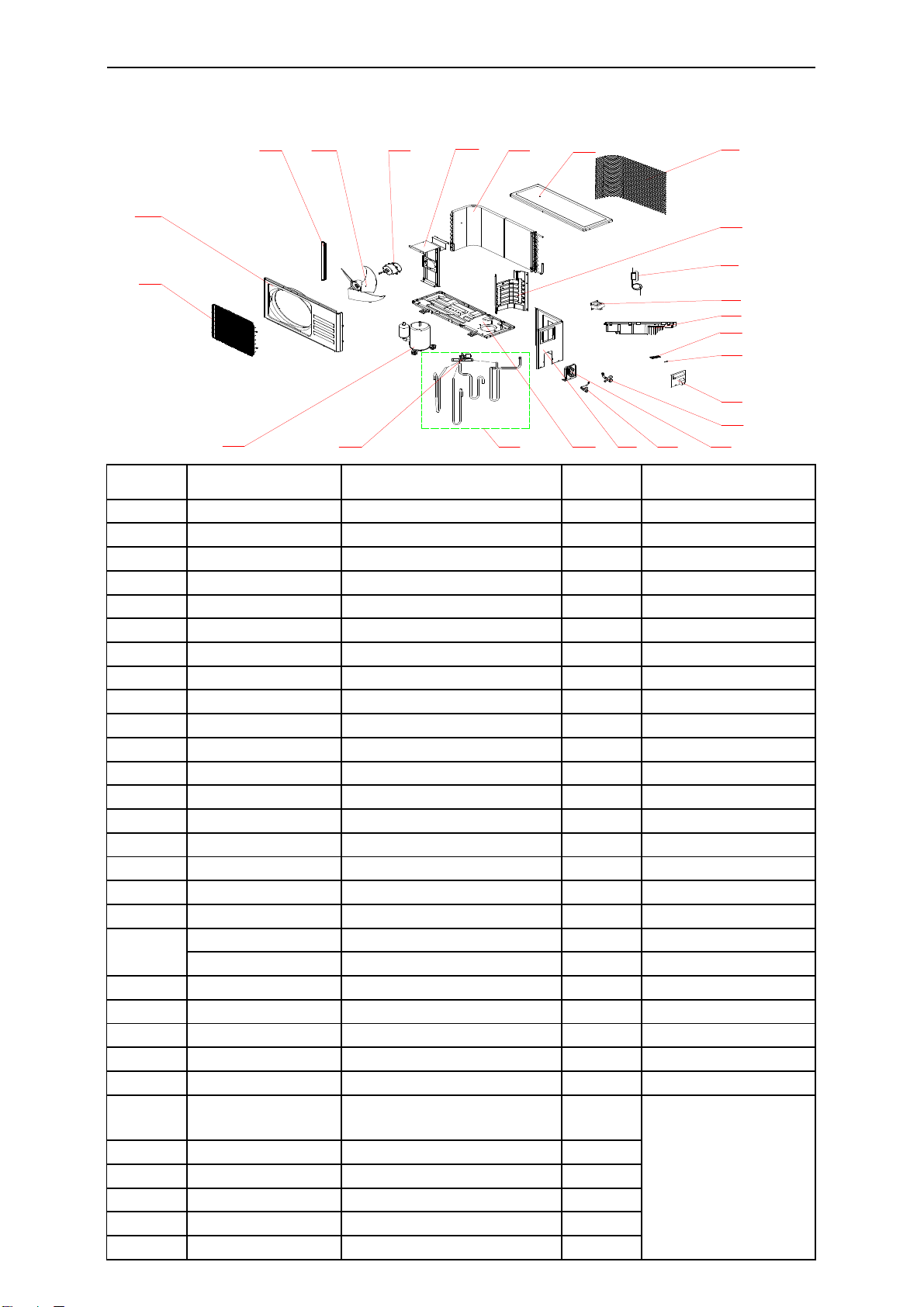

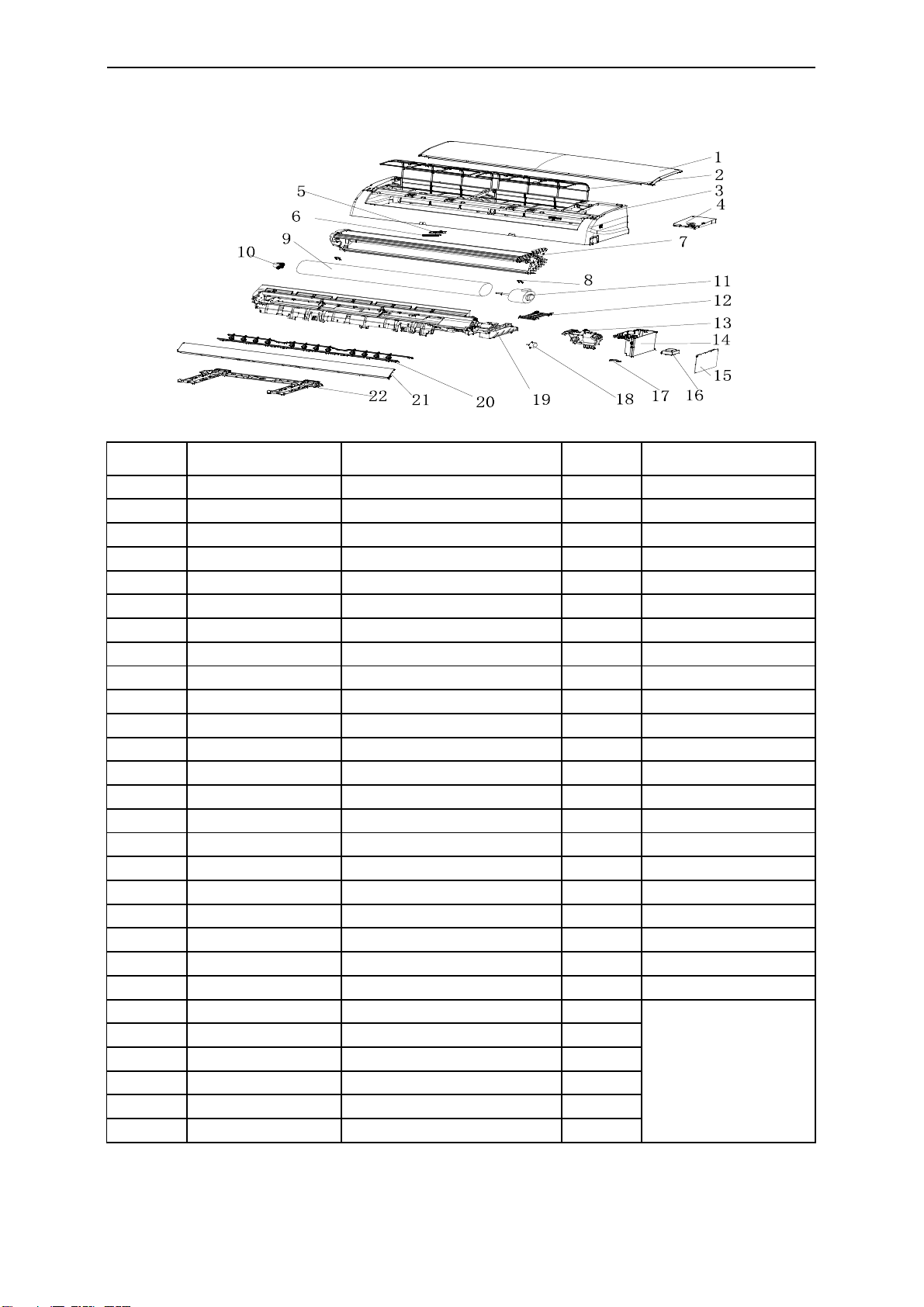

6. Explosion view and parts
7. Precaution
8. Names of parts
9. Installation
10. Trouble shooting
11. Introduction R32/R290 air conditioner installation

TCL Air Conditioner Service Manual

1. Important Notice
This service manual is intended for use by individuals possessing adequate
backgrounds of electrical, electronic and mechanical experience. Any
attempt to repair the appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
The information, specifications and parameter are subject to change due to
technical modification or improvement without any prior notice. The
accurate specifications are presented on the nameplate label.




How to order spare parts
To have your order filled promptly and correctly, please furnish the
following
information:
1. Model No. with Indoor or Outdoor
2. No. in the Explosion View
3. Part Name
4. The quantity you ordered
1

TCL Air Conditioner Service Manual


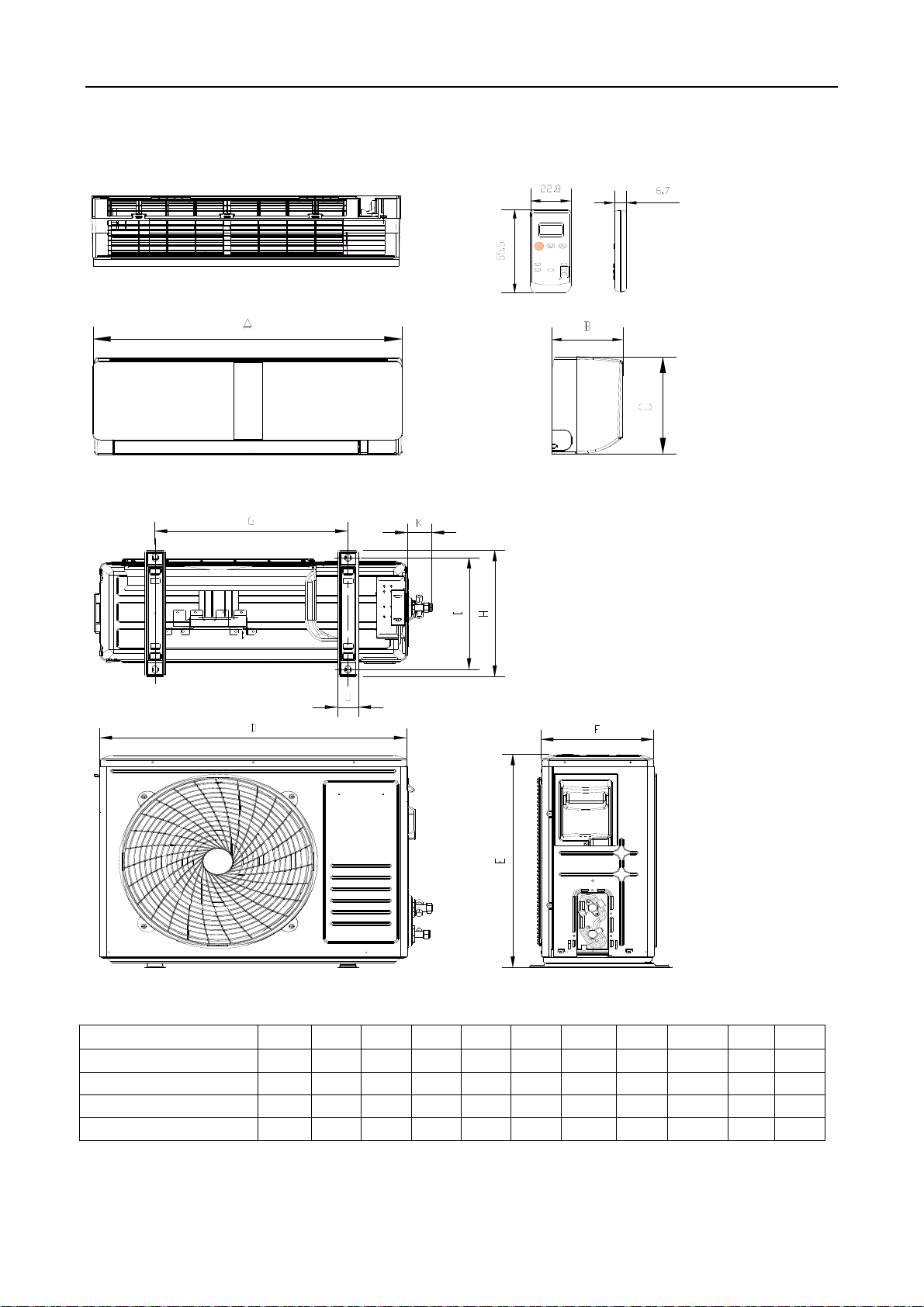

2. Product Dimensions
Indoor Unit:
Outdoor Unit:


Model A B C D E F G H I J K
TAC‐09CHSD/XA31I 698 190 255 712 498 234 415 291 225 48.5 52
TAC‐12CHSD/XA31I 777 205 250 712 498 234 415 291 225 48.5 52
TAC‐18CHSD/XA31I 910 205 292 780 605 290 500 360 327.5 55 63
TAC‐24CHSD/XA31I 1010 220 315 845 607 326 586 374.9 347.5 58.6 63
2

TCL Air Conditioner Service Manual

3. Refrigeration cycle diagram
Cooling only
Heat pump
Capillary
Compressor
Accumulator
Heat exchange
(condenser)
Heat exchange
(Evaporator)
2-way valve
Liquid side
3-way valve
Gas side
Cooling
Heating
Gas side
3-way valve
Liquid side
2-way valve
Heat exchange
(Evaporator)
Heat exchange
(condenser)
Accumulator
Compressor
4-way valve
Capillary Assembly
Check valve
3

Note: Each mode and relevant function will be further specified in following pages.
Remote controller
1
2
4
3
5
6
9
7
MODE button
FAN SPEED button
TEMP DOWN button
TIMER button
SLEEP button
To select the mode of operation.
To switch the conditioner on and off.
To select the fan speed of auto/low/mid/high.
To set automatic switching-on/off.
Decrease the temperature or time by 1 unit.
To activate the function SLEEP .
TCL Air Conditioner Service Manual
4.OPERATION DETAILS
Remote Control
The remote controller is not presetting as Cooling Only Air Conditioner or Heat Pump by manufacturer.
Each time after the remote controller replace batteries or is energized, the arrowhead will flashes on the
front of Heat or Cool on LCD of the remote controller.
User can preset the remote controller type depending on the air conditioner type you have purchased as
follows:
Press any button when the arrowhead flashes on the front of Cool , Cooling Only is set.
Press any button when the arrowhead flashes on the front of Heat , Heat Pump is set.
If you don t press any button within 10 seconds, the remote controller is preset as Heat Pump
automatically.
Note :
If the air conditioner you purchased is a Cooling Only one, but you preset the remote controller as Heat
Pump, it doesn t bring any matter. But if the air conditioner you purchased is a Heat Pump one, and you
preset the remote controller as Cooling Only, then you CAN NOT preset the Heating operation with the
remote controller.
8
DISPLAY button
In cooling mode, press this button, the unit will give
the maximum cooling temperature with 16
In heating mode, press this button, the unit will give
the maximum heating temperature with 31 .
9
SWING button
10
To activate or deactivate of the movement of the
DEFLECTORS .---Side wind
12
HEALTH button
9
3
4
2
1
8
5
6
7
9
10
11
9
ON/OFF button
11
To LED display (if present)switch on/off the
12
TURBO button
To switch - on /off HEALTHY funtion. It is a button
which controls the ionizer or plasma generator only
for inverter type.
ECO button
In cooling mode,press this button ,the temperature
will increase 2 on the base of setting temperature:
In heating mode, press this button, the temperature
will decrease 2 on the base of setting temperature.
13
SWING button
To activate or deactivate of the movement of the
DEFLECTORS .---up and down
13
crease the temperature or time by 1 unit.
TEMP UP button
4

TCL Air Conditioner Service Manual
Electronic Controller
1. Safety Protection
(1) Time Delay for Safety protection
z3 minutes delay for compressor ---The compressor is ceased for 3minutes before restarting to
balance the pressure in the refrigeration cycle in order to protect the compressor.
z2 minutes delay for 4-way valve---The 4-way valve will be ceased for 2 minutes late after
compressor to prevent the refrigerant-gas abnormal noise when the HEATING operation is
OFF or switch to the other operation mode.
(2) Discharge temperature protection
There is a temperature sensor on top of compressor, when temperature on top of
compressor
exceeded the limit, system control will shut down the compressor and the display board will
show the error code.
(3) Lower voltage protection
When AC voltage ≤158V and keep it for 10 seconds, unit will be shut down for protection.
(4) Over voltage protection
When AC voltage ≥260V, unit will be shut down and recover while AC≤255V.
(5) Over current protection
When the current of outdoor unit is overload, controller shut down the unit immediately and show
error code.
(6) Compressor abnormity protection
When compressor start on or in the process of running, if there is no feedback to controller or
load of compressor is abnormity, the air conditioner will shut down, and show error code.
(7) IPM module protection
IPM module has high temperature & over current protection itself, if there is signal feedback to
IPM, the outdoor unit will shut down, LED on outdoor PCB will show the error code.
2. “Feel” Mode Operation
(1) When the “Feel” mode is selected, the operation mode and initial temperature set are
determined by the initial room temperature at start-up of the operation except to turn off the air
conditioner and operates it again.
(2) If the mode is change to “Feel” from other mode, the “Feel” mode doesn’t operate until
compressor stop for more than 3 minutes.
Mode Initial Room Temperature Initial Set Temperature
COOLING RT=26℃23℃
DRY 26℃>RT≥20℃RT-2℃
HEATING for Heat Pump/
FAN for Cooling Only RT<20℃-
zIn the “Feel” mode, when the controller receives the up or down signal of temperature, the set
temperature can adjust by 1℃upper or lower. The biggest you can adjust by 2℃upper or lower.
3. “COOLING” Mode Operation
(1) Compressor frequency control
According to difference room temperature and set temperature (δt = RT-ST), running frequency of
compressor is controlled by electronic controller. When room temperature is much higher than set
temperature, the compressor will start at a high frequency, and as room temperature goes down, the
compressor running frequency will go down. When room temperature is lower than set temperature,
5

thecompressor will run at very low frequency. In general, unit will change its running frequency
according toδt to make room temperature closing to set temperature.
(2) Outdoor temperature affects running frequency of the compressor
Outdoor temperature affect compressor’s running frequency. Difference inlet temperature of
outdoor unit is adapted by difference compressor running frequency. While outdoor temperature is
about 30℃, the compressor will run in high frequency.
If unit run in “cooling” mode and outdoor temperature is less than -2℃,the controller will shut down
compressor and show error code, while the ambient temperature is over 1℃, the compressor will run
automatically.

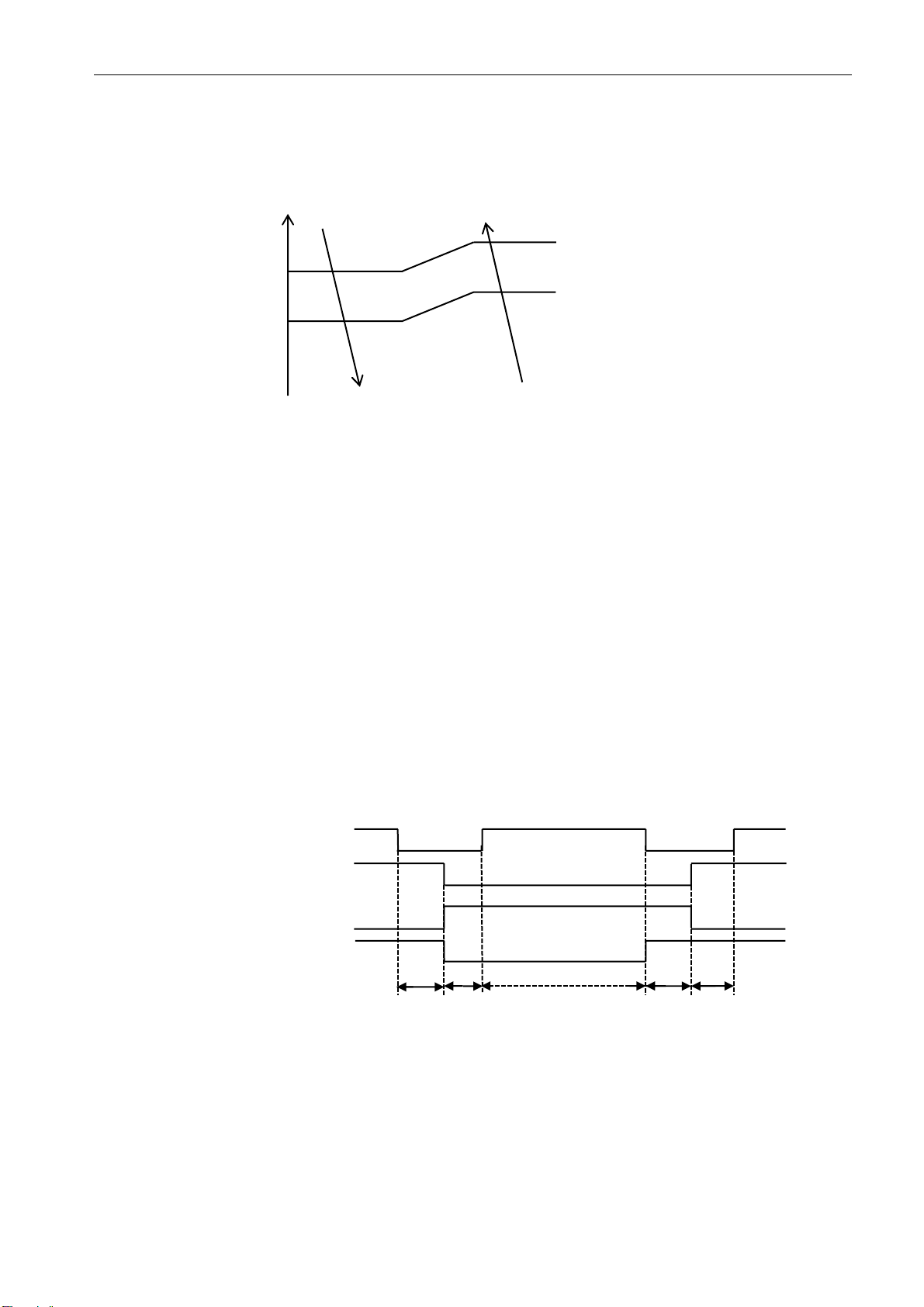

(3) Auto fan control in cooling mode
In cooling mode (include cooling in “feel” mode), fan speed is determined by
δ t, as the following
diagram:
4.“DRY” Mode Operation
(1)
The system for DRY operation used the same refrigerant circle as the cooling one.
(2) When the system operates in DRY mode, at first it operates in cooling mode, the set
temperature (ST) is “RT-2℃”. After that, t he system will operate in cooling mode with lowest
fan speed for 30 minutes and then change to middle speed for 30seconds as a cycle. During
the course of this operation, you can’t use remote controller to adjust the fan speed but you can
control the vane direction.
(3) In the dry mode, when RT≤12℃, the compressor will stop and operates again at RT≥14℃.
5. “HEATING” Mode Operation (available for Heat Pump only)
(1) Frequency control
Same as the frequency control in cooing mode, the running frequency of compressor is
controlled by controller. Unit change its running frequency according to
δ t to make the room
temperature closing to the set temperature.
(2) Indoor fan motor control
1) Cold Air Prevention Control
zThe function is intended to prevent cold air from being discharged when heating mode
selected or while in defrosting.
zThe indoor fan speed will be controlled as following.
zIn heating operation, if air conditioner turn off, the indoor fan motor will run most for 30
RT‐ST
℃
3.5
3.0
1.5
1.0
δt come down
δt come up
High fan
Min fan
Low fan
Breeze
Temperature up
Temperature down
Setting
Low fan
Stop
37℃
33℃
25℃
34℃
28℃
22℃
6

TCL Air Conditioner Service Manual
seconds since the stop of compressor.
2) Auto fan control (heating)
In heating mode (include in “I feel” mode) , fan speed is determined by δtas the following:
(3) 4-way valve control
In heating mode, 4-way valve will power on ahead of compressor for 5 seconds, and cut off
for 2 minutes later than compressor. 4-way valve will not power off unless the machine to be
switched off, mode changed or on the process of defrosting.
(4) Defrosting
Defrosting is controlled by the microprocessor.
When one of the following conditions is satisfied, unit comes into defrosting:
a. Outdoor heat exchanger Temperature (OPT) is continuously less than 3℃while the unit runs
for more than 40 minutes, and OPT is keeping under -6℃for more than 3 minutes.
b. Outdoor heat exchanger Temperature (OPT) is continuously less than 3℃meanwhile the
unit runs for more than 80 minutes, and OPT is keeping under -4℃for more than 3
minutes.
c. Outdoor heat exchanger Temperature (OPT) is continuously less than 3℃while the unit runs
for more than 120 minutes, and OPT is keeping below -2℃for more than 3 minutes.
Before the air con comes into defrosting, compressor running frequency drop down to a
lower frequency firstly, then the compressor shuts down.
In defrosting, the max. frequency of compressor is F9 (a little less than the highest
frequency ). In this period all protection function are available.

In defrosting, LED showing by winking.
No matter what AC come into or out of defrosting, indoor fan motor speed is the same as Cold
Air Prevention Control.
While one of the following conditions is satisfied, unit comes out of defrosting and shifts to
heating mode:
a. Outdoor coil Temperature (OPT) ≥15℃.
b. The time of defrosting keeps for more than 10 minutes.
(5) Indoor exchanger overheat protection
When Indoor exchanger Temperature (IPT) is higher than 55℃, unit comes into indoor exchanger
RT‐ST
δt come down
δt come up
℃
3.5
3.0
1.5
1.0
High fan
Min fan
Low fan
3.5
1.5
Compressor ON
OFF
ON
OFF
ON
OFF
NORMAL 800
4-way valve
Expansion valve
Outdoor fan motor
50S Defrosting time ≤10Mins 15S 15S
10S
7

TCL Air Conditioner Service Manual
overheat protection. The compressor drops its frequency toward to F1 level until IPT≤52℃
If IPT≤52℃and keep for 5 minutes, control system doesn’t limit running frequency.
If IPT>62℃, control system shut down compressor, and recover while IPT drop less than 50℃.
6. “SLEEP” mode
When the SLEEP button is pressed, the AC operates as following:
zThe indoor fan speed is set at low speed, the power lamp and the sleep lamp is on, the
display of temperature will close after 5 minutes.
zWhen selecting COOLING/DRY operation with SLEEP mode, the set temperature will be
raised by 1℃1 hour later and by 2℃2 hour later.
zWhen selecting HEATING operation with SLEEP mode, the set temperature will be dropped by
1℃1 hour later and 2℃2 hours later.
zAfter the System operates in SLEEP mode for 8 hours, it will stop automatically.
7. EMERGENCY Operation
When the EMERGENCY Operation switch is pressed one time, COOLING mode is selected
and if the EMERGENCY Operation switch press again within 3s, HEATING mode selected, while
press once again, the unit will switch off.
When the remote controller missing, failed or the batteries run down, press the EMERGENCY
Operation switch on front of the indoor unit for function test.
NOTE: Do not press the EMERGEMCY Operation switch during normal operation.
8. AUTO-RESTART Function (Option)
While air conditioner is operating in one mode, all of its operation data, such as working mode,
preset temperature etc. would be memorized into IC by main PCB. If power supply cut off due to
reasons and recover again, the AUTO-RESTART function will set
synchronously and the air
conditioner would work at the same mode as before.
Auto-restart Pre-setting (optional):
If Auto-restart function is needed, follow the steps below to activate this function:
1) Pulling the air-con's plug out of socket.
2) Pressing and holding the Emergency button (ON/OFF) on the indoor, then insert the plug
into the socket again.
3) Keep pressing the Emergency button for more than 10 seconds until three short beeps
heard, the Auto-restart function been activated.
9. Protection and Failure Display
zWhen protection display is available, controller will show error code, digital LED shows
error code and setting temperature by turns.
zIf there is more than one failure, it will show error codes according to the error list sequence.
zTo insure the signal communication of indoor and outdoor unit, any failure code relates to
outdoor unit will remain display for 2 minutes maximum after it’s recovered.
zAmong all the failure codes, sensor failure can be recovery automatically once it comes normal.
8

TCL Air Conditioner Service Manual
zError list
Failure Type LED Code DigitalLEDCode
Indoor and outdoor communication failure RUN、TIMER –both winking E0
Outdoor communication failure RUN、TIMER –both winking EC
Indoor room temperature sensor (IRT) RUN-1 time/8s E1
Indoor coil temperature sensor (IPT) RUN-2 times /8s E2
Outdoor coil temperature sensor (OPT) RUN-3 times /8s E3
System abnormity RUN-4 times /8s E4
Model configuration wrong RUN-5 times /8s E5
Indoor fan motor fault RUN-6 times /8s E6
Outdoor temperature sensor RUN-7 times /8s E7
Exhaust temp. sensor RUN-8 times /8s E8
IPM drive and module fault RUN-9 times /8s E9
Outdoor fan motor fault (DC motor) RUN-10 times /8s EF
Current sensor fault RUN－11 times /8s EA
Indoor unit EEPROM fault RUN-12 times /8s EE
Temp. switch fault ( on top of the
compressor)
RUN-13 times /8s EP
Voltage sensor fault RUN-14 times /8s EU
zProtection display code list:
zOutdoor failure display
There is a LED on outdoor power board, it blinks 1s ON and 1s OFF while compressor standby and it
always light (ON) while compressor running; If there is failure happened on ODU,The indicator (LED)
alerts the fault in a cycle as such that it is bright for 0.5 seconds, dark for 0.5 seconds, blinks “n” times
and then dark for 3 seconds. For details as table below:
Protection Type Function Indicator (flash) DigitalLEDCode
Overvoltage /lower voltage protection RUN: Blink; TIMER: 1 blink /8 sec P1
Overcurrent protection RUN: Blink; TIMER: 2 blink /8 sec P2
Exhaust over temperature protection RUN: Blink; TIMER: 4 blink /8 sec P4
Too cool protection in cooling mode RUN: Bright; TIMER: 5 blink /8 sec P5
Overheat protection in cooling mode RUN: Bright; TIMER: 6 blink /8 sec P6
Overheat protection in heating mode RUN: Bright; TIMER: 7 blink /8 sec P7
Outdoor over temperature
/ lower temperature protection RUN: Bright; TIMER: 8 blink /8 sec P8
Drive protection (software control ) RUN: Blink; TIMER: 9 blink /8 sec P9
Module protection (hardware control) RUN: Blink; TIMER: 10 blink /8 sec P0
9

TCL Air Conditioner Service Manual
blink time (n) Failure
1 IPM protection
2 Over voltage /lower voltage
3 Overcurrent
4 Exhaust over temperature protection
5 Outdoor coil over temperature protection
6 Drive fault and protection (V1，VP1)
7 Communication fault with indoor unit
8 Compressor overheat fault (compressor top switch)
9 Short-circuit / open-circuit fault of outdoor temperature sensor
10 Short circuit / open-circuit fault of outdoor heat exchanger temperature
sensor
11 Short-circuit / open-circuit fault of exhaust temperature sensor
12 Voltage sensor fault
13 Current sensor fault
14 IPM fault
15 Communication fault between power source board and IPM
16 No feedback from DC fan motor(outdoor unit)
17 Defrost state
Display on outdoor power source board:
10

TCL Air Conditioner Service Manual


5. Wiring diagram
INDOOR UNIT: TAC-09CHSD/XA31I TAC-12CHSD/XA31I TAC-18CHSD/XA31I
TAC-24CHSD/XA31I
OUTDOOR UNIT: TAC-09CHSD/XA31I TAC-12CHSD/XA31I TAC-18CHSD/XA31I
11

TCL Air Conditioner Service Manual


OUTDOOR UNIT: TAC-24CHSD/XA31I
12

No. Part No. Part Name Q’ty Remark
1 41106-001447 Front Panel 1
2 42008-000070 Air Filter 2
3 41106-002347 Face Frame 1
4 41105-000146 Electrical Box Cover 1
5 31102-000085 Display PCB 1
6 42003-000026 Display PCB Box 1
7 92011-003000 Evaporator 1
8 41108-000066 Screw Cover 2
9 42004-000040 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000262 Indoor Motor 1
12 41101-000242 In And Out Pipe Fixer 1
13 42003-000060 Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15 31101-000222 Main PCB 1
16 10502-100021 Transformer 1
17 42001-000103 Cable Clamp 1
18 22001-000313 Vane Motor 1
19 41199-003271 Base 1
20 41101-000042 Vertical Vane Assembly 2
21 41103-000103 Vane 1
22 41109-000042 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000495 Remote Controller 1
25 A1101-008440 Indoor Carton 1
26 A2006-000050 Left Foaming 1
27 A2006-000030 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view
6. Explosion view and parts
Indoor Unit- TAC-09CHSD/XA31I
13

No. Part No. Part Name Q’ty Remark
1 42011-000127 Grille 1
2 41207-000029 Top cover 1
3 92011-000657 Condenser 1
4 41203-000054 Outdoor motor supporter 1
5 22001-000049 Outdoor motor 1
6 42004-000107 Propeller fan 1
7 41205-000133 Left grille supporter 1
8 41206-000054 Front plate 1
9 42011-000088 Fan guard 1
10 92014-000542 Compressor and 1
11 92008-000209 4-way valve 1
12 92007-000950 4-way valve assembly 1
13 41202-000177 Base 1
14 41205-000077 Right plate 1
15 92008-000051 Two-way valve 1
16 41204-000018 Valve supporter 1
17 92008-000146 Three-way valve 1
18 41201-000029 Eelectronic Box Cover 1
42001-000035 Cable clamp 1
42001-000038 Cable clamp 1
20 11304-100004 Terminal 1
21 31201-001015 Outdoor PCB Assembly 1
22 22011-000002 Inductor 1
23 92007-001895 Capillary assembly 1
24 41208-000141 Partition plate 1
25 10104-100030 Pipe Temp. sensor and
outdoor Temp. sensor 1
26 10104-100034 Discharge Temp. sensor 1
27 A2005-000523 Base carton 1
28 A1201-009091 Cabinet carton 1
29 A1202-000031 Base foaming 1
30 41213-000023 Cover foaming 1
TCL Air Conditioner Service Manual
Not shown in
explosion view
19
Outdoor Unit - TAC-09CHSD/XA31I
10 11 12
8
9
765
17
13 14 16
15
19
18
20
21
23
22
4321
24
14

Indoor Unit - TAC-12CHSD/XA31I
No. Part No. Part Name Q’ty Remark
1 41106-001407 Front Panel 1
2 42008-000037 Air Filter 2
3 41106-002371 Face Frame 1
4 41201-000068 Electrical Box Cover 1
5 31102-000085 Display PCB 1
6 42003-000026 Display PCB Box 1
7 92011-003010 Evaporator 1
8 41108-000066 Screw Cover 1
9 42004-000039 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000262 Indoor Motor 1
12 41101-000242 In And Out Pipe Fixer 1
13 42003-000060 Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15 31101-000197 Main PCB 1
16 10502-100021 Transformer 1
17 42001-000103 Cable Clamp 1
18 22001-000313 Vane Motor 1
19 41199-002747 Base 1
20 41101-000033 Vertical Vane Assembly 2
21 41103-000101 Vane 1
22 41109-000042 Installation Plate 1
24 10104-100014 Indoor Sensor Assembly 1
25 22013-000495 Remote Controller 1
26 A1101-008444 Indoor Carton 1
27 41110-000221 Left Foaming 1
28 41110-000260 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view
15

Outdoor Unit - TAC-12CHSD/XA31I
No. Part No. Part Name Q’ty Remark
1 42011-000127 Grille 1 Optional
2 41207-000029 Top cover 1
3 92011-000657 Condenser 1
4 41203-000054 Outdoor motor supporter 1
5 22001-000049 Outdoor motor 1
6 42004-000107 Propeller fan 1
7 41205-000133 Left grille supporter 1
8 41206-000054 Front plate 1
9 42011-000088 Fan guard 1
10 92014-000542 Compressor 1
11 92008-000209 4-way valve 1
12 92007-000950 4-way valve assembly 1
13 41202-000177 Base 1
14 41205-000077 Right plate 1
15 92008-000051 Two-way valve 1
16 41204-000018 Valve supporter 1
17 92008-000146 Three-way valve 1
18 41201-000029 Eelectronic Box Cover 1
19 42001-000038 Cable clamp 1
20 11304-100004 Terminal 1
21 31201-001235 Outdoor PCB Assembly 1
22 22011-000002 Inductor 1
23 92007-001891 Capillary assembly 1
24 41208-000141 Partition plate 1
25 10104-100030 Pipe Temp. sensor and
outdoor Temp. sensor 1
26 10104-100034 Discharge Temp. sensor 1
27 A2005-000523 Base carton 1
28 A1201-009096 Cabinet carton 1
29 A1202-000031 Base foaming 1
30 41213-000023 Cover foaming 1
TCL Air Conditioner Service Manual
Not shown in
explosion view
10 11 12
8
9
765
17
13 14 16
15
19
18
20
21
23
22
4321
24
16

Indoor Unit- TAC-18CHSD/XA31I
No. Part No. Part Name Q’ty Remark
1 41106-001526 Front Panel 1
2 42008-000075 Air Filter 2
3 41106-002356 Face Frame 1
4 41105-000146 Electrical Box Cover 1
5 31102-000085 Display PCB 1
6 42003-000026 Display PCB Box 1
7 92011-002777 Evaporator 1
8 41108-000066 Screw Cover 2
9 42004-000012 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000266 Indoor Motor 1
12 41101-000242 In And Out Pipe Fixer 1
13 41108-000013 Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15 31101-000149 Main PCB 1
16 / Transformer /
17 42001-000103 Cable Clamp 1
18 22001-000321 Vane Motor 1
19 41102-000031 Base 1
20 41101-000067 Vertical Vane Assembly 2
21 41103-000149 Vane 1
22 41109-000041 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000495 Remote Controller 1
25 42009-000011 Drainage Hose 1
26 A1101-008448 Indoor Carton 1
27 A2006-000040 Left Foaming 1
28 A2006-000019 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view
17

No. Part No. Part Name Q’ty Remark
1 42011-000105 Grille 1 Optional
2 41207-000033 Top Cover 1
3 92011-000748 Condenser 1
4 41203-000052 Outdoor Motor Supporter 1
5 22001-000096 Outdoor Motor 1
6 42004-000104 Propeller Fan 1
7 41205-000130 Left grille supporter 1
8 41206-000055 Front Plate 1
9 42011-000081 Fan Guard 1
10 92014-000357 Compressor 1
11 92008-000207 4-way Valve 1
12 92007-000967 4-way Valve Assembly 1
13 41202-000156 Base 1
14 41205-000084 Right Plate 1
15 92008-000051 Two-way Valve 1
16 41204-000018 Valve Supporter 1
17 92008-000146 Three-way Valve 1
18 41201-000029 Electrical Box Cover 1
19 11304-100004 Terminal 1
42001-000035 Cable clamp1 1
42001-000038 Cable clamp2 1
21 31201-000955 Outdoor PCB Assembly 1
22 22011-000014 Inductor 1
23 92007-003067 Electronic expansion valve
components 1
24 41208-000151 Partition plate 1
25 10104-100033 Pipe Temp. sensor and
outdoor Temp. sensor 1
26 10104-100037 Discharge Temp. sensor 1
27 A2005-000515 Base carton 1
28 A1201-009102 Cabinet carton 1
29 A1202-000026 Base foaming 1
30 41213-000019 Cover foaming 1
TCL Air Conditioner Service Manual
Outdoor Unit- TAC-18CHSD/XA31I
20
Not shown in
explosion view
10 11 12
8
9
765
17
13 14 16
15
19
18
20
21
23
22
4321
24
18

Indoor Unit- TAC-24CHSD/XA31I
No. Part No. Part Name Q’ty Remark
1 41106-001430 Front Panel 1
2 42008-000001 Air Filter 2
3 41106-002351 Face Frame 1
4 41105-000146 Electrical Box Cover 1
5 31102-000085 Display PCB 1
6 42003-000026 Display PCB Box 1
7 92011-002754 Evaporator 1
8 41108-000066 Screw Cover 2
9 42004-000002 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000260 Indoor Motor 1
12 41101-000224 In And Out Pipe Fixer 1
13 42003-000045 Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15 31101-000143 Main PCB 1
16 10502-100021 Transformer 1
17 42001-000103 Cable Clamp 1
18 22001-000321 Vane Motor 1
19 41102-000018 Base 1
20 41101-000042 Vertical Vane Assembly 3
21 41103-000142 Vane 1
22 41109-000019 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000495 Remote Controller 1
25 A1101-008456 Indoor Carton 1
26 A2006-000060 Left Foaming 1
27 A2006-000059 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view
19
