TCL TPW06CR19 User manual

1
Hi! Let’s Get Started.
Portable Air Conditioner
English / Spanish / French

3
DO NOT RETURN TO STORE
TCL SUPPORT:
www.tclusa.com/support
1-800-825-6747
contact us first
with any questions
WE ARE
READY TO
HELP
TAKE CARE WHEN REMOVING
THE AIR CONDITIONING UNIT
IMPORTANT SAFETY INSTRUCTIONS
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this manual
in a safe place for future reference. Your safety and the safety of others is very important to us. Please pay
attention to all safety messages outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow the
following basic precautions:
ELECTRICAL REQUIREMENTS
The electrical ratings for your air conditioner are listed on the model and serial number label located on the
front right side of the unit (when facing the front).
REGISTER YOUR APPLIANCE
You can register your appliance online by going to tclusa.com/registration
Be sure to retain your original sales receipt. A valid proof of purchase is required for all warranty claims.
Document your model and serial numbers here:
Model #___________________________________ Serial #___________________________________
You can locate your 20 digit serial number underneath the bar code (right hand side of the AC)
WARNING Specific electrical requirements are shown in the diagram below. Follow the requirements
below for the type of plug on the power supply cord.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.

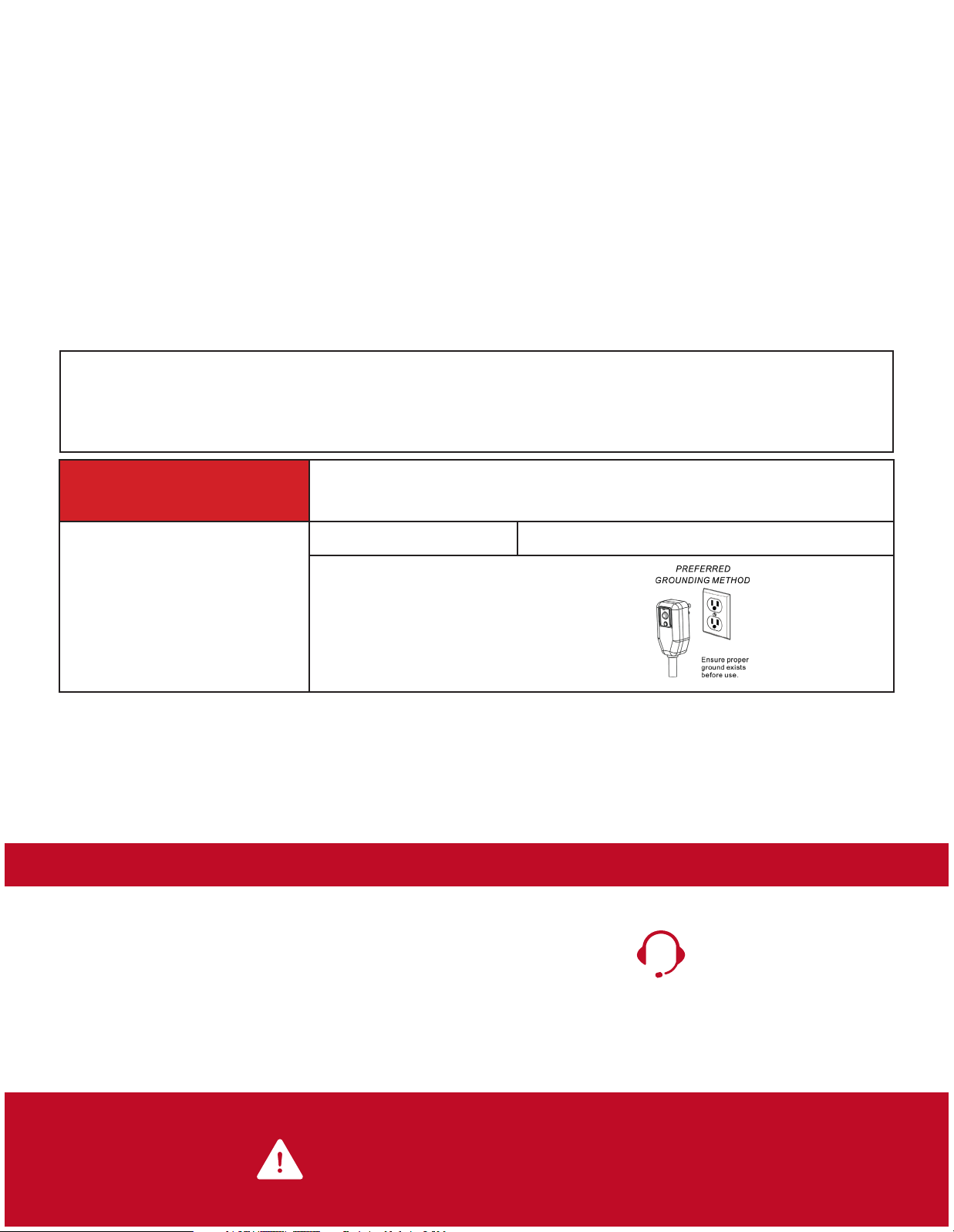

Wiring Requirements Power Supply Cord
60Hz, 115V AC outlet protected
by a 15 amp time delay fuse
or circuit breaker.
RECOMMENDED GROUND METHOD
For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a 3
prong power supply cord with a grounded plug. To minimize the possibility of electrical shock, the cord
must be plugged into a 3 prong outlet and grounded in accordance with all local codes and ordinances. If a
3 prong outlet is not available, it is the customer’s responsibility to have a properly grounded 3 prong outlet
installed by a qualified electrician.

3
DO NOT RETURN TO STORE
TCL SUPPORT:
www.tclusa.com/support
1-800-825-6747
contact us first
with any questions
WE ARE
READY TO
HELP
TAKE CARE WHEN REMOVING
THE AIR CONDITIONING UNIT
What’s in the box
Parts List for Model: TPW06CR19
(For model TPW08CR19 see page 9)
NO. APPEARANCE PART NAME QUANTITY
1
Exhaust Hose
Hose Outlet
Hose Inlet
1 set
2Window Slider Kit 1 set
3Remote Control Batteries
(Two AAA 1.5V) 1 set
4Window Sealing
Sponge Assembly 1 set
NO. COMPONENT DESCRIPTION
1Remote control slot
2Handle
3Casters
4Control panel
5Deflector
6Intake grille
7Air outlet grille
8Intake grille
9Plug fixer
10 Middle condenser drain
11 Condenser drain
12 Power cable
1
2
4
5
3
6
7
8
9
10
11
12
1
2
4
5
3
6
7
8
9
10
11
12

4 5
Let’s get started!
Installation & Assembly Instructions for Model: TPW06CR19
(For model TPW08CR19 see page 9)

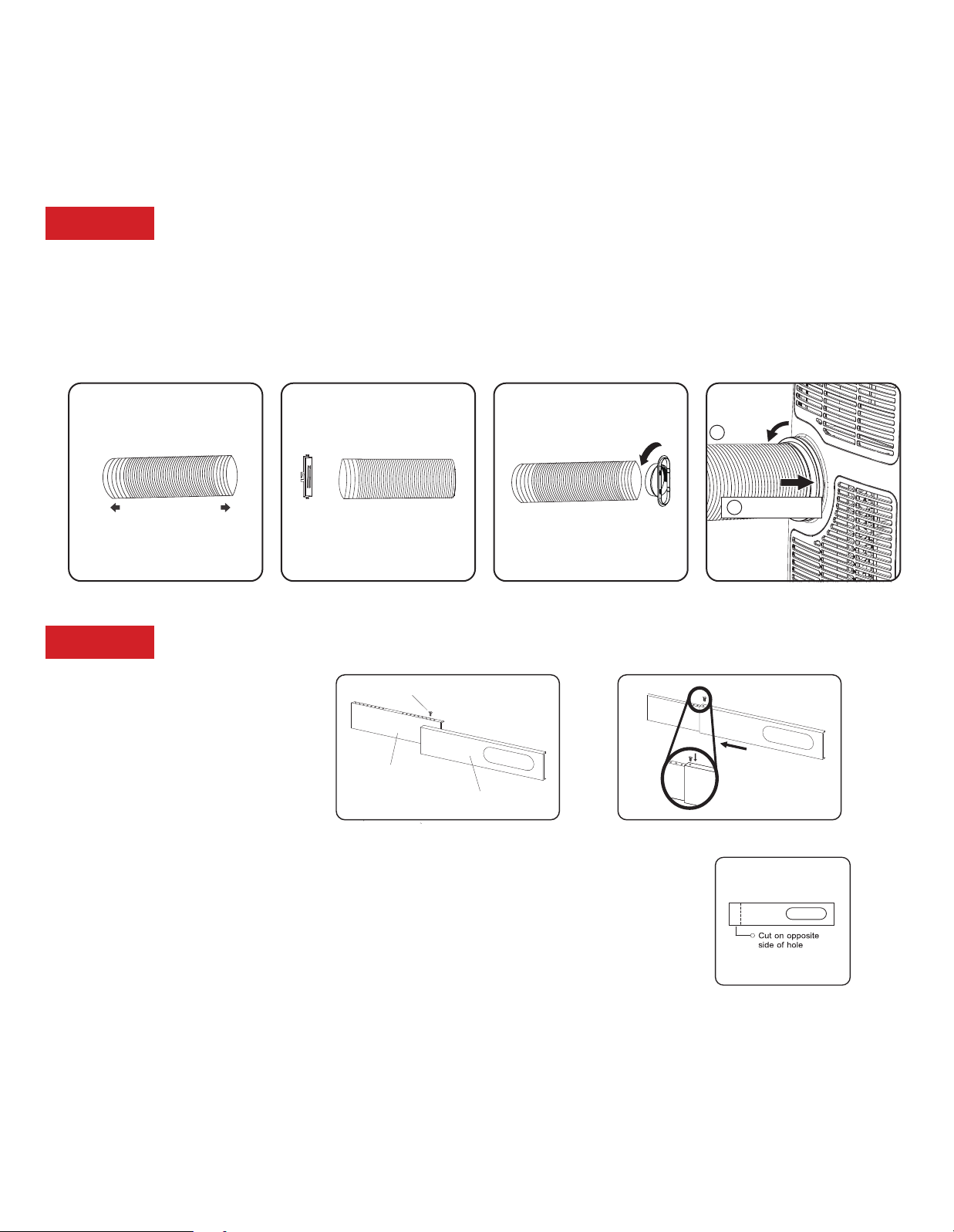

Step 1: Assemble and attach the exhaust hose
• Extend both sides of the hose. (Fig. 1a)
• Screw on the hose inlet (Fig. 1b)
• Screw on the hose outlet (Fig. 1c)
• Attach the exhaust hose by sliding the hose outlet from the top down into the air
outlet grille. (Fig. 1d)
A
A
B
B
CC
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window
Step 2: Window Slider Kit Installation
Parts Needed:
A. Panel
B. Panel with one hole
C. Screw or plastic pin
Assembly
1. Slide Panel A into Panel B and size to window width. Windows sizes
vary. When sizing the window width, be sure that the window kit
assembly is free from gaps when taking measurements. If necessary,
cut Panel B down to size. Cut on the side opposite the hole.
2. Lock the screws into the holes that correspond with the width that
your window requires to ensure that there are no gaps in the window
kit assembly after installation.
A
A
B
B
C
C
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window
A
A
B
B
CC
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window

4 5
3. Use the provided foam seal to fill in any gaps.
A
A
B
B
C
C
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window
4. Attach the hose outlet to the window slider kit.
How to Control Your AC
All the basics you need to know to stay cool!
Control panel
The control panel is on the top of the appliance and enables you to control it without the
remote control.
In this section use the
symbols for Mode button
found on the remote and
on the appliance.
For the fan mode insert
graphic of 3 stacked side
by side bars or side by
side bar.
A
A
B
B
CC
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window
REMOTE CONTROL
On/O button
Increase button
Decrease button
Timer button
Unit switch button
Fan speed button
Mode button
Swing button
Sleep button

6 7
1. Power button – press the on the control panel or the remote control to turn the air
conditioner on and o. Never turn the appliance o by unplugging from the power source.
Always press the power button, then wait for a few minutes before unplugging. This allows the
appliance to perform a proper shutdown.
2. Cool Mode – press the on the control panel or remote until the Cool mode is lit. Select
the target temperature 64°-90° F (18°-32° C) by pressing the or button until the
corresponding value is displayed. Select the required fan speed by pressing the fan
speed button.
3. Dry Mode – press the on the control panel or remote until the Dry symbol appears, “dh” will
appear on the screen. In this model, the default fan speed is low, and cannot be modified.
4. Fan Mode – press the on the control panel until the Fan symbol appears. You can then
select your desired fan speed, either High or Low .
5. Sleep Mode - press the SLEEP button on the remote control (there is no sleep mode on the
control panel). This function is useful when you are sleeping as it gradually reduces operation
of the appliance. To set this function correctly, select the cool or dry mode as described above.
Press the button. The appliance operates in the previously selected mode.
When you choose the sleep function, the brightness of the screen is reduced and fan speed
is lowered.
The SLEEP function maintains the room at optimum temperature without excessive fluctuations
in either temperature or humidity with silent operation. Fan speed is always at Low, while room
temperature and humidity vary gradually to ensure comfort.
When in COOL mode, the selected temperature will decrease by 1° per hour in a 2 hour period.
This new temperature will be maintained for next 6 hours and then the appliance will turn o. The
SLEEP function can be canceled at any time during operation by pressing the “Sleep”, “Mode” or
“Fan Speed” button.
In FAN or DRY mode, SLEEP function cannot be set.
1. Directional Louvers – Control the direction of the
air flow by manually adjusting the deflectors to the
desired direction. In shipping, the vents are closed
and must be opened by pushing on the bottom left
hand corner deflector to open.
Note: The Louver Swing Button is on the remote,
however that feature is not available on this model.
Setting the Timer using the control panel or remote control
Programming Start Up –
• Turn on the appliance, choose the mode you want, for example cool, 72°F, high fan speed.
• Turn o the appliance.
• Press the Timer button, the symbol and the screen will display 1-24 hours.
• Press several times until the corresponding time is displayed.
• Wait about 5 seconds, the timer will be active, then the “Timer” symbol is displayed on
the screen.
• Press the Timer button again, the timer will be canceled, and the “Timer” symbol will disappear
from screen.
AB
Horizontal
Deflector Vertical
Deflector

6 7
Programming Shut Off -
• When the appliance is running, press the button, the screen will display 1-24 hours
• Press several times until the corresponding time is displayed.
• Wait about 5 seconds, the timer will be active, then the “Timer” symbol is displayed on
the screen.
• Press the Timer button again, the timer will be canceled, and the “Timer” symbol will
disappear from screen
TIPS FOR CORRECT USE
To get the best performance from your appliance, follow these recommendations:
• Close the windows and doors in the room to be air conditioned (Fig. 1). When installing
the appliance semi-permanently, you should leave a door slightly open (as little as 1/2“) to
guarantee correct ventilation.
• Protect the room from direct exposure to the sun by partially closing curtains and/or blinds
to make the appliance much more economical to run (Fig. 2).
• Never rest objects of any kind on the appliance.
• Do not block the air inlet or outlet of the appliance.
• Reduced air flow will result in poor performance and could damage the unit (Fig. 3).
• Make sure there are no heat sources in the room.
• Never use the appliance in very damp rooms (bathroom for example).
• Never use the appliance outdoors.
• Make sure the appliance is standing on a level surface. If necessary, place the caster locks
under the front wheels.
Water drainage method
When there is excess water condensation inside the unit, the appliance stops running and
shows “ ”. This indicates that the water condensation needs to be drained using the
following procedures:
Manual Draining
1. Power o and unplug the unit from power source.
2. Place a pan under the lower drain plug.
3. Remove the lower drain plug.
4. Water will drain out and collect in the pan.
5. After the water is drained, replace the lower drain plug firmly.
6. Turn on the unit.
Vertical
Deflector
Do not
cover
appliance
Close curtains
Close doors
and windows
1. 2. 3.
Drain
Cap
Pan
Drain
Outlet

8 9

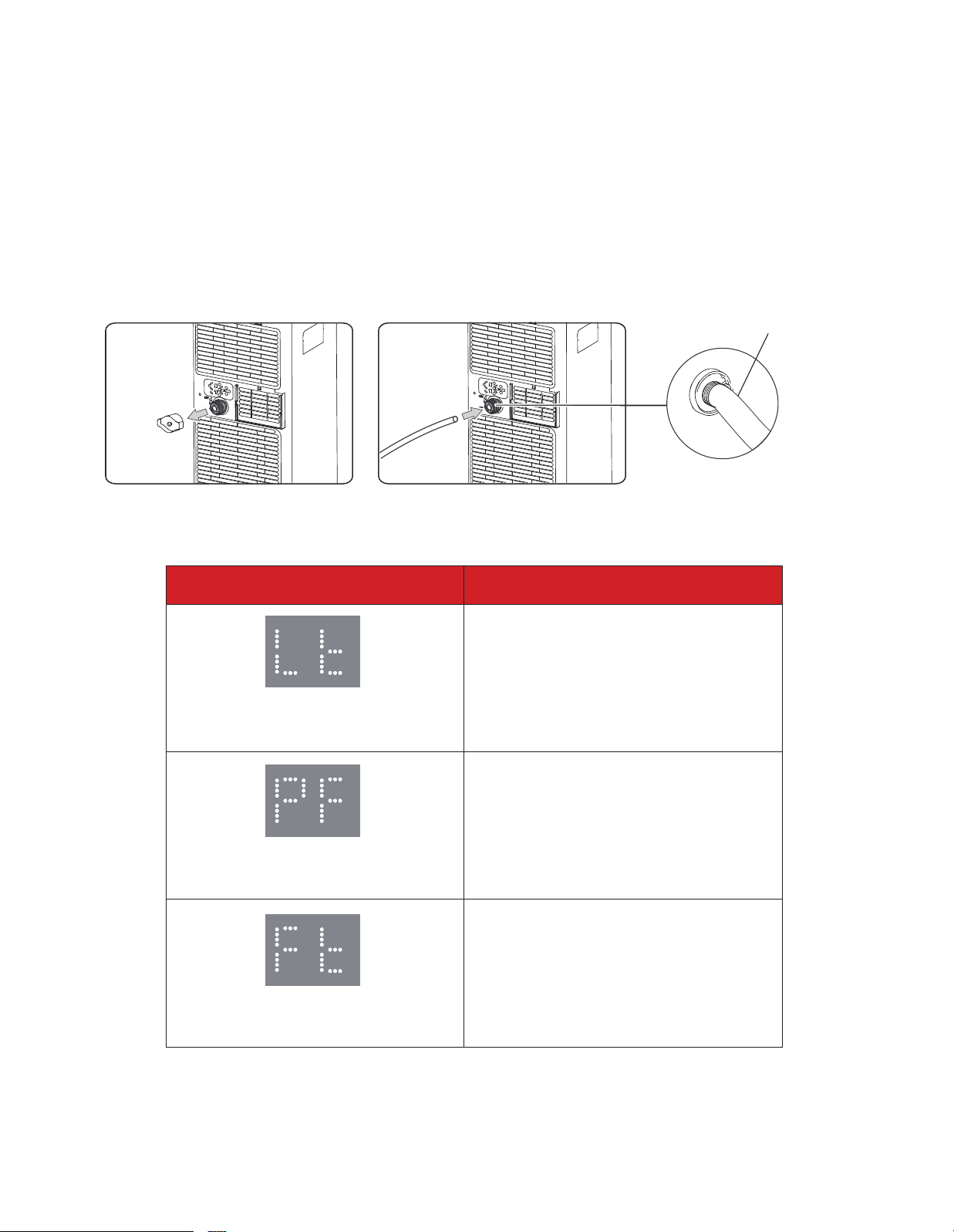

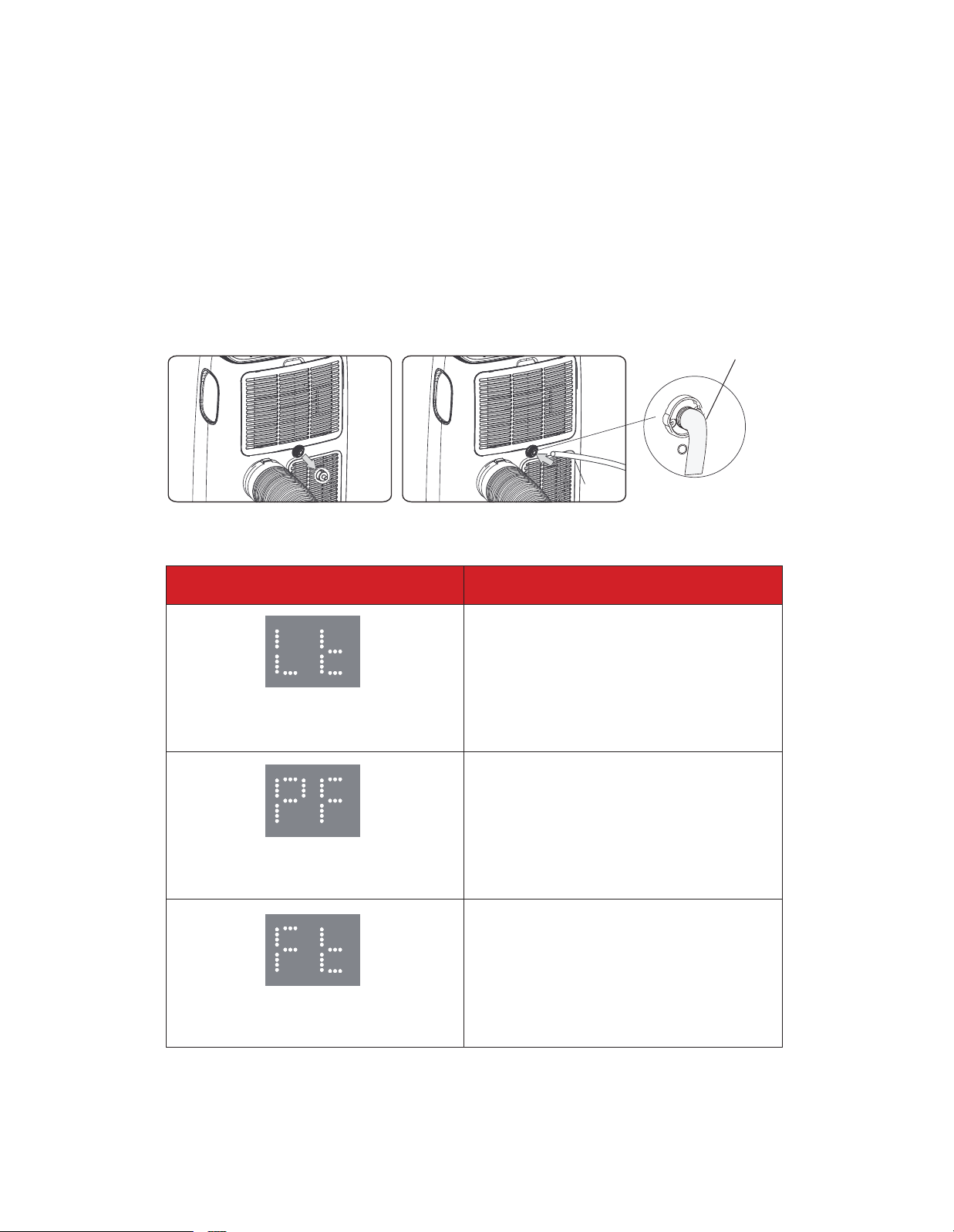

Continuous drainage
When unit is running in Dry mode, you can use the method below for continuous drainage.
1. Power o and unplug the unit from the power source.
2. Remove the drain plug (Fig 1). While doing this operation some residual water may spill so
please have a pan to collect the water.
3. Connect a drain hose (not included) (Fig 2).
4. The water can be continuously drained through the hose into a floor drain or bucket.
5. Turn on the unit.
Garden hose or
drainage hose
1. 2.
Drain
Cap
IF DISPLAYED WHAT SHOULD I DO?
Low Temperature
(frost protection)
The appliance is fitted with a frost
protection device to avoid
excessive formation of ice.
The appliance starts up again
automatically when the defrosting
process is completed.
Probe Failure
(sensor malfunction)
If this is displayed, contact
customer service
Full Tank
(condensation reservoir full)
Empty the internal condensation
reservoir following the instructions
on how to manually
drain the appliance.

8 9
What’s in the box
Parts List for Model: TPW08CR19
(For model TPW06CR19 see page 4)
NO. APPEARANCE PART NAME QUANTITY
1
Exhaust Hose
Hose Outlet
Hose Inlet
1 set
2Window Slider Kit 1 set
3Remote Control Batteries
(Two AAA 1.5V) 1 set
4Window Sealing
Sponge Assembly 1 set
NO. COMPONENT DESCRIPTION
1Air outlet grille
2Control panel
3Handle (both sides)
4Casters
5Power cord
6Air filter
7Air exhaust
8Intake grille
9Condenser drain
10 Middle drainage
12
3
4
6
7
8
9
10
5
12
3
4
6
7
8
9
10
5

10 11
Let’s get started!
Installation & Assembly Instructions (for model: TPW08CR19)
(For model TPW06CR19 see page 4)
Step 1: Assemble and attach the exhaust hose
• Extend both sides of the hose. (Fig. 1a)
• Screw on the hose inlet (Fig. 1b)
• Screw on the hose outlet (Fig. 1c)
• Attach the exhaust hose by sliding the hose outlet into the back of the unit and turn to lock in
place. (Fig. 1d)
1a. 1b. 1c. 1d.
Extend the hose
Slide onto
Lock
1.
2.
Step 2: Window Slider Kit Installation
Parts Needed:
A. Panel
B. Panel with one hole
C. Screw or plastic pin
Assembly
1. Slide Panel A into Panel B and size to window width. Windows sizes
vary. When sizing the window width, be sure that the window kit
assembly is free from gaps when taking measurements. If necessary,
cut Panel B down to size. Cut on the side opposite the hole.
2. Lock the screw into the holes that correspond with the width that your
window requires to ensure that there are no gaps in the window kit
assembly after installation.
A
A
B
B
C
C
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window
A
A
B
B
C
C
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window

10 11
3. Use the provided foam seal to fill in any gaps.
Window slider
Window slider
Vertical
window
Horizontal
window
4. Attach the hose outlet to the window slider kit.
How to Control Your AC
All the basics you need to know to stay cool!
Control panel
The control panel is on the top of the appliance and enables you to control it without the
remote control.
In this section use
the symbols for
Mode button found
on the remote and
on the appliance.
For the fan mode
insert graphic of
3 stacked side by
side bars or side
by side bar.
REMOTE CONTROL
On/O button
Increase button
Decrease button
Timer button
Unit switch button
Fan speed button
Mode button
Swing button
Sleep button

12 13
SWING Function
The swing function on the remote can be used to allow the air deflector to swing continuously.
To enable press the power (Insert button image) on the remote to enable the deflector to swing
continuously. Press again to cause the deflector to stop in the desired position.
1. Power button – press the on the control panel or the remote control to turn the air
conditioner on and o. Never turn the appliance o by unplugging from the power source.
Always press the Power button, then wait for a few minutes before unplugging. This allows
the appliance to perform a proper shutdown.
2. Cool Mode – press the on the control panel or remote until the Cool mode is lit. Select
the target temperature 18° - 32°(64°-90°) by pressing the or button until the
corresponding value is displayed. Select the required fan speed by pressing the fan
speed button.
3. Dry Mode – press the on the control panel or remote until the Dry symbol appears, “dh”
will appear on the display. In this model, the default fan speed is low, and cannot be selected.
4. Fan Mode – press the on the control panel until the Fan symbol appears. You can then
select you desired fan speed, either High or Low .
5. Sleep Mode - press the SLEEP button on the remote control (there is no sleep mode on the
control panel). This function is useful when you are sleeping as it gradually reduces operation
of the appliance. To set this function correctly, select the cool or dry mode as described
above. Press the button. The appliance operates in the previously
selected mode.
When you choose the sleep function, the brightness of the screen is reduced and fan speed
is lowered.
The SLEEP function maintains the room at optimum temperature without excessive fluctuations
in either temperature or humidity with silent operation. Fan speed is always at Low, while room
temperature and humidity vary gradually to ensure your comfort.
When in COOL mode, the selected temperature will decrease by 1° per hour in a 2 hour period.
This new temperature will be maintained for the next 6 hours and then the appliance will turn o.
The SLEEP function can be canceled at any time during operation by pressing the “Sleep”, “Mode”
or “Fan Speed” button.
In FAN or DRY mode, SLEEP function cannot be set.
Setting the Timer using the control panel or remote control
Programming Start Up –
• Turn on the appliance, choose the mode you want, for example cool, 72°F, high fan speed.
• Turn o the appliance.
• Press the Timer button, the symbol and the screen will display 1-24 hours.
• Press several times until the corresponding time is displayed.
• Wait about 5 seconds, the timer will be active, then the symbol is displayed on
the screen.
• Press the Timer button again, the timer will be canceled, and the symbol will disappear
from screen.

12 13
Programming Shut Off -
• When the appliance is running, press the button, the screen will display 1-24 hours
• Press several times until the corresponding time is displayed.
• Wait about 5 seconds, the timer will be active, then the symbol is displayed on
the screen.
• Press the Timer button again, the timer will be canceled, and the “Timer” symbol will disappear
from screen
TIPS FOR CORRECT USE
To get the best performance from your appliance, follow these recommendations:
• Close the windows and doors in the room to be air conditioned (Fig. 1). When installing the
appliance semi-permanently, you should leave a door slightly open (as little as 1/2“) to guarantee
correct ventilation.
• Protect the room from direct exposure to the sun by partially closing curtains and/or blinds to
make the appliance much more economical to run (Fig. 2).
• Never rest objects of any kind on the appliance.
• Do not block the air inlet or outlet of the appliance.
• Reduced air flow will result in poor performance and could damage the unit (Fig. 3).
• Make sure there are no heat sources in the room.
• Never use the appliance in very damp rooms (bathroom for example).
• Never use the appliance outdoors.
• Make sure the appliance is standing on a level surface. If necessary, place the caster locks under
the front wheels.
Water drainage method
When there is excess water condensation inside the unit, the appliance stops running and shows
“ ”. This indicates that the water condensation needs to be drained using the following procedures:
Manual Draining
1. Power o and unplug the unit from power source.
2. Place a pan under the lower drain plug.
3. Remove the lower drain plug.
4. Water will drain out and collect in the pan.
5. After the water is drained, replace the lower drain plug firmly.
6. Turn on the unit. Drain
Cap
Pan
Drain
Outlet
Do not
cover
appliance
Close curtains
Close doors
and windows
1. 2. 3.

14 15
Continuous drainage
When unit is running in Dry mode, you can use the method below for continuous drainage.
1. Power o and unplug the unit from the power source.
2. Remove the drain plug (Fig. 1). While doing this operation some residual water may spill so
please have a pan to collect the water.
3. Connect a drain hose (Fig. 2). Note: Drain hose is not included.
4. The water can be continuously drained through the hose into a floor drain or bucket.
5. Turn on the unit.
IF DISPLAYED WHAT SHOULD I DO?
Low Temperature
(frost protection)
The appliance is fitted with a frost
protection device to avoid
excessive formation of ice.
The appliance starts up again
automatically when the defrosting
process is completed.
Probe Failure
(sensor malfunction)
If this is displayed, contact
customer service
Full Tank
(condensation reservoir full)
Empty the internal safety tank,
following the instructions
in the “End of season
operations” paragraph.
1. 2.
Garden hose or
drainage hose
Drain
Cap

14 15
Troubleshooting
Having trouble completing installation? Don’t worry, it’s usually an easy fix.
PROBLEM POSSIBLE CAUSES SOLUTIONS
Air Conditioner
will not start
The air conditioner is unplugged • Make sure the air conditioner plug is
pushed completely into the outlet
The fuse is blown/circuit breaker
is tripped
• Check the house fuse/circuit breaker box
and replace the fuse or reset the breaker
Power Failure
• The unit will automatically re-start when
power is restored
• There is a protective time delay (approx.
3 minutes) to prevent damage to the
compressor. For this reason, the unit may
not start normal cooling for 3 minutes after
it is turned back on.
The current interrupter device is tripped
• Press the RESET button located on the
power cord plug
• If the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician
Air Conditioner does not
cool as it should
Airflow is restricted
• Change to make sure there are no curtain,
blinds, or furniture blocking the air intakes
of the air conditioner
The temperature control may not be set
correctly • Lower the set thermostat temperature
The air filter is dirty • Clean the filter. See the Cleaning
and Care Section of the manual
The room may be too warm • Please allow time for the room to cool
down after turning on the air conditioner
Cold air is escaping • Check for open furnace registers and cold
air returns
The Cooling Coils are frozen • See “Air Conditioner Freezing Up” below
The air exhaust is detached from the
appliance.
• Reattach the air exhaust hose to the back
of the appliance.
Air Conditioner
is freezing up
Ice blocks the air flow and stops the air
conditioner from cooling the room
• Set the MODE to HIGH FAN or
HIGH COOL and set the thermostat to a
higher temperature
Remote Control
is not working
The batteries are inserted incorrectly
The batteries may be dead
• Check the position of the batteries
• Replace the batteries
Digital display
reads “Ft” The tank is full.
• The drain cap must be removed from the
rear of the appliance and the tank will need
to be drained.

16 17
¡Hola! Comencemos.
Aire acondicionado portátil
NO LO DEVUELVA A LA TIENDA
ASISTENCIA TCL:
www.tclusa.com/support
1-800-825-6747
contáctenos primero
con cualquier pregunta
ESTAMOS
LISTOS PARA
AYUDAR
CUIDADO CUANDO RETIRE
LA UNIDAD DE AIRE ACONDICIONADO

16 17
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Antes de instalar y usar su aire acondicionado, lea detenidamente este manual. Conserve este manual en un
lugar seguro para futuras consultas. Su seguridad y la de los demás son muy importantes para nosotros.
Por favor, preste atención a todos los mensajes de seguridad descritos en este manual.
ADVERTENCIA: Para reducir el riesgo de incendio, descarga eléctrica o lesiones al usar su aire
acondicionado, ajústese a las siguientes precauciones básicas:
REQUISITOS ELÉCTRICOS
Las clasificaciones eléctricas para su acondicionador de aire se detallan en la etiqueta del modelo y el
número de serie, ubicados en el lado frontal derecho de la unidad (vista de frente).
REGISTRE SU APARATO
Puede registrar su dispositivo en línea, visitando tclusa.com/registration. Asegúrese de conservar su recibo
de compra original. Se requiere un comprobante de compra válido para todos los reclamos de garantía.
Documente aquí su modelo y números de serie:
N° de modelo______________________________ N° de serie ______________________________
Puede ubicar su número de serie de 20 dígitos debajo del código de barras (En el lado derecho del sistema
de aire acondicionado).
ADVERTENCIA Los requisitos eléctricos específicos se muestran en el siguiente diagrama. Cumpla los
siguientes requisitos en relación al tipo de enchufe en el cable de alimentación.
Peligro de Descarga Eléctrica
Enchufar a un tomacorrientes de
3 terminales con conexión a tierra.
No quite el terminal de tierra.
No use un adaptador
No utilice un cable alargador.
No seguir estas instrucciones
puede provocar la muerte, un
incendio o una descarga eléctrica.
Requerimientos del Cableado Cable de Alimentación
Salida de 60Hz,
115V AC protegida por un fusible
o disyuntor de
15 amperios de retardo.
MÉTODO DE PUESTA A TIERRA RECOMENDADO
Para su seguridad personal, este aire acondicionado debe estar conectado a tierra.
Este aire acondicionado está equipado con un cable de alimentación de 3 terminales con un enchufe
con conexión a tierra. Para minimizar la posibilidad de descarga eléctrica, el cable debe enchufarse a un
tomacorrientes de 3 clavijas y conectarse a tierra de acuerdo con todos los códigos y ordenanzas locales.
Si no hay disponible un tomacorrientes de 3 terminales, es responsabilidad del cliente que un electricista
calificado instale un tomacorrientes de 3 terminales debidamente conectado a tierra.
NO LO DEVUELVA A LA TIENDA
ASISTENCIA TCL:
www.tclusa.com/support
1-800-825-6747
contáctenos primero
con cualquier pregunta
ESTAMOS
LISTOS PARA
AYUDAR
CUIDADO CUANDO RETIRE
LA UNIDAD DE AIRE ACONDICIONADO

18 19
Qué hay en la caja
Lista de piezas para el modelo: TPW06CR19
(Para el modelo TPW08CR19 ver página 9)
Nº APARIENCIA NOMBRE DE LA PARTE CANTIDAD
1
Manguera de escape
Manguera de salida
Manguera de entrada
1 juego
2Kit de deslizamiento
de la ventana 1 juego
3Baterías del control remoto
(dos pilas AAA de 1,5 V) 1 juego
4Conjunto de esponja
de sellado de ventanas 1 juego
Nº DESCRIPCIÓN DE LOS
COMPONENTES
1Ranura para control remoto
2Mango
3Ruedas
4Panel de control
5Deflector
6Rejilla de aspiración
7Rejilla de salida de Aire
8Rejilla de aspiración
9Fijador del enchufe
10 Drenaje del condensador medio
11 Drenaje del condensador
12 Cable de alimentación
1
2
4
5
3
6
7
8
9
10
11
12
1
2
4
5
3
6
7
8
9
10
11
12

18 19
¡Comencemos!
Instrucciones de instalación y montaje para el modelo:
TPW06CR19
(Para el modelo TPW08CR19, ver la página 9)
Paso 1: Montaje y conexión de la manguera de escape
• Extienda ambos lados de la manguera (Fig. 1a)
• Atornillar la entrada de la manguera (Fig. 1b)
• Atornillar la salida de la manguera (Fig. 1c)
• Fije la manguera de escape deslizando la salida de la manguera desde arriba hacia abajo en la
rejilla de salida de aire. (Fig. 1d)
A
A
B
B
CC
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window
Paso 2: Instalación del kit de deslizamiento de ventanas
Piezas necesarias:
A. Panel
B. Panel con agujero
C. Tornillo o pasador de plástico
Montaje
1. Deslice el panel A en el panel B y ajuste el tamaño a la anchura de la
ventana. Los tamaños de las ventanas varían. Al dimensionar el ancho
de la ventana, asegúrese de que el conjunto del kit de la ventana
esté libre de huecos al tomar las medidas. Si es necesario, reduzca el
tamaño del Panel B. Corte en el lado opuesto al agujero.
2. Bloquee el tornillo en los orificios que correspondan con el ancho
que su ventana requiere para asegurarse de que no haya huecos en el
conjunto del kit de la ventana después de la instalación.
A
A
B
B
C
C
1a. 1b. 1c. 1d.
Vertical
window
Horizontal
window
A
A
B
B
CC
1a. 1b. 1c. 1d.
Ventana
vertical
Deslizador de
ventana Deslizador de
ventana
Ventana
horizontal
Corte en el lado
opuesto del agujero

20 21
3. Use el sello de espuma suministrado para rellenar cualquier hueco.
A
A
B
B
C
C
1a. 1b. 1c. 1d.
Ventana
vertical
Deslizador de
ventana Deslizador de
ventana
Ventana
horizontal
Corte en el lado
opuesto del agujero
4. Conecte la salida de la manguera al kit de deslizamiento de la ventana.
Cómo controlar su aire acondicionado
¡Todo lo básico que necesita saber para mantenerse fresco!
Panel de control
El panel de control se encuentra en la parte superior del aparato y le permite controlarlo sin el
control remoto.
CONTROL REMOTO
Botón de encendido/apagado
Botón de aumento
Botón de disminución
Botón temporizador
Botón del interruptor de la unidad
Botón de velocidad del ventilador
Botón de modo
Botón de giro
Botón Sleep
