TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
CEILING

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
2
CONTENTS
Part ⅠTechnical Information..................................................................................................4
1. Important Notice......................................................................................................................4
2. Model List…...............................................................................................................................5
2.1 Indoor Units.................................................................................................................................................5
2.2 Outdoor Units.............................................................................................................................................. 5
3. PRODUCT DATA........................................................................................................................................................6
3.1 Specifications Sheet….................................................................................................................................6

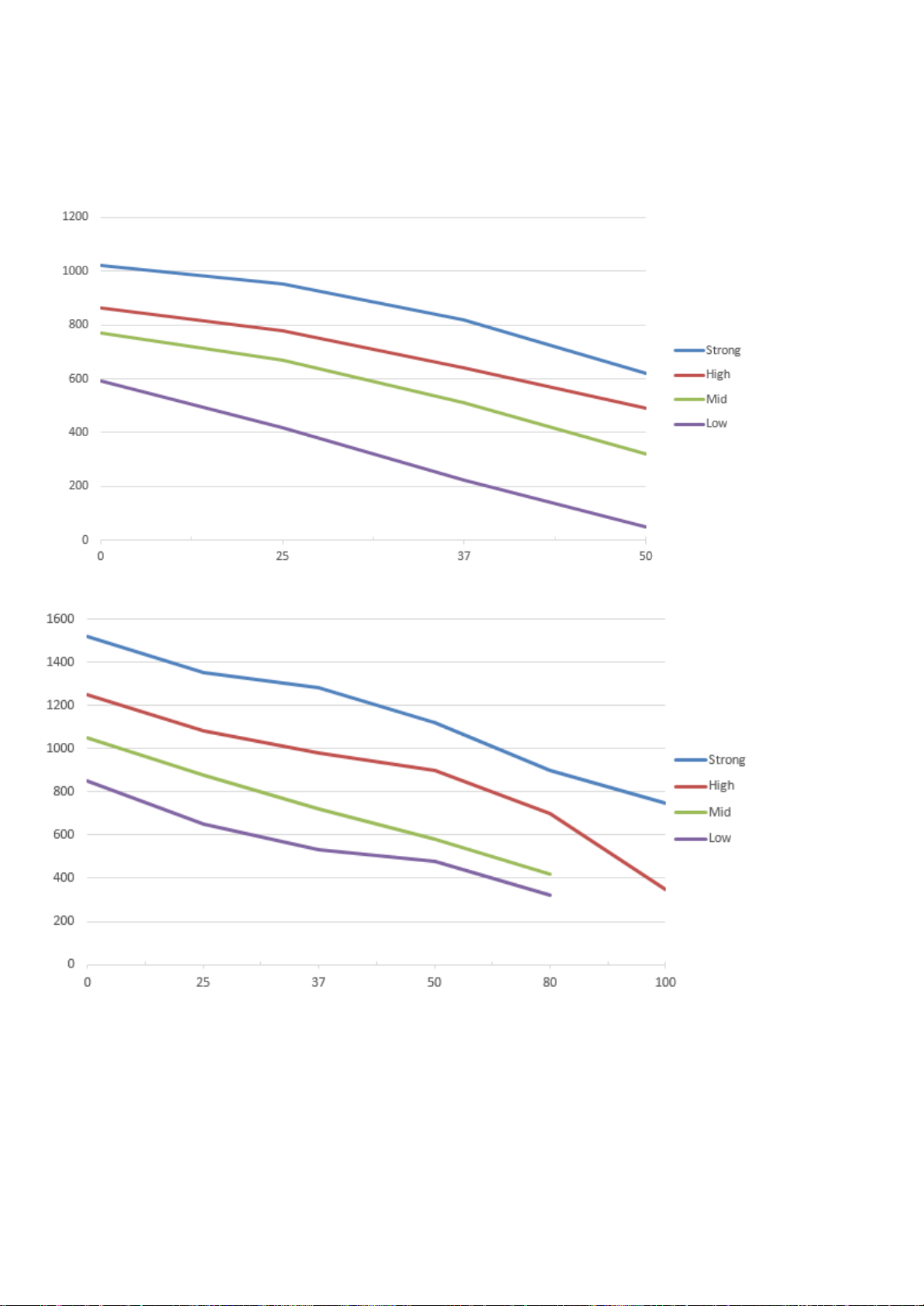

3.2 The curve of StaticPressure(Duct Type)........................................................................................................10
3.3 Sound Levels .............................................................................................................................................12
3.4 Operation Limits.........................................................................................................................................13
3.5 Product Dimensions...................................................................................................................................14
3.6 Refrigeration Cycle Diagram.....................................................................................................................17
3.7 Electric Characteristics ............................................................................................................................. 17
3.8 The Specification of Power ....................................................................................................................... 18
3.9 Wiring Diagram ......................................................................................................................................... 19
3.10 PCB Layout… .........................................................................................................................................26
3.11 Built-in Draining Pump............................................................................................................................. 33
4. Electronic Controller Introduction.................................................................................................................34
4.1 Remote Controller… .................................................................................................................................34
4.2 Wired Remote Controller… ....................................................................................................................... 36
4.3 Electronic Controller… ...............................................................................................................................45
PART ⅡInstallation and Maintenance…......................................................................52
1. Notes for Installation and Maintenance ....................................................................................52
2. Installation…..........................................................................................................................................60
2.1 Location Selection..................................................................................................................................... 60
2.2 Indoor Unit Installation ...............................................................................................................................60
2.3 Outdoor Unit Installation............................................................................................................................ 68
2.4 Drainage Pipe Installation ..........................................................................................................................69
2.5 Drainage Test..........................................................................................................................................................74
2.6 Refrigerant Pipe Installation......................................................................................................................74
2.7 Vacuum Drying and Leakage Detection.................................................................................................... 78
2.8 Additional Refrigerant Charge....................................................................................................................80
2.9 Engineering of Insulation .......................................................................................................................... 80
2.10 Engineering of Electrical Wiring...............................................................................................................81
2.11 TestOperation.........................................................................................................................................86
3. Maintenance..........................................................................................................................................87
3.1 Display Board.............................................................................................................................................87
3.2 Failure Code ............................................................................................................................................. 87
1.1 Trouble Shooting........................................................................................................................................89
2. Exploded View and Parts List… ................................................................................................. 105
2.1 Outdoor Unit.............................................................................................................................................105

3
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
2.2 Indoor Unit… ...........................................................................................................................................113
APPENDIX
Appendix 1 The Comparison Table ofCelsius-Fahrenheit Temperature.......................................................... 132
Appendix 2 Temperature Sensor Resistance ValueTable (℃--K) ...............................................................132
Appendix 3…..................................................................................................................................................133
Appendix 4…..................................................................................................................................................134

4
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
Part ⅠTechnical Information
1. Important Notice
This service manual is intended for use by individuals possessing adequate backgrounds of electrical,
electronic and mechanical experience. Any attempt to repair the appliance may result in personal injury and
property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor
can it assume any liability in connection with itsuse.
The information, specifications and parameter are subject to change due to technical modification or
improvement without any prior notice. The accurate specifications are presented on the nameplate label.

5
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
2. Model List(结构补图)
2.1 Indoor Units
Type
Model Name
Nominal
Capacity
Cooling/Heating
(Btu/h)
Power
Supply (V,
Ph, Hz)
Appearance
Cassette
Type
TCC-12CHRH/DV(Q4)(02)
TCC-18CHRH/DV(Q4)(02)
12500/13500
18000/19500
220-240V～
1ph 50Hz
TCC- 18CHRH/DVI(02)
18000/19500
220-240V～
1ph 50Hz
TCC- 24CHRH/DVI(02)
24000/26000
220-240V～
1ph 50Hz
TCC- 30CHRH/DVI(02)
30000/32000
220-240V～
1ph 50Hz
TCC- 36CHRH/DVI(02)
36000/39000
220-240V～
1ph 50Hz
TCC- 42CHRH/DVI(02)
42000/46000
220-240V～
1ph 50Hz
TCC- 48CHRH/DVI(02)
45700/55000
220-240V～
1ph 50Hz
TCC- 55CHRH/DVI(02)
53000/62000
220-240V～
1ph 50Hz
Duct Type
TCC- 12D2HWH/DVI(02)
TCC- 18D2HWH/DVI(02)
12500/13500
18000/19500
220-240V～
1ph 50Hz
TCC- 24D2HWH/DVI(02)
24000/26000
220-240V～
1ph 50Hz
T CC- 30D2HWH/DVI(02)
30000/32000
220-240V～
1ph 50Hz
TCC- 36D2HWH/DVI(02)
36000/39000
220-240V～
1ph 50Hz
TCC- 42D2HWH/DVI(02)
42000/50000
220-240V～
1ph 50Hz
TCC- 48D2HWH/DVI(02)
46000/55000
220-240V～
1ph 50Hz
TCC- 55D2HWH/DVI(02)
52000/62000
220-240V～
1ph 50Hz

6
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
Ceiling & Floor
Type
TCC-12ZHRH/DV(02)
TCC-18ZHRH/DV(02)
12500/13500
18000/19500
220-240V～
1ph 50Hz
TCC-24ZHRH/DV(02)
24000/26000
220-240V～
1ph 50Hz
TCC-30ZHRH/DV(02)
30000/32000
220-240V～
1ph 50Hz
TCC-36ZHRH/DV(02)
36000/39600
220-240V～
1ph 50Hz
TCC-42ZHRH/DV(02)
42000/46000
220-240V～
1ph 50Hz
TCC-48ZHRH/DVI(02)
48000/55000
220-240V～
1ph 50Hz
TCC-55ZHRH/DVI(02)
52000/62000
220-240V～
1ph 50Hz
2.2 Outdoor Units
Model Name
Power Supply (V, Ph, Hz)
Appearance
TCC-18HRH/DVO(02)
TCC-12HRH/DVO(02)
220-240V～1ph 50Hz
TCC-24HRH/DVO(02)
220-240V～1ph 50Hz
TCC-30HRH/DVO(02)
220-240V～1ph 50Hz
TCC-36HRH/DVO(02)
220-240V～1ph 50Hz
TCC-36HRH/DV7O(02)
380-415V～3ph 50Hz
TCC-42HRH/DVO(02)
220-240V～1ph 50Hz
TCC-42HRH/DV7O(02)
380-415V～3ph 50Hz

7
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
TCC-48HH/DV7O(02)
380-415V～3ph 50Hz
TCC-55HH/DV7O(02)
380-415V～3ph 50Hz

8
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
3. PRODUCT DATA
3.1 Specifications Sheet
3.1.1 Cassette Type
model
TCC-12CHRH/DV(Q4)(02)
TCC-18CHRH/DV(Q4)(02)
TCC-18CHRH/DV(02)
TCC-24CHRH/DV(02)
TCC-30CHRH/DV(02)
TCC-36CHRH/DV(02)
Indoor unit
TCC-12CHRH/DVI(Q4)(02)
TCC-18CHRH/DVI(Q4)(02)
TCC-18CHRH/DVI(02)
TCC-24CHRH/DVI(02)
TCC-30CHRH/DVI(02)
TCC-36CHRH/DVI(02)
Outdoor unit
TCC-12HH/DVO(02)
TCC-18HH/DVO(02)
TCC-18HH/DVO(02)
TCC-24HH/DVO(02)
TCC-30HH/DVO(02)
TCC-36HH/DVO(02)
Type
heating pump
heating pump
heating pump
heating pump
heating pump
heating pump
Control type
remote controller
remote controller
remote controller
remote controller
remote controller
remote controller
Declared cooling capacity
btu/h
12500(6200~16600)
18000(2115~18500)
18000(2115~19050)
24000(7500～25500)
30000（7600~32000)
36000(10500～42000)
Declared heating capacity
btu/h
13500(6800~18400)
19010(2600~19800)
19800(2600~20820)
26900(7900～28500)
32000（9200~33200)
40000(11200～46000)
Declared cooling capacity
W
3770(600~4860)
5300(620~5400)
5300(620~5580)
7030(2200～7500)
8790（2230~9380）
10550(3080～12300)
Declared heating capacity
W
4000(700~5400)
5570(760~5800)
5800(760~6100)
7900(2320～8350)
9380（2700~9730）
11720(3280～13500)
Pdesignc
W
3770
5300
5300
7030
8800
10550
SEER declared
W/W
6.1
6.1
6.3
6.2
6.2
6.2
Energy Class
A++
A++
A++
A++
A++
A++
Pdesignh Average
W
4000
4200
4300
6000
7400
8500
SCOP Average declared
W/W
4.00
3.80
4.00
4.0
4.0
4.1
Energy Class(Average)
A+
A
A+
A+
A+
A+
Declare capacity(-10℃)
W
3270
3200
3300
5450
6550
6800
Back up heating capacity(-
10℃)
W
730
100
1000
550
750
1700
Annual
energy
consumption
Cooling
kwh/a
335
303
294
402
485
596
Average
kwh/a
1514
1547
1505
2075
2550
2902
Moisture removal
Liters/h
1.2
1.2
1.5
2.00
2.6
3.60
Indoor sound
power(S/H/M/L/Mute)
dB(A)
57/52/51/50/48
57/54/53/50/48
55/52/49/46/44
59/56/52/49/47
61/57/53/50/45
63/60/59/57/53
Indoor sound
power(Standard rating
conditions)
dB(A)
52
54
52
56
57
60
Outdoor sound
power(Standard rating
conditions)
dB(A)
61
62
62
64
66
67
Indoor sound
pressure(S/H/M/L/Mute)
dB(A)
47/52/51/50/38
47/44/43/40/38
45/42/39/36/34
49/46/42/39/37
51/47/43/40/35
53/50/49/47/43
Indoor sound
pressure(Standard rating
conditions)
dB(A)
42
44
42
46
47
50
Outdoor sound
pressure(Standard rating
conditions)
dB(A)
52
52
52
54
56
57
Electrical Data
Power supply
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Power supply side
Outdoor
Outdoor
Outdoor
Outdoor
Outdoor
Outdoor
Voltage Range
V
176~265
176~265
176~265
176~265
176-265
176~265
Cooling
Operating
current
Indoor
A
0.5(0.2～1.0)
0.5(0.2～1.0)
0.5(0.2～1.0)
0.8(0.2～1.0)
0.8(0.2～1.0)
0.6(0.3～0.7)
Outdoor
A
7.6(1.8～12.0)
7.6(1.8～12.0)
7.5(1.8～12.0)
10.2(3.8～14)
11.7(3.8～14.9)
14.6(1.0～20.3)
Heating
Operating
current
Indoor
A
0.5(0.2～1.0)
0.5(0.2～1.0)
0.5(0.2～1.0)
0.8(0.2～1.0)
0.8(0.2～1.0)
0.6(0.3～0.7)
Outdoor
A
8.2(1.6～11)
8.2(1.6～11)
7.1(1.6～11)
8.5(4.0～13)
10(4.0～13.9)
15.0(1.4～16.3)
Cooling
Power
consumption
Indoor
W
30(20～100)
30(20～100)
60(20～100)
100(20～135)
100(20～135)
120(50～140)
Outdoor
W
1600(295～2550)
1720(395～2750)
1625(395～2750)
2390(710～3165)
2690(710～3415)
3180(210～4460)
Heating
Power
consumption
Indoor
W
40(20～100)
30(20～100)
60(20～100)
100(20～135)
100(20～135)
120(50～140)
Outdoor
W
1650(250～2300)
1850(350～2400)
1620(350～2400)
2330(745～2965)
2630(745～3215)
3280(300～3560)
Max. power consump
W
2850
2850
2850
3500
3600
4600
Max.current
A
13
13
13
15
16.5
21
Refrigerating System
Refrigerant type/Charge/GWP/CO2
equivalent
R32/0.95kg/675/0.642tonnes
R32/0.95kg/675/0.642tonnes
R32/0.95kg/675/0.642tonnes
R32/1.35kg/675/0.911tonnes
R32/1.4kg/675/0.944tonnes
R32/2.10kg/675/1.418tonnes
Compressor
Type
Rotary
Rotary
Rotary
Rotary
Rotary
Rotary
Model
KSN140D53UFZ3
KSN140D53UFZ3
KSN140D53UFZ3
C-6RZ180H3AAF
C-6RZ210H3CDF
KTF240D43UMT
Indoor air circulation
Cooling/heating
m3/h
700/730
740/780
1150/1220
1400/1500
1500/1650
1800/1900
Indoor fan type
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Indoor fan
Cooling
rpm
830/800/700/600/580
930/840/800/730/680
560/500/450/350/320
680/590/500/430/360
700/610/520/450/380
800/720/680/620/520

9
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
speed
S/H/M/L/Mute
Heating
rpm
930/840/800/730/680
930/840/800/730/680
560/500/450/350/320
680/590/500/430/360
700/610/520/450/380
800/720/680/620/520
Dry
rpm
730/730
730/730
350/350
430/430
450/450
620/620
Sleep
rpm
830/800/700/600/580
930/840/800/730/680
560/500/450/350/320
680/590/500/430/360
700/610/520/450/380
800/720/680/620/520
Outdoor fan type
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Outdoor air circulation
m3/h
2550
2650
2650
3500
4000
5000
Outdoor fan speed
rpm
730
770
770
880
950
930
External Static
Pressure(Rated )
Pa
0
0
0
0
0
0
External Static
Pressure(Range )
Pa
0
0
0
0
0
0
Connections
5*1.5mm²
5*1.5mm²
5*1.5mm²
5*1.5mm²
5*1.5mm²
3*1.5mm²+3*0.75 mm²
Connecting
Wiring
Core x Size
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
²
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
²
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
²
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
²
outdoor：3*2.5mm²;
outdoor to indoor：
5*1.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：3*1.5mm
²+3*0.75 mm²
Expension device
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Connecting
Pipe
Gas
Inches
3/8"
3/8"
3/8"
1/2"
5/8"
5/8"
Liquid
Inches
1/4"
1/4"
1/4"
1/4"
3/8"
3/8"
Application area
m²
20-35
20-35
20-35
27~45
35-60
39~71
Max. refrigerant pipe
length
m
30
30
30
30
30
50
Max. difference in level
m
15
15
15
15
15
25
Operation temperature
range
℃
16-31
16-31
16-31
16-31
16-31
16-31
Ambient
temperature
range
Outdoor
℃
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-15-
24
Indoor
℃
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Net
dimensions
(W x H x D)
Indoor
mm
580x580x255
580x580x255
840×840×245
840×840×245
840×840×245
840×840×290
Outdoor
mm
780×605×307
780×605×307
780×605×307
845×700×342
845×700×342
910×804×378
Panel
mm
650x650x30
650x650x30
950x950x45
950x950x45
950x950x45
950x950x45
Net weight
Indoor
kg
19
19
23
24
24
26
Outdoor
kg
30
30
30
40
41
55
Panel
kg
2.5
2.5
6
6
6
6
Packing
dimensions
(W x H x D)
Indoor
mm
725x725x300
725x725x300
935×935×305
935×935×305
935×935×305
935×935×355
Outdoor
mm
890×385×643
890×385×643
890×385×643
960×747×430
960×747×430
1022x855x480
Panel
mm
745x745x100
745x745x100
1055x1055x90
1055x1055x90
1055x1055x90
1055x1055x90
w/i pipe
Outdoor
mm
/
/
/
/
/
/
Gross weight
Indoor
kg
21
22
27
28
28
31
Outdoor
kg
32
33
33
44
45
60
Panel
kg
4.5
4.5
9
9
9
9
model
TCC-36CHRH/DV7(02)
TCC-42CHRH/DV(02)
TCC-42CHRH/DV7(02)
TCC-48CHRH/DV7(02)
TCC-55CHRH/DV7(02)
Indoor unit
TCC-36CHRH/DVI(02)
TCC-42CHRH/DVI(02)
TCC-42CHRH/DVI(02)
TCC-48CHRH/DVI(02)
TCC-55CHRH/DVI(02)
Outdoor unit
TCC-36HH/DV7O(02)
TCC-42HH/DVO(02)
TCC-42HH/DV7O(02)
TCC-48HH/DV7O(02)
TCC-55HH/DV7O(02)
Type
heating pump
heating pump
heating pump
heating pump
heating pump
Control type
remote controller
remote controller
remote controller
remote controller
remote controller
Declared cooling capacity
btu/h
36000(12000～54000)
42000(12000～45000)
42000(12000～54000)
48000(12000～54000)
55000(14000～57000)
Declared heating capacity
btu/h
40000(14000～59000)
46000(13000～51000)
46000(14000～59000)
55000(14000～59000)
62000(15000～68000)
Declared cooling capacity
W
10550(3520～15830)
12100(3520～13200)
12100(3520～15830)
14070(3520～15830)
16000((4100～16710)
Declared heating capacity
W
11720(4100～17290)
13500(3810～14950)
13500(4100～17290)
16120(4100～17290)
18170(4400～19930)
Pdesignc
W
10550
12100
12100
14000
16000
SEER declared
W/W
6.1
6.1
6.1
6.1
6.1
Energy Class
A++
A++
A++
A++
A++
Pdesignh Average
W
8500
9500
9500
11200
11900
SCOP Average declared
W/W
4.0
4.0
4.0
4.0
4.0
Energy Class(Average)
A+
A+
A+
A+
A+
Declare capacity(-10℃)
W
7300
7150
7150
9200
11650
Back up heating capacity(-
10℃)
W
1200
2350
2350
2000
250
Annual
energy
consumption
Cooling
kwh/a
620
700
715
830
923
Average
kwh/a
2760
3210
3260
3900
4203
Moisture removal
Liters/h
4.80
4.20
4.80
4.80
5.40
Indoor sound
power(S/H/M/L/Mute)
dB(A)
63/61/59/56/53
63/60/58/56/53
63/61/59/56/53
63/61/59/56/53
63/61/59/56/53

10
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
Indoor sound
power(Standard rating
conditions)
dB(A)
61
60
61
61
61
Outdoor sound
power(Standard rating
conditions)
dB(A)
70
68
70
70
68
Indoor sound
pressure(S/H/M/L/Mute)
dB(A)
53/51/49/46/43
53/50/48/46/43
53/51/49/46/43
53/51/49/46/43
53/51/49/46/43
Indoor sound
pressure(Standard rating
conditions)
dB(A)
51
50
51
51
51
Outdoor sound
pressure(Standard rating
conditions)
dB(A)
60
58
60
60
58
Electrical Data
Power supply
Indoor：220-
240V~/50Hz/1P
Outdoor：380-
415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Power supply side
Outdoor
Outdoor
Outdoor
Outdoor
Outdoor
Voltage Range
V
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V/50Hz/3P
176~265
Indoor：176~265
Outdoor：304~458
Indoor：176~265
Outdoor：304~458
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V/50Hz/3P
Cooling
Operating
current
Indoor
A
1.0（0.6~1.4）
0.6(0.3～0.7)
1.0（0.6~1.4）
1.0（0.6~1.4）
1.2（0.5~1.5）
Outdoor
A
4.5（1.7~9.8）
16.8(1.0～20.3)
6.8（1.7~9.8）
6.8（1.7~9.8）
9.0（1.9~11.0）
Heating
Operating
current
Indoor
A
1.0（0.6~1.4）
0.6(0.3～0.7)
1.0（0.6~1.4）
1.0（0.6~1.4）
1.2（0.5~1.5）
Outdoor
A
4.8（1.4~10.6）
16.2(1.5～17.1)
7.2（1.4~10.6）
7.2（1.4~10.6）
8.8（1.7~11.0）
Cooling
Power
consumption
Indoor
W
280（45~420）
125(50～150)
280（45~420）
280（45~420）
140（45~180）
Outdoor
W
3180（920~5430）
3700(220～4460)
4520（920~5430）
4520（920~5430）
5900（1020~6440）
Heating
Power
consumption
Indoor
W
280（45~420）
125(50～150)
280（45~420）
280（45~420）
140（45~180）
Outdoor
W
3280（745~5780）
3560(320～3750)
4720（745~5780）
4720（745~5780）
5800（920~6950）
Max. power consump
W
7000
4650
7000
7000
7000
Max.current
A
12.0
21
12.0
12.0
12.0
Refrigerating System
Refrigerant type/Charge/GWP/CO2
equivalent
R32/2.10kg/675/1.418ton
nes
R32/2.20kg/675/1.485ton
nes
R32/2.10kg/675/1.418ton
nes
R32/2.10kg/675/1.418ton
nes
R32/2.60kg/675/1.418tonne
s
Compressor
Type
Rotary
Rotary
Rotary
Rotary
Rotary
Model
C-7RZ320H3CCF
KTF240D43UMT
C-7RZ320H3CCF
C-7RZ320H3CCF
GTH420SKPC8DQ
Indoor air circulation
Cooling/heating
m3/h
2100/2100
2000/2000
2100/2100
2100/2100
2000/2100
Indoor fan type
Propeller fan
Propeller fan
centrifugal fan
centrifugal fan
centrifugal fan
Indoor fan
speed
S/H/M/L/Mute
Cooling
rpm
880/800/720/680/600
840/730/680/640/560
880/800/720/680/600
880/800/720/680/600
880/800/750/680/600
Heating
rpm
880/800/720/680/600
840/730/680/640/560
880/800/720/680/600
880/800/720/680/600
880/800/750/680/600
Dry
rpm
680/680
560/560
680/680
680/680
680/680
Sleep
rpm
880/800/720/680/600
840/730/680/640/560
880/800/720/680/600
880/800/720/680/600
880/800/750/680/600
Outdoor fan type
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Outdoor air circulation
m3/h
5600
5000
5600
5600
6400
Outdoor fan speed
rpm
700
930
700
700
740
Connections
3×0.75mm²通讯线
3*1.5mm²+3*0.75
3×0.75mm²通讯线
3×0.75mm²通讯线
3×0.75mm²通讯线
Connecting
Wiring
Core x Size
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：
3*1.5mm²+3*0.75
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Expension device
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Connecting
Pipe
Gas
Inches
5/8"
5/8"
5/8"
5/8"
5/8"
Liquid
Inches
3/8"
3/8"
3/8"
3/8"
3/8"
Application area
m²
50~95
50~95
50~95
50~95
55~105
Max. refrigerant pipe length
m
60
50
60
60
60
Max. difference in level
m
30
25
30
30
30
Operation temperature range
℃
16-31
16-31
16-31
16-31
16-31
Ambient
temperature
range
Outdoor
℃
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-15-
24
Indoor
℃
Cooling:17-32/Heating:0-
Cooling:17-32/Heating:0-
Cooling:17-32/Heating:0-
Cooling:17-32/Heating:0-
Cooling:17-32/Heating:0-27

11
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
30
30
27
27
Net
dimensions
(W x H x D)
Indoor
mm
840×840×290
840×840×290
840×840×290
840×840×290
840×840×290
Outdoor
mm
1010×858×436
910×804×378
1010×858×436
1010×858×436
1010×858×436
Panel
mm
950x950x45
950x950x45
950x950x45
950x950x45
950x950x45
Net weight
Indoor
kg
28
26
28
28
28
Outdoor
kg
77
55
77
77
83
Panel
kg
6
6
6
6
6
Packing
dimensions
(W x H x D)
Indoor
mm
935×935×355
935×935×355
935×935×355
935×935×355
935×935×355
Outdoor
mm
1145×970×535
1022x855x480
1145×970×535
1145×970×535
1145×970×535
Panel
mm
1055x1055x90
1055x1055x90
1055x1055x90
1055x1055x90
1055×1055×90
w/i pipe
Outdoor
mm
/
/
/
/
/
Gross weight
Indoor
kg
33
31
33
33
33
Outdoor
kg
89
60
89
89
95
Panel
kg
9
9
9
9
9

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
11
3.1.2 Duct Type
model
TCC-12D2HWH/DV(02)
TCC-18D2HWH/DV(02)
TCC-24D2HWWH/DV(02)
TCC-30D2HWWH/DV(02)
TCC-36D2HWH/DV(02)
Indoor unit
TCC-12D2HWH/DVI(02)
TCC-18D2HWH/DVI(02)
TCC-24D2HWH/DVI(02)
TCC-30D2HWH/DVI(02)
TCC-36D2HWH/DVI(02)
Outdoor unit
TCC-12HH/DVO(02)
TCC-18HH/DVO(02)
TCC-24HH/DVO(02)
TCC-30HH/DVO(02)
TCC-36HH/DVO(02)
Type
heating pump
heating pump
heating pump
heating pump
heating pump
Control type
wire controller
wire controller
wire controller
wire controller
remote controller
Declared cooling
capacity
btu/h
12500(6200~16600)
18000(2115~19050)
24000(7500～25500)
30000（7600~32000)
36000(10500～42000)
Declared heating
capacity
btu/h
13500(6800~18400)
19800(2600~20820)
26900(7900～28500)
32000（9200~33200)
40000(11200～46000)
Declared cooling
capacity
W
3770(600~4860)
5300(620~5580)
7030(2200～7500)
8790（2230~9380）
10550(3080～12300)
Declared heating
capacity
W
4000(700~5400)
5800(760~6100)
7900(2320～8350)
9380（2700~9730）
11720(3280～13500)
EER declared
W/W
3770
3.03
2.88
2.90
2.97
COP declared
W/W
6.1
3.07
3.07
3.10
3.30
Pdesignc
W
A++
5300
7030
8800
10550
SEER declared
W/W
4000
6.3
6.2
6.2
6.1
Energy Class
4.00
A++
A++
A++
A++
Pdesignh Average
W
A+
4300
5500
7400
8500
SCOP Average declared
W/W
3270
4.00
4.0
4.0
4.1
Energy Class(Average)
730
A+
A+
A+
A+
Declare capacity(-10℃)
W
284
3650
4800
6550
7650
Back up heating
capacity(-10℃)
W
1475
650
700
750
850
Annual
energy
consumption
Cooling
kwh/a
1.5
294
402
485
605
Average
kwh/a
53/51/49/47/45
1505
1925
2550
2902
Moisture removal
Liters/h
51
1.5
2.00
2.6
3.60
Indoor sound
power(S/H/M/L/Mute)
dB(A)
62
53/51/49/47/45
58/55/53/48/46
57/55/54/50/48
62/59/57/55/54
Indoor sound
power(Standard rating
conditions)
dB(A)
43/41/39/37/35
51
55
55
59
Outdoor sound
power(Standard rating
conditions)
dB(A)
41
62
64
66
67
Indoor sound
pressure(S/H/M/L/Mute)
dB(A)
52
43/41/39/37/35
48/45/43/38/36
47/45/44/40/38
52/49/47/45/44
Indoor sound
pressure(Standard rating
conditions)
dB(A)
53/51/49/47/45
41
45
45
49
Outdoor sound
pressure(Standard rating
conditions)
dB(A)
51
52
54
56
57
Electrical Data
Power supply
Indoor：220-240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Power supply side
Outdoor
Outdoor
Outdoor
Outdoor
Outdoor
Voltage Range
V
176~265
176~265
176~265
176-265
176~265
Cooling
Operating
current
Indoor
A
0.6(0.2～1.0)
0.6(0.2～1.0)
1.3(0.2～1.4)
1.4(0.2～1.6)
1.1(0.4～1.3)
Outdoor
A
7.6(1.8～12.0)
7.6(1.8～12.0)
9.2(3.8～13.6)
10.7(3.8～14.9)
15.1(0.8～19.7)
Heating
Operating
current
Indoor
A
0.6(0.2～1.0)
0.6(0.2～1.0)
1.3(0.2～1.4)
1.4(0.2～1.6)
1.1(0.4～1.3)
Outdoor
A
8.0(1.6～11)
8.0(1.6～11)
10.2(4.0～12.6)
11.7(4.0～13.9)
15.1(1.2～16.1)
Cooling
Power
consumption
Indoor
W
70(20～110)
70(20～110)
150(20～165)
170(20～185)
250(80～280)
Outdoor
W
1600(395～2740)
1680(395～2740)
2290(710～3135)
2590(710～3415)
3300(170～4320)
Heating
Power
consumption
Indoor
W
70(20～110)
70(20～110)
150(20～165)
170(20～185)
250(80～280)
Outdoor
W
1720(350～2400)
1820(350～2400)
2420(745～2935)
2720(745～3215)
3300(270～3520)
Max. power consump
W
2650
2850
3300
3600
4600
Max.current
A
13
13
15
16.5
21
Refrigerating System
Refrigerant type/Charge/GWP/CO2
equivalent
R32/0.95kg/675/0.642tonnes
R32/0.95kg/675/0.642tonn
es
R32/1.35kg/675/0.911tonn
es
R32/1.4kg/675/0.944tonnes
R32/2.10kg/675/1.418tonnes
Compressor
Type
Rotary
Rotary
Rotary
Rotary
Rotary
Model
KSN140D53UFZ3
KSN140D53UFZ3
C-6RZ180H3AAF
C-6RZ210H3CDF
KTF240D43UMT
Indoor air circulation
Cooling/heating
m3/h
800/900
800/900
1350/1550
1600/1800
1900/2000

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
12
Indoor fan type
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
Indoor fan
speed
S/H/M/L/Mut
e
Cooling
rpm
1120/1060/1020/930/830
1220/1160/1070/950/850
1050/900/800/700/660
1050/1000/950/850/770
1200/1050/1000/950/850
Heating
rpm
1120/1060/1020/930/830
1220/1160/1070/950/850
1050/900/800/700/660
1050/1000/950/850/770
1200/1050/1000/950/850
Dry
rpm
930/830
950/950
700/700
850/850
900/900
Sleep
rpm
1120/1060/1020/930/8300
1220/1160/1070/950/850
1050/900/800/700/660
1050/1000/950/850/770
1200/1050/1000/950/850
Outdoor fan type
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Outdoor air circulation
m3/h
2550
2650
3500
4000
5000
Outdoor fan speed
rpm
730
770
880
950
930
External Static
Pressure(Rated )
Pa
25
25
25
37
37
External Static
Pressure(Range )
Pa
0-60
0-60
0-80
0-120
0-160
Connections
5*1.5mm²
5*1.5mm²
5*1.5mm²
5*1.5mm²
3*1.5mm²+3*0.75 mm²
Connecting
Wiring
Core x Size
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：
5*1.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：
5*1.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
outdoor：3*2.5mm²;
outdoor to indoor：3*1.5mm²
+3*0.75 mm²
Expension device
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Connecting
Pipe
Gas
Inches
3/8"
3/8"
1/2"
5/8"
5/8"
Liquid
Inches
1/4"
1/4"
1/4"
3/8"
3/8"
Application area
m²
15-25
20-35
27~45
35-60
39~71
Max. refrigerant pipe
length
m
30
30
30
30
50
Max. difference in level
m
15
15
15
15
25
Operation temperature
range
℃
16-31
16-31
16-31
16-31
16-31
Ambient
temperature
range
Outdoor
℃
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-15-24
Indoor
℃
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-
30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Net
dimensions
(W x H x D)
Indoor
mm
920×210×570
920×210×570
920×570×270
1140×710×270
1140×710×270
Outdoor
mm
780×605×307
780×605×307
845×700×342
845×700×342
910×804×378
Net weight
Indoor
kg
23
24
26
36
36
Outdoor
kg
30
30
40
41
55
Packing
dimensions
(W x H x D)
Indoor
mm
1120x281x690
1120x281x690
1120x690x341
1341×830×341
1341×830×341
Outdoor
mm
890×385×643
890×385×643
960×747×430
960×747×430
1022x855x480
w/i pipe
Outdoor
mm
/
/
/
/
/
Gross weight
Indoor
kg
27
28
30
41
41
Outdoor
kg
33
33
44
45
60
model
TCC-36D2HWH/DV7(02)
TCC-42D2HWH/DV(02)
TCC-42D2HWH/DV7(02)
TCC-48D2HWH/DV7(02)
TCC-55D2HWH/DV7(02)
Indoor unit
TCC-36D2HWH/DVI(02)
TCC-42D2HWH/DVI(02)
TCC-42D2HWH/DVI(02)
TCC-48D2HWH/DVI(02)
TCC-55D2HWH/DVI(02)
Outdoor unit
TCC-36HH/DV7O(02)
TCC-42HH/DVO(02)
TCC-42HH/DV7O(02)
TCC-48HH/DV7O(02)
TCC-55HH/DV7O(02)
Type
heating pump
heating pump
heating pump
heating pump
heating pump
Control type
wire controller
wire controller
wire controller
wire controller
wire controller
Declared cooling capacity
btu/h
36000(12000～53000)
42000(12000～45000)
42000(12000～53000)
48000(12000～53000)
55000(14000～59000)
Declared heating capacity
btu/h
40000(14000～62000)
46000(13000～51000)
46000(14000～62000)
55000(14000～62000)
62000(15000～70000)
Declared cooling capacity
W
10550(3520～15530)
12100(3520～13200)
12100(3520～15530)
14070(3520～15530)
16000((4100～17290)
Declared heating capacity
W
11720(30(4100～18170)
13500(3810～14950)
13500(4100～18170)
16120(4100～18170)
18170(4400～20520)
Pdesignc
W
10550
12100
12100
14000
16000
SEER declared
W/W
6.1
6.1
6.1
6.1
6.1
Energy Class
A++
A++
A++
A++
A++
Pdesignh Average
W
8500
9500
9500
11800
11900
SCOP Average declared
W/W
4.0
4.0
4.0
4.0
4.0
Energy Class(Average)
A+
A+
A+
A+
A+
Declare capacity(-10℃)
W
7300
7300
7300
8800
10290
Back up heating capacity(-
10℃)
W
1200
2200
2200
3000
1610
Annual energy
consumption
Cooling
kwh/
a
620
643
700
800
949
Average
kwh/
a
2760
3205
3380
4200
4235
Moisture removal
Liters
/h
4.80
4.20
4.80
4.8
5.40

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
13
Indoor sound
power(S/H/M/L/Mute)
dB(A
)
63/61/59/57/55
62/60/58/55/53
63/61/59/57/55
63/61/59/57/55
63/62/60/58/56
Indoor sound
power(Standard rating
conditions)
dB(A
)
61
60
61
61
62
Outdoor sound
power(Standard rating
conditions)
dB(A
)
70
68
70
70
68
Indoor sound
pressure(S/H/M/L/Mute)
dB(A
)
53/51/49/47/45
52/50/48/45/43
53/51/49/47/45
53/51/49/47/45
53/52/50/48/46
Indoor sound
pressure(Standard rating
conditions)
dB(A
)
51
50
51
51
52
Outdoor sound
pressure(Standard rating
conditions)
dB(A
)
60
58
60
60
58
Electrical Data
Power supply
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Power supply side
Outdoor
Outdoor
Outdoor
Outdoor
Outdoor
Voltage Range
V
Indoor：176~265
Outdoor：304~458
176~265
Indoor：176~265
Outdoor：304~458
Indoor：176~265
Outdoor：304~458
Indoor：176~265
Outdoor：304~458
Cooling
Operating
current
Indoor
A
1.2(0.5~1.6)
1.3(0.41～1.41)
1.2(0.5~1.6)
1.2（0.5~1.6）
1.9(0.6~2.2)
Outdoor
A
7.2(1.7~10.4)
18.2（0.87～20.5）
7.2(1.7~10.4)
7.2(1.7~10.4)
9.3(2.0~11.0)
Heating
Operating
current
Indoor
A
1.2(0.5~1.6)
1.3(0.41～1.41)
1.2(0.5~1.6)
1.2(0.5~1.6)
1.9(0.6~2.2)
Outdoor
A
7.3(1.5~10.4)
16.4（1.4～17.3）
7.3(1.5~10.4)
7.3(1.5~10.4)
9.1(1.7~11.0)
Cooling Power
consumption
Indoor
W
340(70~450)
280(90～310)
340(70~450)
340(70~450)
400(60~590)
Outdoor
W
2860(890~5560)
4000（190～4500）
4760(890~5560)
4760(890~5560)
6060(1090~6510)
Heating Power
consumption
Indoor
W
340(70~450)
280(90～310)
340(70~450)
340(70~450)
400(60~590)
Outdoor
W
4760(810~5750)
3600(310～3800)
4760(810~5750)
4760(810~5750)
6250(880~6950)
Max. power consump
W
7000
4650
7000
7000
7000
Max.current
A
12.0
21
12.0
12.0
12.0
Refrigerating System
Refrigerant type/Charge/GWP/CO2
equivalent
R32/2.10kg/675/1.418tonn
es
R32/2.20kg/675/1.485ton
nes
R32/2.10kg/675/1.418tonne
s
R32/2.10kg/675/1.418tonne
s
R32/2.60kg/675/1.418ton
nes
Compressor
Type
Rotary
Rotary
Rotary
Rotary
Rotary
Model
C-7RZ320H3CCF
KTF240D43UMT
C-7RZ320H3CCF
C-7RZ320H3CCF
GTH420SKPC8DQ
Indoor air circulation
Cooling/heating
m3/h
2300/2300
2150/2150
2300/2300
2300/2300
2300/2500
Indoor fan type
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
Indoor fan
speed
S/H/M/L/Mute
Cooling
rpm
1300/1200/1100/1050/1000
1200/1050/1000/960/930
1300/1200/1100/1050/1000
1300/1200/1100/1050/1000
1350/1270/1190/1110/10
30
Heating
rpm
1300/1200/1100/1050/1000
1200/1050/1000/960/930
1300/1200/1100/1050/1000
1300/1200/1100/1050/1000
1350/1270/1190/1110/10
30
Dry
rpm
1050/1000
930/930
1050/1000
1050/1050
1110/1030
Sleep
rpm
1300/1200/1100/1050/1000
1200/1050/1000/960/930
1300/1200/1100/1050/1000
1300/1200/1100/1050/1000
1350/1270/1190/1110/10
30
Outdoor fan type
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Outdoor air circulation
m3/h
5600
5000
5600
5600
6000
Outdoor fan speed
rpm
700
930
700
700
720
External Static
Pressure(Rated )
Pa
50
50
50
50
50
External Static
Pressure(Range )
Pa
0-120
0-120
0-120
0-120
0-120
Connections
3×0.75mm²通讯线
3*1.5mm²+3*0.75
3×0.75mm²通讯线
3×0.75mm²通讯线
3×0.75mm²通讯线
Connecting
Wiring
Core x Size
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：
3*1.5mm²+3*0.75
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Expension device
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Connecting
Pipe
Gas
Inch
es
5/8"
5/8"
5/8"
5/8"
5/8"
Liquid
Inch
es
3/8"
3/8"
3/8"
3/8"
3/8"
Application area
m²
50~95
50~95
50~95
50~95
55~105
Max. refrigerant pipe length
m
60
50
60
60
60
Max. difference in level
m
30
25
30
30
30
Operation temperature range
℃
16-31
16-31
16-31
16-31
16-31

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
14
Ambient
temperature
range
Outdoor
℃
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-
15-24
Indoor
℃
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-
30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-
30
Net dimensions
(W x H x D)
Indoor
mm
1400×720×250
1400×720×250
1400×720×250
1400×720×250
1400×720×250
Outdoor
mm
1010×858×436
910×804×378
1010×858×436
1010×858×436
1010×858×436
Net weight
Indoor
kg
38
37
38
38
38
Outdoor
kg
77
55
77
77
83
Packing
dimensions
(W x H x D)
Indoor
mm
1632x827x298
1632x827x298
1632x827x298
1632x827x298
1632x827x298
Outdoor
mm
1135x970x530
1135x970x530
1135x970x530
1135x970x530
1135x970x530
w/i pipe
Outdoor
mm
/
/
/
/
/
Gross weight
Indoor
kg
43
42
43
43
43
Outdoor
kg
89
60
89
89
95

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
15
3.1.3 Ceiling & Floor Type
model
TCC-12ZHRH/DV(02)
TCC-18ZHRH/DV(02)
TCC-24ZHRH/DV(02)
TCC-30ZHRH/DV(02)
TCC-36ZHRH/DV(02)
Indoor unit
TCC-12ZHRH/DVI(02)
TCC-18ZHRH/DVI(02)
TCC-24ZHRH/DVI(02)
TCC-30ZHRH/DVI(02)
TCC-36ZHRH/DVI(02)
Outdoor unit
TCC-12HH/DVO(02)
TCC-18HH/DVO(02)
TCC-24HH/DVO(02)
TCC-30HH/DVO(02)
TCC-36HH/DVO(02)
Type
heating pump
heating pump
heating pump
heating pump
heating pump
Control type
remote controller
remote controller
remote controller
remote controller
remote controller
Declared cooling capacity
btu/h
12500(6200~16600)
18000(2115~19050)
24000(7500～25500)
30000（7600~32000)
36000(10500～42000)
Declared heating capacity
btu/h
13500(6800~18400)
19800(2600~20820)
26900(7900～28500)
32000（9200~33200)
40000(11200～46000)
Declared cooling capacity
W
3770(600~4860)
5300(620~5580)
7030(2200～7500)
8790（2230~9380）
10550(3080～12300)
Declared heating capacity
W
4000(700~5400)
5800(760~6100)
7900(2320～8350)
9380（2700~9730）
11720(3280～13500)
Pdesignc
W
3770
5300
7030
8800
10550
SEER declared
W/W
6.1
6.3
6.2
6.2
6.1
Energy Class
A++
A++
A++
A++
A++
Pdesignh Average
W
4000
4300
5500
7400
8500
SCOP Average declared
W/W
4.00
4.00
4.0
4.0
4.0
Energy Class(Average)
A+
A+
A+
A+
A+
Declare capacity(-10℃)
W
3270
3650
5400
6550
7200
Back up heating capacity(-
10℃)
W
730
650
100
750
1300
Annual energy
consumption
Cooling
kwh/a
284
294
485
490
605
Average
kwh/a
1475
1505
2550
2550
2975
Moisture removal
Liters/h
1.5
1.5
2.00
2.5
3.60
Indoor sound
power(S/H/M/L/Mute)
dB(A)
59/54/52/49/45
59/54/52/49/45
64/61/57/53/50
63/61/58/55/50
65/61/59/55/52
Indoor sound
power(Standard rating
conditions)
dB(A)
54
54
61
61
61
Outdoor sound
power(Standard rating
conditions)
dB(A)
62
62
64
66
67
Indoor sound
pressure(S/H/M/L/Mute)
dB(A)
49/44/42/39/35
49/44/42/39/35
54/51/47/43/40
53/51/48/45/40
55/51/49/45/42
Indoor sound
pressure(Standard rating
conditions)
dB(A)
44
44
51
51
51
Outdoor sound
pressure(Standard rating
conditions)
dB(A)
52
52
54
56
57
Electrical Data
Power supply
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Power supply side
Outdoor
Outdoor
Outdoor
Outdoor
Outdoor
Voltage Range
V
176~265
176~265
176~265
176-265
176~265
Cooling
Operating
current
Indoor
A
0.6(0.2～1.0)
0.6(0.2～1.0)
0.85(0.2～1.0)
0.95(02-1.1)
0.8(0.3～0.9)
Outdoor
A
7.0(1.8～12.0)
7.0(1.8～12.0)
10.5(3.8～14)
12(3.8～14.9)
15.0(0.9～20.1)
Heating
Operating
current
Indoor
A
0.6(0.2～1.0)
0.6(0.2～1.0)
0.85(0.2～1.0)
0.95(02-1.1)
0.8(0.3～0.9)
Outdoor
A
8.0(1.6～11)
8.0(1.6～11)
11(4.0～13)
12.5(4.0～13.9)
15.3(1.3～16.1)
Cooling Power
consumption
Indoor
W
70(20～110)
70(20～110)
100(20～135)
120(20-155)
170(60～190)
Outdoor
W
1550(395～2740)
1580(395～2740)
2400(710～3165)
2700(710～3415)
3280(200～4410)
Heating Power
consumption
Indoor
W
70(20～110)
70(20～110)
100(20～135)
120(20-155)
170(60～190)
Outdoor
W
1750(350～2400)
1780(350～2400)
2550(745～2965)
2850(745～3215)
3330(290～3510)
Max.
powerconsump
W
2850
2850
3300
3600
4600
Max.current
A
13
13
15
16.5
21
Refrigerating
System
Refrigerant type/Charge/GWP/CO2
equivalent
R32/0.95kg/675/0.642tonnes
R32/0.95kg/675/0.642tonnes
R32/1.35kg/675/0.911tonnes
R32/1.4kg/675/0.944tonnes
R32/2.10kg/675/1.418tonnes
Compressor
Type
Rotary
Rotary
Rotary
Rotary
Rotary

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
16
Model
KSN140D53UFZ3
KSN140D53UFZ3
C-6RZ180H3AAF
C-6RZ210H3CDF
KTF240D43UMT
Indoor air circulation
Cooling/heating
m3/h
980/1050
980/1050
1200/1350
1550/1700
1950/2000
Indoor fan type
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
Indoor fan
speed
S/H/M/L/Mute
Cooling
rpm
1050/880/820/750/650
1050/880/820/750/650
1300/1150/1000/900/800
1300/1170/1050/950/800
1400/1200/1080/980/850
Heating
rpm
1050/880/820/750/650
1050/880/820/750/650
1300/1150/1000/900/800
1300/1170/1050/950/800
1400/1200/1080/980/850
Dry
rpm
750/750
750/750
900/900
850/850
980/980
Sleep
rpm
1050/880/820/750/650
1050/880/820/750/650
1300/1150/1000/900/800
1300/1170/1050/950/800
1400/1200/1080/980/850
Outdoor fan type
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Outdoor air circulation
m3/h
2550
2650
3500
4000
5000
Outdoor fan speed
rpm
730
770
880
950
930
External Static
Pressure(Rated )
Pa
0
0
0
0
0
External Static
Pressure(Range )
Pa
0
0
0
0
0
Connections
5*1.5mm²
5*1.5mm²
5*1.5mm²
5*1.5mm²
3*1.5mm²+3*0.75 mm²
Connecting
Wiring
Core x Size
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
²
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
²
outdoor：3*2.5mm²;
outdoor to indoor：5*1.5mm
²
outdoor：3*2.5mm²;
outdoor to indoor：
5*1.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：3*1.5mm
²+3*0.75 mm²
Expension device
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Connecting
Pipe
Gas
Inches
3/8"
3/8"
1/2"
5/8"
5/8"
Liquid
Inches
1/4"
1/4"
1/4"
3/8"
3/8"
Application area
m²
15-25
20-35
27~45
35-60
39~71
Max. refrigerant pipe length
m
30
30
30
30
50
Max. difference in level
m
15
15
15
15
25
Operation temperature
range
℃
16-31
16-31
16-31
16-31
16-31
Ambient
temperature
range
Outdoor
℃
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-15-
24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-15-
24
Indoor
℃
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Net
dimensions
(W x H x D)
Indoor
mm
1055x675x235
1055x675x235
1055×675×235
1275×675×235
1275×675×235
Outdoor
mm
780×605×307
780×605×307
845×700×342
845×700×342
910×804×378
Net weight
Indoor
kg
24
24
26
30
30
Outdoor
kg
30
30
40
41
55
Packing
dimensions
(W x H x D)
Indoor
mm
1130x748x305
1130x748x305
1130x748x305
1350x748x305
1350x748x305
Outdoor
mm
890×385×643
890×385×643
960×747×430
960×747×430
1022x855x480
w/i pipe
Outdoor
mm
/
/
/
/
/
Gross weight
Indoor
kg
29
29
31
35
35
Outdoor
kg
33
33
44
45
60
model
TCC-36ZHRH/DV7(02)
TCC-42ZHRH/DV(02)
TCC-42ZHRH/DV7(02)
TCC-48ZHRH/DV7(02)
TCC-55ZHRH/DV7(02)
Indoor unit
TCC-36ZHRH/DVI(02)
TCC-42ZHRH/DVI(02)
TCC-42ZHRH/DVI(02)
TCC-48ZHRH/DVI(02)
TCC-55ZHRH/DVI(02)
Outdoor unit
TCC-36HH/DV7O(02)
TCC-42HH/DVO(02)
TCC-42HH/DV7O(02)
TCC-48HH/DV7O(02)
TCC-55HH/DV7O(02)
Type
heating pump
heating pump
heating pump
heating pump
heating pump
Control type
remote controller
remote controller
remote controller
remote controller
remote controller
Declared cooling capacity
btu/h
36000(12000～52000)
42000(12000～45000)
42000(12000～52000)
48000(12000～52000)
55000(14000～57000)
Declared heating capacity
btu/h
40000(14000～58000)
46000(13000～51000)
46000(14000～58000)
55000(14000～58000)
62000(15000～67000)
Declared cooling capacity
W
10550(3520～15240)
12100(3520～13200)
12100(3520～15240)
14070(3520～15240)
16000((4100～16710)
Declared heating capacity
W
11720(4100～17000)
13500(3810～14950)
13500(4100～17000)
16120(4100～17000)
18170(4400～19640)
Pdesignc
W
10550
12100
12100
14000
16000
SEER declared
W/W
6.1
6.1
6.1
6.1
6.1
Energy Class
A++
A++
A++
A++
A++
Pdesignh Average
W
8500
9500
9500
11800
11900
SCOP Average declared
W/W
4.0
4.0
4.0
4.0
4.0
Energy Class(Average)
A+
A+
A+
A+
A+
Declare capacity(-10℃)
W
7000
7700
7700
9900
10840

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
17
Back up heating capacity(-
10℃)
W
1500
1800
1800
1900
1060
Annual energy
consumption
Cooling
kwh/a
620
694
705
820
931
Average
kwh/a
2960
3430
3360
4450
4129
Moisture removal
Liters/h
4.80
4.20
4.80
4.8
5.40
Indoor sound
power(S/H/M/L/Mute)
dB(A)
63/62/59/56/55
66/64/62/60/53
63/62/59/56/55
65/64/61/58/55
64/61/59/56/54
Indoor sound
power(Standard rating
conditions)
dB(A)
62
64
62
62
61
Outdoor sound
power(Standard rating
conditions)
dB(A)
70
68
70
70
68
Indoor sound
pressure(S/H/M/L/Mute)
dB(A)
53/52/49/46/45
56/54/52/50/43
53/52/49/46/45
53/52/49/46/45
54/51/49/46/44
Indoor sound
pressure(Standard rating
conditions)
dB(A)
52
54
52
52
51
Outdoor sound
pressure(Standard rating
conditions)
dB(A)
60
58
60
60
58
Electrical Data
Power supply
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：220-
240V~/50Hz/1P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Indoor：220-
240V~/50Hz/1P
Outdoor：
380~415V~/50Hz/3P
Power supply side
Outdoor
Outdoor
Outdoor
Outdoor
Outdoor
Voltage Range
V
Indoor：176~265
Outdoor：304~458
176~265
Indoor：176~265
Outdoor：304~458
Indoor：176~265
Outdoor：304~458
Indoor：176~265
Outdoor：304~458
Cooling
Operating
current
Indoor
A
1.0（0.6~1.4）
0.85(0.4～1.0)
1.0（0.6~1.4）
1.0（0.6~1.4）
1.5（0.6~1.8）
Outdoor
A
7.1(1.7~9.8)
17.3（0.95～20.6）
6.3(1.7~9.8)
6.3(1.7~9.8)
9.2(1.9~11.0)
Heating
Operating
current
Indoor
A
1.0（0.6~1.4）
1.4(0.4～1.0)
1.0（0.6~1.4）
1.0（0.6~1.4）
1.5（0.6~1.8）
Outdoor
A
6.7(1.5~10.6)
16.6（1.41～17.2）
7.9(1.5~10.6)
7.9(1.5~10.6)
9.1(1.7~11.0)
Cooling Power
consumption
Indoor
W
310(80~380)
180(80～220)
310(80~380)
310(80~380)
210(80~240)
Outdoor
W
3260(920~5460)
3800（210～4520）
4590(920~5460)
4590(920~5460)
6000(1020~6440)
Heating Power
consumption
Indoor
W
310(80~380)
180(80～220)
310(80~380)
310(80~380)
210(80~240)
Outdoor
W
3080(800~5820)
3650（310～3780）
5090(800~5820)
5090(800~5820)
5960(920~6950)
Max.
powerconsump
W
7000
4650
7000
7000
7000
Max.current
A
12.0
21
12.0
12.0
12.0
Refrigerating
System
Refrigerant type/Charge/GWP/CO2
equivalent
R32/2.10kg/675/1.418tonn
es
R32/2.20kg/675/1.485to
nnes
R32/2.10kg/675/1.418ton
nes
R32/2.10kg/675/1.418tonn
es
R32/2.10kg/675/1.418tonn
es
Compressor
Type
Rotary
Rotary
Rotary
Rotary
Rotary
Model
C-7RZ320H3CCF
KTF240D43UMT
C-7RZ320H3CCF
C-7RZ320H3CCF
C-7RZ320H3CCF
Indoor air circulation
Cooling/heating
m3/h
2300/2300
2150/2150
2300/2300
2100/2200
2100/2200
Indoor fan type
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
Indoor fan
speed
S/H/M/L/Mute
Cooling
rpm
1280/1200/1100/1000/950
1250/1030/980/900/830
1280/1200/1100/1000/950
1280/1200/1100/1000/950
1320/1250/1150/1050/950
Heating
rpm
1280/1200/1100/1000/950
1250/1030/980/900/830
1280/1200/1100/1000/950
1280/1200/1100/1000/950
1320/1250/1150/1050/950
Dry
rpm
1000/950
830/830
1000/950
1000/950
1000/950
Sleep
rpm
1280/1200/1100/1000/950
1250/1030/980/900/830
1280/1200/1100/1000/950
1280/1200/1100/1000/950
1320/1250/1150/1050/950
Outdoor fan type
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Propeller fan
Outdoor air circulation
m3/h
5600
5000
5600
5600
6000
Outdoor fan speed
rpm
700
930
700
700
720
External Static
Pressure(Rated )
Pa
0
0
0
0
0
External Static
Pressure(Range )
Pa
0
0
0
0
0
Connections
3×0.75mm²通讯线
3*1.5mm²+3*0.75
3×0.75mm²通讯线
3×0.75mm²通讯线
3×0.75mm²通讯线
Connecting
Wiring
Core x Size
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
outdoor：3*2.5mm²;
outdoor to indoor：
3*1.5mm²+3*0.75
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Indoor：3×1.0mm²
Outdoor：5×2.5mm²
Expension device
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Capillary +EXV
Connecting
Gas
Inches
5/8"
5/8"
5/8"
5/8"
5/8"

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
18
Pipe
Liquid
Inches
3/8"
3/8"
3/8"
3/8"
3/8"
Application area
m²
50~95
50~95
50~95
50~95
55~105
Max. refrigerant pipe length
m
60
50
60
60
60
Max. difference in level
m
30
25
30
30
30
Operation temperature
range
℃
16-31
16-31
16-31
16-31
16-31
Ambient
temperature
range
Outdoor
℃
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Cooling:-15-50/Heating:-
15-24
Indoor
℃
Cooling:17-32/Heating:0-
30
Cooling:17-
32/Heating:0-30
Cooling:17-32/Heating:0-
30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-
30
Net dimensions
(W x H x D)
Indoor
mm
1635x675x235
1635x675x235
1635x675x235
1635x675x235
1635x675x235
Outdoor
mm
1010×858×436
910×804×378
1010×858×436
1010×858×436
1010×858×436
Net weight
Indoor
kg
38
35
38
38
38
Outdoor
kg
77
55
77
77
83
Packing
dimensions
(W x H x D)
Indoor
mm
1710x748x305
1710x748x305
1710x748x305
1710x748x305
1710x748x305
Outdoor
mm
1135x970x530
1022x855x480
1135x970x530
1135x970x530
1135x970x530
w/i pipe
Outdoor
mm
/
/
/
/
/
Gross weight
Indoor
kg
43
40
43
43
43
Outdoor
kg
89
60
86
89
95

TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
19
3.2 The curve of Static Pressure(Duct Type)
12K/18K
24K
