Tcl Alcatel pop4-10 4g&vf Technical manual

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

1/44

POP4-10 4G&VF

9030G/9030Q/VFD1400

Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior

notice on the characteristics of described equipments.

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

2/44

1.0

Draft creation

Jane Chen

Rev.

Date

Modification description

Prepared By

Checked By

Approved By

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

3/44

Content

1Level 2 repair process ..............................................................................................4

2Warranty Check and Visual Inspection ...................................................................5

2.1 Warranty confirmation of L1.....................................................................................5

2.2 Visual mechanical check..........................................................................................6

2.3 Pretest........................................................................................................................7

3Battery......................................................................................................................12

3.1 Battery information.................................................................................................12

3.2 Battery test ..............................................................................................................14

3.3 Battery specification...............................................................................................15

3.4 Note of Battery ........................................................................................................16

4Software download .................................................................................................17

4.1. Equipments requested when download：............................................................17

4.2. Handset driver installation .....................................................................................17

4.3. SW download process............................................................................................17

5 Disassembly and assembly VDF1400........................................................................21

5.1 ESD Safety...............................................................................................................21

5.2 Disassembly tool.....................................................................................................21

5.3 Disassembly process...............................................................................................22

5.4 Disassembly Notice:................................................................................................29

5.5 Reassembly process................................................................................................29

5.6 Disassembly process evaluation............................................................................30

6Disassembly Complete...........................................................................................30

7Level 2 repair...........................................................................................................30

8PCBA exchange.......................................................................................................38

9Other component exchange...................................................................................39

10 Function test............................................................................................................39

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

4/44

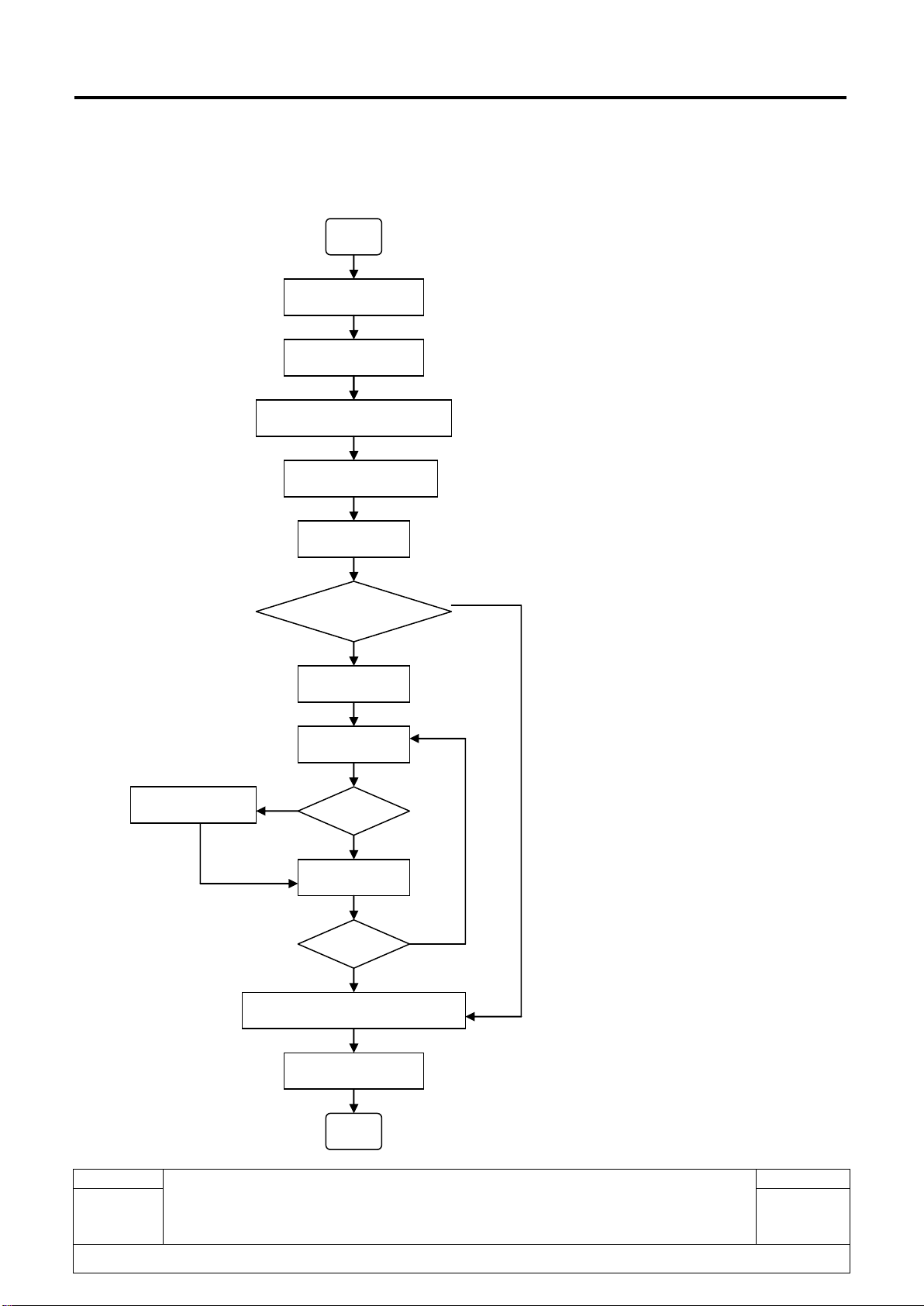

1 Level 2 repair process

Reassembly

Record in BIG

End

OK

Retest

OK

Start

Visual Inspection

Warranty Check

Pretest & Failure confirm

SW Upgrade

Disassembly

L2 Repair

Retest

Function test

PCBA Replace

NG

Restore User Information

Back up user data

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

5/44

2 Warranty Check and Visual Inspection

2.1 Warranty confirmation of L1

IMEI sticker check:

1) Power on the handset, enter ”Settings” -> “About tablet” -> “Status” -> “IMEI information”

2) Input 0X0-0+= on calculator screen.

3) There are two IMEI sticker on the device:

Position 1: in the back casing

Position 2: in the SD slot cover

If the IMEI sticker in the back casing is not lost:

We should make sure that the IMEI number MUST be the same with the one on the IMEI

sticker; if not, it‟s out of warranty policy.

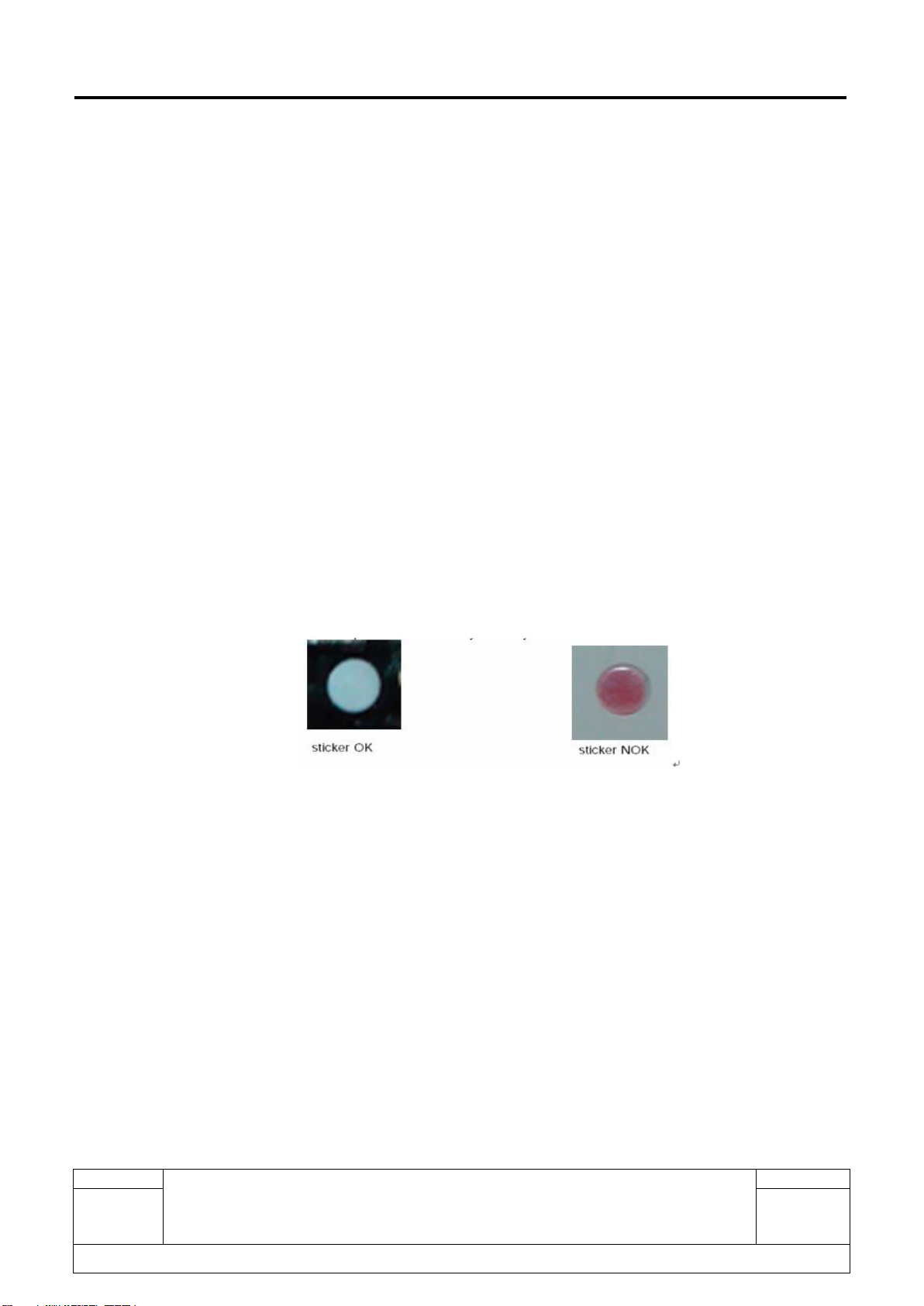

Humidity sensitive label

If humidity sensitive label is not good, the cell phone will be considered as out of

guarantee.

1). Liquid was detected by humidity sensitive label.

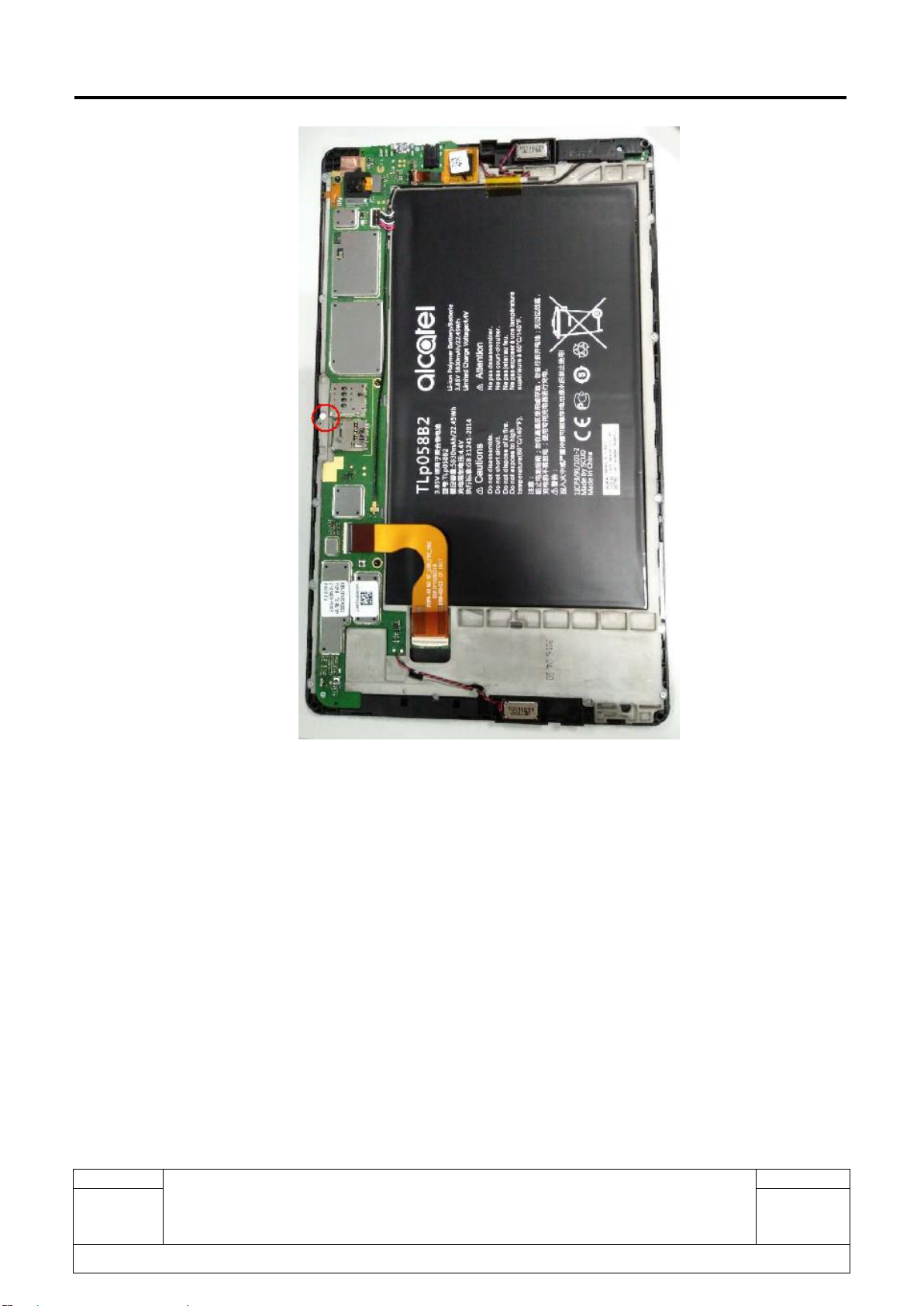

2). Position of humidity sensitive sticker.

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

6/44

2.2 Visual mechanical check

Mechanical warranties check items:

1) Corrosion

Corrosion on the USB connector, SIM connector, and other metal surfaces。

2) Hole (diameter > 1mm)

Holes on any surface, including the front casing, furnished frame, battery cover, touch Lens,

keypad…

3) Bump

Bumps (diameter > 1mm) on any surface, including front casing, decorate frame, battery

cover, touch Lens, keypad, etc.

4) Scratch

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

7/44

Scratches (length > 3mm) on any surface, including the front casing, decorate frame, battery

cover, touch Lens, keypad, etc.

5) Distortion

Bend, twisted or crushed on the h/s, cover/casing or connectors, etc.

6) Broken

Touch broken, casing/cover broken, etc.

7) Dropped

Keypad tear off, touch lens, connectors dropped, etc.

8) Gap

External physical damage relating to abnormal use, like front case and frame opened

9) Others

Damage caused by disassembly ,wrong part assembly, loss of components

Use in abnormal environment like high temperature causing plastic melts

2.3 Pretest

1) Check that the SIM card and SD card are set correctly.

2) Power on the tablet.

3) If the tablet asks to input NCK code, this means it is SIM locked and can only be worked with

dedicated SIM card. Use the correct SIM card.

4) Enter the phone code if necessary.

5) If power on, test step by step with the auto test code:

Open “Calculator” application, and input “0x0-0+=” to enter MMI test mode, and then you will

see the interface displaying the SW version. Select “Auto” to start the auto test, or select

“MANU” to do the MMI test manually.

If one of the tests failed during “Auto” test mode, it will display “Failed: xxx, Press „Next‟ to go

on test; Press „RETEST‟to retest this item; Press „END‟to Power off.”

Battery Type

I. You can get information about Battery Type.

II. Press “pass”key to continue.

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

8/44

Traceability

I. You can get information such as IMEI, BSN, BT, CU-REF, PTH, etc.

II. Press “pass”key to continue.

RAW Data

I. You can see Raw data test is running and it will display “Test: Pass”if it

functions well;

II. Press “pass”key to continue;

Touch Panel

I. “Please draw in the yellow area” according to instructions

LCD

I. You will see the LCD display three colors - RED, GREEN and BLUE - if it

functions well;

II. Press “Pass” to continue.

III.You will see the LCD display greychart if it functions well.

IV.Press “Pass”to continue.

V. You will see the LCD display black if it functions well.

VI.Press “Pass” to continue.

VII. You will see the LCD display white if it functions well.

VIII. Press “Pass” to continue.

IX.You will see the LCD display grey if it functions well.

X. Press “Pass” to continue.

Keyboard

I. You will see the key of the V+, V-, and power, click the corresponding key, then

the key turn gray on the screen.

II. Press “Pass” to continue.

Lcd Backlight

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

9/44

I. You will see the screen flash if it functions well

II. Press “Pass”to continue.

Main Camera

I. You will see the LCD displays the picture that back camera catch if it functions

well;

II. Press “Pass” to continue;

Front Camera

I. You will see the LCD displays the picture that front camera catch if it functions

well;

II. Press “Pass” to continue.

HALL

I. It will response accordingly when close the flip cover; Or close a magnet to the

red circle area in the picture below, then it will response;

II. Press “Pass”to continue;

AUDIO

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

10/44

I. You will hear piece of record from the left speaker if it functions well;

II. Press ”Pass”to continue;

III.You will hear piece of record from the right speaker if it functions well;

IV.Press ”Pass”to continue;

MIC

I. Press “start “to record sound, and then press”Play”, you will hear the record sound if it

functions well

II. Press “PASS” to continue.

Accessory

I. Insert the headset.

II. You will hear one record in left discrete;

The “Volume Down “and “Volume Up”will display grey when you adjust the volume

if it functions well.

III.Press ”Pass”,you will hear one record in right discrete;

The “Volume Down “and “Volume Up” will display grey when you adjust the

volume if it functions well.

IV. Press ”pass”to continue;

V. Press “start “to record sound, and then press”Play”, you will hear the record sound if it

functions well

VI. remove your headset

VII. Press ”Pass”to continue;

FM

I. You will hear the sound from on channel when you insert earphoneif it functions

well;

The “Volume Down “and “Volume Up”will display grey when you adjust the

volume if it functions well

II. Remove the ear phone then press “Pass” to continue;

USB/ Charger

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

11/44

I. Insert USB cable according to instruction, then it will say “USB:OK

Charger :OK” ;

II. Remove USB cable according to instruction

III.Press “Pass” to continue;

G-Sensor

I. Put the handset towards up according to instruction;

II. Put the handset towards the directions indicated by instructions; it will say “All

positions checked” after you following all the directions if it if it functions well;

III. Press “Pass” to continue;

SIM

I. Insert SIM card and the phone will detect it if functions well;

II. Press “Pass” to continue;

Memory Card

I. Insert Memory card and the phone will detect it if functions well;

II. Press “Pass” to continue;

Battery Temperature

I. It will display “Battery temperature should between: 20~50”, “current is xxx”

“Battery content should between: 40~60%”, “current is xxx”

“Battery Voltage is 4.289V”, “Battery Present is xxx” if it functions well;

II. Press ”Pass”to continue;

Bluetooth

I. Bluetooth will search automatically and it will display device address if it

functions well;

II. Press ”Pass”to continue;

Wifi

I. It will search for WIFI hotspot and display searched result on the screen if it functions well;

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

12/44

II. Press”Pass”to continue;

GPS

I. It will run GPS and search for satellite, and then it will display info such as “PRN”, “SUR”,

etc. on the screen if it functions well;

II. Press”Pass”to continue;

NETWORK

I. Insert SIM card and follow the instruction if it functions well.

II. Press”Pass”to continue;

Calling

I. It will automatically call the emergency call if it functions well.

II. Press “Pass” to continue;

BATTERY CTRL

I. You will see the battery status information.

II. Press ”Exit”to continue;

Factory Reset

It will do the factory reset automatically if you press the item.

EXIT

I. End the TEST and go back the calculator screen

3 Battery

3.1Battery information

1) Battery picture

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

13/44

2) Battery feature

3) Battery life

The bellowing table shows the nominal battery life respectively in standby and talking mode. These

typical values are expressed in normal temperature with battery initially full charged and under good

ratio coverage. Battery range depends on the network characteristics, the ambient temperature and

particularly on movement.

P

Power pack

9030G/9030Q/VDF1400

Standby time (hours)

Talking time

Power pack Lithium

450H target

20h (LCD off)

* Pmin: minimum transmission power

** DTX: no transmission during period of silence

4) Battery charge time

For a normally discharged battery which has not been stored for long time, the charge time

listed as below table.

Model

Element

Capacity

Battery Li

Lithium

5830mAh

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

14/44

Battery type (RF standby

mode)

Typical Charge time

Soft pack

4H target

Note:

If the battery is new, charge it before use. Battery icon will appear after charging a short

time.

If the battery is deeply discharged, battery icon will appear after charging several minutes

and accompany with a slight sound.

3.2Battery test

1) Below table describes the various events related to a standard charger connected to a cell phone.

9030G/9030Q/VDF1400

Cell phone status before

charger connected

ON

OFF

During charging

Display lights up and following battery icon displayed:

Sequential icon flashing:

After charging

(charger connected)

Following fixed battery icon display :

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

15/44

Table - Battery charge status on handset

2) If the display does not light on or battery icon does not flash when the charger or the cell phone‟s

charge function is defective with mechanical or electronics.

In this case:

a) Replace the charger to charge.

Confirm it works correctly or not.

If it cannot work correctly after change charger.

b) Check the Charge connector on the cell phone.

If it is damaged, replace the cell phone.

3.3Battery specification

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

16/44

3.4Note of Battery

Potential for fire or burning. Do not puncture, crush, or heat the battery. Strictly avoid using sharp tool to

pry up battery.

Fire extinguisher is needed for emergency.

The battery cannot be re-used after disassembly.

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

17/44

4 Software download

It is authorized to download software for the handset which needs to be updated. This

downloading tool is called “Sugar QCT_SP V10.4.7”. Handset Software can be

downloaded from TS website via it. Thus internet access is necessary.

Website: https://css.tclmobile.cn/.

4.1. Equipments requested when download：

⑴A handset with full power;

⑵PC with windows system;

⑶A USB cable.

4.2. Handset driver installation

Double click to install the Sugar QCT_SP V10.4.7, then select the “YES” to install the USB

driver.

4.3. SW download process

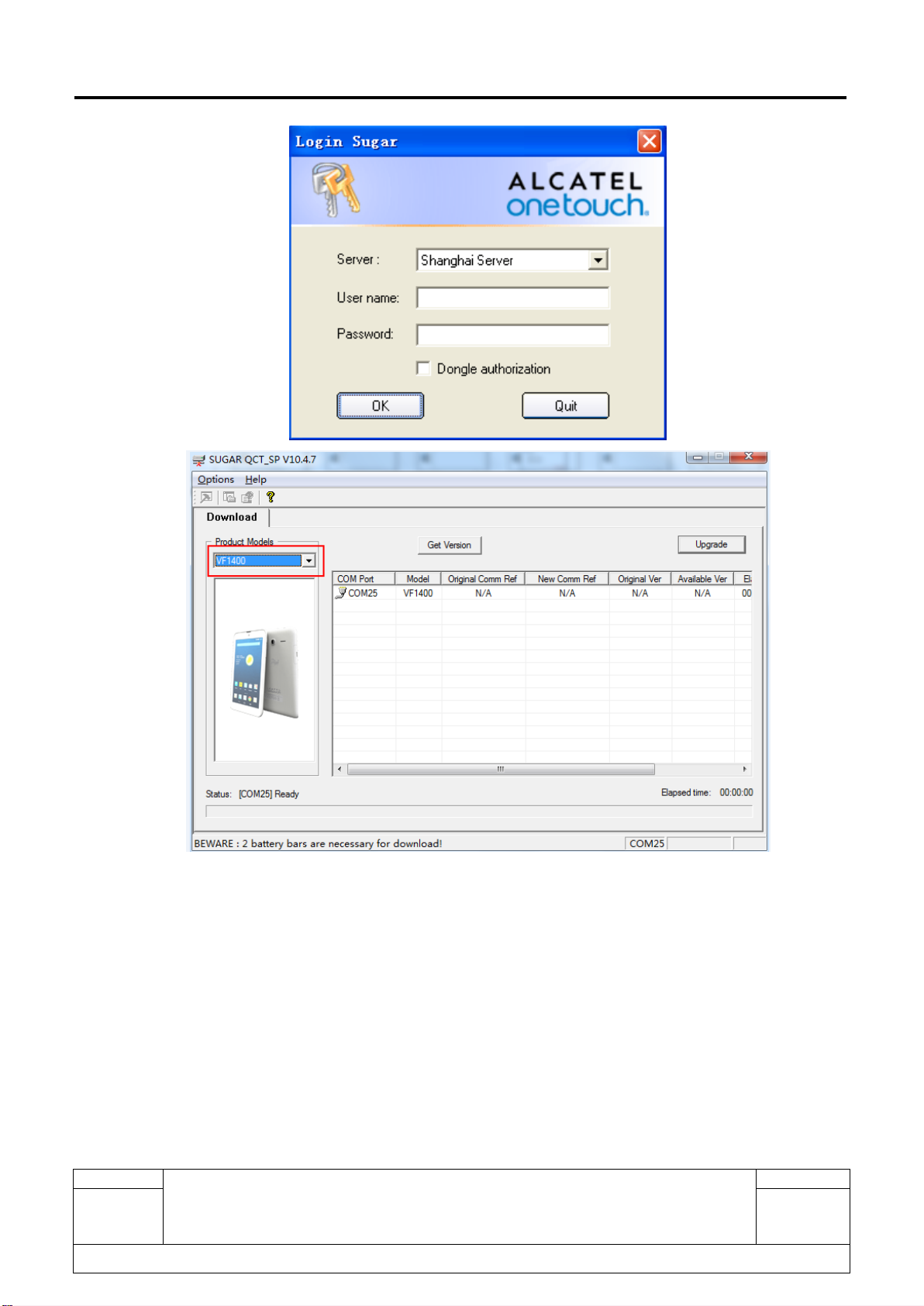

I. Login the Sugar QCT_SP V10.4.7, then select the 9030G/9030Q/VDF1400 model:

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

18/44

II. Plug the device to the PC on power on mode. Click the „Get Version‟ button, it will

display the SW version , IMEI, Cu ref etc of the handset, press “Yes “ to continue.

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

19/44

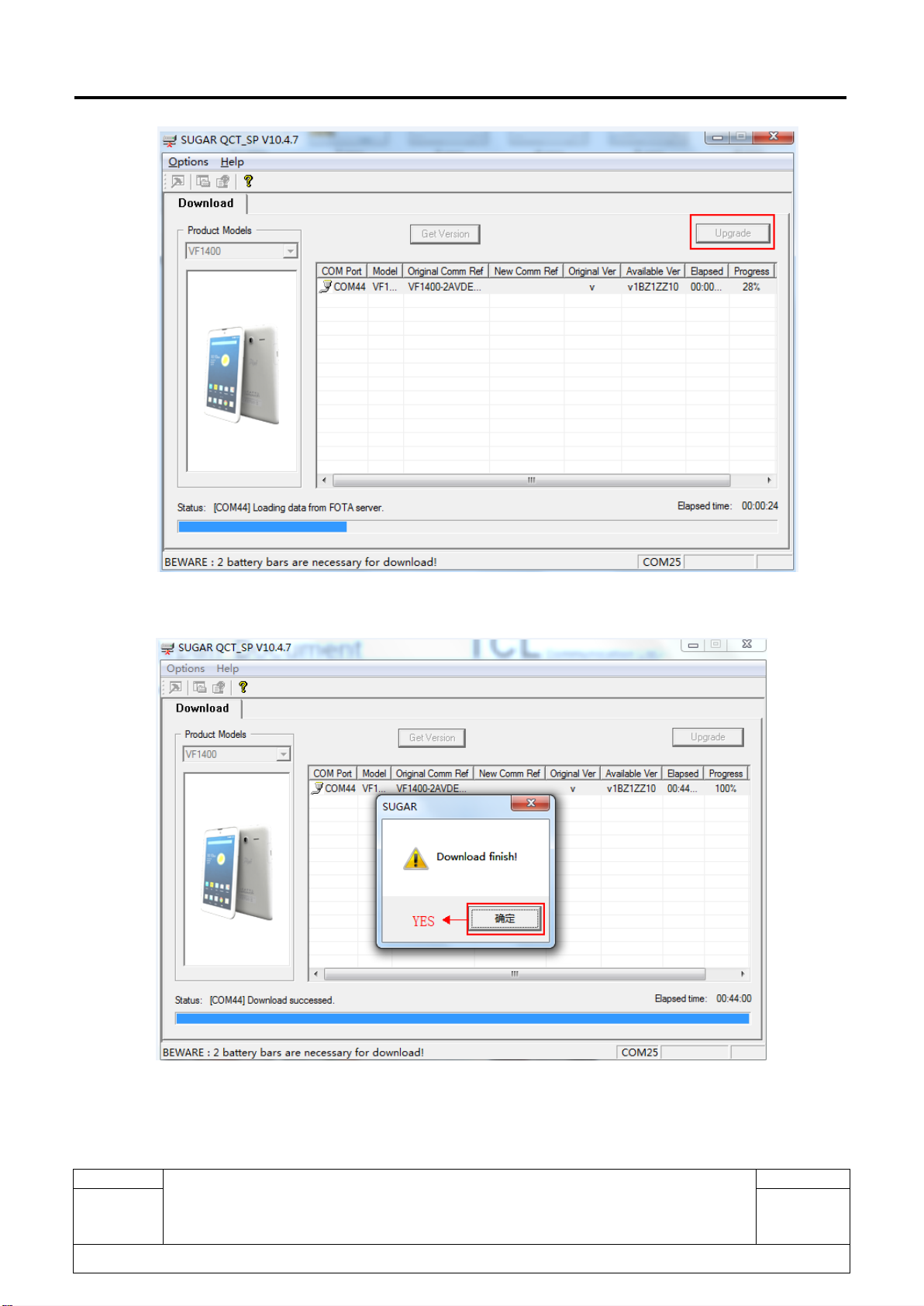

III. Click the “Upgrade”button. Online upgrade process starting:

Yes

L2 Repair Document TCLCommunication Ltd.

Rev.

9030G/9030Q/VDF1400 Level 2 Repair Document

Page

1.0

20/44

IV. Upgrade finished:

TCL Alcatel POP4-10 4G&VF Technical manual

Popular Cell Phone manuals by other brands
