TCL PIXI4-5 3G User manual

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
1/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
PIXI4-5 3G
5010X/D/G/E/S/U
Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior
notice on the characteristics of described equipments.

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
2/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
1.0
2016-04-26
Draft creation
Mani Lee
Claire Lin
Rev.
Date
Modification description
Prepared By
Checked By
Approved By

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
3/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Content
1Level 2 repair process ..............................................................................................4
2Warranty Check and Visual Inspection ...................................................................5
2.1 Warranty confirmation of L1.....................................................................................5
2.2 Visual mechanical check..........................................................................................6
2.3 Pretest........................................................................................................................7
3Battery......................................................................................................................12
3.1 Battery information.....................................................................错误!未定义书签。
3.2 Battery test ..................................................................................错误!未定义书签。
3.3 Battery specification...................................................................错误!未定义书签。
3.4 WARNING of Battery disassembling .........................................错误!未定义书签。
4Software download .....................................................................错误!未定义书签。
4.1. Equipments requested when download:................................错误!未定义书签。
4.2. Handset driver installation .........................................................错误!未定义书签。
4.3. SW download process................................................................错误!未定义书签。
5 Disassembly and assembly5010E .............................................................................21
5.1 ESD Safety...............................................................................................................21
5.2 Disassembly tool.....................................................................................................21
5.3 Disassembly process...............................................................................................22
5.4 Reassembly process................................................................................................34
5.5 Disassembly process evaluation............................................................................34
6Disassembly Complete...........................................................................................35
7Level 2 repair...........................................................................................................37
8PCBA exchange.......................................................................................................46
9Other component exchange...................................................................................47
10 Function test............................................................................................................47

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
4/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
1 Level 2 repair process
Reassembly
Record in BIG
End
OK
Retest
OK
OK
Start
Visual Inspection
Warranty Check
Pretest & Failure confirm
SW Upgrade
Disassembly
L2 Repair
Retest
Function test
PCBA Replace
NG
NG
NG
Restore User Information
Back up user data

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
5/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
2 Warranty Check and Visual Inspection
2.1 Warranty confirmation of L1
IMEI sticker check:
1) Power on the handset, enter ”Settings” -> “About phone” -> “Status” -> “IMEI/IMEI SV”
2) If the IMEI sticker in the back casing is not lost:
We should make sure that the IMEI number MUST be the same with the one on the IMEI sticker; if
not, it’s out of warranty policy.
Humidity sensitive label
If humidity sensitive label is not good, the cell phone will be considered as out of guarantee.
1). Liquid was detected by humidity sensitive label.
2). Position of humidity sensitive sticker.

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
6/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
2.2 Visual mechanical check
Mechanical warranties check items:
1) Corrosion
Corrosion on the USB connector, SIM connector, and other metal surfaces。
2) Hole (diameter > 1mm)
Holes on any surface, including the front casing, furnished frame, battery cover, touch Lens,
keypad…
3) Bump

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
7/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Bumps (diameter > 1mm) on any surface, including front casing, decorate frame, battery
cover, touch Lens, keypad, etc.
4) Scratch
Scratches (length > 3mm) on any surface, including the front casing, decorate frame, battery
cover, touch Lens, keypad, etc.
5) Distortion
Bend, twisted or crushed on the h/s, cover/casing or connectors, etc.
6) Broken
Touch broken, casing/cover broken, etc.
7) Dropped
Keypad tear off, touch lens, connectors dropped, etc.
8) Gap
External physical damage relating to abnormal use, like front case and frame opened
9) Others
Damage caused by disassembly ,wrong part assembly, loss of components
Use in abnormal environment like high temperature causing plastic melts
2.3 Pretest
1) Check that the SIM card and SD card are set correctly.
2) Power on the cell phone.
3) If the cell phone asks to input NCK code, this means it is SIM locked and can only be worked
with dedicated SIM card. Use the correct SIM card.
4) Enter the phone code if necessary.
5) If power on, test step by step with the auto test code:
Press *#2886# in dial screen and then you will see the interface displaying the SW version.
Select “Auto” to start the auto test, or select “MANU”to do the MMI test manually.
If one of the tests failed during “Auto” test mode, it will display “Failed: xxx, Press ‘Next’ to go
on test; Press ‘RETEST’to retest this item; Press ‘END’to Power off.”
TRACEBILITY

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
8/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
I. You can get information such as BT, CU-REF, PTH ,MMI,etc.,
II. Press “pass”to continue.
TP0
I. The device will run automatically and display the details of “MSG open test
result”and “Short test result”,
II. Press “pass”to continue.
TP1
I. “Please draw in the yellow area” according to instructions
II. Press “PASS” to continue.
TP2
I. “Please draw in the yellow area” according to instructions
II. Press “PASS” to continue.
LCD_MIRERGB
I. You will see the LCD display three colors - RED, GREEN and BLUE - if it
functions well;
II. Press “Pass” to continue.
LCD_BLACK
I. You will see the LCD display black if it functions well.
II. Press “Pass” to continue.
LCD_GREYCHART
I. You will see the LCD display greychart if it functions well.
II. Press “Pass”to continue.
LCD GRAYLEVEL
I. You will see the LCD display grey if it functions well.
II. Press “Pass” to continue.
LCD_WHITE

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
9/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
I. You will see the LCD display white if it functions well.
II. Press “Pass” to continue.
KEYPAD
I. You will see the key of the V+, V-, and power, click the corresponding key, then
the key turn gray on the screen.
II. Press “Pass” to continue.
BACKLIGHT
I. You will see the screen flash if it functions well
II. Press “Pass”to continue.
CAMERA
I. You will see the LCD displays the picture that back camera catch if it functions
well;
II. Press “Pass” to continue;
CAMERA IMG FRONT
I. You will see the LCD displays the picture that front camera catch if it functions
well;
II. Press “Pass” to continue.
CAMERA LED
I. You will see the Camera led light on if it functions well;
II. Press “Pass” to continue;
CHARGER LED
I. It will display “Please check charge LED" if it functions well.
II. Press “Pass”to continue;
AUDIO
I. You will hear piece of record if it functions well;
II. Press ”Pass”to continue;

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
10/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
VIBRATOR
You can feel the vibration if it functions well.
ACCESSORY
I. Insert the headset.
II. You will hear one record in left discrete;
The “Volume Down “and “Volume Up”will display grey if it functions well.
III.Press ”Pass”,you will hear one record in right discrete;
The “Volume Down “and “Volume Up” will display grey if it functions well.
IV. Press ”pass”to continue;
V.You will hear piece of record if it functions well;
VI. remove your headset
VII. Press ”Pass”to continue;
CHARGER
I. Insert charger cable according to instruction, then it will display” USB :OK” ;
II. Remove USB cable according to instruction
III.Press “Pass” to continue;
USB
I. Insert USB cable according to instruction, then it will display” Charger :OK” ;
II. Remove charger cable according to instruction
III. Press “Pass” to continue;
GSENSOR
I. Put the handset up and towards up according to instruction;
II. Put the handset towards the directions indicated by instructions; it will say “All
positions checked” after you following all the directions if it if it functions well;
III. Press “Pass” to continue;

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
11/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
PROXIMITY
I. It will display “Please shadow the sensor “, and follow the instruction if it
functions well.
II. Press “Pass” to continue;
SIM
I. Insert SIM card and the phone will detect it if functions well;
II. Press “Pass” to continue;
SD CARD
I. Insert SD card and the phone will detect it if functions well;
II. Press “Pass” to continue;
BATTERY TEMP
I. It will display “Battery temperature should between: 20~50”, “current is xxx”
“Battery content should between: 30~80%”, “current is xxx”
“Battery Voltage is xxx”, “Battery Present is xxx” if it functions well
II. Press “Pass” to continue;
WIFI
I. It will search for WIFI hotspot and display searched result on the screen if it functions well;
II. Press”Pass”to continue;
GPS
I. It will run GPS and search for satellite, and then it will display info such as “PRN”, “SUR”,
etc. on the screen if it functions well;
II. Press”Pass”to continue;
CALL
I. It will automatically call the emergency call if it functions well.
II. Press “Pass” to continue;
Factory Reset

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
12/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
I. It will display “This will eraser all data from your phone internal storage.Do you
want factory reset ?”if it functions well.
II. Press “Reset” to confirm;
3. Replace the handset parts
3.1. Preliminary
Before any disassembly (except the antenna), the back cover, battery and SIM card must be
removed firstly.
3.2. Precaution
The heart of the handset contains all digital circuit (microprocessor, ASIC, memories, display,
keypad, etc) and the high-frequency transceiver circuit which is protected by the upper and
lower cover.
However, some ESD sensitive area is completely or partially visible (keypad keys, micro-SIM
drive, etc). In order to prevent any risk of ESD damage during disassembly or assembly of
the handset, the operator's wrist should be grounded.

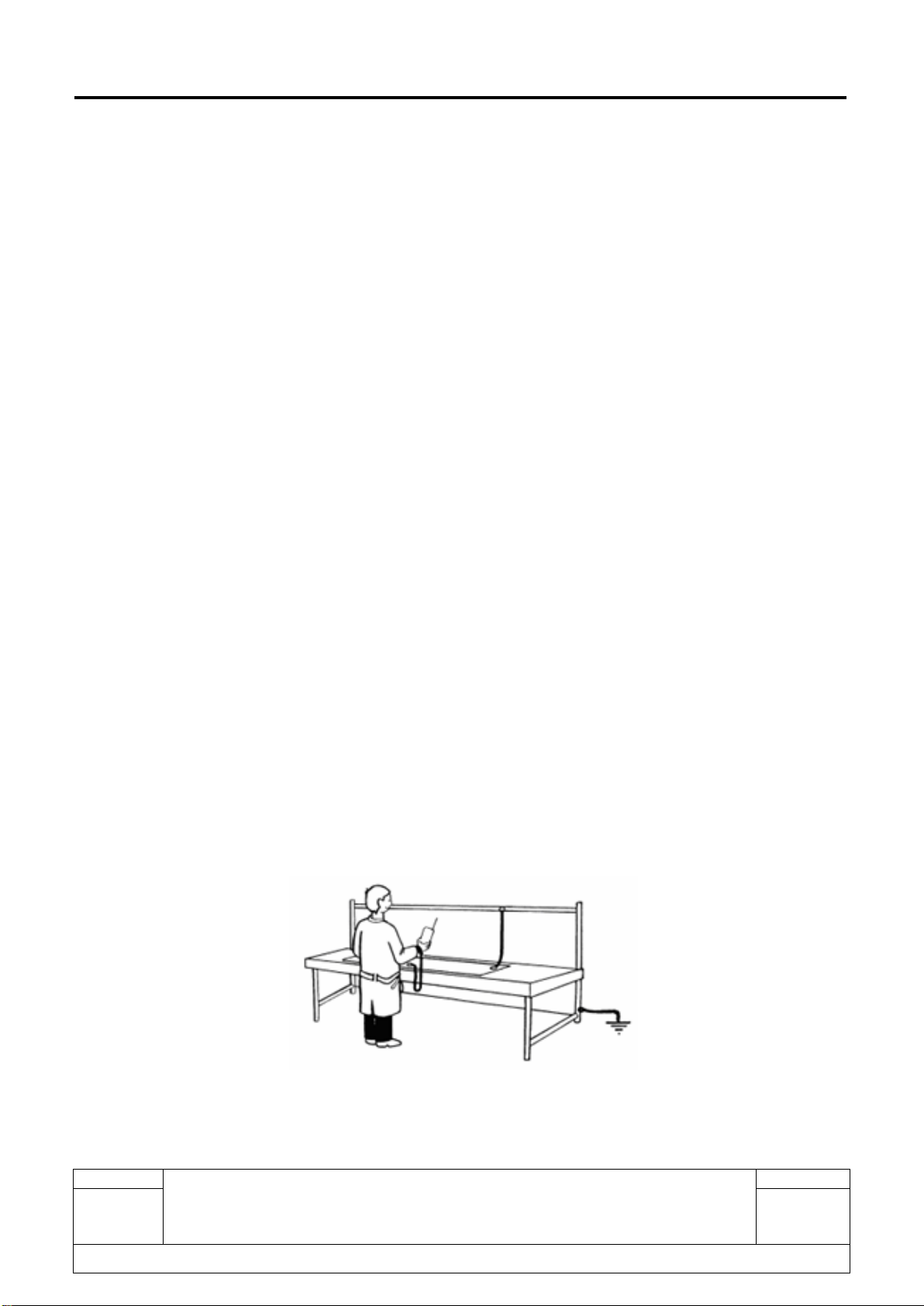

This picture illustrates the connection. The operator wears an electrostatic conduct bracelet
which connected to an anti-static pad. And the pad place on the work surface which
connected to the metal structure workbench, the whole being earthed.

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
13/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
3.3. Battery test
3.3.1. Charging Process
1) Table 2.1 describes the various events related to a standard charger connected to a cell
phone.
Pixi4-5 3G (5010)
Cell phone status before
charger connected
ON
OFF
During charging
Display lights up and following battery icon displayed:
Sequential icon flashing:
After charging
(charger connected)
Following fixed battery icon display :
Table 2.1 Battery charge status on handset
2) If the display does not light on or battery icon does not flash when the charger or the cell
phone’s charge function is defective with mechanical or electronics.
In this case:
a) Replace the charger to charge.

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
14/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Confirm it works correctly or not.
If it cannot work correctly after change charger
b) Then change another battery to charge again.
Confirm it works correctly or not.
c) Check the Charge connector on the cell phone.
If it is damaged, replace the cell phone.
3) For a normally discharged battery (with not a long time of storage), charging time listed
on below table
Battery
Typical Charge
Time
Lithium
4 hours
4) Battery specification
Cell model
LP435167R
Pack model
TLi020F1
Nominal voltage
3.80V
Battery capacity
2000mAh (Minimum)
Fully charged battery is discharged with current
0.2C from 4.35V to 3.00V
Charge
Charge method
CC - CV (Constant current - Constant
voltage)
Current
0.5C(Standard)
1C(Max)
Limited voltage
4.35V
Operating temp.
0~+45°C
High
temperature
Current
0.5C (Max)
Limited voltage
4.10V
Operating temp.
45~60 ℃
Discharg
e
Current
0.5C(Standard)
1C(Max)
Cut-off voltage
3.00V
Operating temp.
-20~+60°C
Storage at different temperature
Storage
temp.
Storage
term
Recovery
capacity
-20~+60°C
1 month
Refer to note*1
-20~+45°C
3 months
-20~+20°C
1 year
Initial impedance
≤150 mΩ(@AC1kHz)
Shipment voltage
3.82~3.92V

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
15/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Storage relative humidity
65±20%
Note*1: The capacity recovery rate should be more than 80% under the shipment status.
3.3.2. Charger test
When the standard charger is connected to the cell phone, check correct running of the
charge indicator on the display (refer to item 3.3.1 ).
Use the ampere meter to test the current of the charger.
2) Connect the power supply to ampere meter with adapter.
Power on adapter
3) Connect the cables from “OUT” on other side to handset.
Power on charger
4) Connect charger to the meter “ IN “ on the side
5) You can read the current on ampere-meter
6) The reading of the charger output should be 350 mA~550 mA
4. Software download
It is authorized to download software for the handset which needs to be updated. This
downloading tool is called “Sugar MTK_SP”. Handset Software can be downloaded from
TS website via it. Thus internet access is necessary. TS Website:
https://css.tclmobile.cn/.

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
16/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
1.1.3.1 Equipments requested when download:
⑴A handset with full power;
⑵PC with windows system;
⑶A USB cable.
1.2.3.2 Handset driver installation
Double click to install the Sugar MTK_SP, then select the “Install driver”check box for the
driver installation.
Please select “Install driver”and press “Finish”; then the driver will be installed
automatically.

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
17/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
18/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
1.3.3.3 SW download process

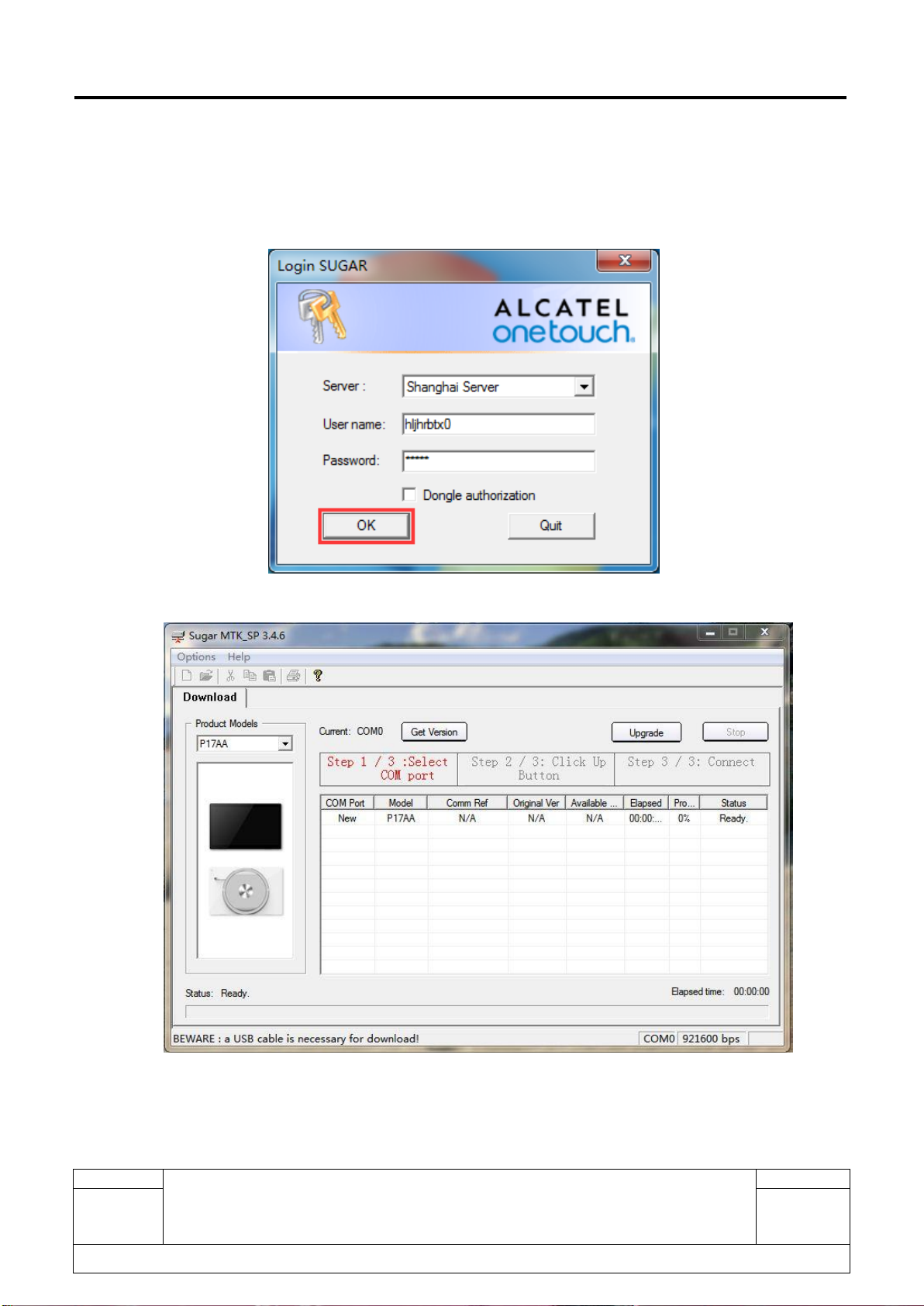

Open “Sugar MTK_SP3.4.6”(you can get the latest version from TS website:
https://css.tclmobile.cn/). “Sugar MTK_SP”login window looks like follow picture;
Input ‘User name’and ‘Password’, and then press “OK”to log on.
I. Click the ‘Get Status’button, it will display the SW version , IMEI, Cu ref etc of the
handset,

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
19/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

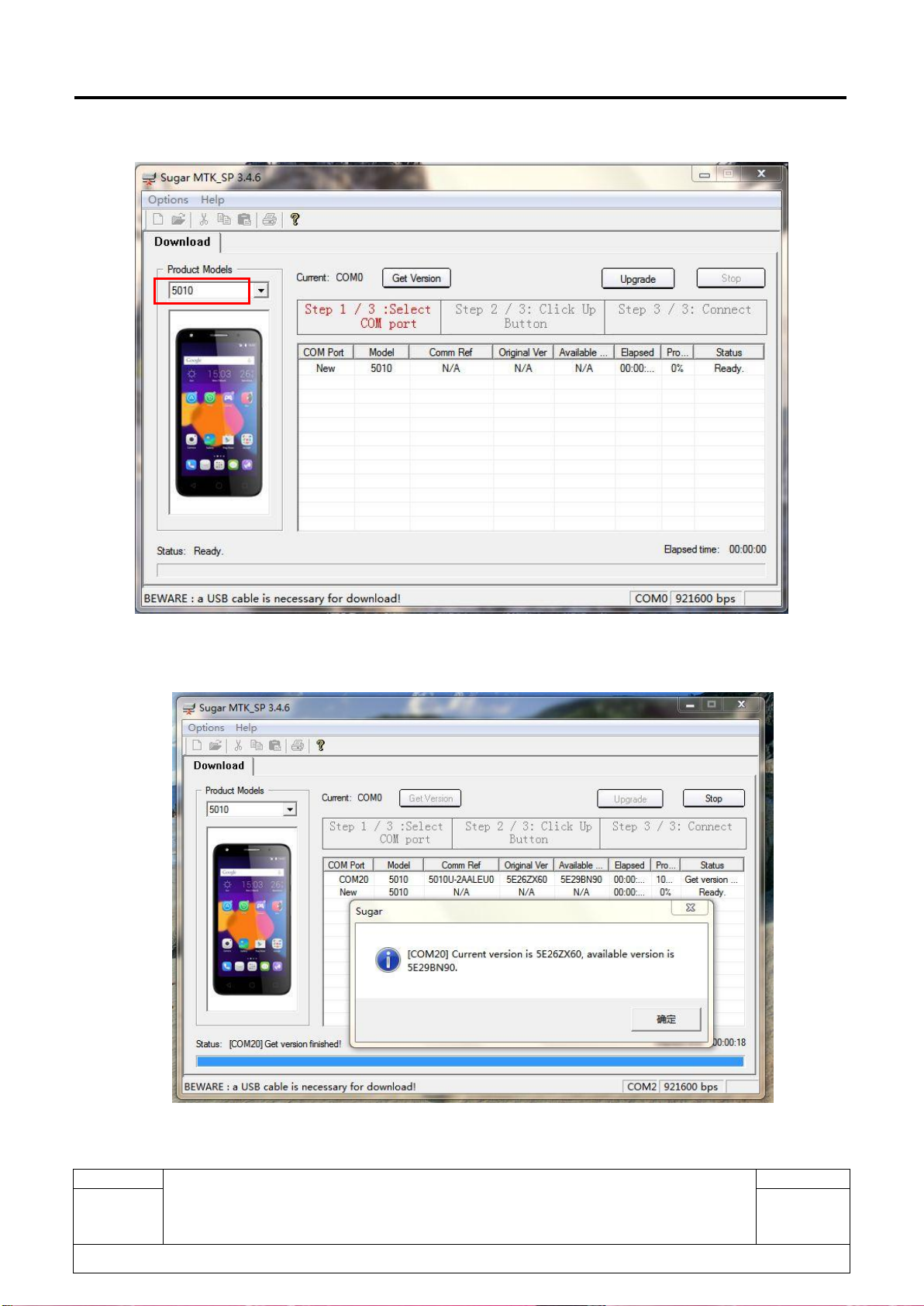

1) Select the product models –“5010”;
2) Press “Get Version”button, power off the handset and connect it with PC by USB
cable.
II. Click the “Upgrade”button. Online upgrade process starting

L2 Repair Document TCLCommunication Ltd.
Rev.
5010X/D/G/E/S/U Level 2 Repair Document
Page
1.0
20/52
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
III.Upgrade finished:
Note: During the download progress a warning window will prompt as below if the phone has
been rooted before.
Table of contents
Other TCL Cell Phone manuals

TCL
TCL T781 User manual

TCL
TCL A3X User manual

TCL
TCL onetouch 4042S User manual

TCL
TCL Alcatel Neon Technical manual

TCL
TCL alcatel Pixi4-7 4G BELL Technical manual

TCL
TCL Alcatel Neon Technical manual

TCL
TCL Stylus 5G User manual

TCL
TCL A509DL User manual

TCL
TCL A Series User manual

TCL
TCL IONz User manual

TCL
TCL Alcatel Pixi4-5 4G User manual

TCL
TCL 30LE User manual

TCL
TCL 20 Pro 5G User manual

TCL
TCL Alcatel Pixi4-4.5 TF Technical manual

TCL
TCL Alcatel Pixi4-4.5 TF User manual

TCL
TCL 20 R 5G User manual

TCL
TCL 40XE 5G User manual

TCL
TCL L7 User manual

TCL
TCL Alcatel DTEK 50 STH100-1 User manual

TCL
TCL FLIP 2 User manual
