Operator's Manual
T2212 PRINTER PERFORATOR

2 2
Operator's Manual
Doc. # 412-121039 revision 1
Copyright
This documentation as well as translation hereof are property of TE Connectivity (TE).
The replication, conversion, duplication or divulgement of the whole manual or parts
of it for other intentions than its original intended purpose demands the previous
written authorization by TE Connectivity.
Trademark
Windows is a registered trademark of the Microsoft Corporation.
Editor
Regarding questions or comments please contact TE Connectivity.
Topicality
Due to the constant further development of our products discrepancies between
documentation and products can occur.
Please check with your local TE Connectivity Representative for the latest update.
For technical support please use Technical Support link below, for regional contact
details:
Technical Support

3
1 Introduction....................................................................................4
1.1 Instructions ......................................................................................4
1.2 Intended Use ...................................................................................5
1.3 Safety Instructions ...........................................................................6
1.4 Environment.....................................................................................6
1.5 Technical Data .................................................................................7
2 Mounting.........................................................................................8
2.1 Removing the Tear-off Plate ............................................................8
2.2 Mounting the Perforator ................................................................... 9
3 Operation......................................................................................10
3.1 Loading Material ............................................................................10
3.2 Reference to the Programming...................................................... 11
3.3 Standard Operation .......................................................................12
4 PrinterConguration...................................................................13
5 Cleaning and Replacing the Blades........................................... 15
6 Licenses .......................................................................................17
6.1 Reference to the EU Declaration of Conformity.............................17
6.2 FCC ...............................................................................................17
Table of Contents

4 41 Introduction
1.1 Instructions
Important information and instructions in this documentation are designated
as follows:
Danger!
Draws your attention to an exceptionally grave, impending danger
to your health or life.
!
Warning!
Indicates a hazardous situation that could lead to injuries or
material damage.
!
Attention!
Draws attention to possible dangers, material damage or loss of
quality.
i
Note!
Gives you tips. They make a working sequence easier or draw
attention to important working processes.



Environment!
Gives you tips on protecting the environment.
Handling instruction
Reference to section, position, illustration number or document.
Option (accessories, peripheral equipment, special ttings).
Time Information in the display.

51 Introduction
1.2 Intended Use
• The device is intended exclusively as an option for the T2212 printers for
perforating suitable materials that have been approved by TE Connectivity.
Any other use or use going beyond this shall be regarded as improper use.
TE Connectivity shall not be liable for damage resulting from unauthorized
use; the user shall bear the risk alone.
• Usage for the intended purpose also includes complying with the operating
manual, including the manufacturer‘s maintenance recommendations and
specications.
• The device is manufactured in accordance with the current technological
status and the recognized safety rules. However, danger to the life and
limb of the user or third parties and/or damage to the device and other
tangible assets can arise during use.
• The device may only be used for its intended purpose and if it is in perfect
working order, and it must be used with regard to safety and dangers as
stated in the operating manual.
i
Note!
This, and further TE documents can be downloaded from TE.COM at
the following link.
http://www.te.com/commerce/DocumentDelivery/DDEController
!
Warning!
This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures.

6 61 Introduction
1.3 Safety Instructions
• Disconnect the printer from the electrical outlet before mounting or
removing the perforator.
• The perforator may only be operated when it is mounted on the printer.
• Risk of injury, particularly during maintenance, the perforator blades are
sharp.
• Work going beyond this may only be performed by trained personnel or
service technicians.
• Unauthorized interference with electronic modules or their software can
cause malfunctions. Other unauthorized work on or modications to the
device can also endanger operational safety.
• Always have service work done in a qualied workshop, where the
personnel have the technical knowledge and tools required to do the
necessary work. Technical Support
• Warning stickers must not be removed, as then you and other people
cannot be aware of dangers and may be injured.
1.4 Environment



Obsolete devices contain valuable recyclable materials that should be sent
for recycling.
Send to suitable collection points, separately from residual waste.
The modular construction of the printer enables it to be easily disas-
sembled into its component parts.
Send the parts for recycling.
Take the electronic circuit boards to public waste disposal centers or to
the distributor.

71 Introduction
1.5 Technical Data
Perforator
for printer type T2212 PRINTER
Perforating
Web distance mm 2.5
Web width mm 0.8
Material
Width mm ≤ 45
Weight cardboard g/m² 60 - 240
Thickness mm 0.05 - 1.1
Cutting length mm ≥ 10
Cut frequency 1/min ≤ 200
Power Supply Perforator connector of the printer
!
Attention!
The minimum cut length is depending on the media, in particular its
adhesive characteristics.
Perform preliminary tests. Test the media too, if the media is
veryhard,veryexibleorverythin.

8 82 Mounting
2.1 Removing the Tear-off Plate
Before mounting the perforator the tear-off plate mounted on the printer must
be removed.
2
1
3
2
3
Figure 1 Removing the tear-off plate
Gently pull the Tear off plate forward (1), pull the axles (2) of the tear-off
plate out of the holders (3) and remove the tear-off plate.

9
2.2 Mounting the Perforator
1
2
34
4
3
5
Figure 2 Mounting the perforator
1. Put snap arm (2) of the perforator (5) into the guide (1).
2. Push the axles (3) into the holders (4).
3. Gently push the perforator unit forward (5) so that it snaps onto the printer.
2 Mounting

10 103 Operation
3.1 Loading Material
Gently pull the perforator unit forward as shown in Figure 3,
Insert labels or continuous tube between the Printhead and drive roller, so
that the front edge reaches through the perforator unit.
21
Figure 3 Guiding labels and tube into the perforator unit
Guide labels or tube (2) into slot (1), then engage the perforator unit by
gently pushing the perforator unit back on the printer.
Insert ribbon.
Operator's manual of the printer (TE Document 412-121037).

113 Operation
3.2 Standard Operation
Switch on the printer.
The perforator performs a synchronization action.
i
Note!
To operate the perforator with continuous material in the printer
menu Setup ->Labels ->Label sensor the setting Continuous media has to be
selected. Otherwise no synchronization cut is carried out.
Press . For synchronization the media will be moved forward and
cut off.
That synchronization is not necessary when the printhead was not opened
between print jobs, even if the printer was powered off between print jobs.
Send a print job.
All labels in a print job will be printed without stopping and be perforated or
cut as chosen in the software : after each label, after a specic quantity of
labels, or at the end of a print job.
i
Note!
Between the print jobs a direct cut can be released by pressing
on the control panel.

12 12
i
Note!
The values of the setup are basic settings for the current printer/
perforator combination.
After changing the perforator or printer a re-adjustment may be
necessary.
Changes required for print jobs should be made in the label
printing software.
The offset values from setup and software are added together for
execution.
Cut Parameters
Start menu.
Select Setup > Cutting.
Parameter Meaning Default
Cut position Offset of the cut position relative to the rear
label edge.
The setting can also be adjusted by the
software.
The settings of conguration and software
are added together.
0.0 mm
Perforation level Setting of the perforation depth.
The setting can also be adjusted by the
software.
The settings of conguration and software
are added together.
0
4 PrinterConguration

13
Backfeed
Start menu.
Select Setup > Printing.
Parameter Meaning Default
Backfeed Method for backfeeding the label medium.
Backfeeding is necessary in the cutting
and peel-off modes since a label is pushed
out passed the front edge of the next label
above the print line when peeling off/cutting.
always: Backfeeding occurs independently of
label contents.
smart: Backfeeding only occurs when the
next label is not yet completely prepared
when peeling off/cutting the current label.
Otherwise, the second label is pushed on
and completed after removal of the rst label
without backfeeding.
smart
Label Sensor
Start menu.
Select Setup > Labels.
Parameter Meaning Default
Label sensor Method for detecting the starting end of the
label.
Gap Sensor: Detection using changes in the
transparency between the label and label
gap.
Bottom-Reflect: Detection using reex marks on
the bottom of the medium.
Continuous media: Checking the existence of
media only.
Gap sensor
4 PrinterConguration

14 145 Cleaning and Replacing the Blades
!
Warning!
Disconnect the printer from the electrical outlet.
!
Warning!
Risk of injury. The perforator blades are sharp.
i
Notice!
When cutting through the label material instead of the label gap
remains of adhesive may accumulate on the blades. If operating in
backfeed mode, such remains of adhesive may be deposited on the
drive roller as well.
Clean the drive roller and the perforator blades often.
1
2
3
4

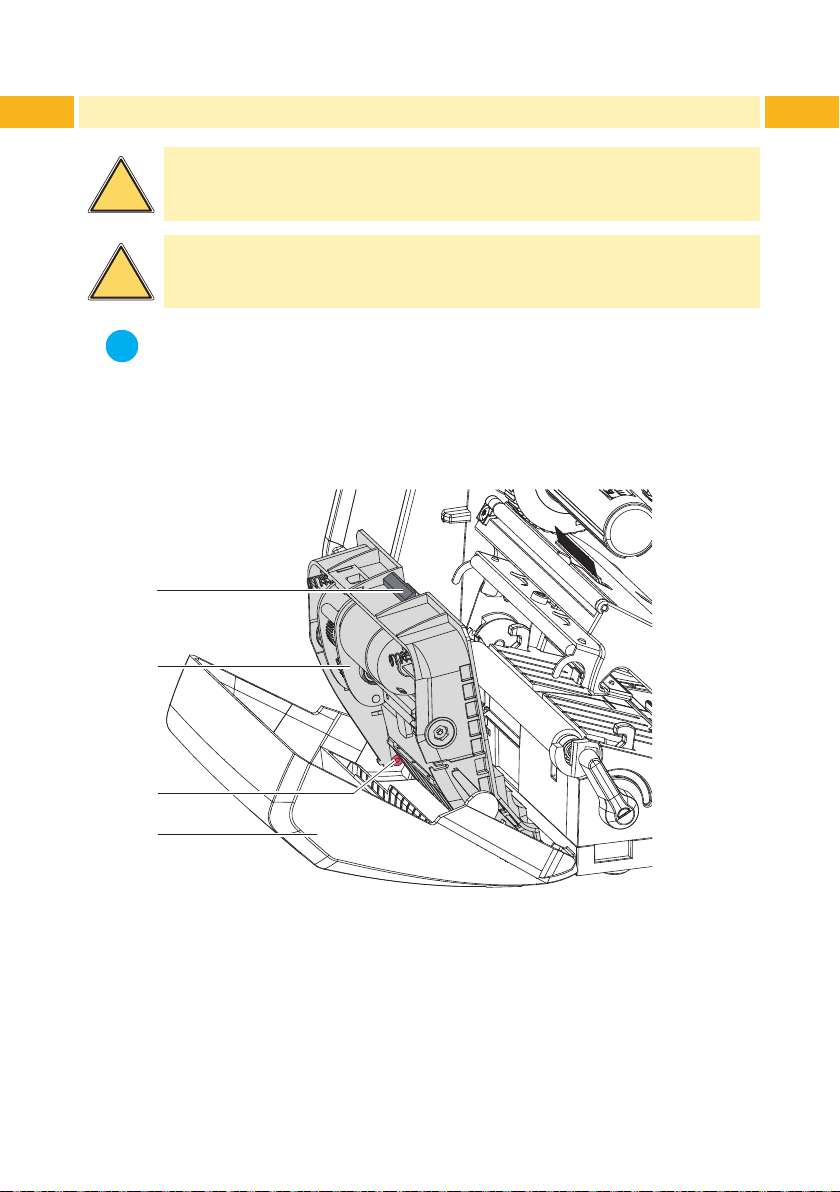

Figure 4 Dismount the perforator
1. Gently pull the perforator unit forward.
2. Push release push button (1) and lift blade unit (2) from the cover (4).
3. If the blades are only slightly dirty it is sufcient to clean them with a soft
cloth and continue with point 5.

155 Cleaning and Replacing the Blades
9
10
11
5
8
7
8
7
56
1312

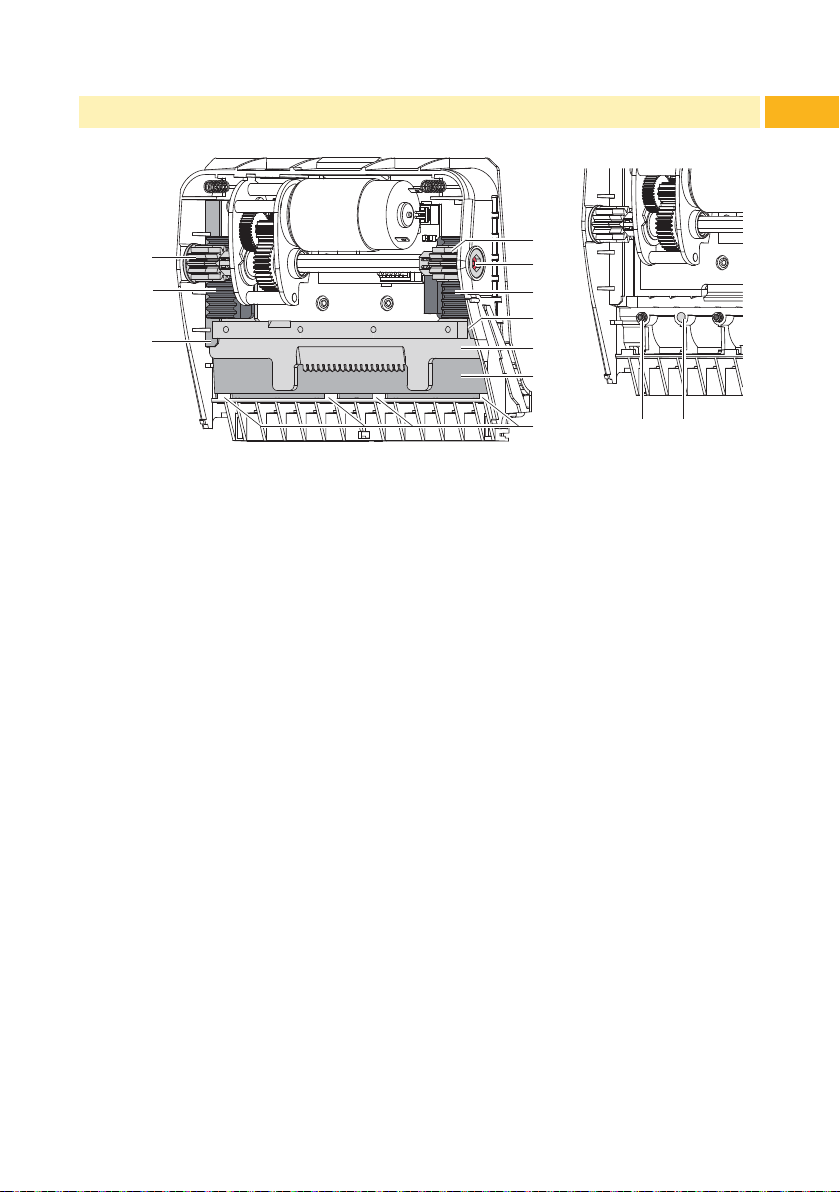

Figure 5 Replacing the Blades Figure 6 Springs
4. If the blades are very dirty with residues of adhesive or if they are worn,
change blades:
Turn the shaft (6) clockwise using a torx wrench TX10 until the gear
racks (7) cannot engage anymore.
Pull the upper blade (9) out of the guides (8).
Take out the lower blade (10).
Remove deposits on the blades with label remover and a soft cloth.
If necessary, replace the blades.
Push the lower blade down into the guides (11).
If necessary, put the springs (12) back into the spring retainers (13).
To re-mount the upper blade push the lower blade down on the cover
and push the upper blade into the guide until the gear racks (7) can
engage with the gear wheels (5).
Turn the shaft (6) counterclockwise using a torx wrench TX10 until the
blade reaches the upper limit.
5. Fit the blade unit (3) according to Fig. 4 into the axes (2) and fold it
towards the cover (4) until it snaps in.
6. Gently push the perforator unit onto the printer.

16 166 Licenses
6.1 Reference to the EU Declaration of Conformity
The perforators of the T2212 comply with the relevant fundamental regulations
of the EU Rules for Safety and Health:
• Directive 2014/30/EU relating to electromagnetic compatibility
• Directive 2011/65/EU on the restriction of the use of certain hazardous
substances in electrical and electronic equipment
EU Declaration of Conformity
Please follow the link below, to download the latest T2212 Perforator, EU
Declaration of Conformity, TE document, T2212-Perforator-CE-EU-C-of- C.
EU Declaration of Conformity
6.2 FCC
NOTE : This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. The equipment generates, uses, and can radiate radio
frequency and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio commu-
nications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user may be required to
correct the interference at his own expense.
