Tecway UFO User manual

OPERATION MANUAL FOR UFO

1
ATTENTIONS
Please read the manual first before operating this machine.
Please pay attention to the items marked in “note”.
Safety Attentions
1) Certain part of the game is with high voltage. Adjust the game by technician.
Do not open the game door unless maintenance or parts replacement is required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equiment must be nearby the game.
5) The game must be located properly to avoid damages.

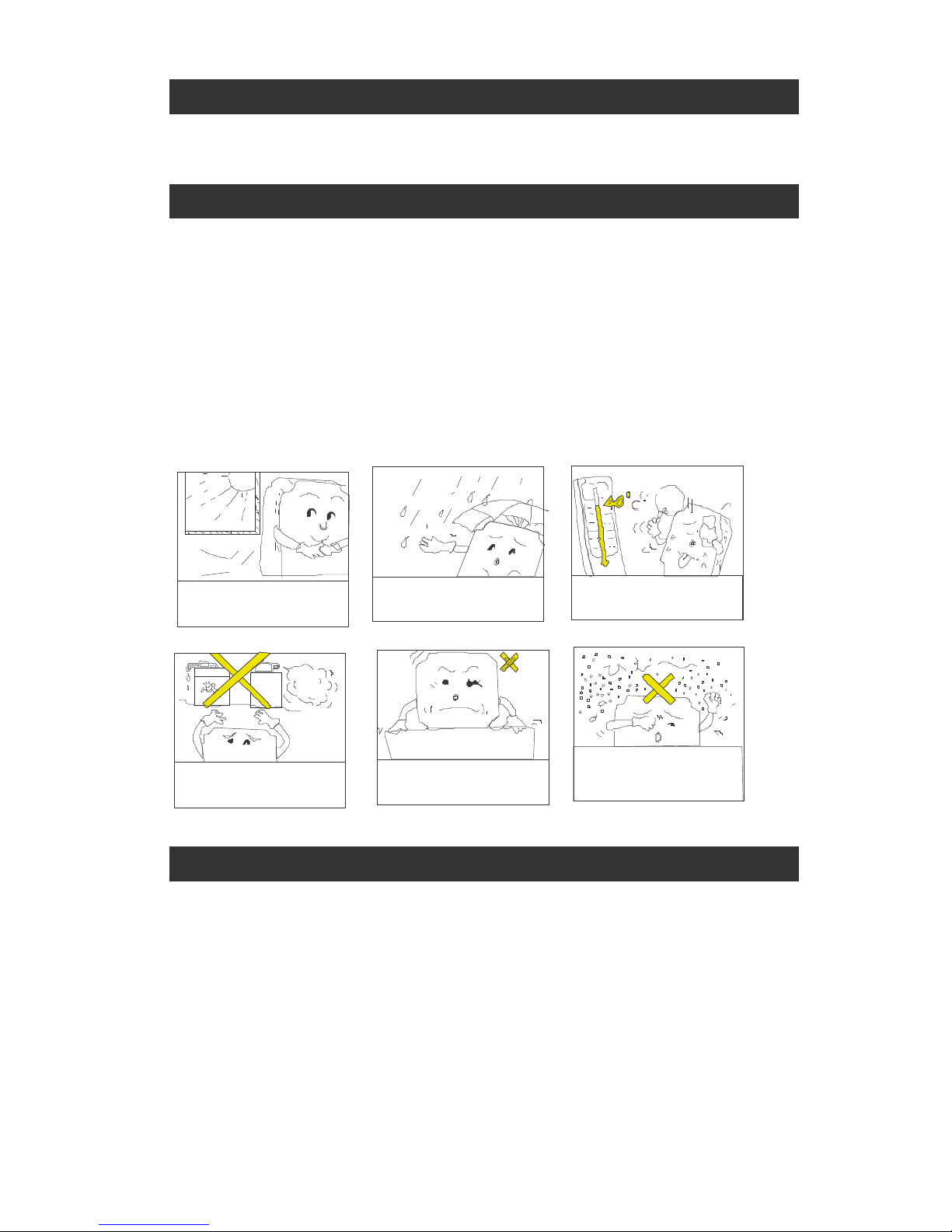

Improper Locations:
Place direct ly
ex pos ed t o s unshi ne
Humid area Place w ith high
t emperature
Place w ith c orros sive
air and liguid
R ough area or plac e
w ith s trong s hak e
Place w ith mas s iv e
dust
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V. The
proper voltage should be 110V/220V. The specific voltage accords to the date
plate on the back door of the game.
2) The plug must be plugged in tightly but keep the power cords not be too tight.
3) Please properly adjust the coin mech and the game settings when use at the first
time.
4) Please regularly check all the functions of the game when operate.

2
Notes of Maintenance
1) Be sure to check and maintance the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the power
supply.
5) The voltage range of the PCB should be 5.1V-5.4V.
6) Check whether the game has creepage and the voltage before repairing the
PCB.
Notes of Clean
1) Please use clean and soft colth to clean the game.
2) Prevent damaging the surface of the game, please do not use the following
cleanser:
 Alterative Cleanser;
 Acidic Cleanser;
 Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.

3
PLAYING INSTRUCTIONS
1. Insert coin(s).
2. Properly sit in the seat with the safety belt.
3. Press START button to start the game.
4. Control the steering wheel to operate your UFO and hit as many meteorites as you can
to score the points.
5. During your game time, the kiddie ride will go up and down and rotate.

4
TECHNICAL PARAMETERS
Voltage: AC 220V/110V（50/60HZ）
Max. current: 5.2A/10.4A
(Note: The proper voltage and current used accords to the nameplate at the back door of
the game.)
Max. power: 600W
Power (standby mode): 80W
Coin size: φ21mm ~ φ31mm(diameter)
1.2mm ~ 2.5mm(thickness)
Capacity of coin box: about 1050 pcs with coin size φ25mm*1.5mm
Location required: indoor use; temperature: -5~40°C ; RH > 90%; no contact with any
corrosive, greasiness and dirt.

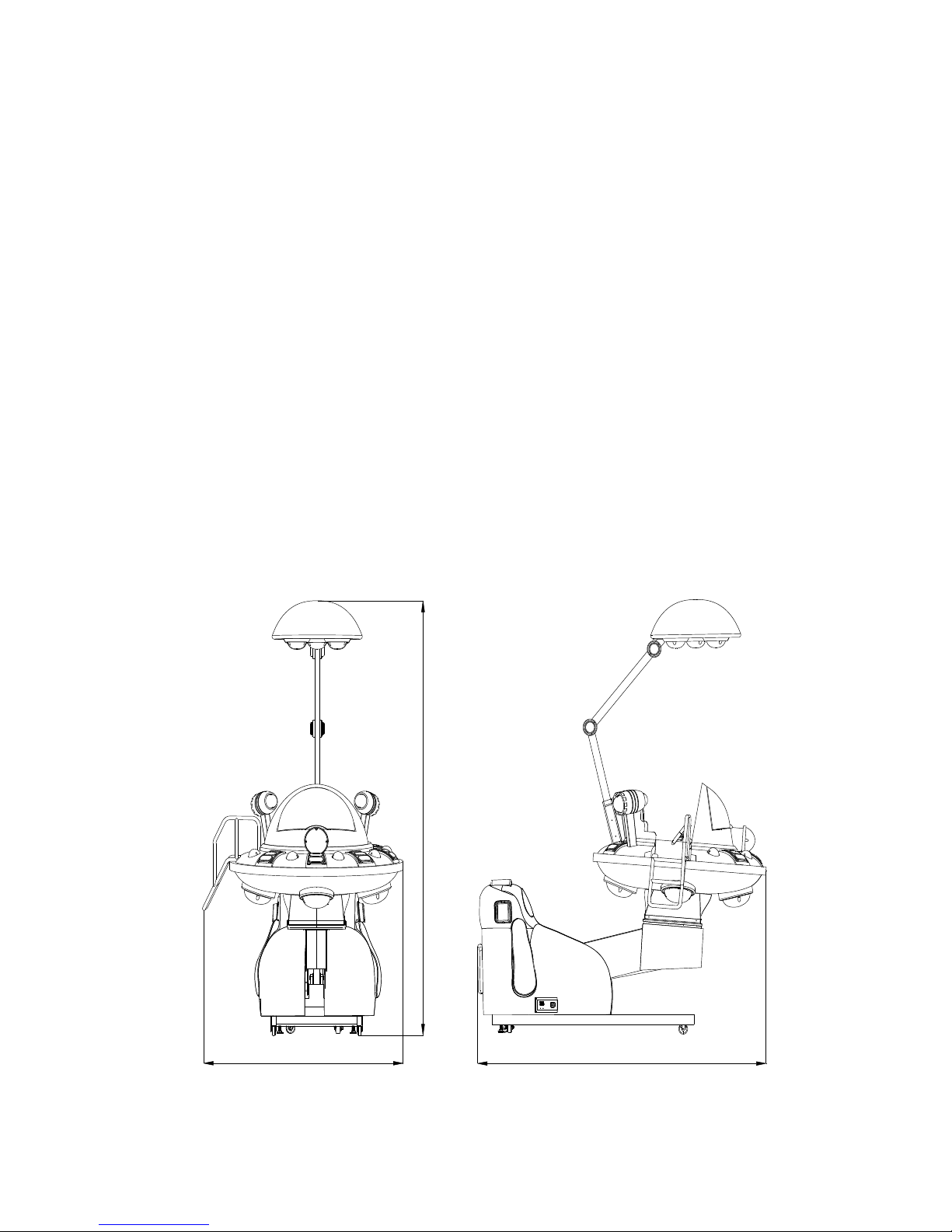

Dimensions: L2000mm*D1430mm*H2380mm
2000
1430
2380

5
Area required for operation: W1630mm* H2600mm
Accessories:
1key 1285＃2
2key 1396＃2
3power supply 1
4manual 1
OPERATION MANUAL
2600
1630

6
INSTALLATION
Choose a proper location for the game and keep a certain space for game operation, as
below drawing shown:
Note: Please install the game on the flat floor.
Check the connection:
1. Check if the inner structure of the game is loose caused by transportation or the
terminals drop.
2. Check if the game is grounded.
3. Check if the resistance of the GNDs is more than 100 megohm.
4. Connect the power cord.
2600
1630
3000 2000
2630
1630
0.5m
0.5m
0.5m
0.5m

7
Attentions:
a) Please make sure the power cord is not pressed by wheel, foundation, etc.
Otherwise, the wire will be damaged to cause short circuit, even fire. Do not use
strong power to extend and wring the wires. Do not make the wire be near to the
high temperature object. Properly put the wire to avoid any kicking or treading.
b) Hold the plug to pull it out from the socket.
AAAA
漏电保护开关
电源线插头
市电插盒
Socket
Circuit breaker

8
c) Do not touch the plug with wet hands.
d) Make sure the voltage and fuse used are proper.
Connect the power:
1. Confirm the value of voltage input is same as the one stated on the nameplate on the
back of the game.
2. Swith on the power switch.
3. Properly adjust the coin mech and confirm it can work properly.
4. Check and confirm all the flash lights can work properly.
5. Open the back door of the game to find out the setting board. Adjust the setting
according to the game setting chart.
6. Test the game and confirm it can work properly.
7. Check if the monitor can display properly.
8. Check and confirm the sound is ok.
Check before operation
1. Confirm the power cord is properly plugged and without any damages.
2. Confirm the game is properly fixed.
！w a rn in g
B e fore in pu tin g th e p ow e r, p le a se che ck th e re sista nc e b e tw ee n in p ut p ort a nd G N D . M ak e
su re th e co n ne ctio n is p roper.

9
3. Confirm the cabinet of game is without damages and burrs.
4. Confirm the surface of game is clean and with proper marks.
5. Confirm the main parts of the game (ladders, seat, etc…) are securely fixed.
Daily operation:
Please properly refer to the instructions above to check the game before operation.
After operation, please collect the coins and keep record of the coin meter.

10

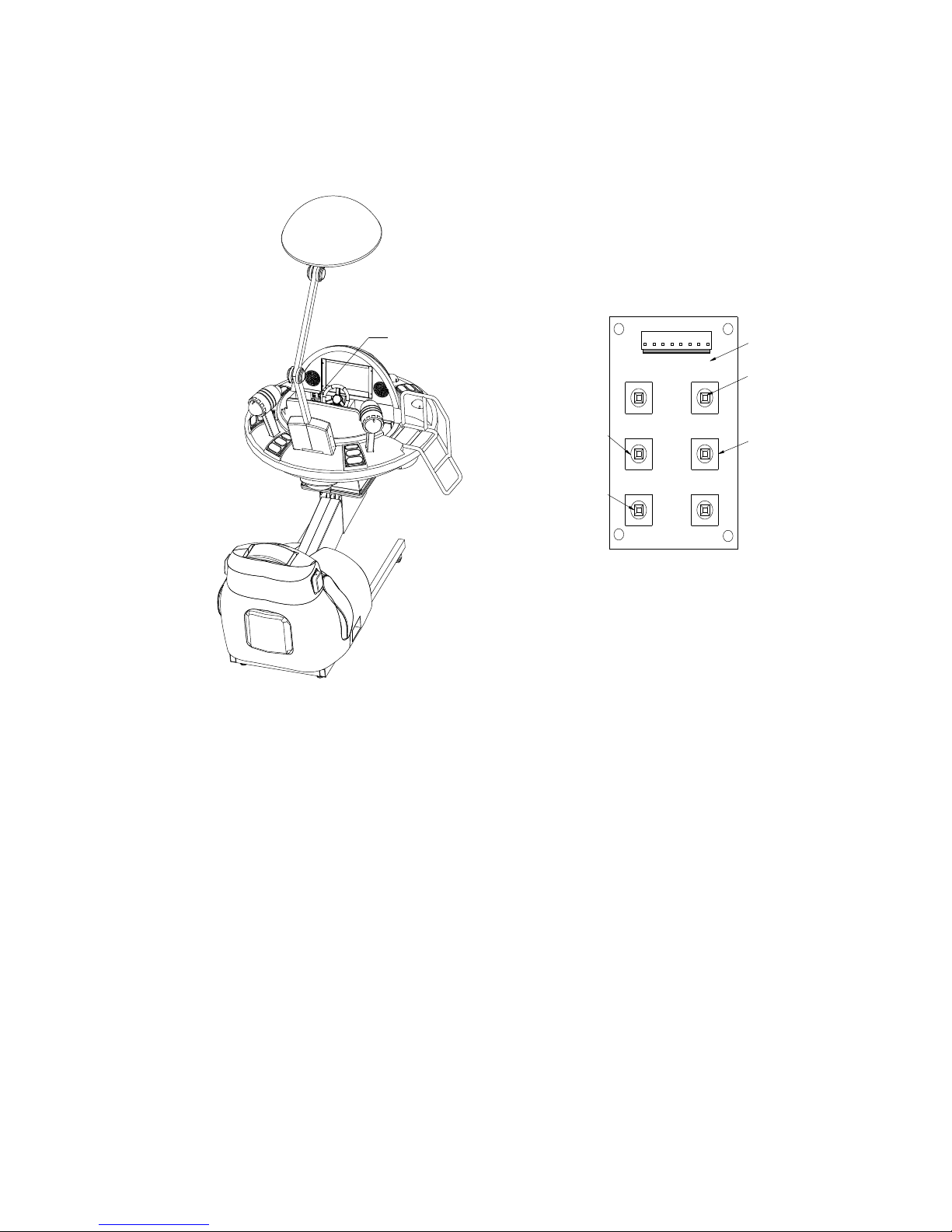

GAME SETTING
Setting board:
TEST: Enter into or exit the set item.
SELECT: Change to select the set items.
ENTER: Change the value of selected item.
SERVE: For free play.
设置板 设置板
SW1
TEST
SERVE
SELECT
ENTER
ERASE
设置
免费
更改
选择
Setting board Setting board
Select
Change
Set
Free play

11
Game settings:
Instructions: open the coin door to find the setting board. Press TEST key to enter into
setting menu, press SELECT key to choose the item you would like to set, press ENTER
key to change the value of the selected item.
Descriptions:
_ coin 1 credit: this setting is for setting how many pcs of coins for one game.
Game time _ seconds: this setting is for setting the game time per game.
Modulate Volume _: this setting is for setting the volume of the game.
Language Select _: this setting is for setting the language displayed of the game.
Wait Sound Select _: this setting is for setting if enable the sound effect during the
standby mode.
Restore Settings: this setting is for setting if reset all the settings to factory setting.
EE1:_ EE2:_: this setting is for automatically check rotation sensor and motor sensor
after switching on the game. If the status of sensor is shown as NO, please check and
solve the problem of sensor before operation.
EE1:OK EE2:FF
RESTORE SETTINGS
LANGUAGE SELECT ENGLISH
WAIT SOUND SELECT ON
MODULATE VOLUME 100%
GAME TIME 30 SECONDS
1 COIN[S] 1 CREDIT[S]
SETUP

12
ADJUSTMENT

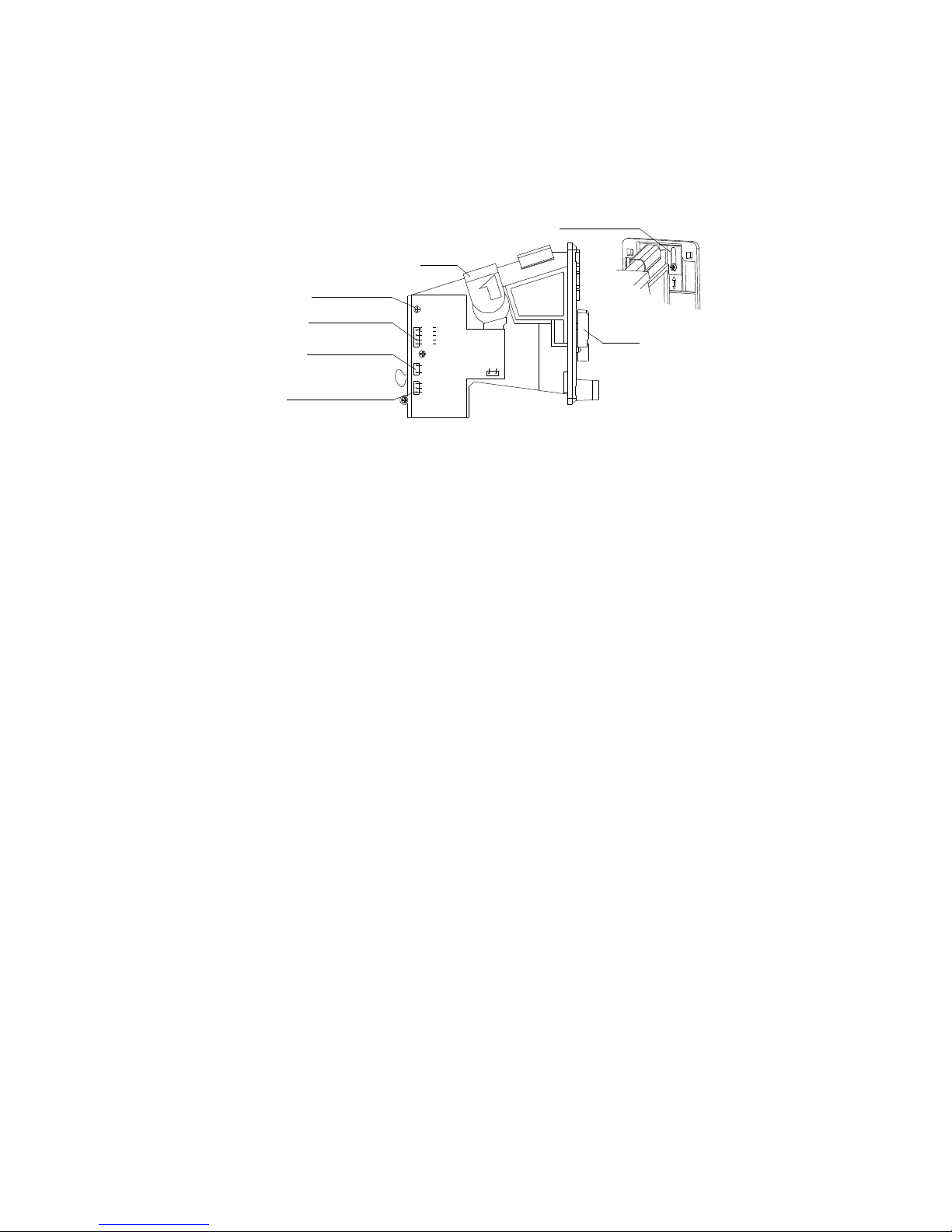

Adjust the coin mech:
Descriptions:
A. remove the plastic coin from the coin sample chute and put a proper coin in it.
B. remove the screws on the back of coin entrance. Adjust the the fix chip of back of
coin entrance according to the diameter of coin you will use so that it will prevent
the large coin blocking the coin mech.
C. set the COIN SW to “ON”.
D. set the pulse of COIN signal to “50MS”.
E. following the drawing to adjust the resistance for sensitivity of coin acceptance, turn colckwise
for increasing and counterclockwise for decreasing.
adjusting chip of entrance
coin reject bar
COIN signal wavelength
adjusting SW
COIN signal SW
power/signal input
micro-adjust resistance
sample coin chute
DC+12V
STRICT SLACK
Sensitivity
+-
COIN
Remove
REPLACE
Backward
SW3
100ms SLOW
25ms FAST
NOM
normal
MGN
accurate
50ms MEDIUM
WHITE
COUNTER(+/-)
GROUND
N.C.
SW1
SW2
N.O.
COUNTER(-/+)
COIN SIGNAL
GRAY
BLACK
RED
GRAY

13
CHECK AND MAINTENANCE
Daily check
ITEMS DESCRIPTIONS
Coin mech Check if the coin mech can work properly.
Sensors Check if the sensors for game’s movement can work properly.
Sound Check if the sound is proper.
Display Check if the display is proper.
Motor Check if the motor can work properly.
Steering wheel Check if the steering wheel can work properly.
Temperature, humidity Check if the temperature and humidity is proper.
Daily maintenance
ITEMS DESCRIPTIONS
Cabinet Clean the cabinet with water.
Seat bracket Securely fix the screws of the bracket
PCB Clean the PCB with brush.

14
TROUBLESHOOTING
PROBLEM CAUSES SOLUTIONS
No sample coin. Install the sample coin.
Sensitivity for coin passing the coin
mech is too high. Adjust the resistor to change the sensitivity.
Signal wire of coin is loose. Check the connection.
Coin mech is bad. Repair or replace the coin mech.
Micro switch is bad. Replace the micro switch.
Bad connection. Check and reconnect the wires.
Speaker is bad. Replace the speaker.
Wire is loose. Check and reconnect the wires.
Volume is too low. Twist the VR on main board to adjust the volume.
Bad connection of encoder. Check and reconnect the wires.
Encoder is bad. Replace the encoder.
No power input. Check the voltage and connection.
No VGA signal input. Check the main board and VGA wire.
Monitor is bad. Replace the monitor.
No voltage supply. Check the voltage and connection.
Bad connection of the lights. Check the connection.
Bad connection of stop sensor. Check and reconnect the wires.
Stop sensor is bad. Replace the stop sensor.
Bad connection of the rotation motor. Check and reconnect the wires.
Capacitor of rotation motor is bad. Replace the capacitor.
Control relay of rotation motor is bad. Replace the control relay.
Bad connection of the motor. Check and reconnect the wires.
Capacitor of motor is bad. Replace the capactor
Control relay of motor is bad. Replace the control relay.
Bad connection of stop sensor. Check and reconnect the wires.
Stop sensor is bad. Replace the stop sensor.
No AC110V/220V voltage input. Check the power input and connection.
No voltage output from power supply. Repair or replace the power supply.
Main board is bad. Replace main board.
Can not insert
coin
Coin in coin box
is invalid.
The game can
not go up /
down.
The game
rotation
continueously.
The game can
not move.
No sound.
START button is
invalid.
The light can not
work.
Can not control
direction of the
UFO of the game.
No reaction after
powering on the
game.
No display.
The game goes
up and down
continueously.

15

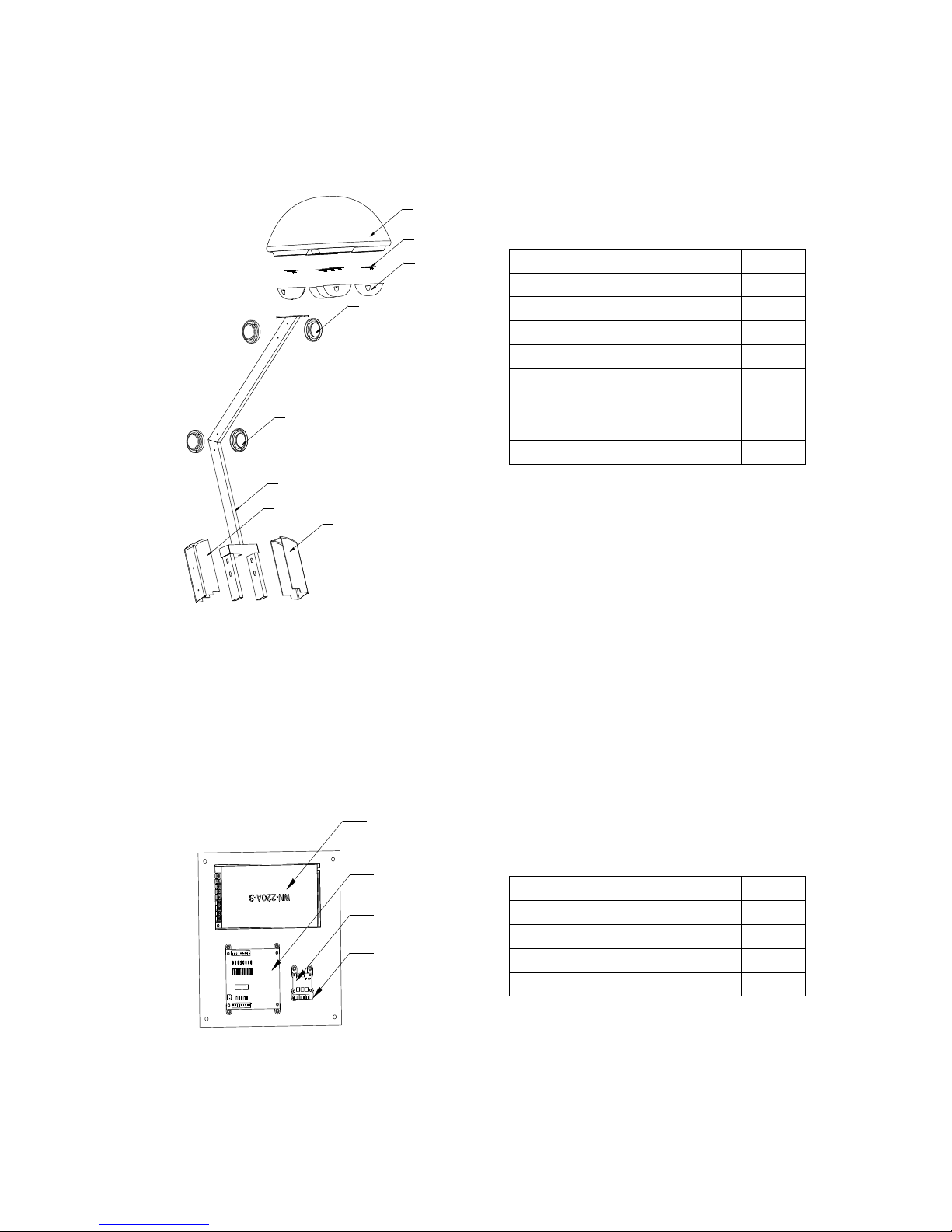

PARTS DRAWING AND PARTS LIST
Marquee:
Control assembly for lights:
# NAME QTY
01
Fiberglass 1
02
3-color light board 5
03
White lens 150mm 5
04
Joint vacuum form 1 2
05
Joint vacuum form 2 2
06
Bracket 1
07
Bracket vacuum form 1 1
08
Bracket vacuum form 2 1
# NAME QTY
01
Power supply 1
02
Light drive board 1
03
3-color light control board 1
04
PCB holder 8
07
08
06
05
04
03
02
01
04
03
02
01

16

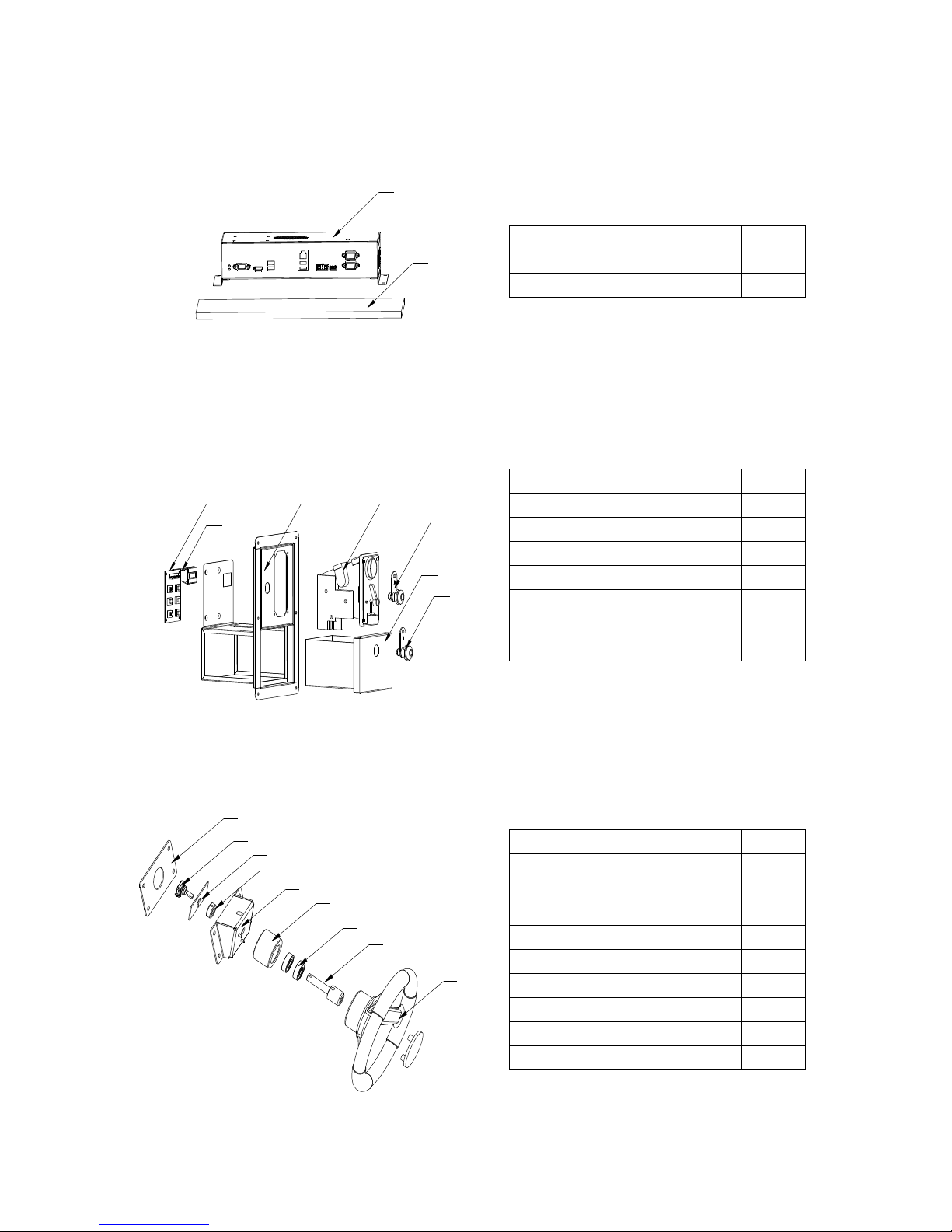

Main board:
Coin door:
Steering wheel:
# NAME QTY
01
Main board 1
02
Holder for main board 1
# NAME QTY
01
Setting board 1
02
Meter 1
03
Coin door 1
04
Coin mech 1
05
Lock 1285 1
06
Coin box 1
07
Lock 1396 1
# NAME QTY
01
Holder 1
02
Encoder EC16 1
03
Encoder holder 1
04
Encoder sleeve 1
05
Steering wheel base 1
06
Nylon sleeve 1
07
Bearing 2
08
Shaft 1
09
Steering wheel 1
02
01
07
06
05
0403
02
01
09
08
07
06
05
04
03
02
01

17
十一、 配线图
Y/G2-1
Br2-1
B2-1
Y/G2-1 Br2-1 B2-1
O11-O19
R2
Bla9-Bla15
R2
R1
Bla15
O19
Bla14
Bla13
Bla12
O18
O17
O16
O15
Bla11
O14
O13
Bla10
O12
O11
Bla9
B2
G3
Pu/W2
Grey/W3
W/Bla2
W/Bla1
Grey/W2
Pu/W1
Y2
Br2
Y2
Br2
W/Bla1
Grey/W2
Pu/W1
B2
G3
Bla1-Bla8
O1- O10
O8
Bla4
O6
Bla 3
O3
O2
Bla2
R1
Bla1
O1
Y1
G2
B1
W1
Pu1
R/W2
G/W2
B/W2
B/W 2
Grey1
Pu1
Y/G1
G1
G/Bla1
Br1
Grey/W1
B/W1
G/W1
PI/ W1
Y/W 1
R/W1
O/W1
Br/W1
喇叭
飞碟面板灯4
飞碟面板灯3
飞碟面板灯2
飞碟面板灯1
飞碟底灯4
飞碟底灯3
飞碟底灯2
飞碟底灯1
信号3
信号2
信号1
+12V
+12V
信号1
信号2
信号3
信号3
信号2
信号1
+12V
+12V
信号1
信号2
信号3
开始按键灯
+12V
GND
2
3
4
1
三色走灯板
G/W3
B/W3
顶灯 箱走灯 板1-5
R/W3
O/W3
B/W3
G/W3
G/W4
B/W4
O/W4
R/W4
B/W4
G/W4
R/W4
O/W4
2
1
R/W3
1
4
2
3
O/W3 飞碟外圈走灯条
信号转换接口板
主机板连网接口
主机板电源接口
电源输入
漏电保护开关
E
220V
220V
5V
GND
12V
电源盒
底座外星人后侧灯条
底座外星人右侧灯条
底座外星人左侧灯条
+12V
GND
2
3
4
1
三色走灯板
R/W5
O/W5
B/W5
G/W5
B/W5
G/W5
R/W5
O/W5
2
1
1
4
2
3
底座外星人两侧小灯板1-2
底座外星人头顶灯
底座外星人眼睛2
空
空
底座外星人眼睛1
信号8
信号2
信号3
尾灯2
信号4
6
5
7
4
3
8
7
6
5
4
3
2
1
9
空
信号5
信号6
信号1 前侧灯1
尾灯1
1
2
CN1
9
8
CN3
走灯信号放大板
2
1
12V GND
空
空脚
信号7
CN5
空
空
旋转电机
升降电 机
SSR
M
M
SSR
旋转电机复位电眼
升降电机复位电眼
1
2
3
电眼
电眼
3
2
1
旋转电机复位电眼
空
空
空
空
空
空
空
空
空
空
空
5V
GND
12V
GND
12V
空
空
空
空
空
空
空
空
空
流水灯3
流水灯2
流水 灯1
空
空
空
空
空
空
1
4
2
3
7
6
8
5
9
CN8
1
2
3
9
8
7
6
5
4
3
2
1
空脚
旋转电机
空
升降电机
CN11 CN9
CN13
CN14
9
8
7
6
5
4
CN4
9
5
8
6
7
3
2
4
1
升降电机复位电眼
空脚
5
4
3
2
1
座椅后装饰灯1-4
飞碟面板圆形灯1- 5
飞碟窗口灯、炮口灯
飞碟面板灯4
飞碟面板灯3
飞碟面板灯2
飞碟底灯4
飞碟底灯3
飞碟底灯2
飞碟面板灯1
O4
信号8
G/Bla1
Grey1
Grey/W1
B/W1
G/W1
PI/W1
Y/W 1
R/W1
O/W1
Pu1
Y/G1
G1
Br1
Bla2-2R/Bla2-2
Br/W1
Bla8
O10
H 8
+12V
E
F
G7
6
5
+12V
+5V
GND
B
C
D
A 1
4
3
2
GND
+5V
J
I 9
10
连接 主机板 VGA端口
液晶显示器
VGA接头
A DCB E
H IGF
1
2
电源盒
220V
220V
12V
GND E
5V
Bla6 开始按键开关
开始灯
走灯4
走灯3
走灯2
免费按键
方向盘位2
Bla7
O9
Bla5
投币码表
R/Bla2-1 Bla2-1
1A
2B
方向盘位1
设定开关
5
3
4
6
12
7
10
9
8
11
13
16
15
14 N
O
P
M
K
H
I
J
G
L
F
D
C
E主机板接口
开始按键
改值开关
18
17 Q
R
19
21
20 T
U
S
E1
B1
C1
D1
A1
F1
G1
J1
I1
H1
24
22
23
30
25
28
27
26
29
36
31
34
33
32
35
Z
Y
W
V
X
投币码表
信号2
信号3
信号4
6
5
7
4
3
8
7
6
5
4
3
2
19
信号5
信号6
信号1 1
2
CN1
9
8
CN3
走灯信号放大板
2 112V
GND
空
方向盘位开关2
方向盘位开关1
290378
SELECT
SERVE
SW1
TEST
ENTER
设置板
8
6
7
1
4
3
2
5
投币器
3
2
1
4
投币 开关
走灯1
选择开关
飞碟底灯1
空
信号7
CN5
G/W 2
R/W 2
Pu1
W1
B1
G2
Y1
O5
O7

18
