Tecway Kid racing User manual

Before using the machine, please read carefully this
Instruction.
Warning

Kid Racing Instruction
1
Content
Content ...........................................................................................................1
一、Machine specifications and technical parameters.....................................2
二、Spare parts with machine list ....................................................................3
三、Instructions of moving,transportation and placement................................4
3-1 Moving method....................................................................................4
3-2 Fixed machine method ........................................................................ 5
3-3 DO not use the machine in this place..................................................5
3-4 Placement place..................................................................................5
3-5 Placement range and size ...................................................................6
3-6 Pay attention before turn on the machine............................................6
四、Wiring and the attention item .................................................................7-8
五、set up and maintain .............................................................................9-10
六、Fault analysis and solution......................................................................12
七、Game Instruction ....................................................................................12
7-1 How to play........................................................................................12

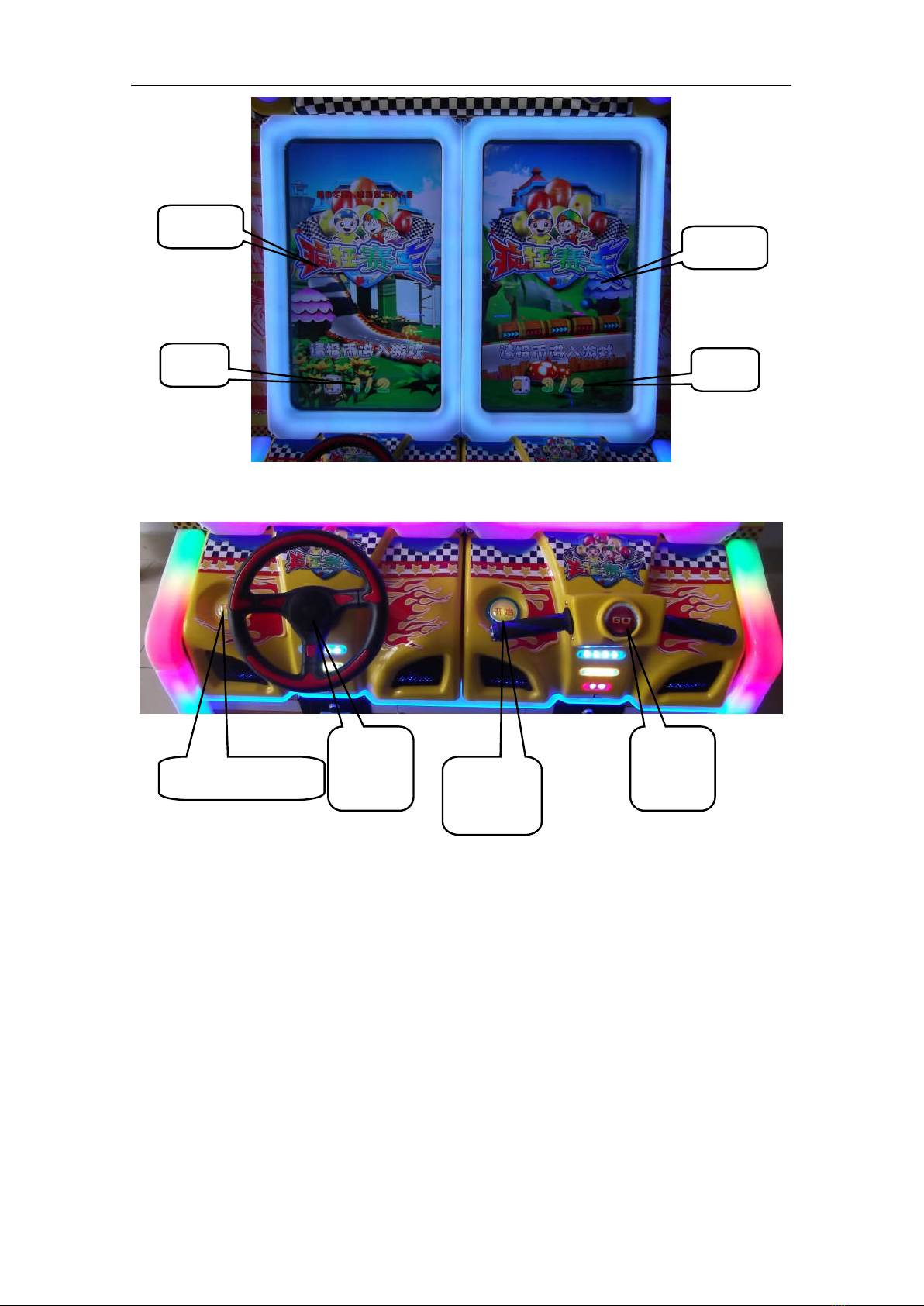

7-2 Operation interface ..........................................................................12
7-3 Control signal and Instruction ............................................................13
7-4 Use and maintenance instructions.....................................................14
八、Detail of spare parts ..................................................................................17
8-1Instruction part...............................................................................17-16
8-2 Inset coin spare parts ........................................................................17
8-3 Ticket Dispenser Instruction ..............................................................18
8-4 Speaker parts ....................................................................................19
8-5 Insurance tube and power module ....................................................19
8-6 Electrical installation component .......................................................20
8-7 Art section.....................................................................................23-22
8-8 Electronic parts.............................................................................23-26
九、IO table.................................................................................................... 25

Kid Racing Instruction
2
一、Machine specifications and
technical parameters
1) Working voltage： 220V or 110V
(note：Actual voltage please check the machine plate)
2) consumed power：mix 150～max 300W

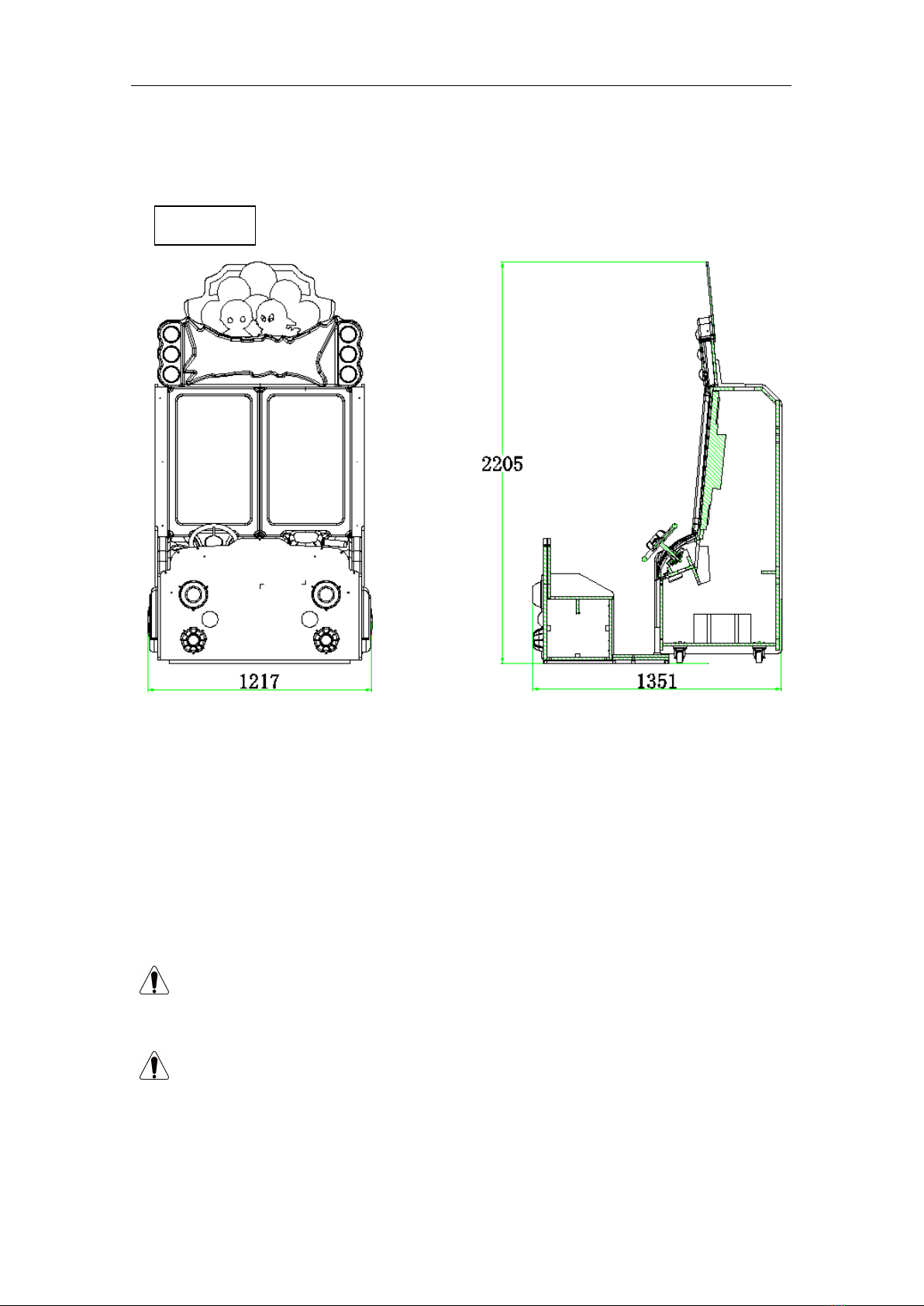

3) Out look size：L1217×W1351×H2205（mm）
4) Weight ：almost 140.9 kg
5) Environmental conditions：Temperature(indoor): -10℃～+40℃；
Humidity：≤90%； Pressure ：86Pa～106Pa
Warning：After turn off the machine, turn on the machine after 1 min
please.
Warning：Our product keep on improving, the content maybe will update
but will not notice, please understand.
Warning：Picture in this book if have any different, Please take the machine
tool as the standard.
Unit：mm

Kid Racing Instruction
3
二、Spare parts list with machine
For you to use this machine, please open the packing box, carefully check the
following items are complete.
Parts list is as follows：
NO. Name specifications/
material
Quanti
ty Unit picture remarks
1 Instruction A4 1 本
As customer
request
AH57 1 个
Ticket
dispenser
door, coin
box door,
maintain
door
2 Key
AH78 1 个
Coin box
door
3 Insurance
tube 6.3A 1 个
4 Wiring 1.8M 1 条
As customer
request
5 Button
switch SENSOR 1 件 Start button switch
6 Wheel
sensor 1 个
Left and
right button
switch
Before open the package to check all the accessories are to the Qi, if there is a
lack of contact with the dealer to check.
Remark：Our product keep on improving, the content maybe will update
but will not notice, please understand.
Note: 1 this machine all wearing parts such as man-made damage is no longer
guarantee period of the warranty!
2. The specified warranty parts date: the machine all motor warranty for six
months. Coin / ticket machine warranty for 3 months. Machine display self
disassembly and maintenance have no warranty!

Kid Racing Instruction
4
三、Instructions of moving, ransportation and
placement

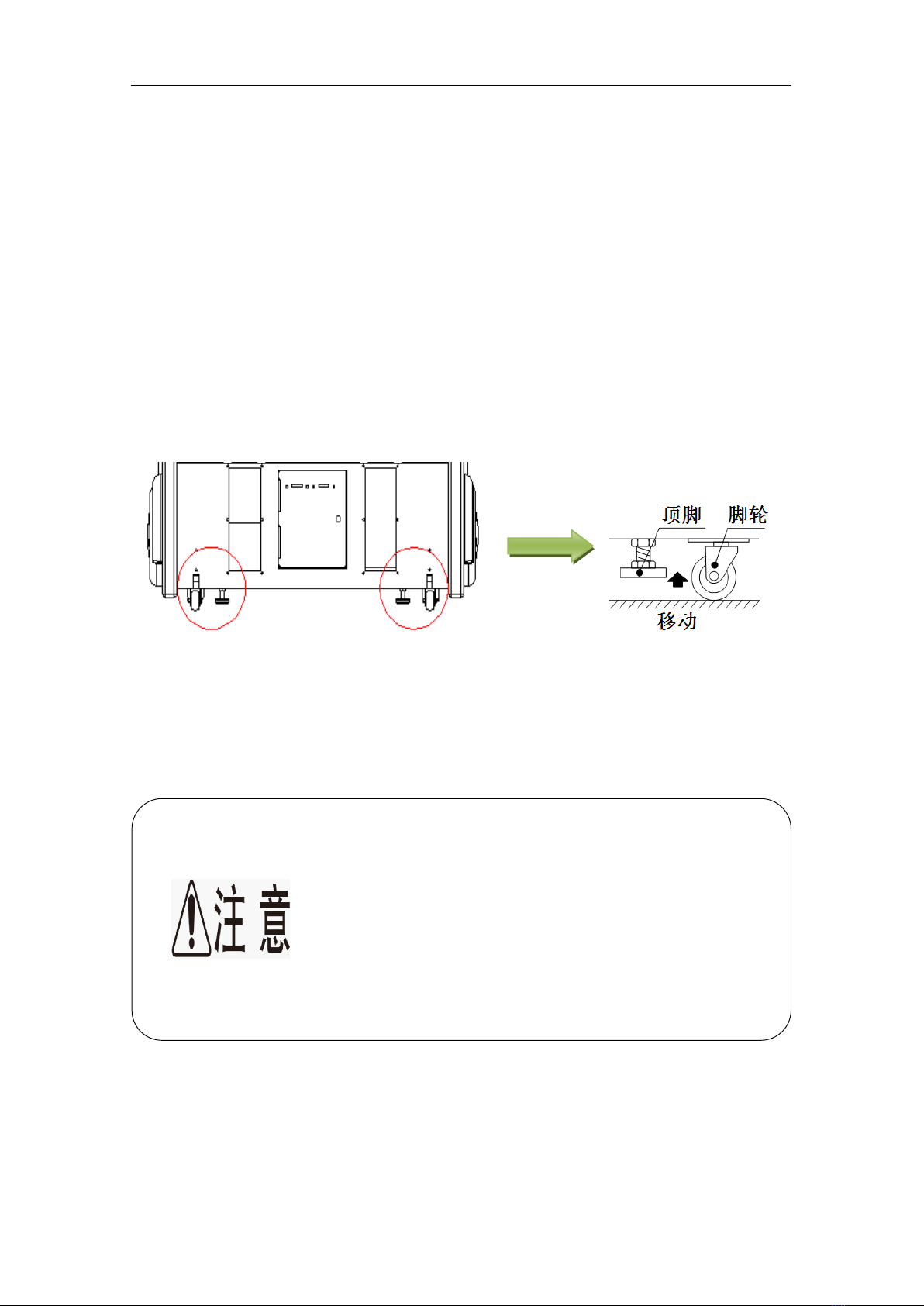

3-1 Moving method
Below the machine equipped with casters, short distance moving machine,
adjust the anchor seat increased for casters contact ground to promote the
machine can be. Foot against a ground fault code objects have overturned the
risk, so along the ground to promote, anchor the maximum upward, and pay
attention to the forward road in the direction of the obstacle and the level of
inequality in place.
The machine moves in close to the anchor seat adjustment to increase
contact to the ground machine can promote the casters.
In the moving machine, after a non smooth or a step position, in order to
ensure the safety of the need to have 4 or more people to move the machine.
Please unplug the power plug, in case of accident and
adult.
Please pay attention not to damage the power cord, to
prevent accidents and accidents.
Please send the maximum anchor to increase and then
move to, to prevent accidents and faults

Kid Racing Instruction
5
3-2 Fixed machine method
 please put in the flat and not easy to slide on the ground;
 Please use the following anchor machine - fixed the machine (as shown
below)
① The lock nut with the wrench loosen anchor, anchor bolt, let casters
from the ground about 5mm.
② It will lock the nut clockwise to tighten, fixed good.
3-3 DO not use the machine in this place
 The machine will produce condensate water or humidity where
condensation;
 A place near hot objects;
 A place be close to the place of dangerous goods;
 A smooth or uneven in places;
 In the place near vicinity of the equipment is easy to produce sparks;；
 The place where the vibration is severe;
 In the dusty environment.
3-4 Placement place
Warning: This machine is suitable for indoor use, not suitable
for outdoor use.
Warning: do not uses forklift truck to move the machine, this

Kid Racing Instruction
6
behavior may cause the machine damage.

Kid Racing Instruction
7
◎ The installation machine do not change or replacement of parts, so as not
to cause fire or short circuit。
3-5 Placement range and size
The machine should be placed in the following dimensions; there is enough
space for the operation of the machine, and to ensure customer safety.
Note: the machine can not be placed in an inclined position, placed in
an inclined position prone to accidents.
Note: the division of the game area to the identification of the machine
labeling.
3-6
Pay attention before turn on the machine
Check power supply voltage. To ensure that the electrical parameters of
the machine are consistent with the requirements of the machine.
Otherwise it may cause fire or burn out the machine.
Too many connection wires in the same socket connection port, may
cause overheating triggered by fire.
Warning

Kid Racing Instruction
8
四、Wiring and the attention item
 The end of the wire box machine access wiring to power line, the power
line plugs the other end socket.
 Please access the power according to the voltage - machine identification.
Otherwise it may cause damage to the machine.
 In order to avoid making unnecessary damage, please make sure the
socket have a grounding function.
 If can not through the socket to realize the ground, please through other
ways to perform grounding.。
Warning：This machine’s working voltage is 220V, please access the
power according to the voltage of the machine identification, otherwise it may
cause damage to the machine.
电源插头
电源插座
电源线
电源插头
电源线盒

Kid Racing Instruction
9
Warning：
 The power line is not heavy down, this will damage the wires easily lead to
short-circuit, may lead to serious fires.
 While the power line from the socket, should grasp and pull the plug, not
catch wire pulled out.
 Do not directly pull the plug with wet hands.
 Do not hard, the tensile distortion of power line, the power line can not be
exposed near the high temperature object.
 The power line can not easily be kicked or contact.
 Use the correct voltage and fuse (technical parameter).

Kid Racing Instruction
10
五、set up and maintain
Installation and commissioning
 Before the installation is, please click the list of approved parts,
components assembly;
 The use of the site must be smooth and solid, when in place to adjust the
machine to the ground level of the fixed seat;
 After installed in power line boot, examine every part of the machine
operation is normal, such as the discovery of abnormal phenomenon, to
stop in time to remove obstacles.
Appearance check
 In order to ensure the safety of the machine, please check the following
points before starting the machine:
 The "warning signs" are clearly visible, flawless and perfect, paste the
location correctly.
 The parameters of power supply are connected with the same machine.
 The machine parts screw is loose; the steering wheel assembly is loose.
 To check the connector is loose, the terminal is off.
 The machine place is stable, and the adjustment of the top foot casters is
appropriate.
 The machine’s placed area is appropriate.
Run check
 The horn is normal pronunciation.
 The fluorescent lamp and the key light is bright.
 The image is clear and normal.
care and maintenance
 Every day in front of the business, should try machine moved often rear
can use.
 The machine have dirt dust, with a soft cotton cloth painted cleaner to wipe
clean;
 The new machine is running after a month shall be checked once every
parts is normal;
 To regularly check the machine.
Clean
 The machine shell
Cleaning machine stains on the surface, use a clean soft cloth.
 The display screen
Use clean, soft, and clean the screen with a moisture of the cotton cloth,

Kid Racing Instruction
11
and not let anything that make it acidic and stick to the touch screen.
 The exhaust fan
Exhaust fan is the main tool of internal cooling machine is one of the must
exhaust fan clean normal operation, to maintain the smooth flow of air
outlet.
Warning：
 Must turn off the power on the machine for maintenance
and repair.。
In order to avoid the short circuit, the relevant personnel in the internal
device of the machine in front of the power supply, if this operation requires
the power to connect, need to comply with the requirements of the
operation manual.
 Replacing the device to determine the selection of
appropriate accessories.
use of incorrect parts may cause electrical shorts, damage to the
motherboard and components.
 Do not disassemble, assemble, change equipment.
This may cause electrical shorts, mechanical failure, etc., may lead to fire.

Do not in the machine above placed containing water,
flower vases, drinking cups, containers, etc., also do not in
the machine above placed chemicals and heavy.
The overflow of the liquid will lead to electrical short circuit damage to the
device, while the upper fall will damage the human body and the
destruction of the machine.
 The items can not place in the machine exhaust inlet.
The exhaust port is blocked when the internal temperature of the machine
will lead to increased, influence the normal game, even damage the
devices.
 Can't be free to repair the machine.
This may cause a short circuit or operation out of control, etc.

Kid Racing Instruction
12
六、Fault analysis and solution
Failure
phenomenon
Possible failure reasons Fault countermeasure
No way to pay
coin
The coin is not adjusted.
The slot card is counterfeit.
The adjustment of the coin, token
tolerance trimmer.
Remove the counterfeit card.
No ticket out
No input 12V voltage.
The lottery machine driving signal or
the signal line loose ticket cancellation.
The lottery ticket is not down on the
lottery wheel pressure.
The failure of the main board of the
computer driver or the ticket of the
ticket.
Host board is not designed for the
lottery.
Check the output voltage of the power
supply box and line.
Voltage change and line of check drive
consumer ticket signal.
Put down the pressure round of the
lottery ticket, press.
Replacing main board.
No sound
The volume is too small.
Sound output signal line.
Horn fault.
Sound power amplifier fault.
Circuit board fault.
The audio connection is loose or
damaged.
If the speaker is on.
High volume.
Connect line.
Replace horn.
Replacing main board.
Replacement circuit.
Re connect the audio connection.
Switch on the speaker switch.
No action
No power input to the machine.
Power switch is not turned on.
The power fuse burn out.
Power supply box without voltage
output.
Power supply voltage of main board.
Motherboard failure.
Open the power switch and plug in the
power cord.
Turn on the power switch.
Circuit short circuit and replace the
new fuse.
Replace power box.
Connect power supply connection.
Replacing main board.
No show
The monitor power is broken. Detect power supply line or replace
power line.

Kid Racing Instruction
13
Display settings are incorrect.
Adjust the RGB color in the OSD menu
or choose color.
Select the AUTOSET key to adjust the
color of the display.
The display
has a color
difference
The visual angle of the display is a
deviation.
Adjust display position.
Display resolution settings are not
correct.
Adjust display resolution settings.
Can adjust the display menu settings
to reduce the situation.
Into the OSD menu in the mole grain
(water ripples) to adjust.
Monitor power line aging. Changing display power supply line.
Display image
or ripple
pattern
Monitor refresh rate settings are not
correct.
Adjust refresh rate settings.
七、Game Instruction
7-
1 How to play
1 corresponding input tokens, press the start button.
2 children can choose single or double game. Then drove the car to
complete all kinds of trigger events.
3 in the game's time. The smaller the number of friends, the more
the number of votes!
4 to two people together with the game coin.
7-2
Operation interface

Kid Racing Instruction
14
7-3 Control signals and instructions
1 check the attached table and IO diagram, the
motherboard can input plane machine, the output
corresponding to the connection position.
2.DIP adjust the reference IO table, capital letters for the
factory settings, the user can adjust according to the
operating conditions.
Steering
wheel
Steering
wheel
screen
screen
Start button
Start
button
coin
coin

Kid Racing Instruction
15
3 motherboard schematic diagram:
The above instructions are subject to change without notice,
please forgive me！
Reset button
test
service

Kid Racing Instruction
16
7-4 Use and maintenance instructions
1 to maintain and repair the machine must turn off the power
supply.
In order to avoid short circuit, the relevant personnel in the internal
device in contact with the device before the power off,
If this operation requires the power to be connected, the operating
instructions are required.
2 when the replacement device to determine the appropriate
accessories.
The use of incorrect parts may cause electrical shorts, damage to
the motherboard and components.
3 do not disassemble, assemble, change equipment.
This may cause electrical shorts, mechanical failure, etc., may lead
to fire.
4 do not put on the machine with a water vase, cups, containers,
etc., also do not put chemicals and heavy objects on the machine.
The overflow of the liquid will lead to electrical short circuit damage
to the device, while the upper fall will damage the human body and
the destruction of the machine.
5 in the machine exhaust inlet do not place objects.
The exhaust port is blocked when the internal temperature of the
machine will lead to increased, influence the normal game, even
damage the devices.
6 non maintenance personnel can not be free to repair the
machine.
This may cause a short circuit or operation out of control, etc..

Kid Racing Instruction
17
八、Detail of spare parts
8-1 Instruction part

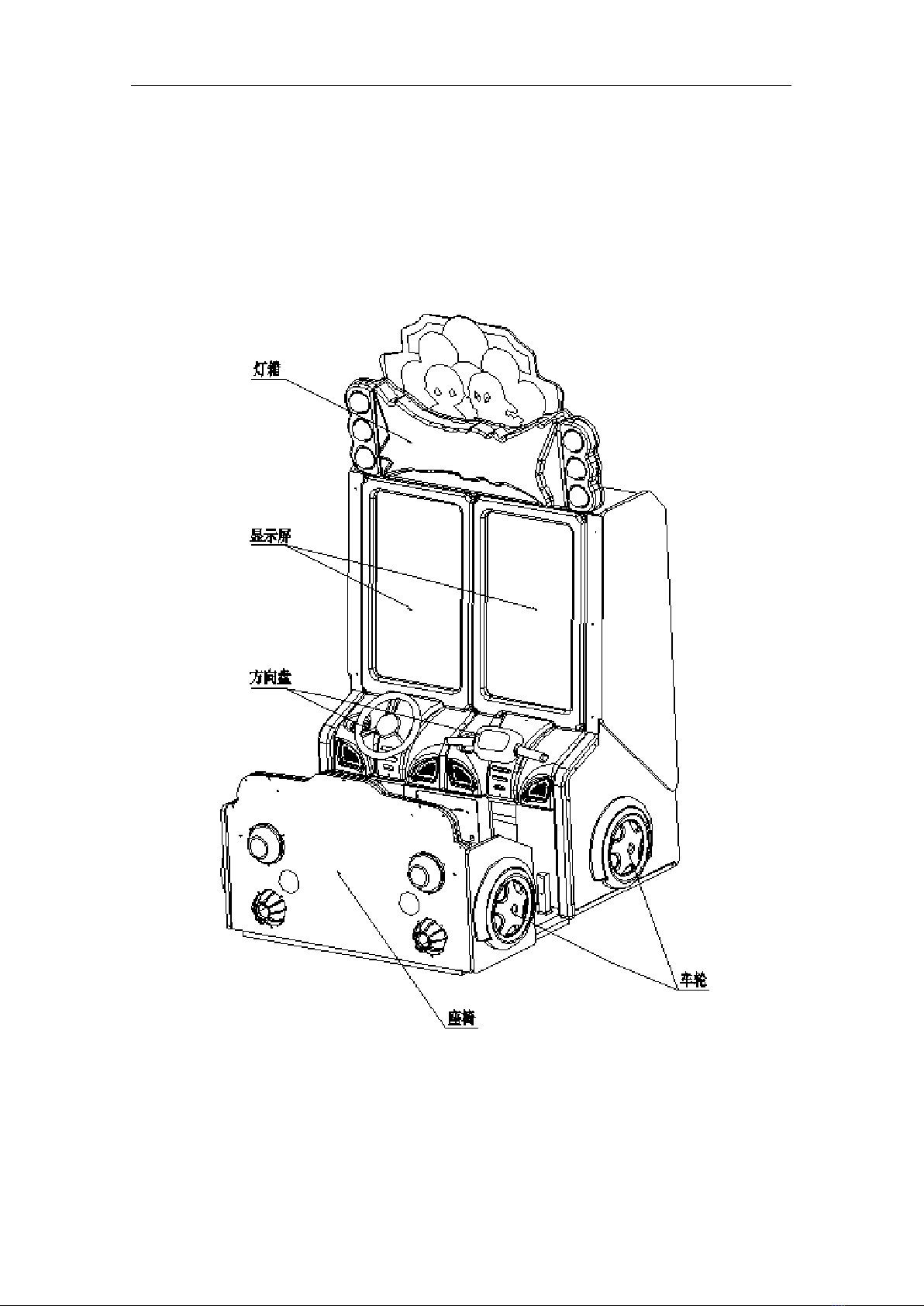

Total setting

Kid Racing Instruction
18

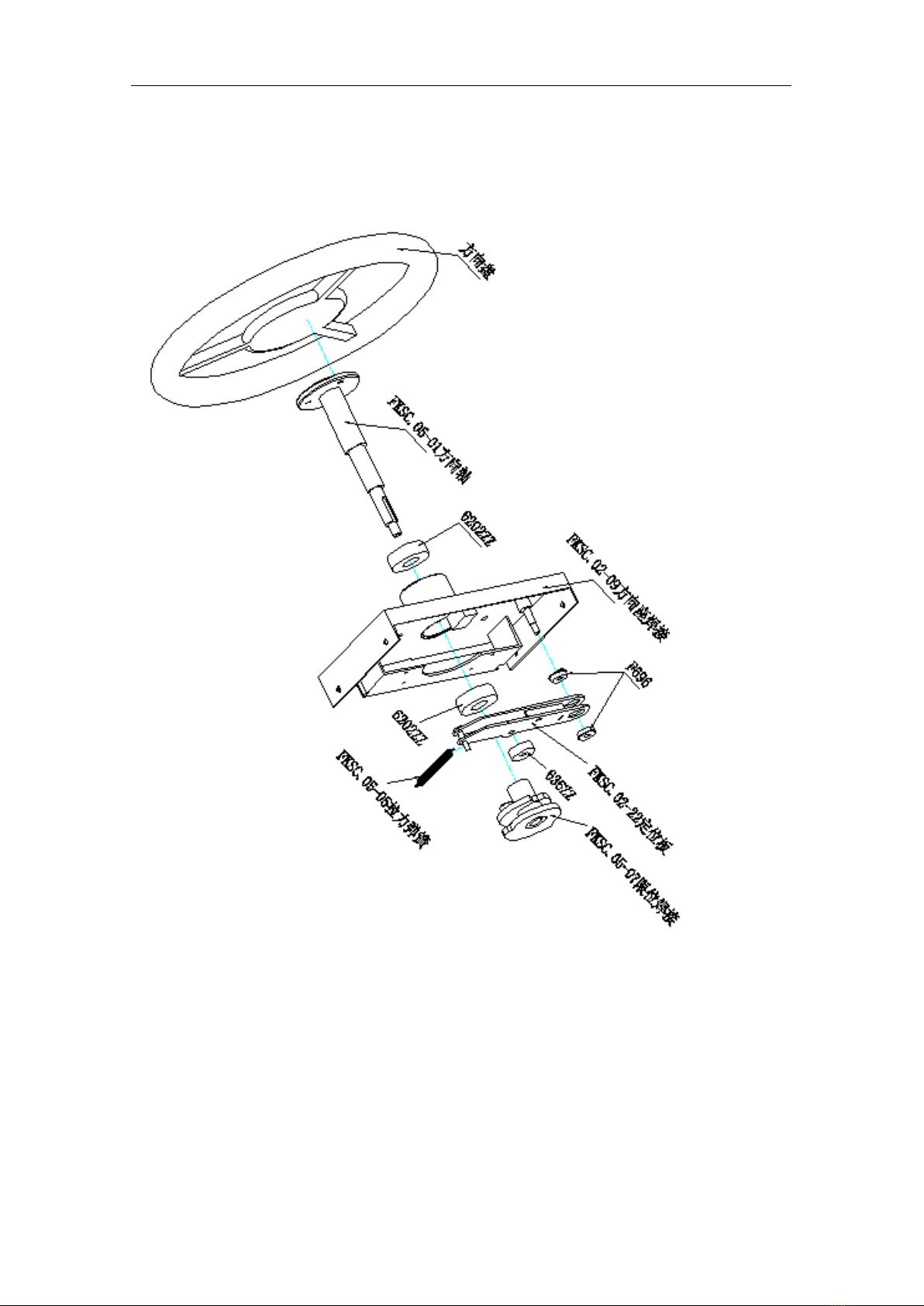

Steering wheel spare parts:

Kid Racing Instruction
19
8-2 Inset coin spare parts
No Name Specifications and materials quantity
1 Coin accept Side cast electronic type
LK100M 2
2 Coin door Iron 2
3 Coin box Iron 2
4 AH78 lock 78 short lock 2
5 AH57 lock 57 long lock 2
6 Ticket dispenser LK003C Ver2.42 2
7 Counter frame Black 1
8 Sound regulator Black 1
9 Fix button Little button(red) 1
10 Six bit counter C-012 2
1
2
4
6
5
3
7
8
9
10
