Teledyne CombiFlash Companion XL User manual

i
CombiFlash®Companion®XL
Installation Guide
Indoor Use Only
COPYRIGHT © 2002 by
Teledyne Isco, Inc.
4700 Superior Street
Lincoln, Nebraska, U.S.A. 68504
Phone: [phone]
Toll Free: [phone]
FAX: [phone]
Released: January 5, 2005
Revision H, April 28, 2009
Part #69-5243-040

CombiFlash® Companion® XL Installation Guide
ii

iii
Read Chapter 1 for safety
and general instructions.
Install the Companion XL.
See Chapter 2
Choose a
connection type:
Windows 98
Computer
See Chapter 3
Windows NT
Computer
See Chapter 4
Windows 2000
Computer
See Chapter 5
Windows XP
Computer
See Chapter 6

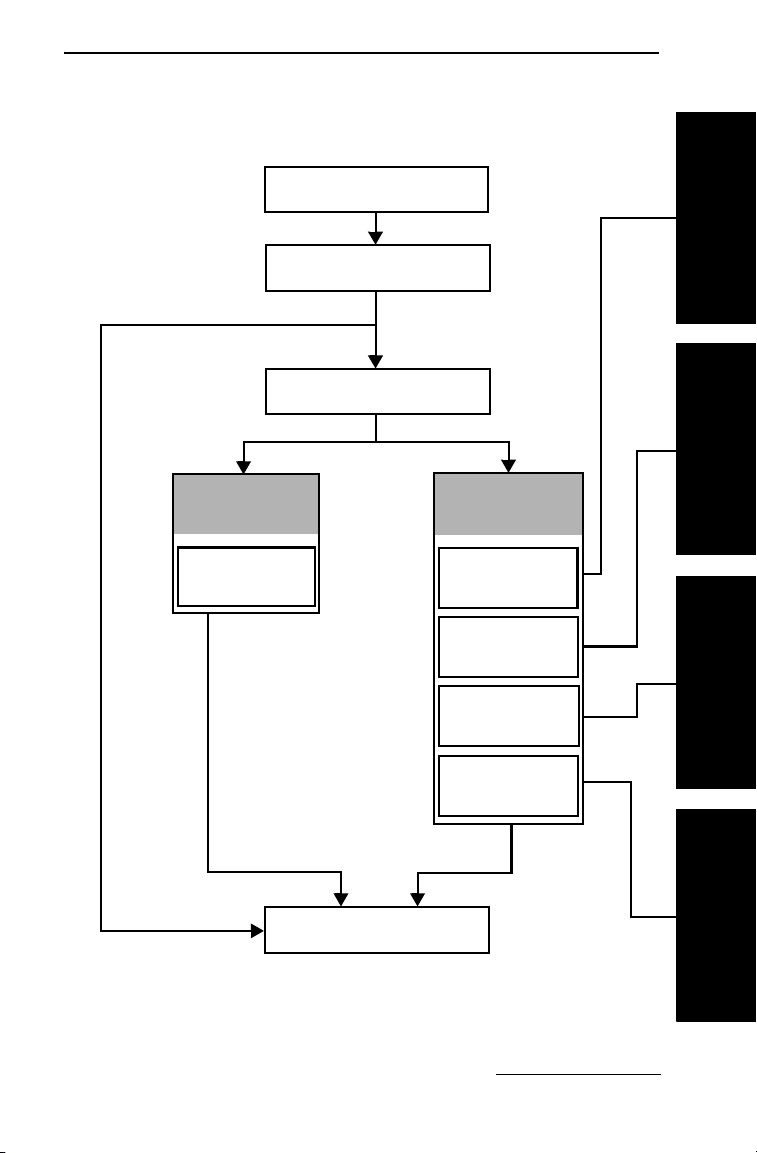

Installation Flowchart
Operate the Companion XL.
See Chapter 8
Windows 98Windows NTWindows 2000Windows XP
Direct Connection
to a Computer
See Chapter 7
Network
Connection via
Ethernet Port
Optional touch-panel display

CombiFlash® Companion® XL Installation Guide
iv

v
CombiFlash®Companion®XL
Installation Guide
Table of Contents
1. Introduction
1.1 Documentation Overview . . . . . . . . . . . . . . . . . . . . . .1-1
1.2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.3 Operating Overview . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
1.3.1 Control Priorities . . . . . . . . . . . . . . . . . . . . . . .1-4
1.3.2 File Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
1.4 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
1.5 Controls, Indicators, and Features . . . . . . . . . . . . . .1-6
1.6 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1.6.1 Hazard Severity Levels . . . . . . . . . . . . . . . . .1-10
1.6.2 Hazard Symbols . . . . . . . . . . . . . . . . . . . . . . .1-11
1.7 For Additional Information . . . . . . . . . . . . . . . . . . . 1-12
2. Installation
2.1 Unpacking the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.2 Assemble the Foxy 200 . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.3 Instrument Location . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.4 Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . .2-3
2.4.1 Foxy 200 Control Cable . . . . . . . . . . . . . . . . . . 2-3
2.4.2 Connect Power . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2.5 Connect Solvent Tubing . . . . . . . . . . . . . . . . . . . . . . . 2-3
2.6 Connect Drain Tubing . . . . . . . . . . . . . . . . . . . . . . . .2-4
3. Direct Connection with Windows 98
3.1 Windows 98 Computer Requirements . . . . . . . . . . . . 3-1
3.2 Establishing a Direct Connection . . . . . . . . . . . . . . . 3-1
3.2.1 Configure the Computer’s Local Area
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2.2 Configure the Computer’s Internet Browser
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
3.2.3 Start Direct Communications . . . . . . . . . . . . . 3-5
Direct Connections – Windows Computer

CombiFlash®Companion®XL Installation Guide
vi
4. Direct Connection with Windows NT4
4.1 Windows NT4 Computer Requirements . . . . . . . . . 4-1
4.2 Establishing a Direct Connection . . . . . . . . . . . . . . 4-1
4.2.1 Configure the Computer’s Local Area
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.2.2 Configure the Computer’s Internet Browser
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.2.3 Start Direct Communications . . . . . . . . . . . . 4-5
5. Direct Connection with Windows 2000
5.1 Windows 2000 Computer Requirements . . . . . . . . . 5-1
5.2 Establishing a Direct Connection . . . . . . . . . . . . . . 5-1
5.2.1 Configure the Computer’s Local Area
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.2.2 Configure the Computer’s Internet Browser
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
5.2.3 Start Direct Communications . . . . . . . . . . . . 5-5
6. Direct Connection with Windows XP
6.1 Windows XP Computer Requirements . . . . . . . . . . 6-1
6.2 Establishing a Direct Connection . . . . . . . . . . . . . . 6-1
6.2.1 Configure the Computer’s Local Area
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6.2.2 Configure the Computer’s Internet Browser
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
6.2.3 Start Direct Communications . . . . . . . . . . . . 6-5
7. Networking
7.1 Establish a Direct Connection . . . . . . . . . . . . . . . . . 7-1
7.2 Configuring the Companion XL for Networking . . . 7-1
7.2.1 Assign the Companion XL’s Network Address 7-1
7.2.2 Install Network Cable . . . . . . . . . . . . . . . . . . . 7-3
7.2.3 Establish Communications through the Local
Area Network . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Network Connections

Table of Contents
vii
8. Operation
8.1 Installing a Collection Rack . . . . . . . . . . . . . . . . . . . . 8-1
8.2 Prime the Solvent Lines . . . . . . . . . . . . . . . . . . . . . . . 8-2
8.3 Loading a RediSep Column . . . . . . . . . . . . . . . . . . . . 8-3
8.4 Prepare the Sample . . . . . . . . . . . . . . . . . . . . . . . . . .8-6
8.4.1 Liquid Sample Injection . . . . . . . . . . . . . . . . . . 8-6
8.4.2 Solid Sample Cartridges . . . . . . . . . . . . . . . .8-10
8.4.3 Direct Loading a Sample . . . . . . . . . . . . . . . .8-12
8.5 Start a Default Method . . . . . . . . . . . . . . . . . . . . . .8-12
8.6 Operation During the Purification Run . . . . . . . . .8-13
9. Maintenance
9.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
9.2 Tubing Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
9.3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
9.3.1 Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
9.3.2 Inaccessible fuses . . . . . . . . . . . . . . . . . . . . . . .9-2
9.3.3 Internal Battery . . . . . . . . . . . . . . . . . . . . . . . .9-2
9.4 Flow Cell Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
9.4.1 Quick Flow Cell Cleaning . . . . . . . . . . . . . . . . 9-3
9.4.2 Thorough Flow Cell Cleaning . . . . . . . . . . . . .9-3
9.4.3 Alternative Cleaning Techniques . . . . . . . . . . 9-5
Operation and Maintenance

CombiFlash®Companion®XL Installation Guide
viii

1-1
CombiFlash®Companion®XL
Installation Guide
Section 1 Introduction
1.1 Documentation Overview
This installation guide provides:
• Safety information
• Unpacking instructions
• Installation instructions, including —
• Direct connection to a computer
• Placing the Companion XL on a network
The installation procedure will vary according to the
intended instrument control method. To determine which
steps are required, refer to the Installation Flowchart on
page iii of this guide.
Once you have connected to the Companion XL, you may refer
to PeakTrak’s on-line help for operating instructions.
The documentation CD that accompanies the Companion XL
contains this guide and the Foxy 200 Instruction Manual in
Adobe Acrobat PDF format, and the PeakTrak®On-line Help.

CombiFlash®Companion®XL Installation Guide
1-2
1.2 Product Overview
The Teledyne Isco CombiFlash®Companion®XL flash
chromatography system gives you high-productivity
automation, programmable gradients, and full-spectrum UV
detection and peak separation. The Companion XL is a high
capacity system that purifies samples up to 150 grams. Yet, its
small size makes the system well suited for operation in
chemical hoods.
Important
Indoor use only.
WARNING
Avoid hazardous practices! If you use this instrument in any
way not specified in this manual, the protection provided by
the instrument may be impaired; this may increase your risk
of injury.
Control of the Companion XL is through a simple to use
interface. This interface can be accessed through a Windows
computer directly connected to the instrument, or through a
standard computer network. The Companion XL can also be
configured with an optional touch-panel display. In all, you
have the flexibility to program, operate, and monitor the
Companion XL at the instrument, from a computer in the lab,
or from remote locations.
The Companion XL uses Teledyne Isco RediSep®columns.
Compatible sizes range from 120 to 1500 grams, which can
accept sample sizes from 0.1 to 150 grams.
Applications include purification of organic compounds for
drug discovery, as well as research in agrochemicals,
petrochemicals, natural products, polymers, and catalysts.

Section 1 Introduction
1-3
Figure 1-1 CombiFlash Companion XL with Foxy 200 Fraction
Collector (shown with optional touch-panel display)

CombiFlash®Companion®XL Installation Guide
1-4
1.3 Operating Overview
The Companion XL may be controlled by a Windows®
computer or by the optional touch-panel display. The
Companion XL may be connected to the computer in two
different ways, direct or network.
Computers running Windows operating system may be
directly connected to the Companion XL using a cross-over
cable between Ethernet ports. Computers running Windows
operating system may also connect to the Companion XL
through a network using TCP/IP protocol.
Note
Teledyne Isco recommends that you obtain assistance from your
IT department before attempting direct or network connections to
a Windows computer.
1.3.1 Control Priorities
The Companion XL supports multiple connections. However,
only one computer connection may control the instrument. If
you are using the optional touch-screen display, it always
controls the Companion XL, regardless of the other
connections. With network operation, the first connection to
the Companion XL becomes the controlling device. The second
user logged in will only be able to view the operation.
1.3.2 File Storage
To support operation from a variety of direct and network
connections, the software and all support files are stored
within the Companion XL. This ensures that your separation
or purification methods and run history files can be viewed
from any connection.
A login password prevents unauthorized access to the
Companion XL from remote connections.

Section 1 Introduction
1-5
1.4 Specifications
Table 1-1 Specificationsa,b
a. All specifications are preliminary and subject to change.
b. Specifications do not include the fraction collector. For these
specifications, refer to the Foxy 200 Instruction Manual on the
documentation CD.
Dimensions Height: 64 cm (25")
Width: 37 cm (14.5")
Depth: 40 cm (15.75")
Weight 23.5 kg (51.7 lbs)
Power Options Input voltage range from 100 to 240 VAC, 2.0
Amps maximum
Line Frequency 50/60 Hz
Ambient Temperature 20 to 40°C (maximum temperature must be
at least 10°C below the boiling point of the
solvent)
Humidity (when
connected to power)
95% relative humidity maximum at 20 to
40°C
Flow Rate Range 50 to 450 ml/min
Flow Rate Accuracy ±5%
Pressure Limit 50 psi
Pressure Accuracy ±5 psi
Peak Detection Modes Slope or threshold
UV Spectrum 200 to 360 nm
Wavelength Accuracy ±5 nm
Flow Cell Pathlength 0.1 mm, ±25%
Tube Fill Accuracy ±[.6 +(1.3 ×flow rate) ÷60] ml
(for all tubes except bottles)
Pollution Degree 2
Electrical Safety per EN 61010-1
Installation Category II
Maximum Altitude 2000 meters

CombiFlash®Companion®XL Installation Guide
1-6

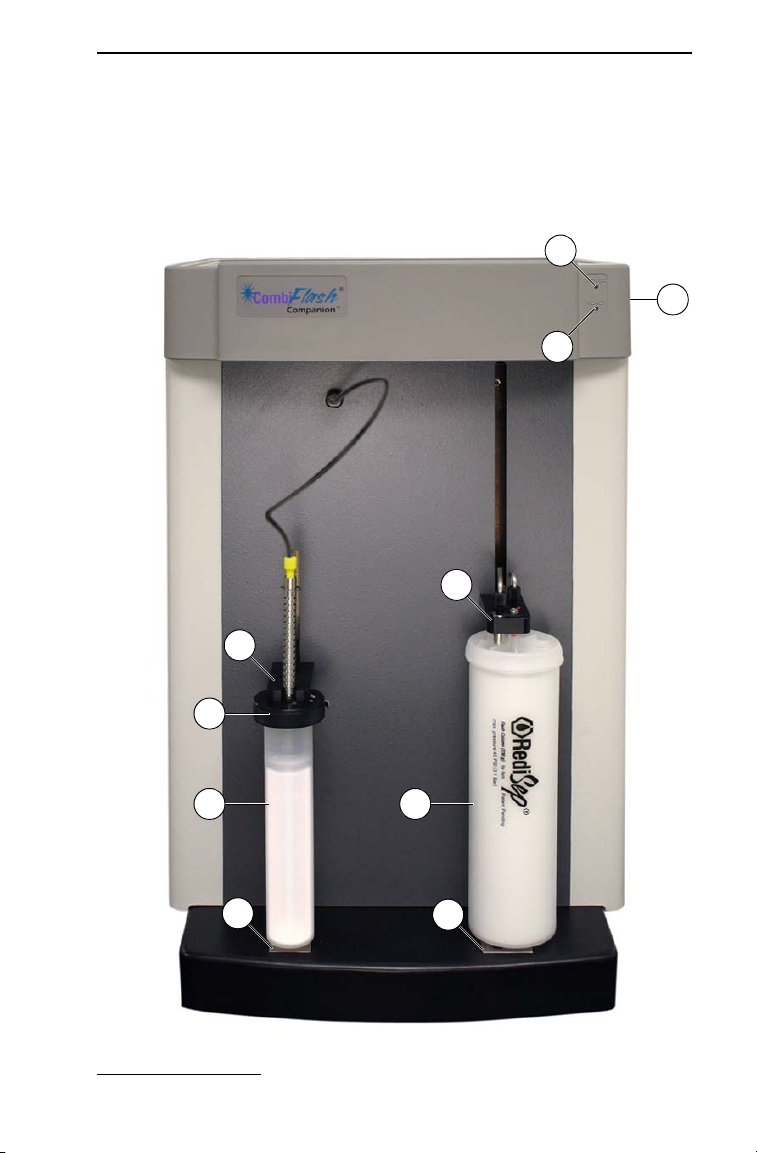

1.5 Controls, Indicators, and Features
Figures 1-2 and 1-3 illustrate the controls on the CombiFlash
Companion XL. Refer to the Foxy®200 instruction manual for
complete information on the fraction collector. This manual is
available in PDF format on the documentation CD.
Figure 1-2 CombiFlash Companion XL (Front)
1
2
1
3
69
7
85
4

Section 1 Introduction
1-7
1. Status LEDs – The POWER LED lights when power is
applied to the system. The READY LED illuminates after
the Companion XL completes its startup routine and is
ready for operation.
2. Disconnect Device (Power Switch) – Located on side of
unit. 1 = ON, 0 = OFF
3. Solid Sample Cartridge Retainer – Supports a solid
sample cartridge when installed. This spring-loaded
retainer raises so that the cartridge can be inserted, then
lowers to apply downward force on the Solid Sample
Cartridge Cap, holding it in place. The system monitors the
position of the retainer to determine if a cartridge is
installed.
4. Solid Sample Cartridge Cap – Connects to top of solid
sample cartridge. Three sizes are available to match the
size of cartridge. The system ships with the 25 and 70g
caps. The optional 300g cap and cartridges may be ordered
as accessories.
5. Solid Sample Cartridge – Holds solid samples. Three
sizes are available to match the size of cap (item 4).
6. Sample Injection port – Liquid samples are injected into
this port, typically with a syringe. Solid sample cartridges
connect to this port. When this port is included in the fluid
path under software control, the sample is routed to the
column.
7. Upper Column Mount – Secures top of RediSep column
and directs solvent into the column. The mount adjusts to
height of column. The position of this mount is read by the
Companion XL to determine the column size. There are
two sizes of fittings. The 120 and 330g columns use the
smaller fitting; 750 and 1500g columns use the larger
fitting.
8. RediSep Column – A 330g RediSep normal phase flash
chromatography column is shown. Different column sizes
and media are available for use on the Companion XL.
9. Lower Column Mount – Secures bottom of column.
Fluids from the column outlet flow through this port to the
internal optical detector. There are two sizes of holes. The
120 and 330g columns use the smaller hole; 750 and 1500g
columns use the larger hole.

CombiFlash®Companion®XL Installation Guide
1-8

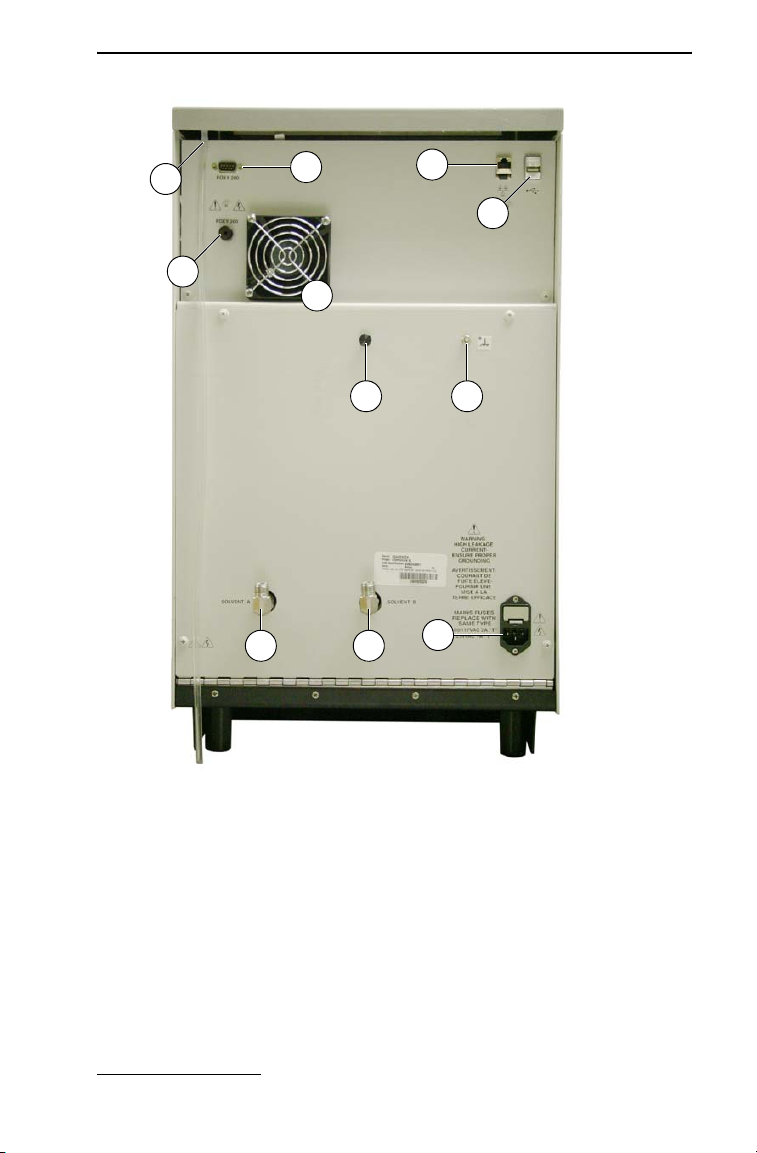

Figure 1-3 CombiFlash Companion XL (Back)
10.Top Shelf Drain – Spills on the top shelf are drained
through this tubing.
11.Foxy 200 Control Port – Serial port for connection to
Foxy 200 Fraction Collector.
12.Ethernet Port – 10/100-base T Ethernet connection. Used
for direct connection to a computer using the cross-over
cable, or for a network connection using a standard cable.
13.USB Port – unsupported at this time.
16
15
18
11
19
10
14
12
13
20
17

Section 1 Introduction
1-9
14.Foxy 200 Fluid Port – Routes fluid output to the fraction
collector.
15.Cooling Fan – Ventilates and cools the Companion XL.
16.Rear Panel Knob – Service personnel only. Used to open
the hinged rear panel to access internal components.
17.Ground – Optional equipment grounding post for
user-customized applications.
18.A Solvent Inlet – Receives the A solvent liquid.
19.B Solvent Inlet – Receives the B solvent liquid.
20.Mains Power – Connects to AC line voltage.
1.6 Safety
Before installing, operating, or maintaining this equipment, it
is imperative that all hazards and preventive measures are
fully understood. While specific hazards may vary according to
location and application, take heed in the following general
warnings:
WARNING
Liquids associated with this instrument may be classified as
carcinogenic, biohazard, flammable, or radioactive. Should
these liquids be used, it is highly recommended that this
application be accomplished in an isolated environment
designed for these types of materials in accordance with
federal, state, and local regulatory laws, and in compliance
with your company’s chemical/hygiene plan in the event of a
spill.
WARNING
Avoid hazardous practices! If you use this instrument in any
way not specified in this manual, the protection provided by
the instrument may be impaired.

CombiFlash®Companion®XL Installation Guide
1-10
WARNING
If you are using flammable solvents or chemicals with this
system, vapor concentration levels may exceed the maximum
exposure levels as recommended by OSHA Guide 1910.1000.
To reduce those levels to a safe exposure, Teledyne Isco
recommends that you place the system in a laboratory hood
designed for the purpose of ventilation. This hood should be
constructed and operated in accordance with federal, state,
and local regulations. In the event of a solvent or chemical spill,
your organization should have a plan to deal with these
mishaps. In all cases, use good laboratory practices and
standard safety procedures.
1.6.1 Hazard Severity Levels
This manual applies Hazard Severity Levels to the safety
alerts. These three levels are described in the sample alerts
below.
CAUTION
Cautions identify a potential hazard, which if not avoided, may
result in minor or moderate injury. This category can also warn you
of unsafe practices, or conditions that may cause property
damage.
WARNING
Warnings identify a potentially hazardous condition, which if
not avoided, could result in death or serious injury.
DANGER
DANGER – limited to the most extreme situations to identify
an imminent hazard, which if not avoided, will result in
death or serious injury.

Section 1 Introduction
1-11
1.6.2 Hazard Symbols
The equipment and this manual use symbols used to warn of
hazards. The symbols are explained in Table 1-2.
Table 1-2 Hazard Symbols
Warnings and Cautions
The exclamation point within the triangle is a warning
sign alerting you of important instructions in the
instrument’s technical reference manual.
The lightning flash and arrowhead within the triangle is a
warning sign alerting you of “dangerous voltage” inside
the product.
Symboles de sécurité
Ce symbole signale l’existence d’instructions
importantes relatives au produit dans ce manuel.
Ce symbole signale la présence d’un danger
d’électocution.
Warnungen und Vorsichtshinweise
Das Ausrufezeichen in Dreieck ist ein Warnzeichen, das
Sie darauf aufmerksam macht, daß wichtige
Anleitungen zu diesem Handbuch gehören.
Der gepfeilte Blitz im Dreieck ist ein Warnzeichen, das
Sei vor “gefährlichen Spannungen” im Inneren des
Produkts warnt.
Advertencias y Precauciones
Esta señal le advierte sobre la importancia de las
instrucciones del manual que acompañan a este
producto.
Esta señal alerta sobre la presencia de alto voltaje en el
interior del producto.

CombiFlash®Companion®XL Installation Guide
1-12
1.7 For Additional Information
Technical assistance for the CombiFlash Companion XL can
be obtained from:
Teledyne Isco, Inc.
4700 Superior St.
Lincoln NE 68504
Phone: [phone] or [phone]
Fax: [phone]
E-mail: [email protected]
